Description

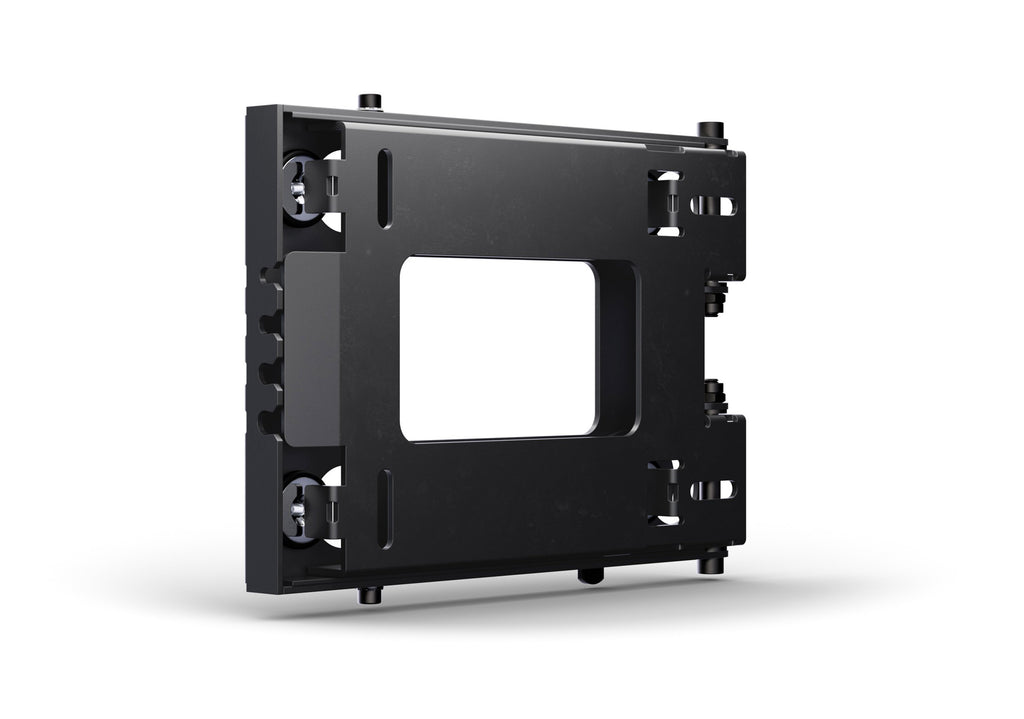

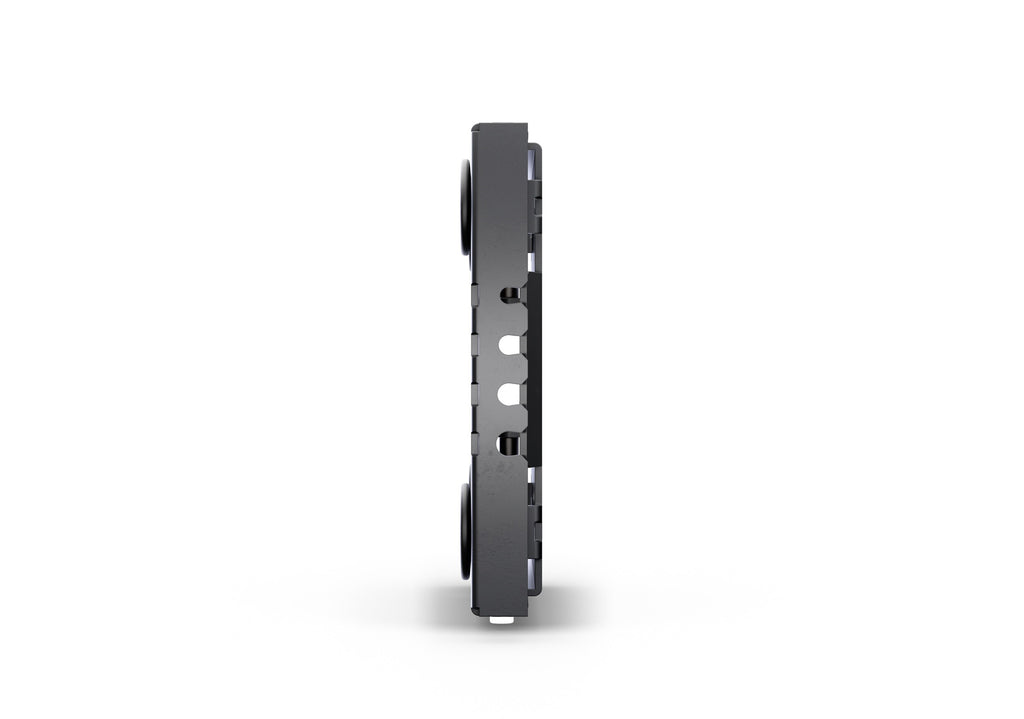

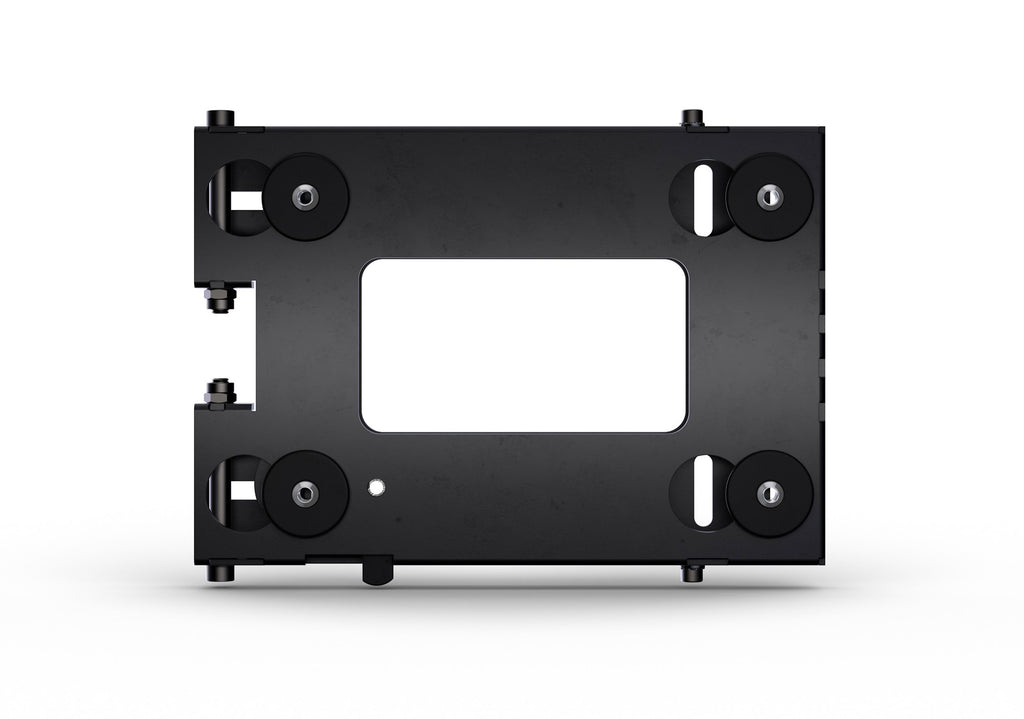

The LD Systems DQORSUBWMB is a purpose-built mounting bracket designed specifically for DQOR® SUB 8 (A/D) installation subwoofers, providing a secure and versatile solution for fixed audio installations. Suitable for both wall and ceiling mounting, the bracket supports vertical and horizontal subwoofer positioning, allowing installers to adapt the setup to the acoustic and aesthetic requirements of virtually any venue. Finished in a durable black powder coating, it delivers long-lasting performance while maintaining a clean, professional appearance.

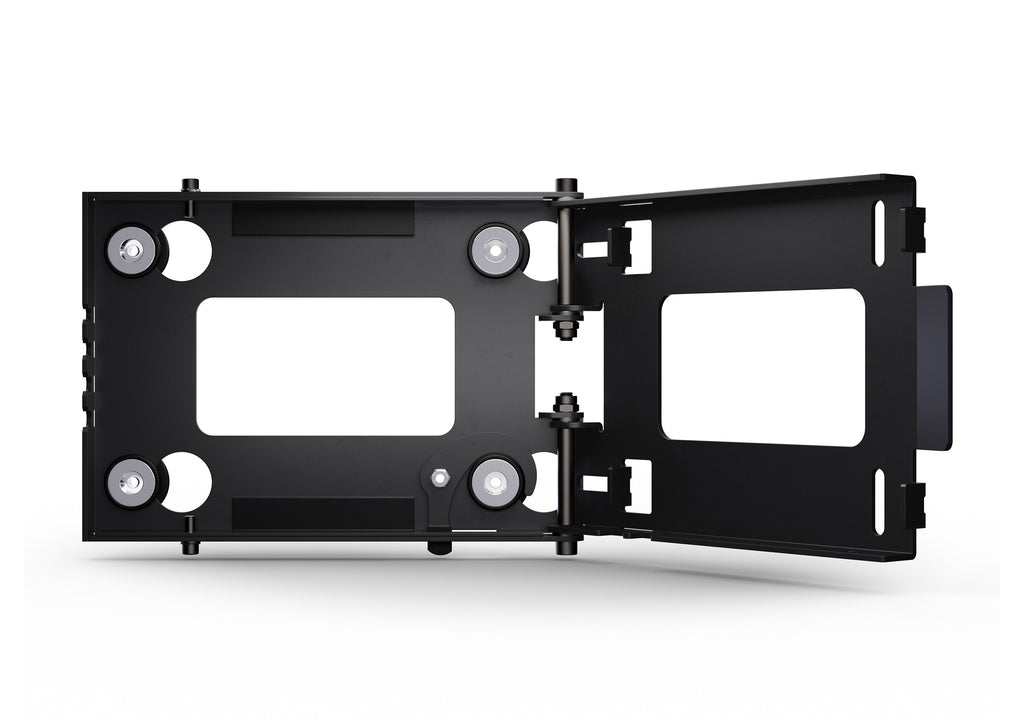

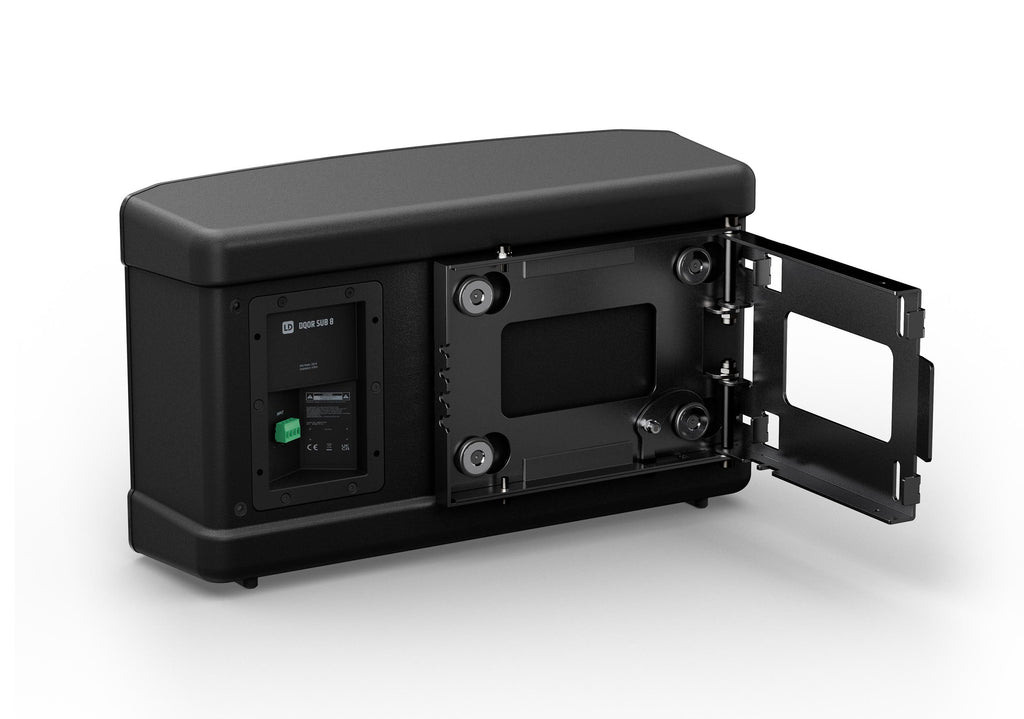

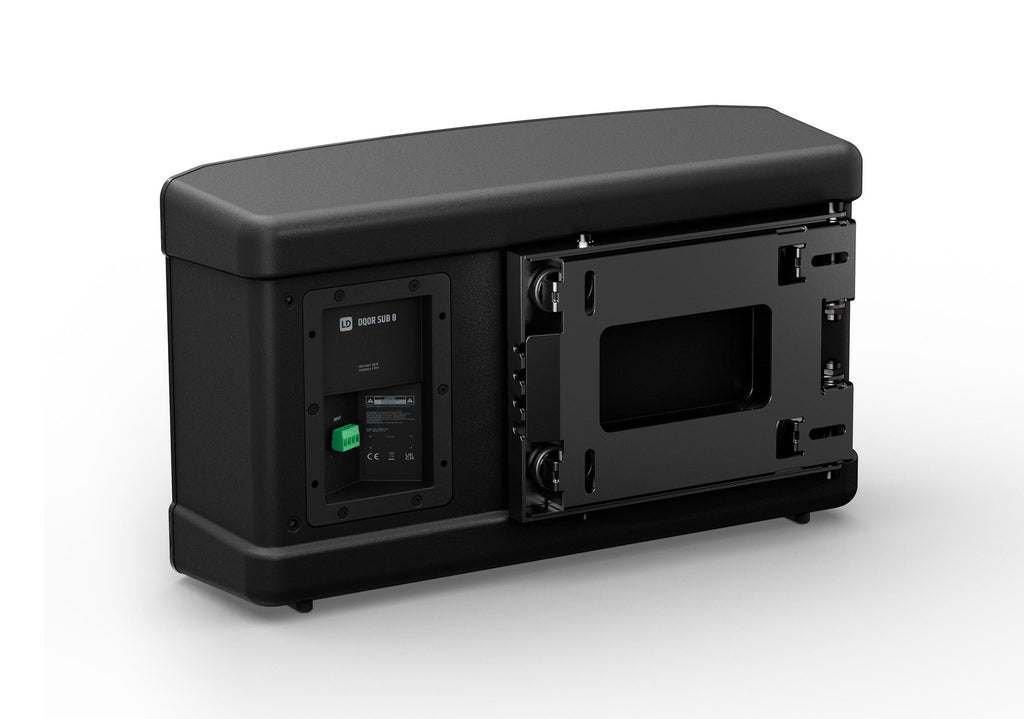

Installation is quick and straightforward thanks to the bracket's practical hinge mechanism and pre-mounted design. The subwoofer simply hooks into place and is secured using the integrated safety hook, ensuring dependable attachment in permanent installations. Four metal-reinforced rubber pads provide a stable hold while minimizing the transmission of structure-borne vibrations, helping preserve audio clarity and reducing unwanted resonance throughout the mounting surface.
Designed with both safety and convenience in mind, the DQORSUBWMB offers easy access to internal cable routing during installation and maintenance. Multiple cable cut-outs allow for neat, organized cable management, resulting in a tidy and professional finish. Once installation is complete, the hinge mechanism is secured using two locking screws to prevent accidental opening, providing added peace of mind. Combining installation flexibility, vibration isolation, and robust construction, the DQORSUBWMB is an ideal mounting solution for DQOR® SUB 8 subwoofer systems.
Product Specifications:
Material: Aluminum, EVA foam (ethylene vinyl acetate), Steel, TPU (Thermoplastic polyurethane)
Coating: Powder-coated
Color: Black
RAL color: RAL 9005
Material thickness: 3 mm (0.12 in)
Width: 286.5 mm (11.28 in)
Height: 215.5 mm (8.48 in)
Depth: 29.1 mm (1.15 in)
Weight: 2.6 kg (5.73 lbs)
