Description

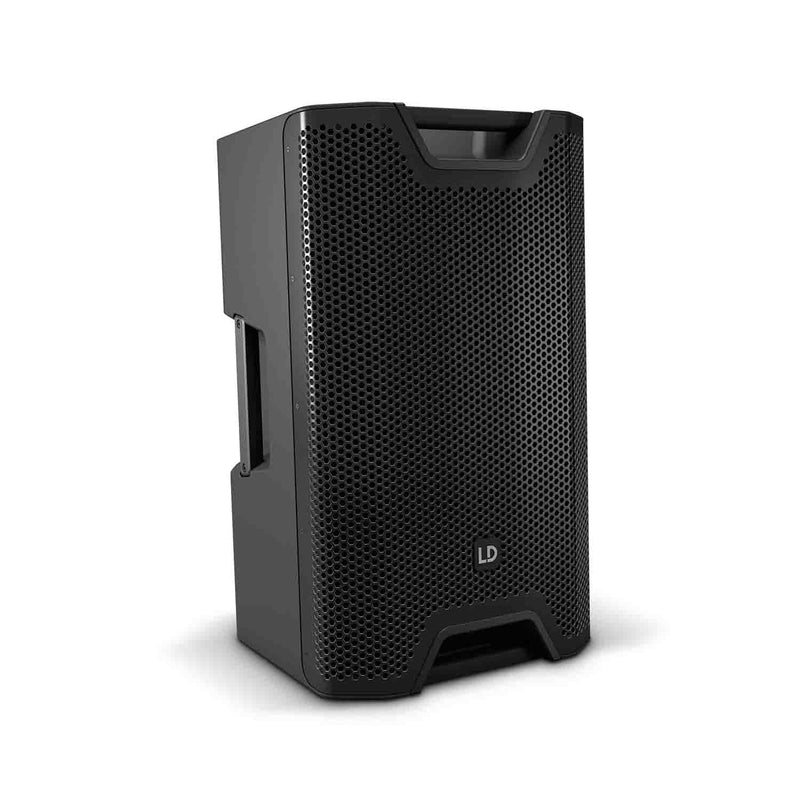

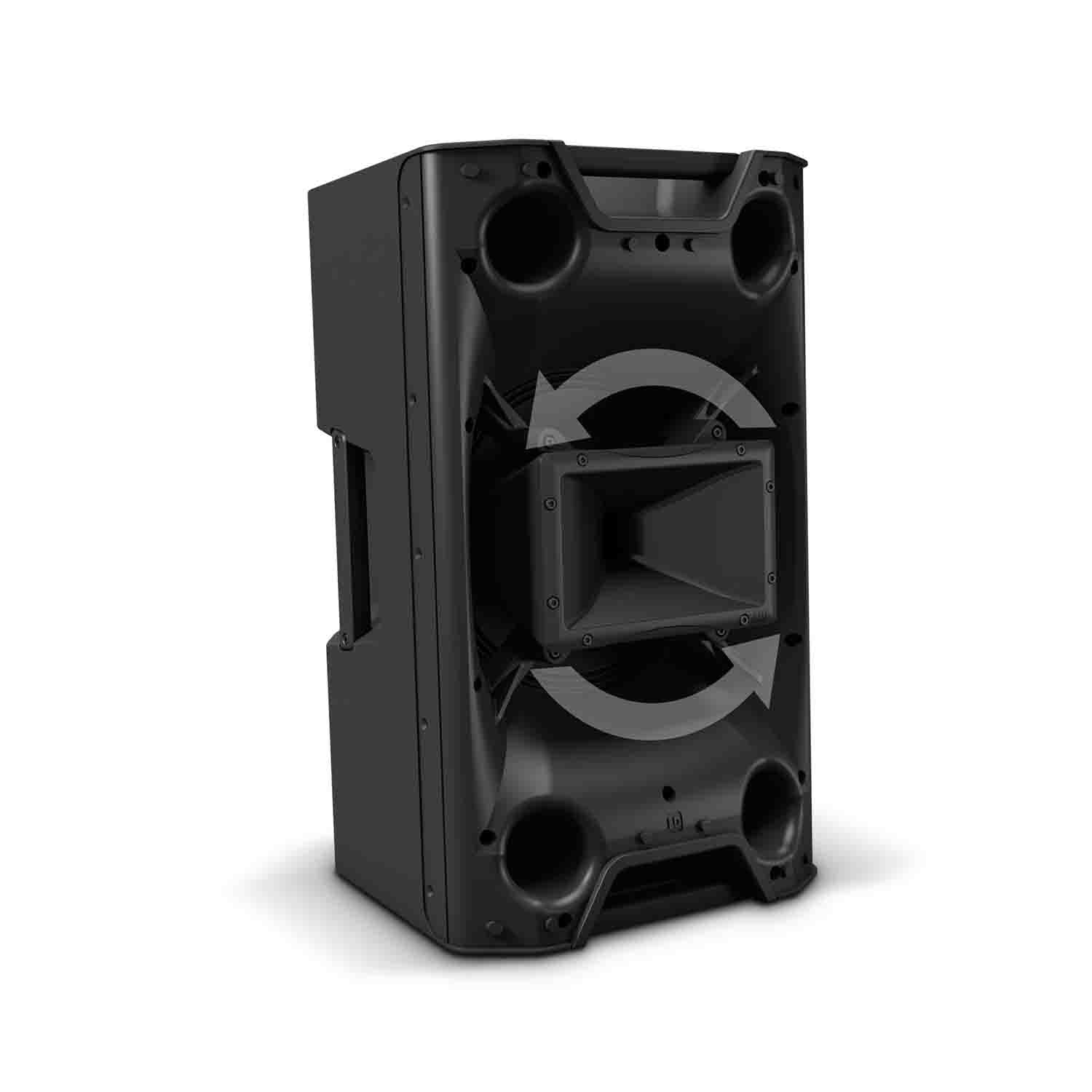

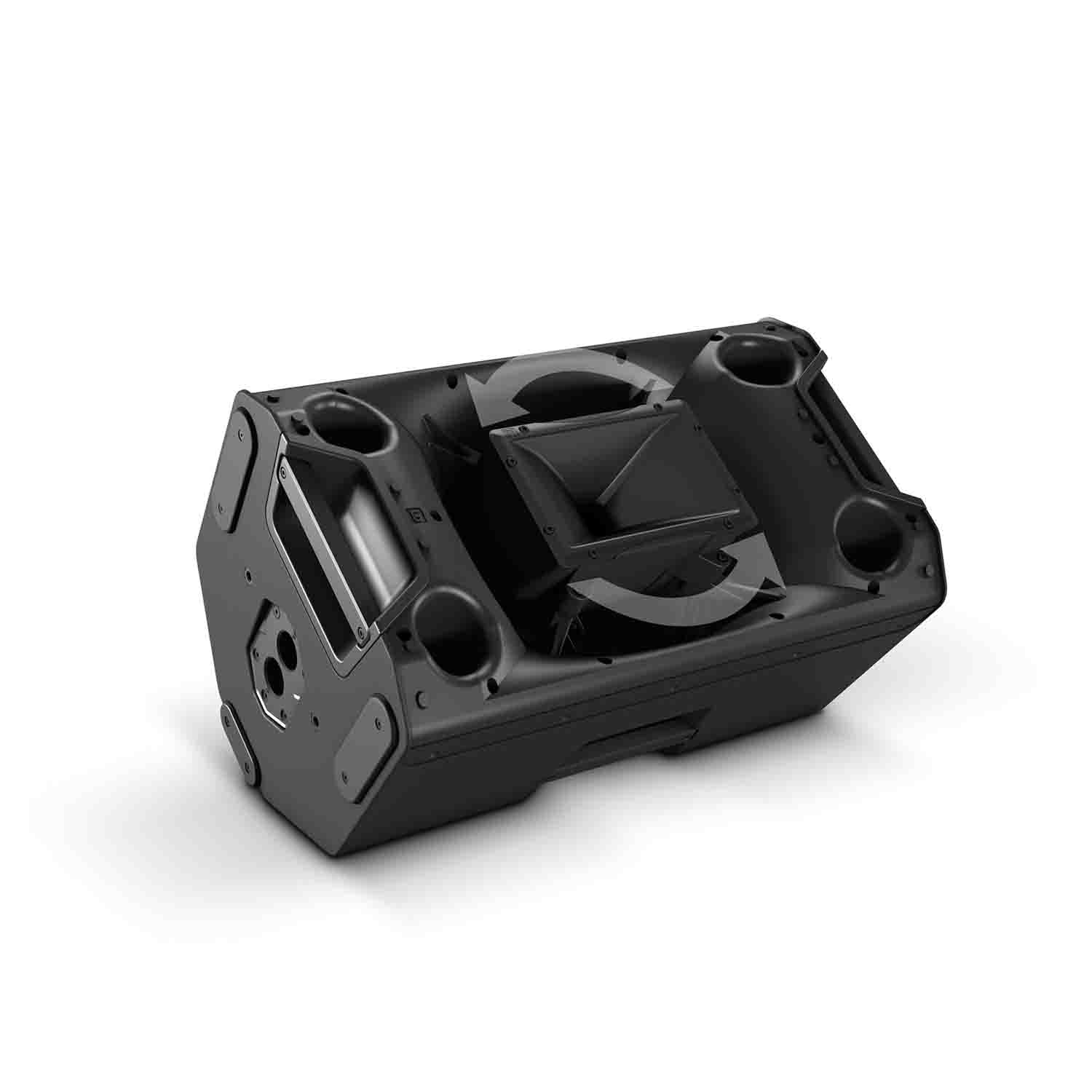

This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimized CD horn means it is extremely flexible.
The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands, and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.

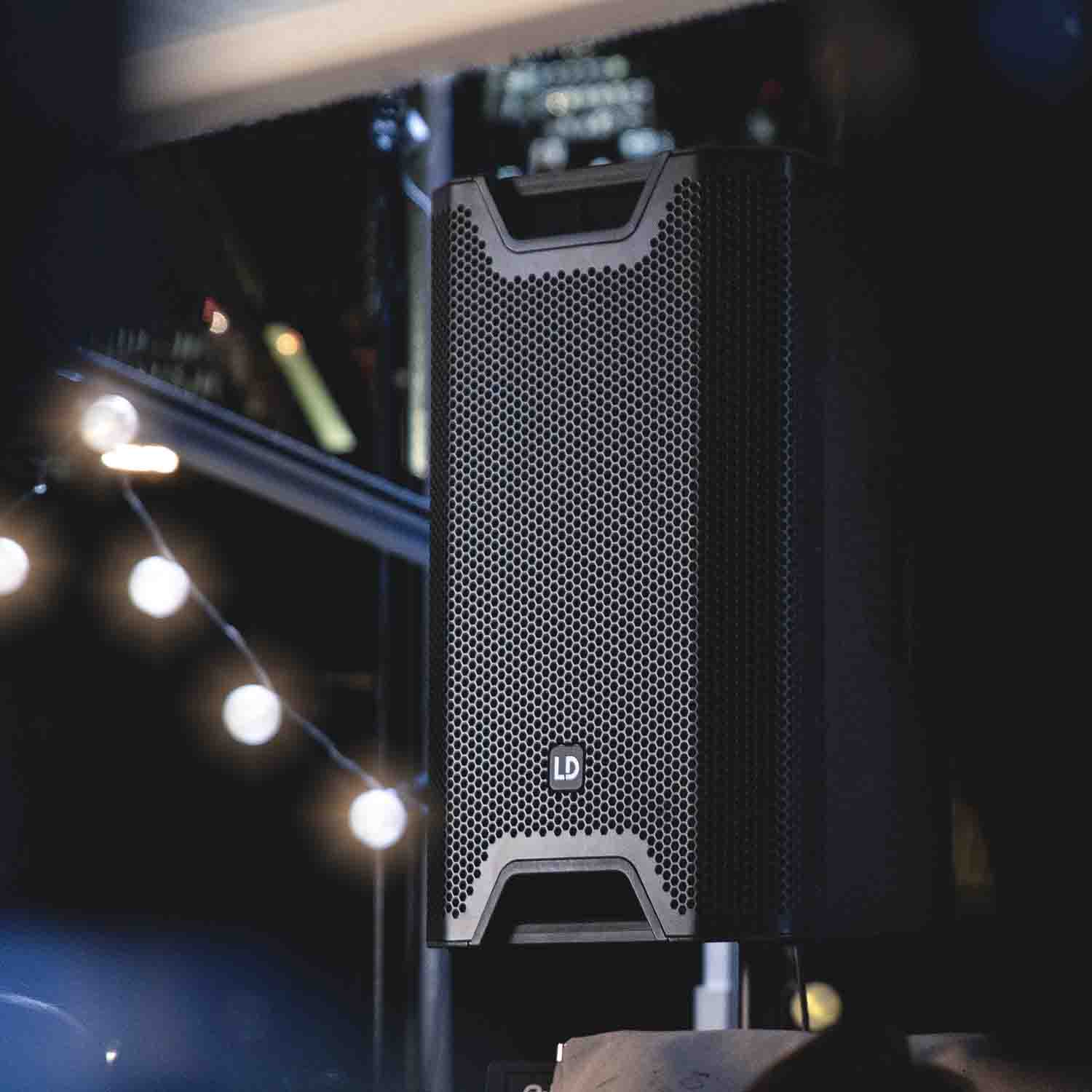

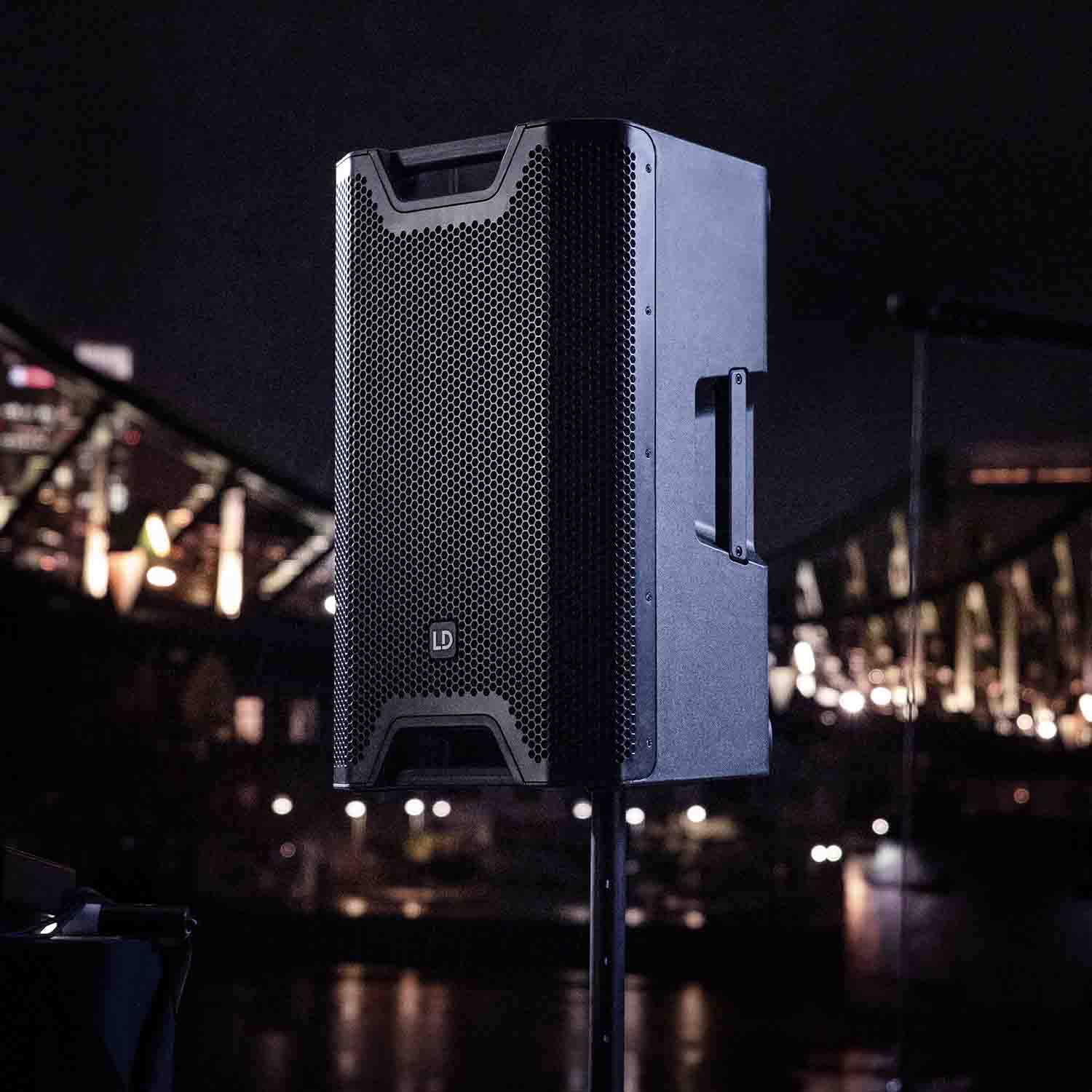

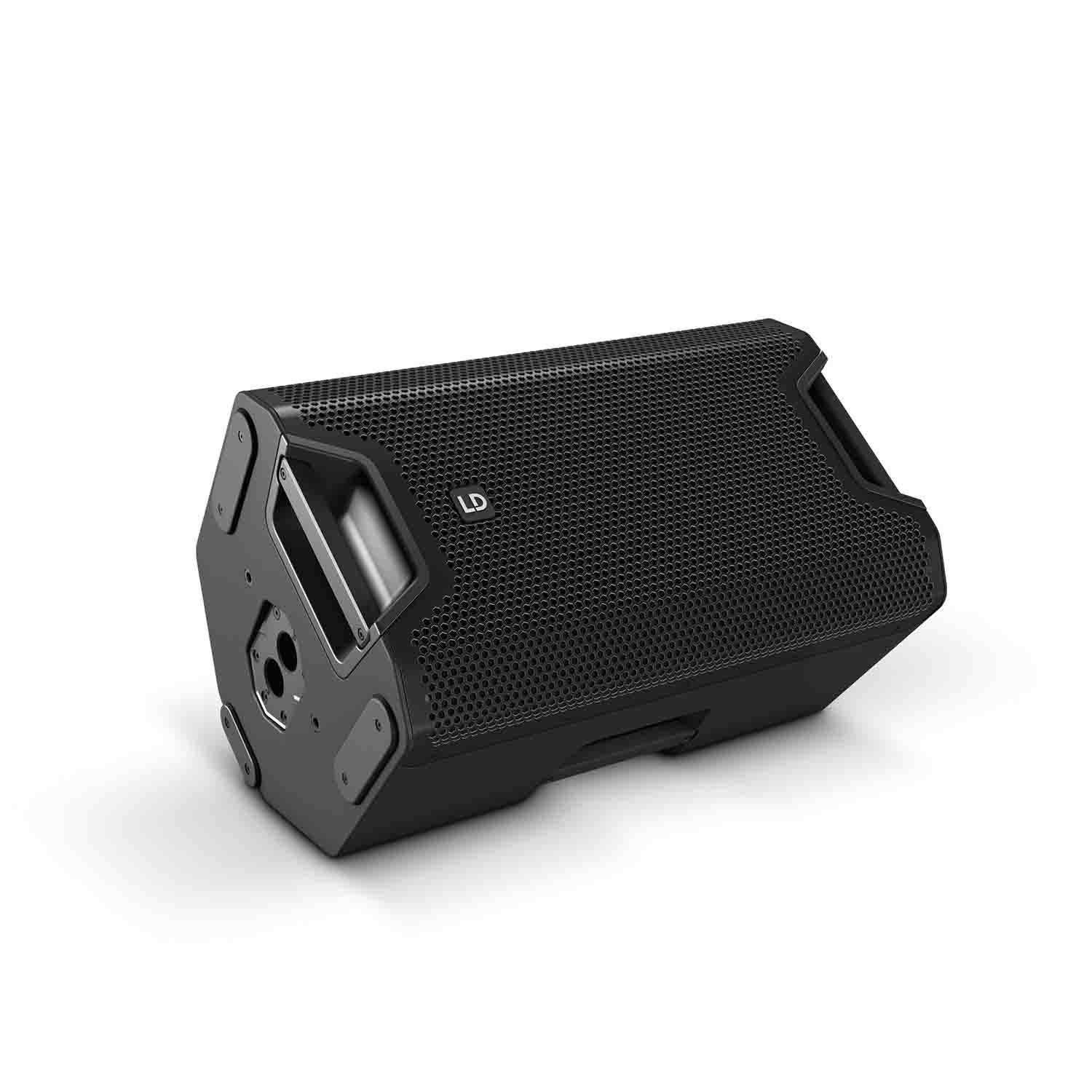

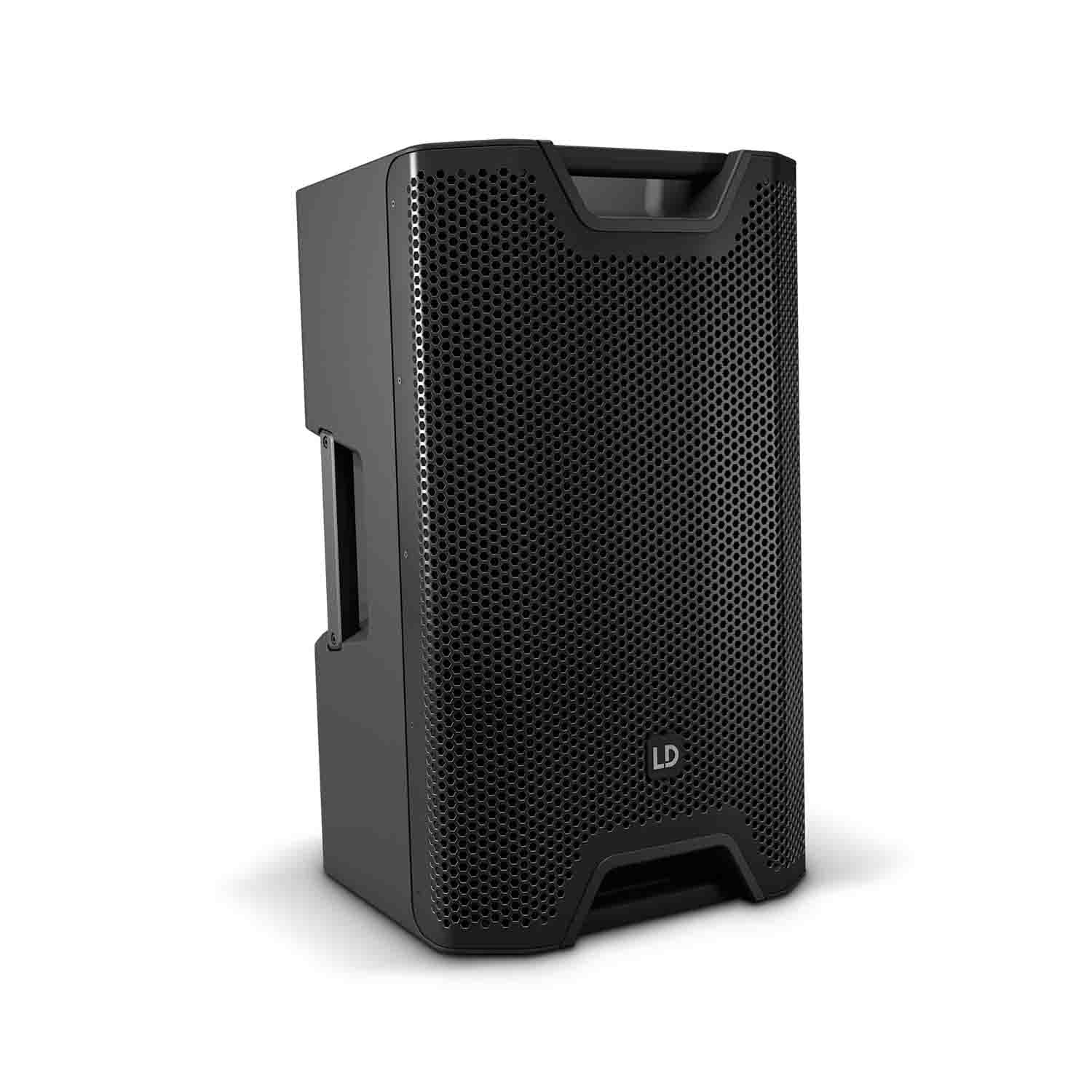

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

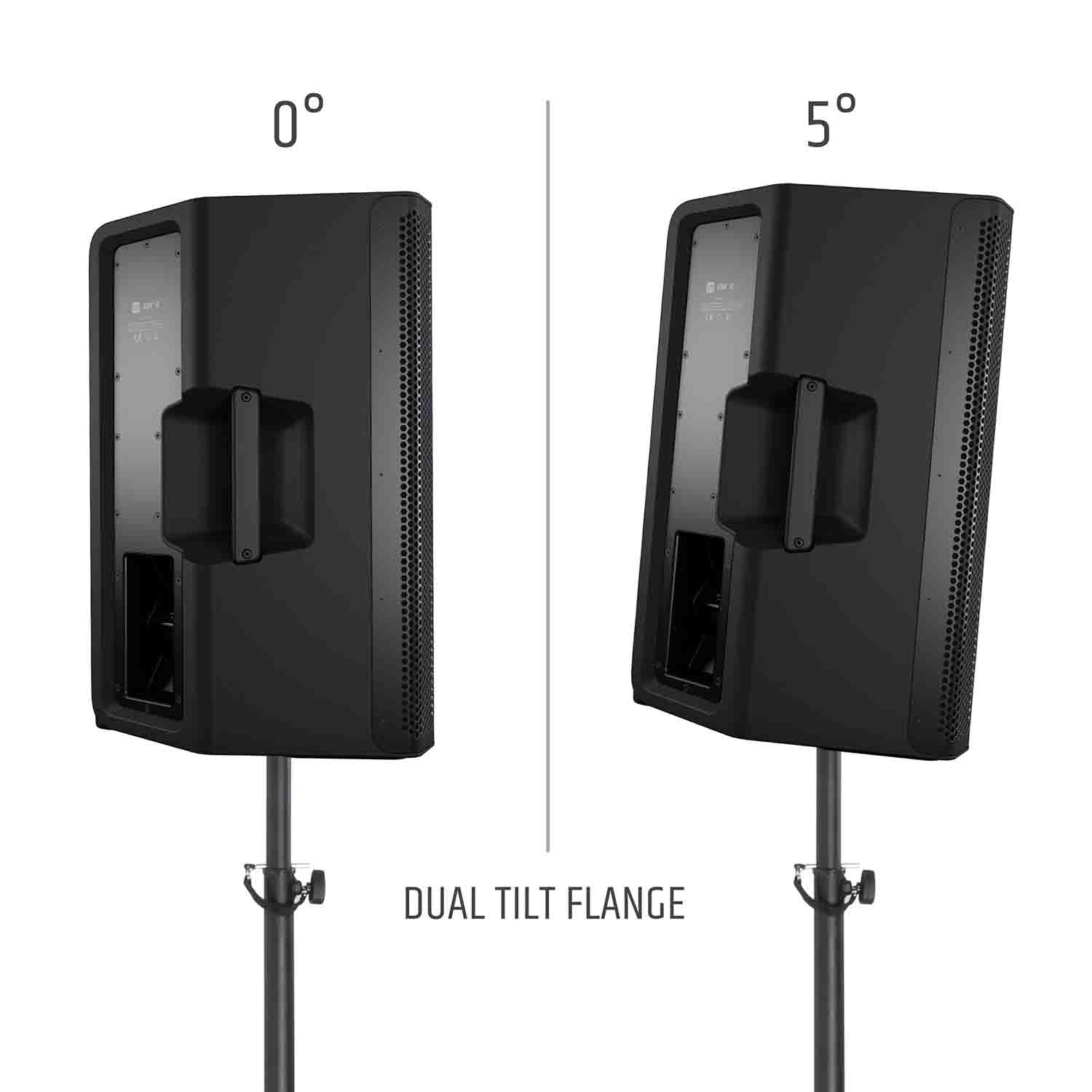

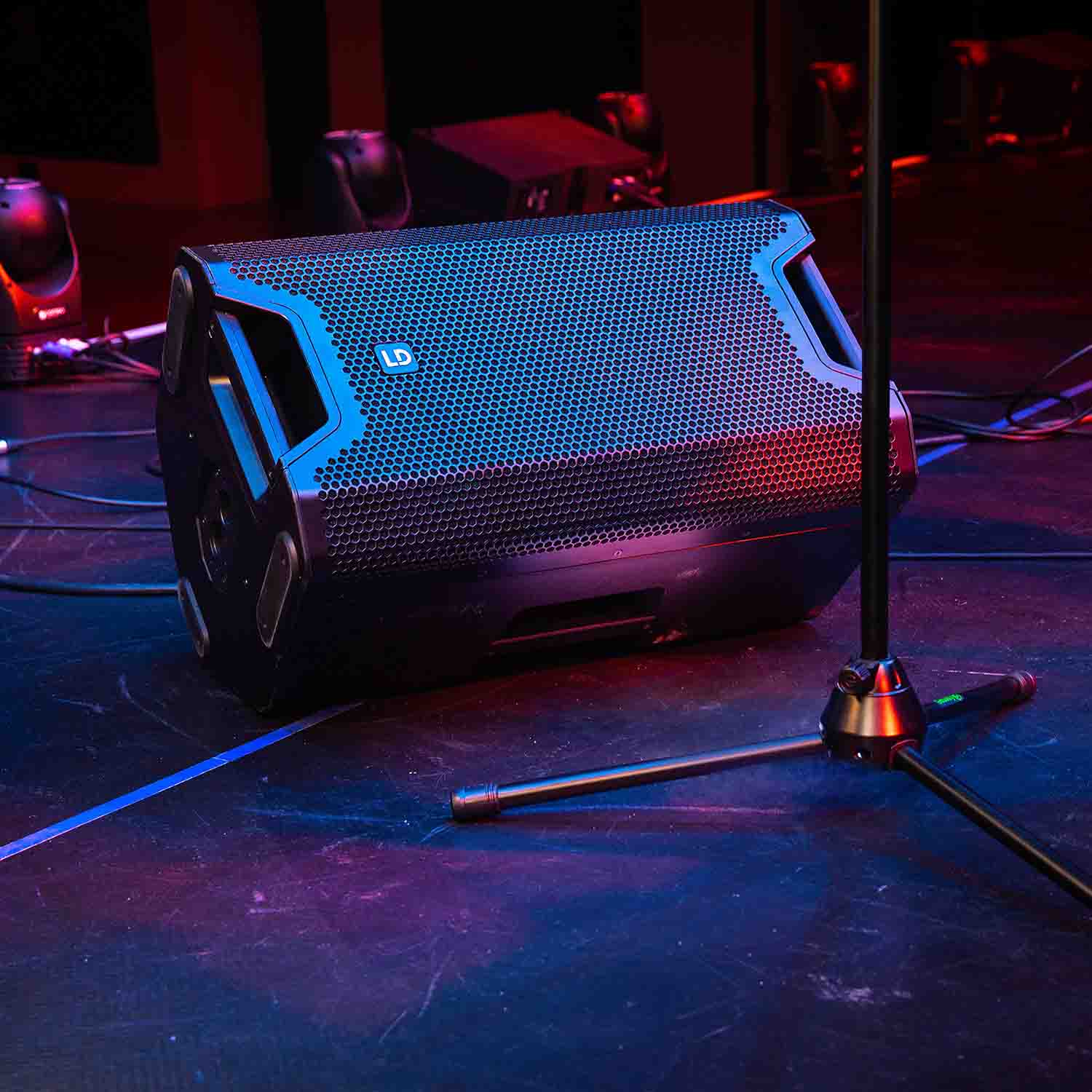

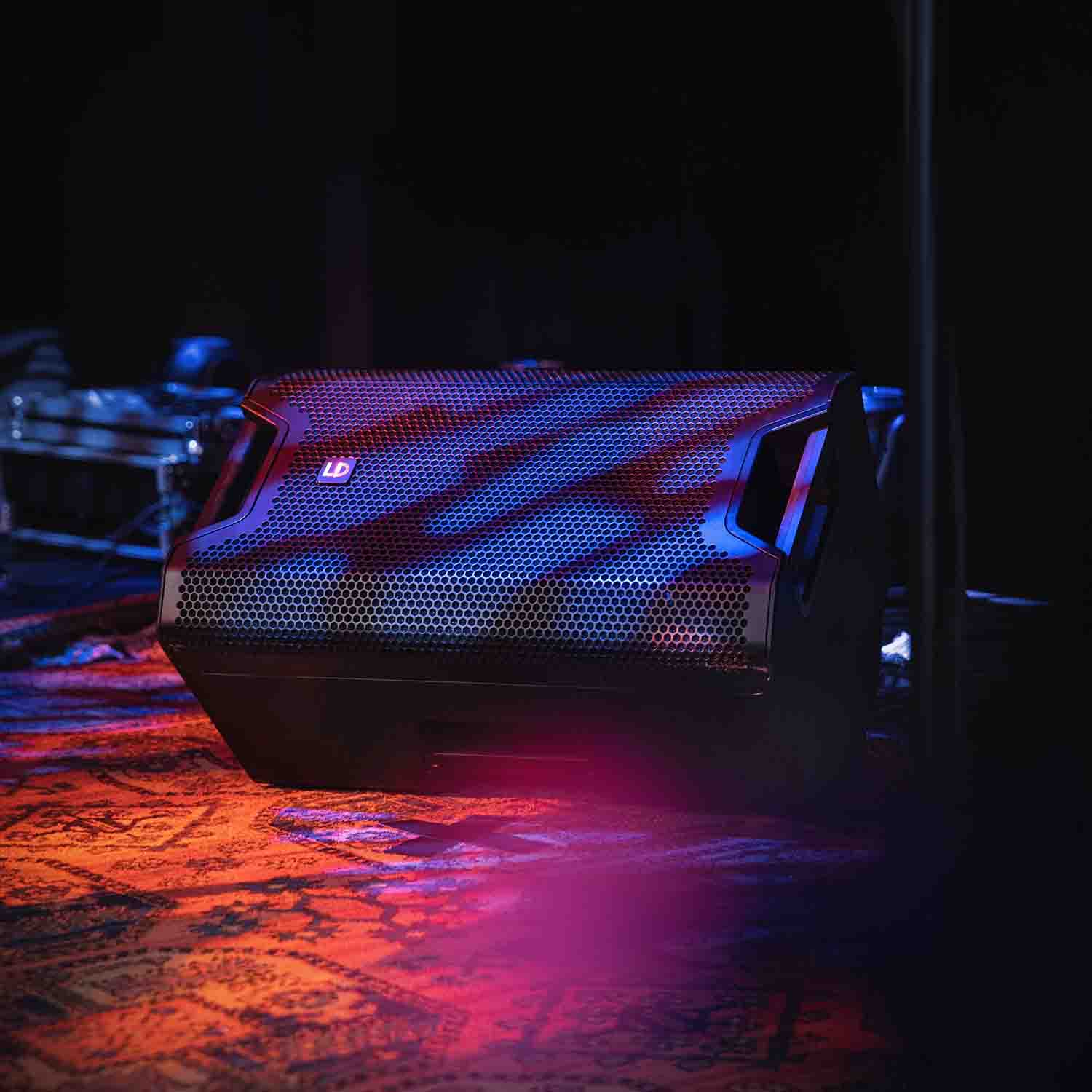

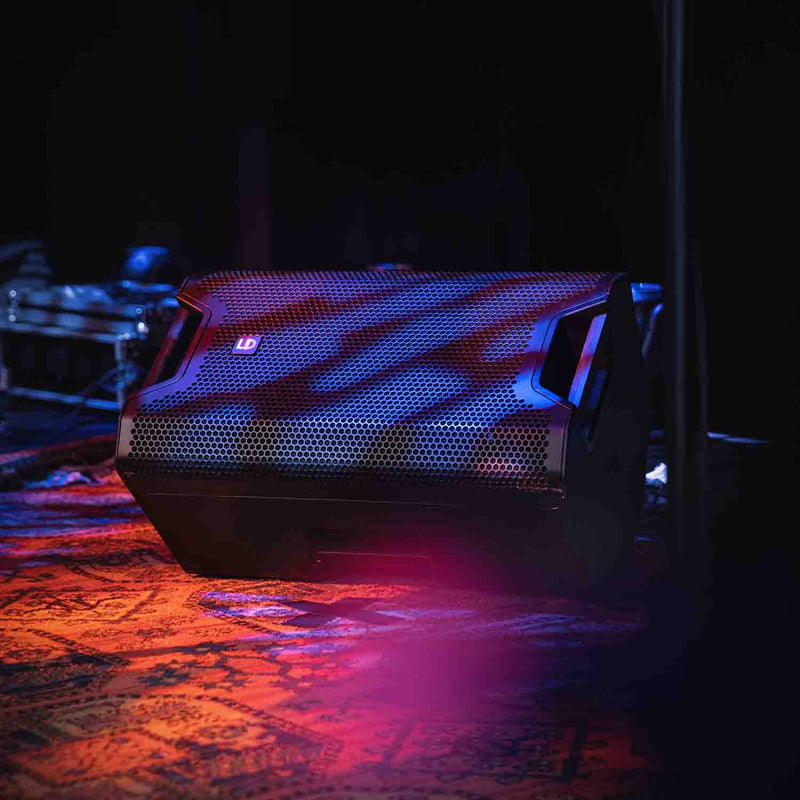

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminum handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Product Specifications:
Type: Passive PA loudspeaker
Low/mid driver dimensions: 12 "
Woofer size: 304.8 mm
Woofer magnet: Ferrite
Woofer Brand: Custom-made
Horn: BEM optimized CD Horn
HF driver dimensions: 1 "
HF driver size: 25.4 mm
HF driver magnet: Ferrite
Peak power: 1000 W
Frequency Response: 55 - 20000 Hz
Crossover Frequency: 2000 Hz
SPL (1W/1m): 93 dB
Max. SPL: 123 dB
Impedance: 8 Ohm(s)
Loudspeaker inputs: 1

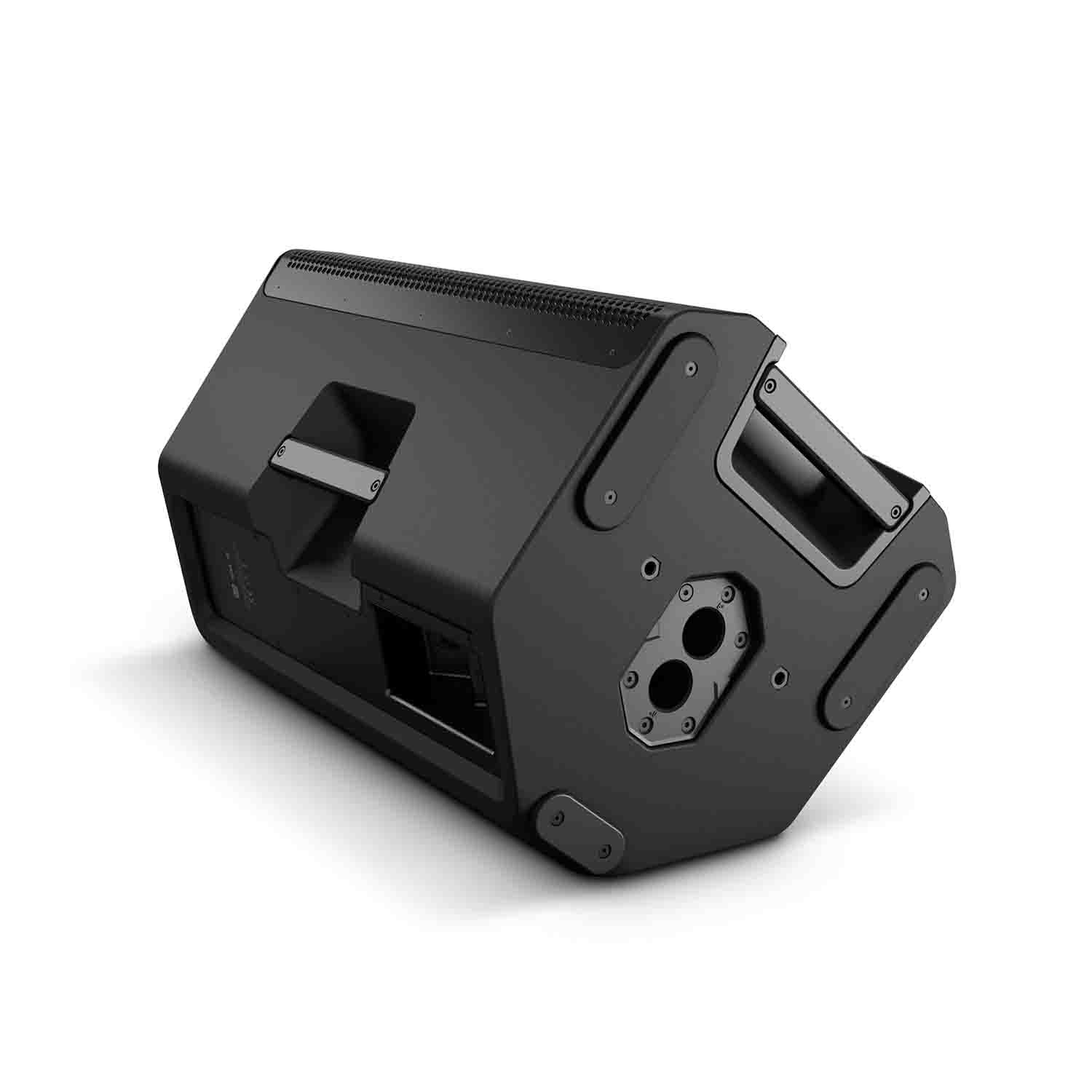

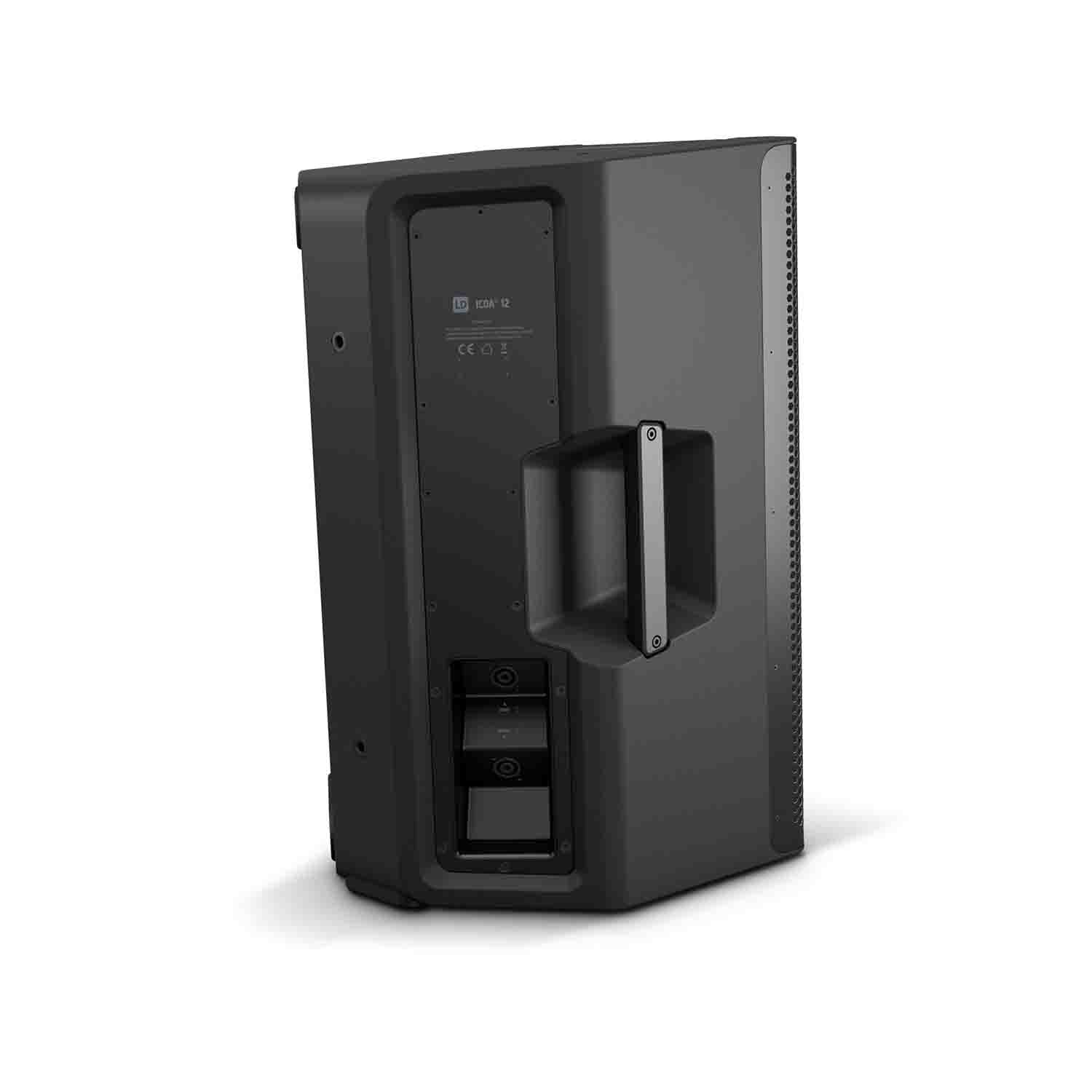

Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Cabinet material: Polypropylene
Cabinet construction: Bass Reflex
Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle: 55 °
Width: 375 mm
Height: 635 mm
Depth: 396 mm
Weight: 19,8 kg
