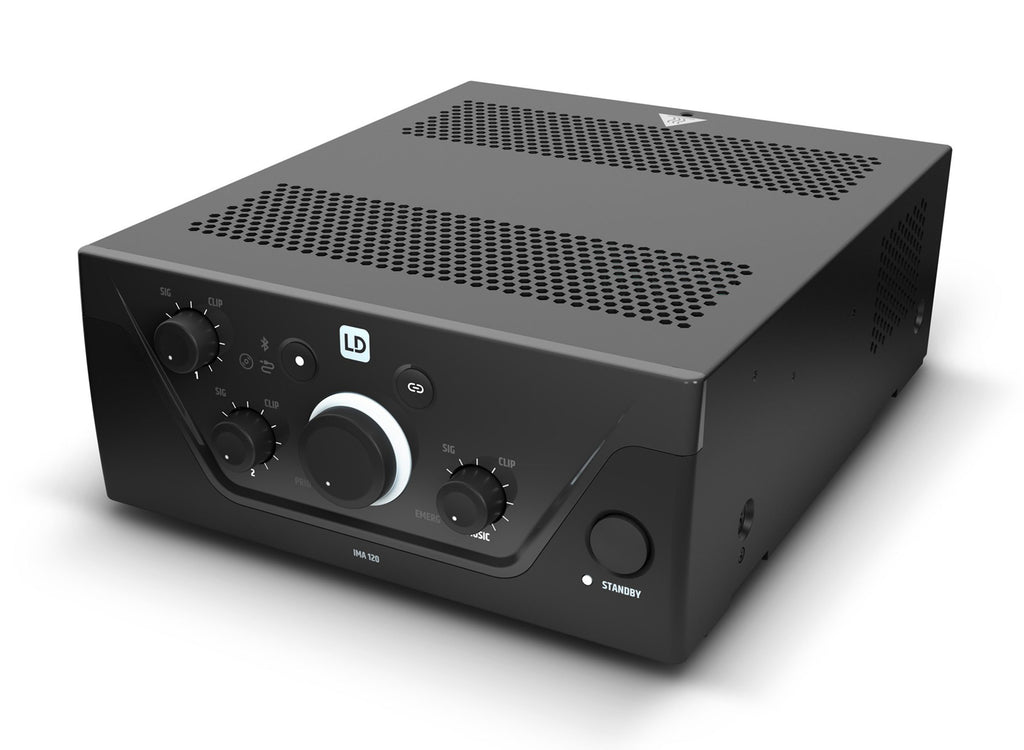

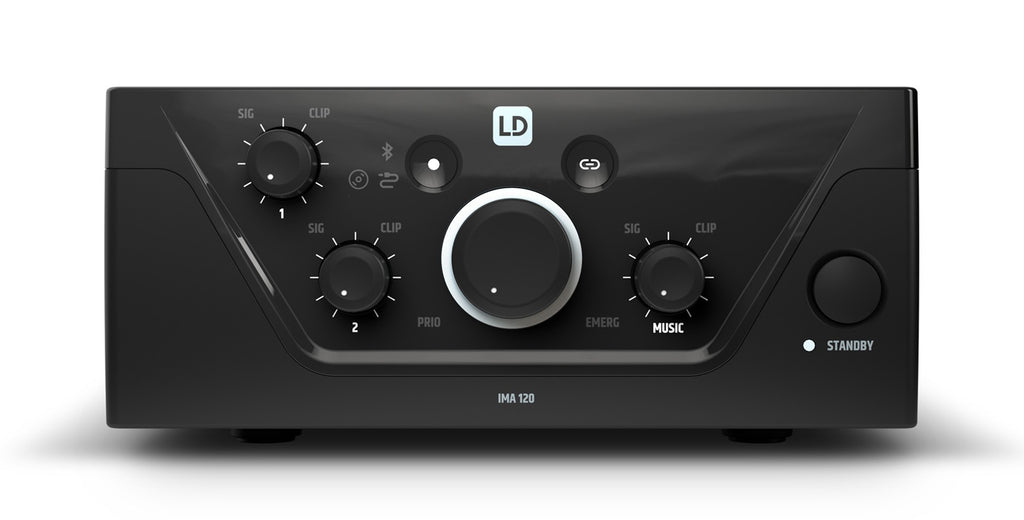

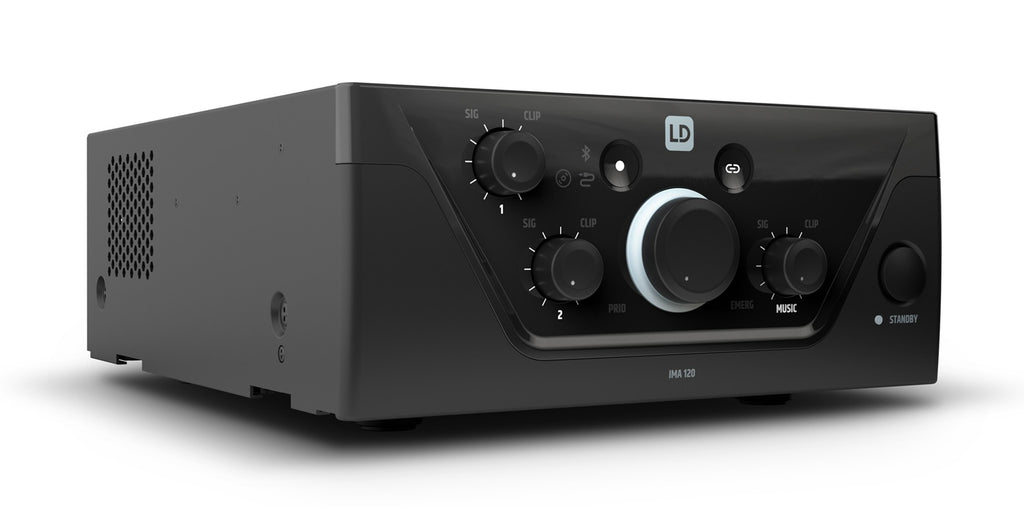

LD System IMA 120 4 Ohms Installation Mixing Amplifier - 120 Watt

Permanent installations require solutions which offer a visually discrete design that blends into the background while still being flexible and versatile in their functions. You need to be able to connect different audio sources and manage them, to mute non-priority signals during announcements or emergency calls. With IMA 120, LD Systems presents a new model of the IMA mixing amplifier-series, which leaves nothing to be desired in terms of design and flexibility.

Seamless integration with IMA 120 is a sure thing in both industrial and commercial applications thanks to the compact 9.5-inch housing design, an array of connection possibilities, including Bluetooth for wireless connection of Audio and a multistage priority circuit. IMA 120 is equipped with four priority levels to manage all connected audio signals during emergency or priority announcements. An automatic standby mode can also be activated to reduce power consumption during absence of audio signal.

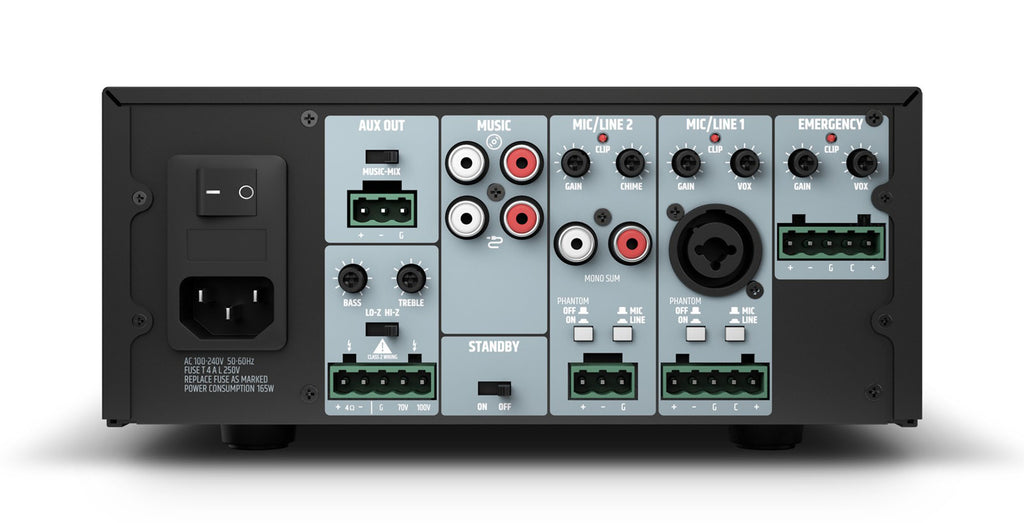

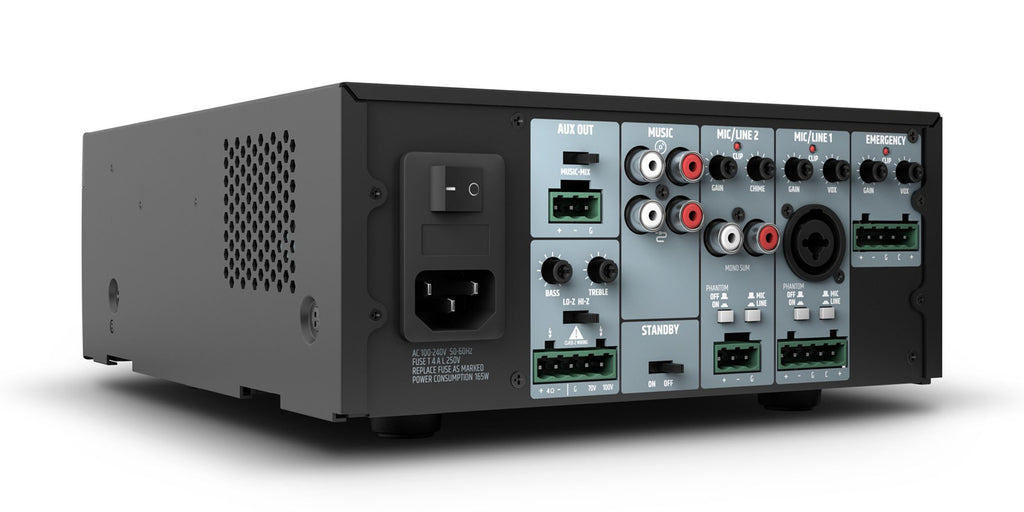

The mixing amplifier features two priority contact closures: one for emergency input to mute both Mic/Line and music sources, and one for Mic/Line Channels to mute music sources only.

The outputs provide 120 W of power at 4 Ohm, a two-band equalizer for bass and trebles as well as 70 V/100 V tap settings. The Hi-Z and Lo-Z selector switch lets you separate the output signal completely from the output transformer to ensure an optimal frequency response for low impedance applications. The built-in aux output can be used to add external power amplifiers, active subwoofers or on-hold music systems to the IMA 120. You can also choose to send the entire mix or only the selected music signal source to the aux output using the music-mix selector switch.

Product Specifications:

Product type: Installation mixer preamplifier

Emergency input: 1 balanced line input

Mic/ line inputs: 2

Mic-/ Line Input Connectors: 2 unbalanced stereo line inputs, Bluetooth 4.0

Music sources: 2 unbalanced stereo line inputs, Bluetooth 4.0

Line outputs: 1

Reinforced Main Outputs: 1 with output mode selector (Low-Z/High-Z)

Cooling: Convection

Priority levels: 4

Nominal input sensitivity: -15 dBu (Sine signal, 1 kHz, Gain Max.)

Nominal input clipping: 20 dBu (Sine 1kHz)

Priority Contact closure: +5VDC normally open for dry contact

Connector: 5-pin Terminal Block, pitch 5.08mm

Nominal input sensitivity Mic: Mic: -40 dBu (sine 1 kHz, gain max)

Nominal input sensitivity line: Line: -17 dBu (sine 1 kHz, gain max)

Nominal input clipping Mic: Mic: -5 dBu (Sine 1kHz)

Nominal input clipping line: Line +19dBu (Sine 1kHz)

Phantom power: + 24V, 10mA switchable

Connector Mic/Line1: 5-pin Terminal Block, pitch 5.08mm, XLR/6.3 mm jack

Connector Mic/Line 2: 1 dual RCA Mono Summed, 3-pin Terminal Block, pitch 5.08 mm

Nominal input sensitivity CD/AUX: - 6.22 dBV (Sine 1 kHz, Gain max)

Connector CD/AUX: 2 x dual RCA Mono Summed

Amplifier Outputs: High-Z: 70V or 100V outputs, Low-Z: 4-ohm minimum load

Preamplifier input: 5-pin Terminal Block, pitch 5.08mm

RMS Power (W): 125 W (Continuous sine wave 1kHz, 4-ohm load)

Power (Peak) (W): 135 W (100 msec sine 1kHz Burst @ 4-ohm load)

Frequency range: 20 Hz - 20 kHz (LO-Z, -3 dB), 60 Hz - 20 kHz (HI-Z, -3 dB)

Tone control Bass: +/-10 dB (100 Hz)

Tone control Treble: +/-10 dB (10 kHz)

Protection circuits: Audio Limiter, over-current, short circuit, thermal overload

Connector AUX-output: 3-pin Terminal Block, pitch 5.08 mm

Maximum gain: 22 dB

Type: Switching power supply

Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz

Power consumption (max.): 165 W (Sine 1kHz with 4-ohm load)

Idle power consumption: 13 W (no signal input)

Power Consumption @ Standby: <1 W

Operating temperature (non-condensing): 0°C - 40°C; < 85% humidity

Time to Auto-standby: 20 Min.

Dimensions (W x H x D) (height with rubber feet): 210 (W)x 95 (H) x 266.76 (D)mm

Optional accessories: Rack mounting hardware

Weight: 3,01 kg
