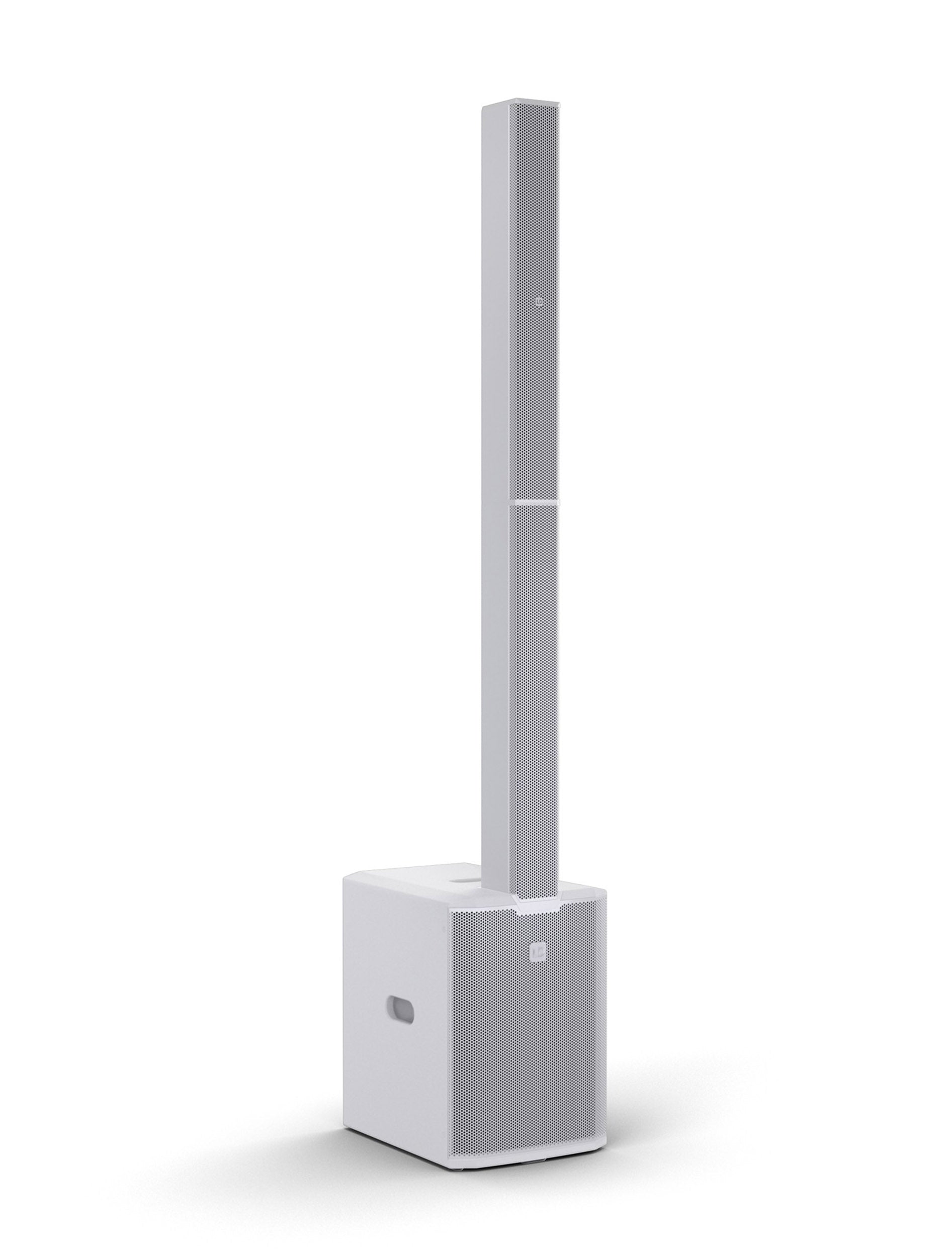

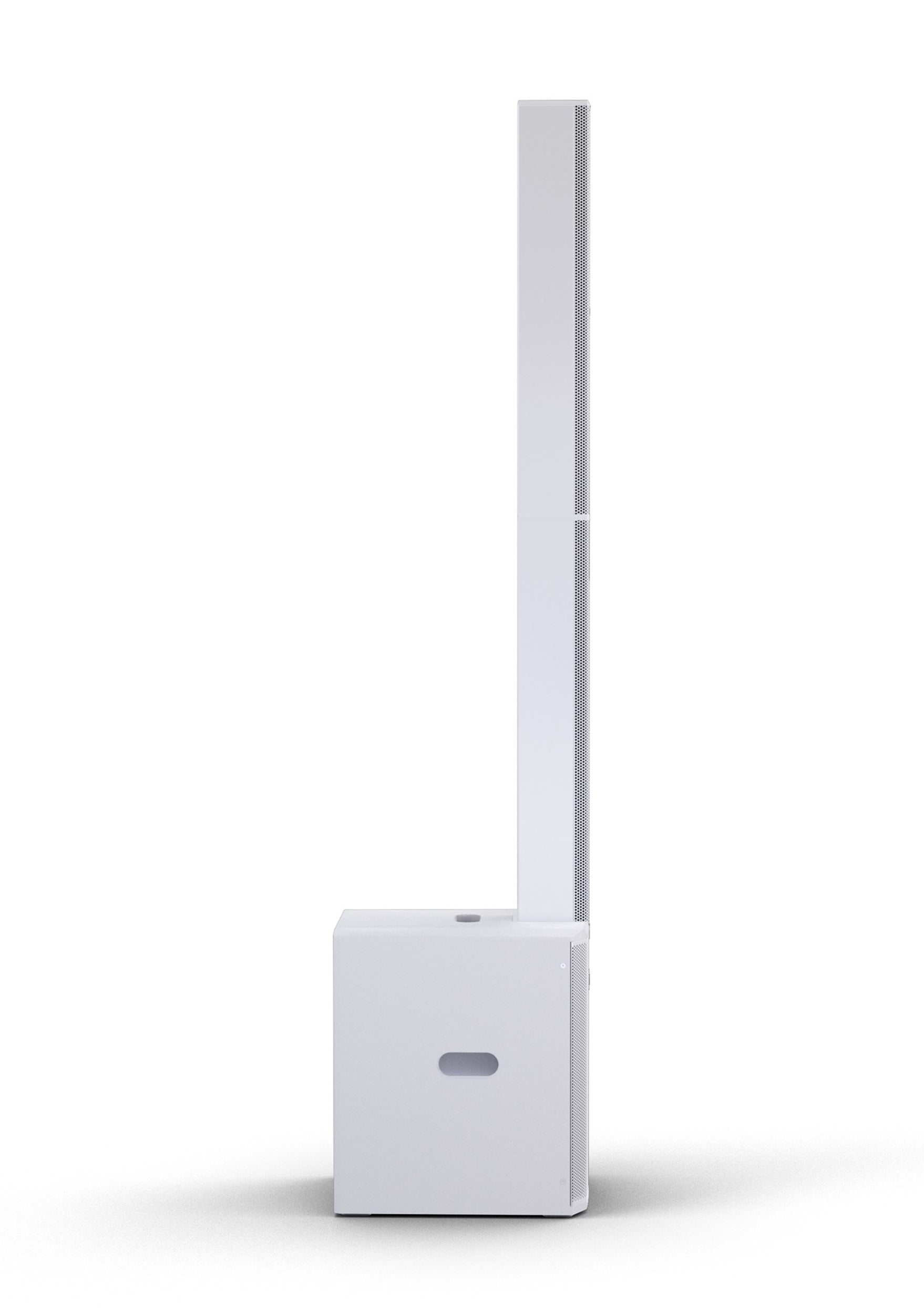

LD System MAUI 28 G3 MIX White, Compact Cardioid Column PA System with Digital Mixer

Compact, powerful and easy to use a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!

This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included.

The MAUI 28 G3 MIX delivers a huge, powerful, and precise sound with 1,030 W RMS power (2,060 W peak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a public address system at weddings, corporate events, and more.

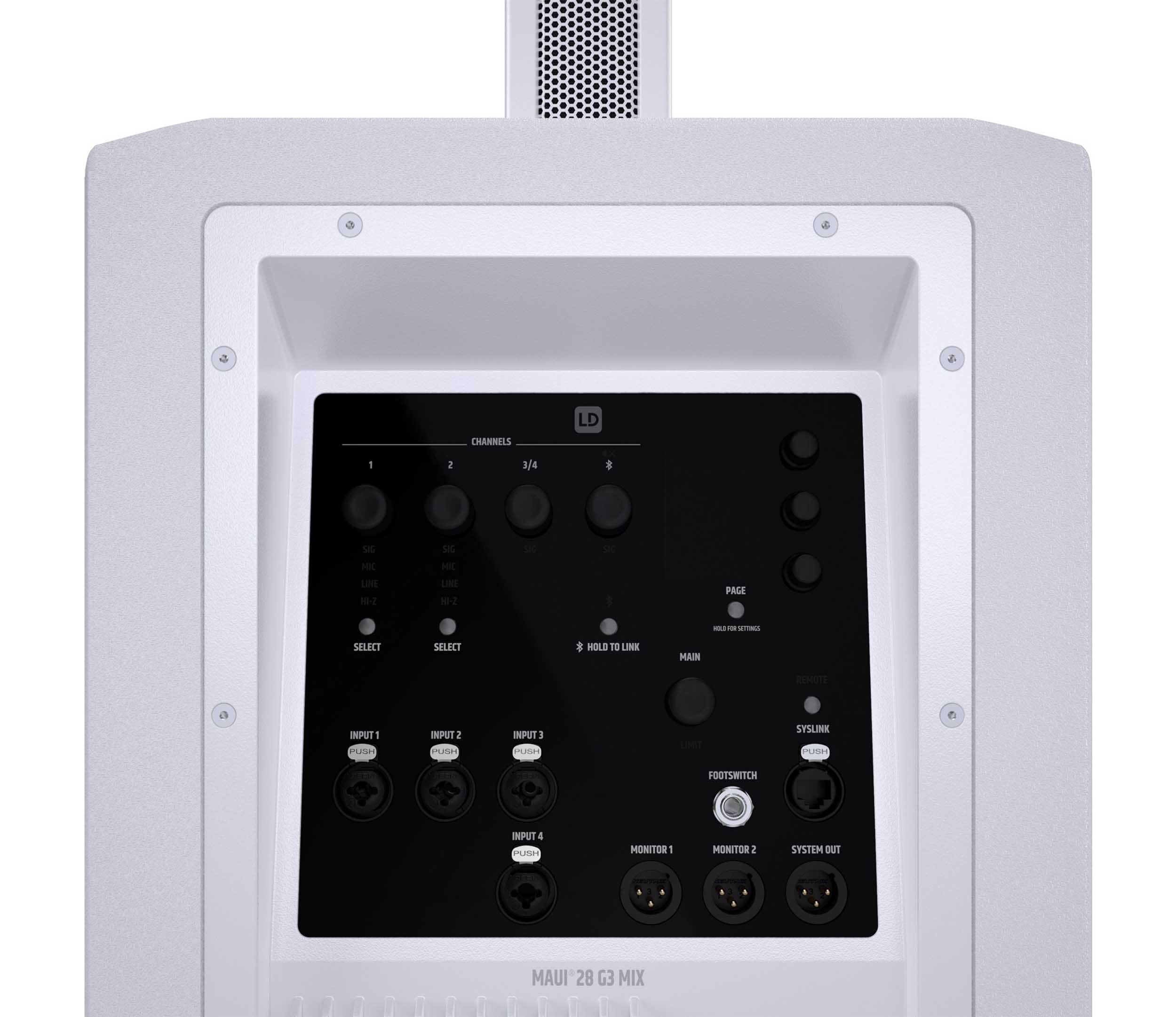

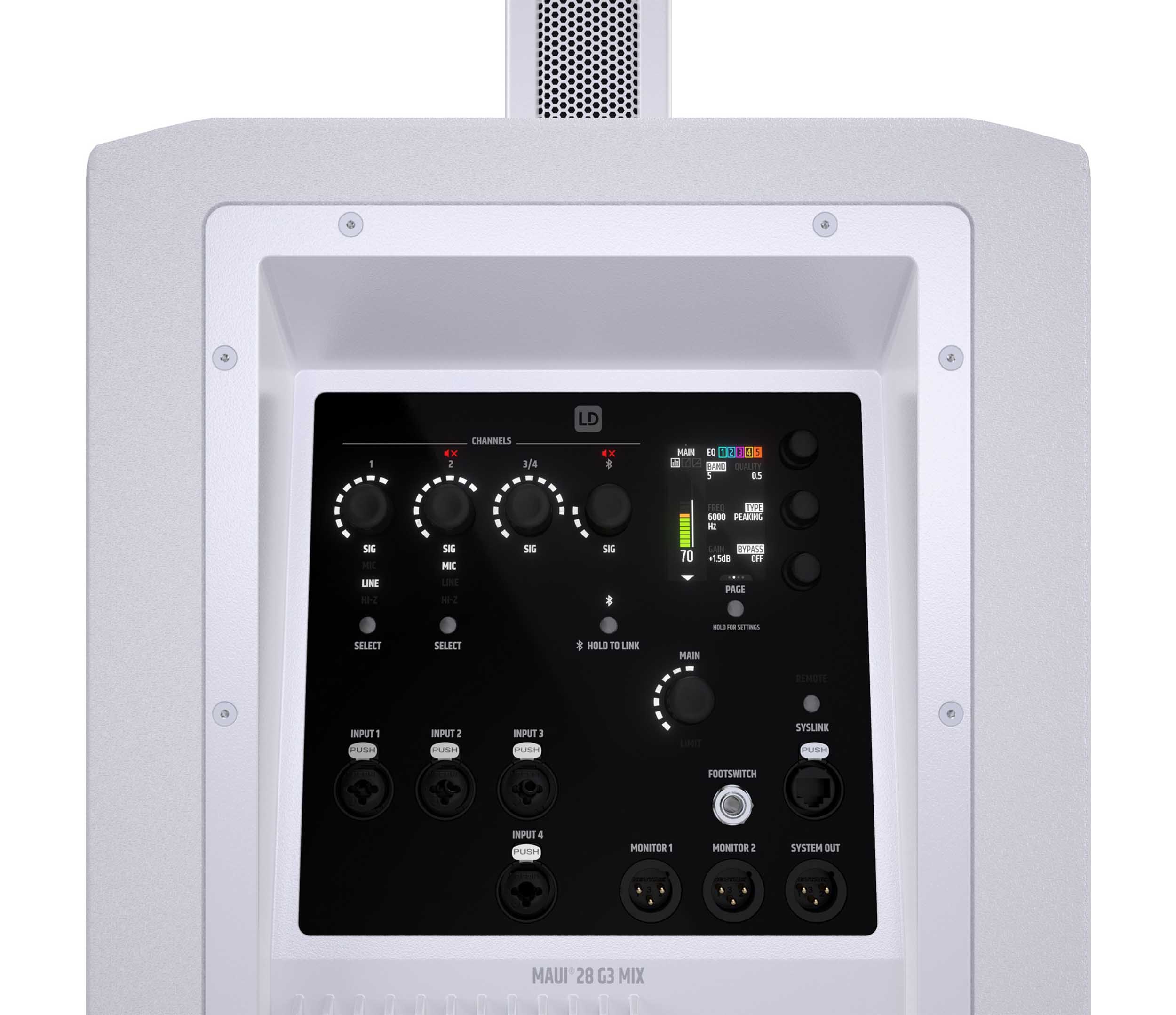

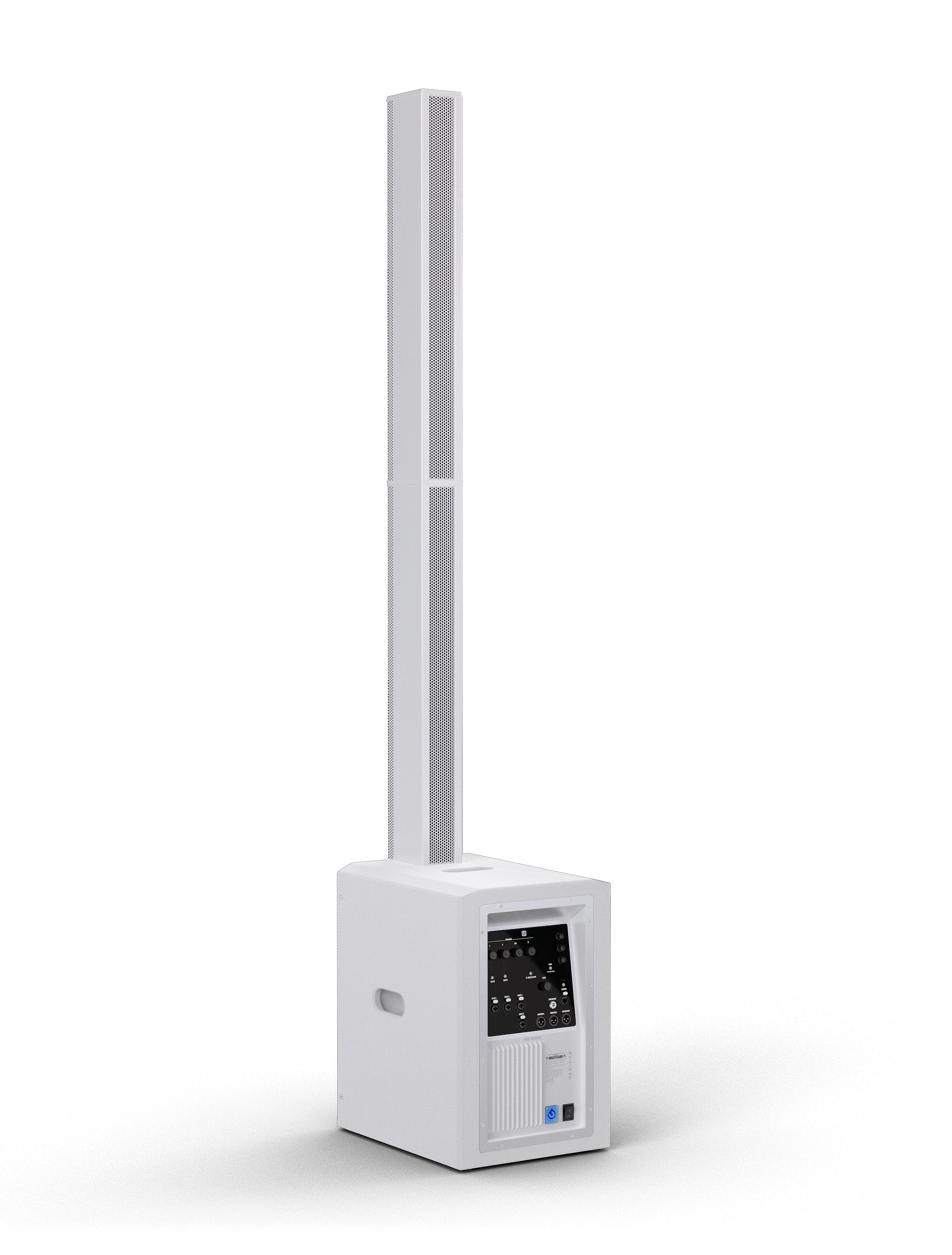

The built-in 6-channel mixer adjusts to the user's preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app.

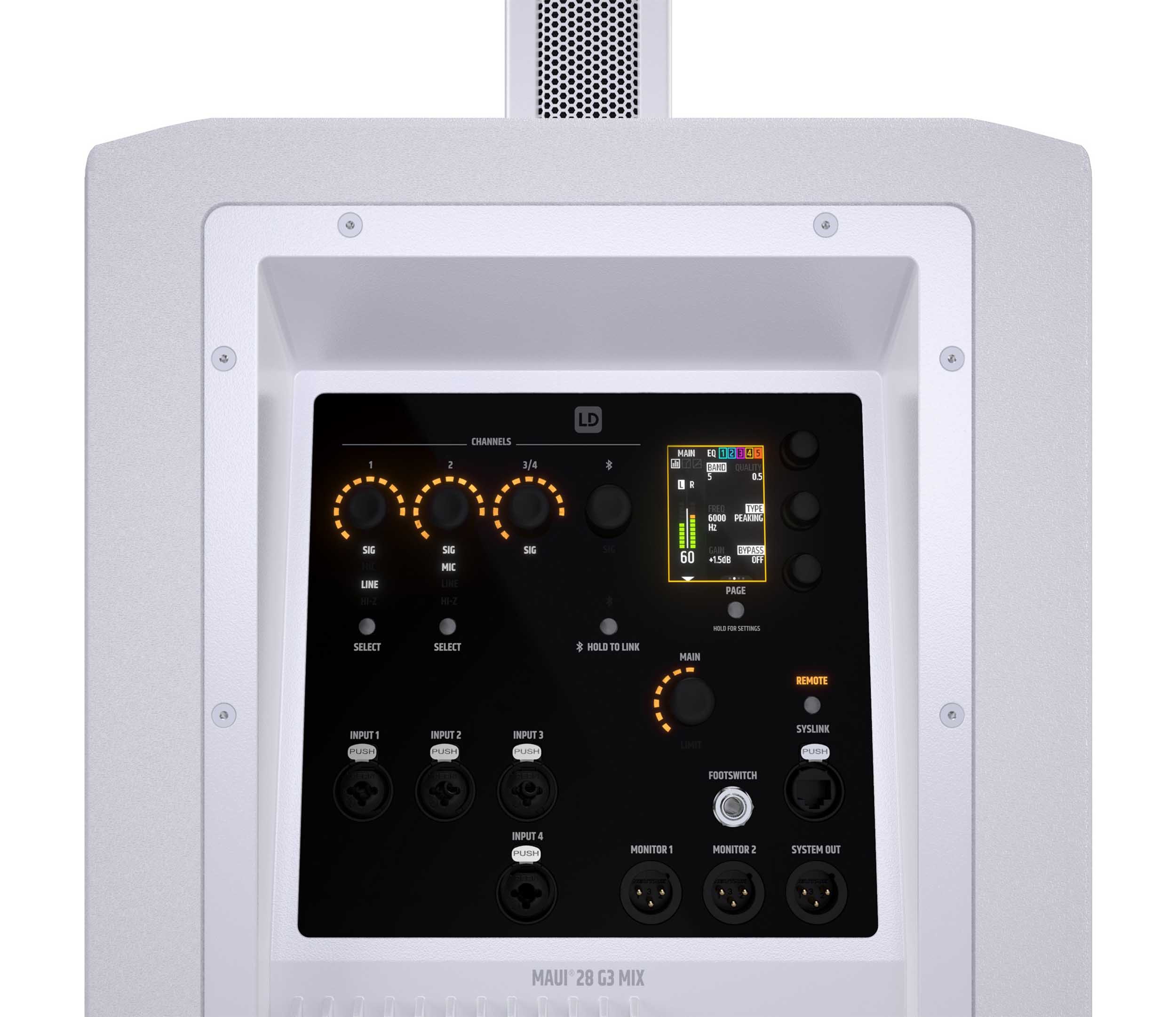

For stereo applications, two MAUI 28 G3 MIX units can be linked via SysLink. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system.

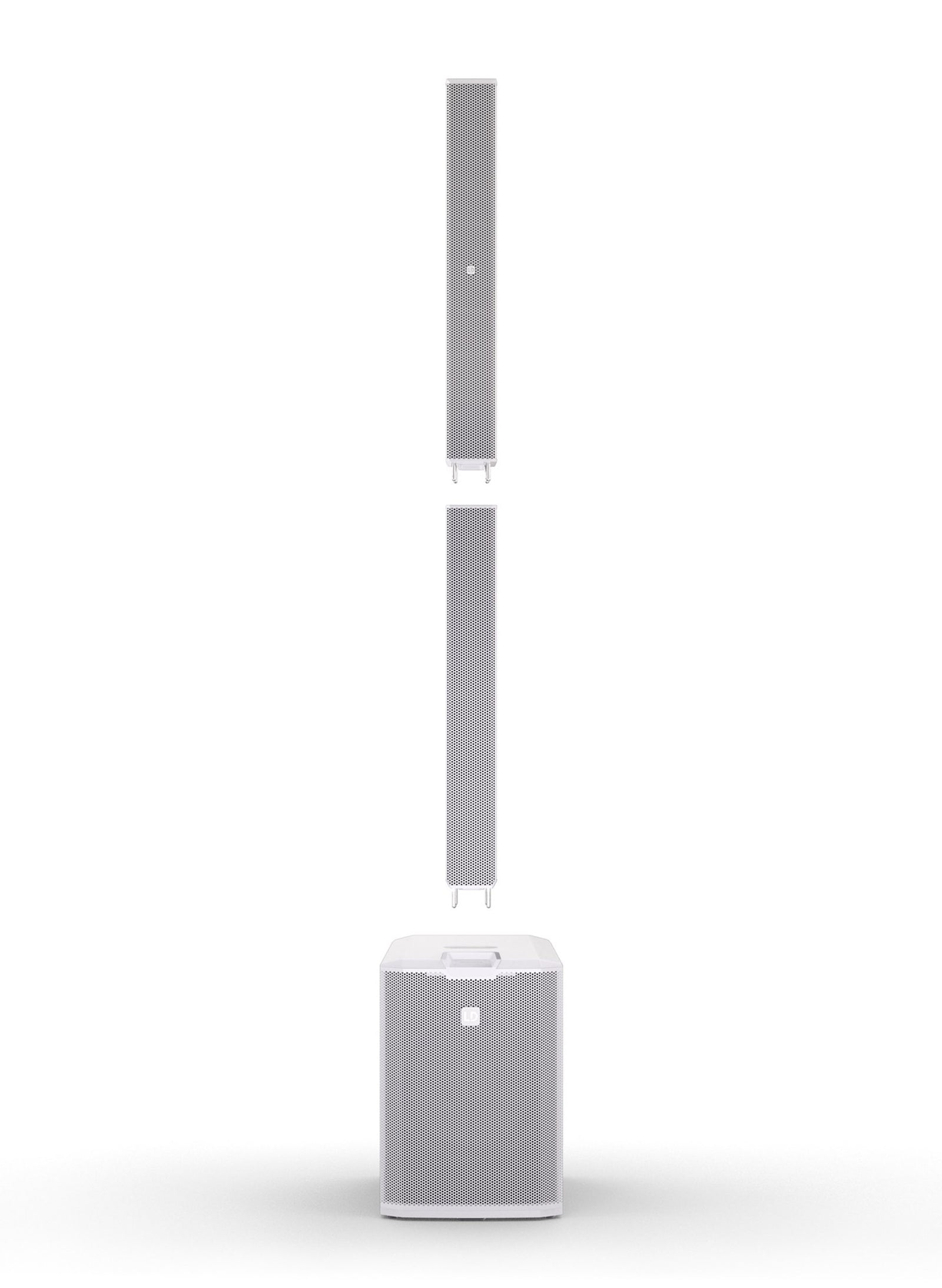

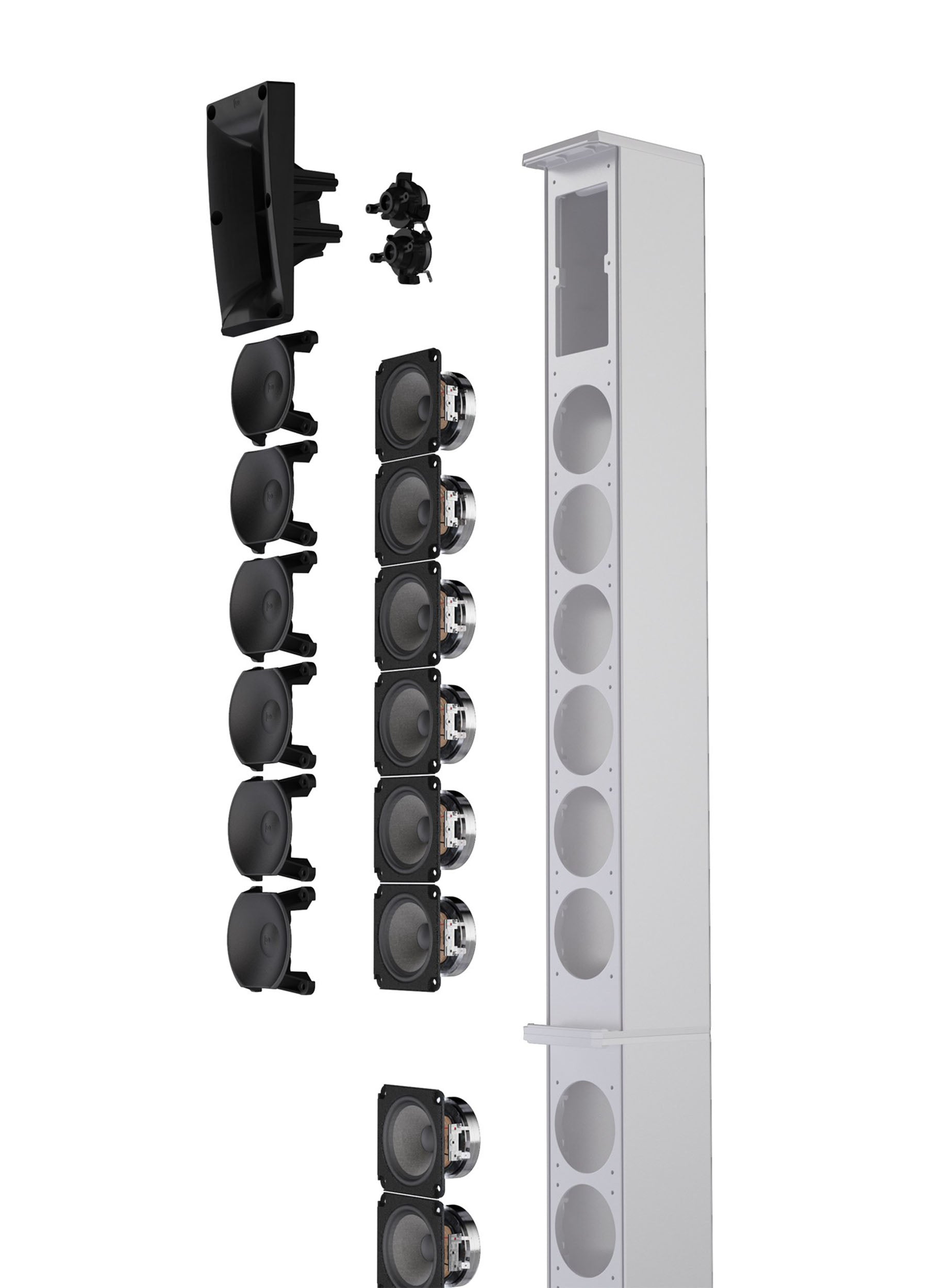

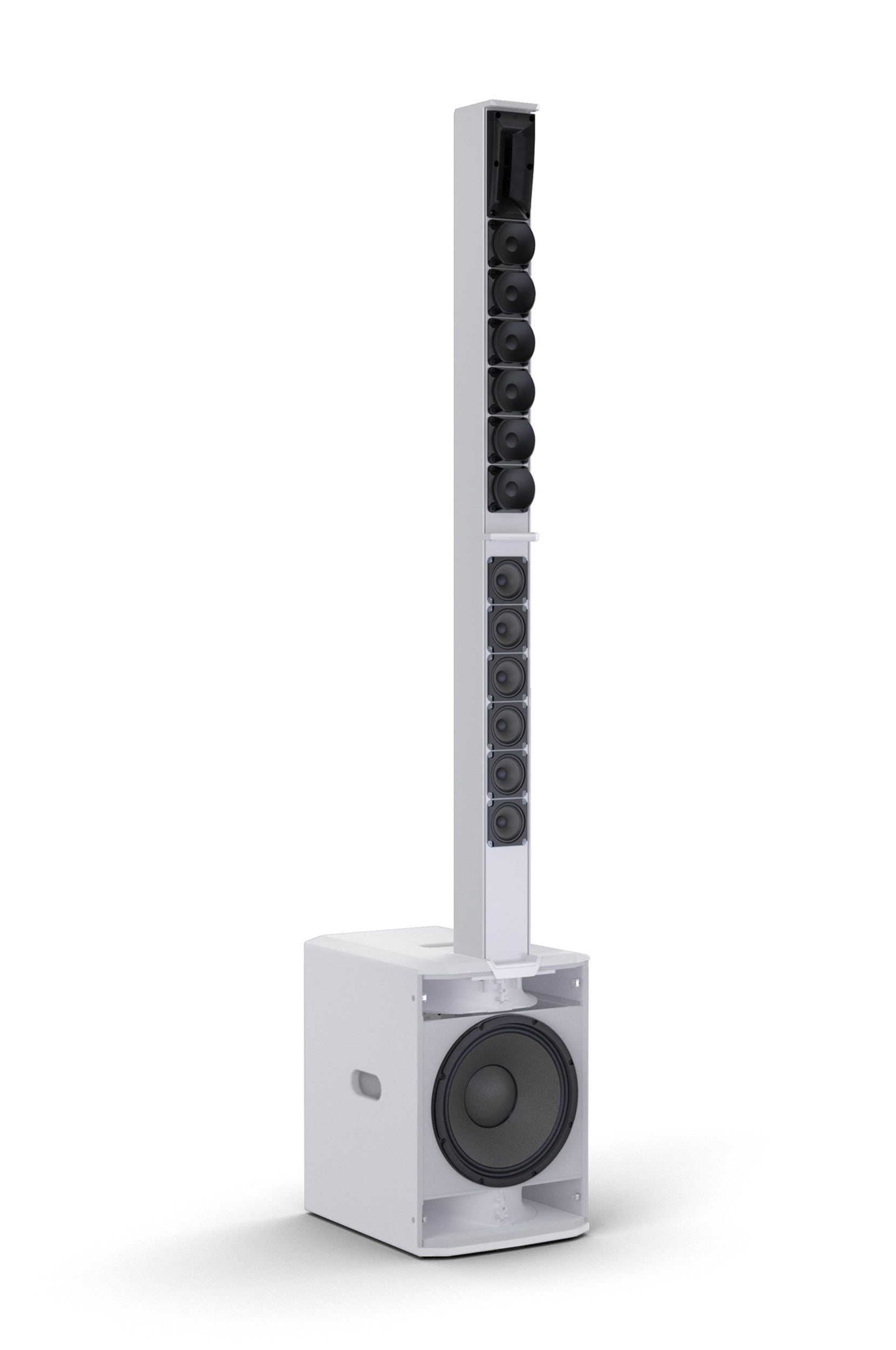

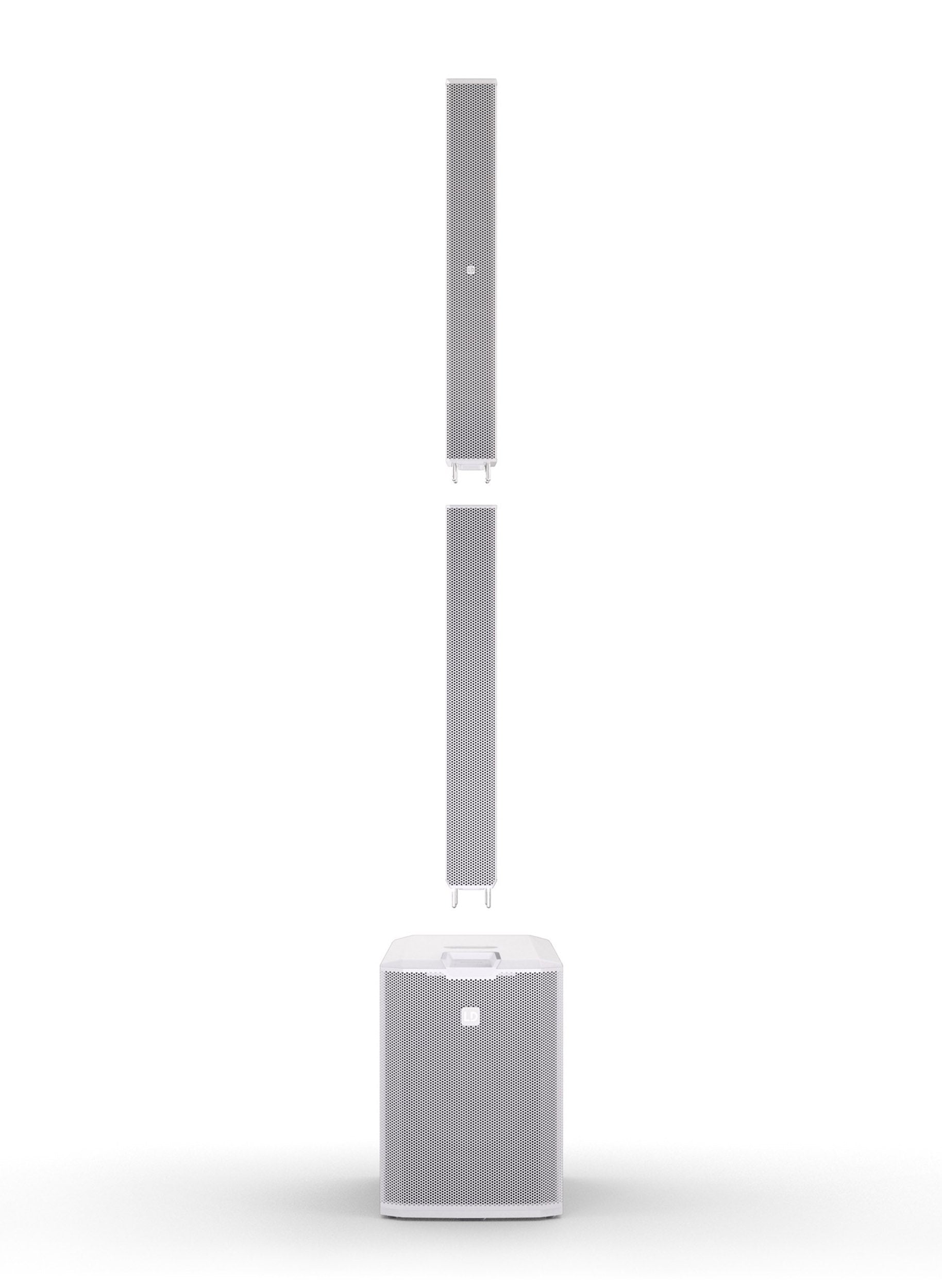

With its sleek and elegant design, the MAUI 28 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimized waveguide – in front of the tweeters – carries the high frequencies right to the back of the audience areas.

The LD Systems engineers also took great care with the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The MAUI 28 G3 MIX columns are designed as cardioid speakers. This allows for controlled low mids at the front, and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

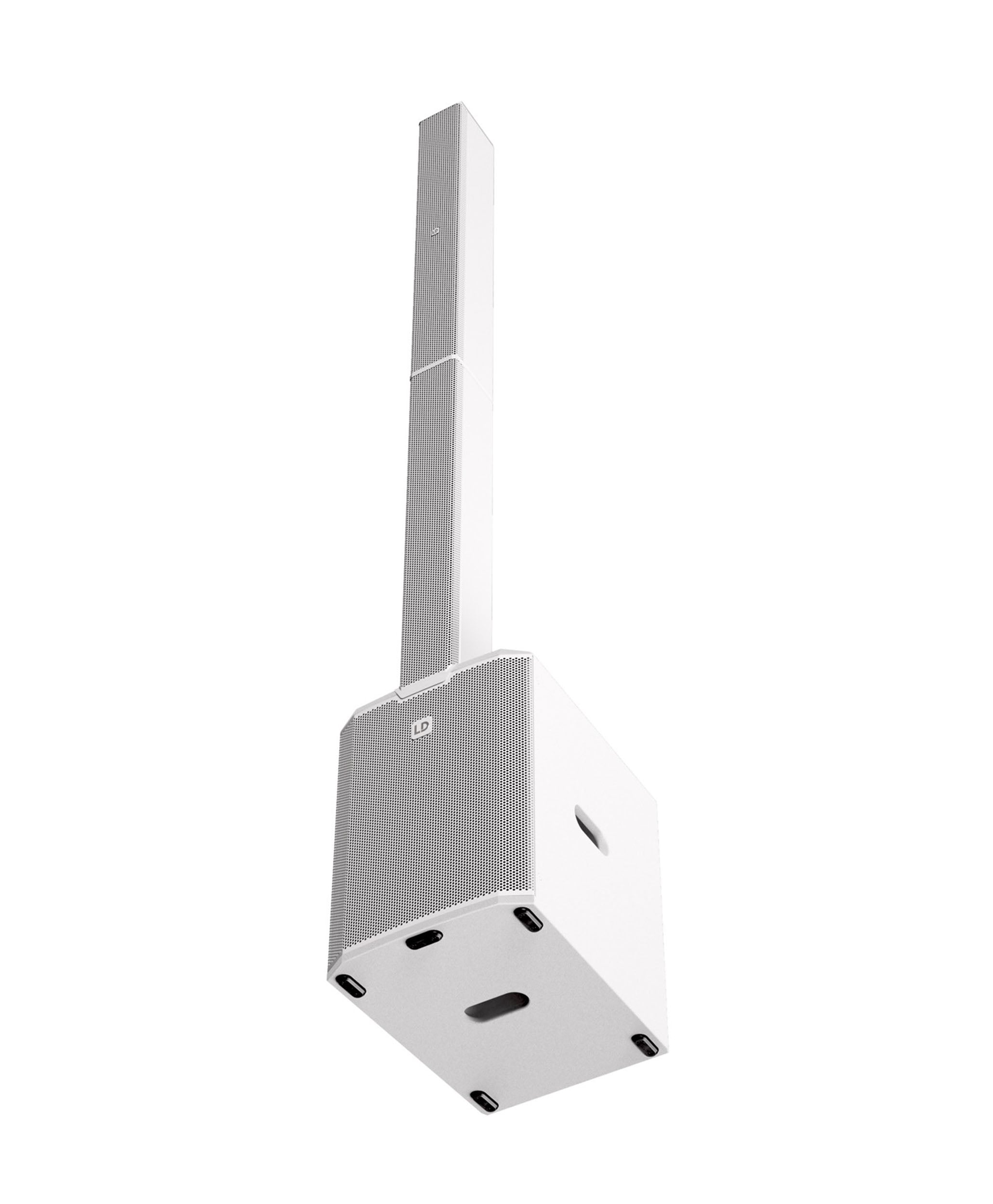

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 MIX subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB, and it can also be driven in cardioid configuration at the push of a button (Cardioid preset). In addition, the subwoofer’s ultra-durable polyurea coating easily withstands even the toughest demands of life on the road.

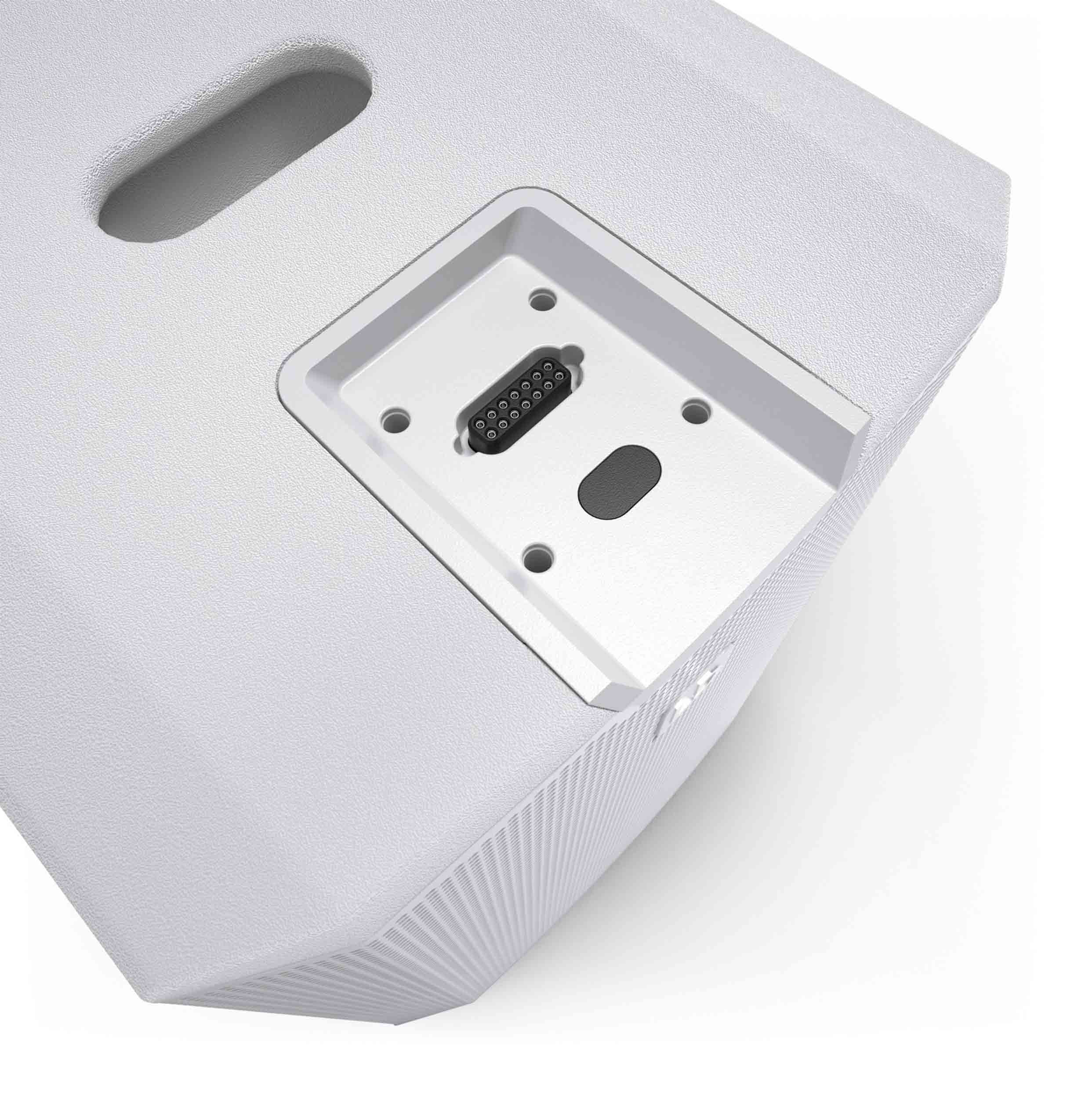

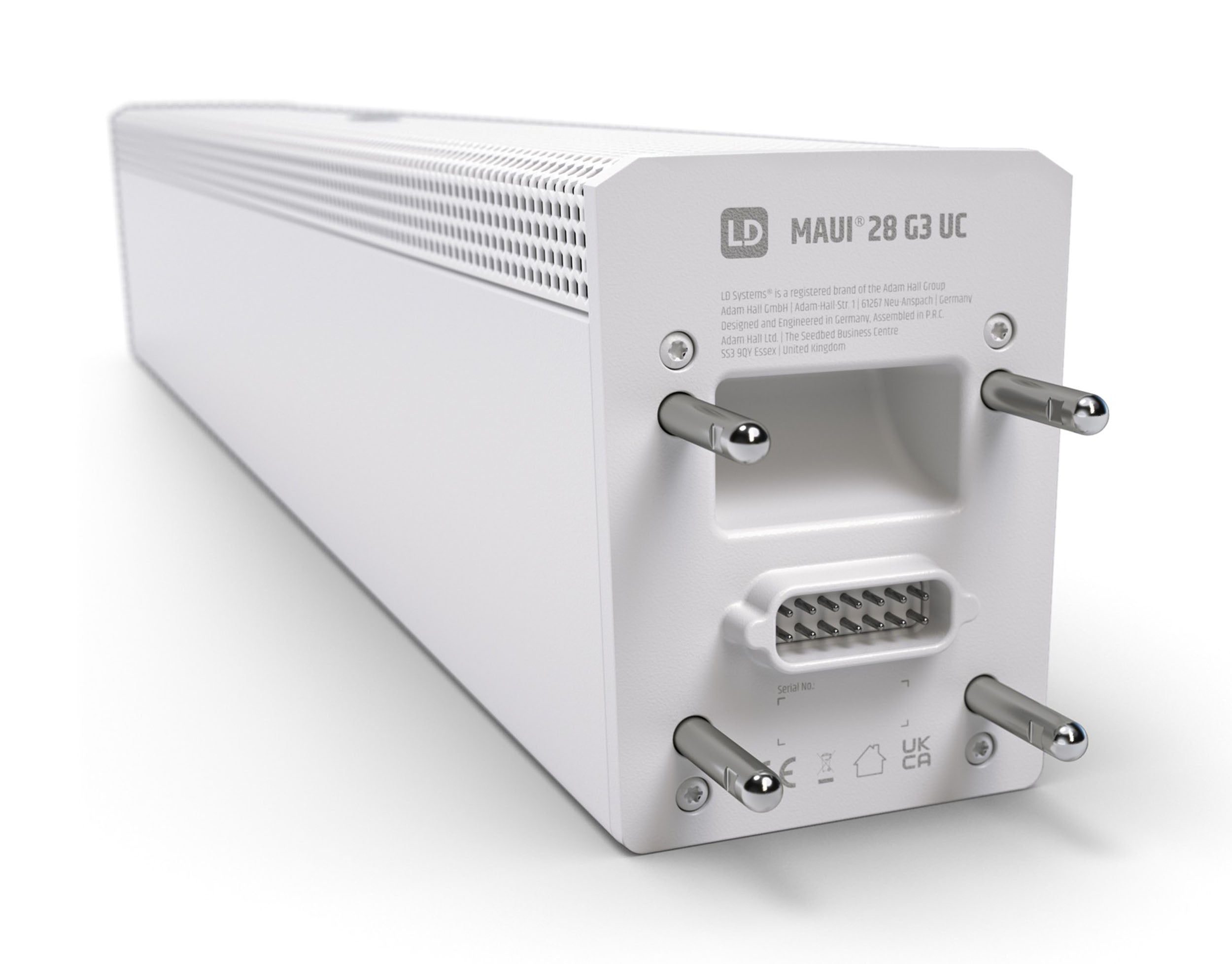

The MAUI 28 G3 MIX is a real sound machine, yet will impress solo entertainers, singer/songwriters or small bands daily with its smart features. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There’s nothing that can knock the MAUI off its feet so easily.

Product Specifications:

Product Type: PA Complete Systems

Type: Powered

Color: White (RAL 9003)

Max. SPL (Peak): 127 Db

Frequency Response (-10db): 37 Hz - 20000 Hz

Dispersion (H X V): 120° X 30 °

Total Height: 2052 Mm

Weight: 36,2 Kg

Woofer Dimensions: 12 "

Woofer Dimensions (Mm): 305 Mm

Woofer Magnet: Ferrite

Woofer Brand: Custom-Made

Woofer Voice Coil: 3 "

Woofer Voice Coil (Mm): 76.2 Mm

Cabinet Construction: Bass Reflex

Housing Material: 15 Mm Birch Plywood

Cabinet Surface: Polyurea

Dimensions Subwoofer (W X H X D): 370 X 527 X 472 Mm

Subwoofer Weight: 23.6 Kg

Midrange Dimensions: 12 X 3,5 "

Midrange Dimensions (Mm): 12 X 89 Mm

Midrange Magnet: Ferrite

Midrange Brand: Custom-Made

Midrange Voice Coil: 0.75 "

Midrange Voice Coil: 19 Mm

Tweeter Dimensions: 2 X 1 "

Tweeter Dimensions (Mm): 2 X 25.4 Mm

Tweeter Magnet: Neodymium

Tweeter Brand: Custom-Made

Tweeter Voice Coil: 1 "

Wave Guide: CD Waveguide

Loudspeaker Inputs: 1

Speaker Input Connections: Custom-Made Multipin

Cabinet Construction Mid/High: Passive Cardioid

Mid/Hi System Cabinet Material: Aluminium

Mid/Hi System Cabinet Surface: Powder-Coated

Mid/Hi System Width: 103 Mm

Mid/Hi System Height: 1540 Mm

Mid/Hi System Depth: 135 Mm

Mid/Hi System Weight: 12.6 Kg

Amplifier: Class D

System Output (RMS): 1030 W

System Output (Peak): 2060 W

Protection Circuits: DC Protection, Multiband Limiter, Short Circuit, Thermal Protection

Cooling: Convection

Mains Connector: Powercon

Operating Voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz

Fuse: T5AL / 250 V

Power Consumption: 400 W

Relative Humidity: < 80% (Non-Condensing)

Line Inputs: 4, Footswitch

Line Input Connectors: Combo XLR / TRS

Line Outputs: 1 System OUT, 2 Monitor OUT

Line Output Connectors: XLR Male

Number of Speaker Outputs: 1

Loudspeaker Output Connectors: Custom-Made Multipin

Other Connections: 1 RJ45 SysLink Port

Bluetooth Standard: A2DP

Bluetooth Version: 4.2

Bluetooth Audio Decoder: SBC

Bit Depth AD/DA Converter: 24 Bits

Sampling Frequency: 48 Khz
