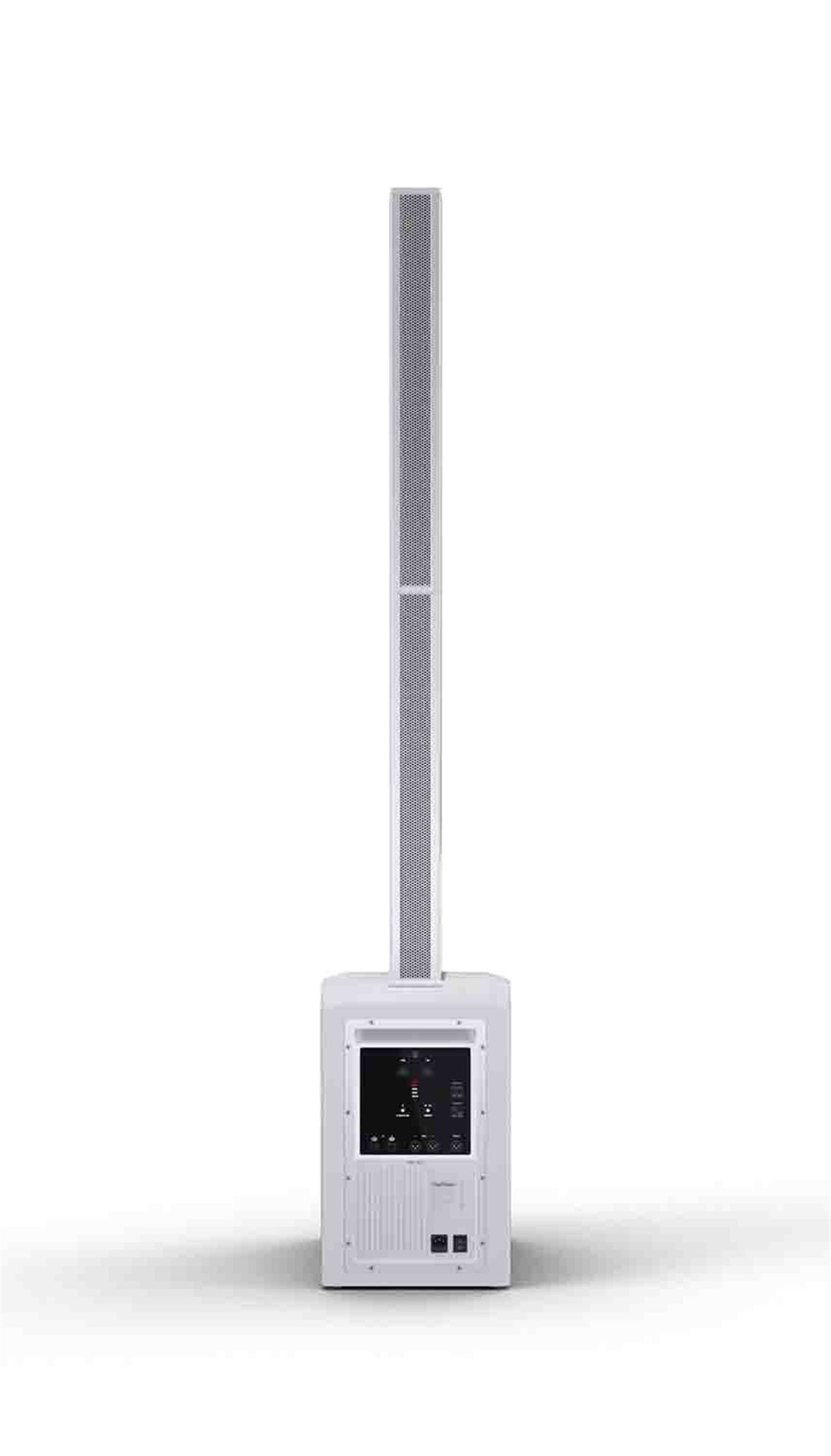

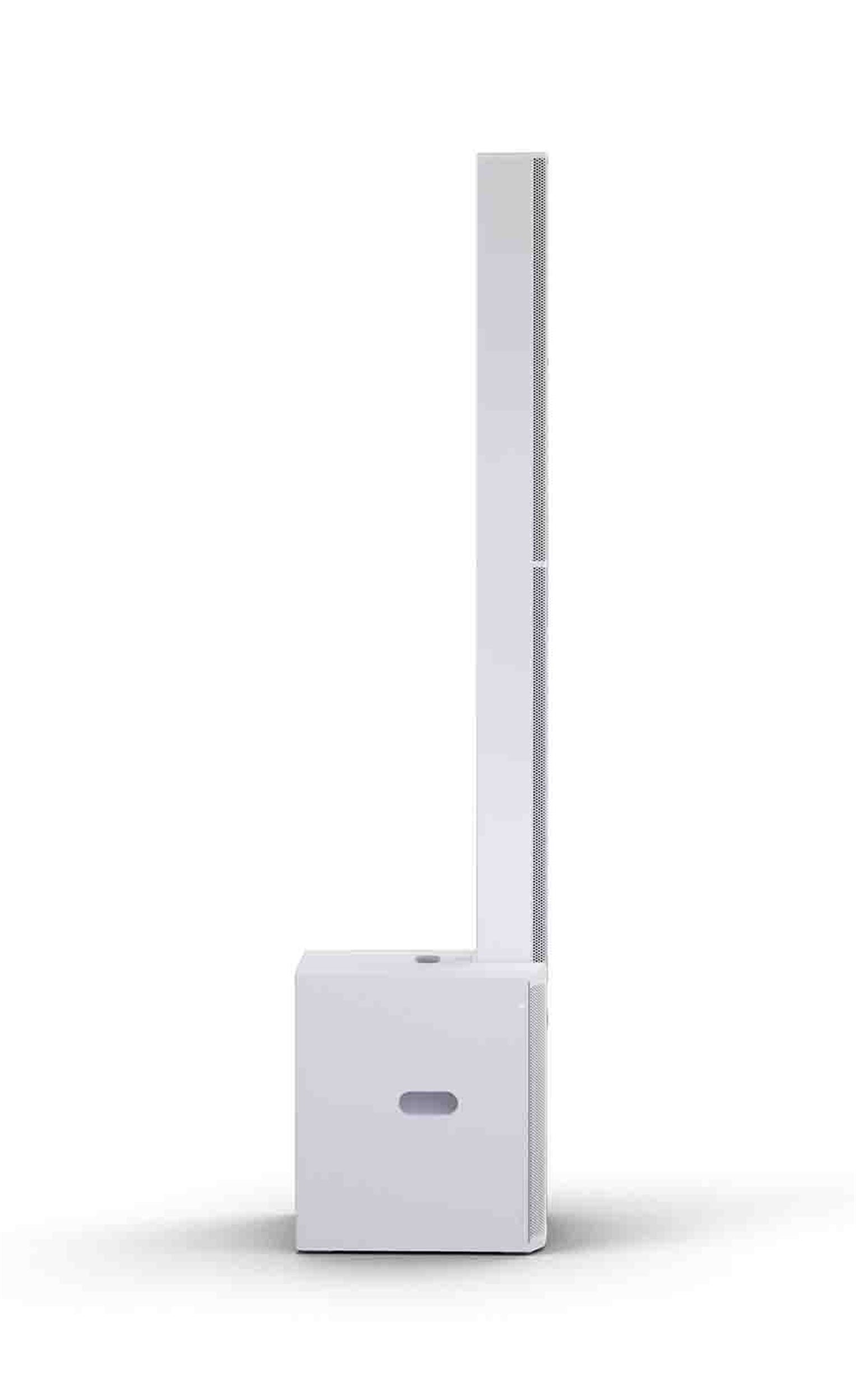

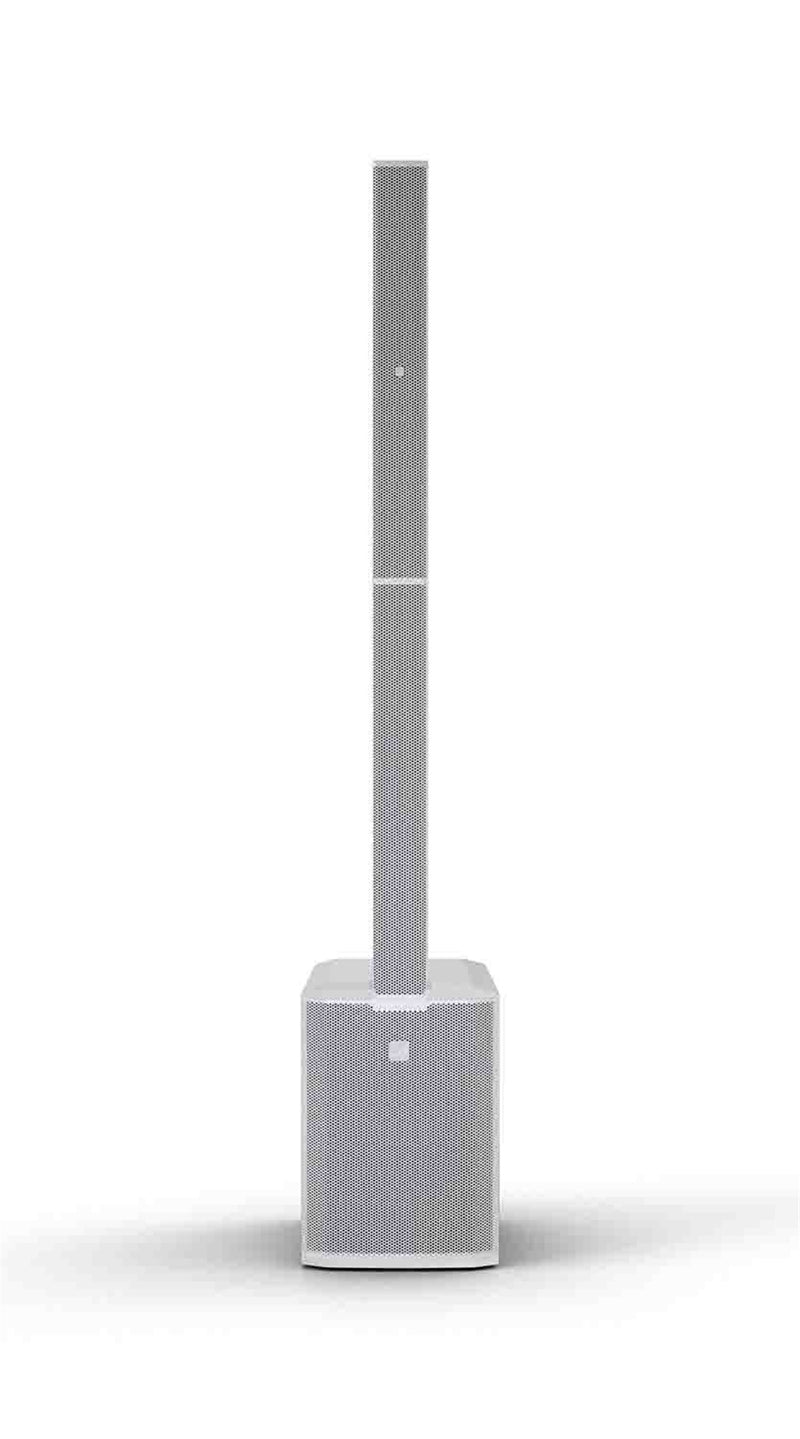

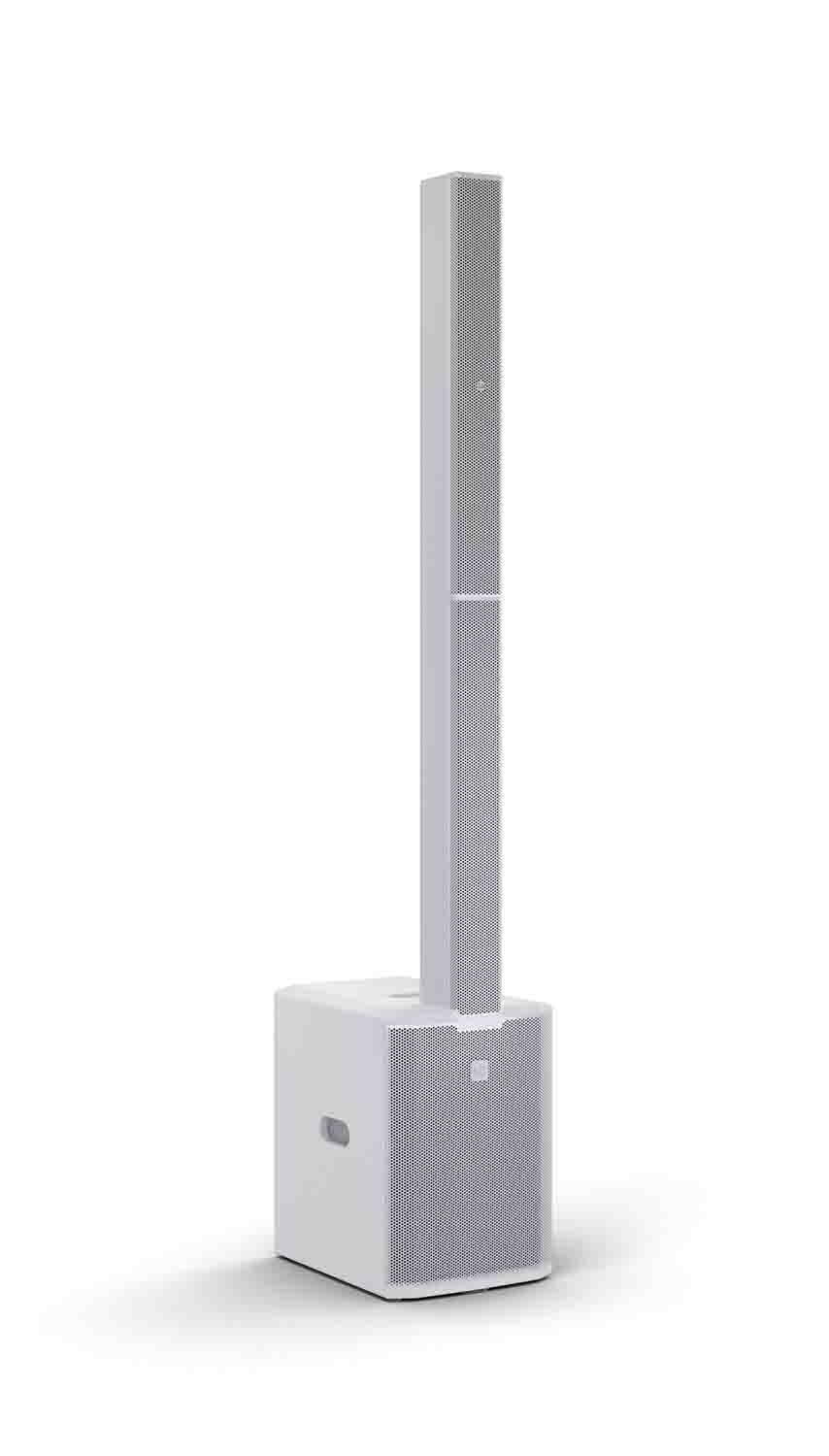

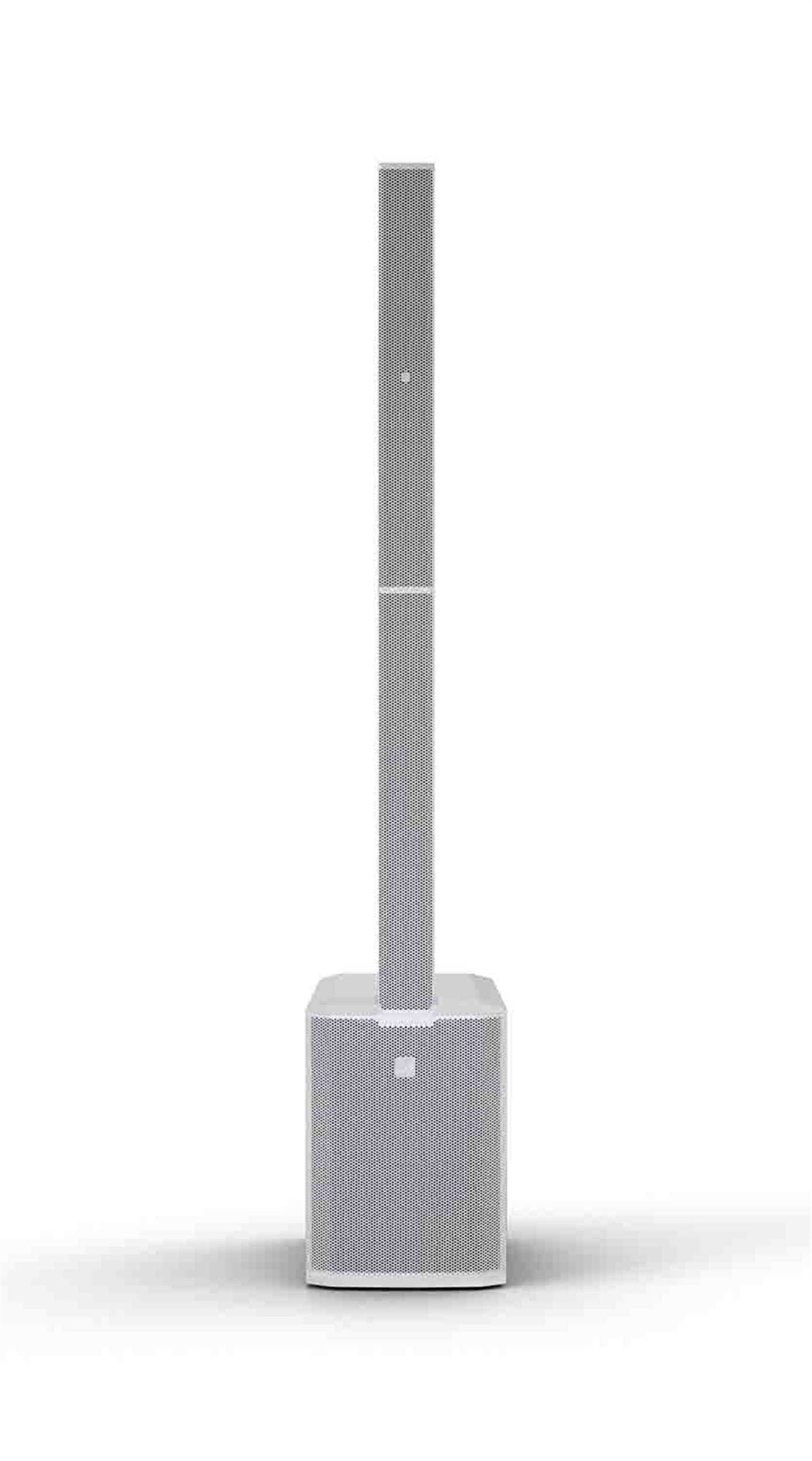

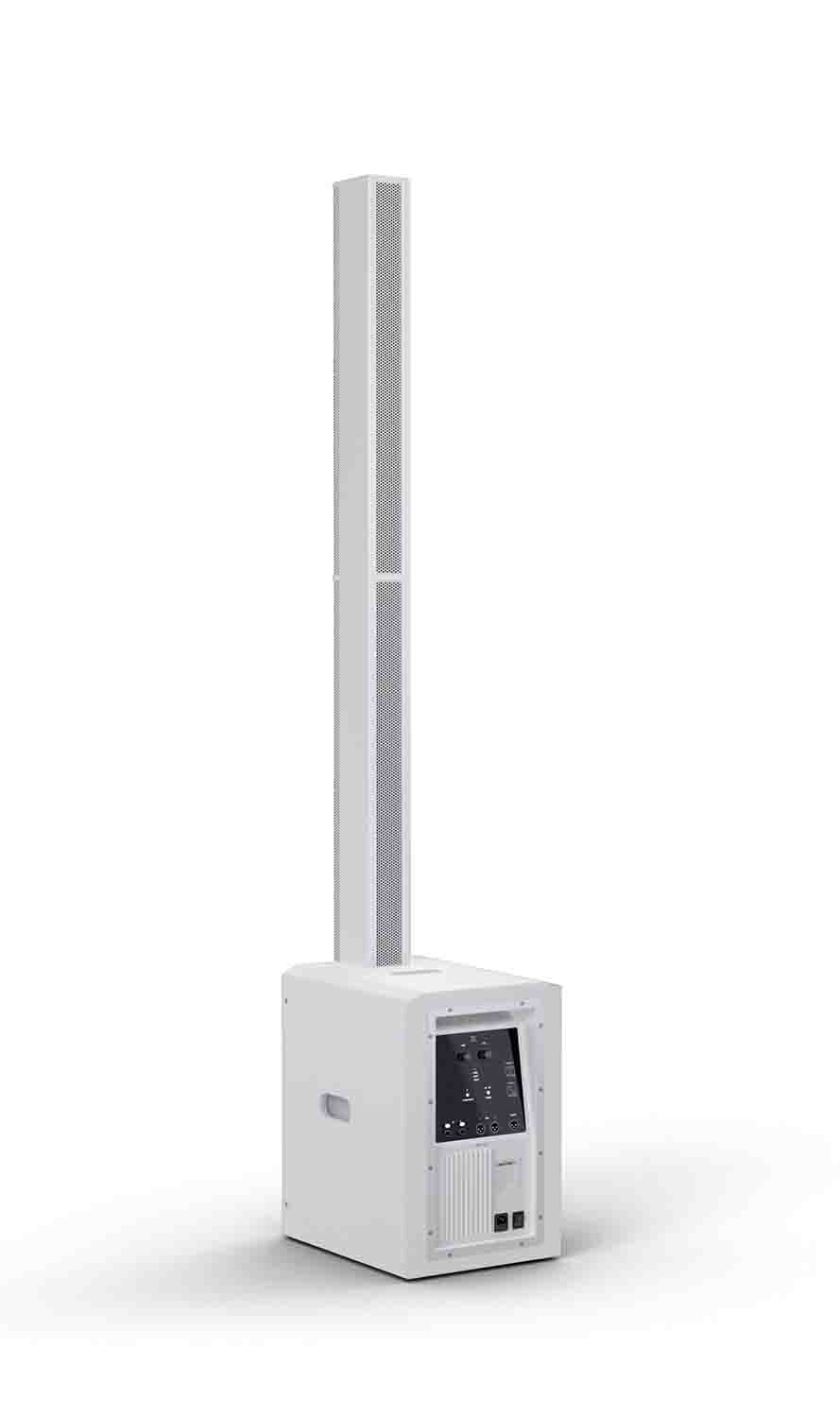

LD System MAUI 28 G3 W, Compact Cardioid Powered Column PA System - White

The LD System MAUI 28 G3 W, Compact Cardioid Powered Column PA System - White represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set! The MAUI 28 G3 W delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

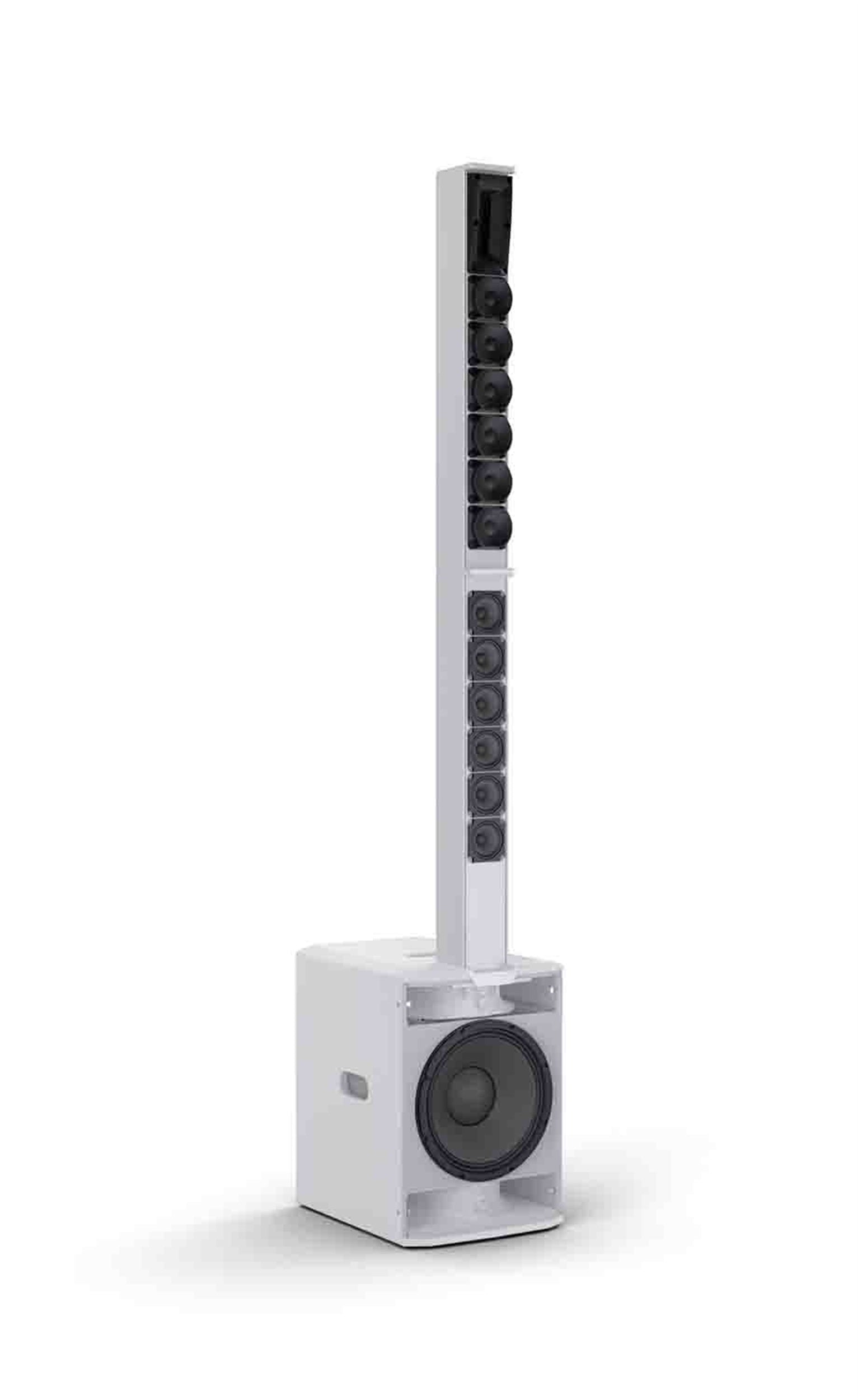

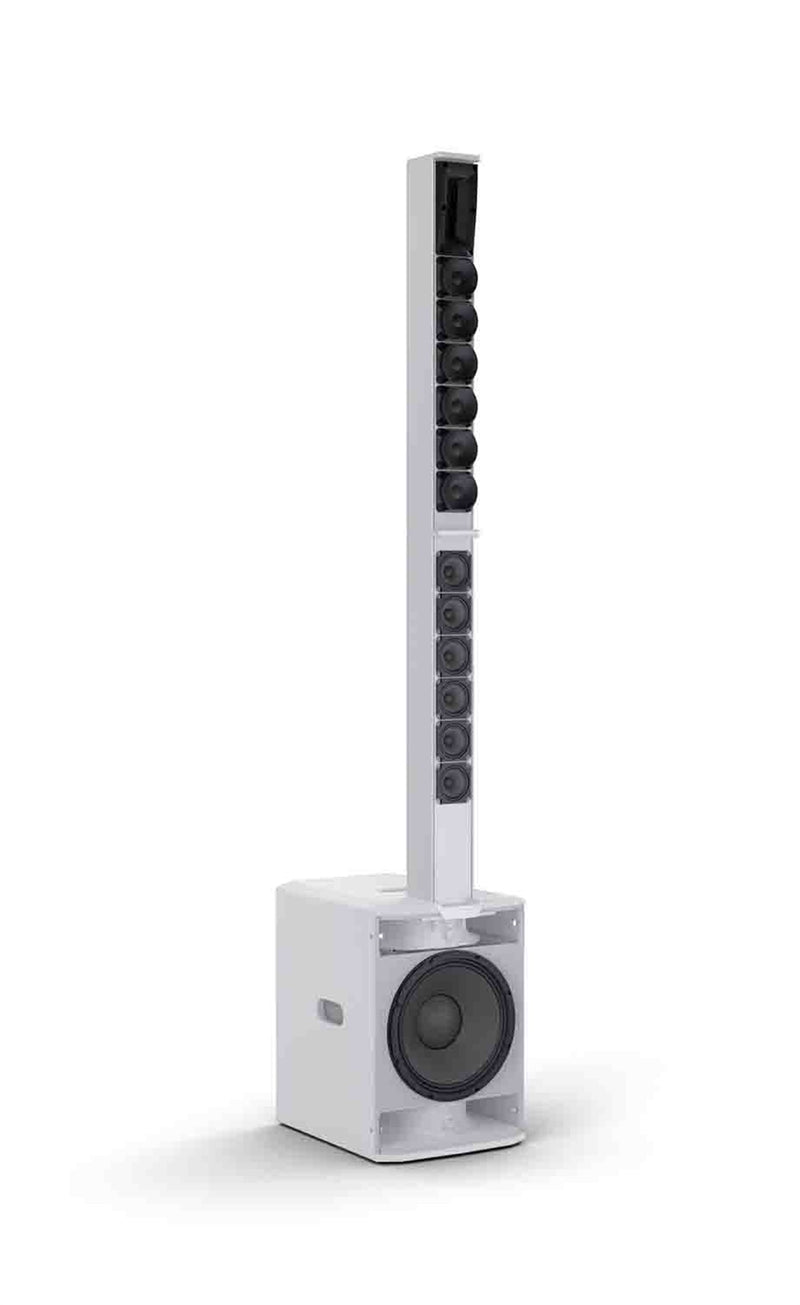

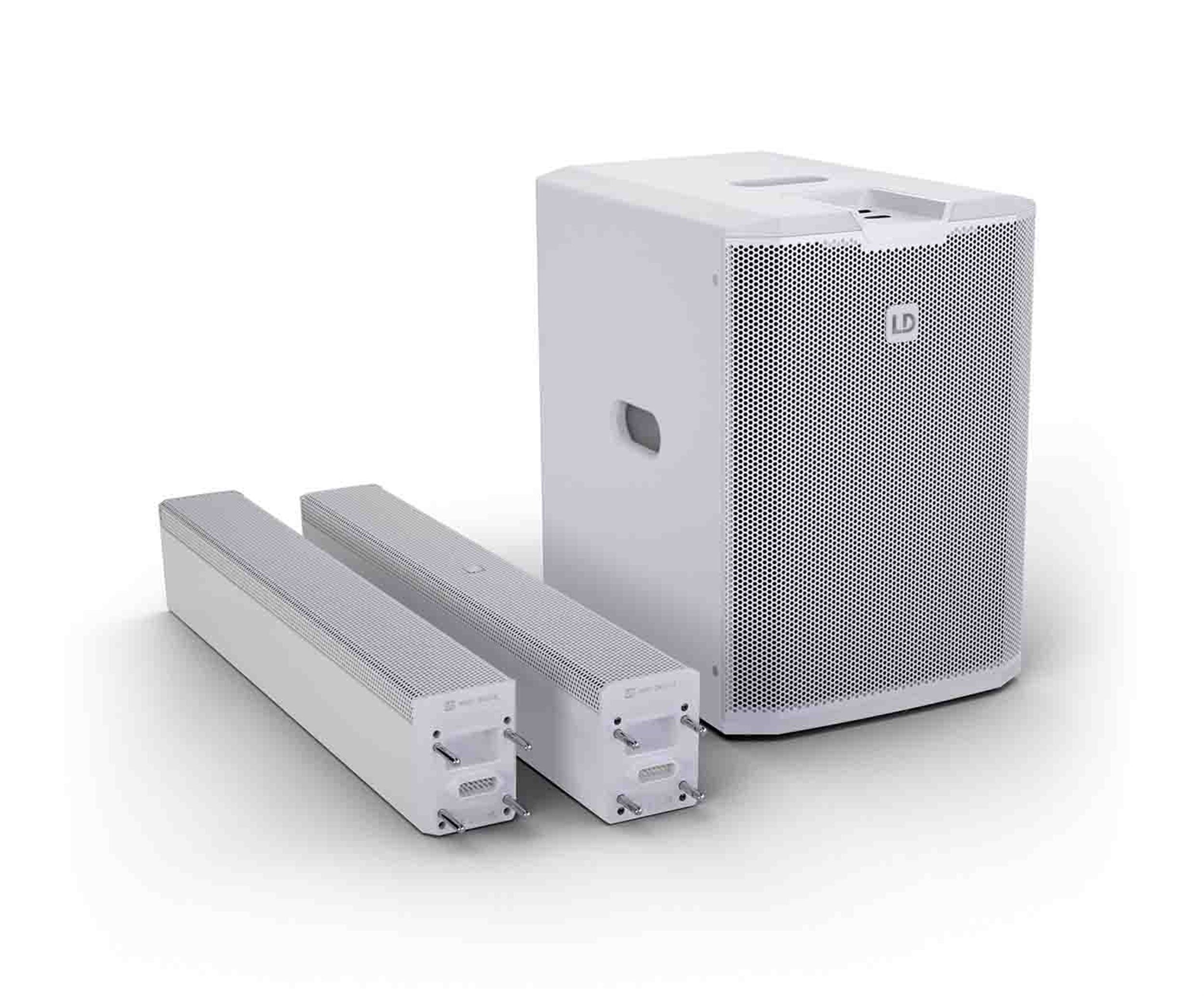

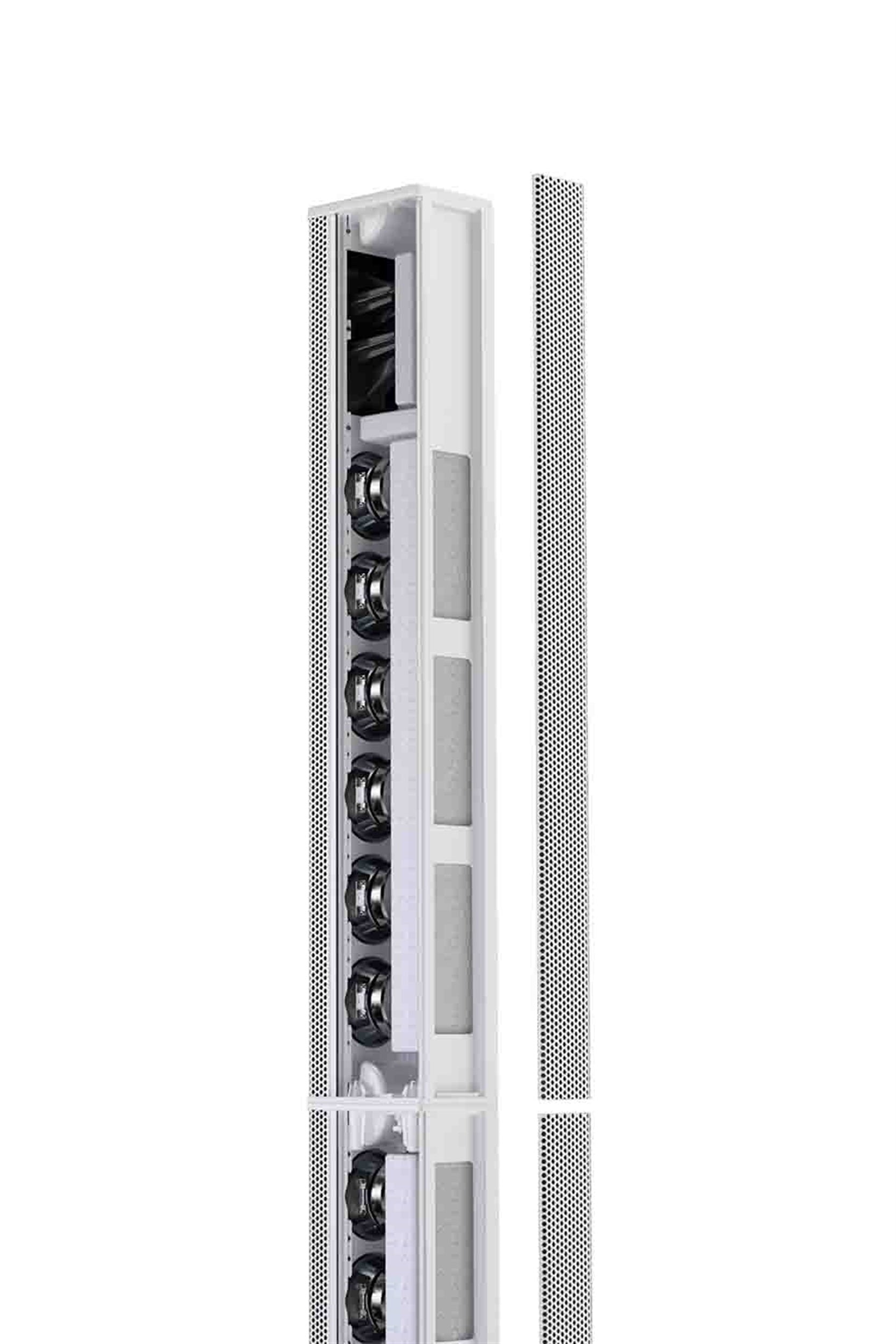

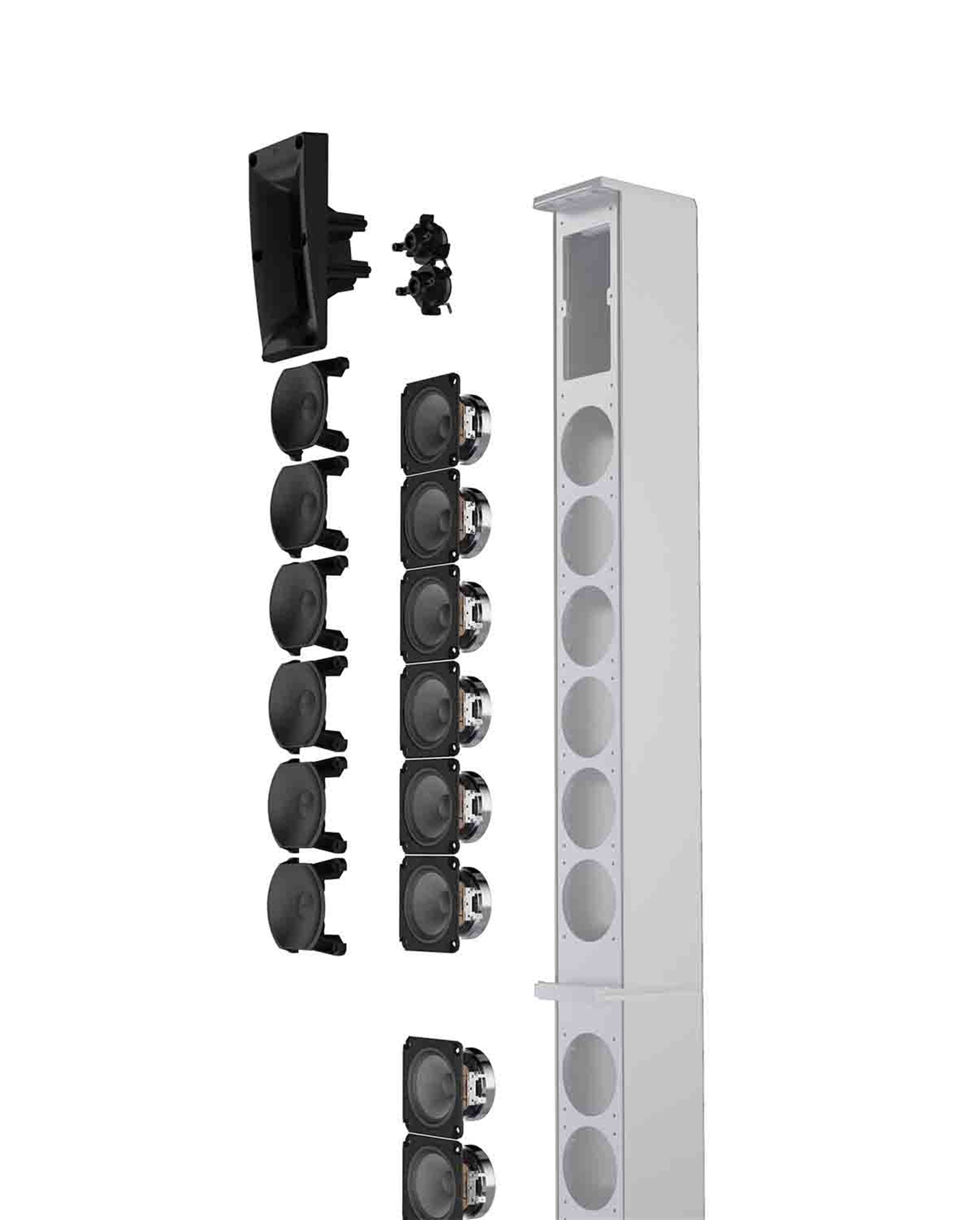

With its sleek and elegant design, the MAUI 28 G3 W looks very appealing. The two aluminum column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimized HF waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

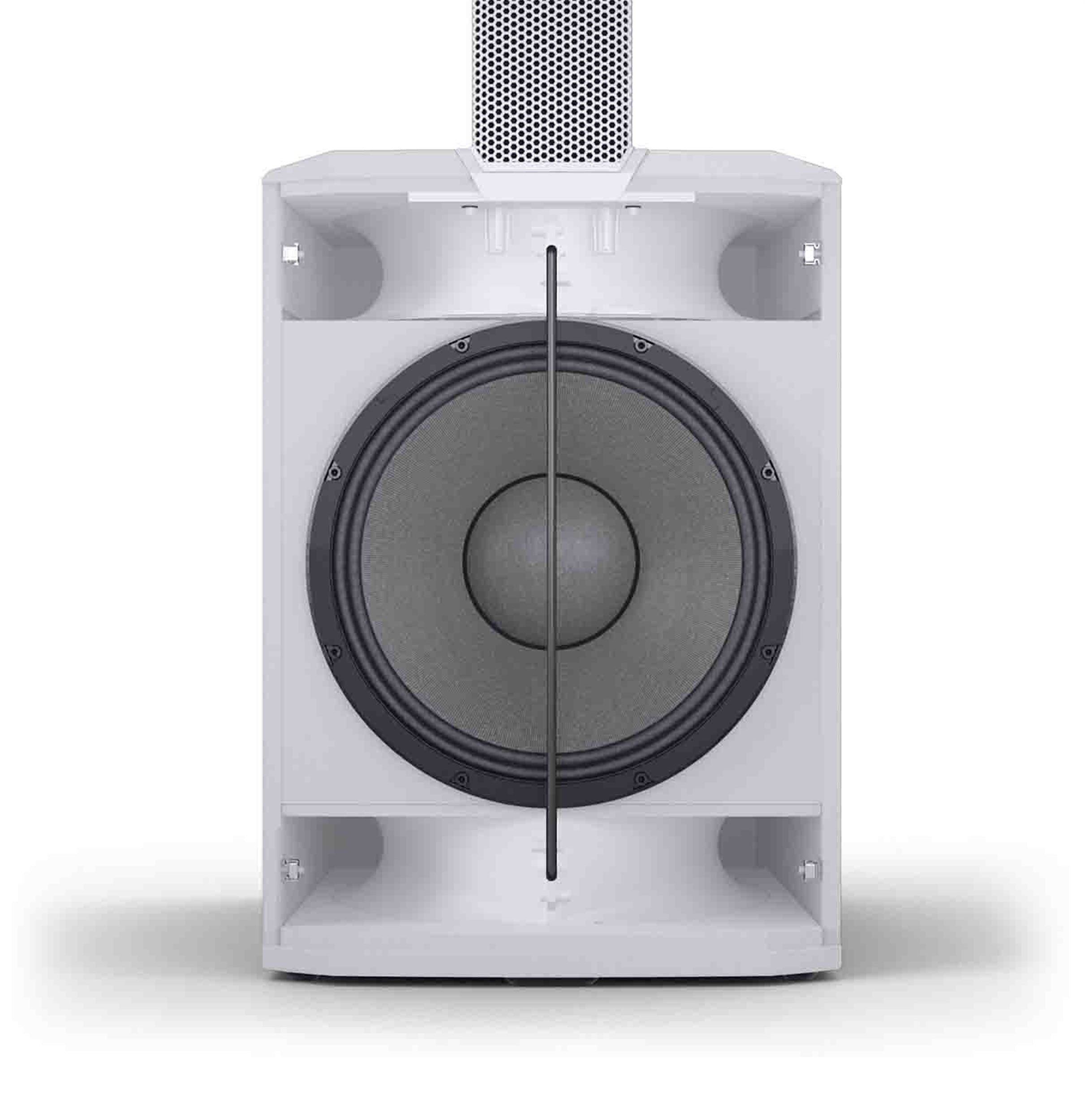

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 W subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

Product Specifications:

Product type: PA Complete Systems

Color: white

Type: Powered

Max. SPL (Peak): 127 dB

Frequency response (-10dB): 37 Hz - 20000 Hz

Dispersion (H x V): 120° x 30 °

Total Height: 2052 mm

Weight: 35,4 kg

Subwoofer:

Woofer dimensions: 12 "

Woofer dimensions (mm): 305 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice coil (inch): 3 "

Woofer voice coil (mm): 76.2 mm

Cabinet construction: Bass Reflex

Housing material: 15 mm Multiplex

Cabinet surface: Polyurea

Dimensions Subwoofer (W x H x D): 370 x 527 x 472 mm

Subwoofer weight: 22.8 kg

Mid/Hi System:

Midrange dimensions: 12 x 3,5 "

Midrange dimensions (mm): 12 x 89 mm

Midrange magnet: Ferrite

Midrange brand: Custom-made

Midrange voice coil: 0.75 "

Midrange voice coil: 19 mm

Tweeter dimensions: 2 x 1 "

Tweeter dimensions (mm): 2 x 25.4 mm

Tweeter magnet: Neodymium

Tweeter brand: Custom-made

Tweeter voice coil: 1 "

Tweeter voice coil (mm): 25.4 mm

Wave Guide: CD Waveguide

Loudspeaker inputs: 1

Speaker input connections: Custom-made multipin

Cabinet construction mid/high: Passive Cardioid

Mid/Hi system cabinet material: Aluminium

Mid/Hi system cabinet surface: Powder-coated

Mid/Hi system width: 103 mm

Mid/Hi system height: 1540 mm

Mid/Hi system depth: 135 mm

Mid/Hi system weight: 12.6 kg

Amplifier module (integrated in subwoofer):

Amplifier: Class D

System output (RMS): 1030 W

System output (Peak): 2060 W

Protection circuits: DC protection, Multiband limiter, short circuit, Thermal protection

Cooling: Convection

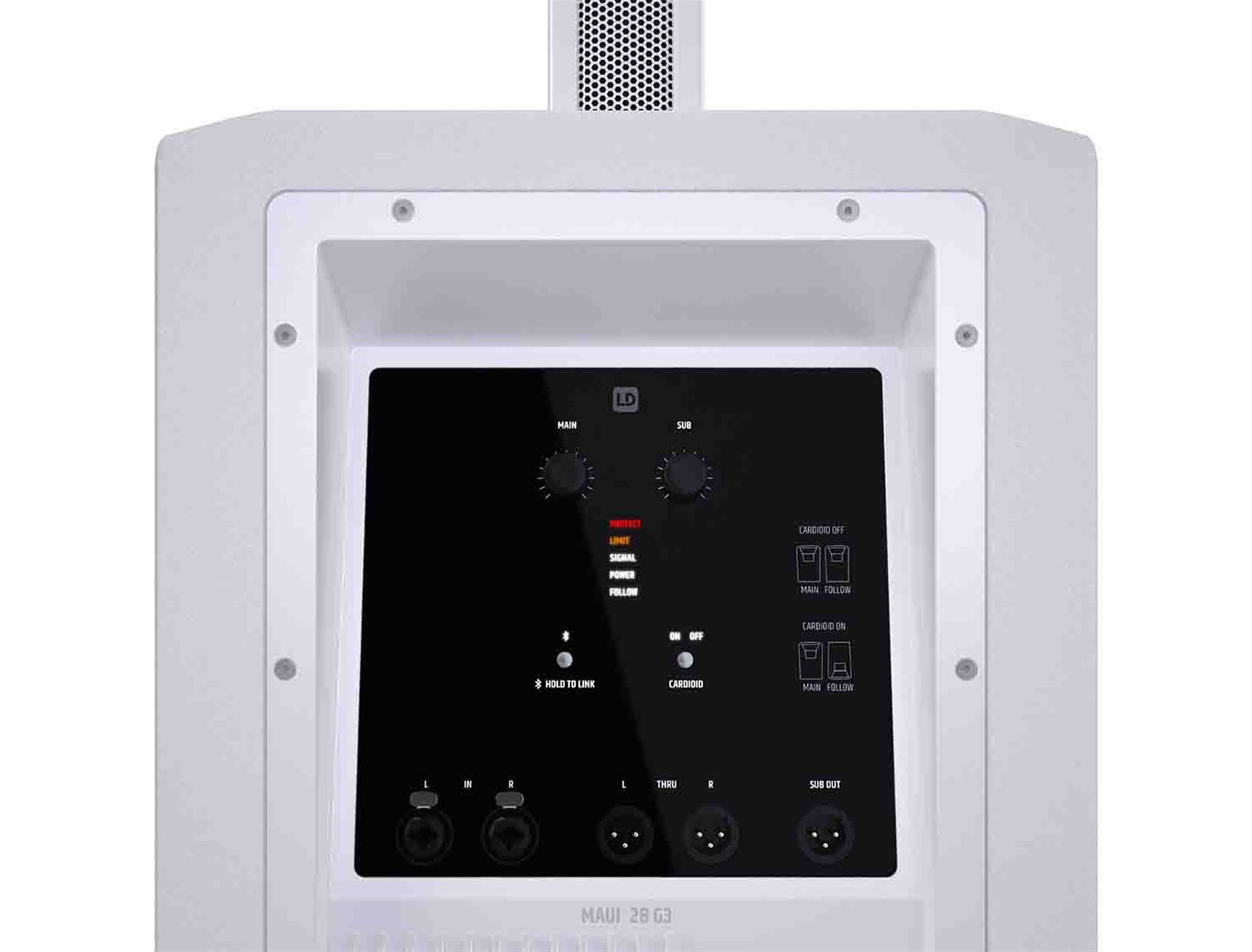

Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, protect (protection circuit engaged), Signal, Subwoofer Mode

Main’s connector: IEC power cable (included)

Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz

Fuse: T 5AL / 250 V

Power consumption: 400 W

Ambient temperature (operating): 0 - 40 °C

Relative Humidity: < 80% (non-condensing)

Line Inputs: 2

Line Input Connectors: Combo XLR / TRS

Line Outputs: 1 x Sub OUT, 2 x THRU

Line Output Connectors: XLR male

Number of speaker outputs: 1

Loudspeaker Output Connectors: Custom-made multipin

Bluetooth Standard: A2DP

Bluetooth Audio Decoder: AAC, SBC

DSP characteristics:

Bit depth AD/DA converter: 24 bits

Sampling frequency: 48 kHz
