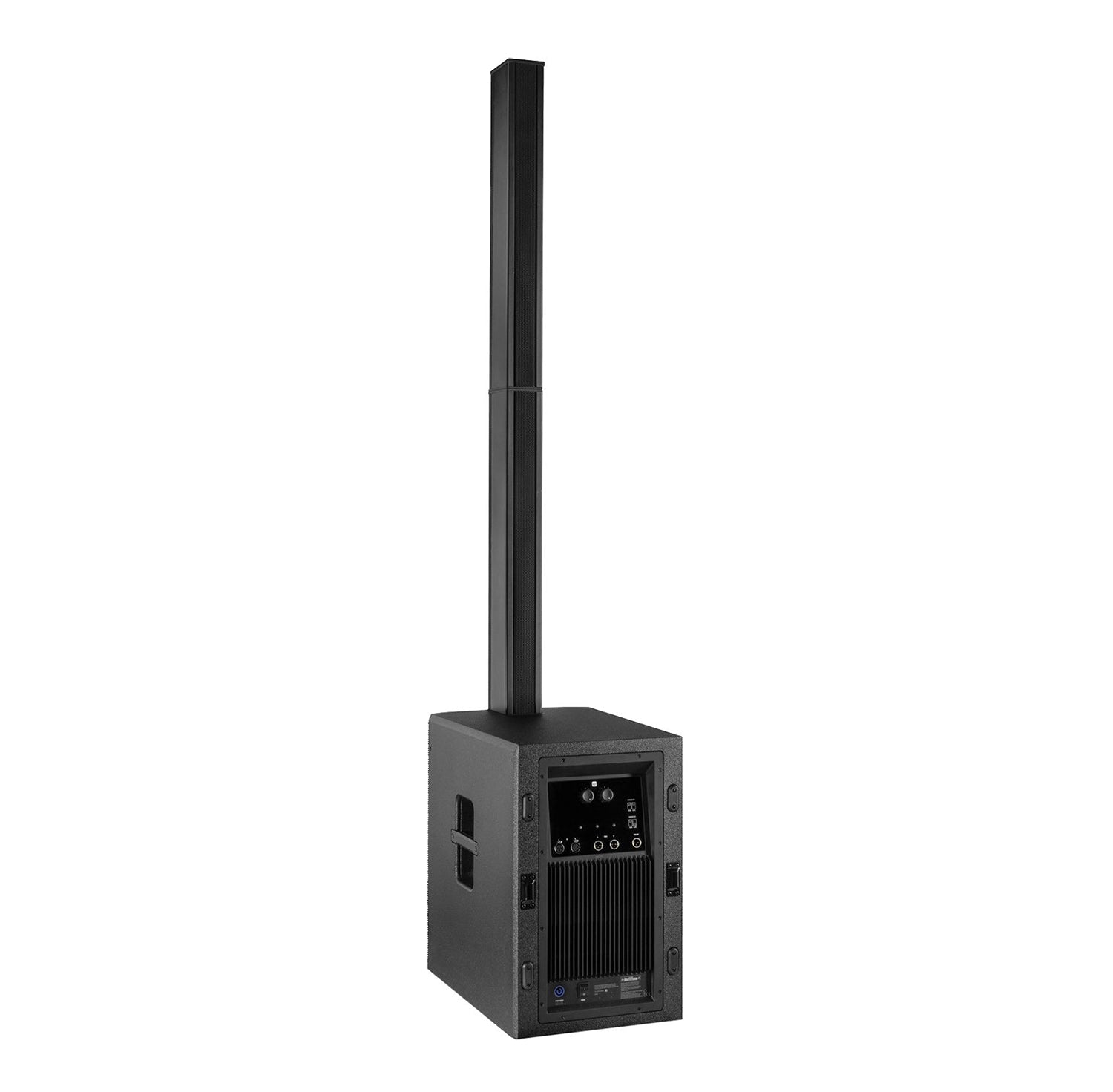

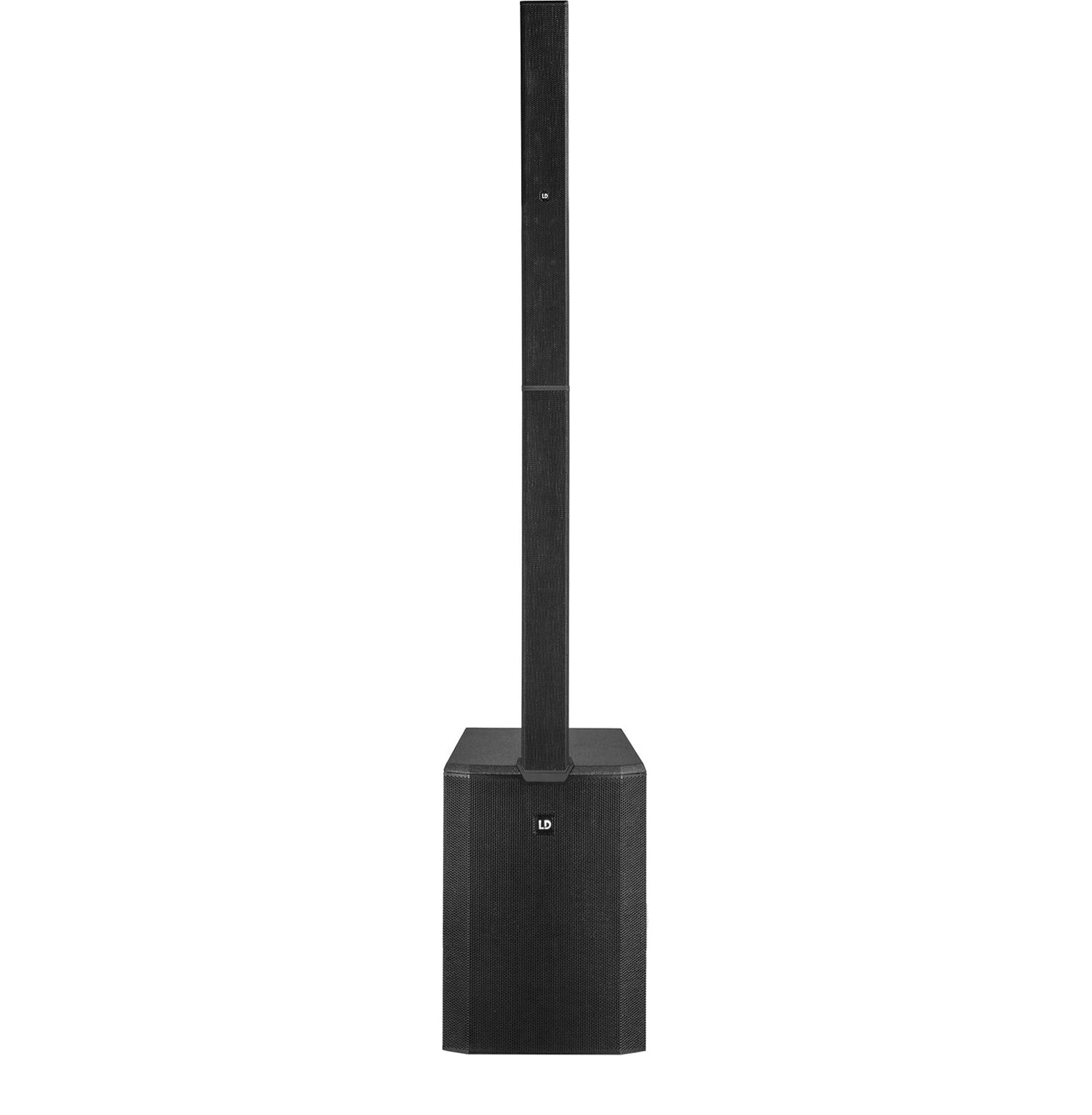

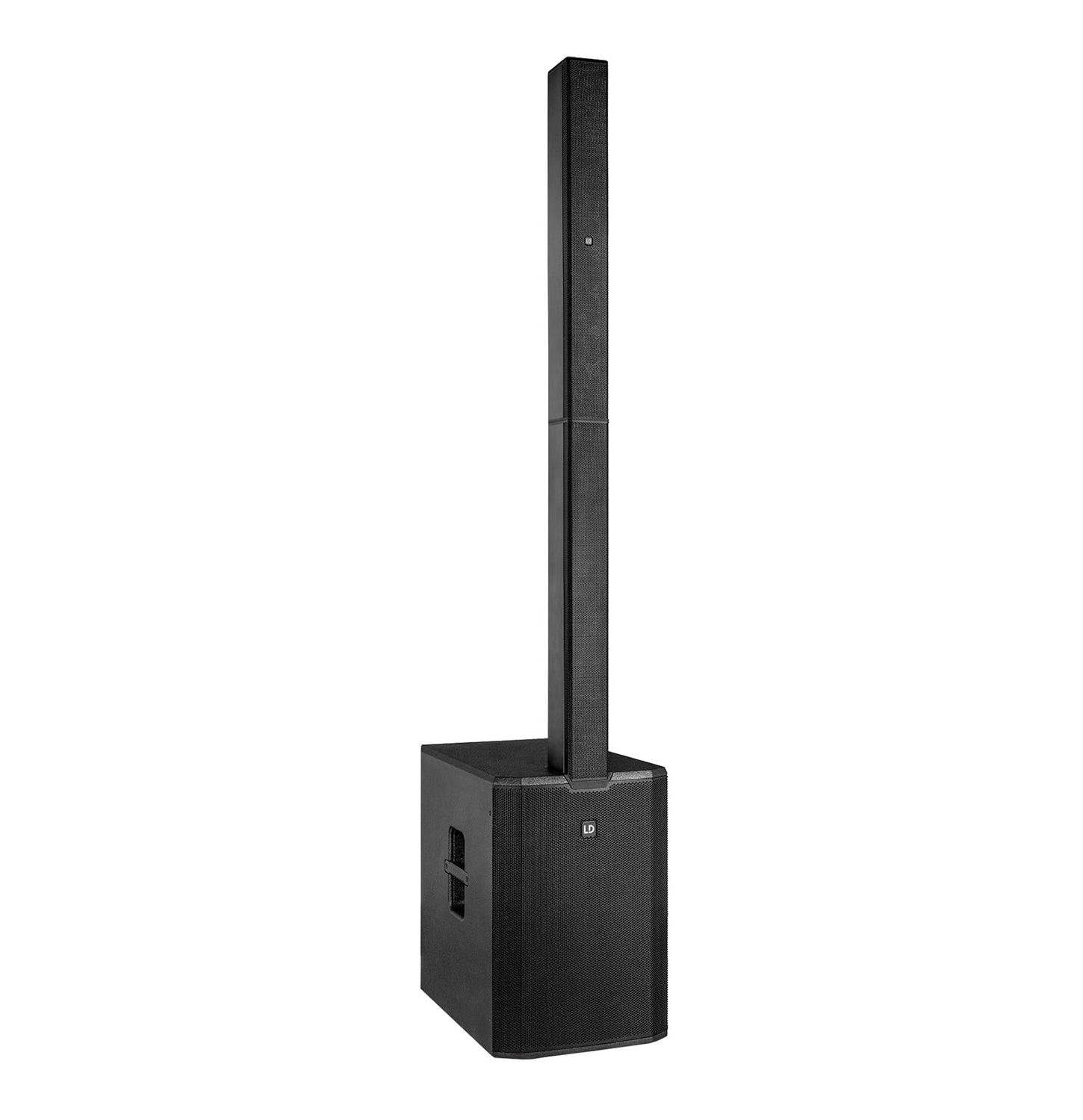

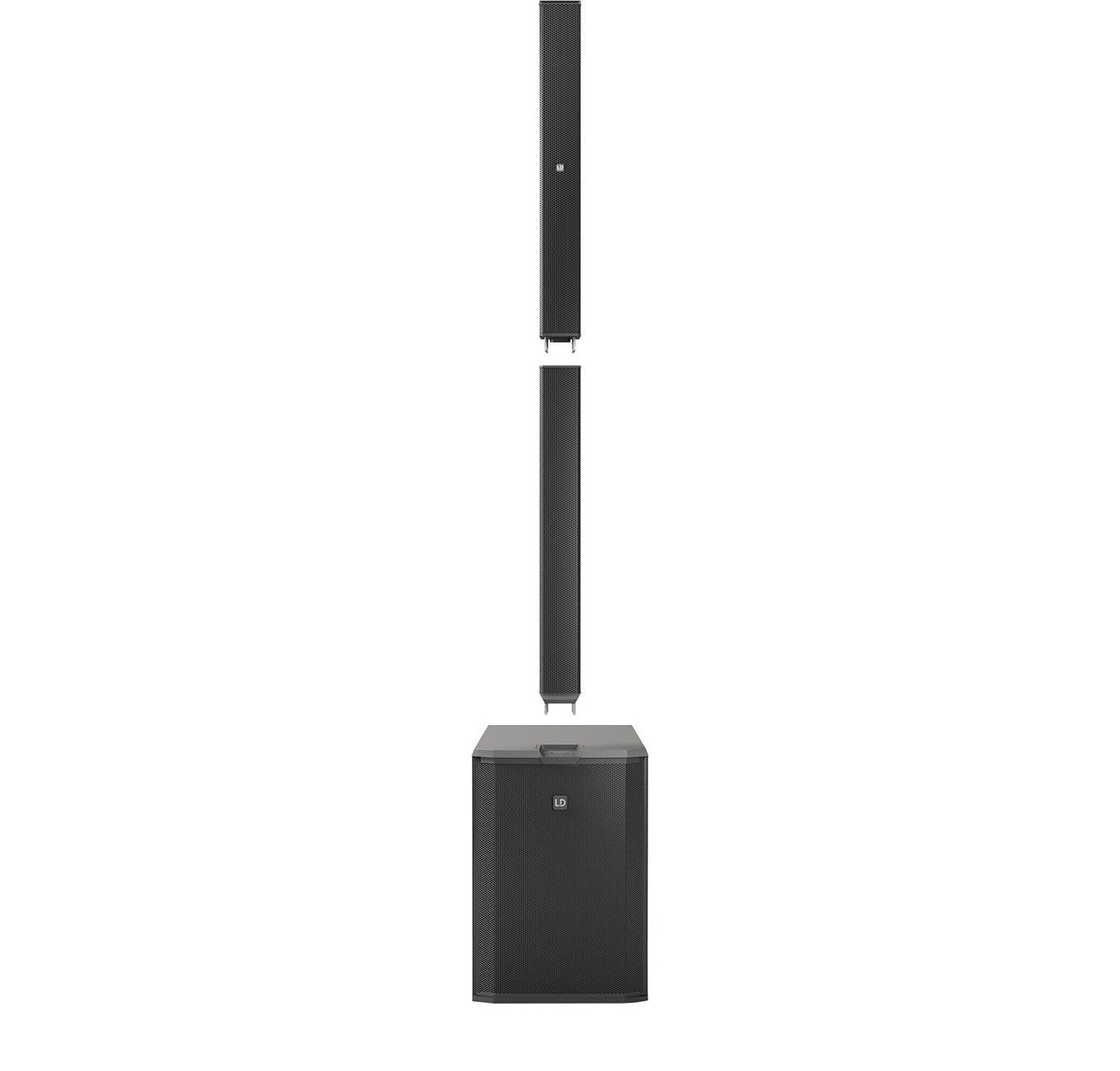

LD System MAUI 44 G2 Cardioid Powered Column Loudspeaker

The LD Systems MAUI  44 G2 is the flagship of the MAUI series column PAs: it offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for rental companies, musicians, small clubs, street festivals and permanent installations. The cardioid properties of the column elements and the possibility of creating a cardioid bass with an additional subwoofer further highlights the professional nature of this sound system.

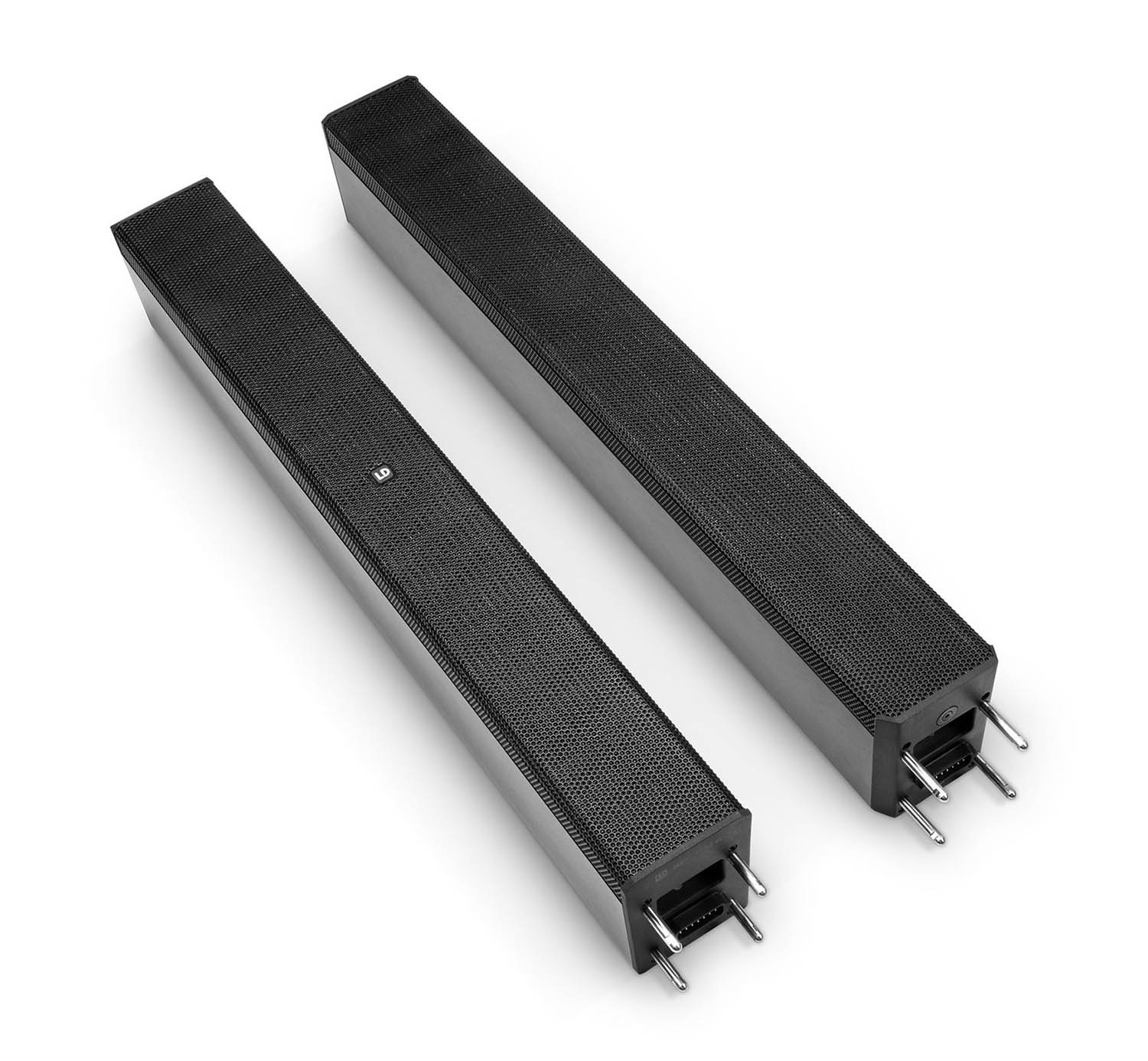

The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The MAUI  44 G2 also sets the tone when the two-part column is equipped with twelve 3.5" neodymium full-range speakers and four 1" HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters.

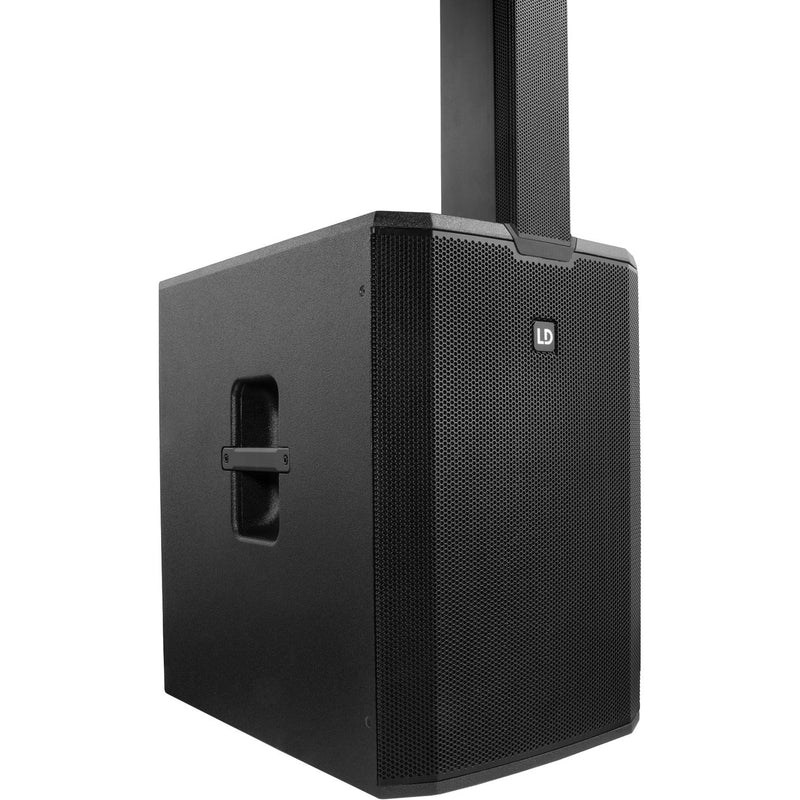

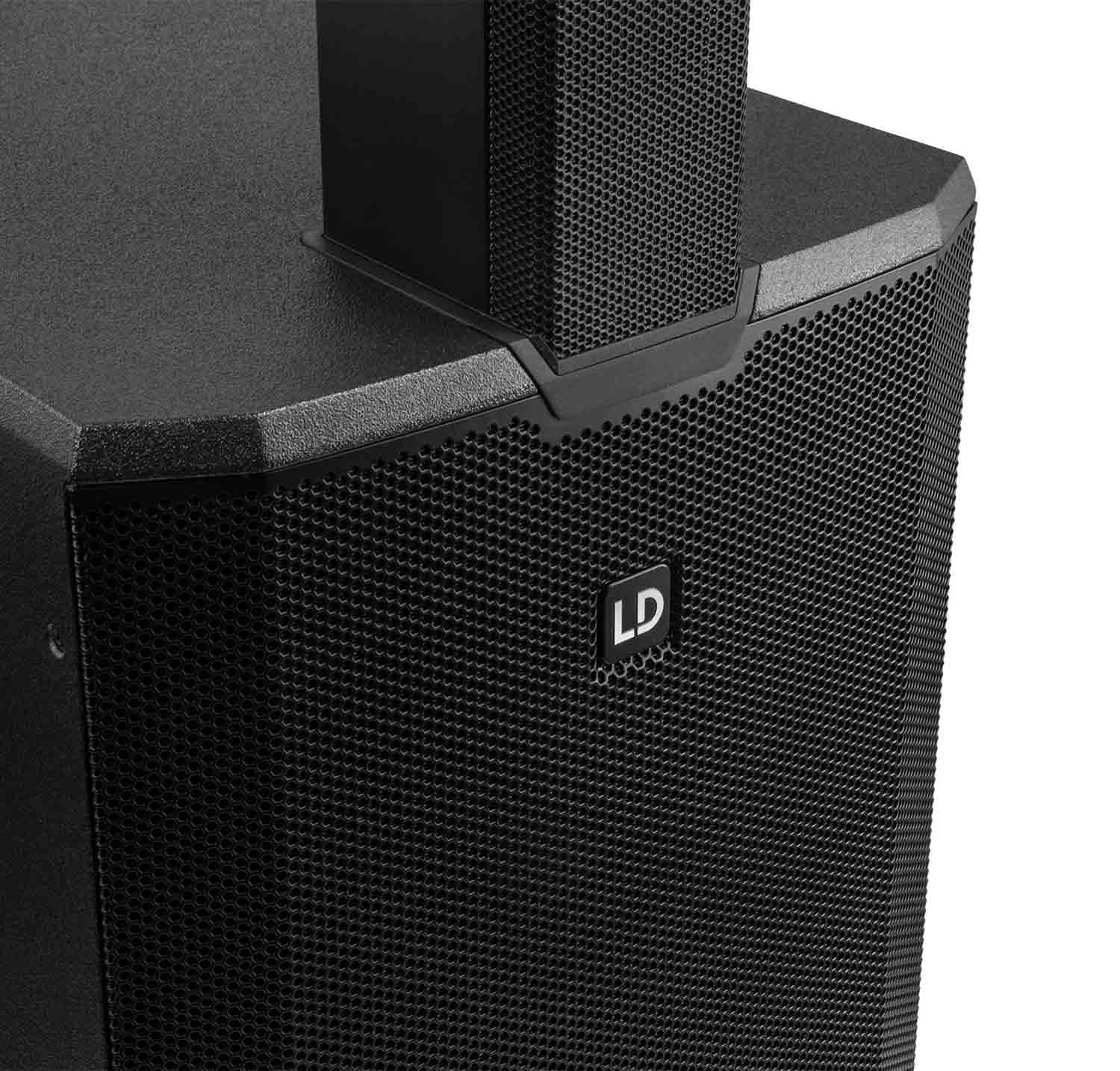

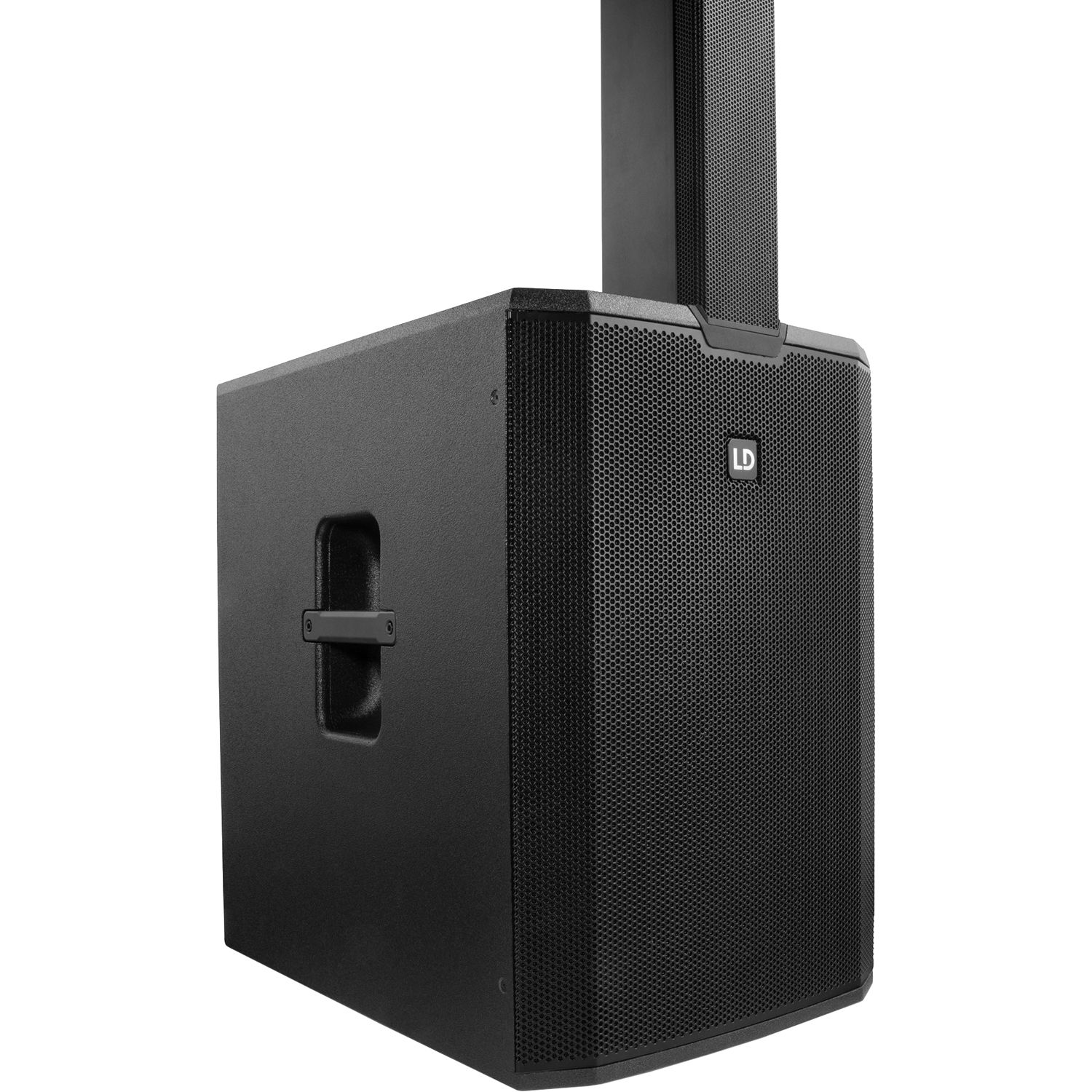

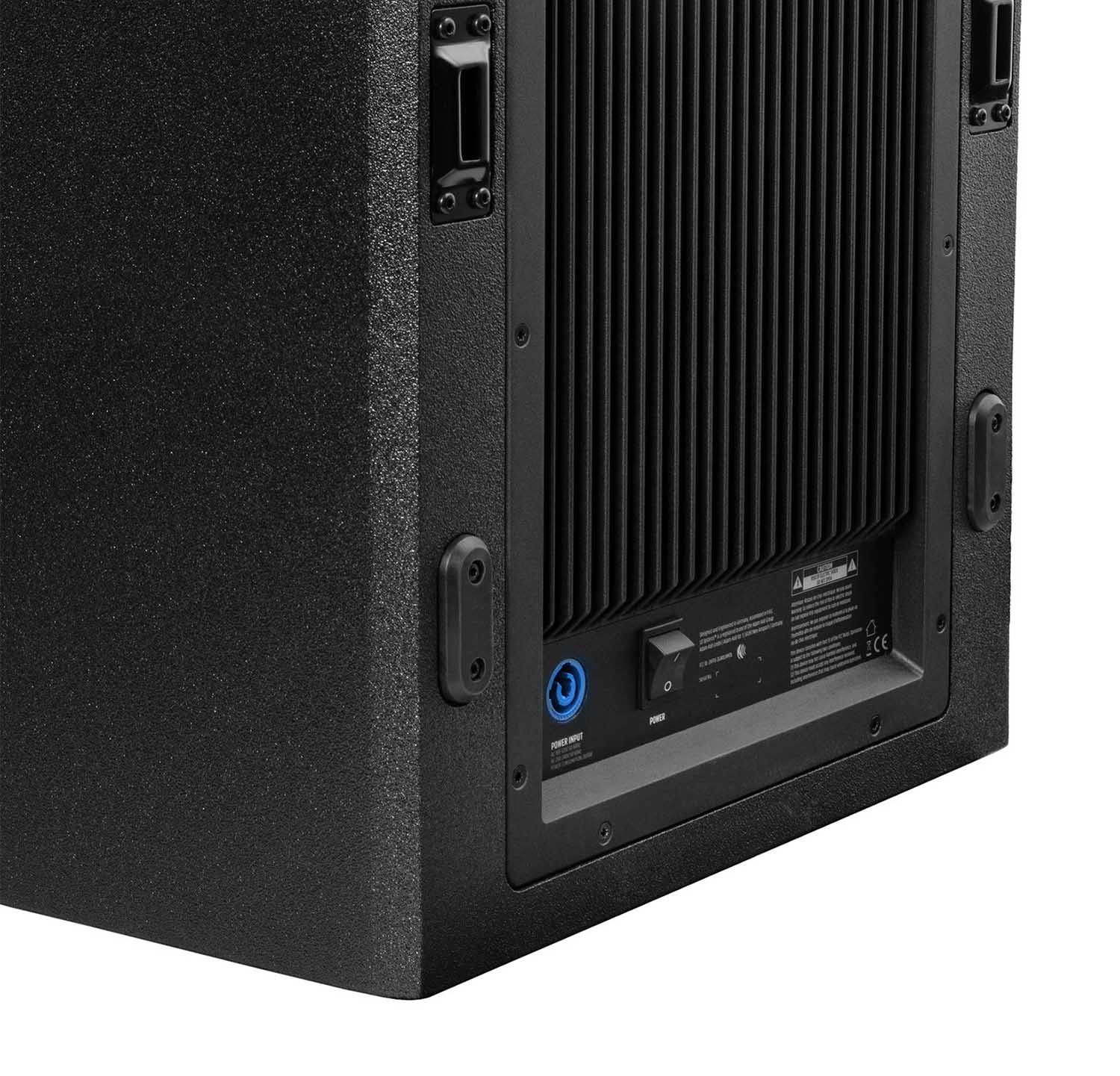

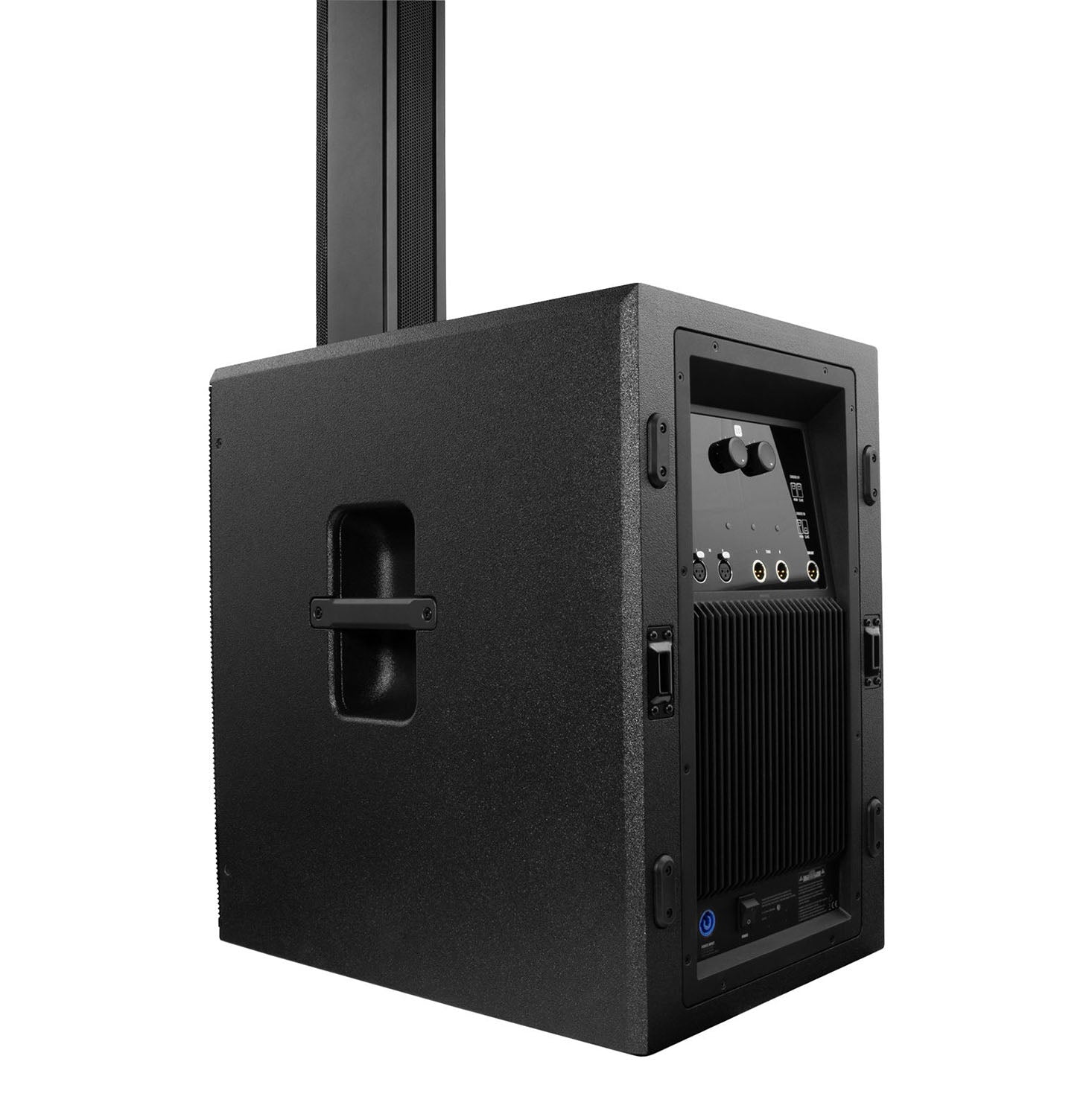

Together, the rugged subwoofer housing made of birch multiplex with polyurea coating and the light, powder-coated aluminium column weigh a total of less than 48 kg - a weight reduction of 20% as compared to the predecessor model. The optionally available transport roller board, carry bag and sub cover do a superb job in day-to-day use.

Product Specifications:

Product Type: PA Complete Systems

Type: Powered

Color: Black

Max. SPL (peak): 132 dB

Frequency response: 37 - 20000 Hz

Dispersion (H x V): 120 x 25

Total Height: 2256 mm

Weight : 47,6 kg

Woofer dimensions: 15"

Woofer size: 381 mm

Woofer magnet: Neodymium

Woofer brand: Custom-made

Woofer voice coil: 4 "

Woofer voice coil (mm): 101 mm

Cabinet construction: Bass Reflex

Housing material: 15 mm Birch Plywood , 18 mm Birch Plywood

Dimensions Subwoofer (W x H x D): 434 x 634 x 637 mm

Subwoofer weight: 36.4 kg

Midrange size: 12 x 3,5 "

Midrange size: 12 x 89 mm

Midrange magnet: Neodymium

Midrange brand: Custom-made

Midrange voice coil: 1 "

Midrange voice coil: 25.4 mm

Tweeter dimensions: 4 x 0.5 "

Tweeter dimensions (mm): 12.7 mm

Tweeter magnet: Neodymium

Tweeter brand: Custom-made

Tweeter voice coil: 1 "

Tweeter voice coil (mm): 25.4 mm

Wave Guide: CD Waveguide

Loudspeaker inputs: 1

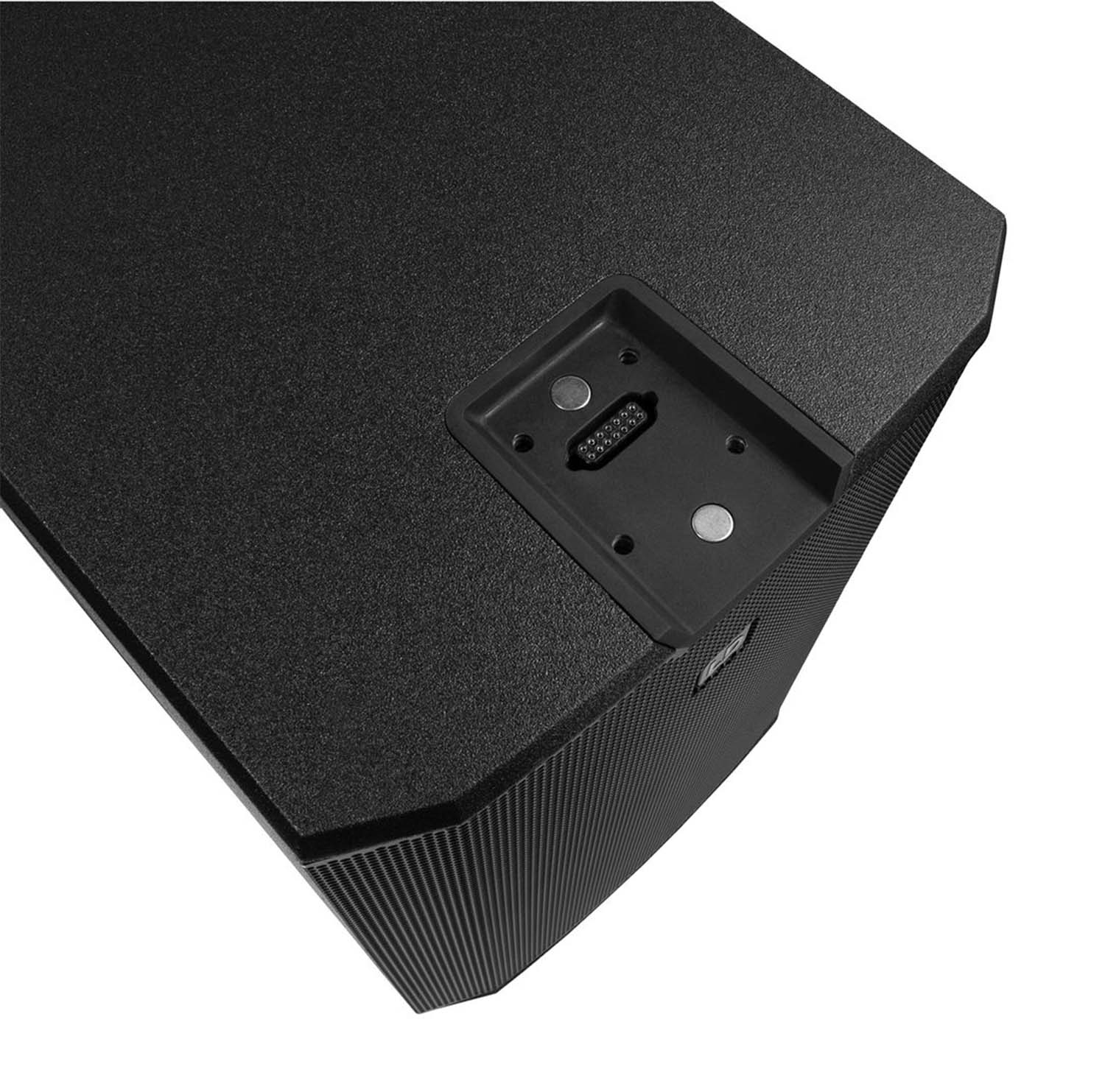

Speaker input connections: Custom-made multipin

Mid/Hi system cabinet material: Aluminium

Mid/Hi system width: 103 mm

Mid/Hi system height: 1621 mm

Mid/Hi system depth: 135 mm

Mid/Hi system weight: 11.2 kg
