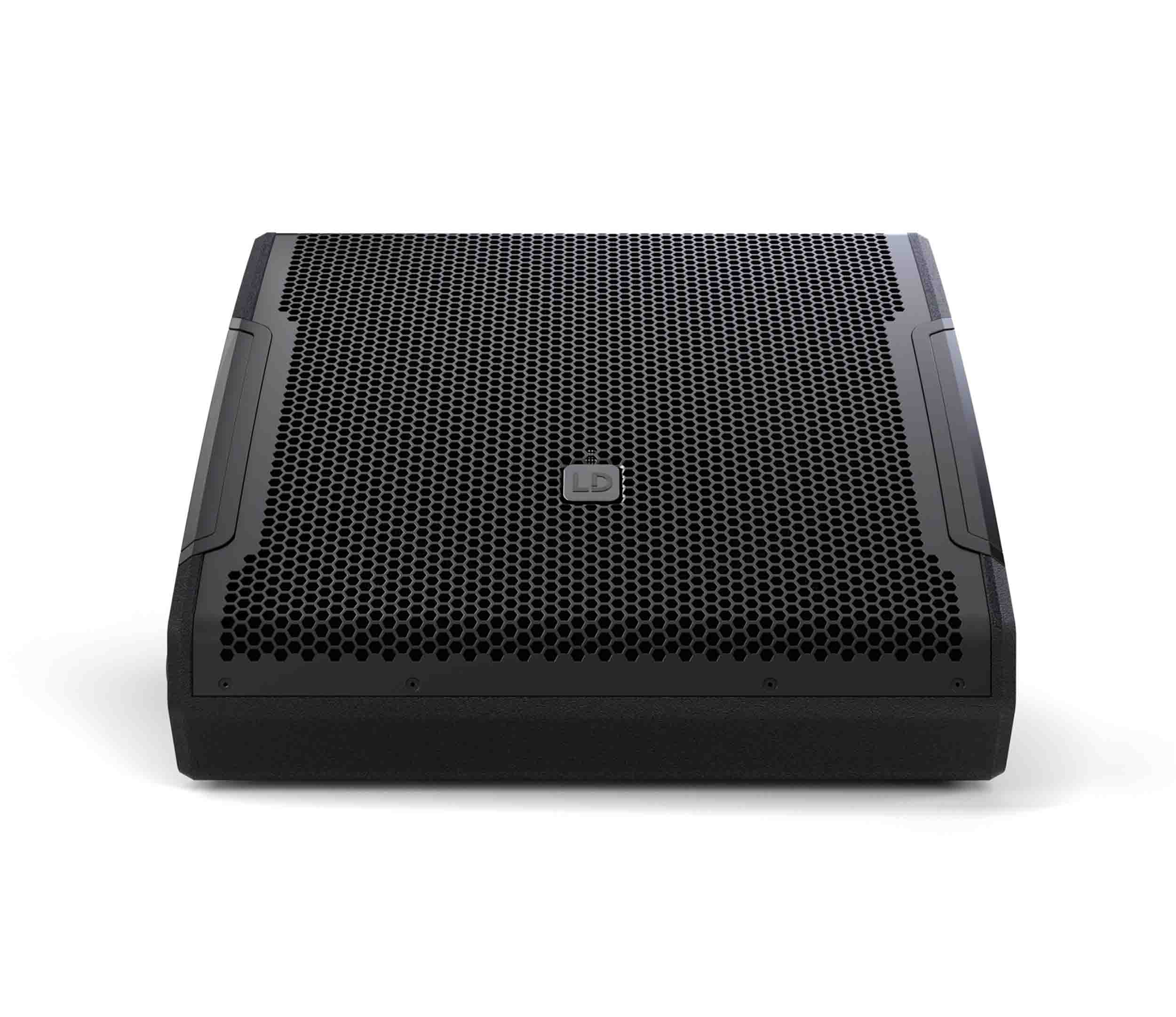

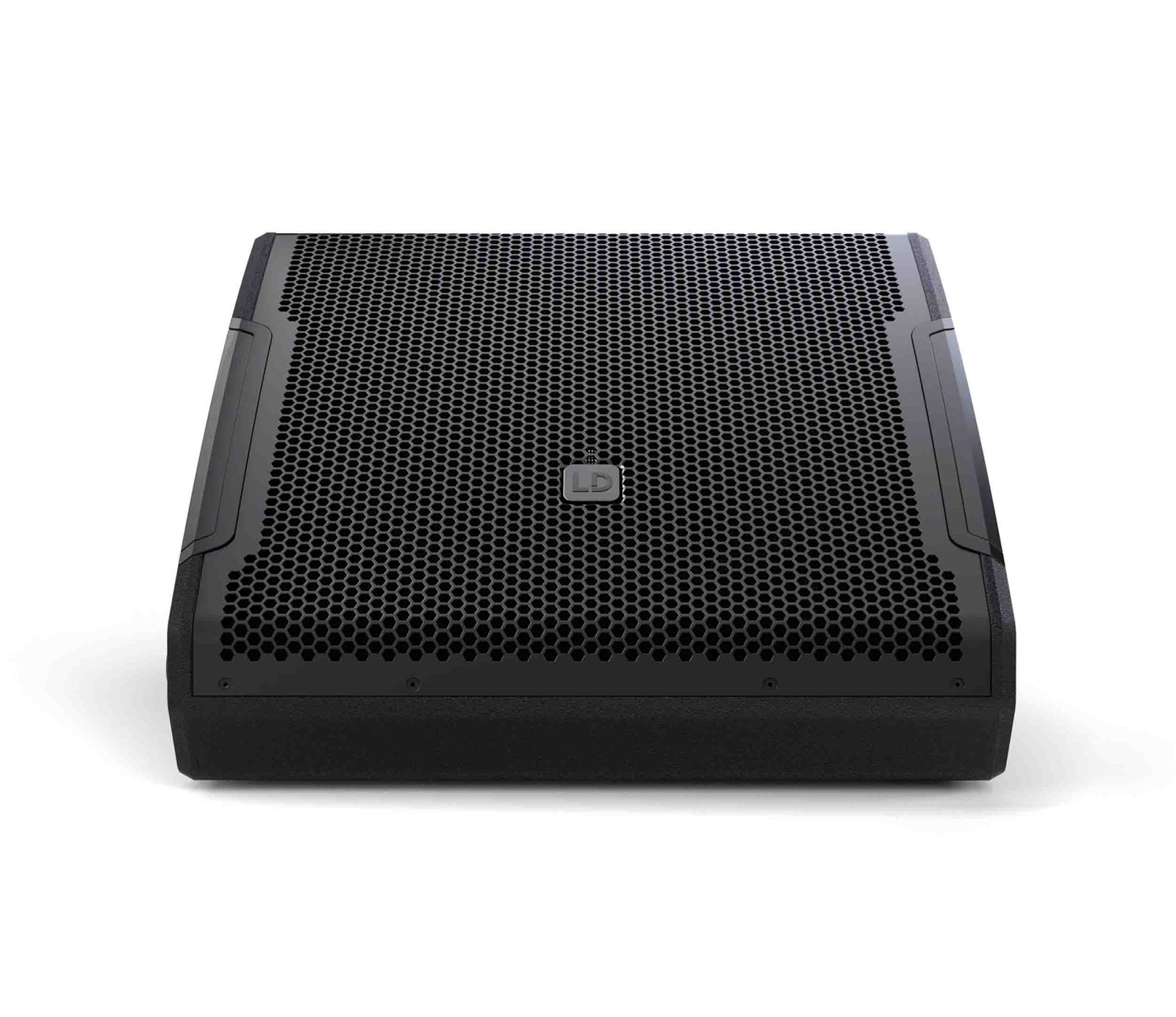

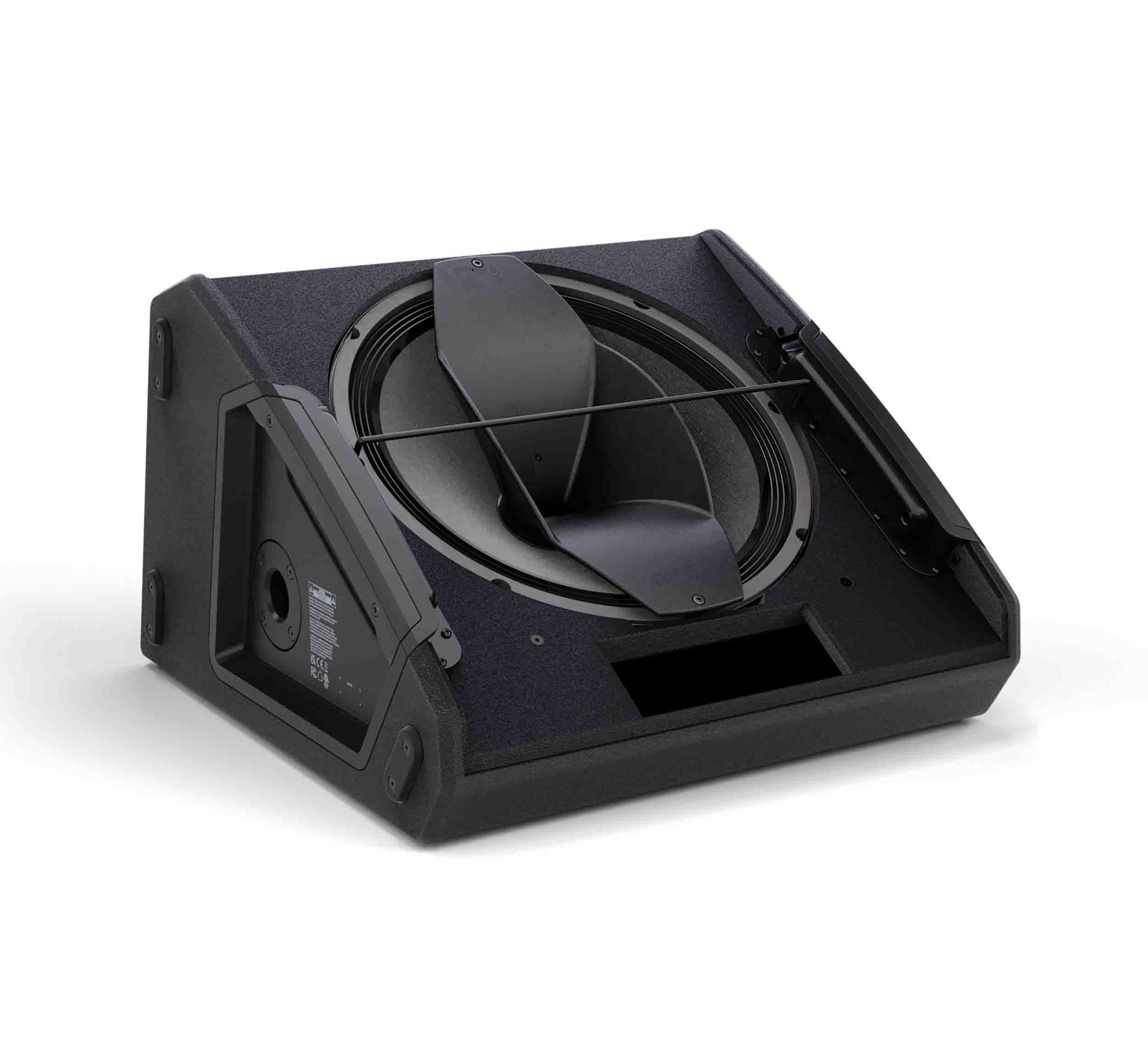

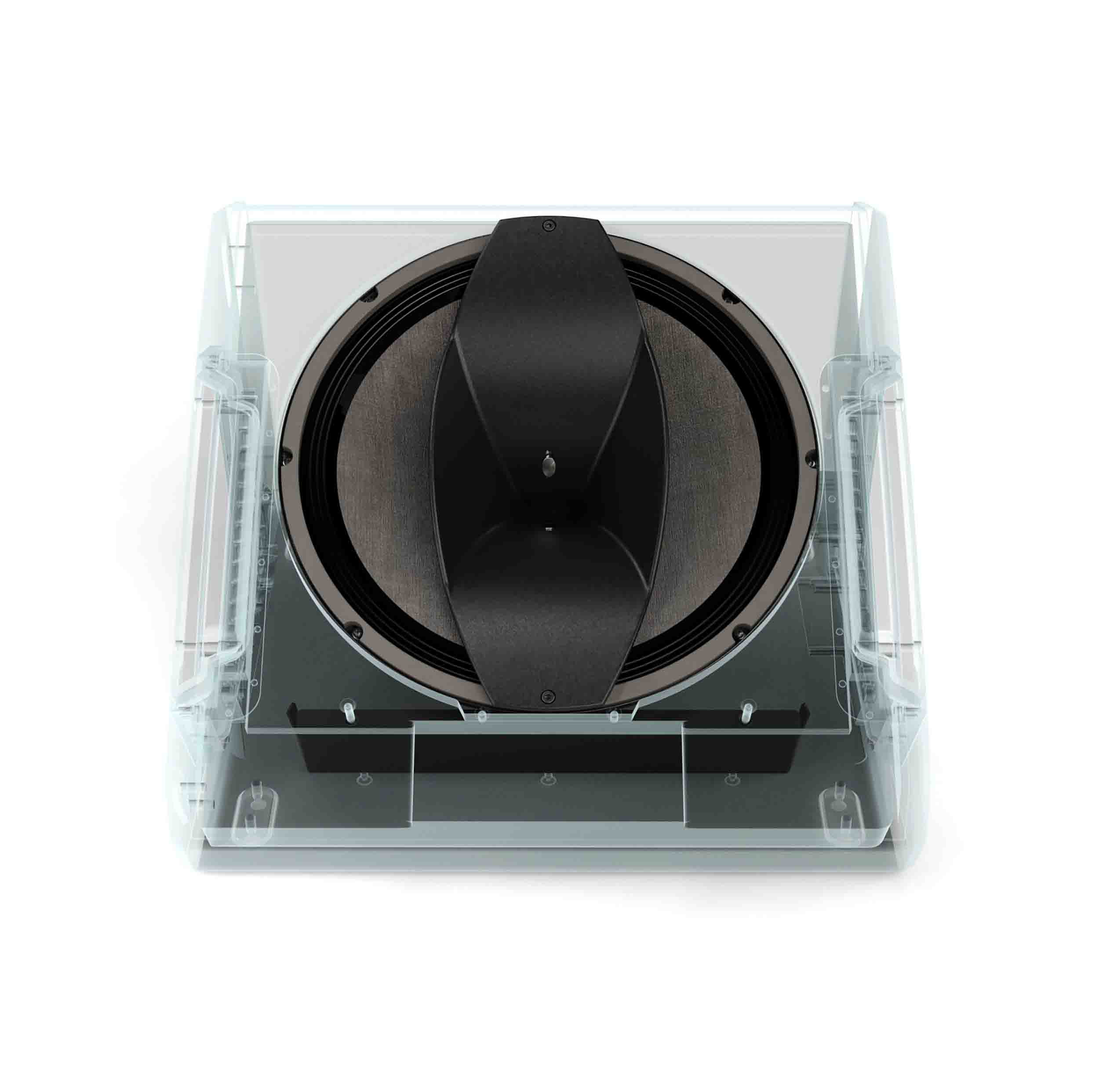

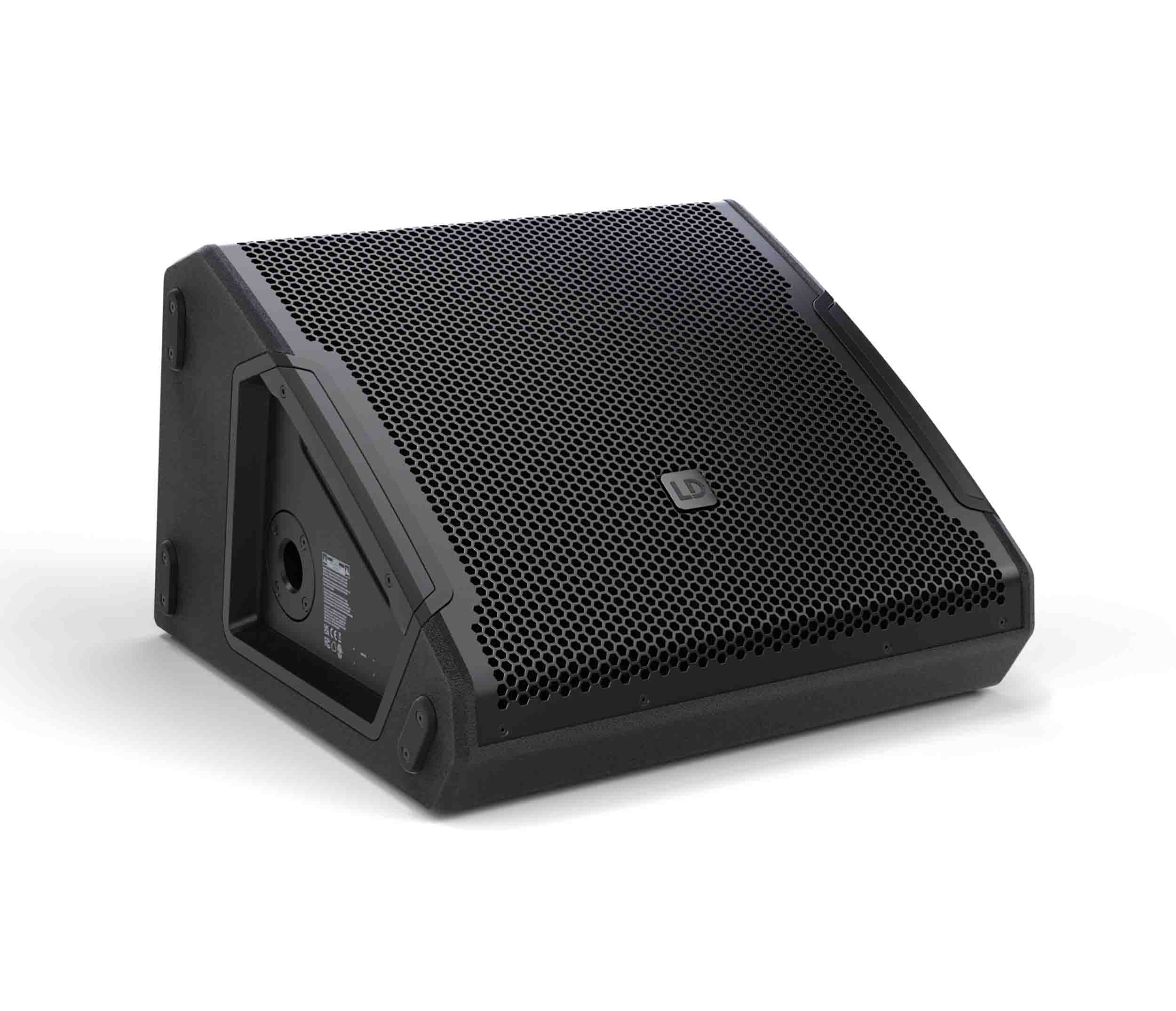

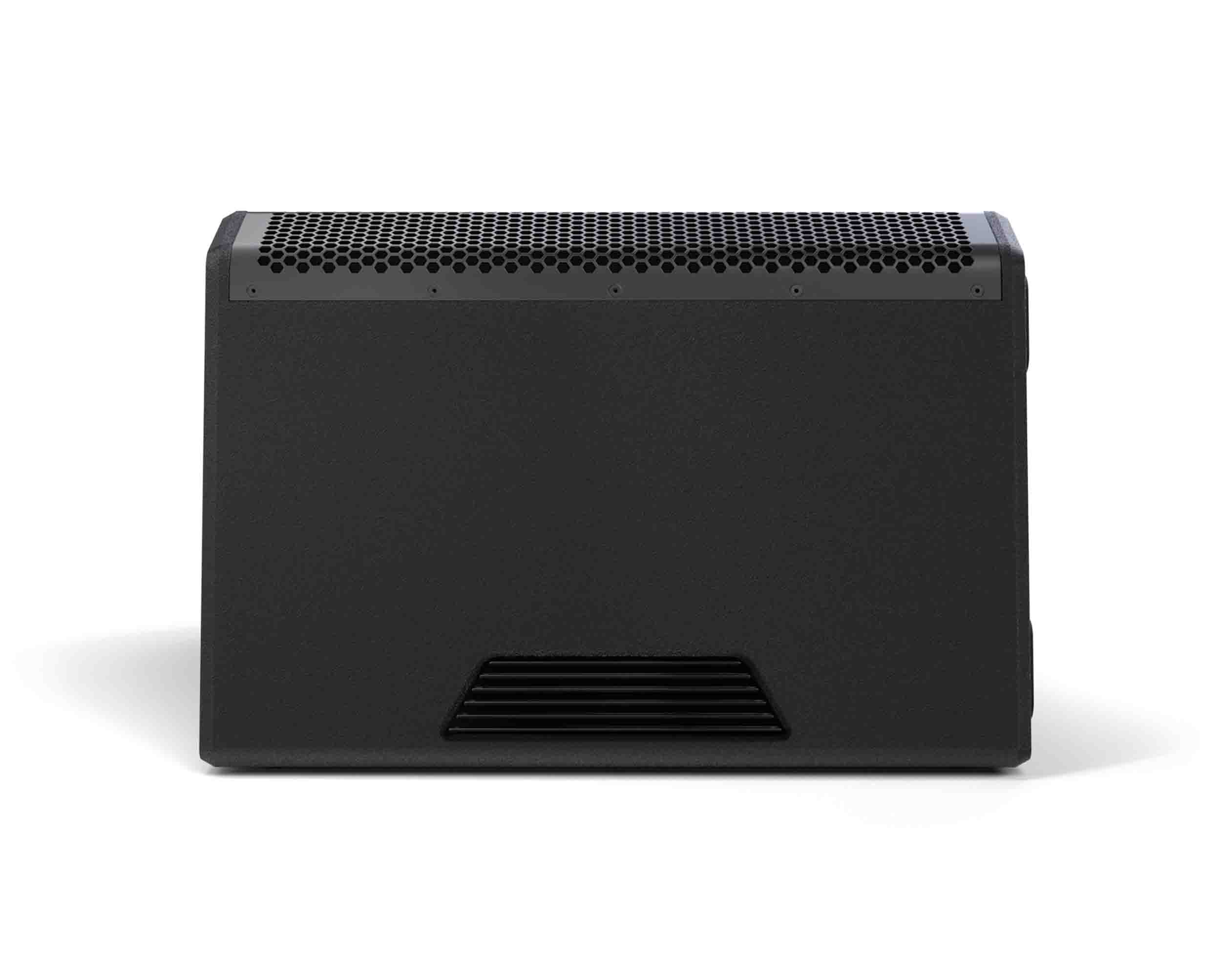

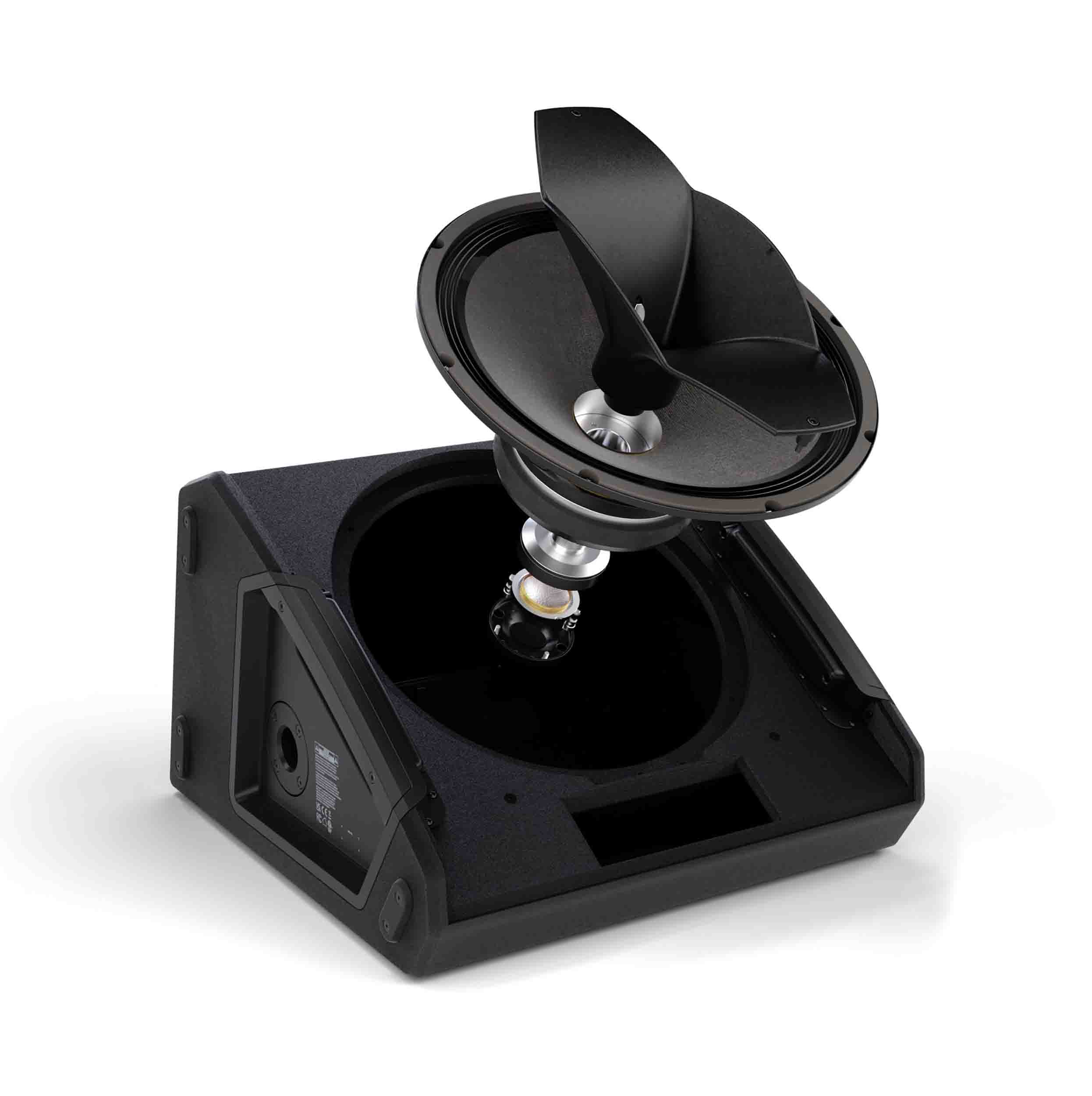

The LD System MON 15 A G3 is a 15" Powered Coaxial Stage Monitor. The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

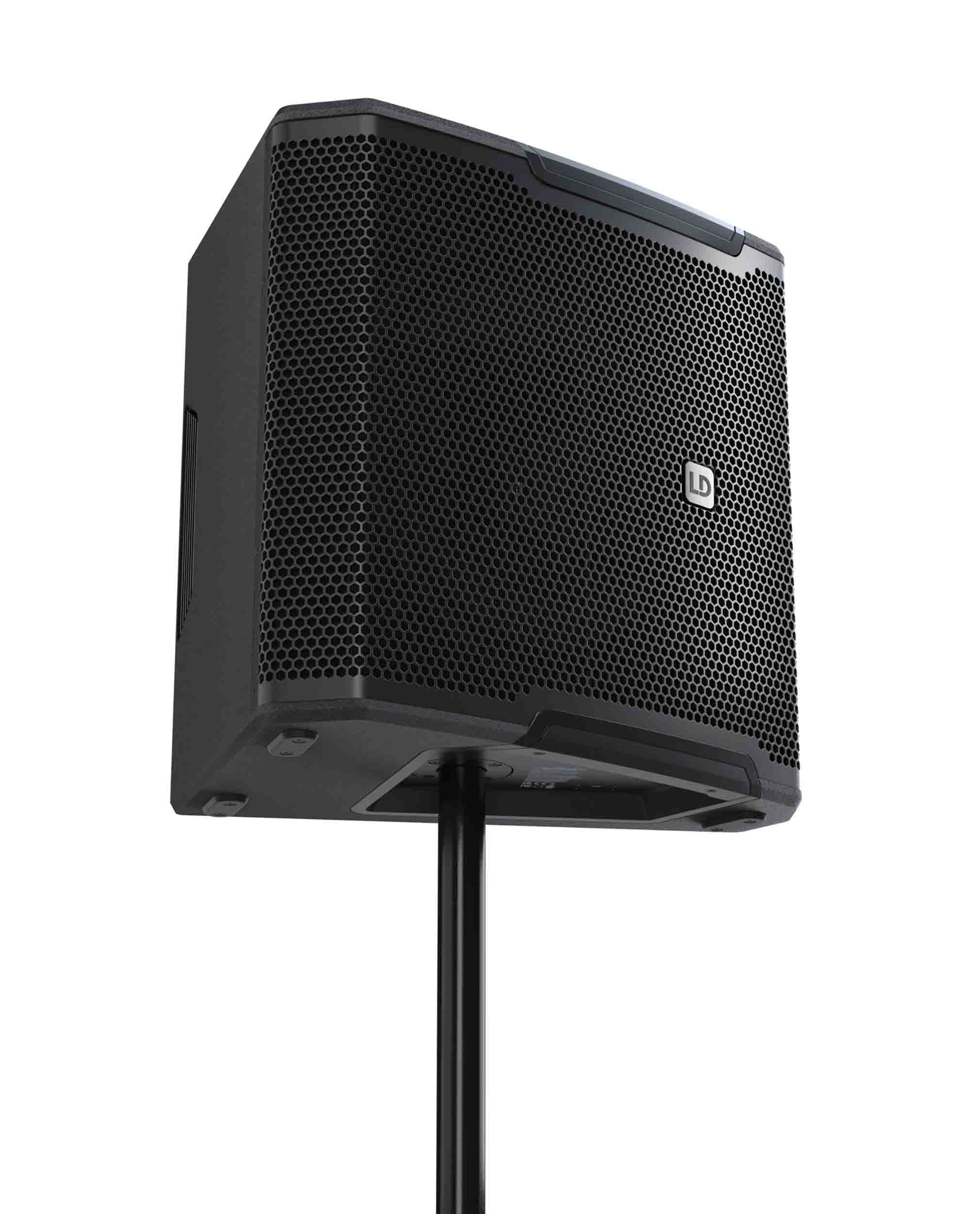

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
High-Efficiency Power Amplifier
The highly effi cient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.

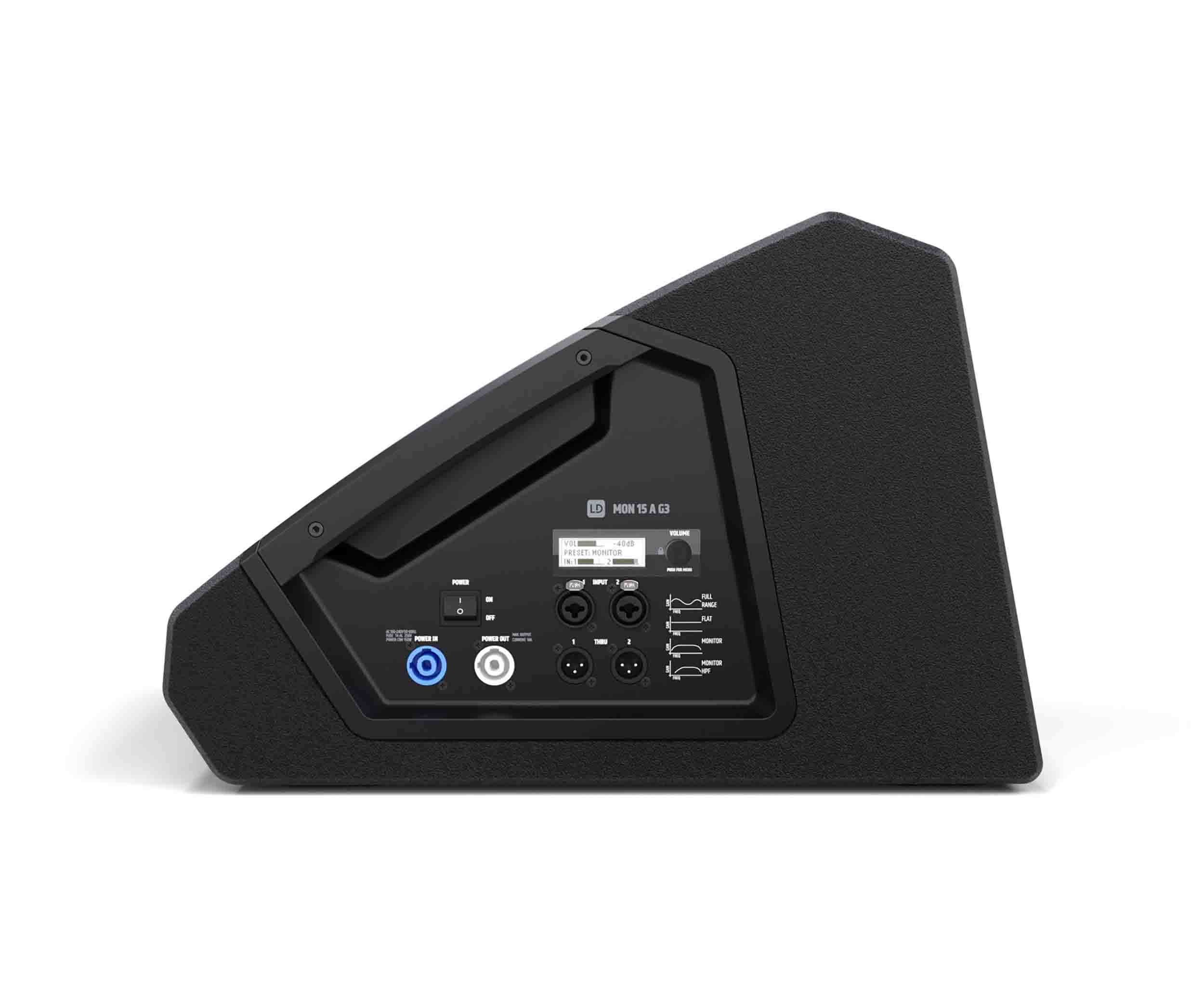

Professional Connectors

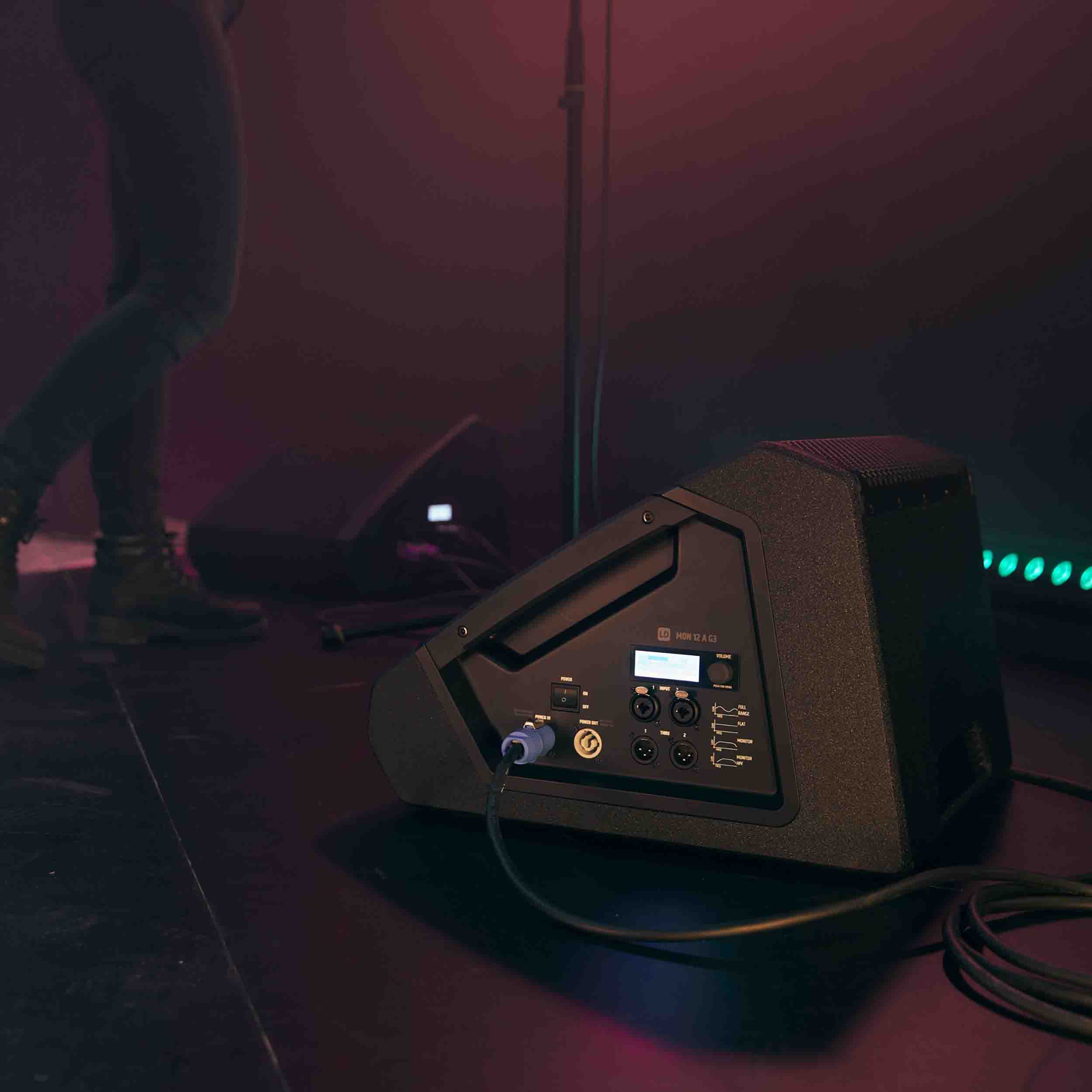

Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.
Easy Daisy Chaining
The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.
Product Specifications:
Product type: Stage monitors
Type: Powered
Color: Black
System output (RMS): 300 W
System output (Peak): 1200 W
Max. SPL Average (Sine burst): 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst): 129 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB): 58 - 18000 HZ
Frequency response (-10 dB): 48 - 20000 Hz
Crossover frequency: 1300 Hz
Monitor angle: 33°
Dispersion (H x V): 50° x 90°
Width: 505 mm
Depth: 517 mm
Height: 340 mm
Weight: 23,15 kg
