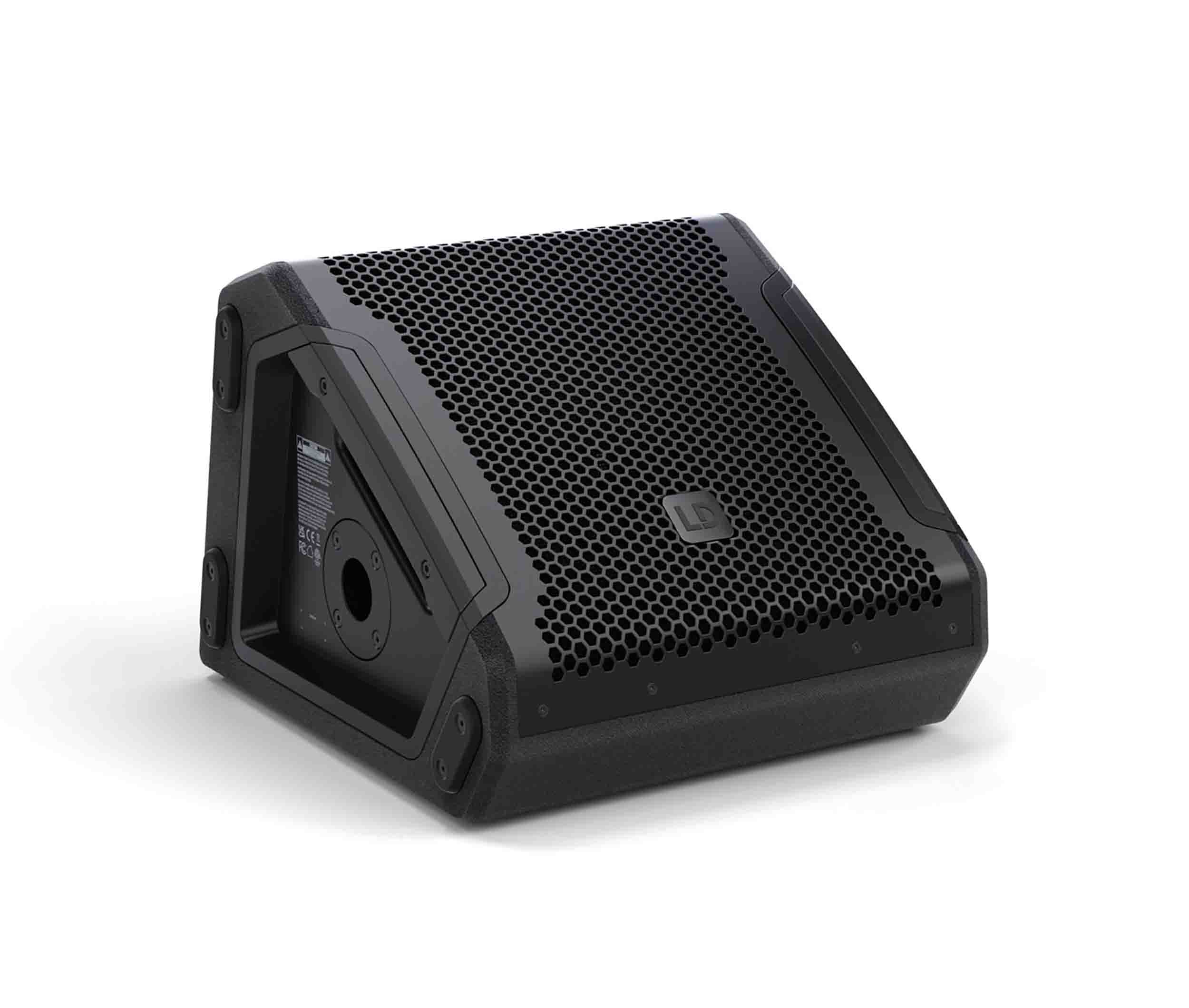

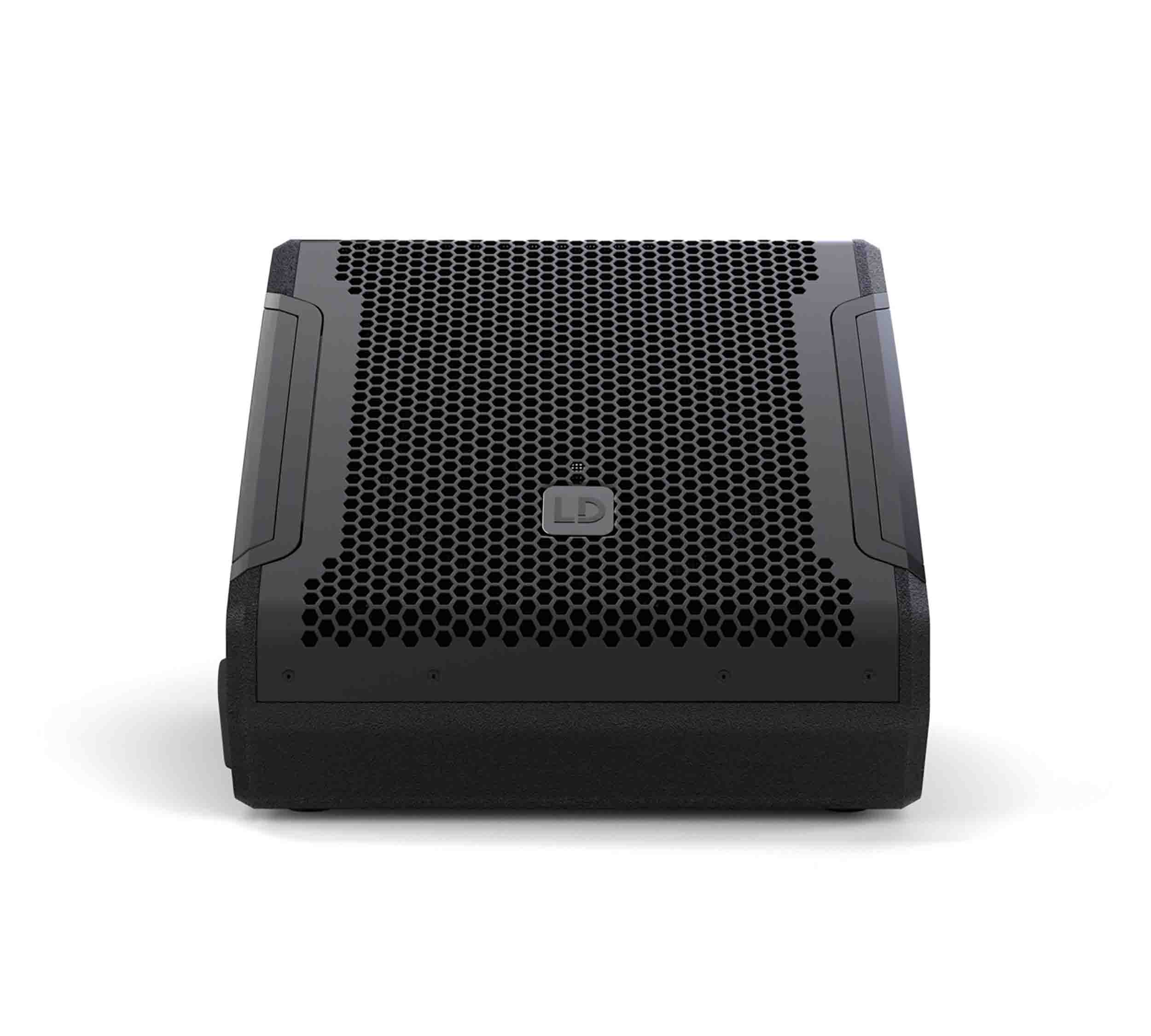

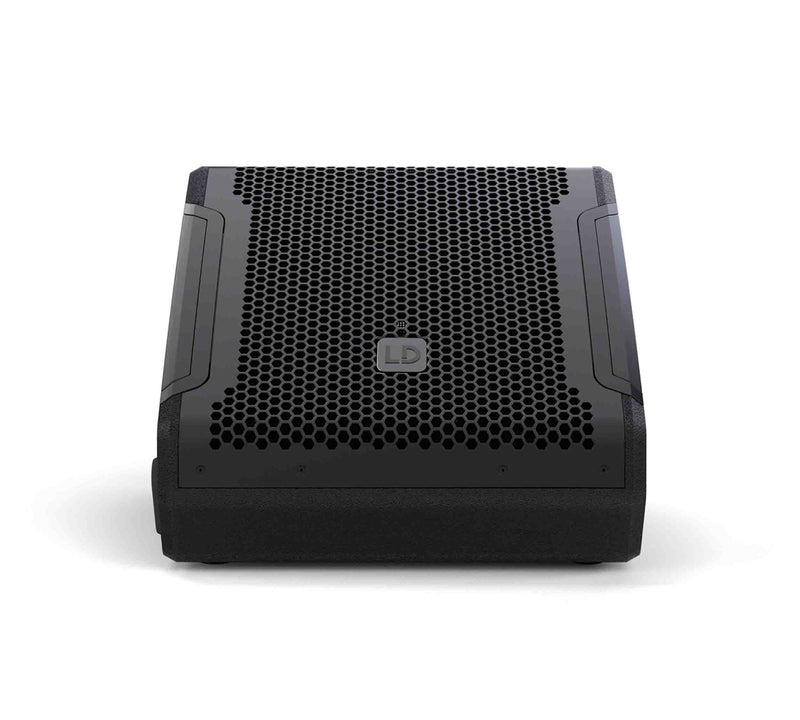

LD System MON 8 A G3, 8" Powered Coaxial Stage Monitor

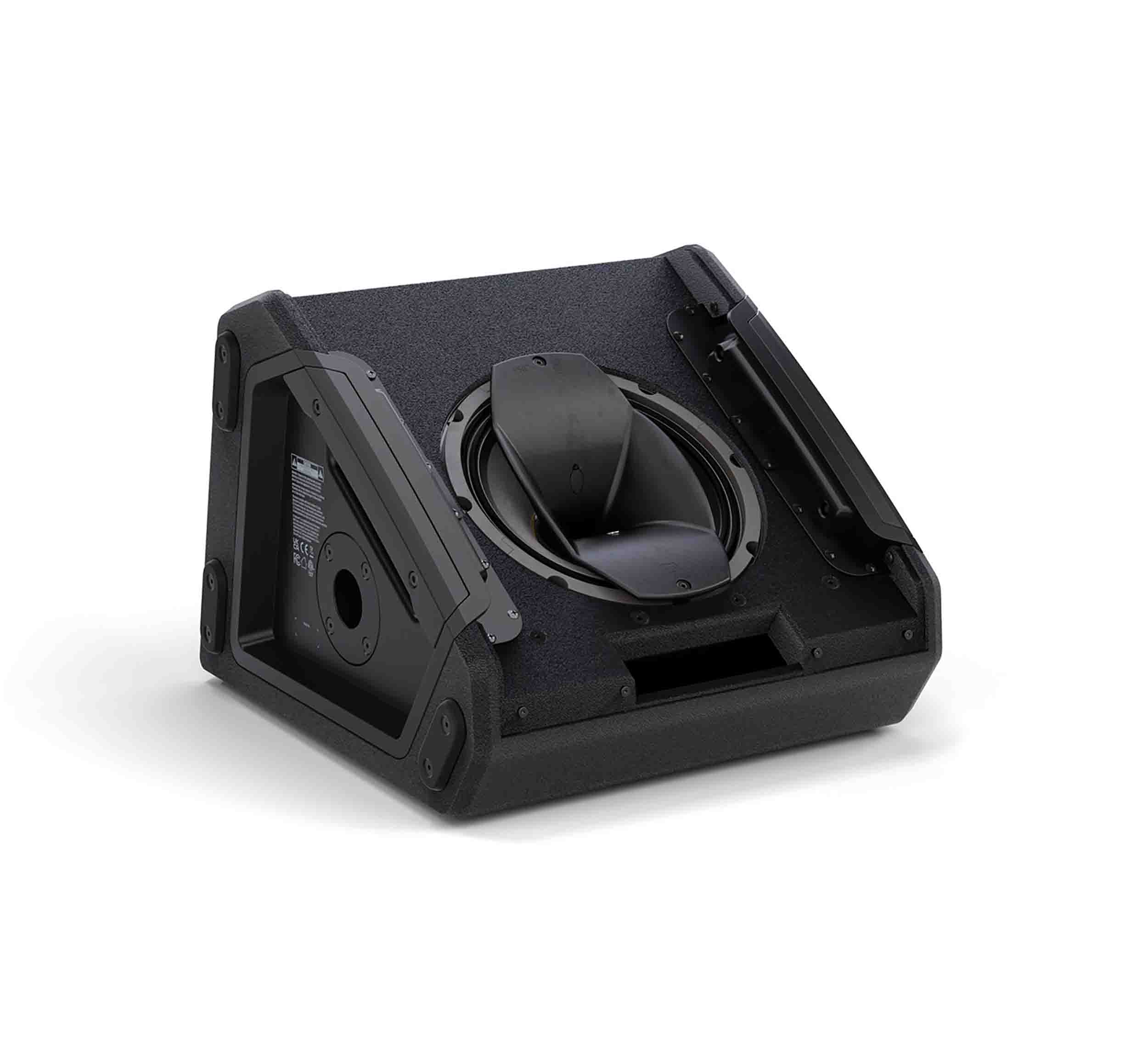

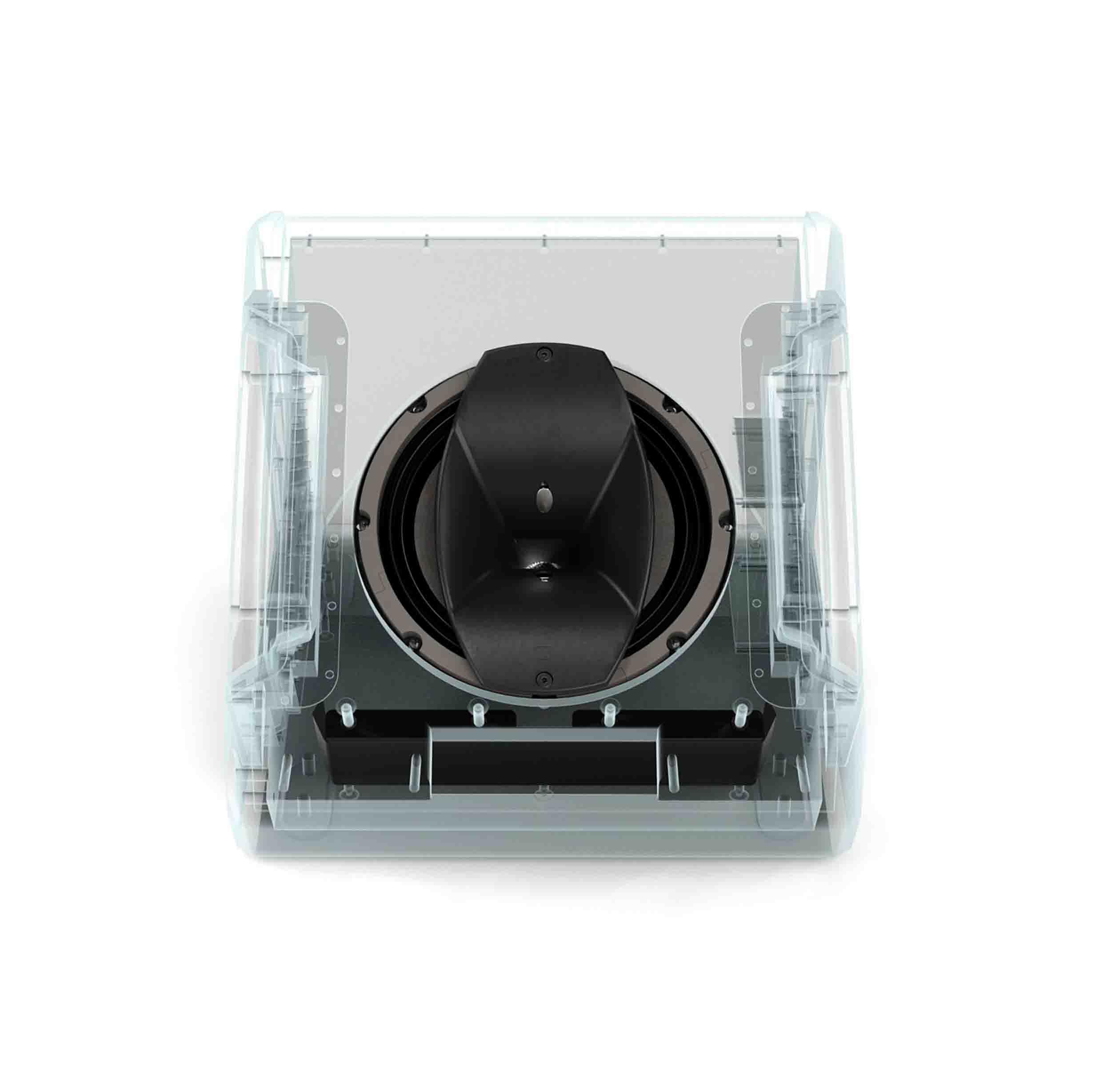

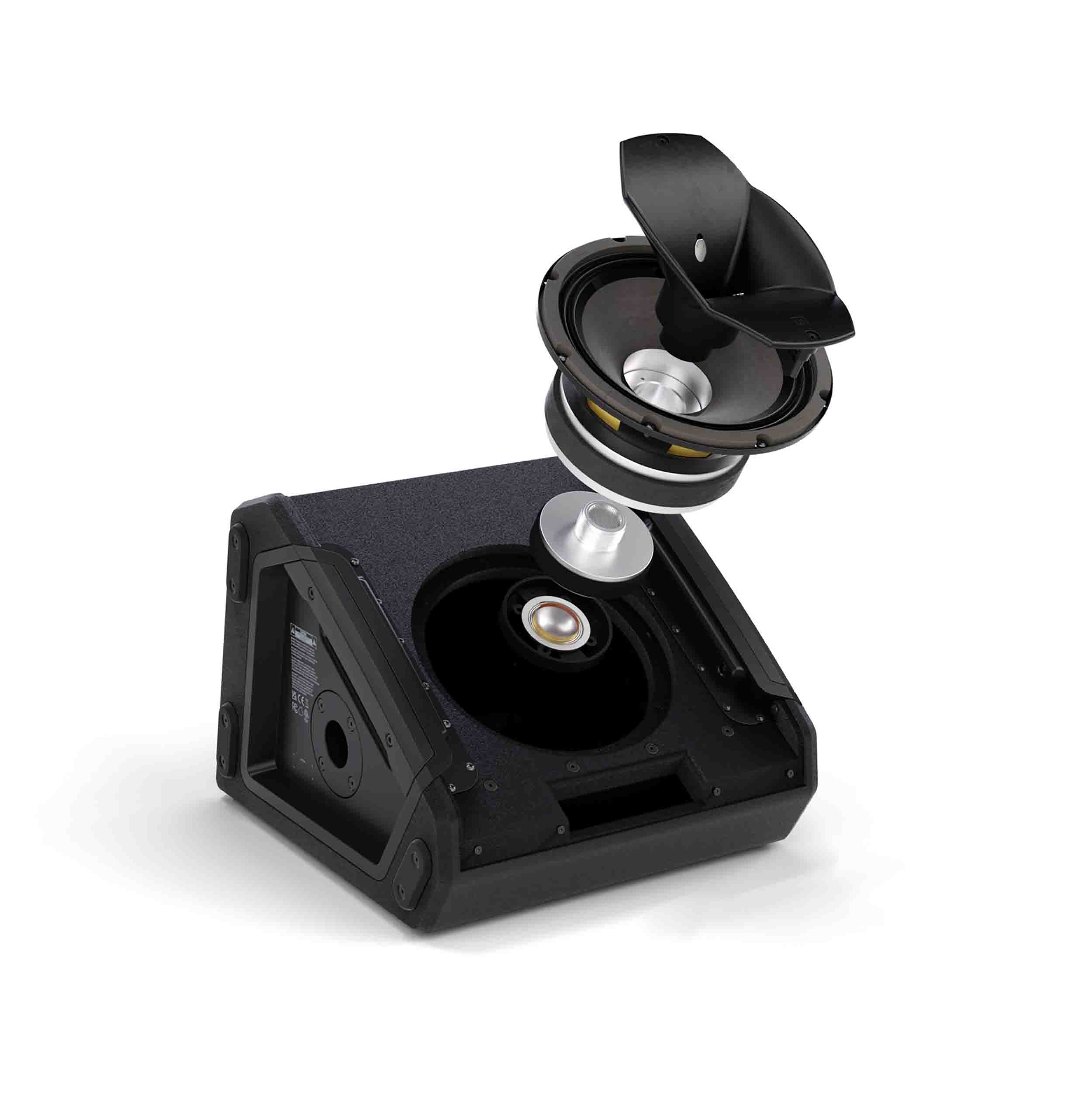

The LD System MON 8 A G3 is an 8" Powered Coaxial Stage Monitor. The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

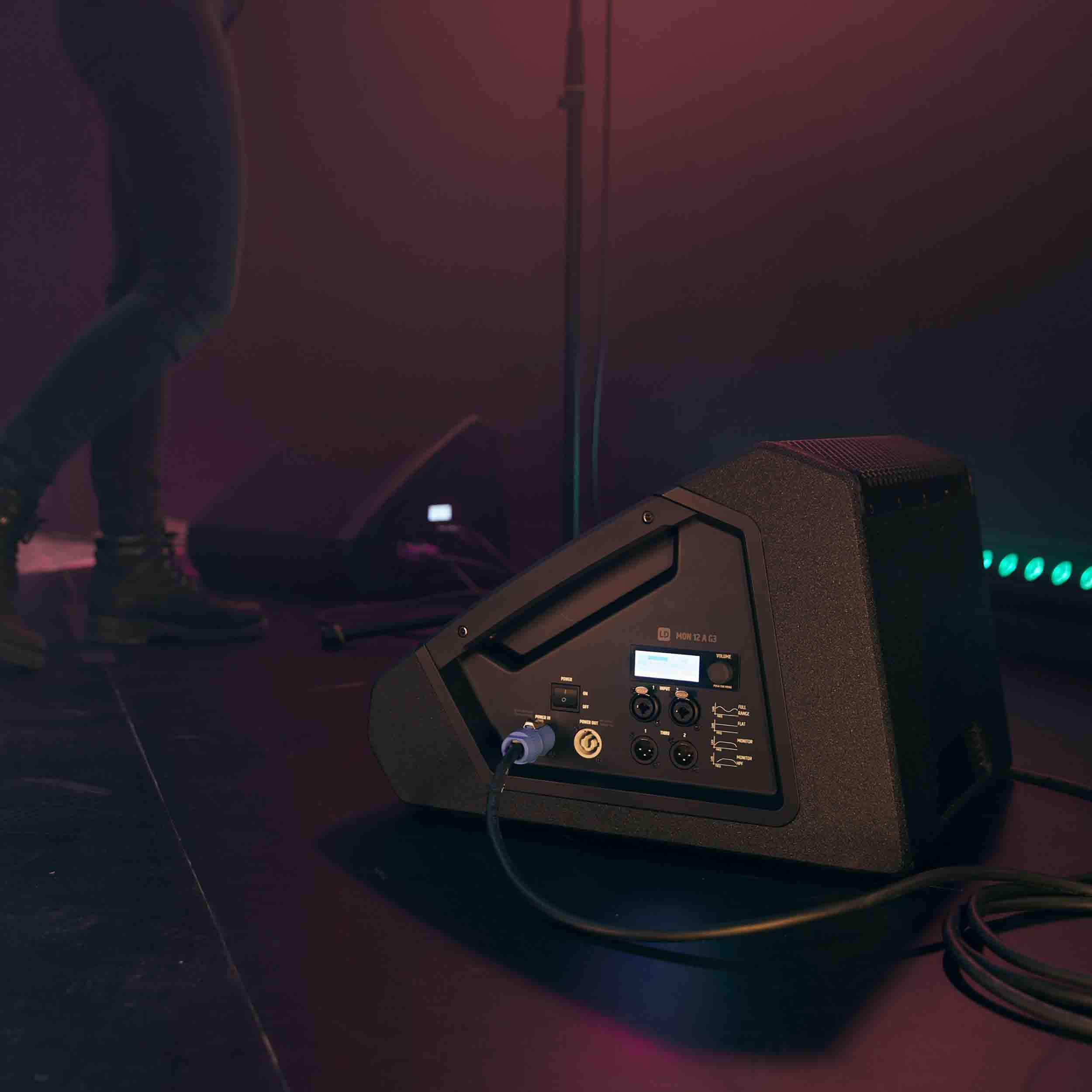

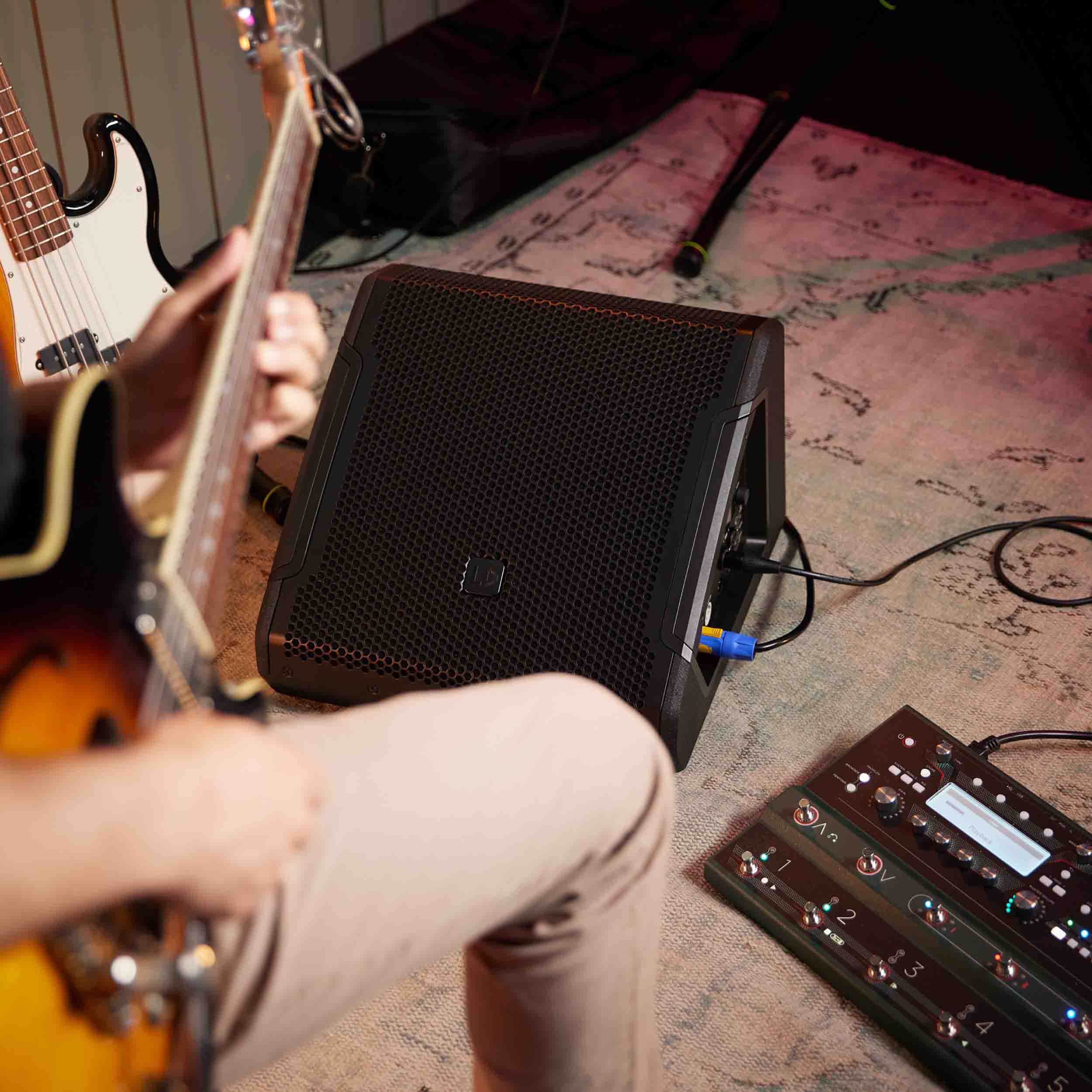

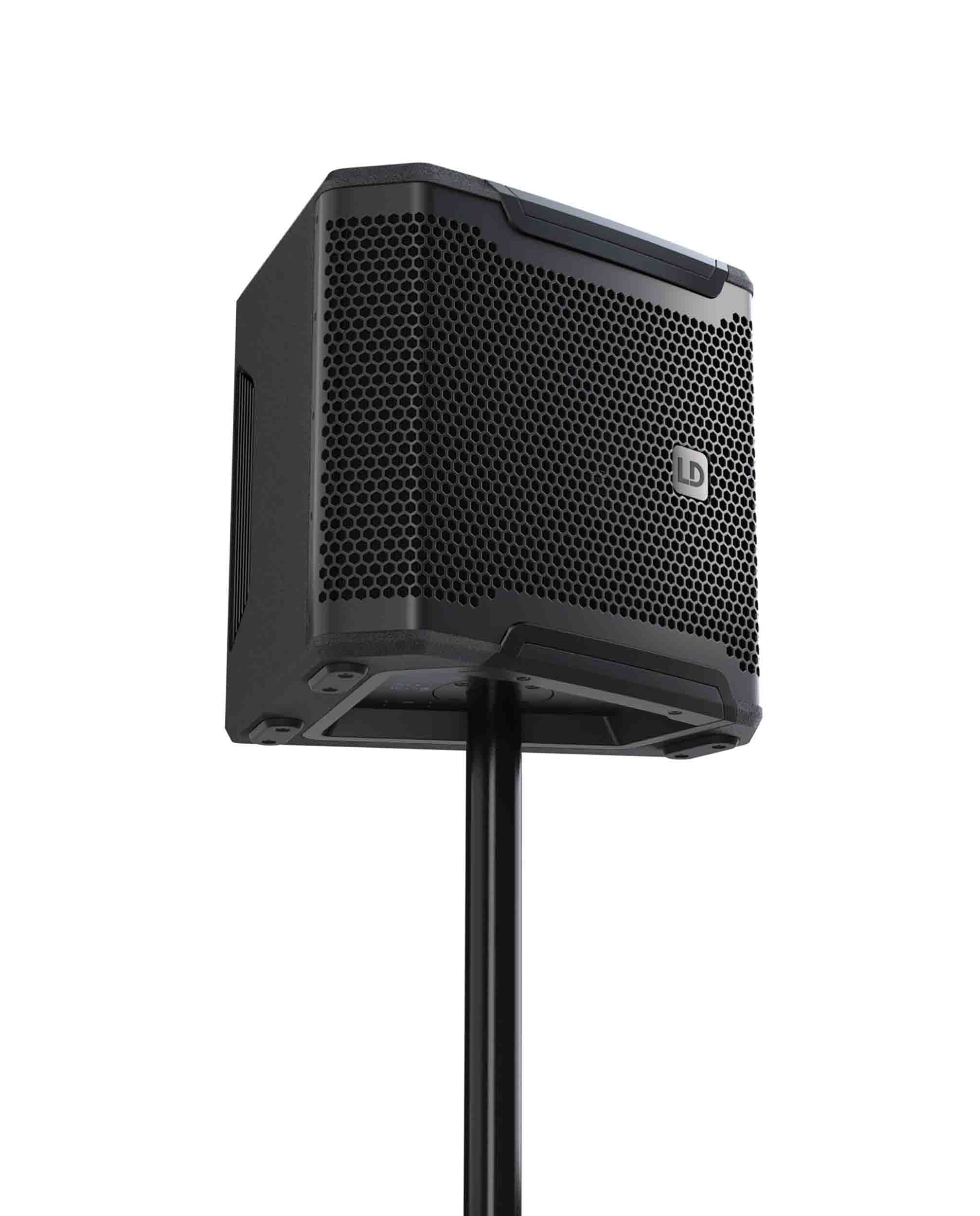

As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

DYNX DSP (GEN. 2)

The latest generation of LD Systems’ proprietary DynX DSP guarantees a dynamic, high-resolution sound image across the entire frequency response.

High-Efficiency Power Amplifier

The highly effi cient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.

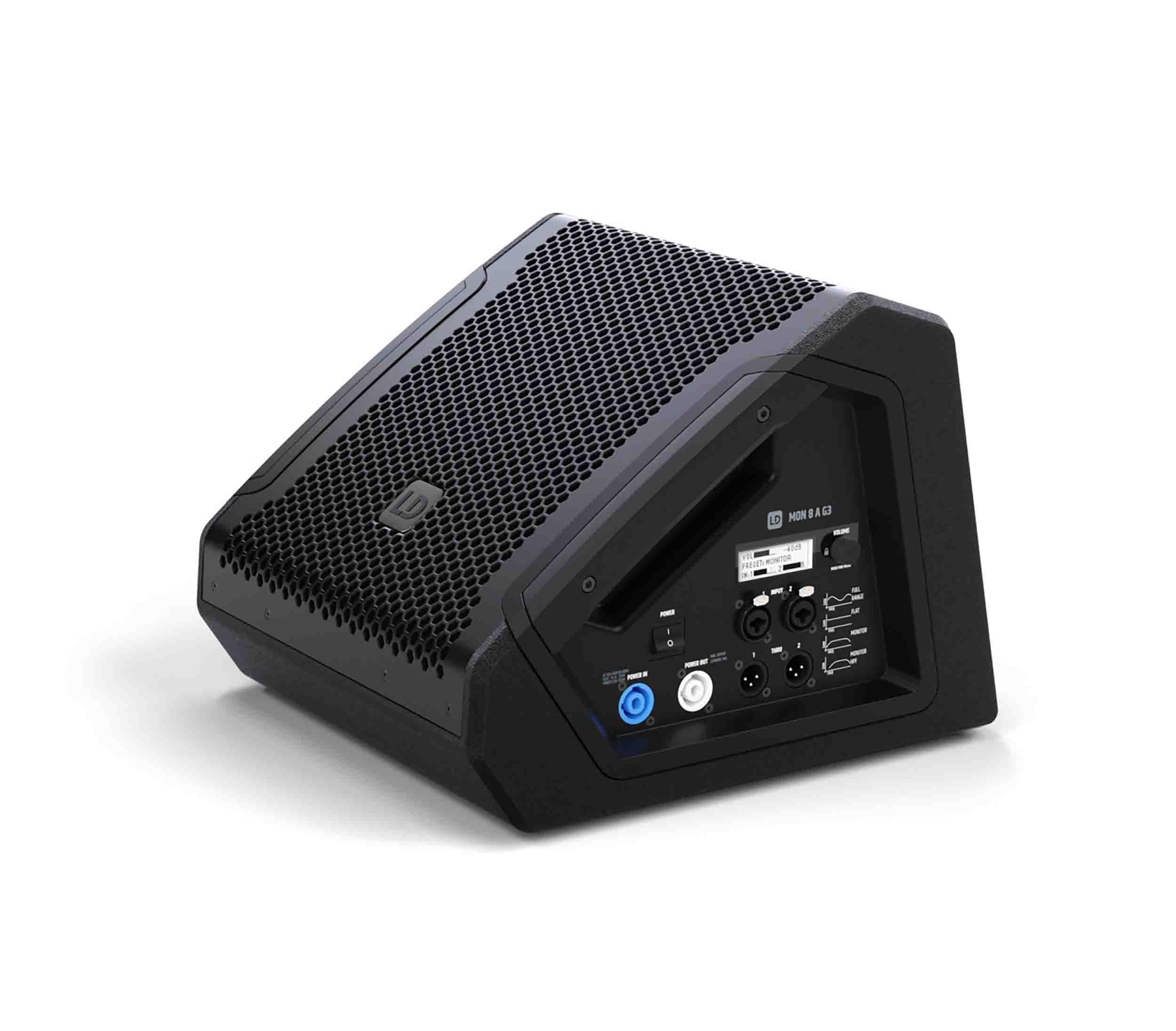

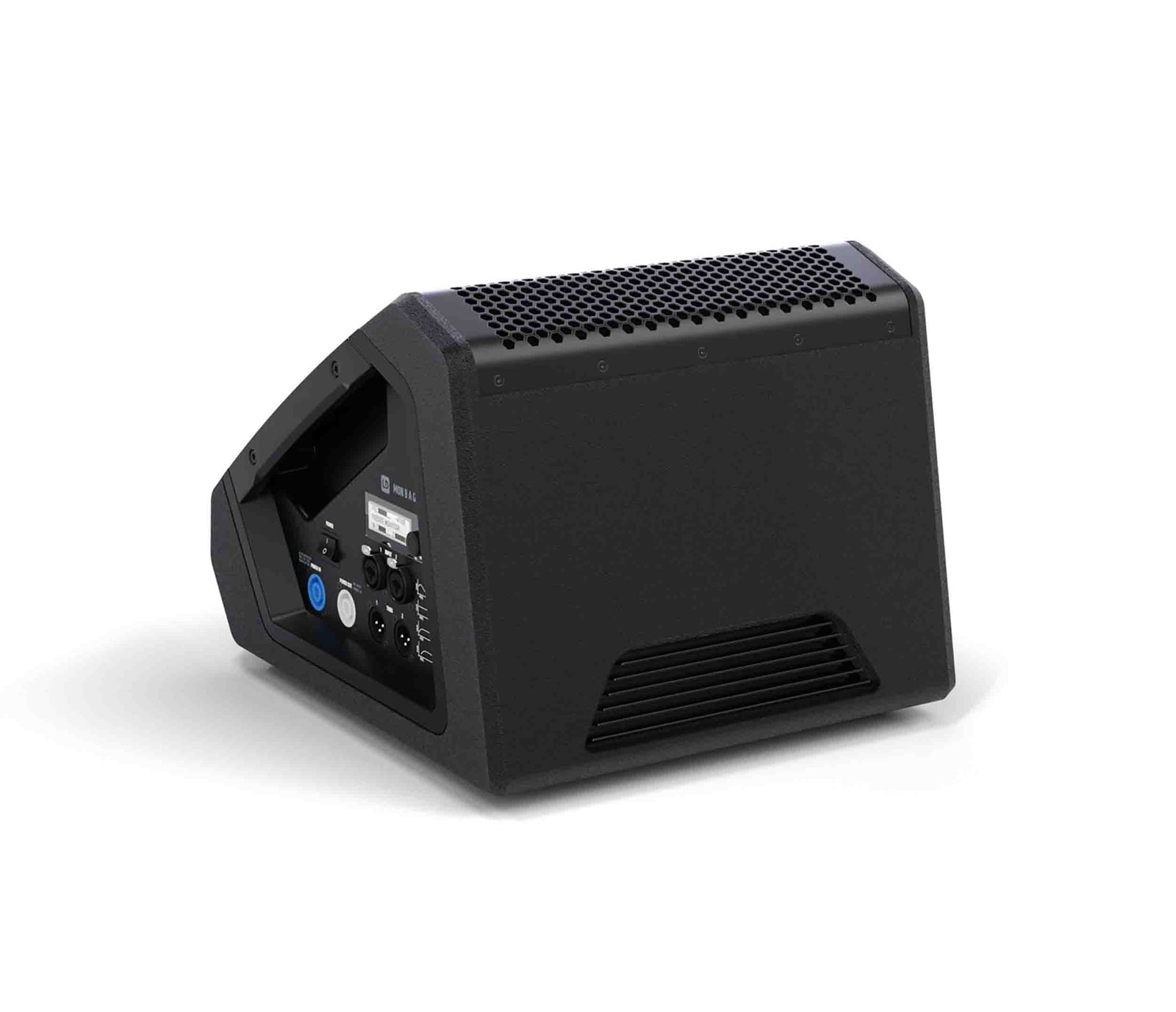

Professional Connectors

Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

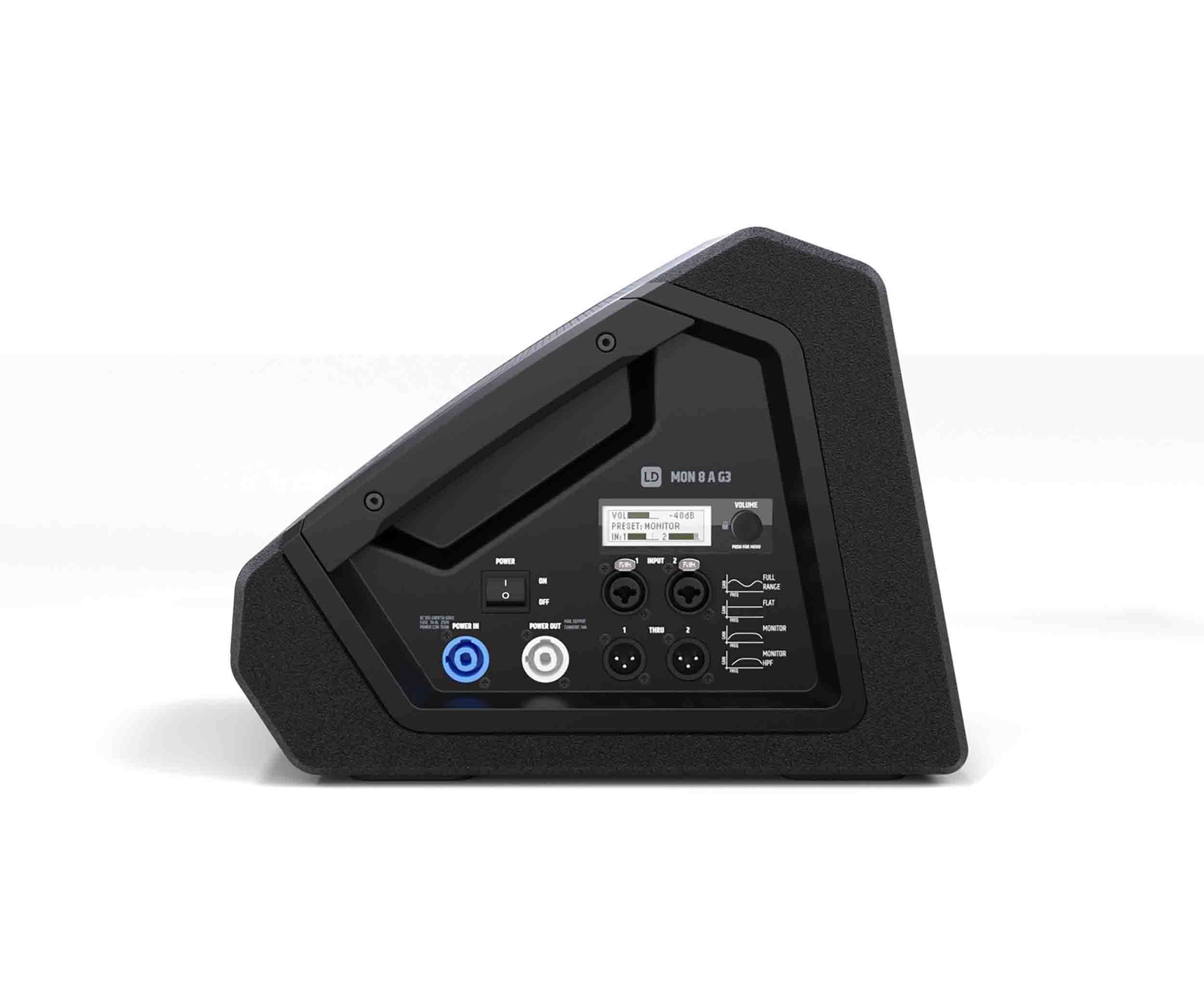

Easy Daisy Chaining

The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.

Product Specifications:

Product type: Stage monitors

Type: Powered

Color: Black

System output (RMS): 300 W

System output (Peak): 1200 W

Max. SPL Average (Sine burst): 116 dB ( 100Hz - 12 kHz, fullspace @1m, 10% THD )

Max. SPL Peak (Sine burst): 121 dB ( fullspace @1m, 10% THD )

Frequency response (-3 dB): 68 Hz - 18000 Hz

Frequency response (-10 dB): 59 Hz - 20000 Hz

Crossover frequency: 2500 Hz

Monitor angle: 33°

Dispersion (H x V): 50° x 90°

Width: 340 mm

Depth: 368 mm

Height: 278 mm

Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter

Weight: 13,2 kg
