Description
The LD Systems SWAV41 is a professional 8K HDMI™ 4×1 switcher from the TIVA® Series, designed to simplify source management in modern AV installations. It allows users to select between four HDMI sources and route them to a single display while supporting the latest HDMI 2.1 standards, including resolutions up to 8K60 and 4K120. Fully HDCP 2.3 compliant, it also supports advanced video technologies such as HDR, HDR10+, Dolby Vision, VRR, and ALLM for exceptional picture quality and compatibility.
Beyond video switching, the SWAV41 provides flexible audio processing with digital and analog audio de-embedding outputs featuring gain control. It supports Dolby Atmos®, DTS-HD, and high-resolution audio pass-through, with selectable output modes for 2.0, 5.1, and 7.1-channel systems. Independent EDID settings, along with a built-in signal equalizer, retimer, and driver, help maintain reliable signal performance and consistent source compatibility.

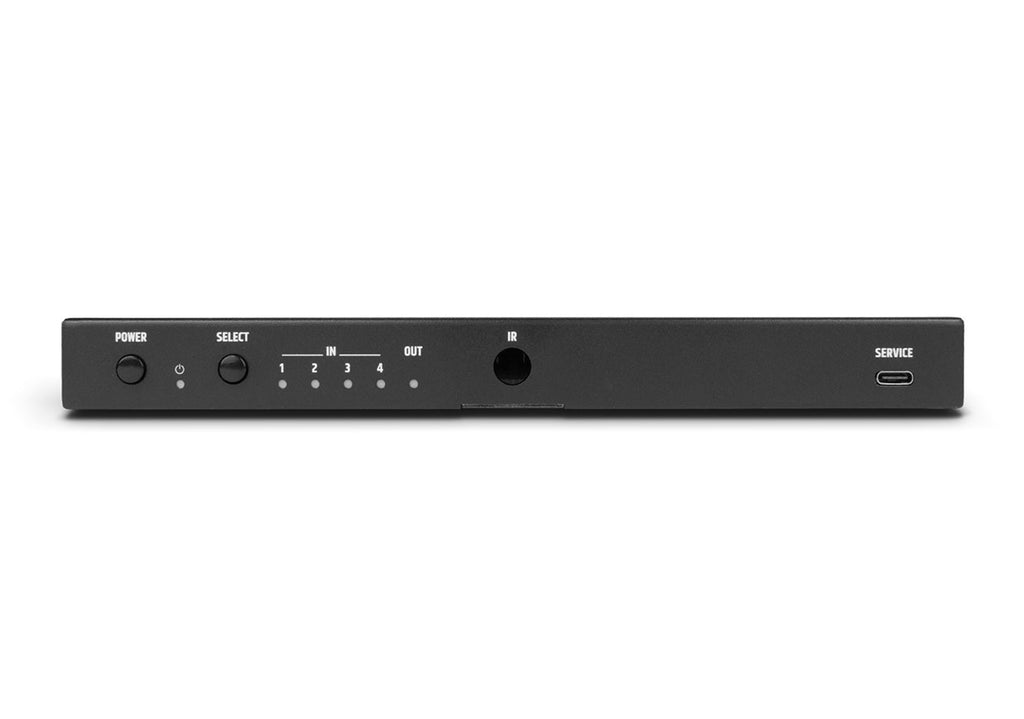

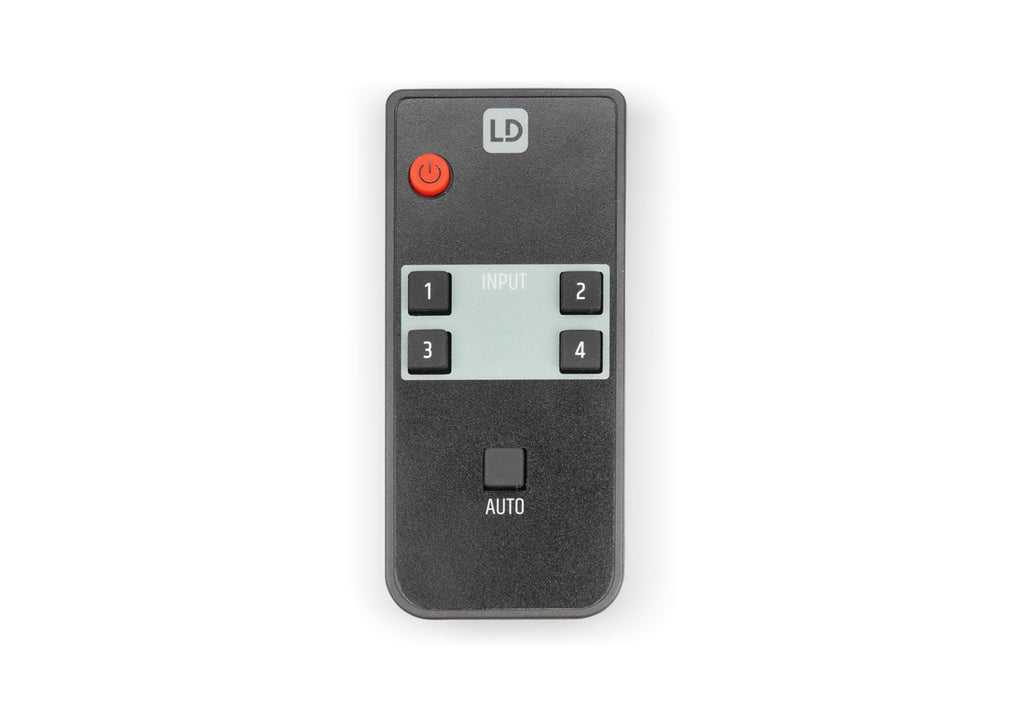

Fully integrated with the QUESTRA platform, the SWAV41 enables centralized configuration and monitoring through Ethernet, while also offering control via front-panel buttons and the included IR remote. Automatic and manual input switching modes, an integrated signal generator for setup verification, and silent fanless operation make it an ideal solution for conference rooms, presentation spaces, and professional AV environments requiring dependable source management and audio extraction.
Product Specifications:
Material: Metal
Color: Black
HDMI inputs: 4
HDMI outputs: 1
Line outputs: 1
S/PDIF outputs: 1
Video standard: HDMI 2.1
HDR formats: HDR10, HDR10+, Dolby Vision, HLG (Hybrid Log-Gamma)
Video bandwidth: 48 Gbps
Copy protection: HDCP 1.4, HDCP 2.0, HDCP 2.2, HDCP 2.3
Video resolutions: 8K 60 Hz YCbCr 4:2:0 12-bit; 8K 30 Hz RGB/YCbCr 4:4:4 12-bit; 4K 120 Hz RGB/YCbCr 4:4:4 12-bit
Color depth: 8-bit, 10-bit, 12-bit
Color space: YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, RGB
HDMI audio formats: PCM 2.0, PCM 5.1, Dolby Digital EX (AC3), Dolby TrueHD, Dolby Atmos, DSD, DTS, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS:X
Digital audio de-embedding: PCM 2.0, PCM 5.1, Dolby Digital (AC3), DTS
Video scaling: 8K 60 Hz YCbCr 4:2:0 12-bit; 8K 30 Hz RGB/YCbCr 4:4:4 12-bit; 4K 120 Hz RGB/YCbCr 4:4:4 12-bit
Supported serial standard: RS-232
Baud rates: 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps
Serial connectors: 1
External control: TCP/IP, IR transmitter (IR blaster), Serial interface, Web graphical user interface
IR blaster output level: 12 Vp-p
Operating voltage: 100–240 V AC (±10%) / 50–60 Hz
Power supply type: External switched-mode power supply (SMPS)
Rated power: 5.4 W
Maximum humidity: 90% (non-condensing)
ESD protection (non-contact): 8 kV (IEC 61000-4-2)
ESD protection (contact): 4 kV (IEC 61000-4-2)
Width: 220 mm (8.66 in)
Height: 21.5 mm (0.85 in)
Depth: 110 mm (4.33 in)
Weight: 0.6 kg (1.32 lbs)
