LD Systems ANNY BP B4.7 Bodypack Transmitter for ANNY

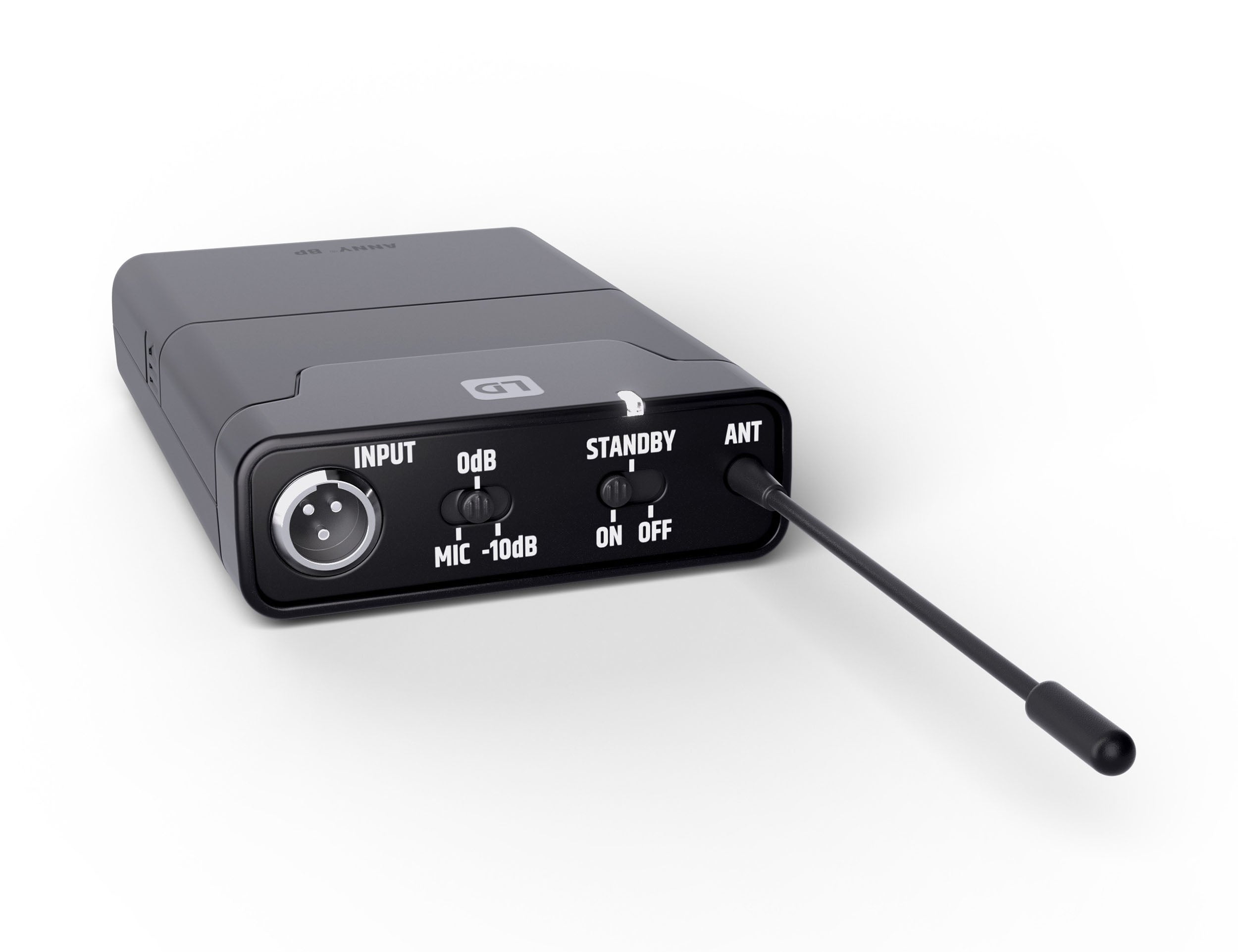

The LD Systems ANNY BP B4.7 bodypack transmitter with the B4.7 frequency band operates in the 470 - 490 MHz frequency range. Equipped with a mini-XLR input and input level switch, it can be used with both active and passive microphones and instruments. With an output power of 10 mW, the bodypack transmitter allows audio transmission up to 80 metres. The bodypack transmitter is easily and conveniently synchronised with the ANNY receiver via infrared. Powered by two AA batteries (included), the ANNY BP can operate for up to eight hours without a battery change. A built-in status LED gives a white light when switched on and a red light when the battery is low. The power switch also provides a standby function for temporary muting, ideal for breaks in use without having to switch off the unit completely.

Product Specifications:

Product Type: Wireless Microphone System Accessories

Type: Bodypack

Transmission Frequency Range: 470 - 490 Mhz

Channels: 12

Inputs: Mini-Xlr (3-Pin)

Frequency Response: 45 Hz - 20 Khz

Signal-to-Noise Ratio: 100 Db

Rated Hf Output Power: 10 Mw

Controls: Gain (3-Stage Input Sensitivity), Power On/Off, Standby

Indicators: Battery Status Led (Low), Power

Power Supply: 2 X Aa Battery

Operating Time: >8 H (With Alkaline Batteries)

Width: 64 Mm

Height: 100 Mm

Depth: 21 Mm

Weight: 0,09 Kg

Other Features: Incl. Batteries, Ir Frequency Synchronisation, Standby, Switchable Gain
