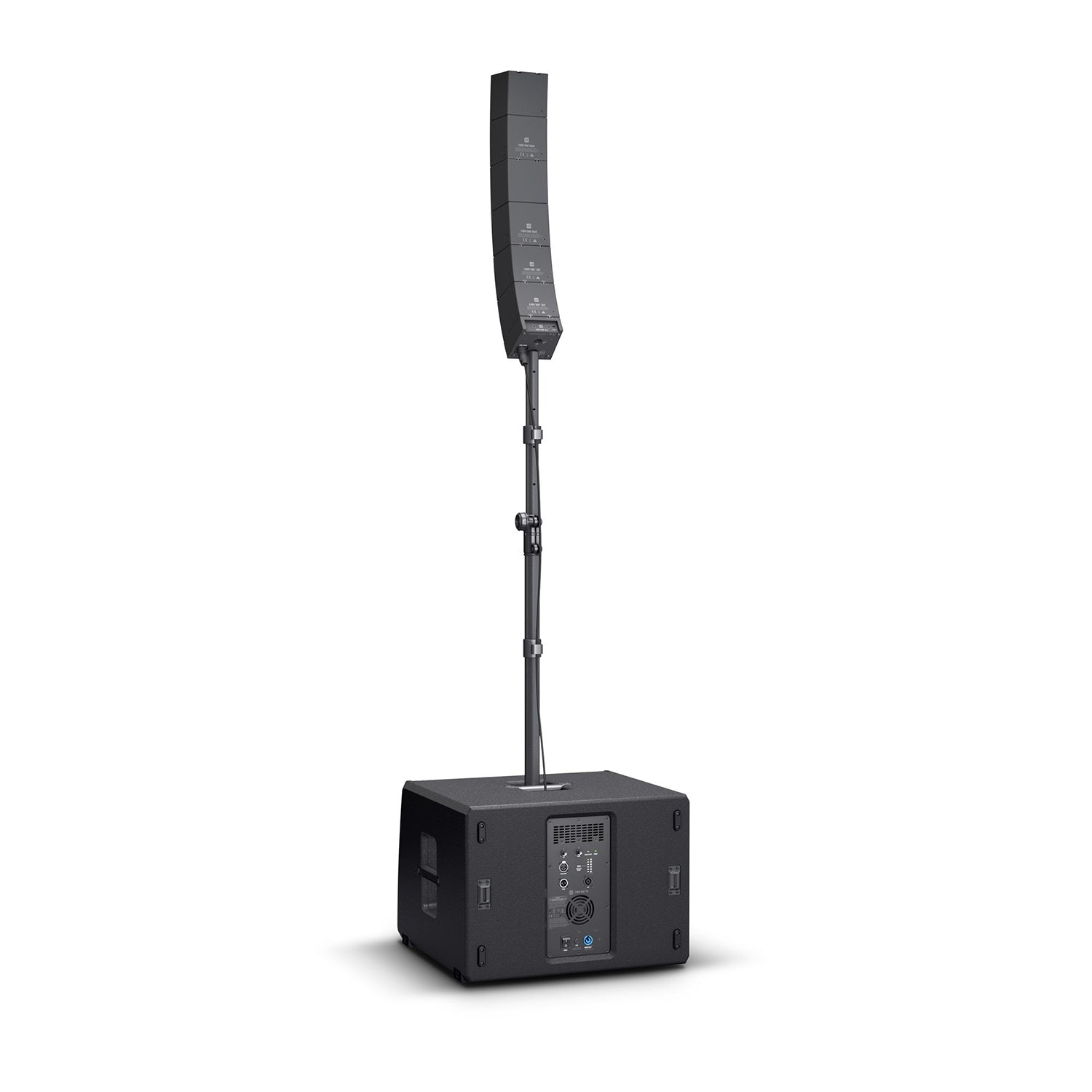

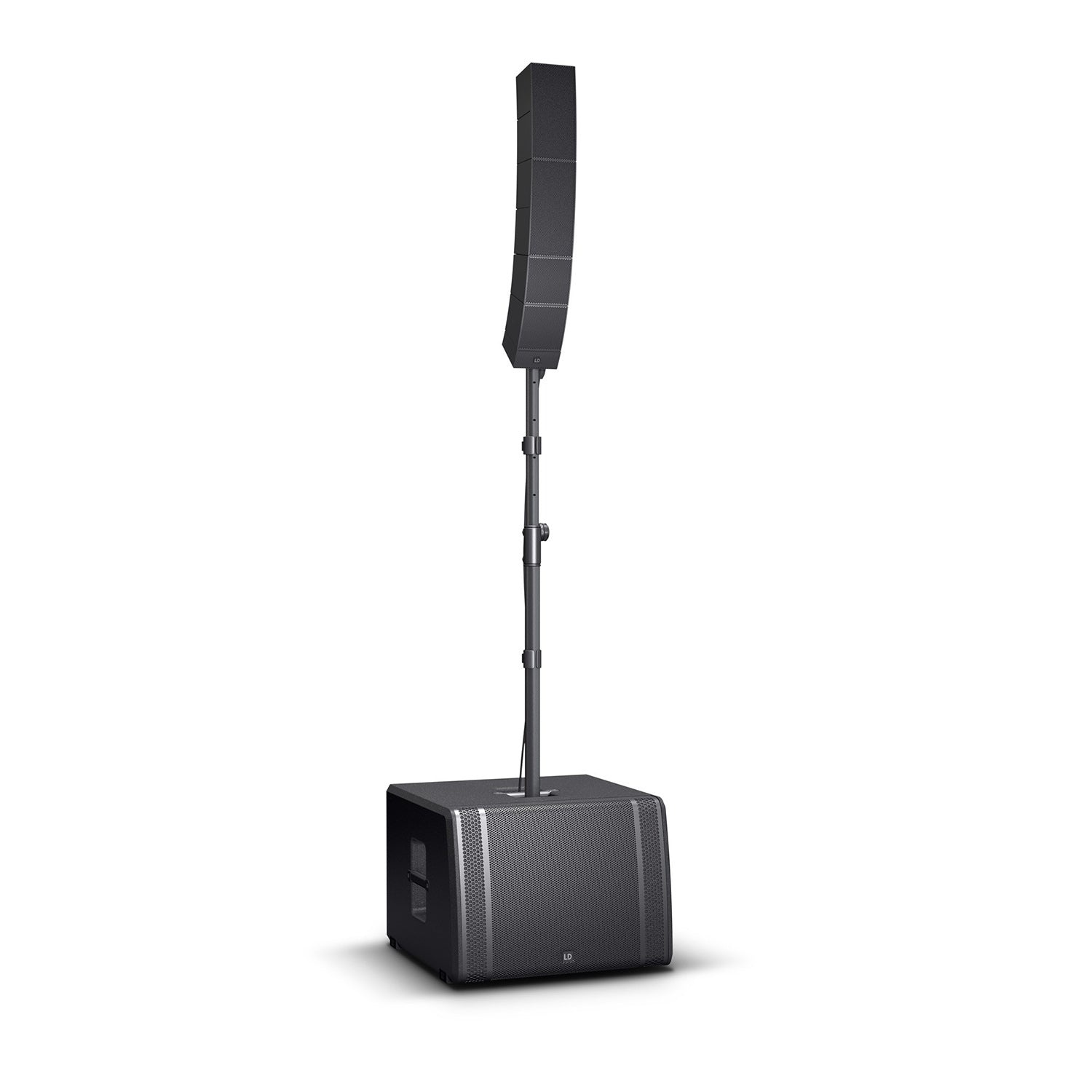

LD Systems CURV 500 TS, Compact Touring Array System

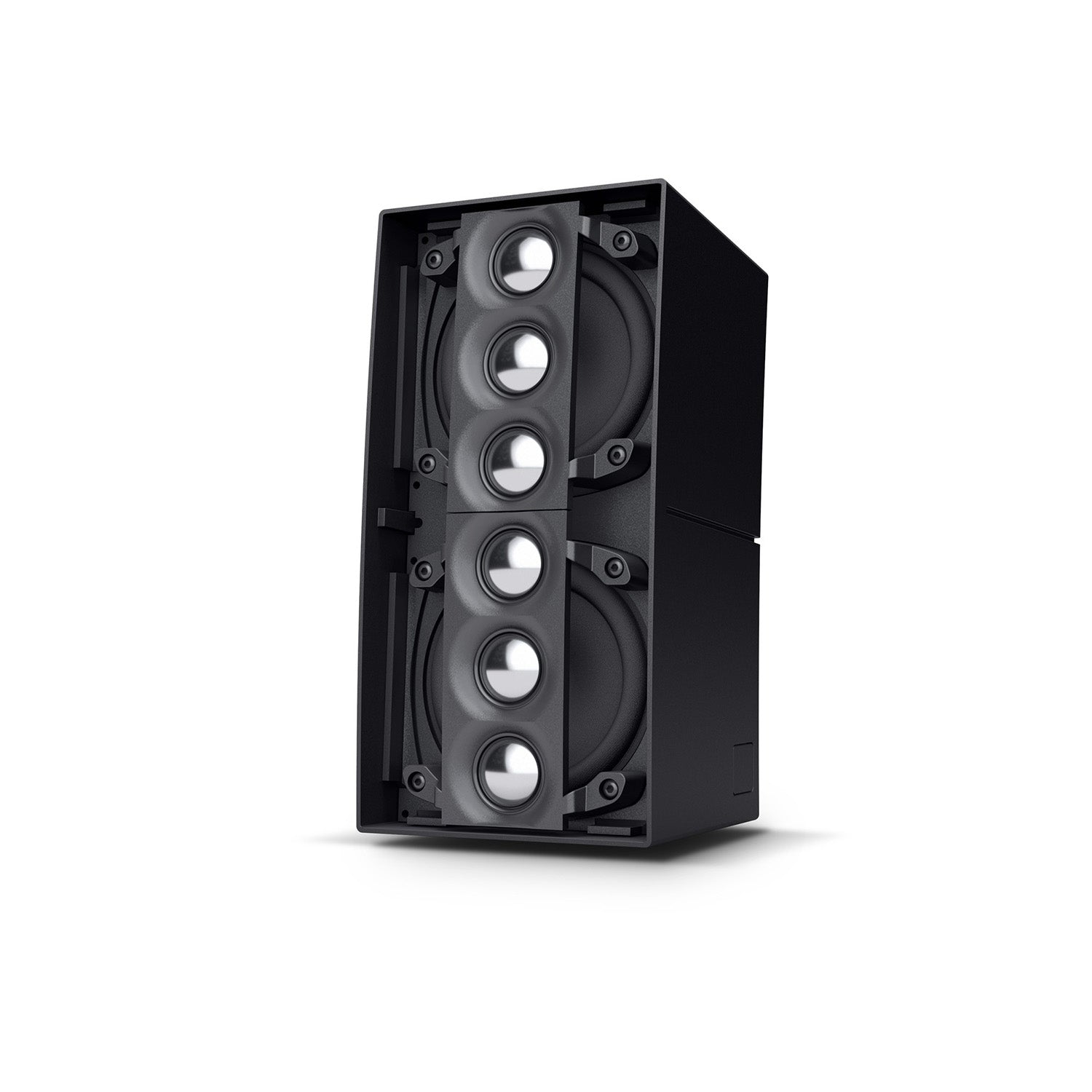

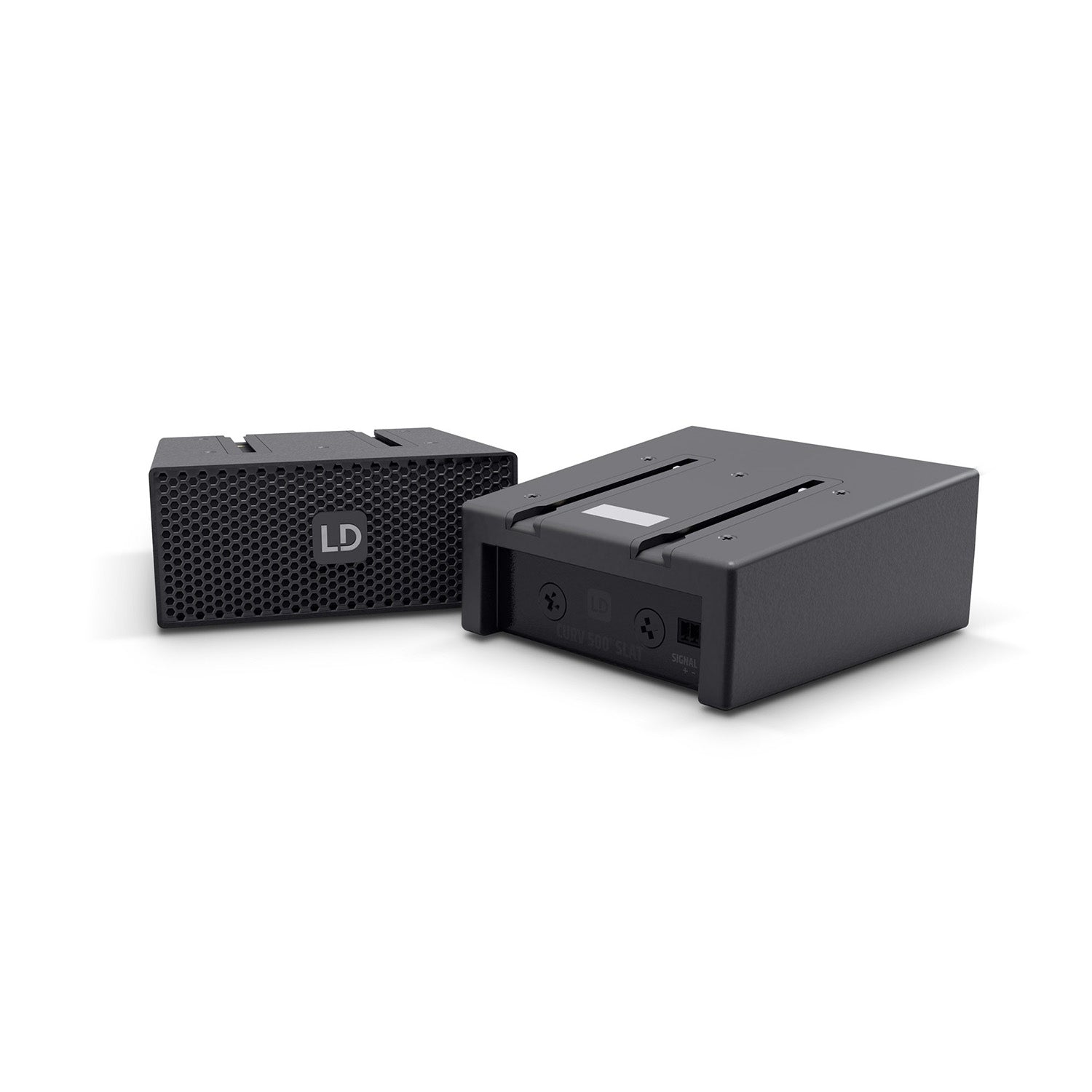

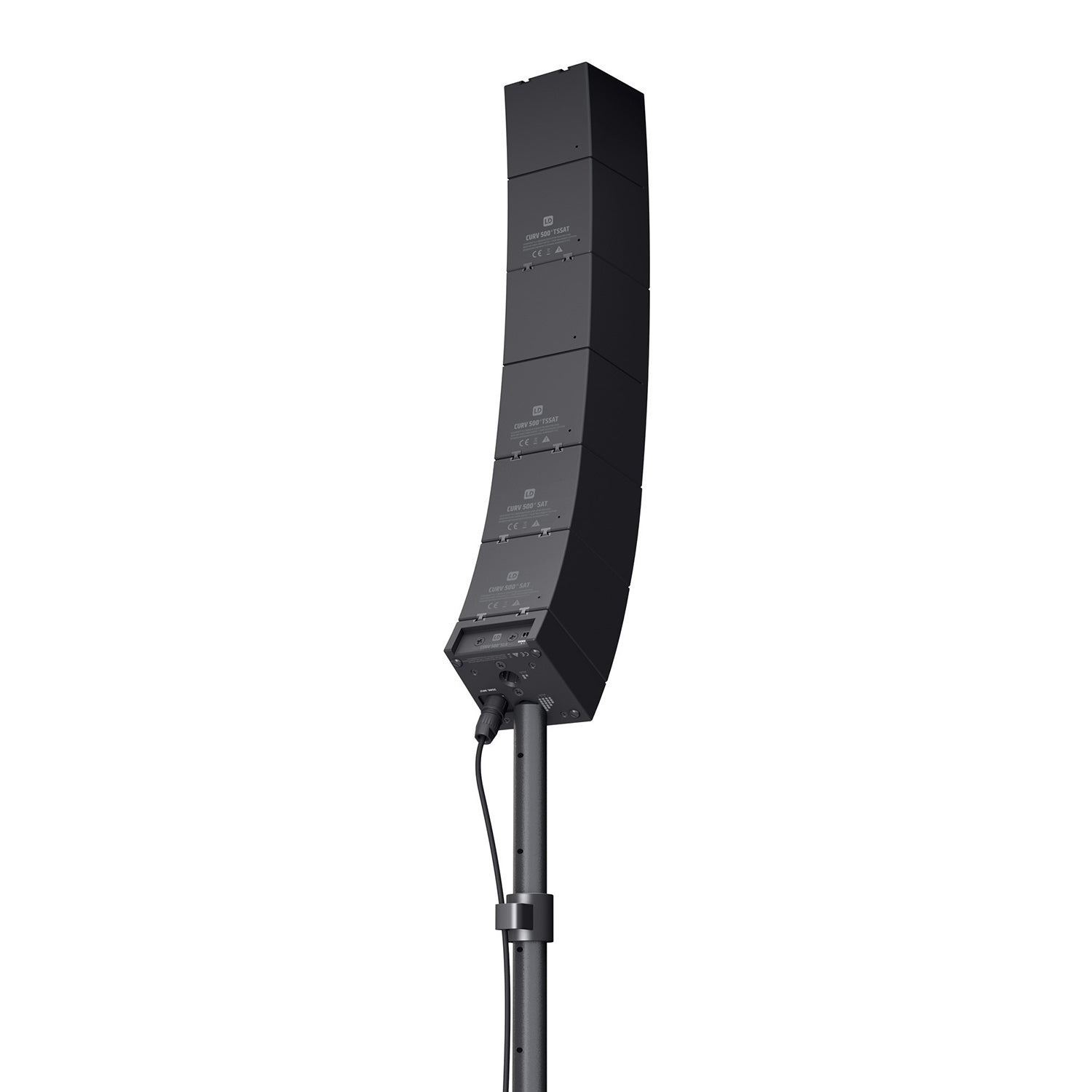

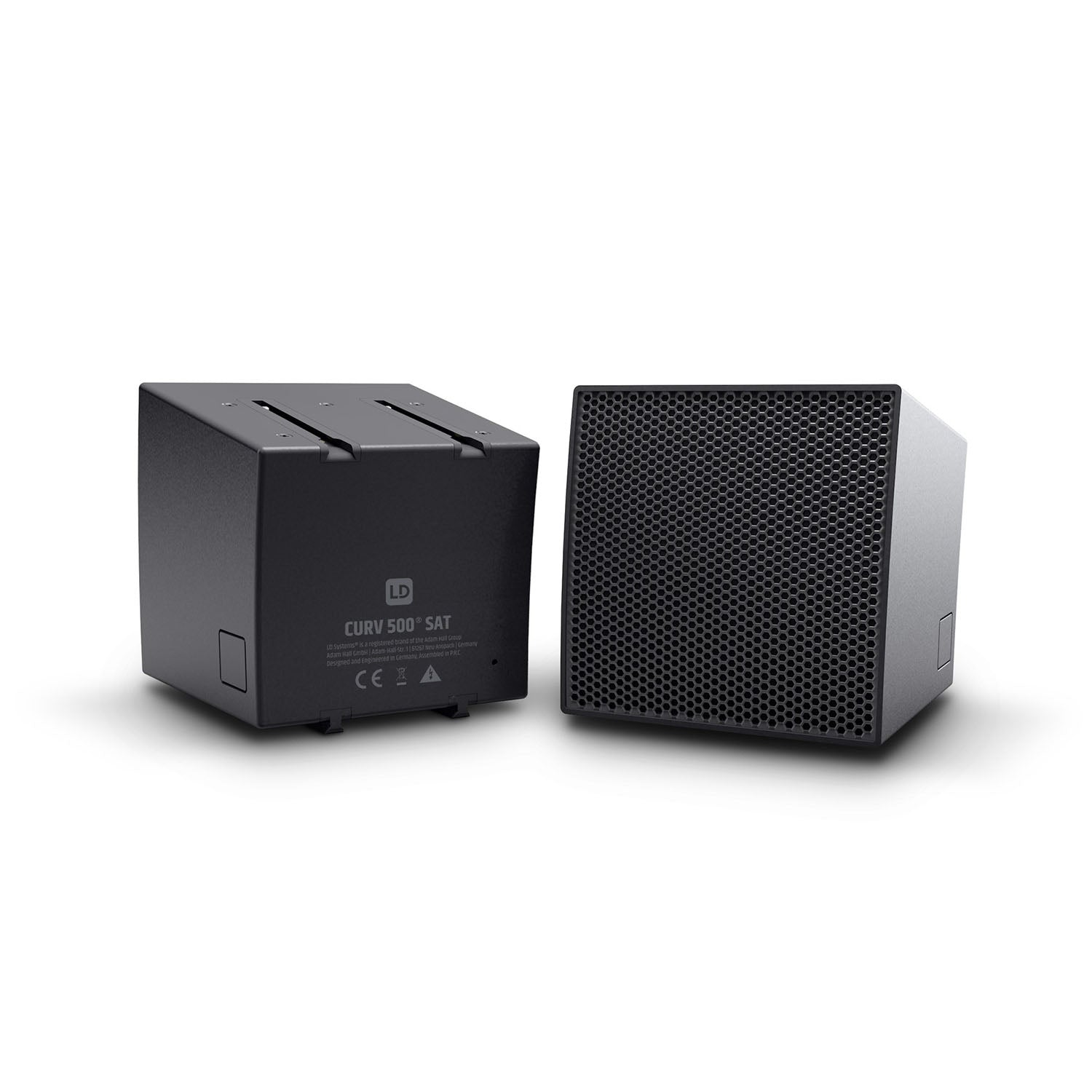

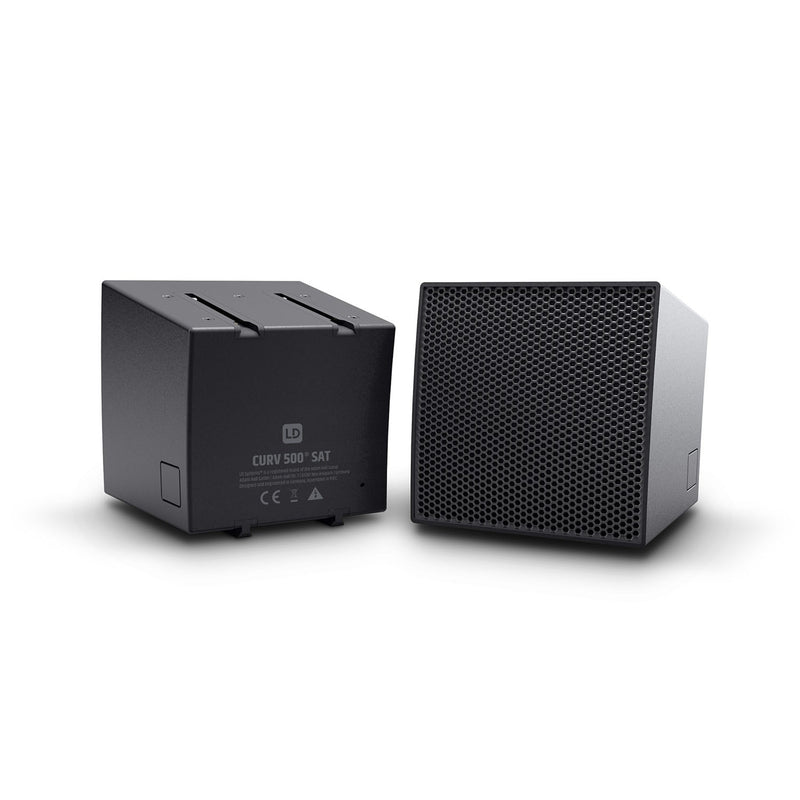

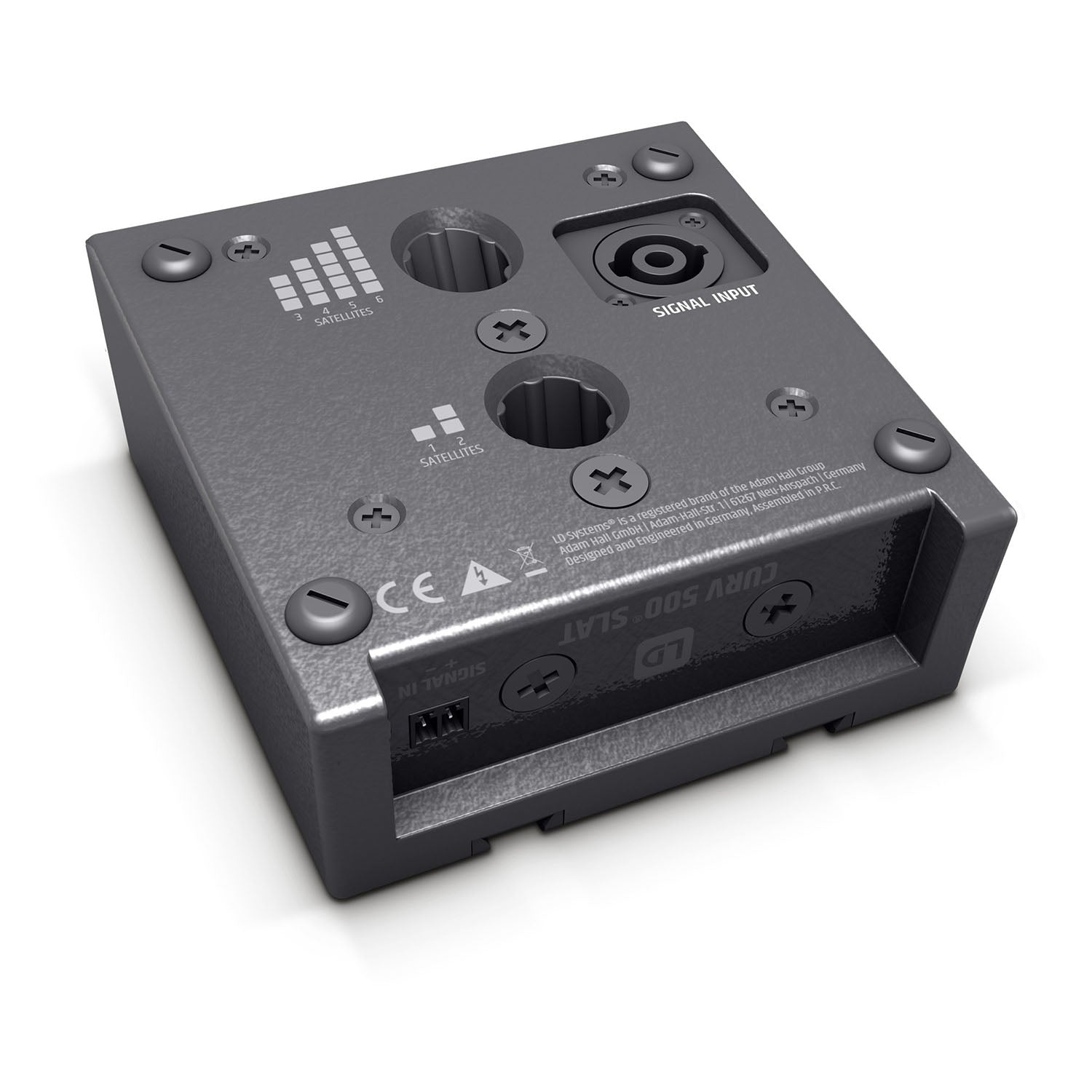

The compact, highly portable CURV 500 Touring Array System is fully scalable with up to four interlocking aluminum unibody line array elements operating on a SmartLink plug and plays adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high-frequency drivers using LD Systems' Wave Ahead technology, and two duplex satellites with twice the speaker complement.

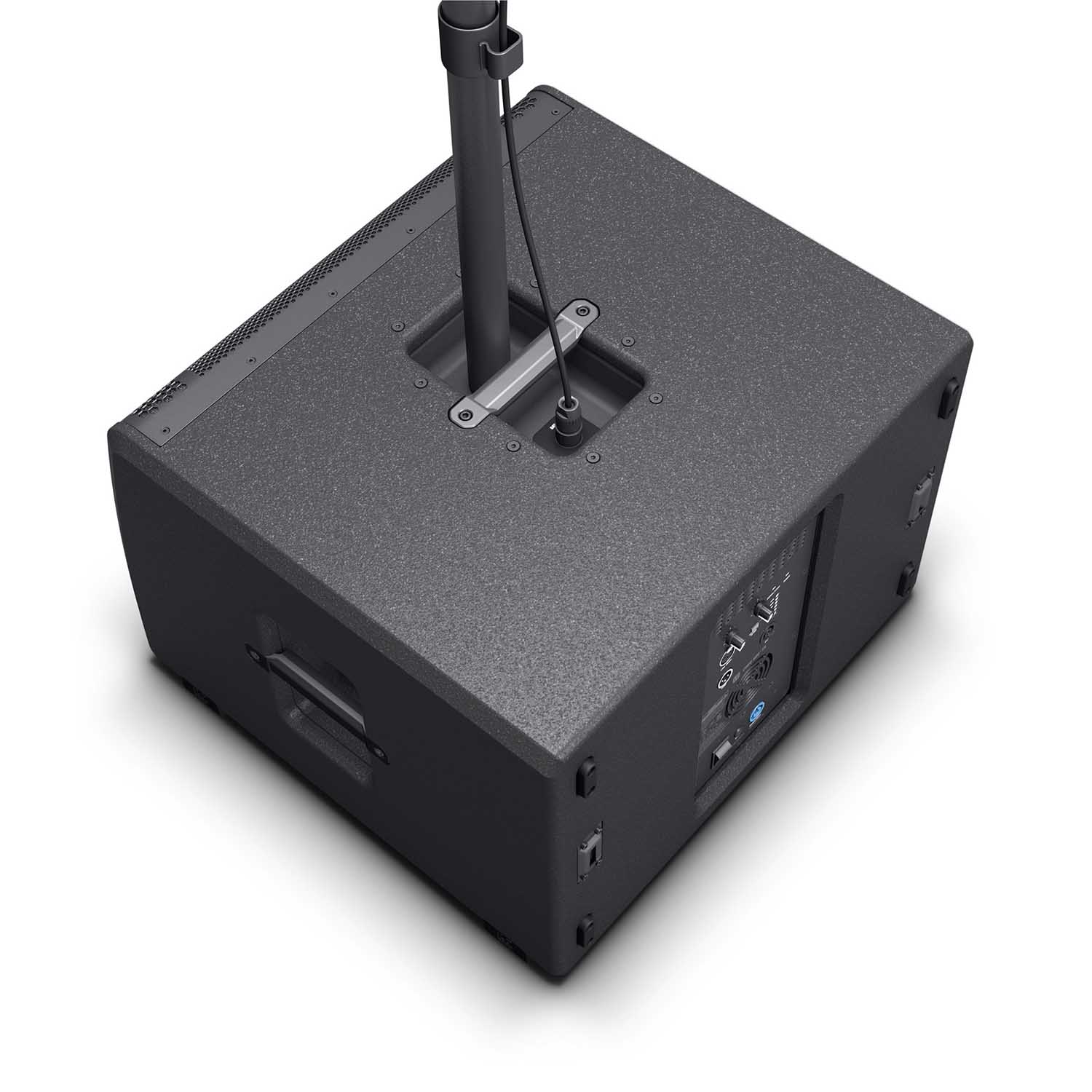

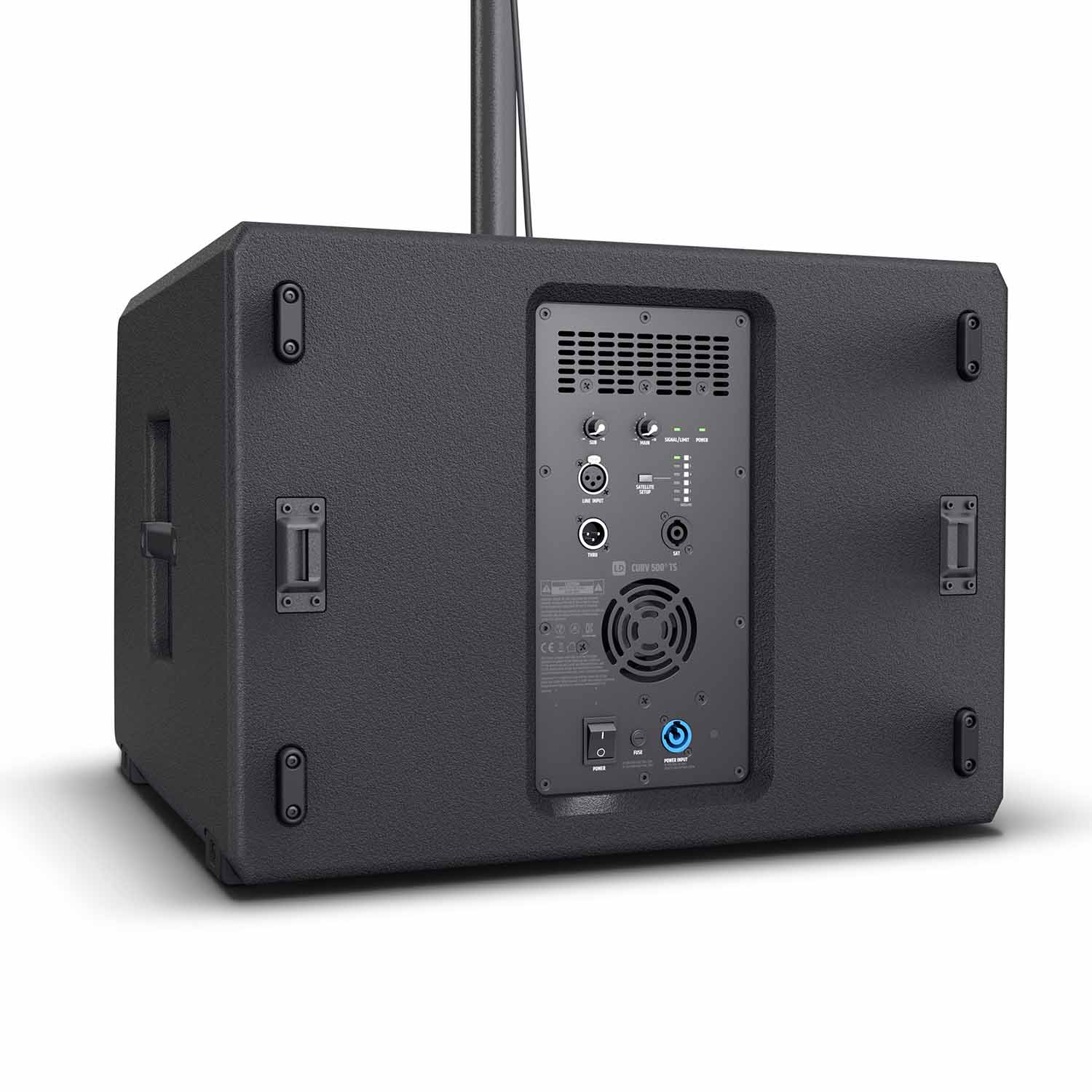

The ported 15" subwoofer base includes the CURV 500 Touring Array System's Class D amplification with multiband limiter, short circuit, thermal, and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount, and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500 Touring Set delivers high definition audio with a powerful punch, superb balance, and extended vertical and horizontal coverage. The set includes a subwoofer pole and a dicated speaker cable.

Product Specifications:

Product Type: PA Complete Systems

System output (RMS): 1000 W

Color: Black

Number of array satellites: 4

Number of Smartlink adapters: 1

Number of subwoofers: 1

Max. SPL (continuous): 125 dB

Max. SPL (peak): 131 dB

Frequency response: 40 - 20000 Hz

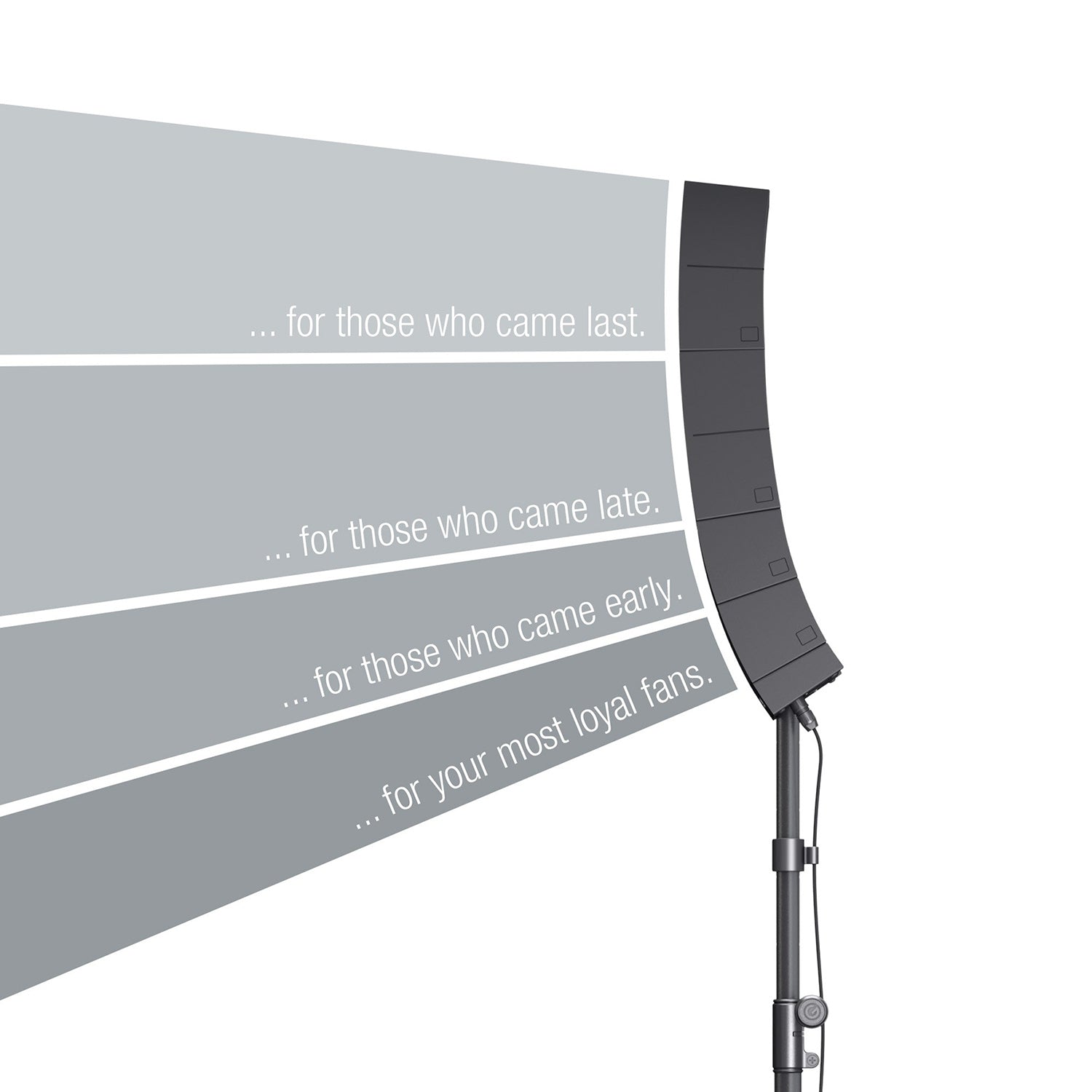

Dispersion (H x V): 110° horizontal, vertical 34 °

RMS: Subwoofer: 700 W, Array Satellites: 300 W

Peak Power Subwoofer: 1400 W, Array Satellites: 600 W

Weight: 48,2 kg

Amplifier: Class D

Protection Circuits: DSP-based multiband limiter, overload, short circuit, thermal overload

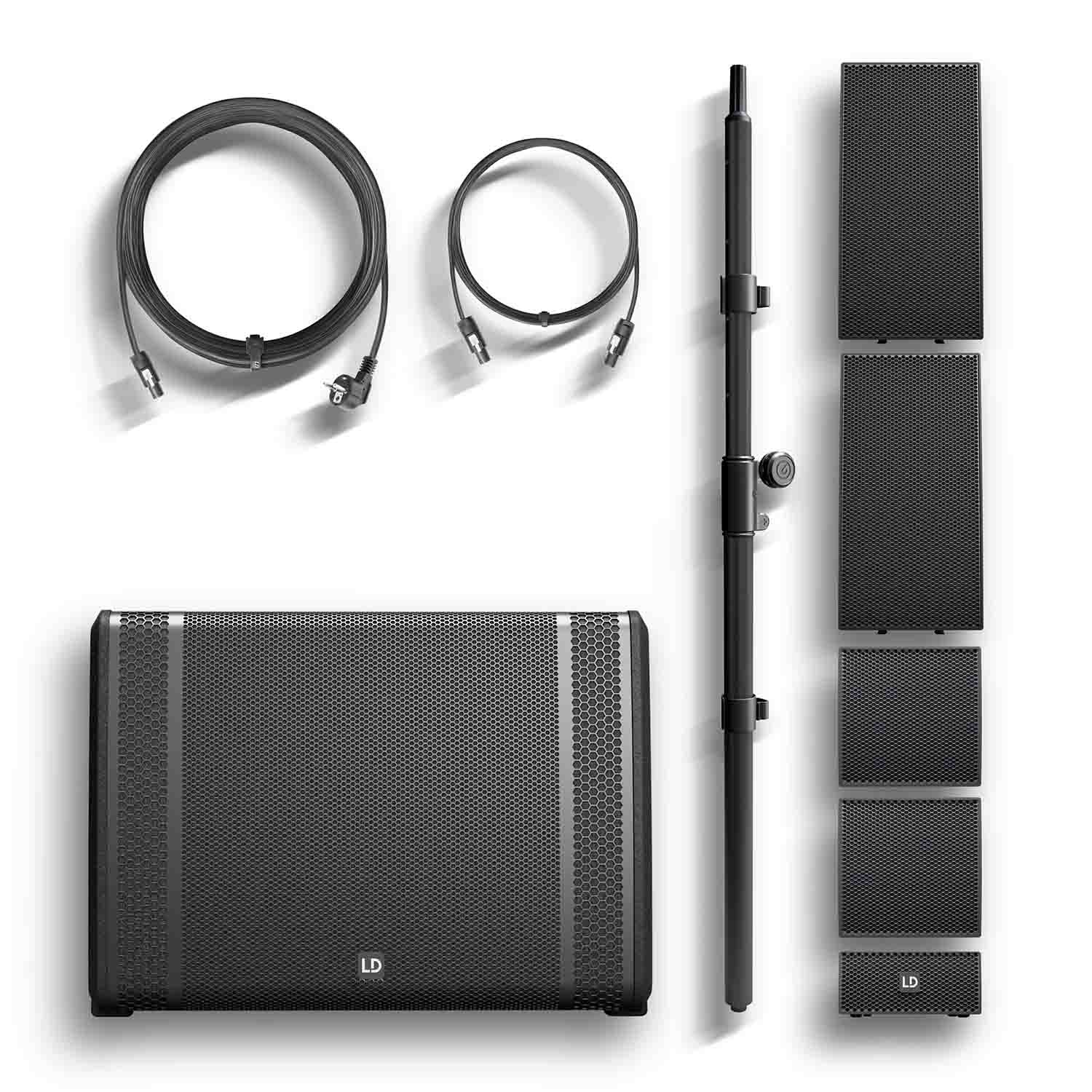

Accessories (included): Distance bar, Power cord, and Speaker cable CURV 500 CABLE 1 (2.2 m)
