Description

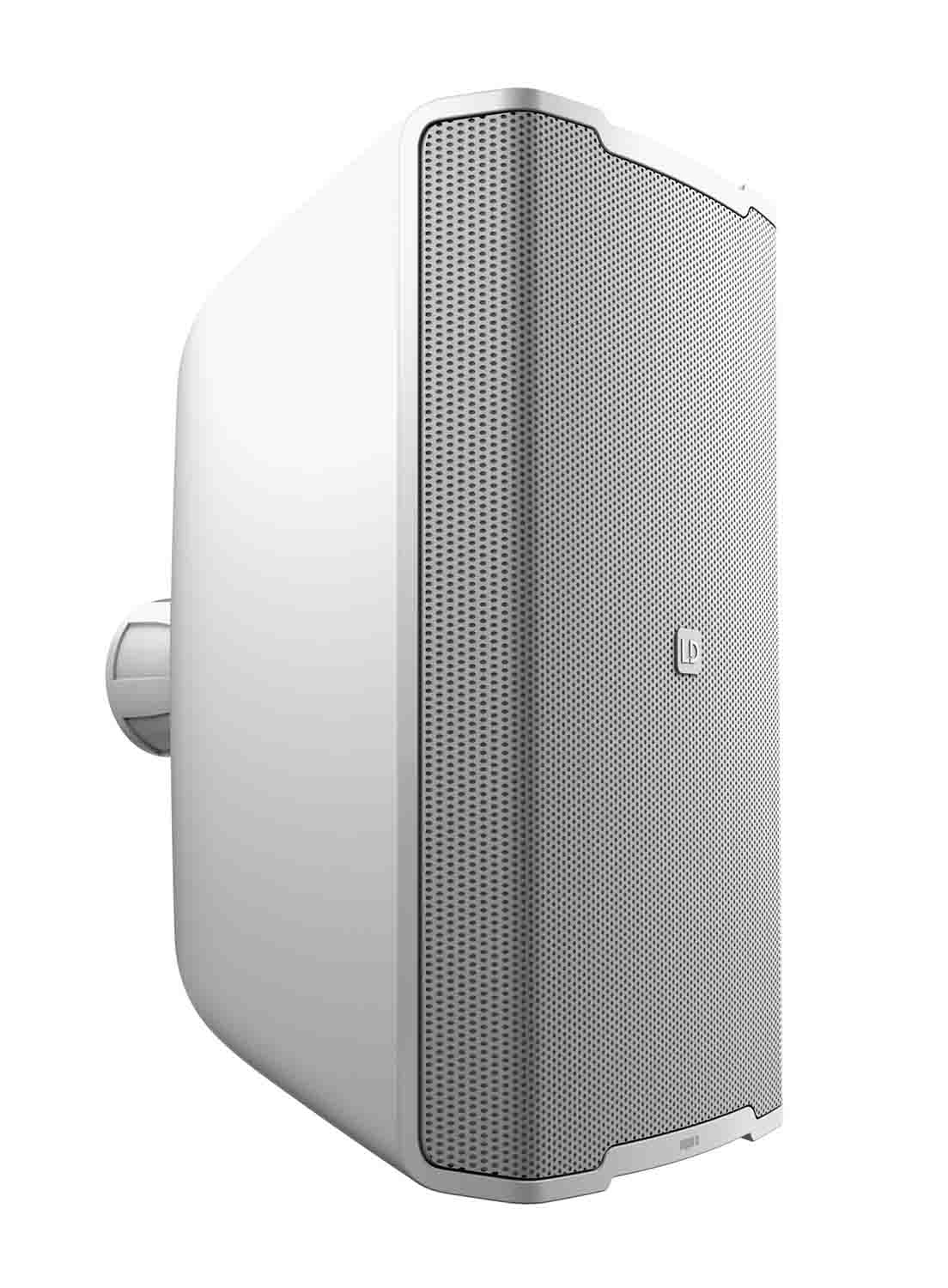

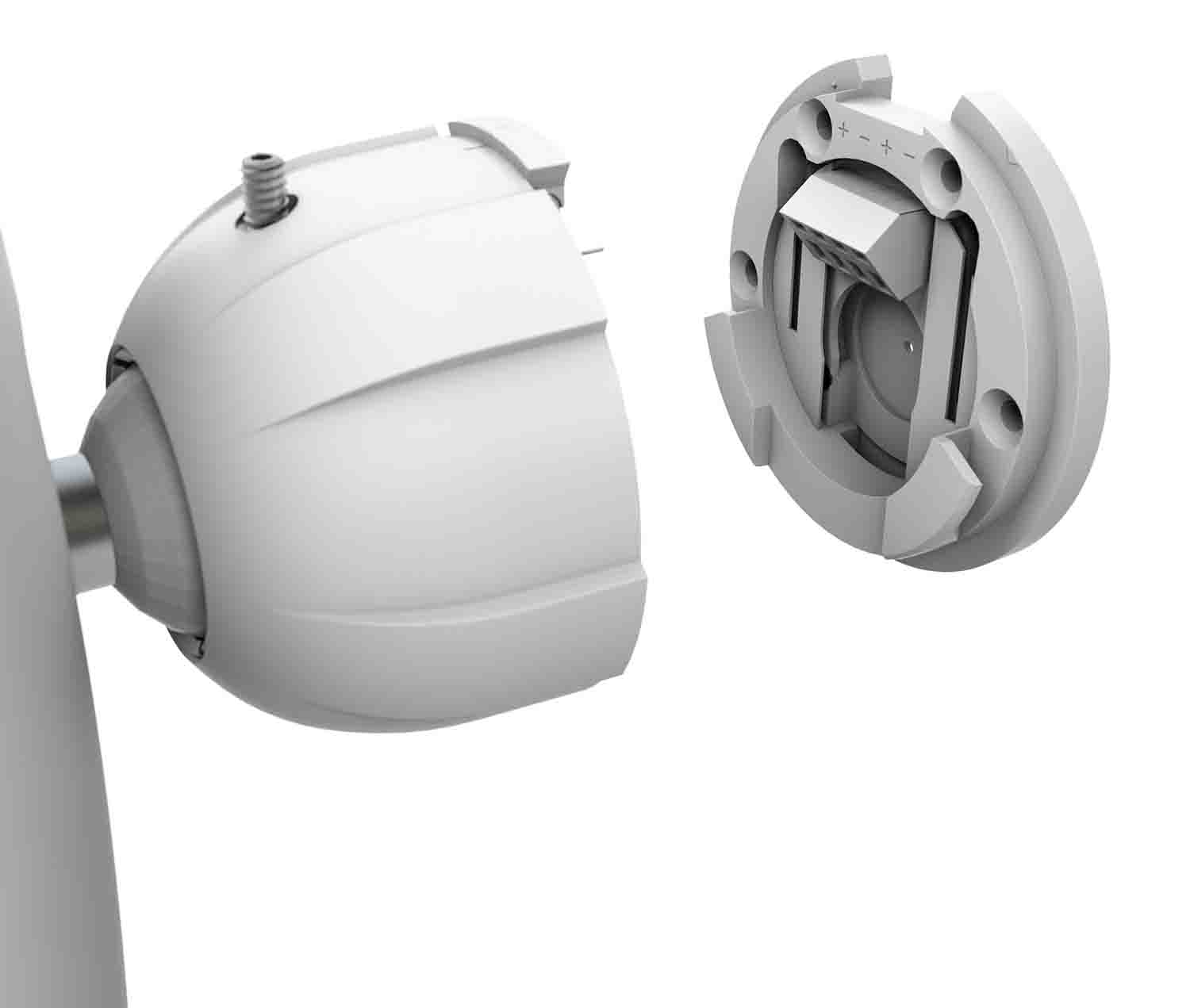

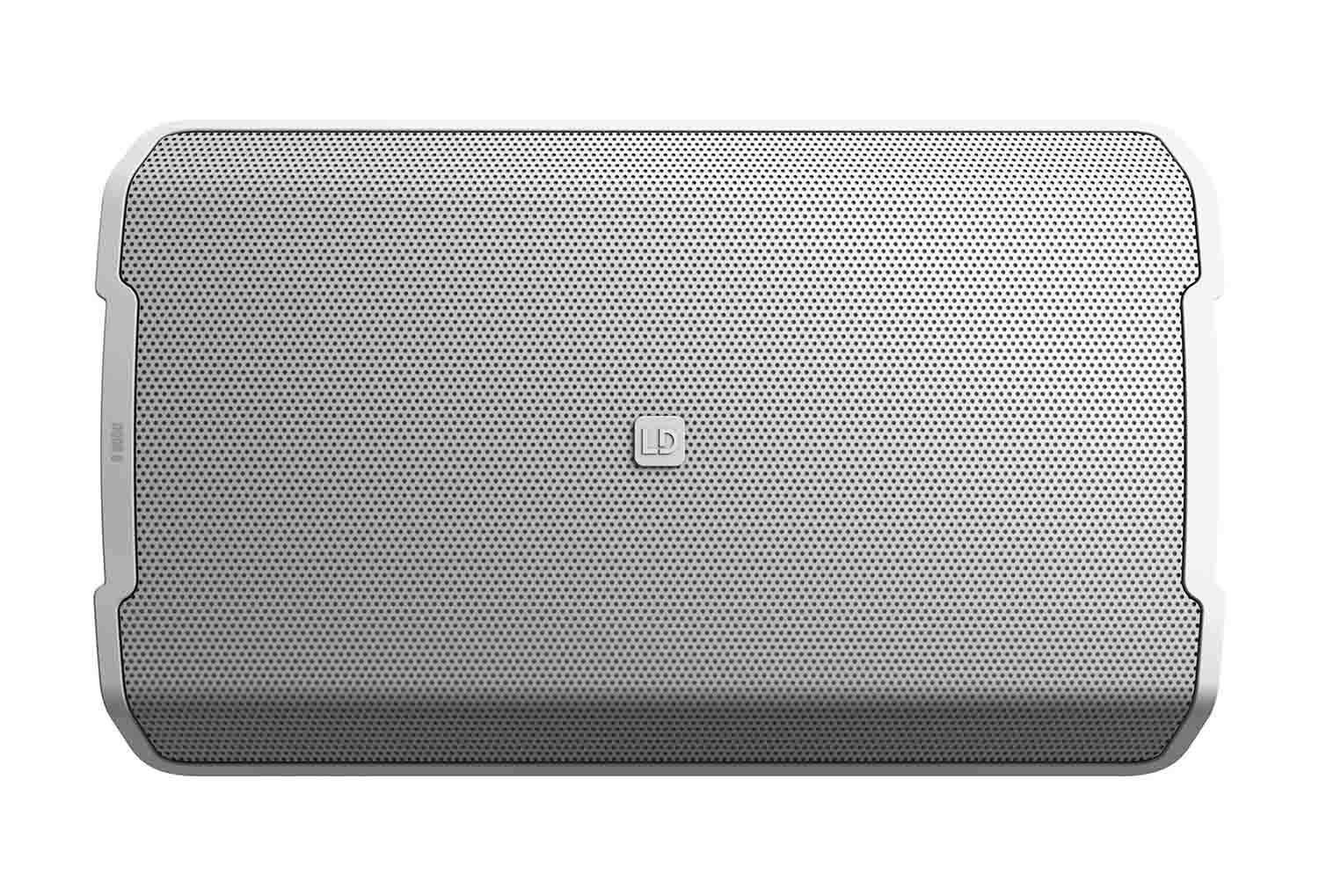

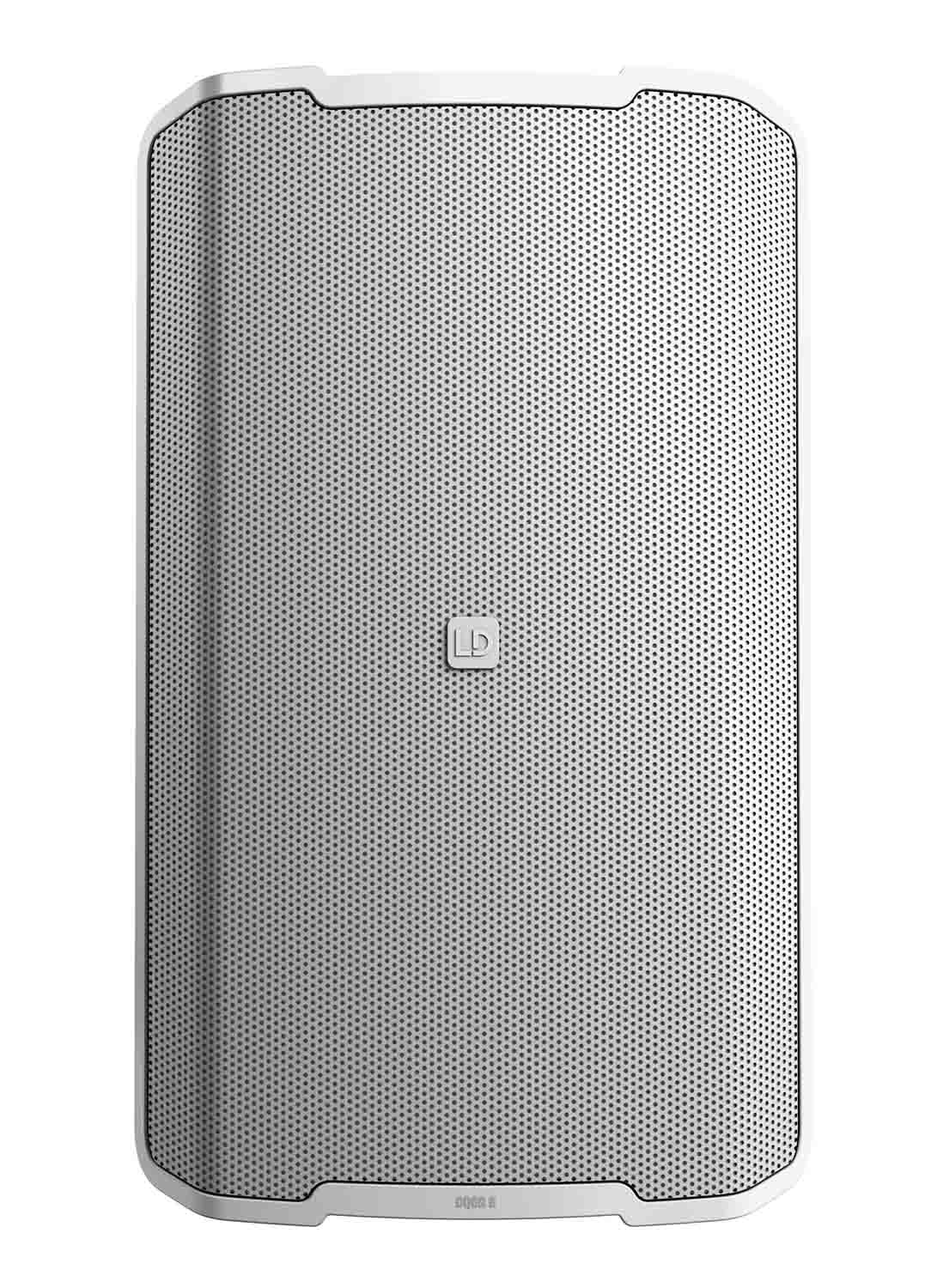

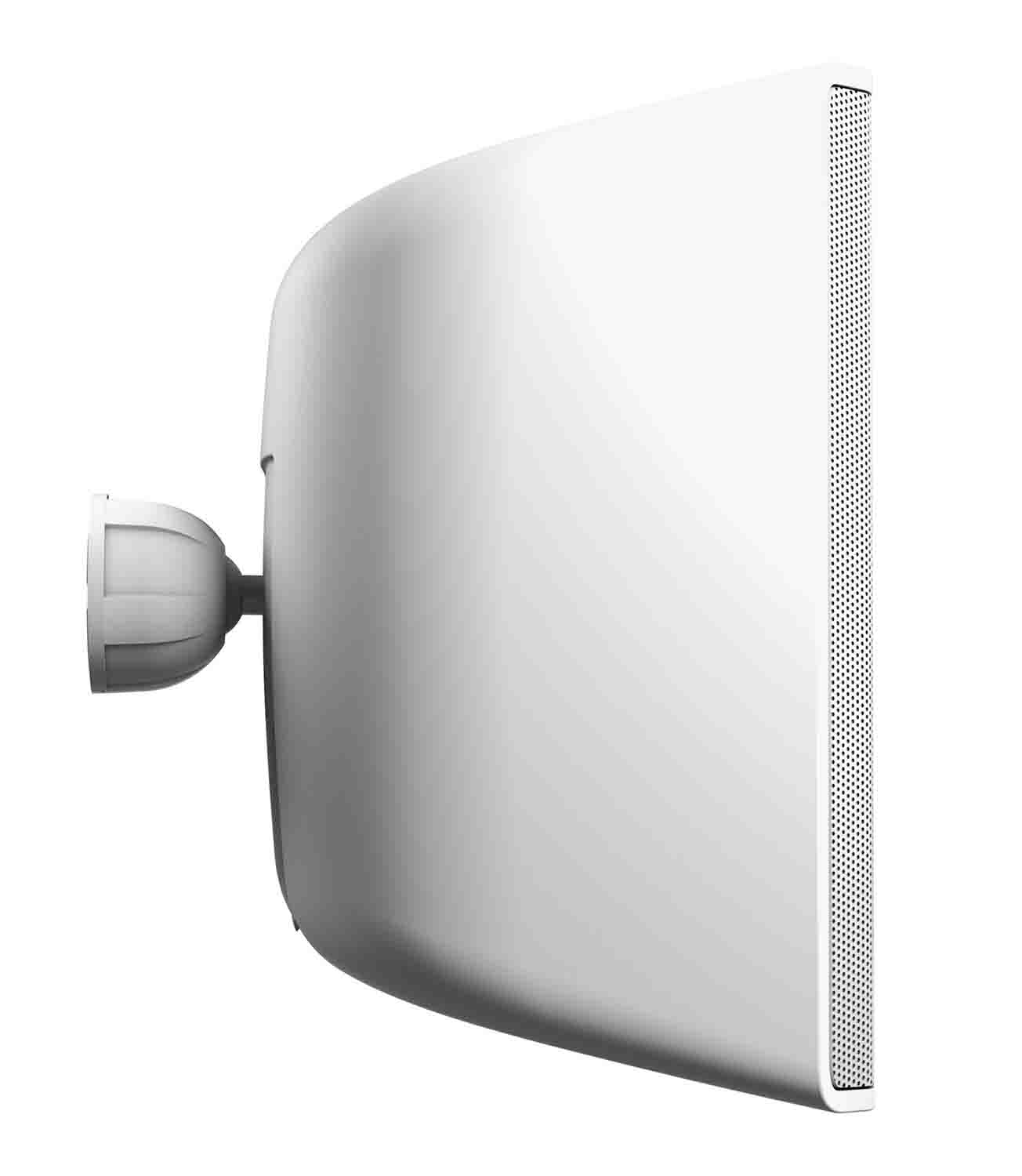

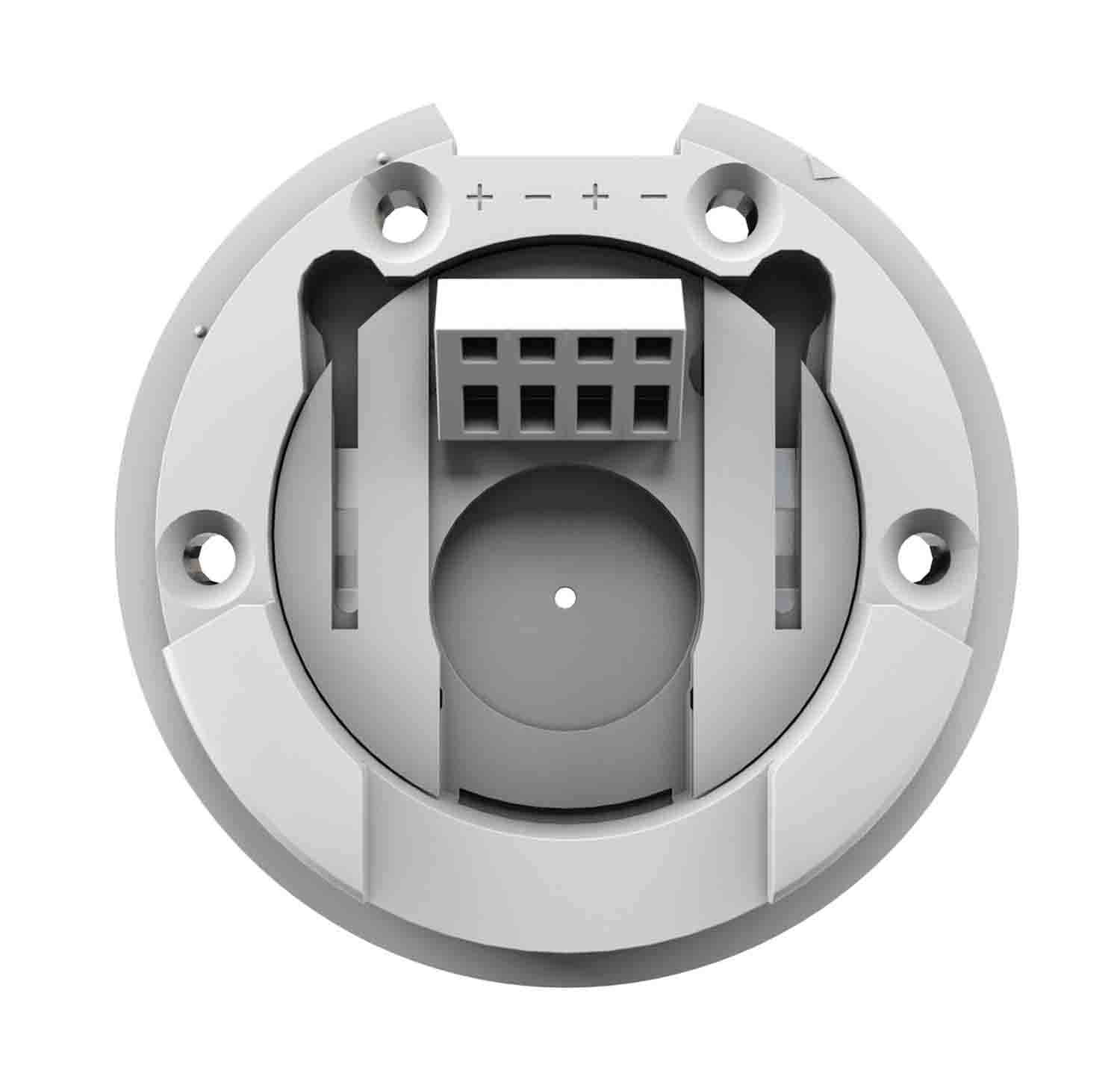

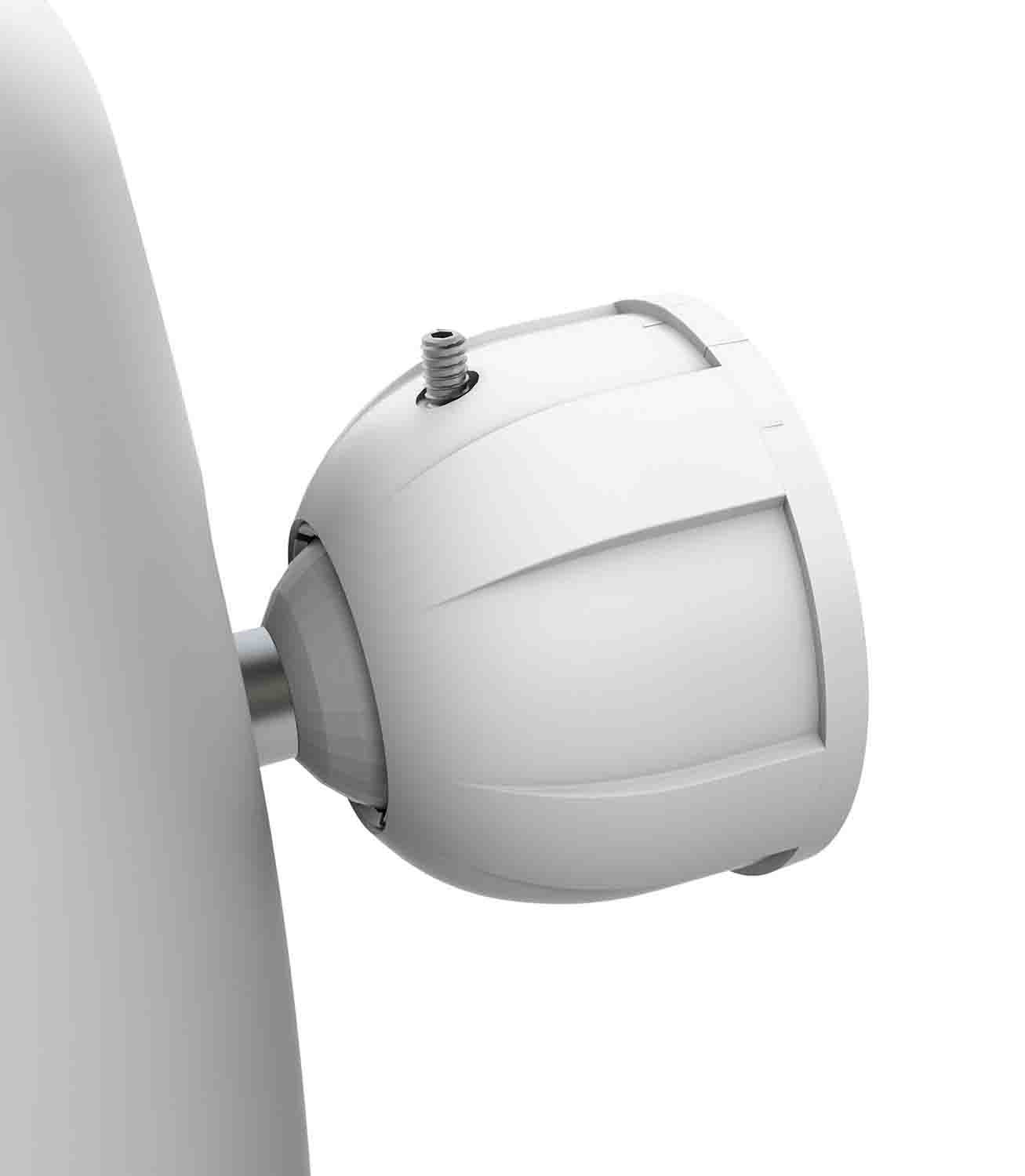

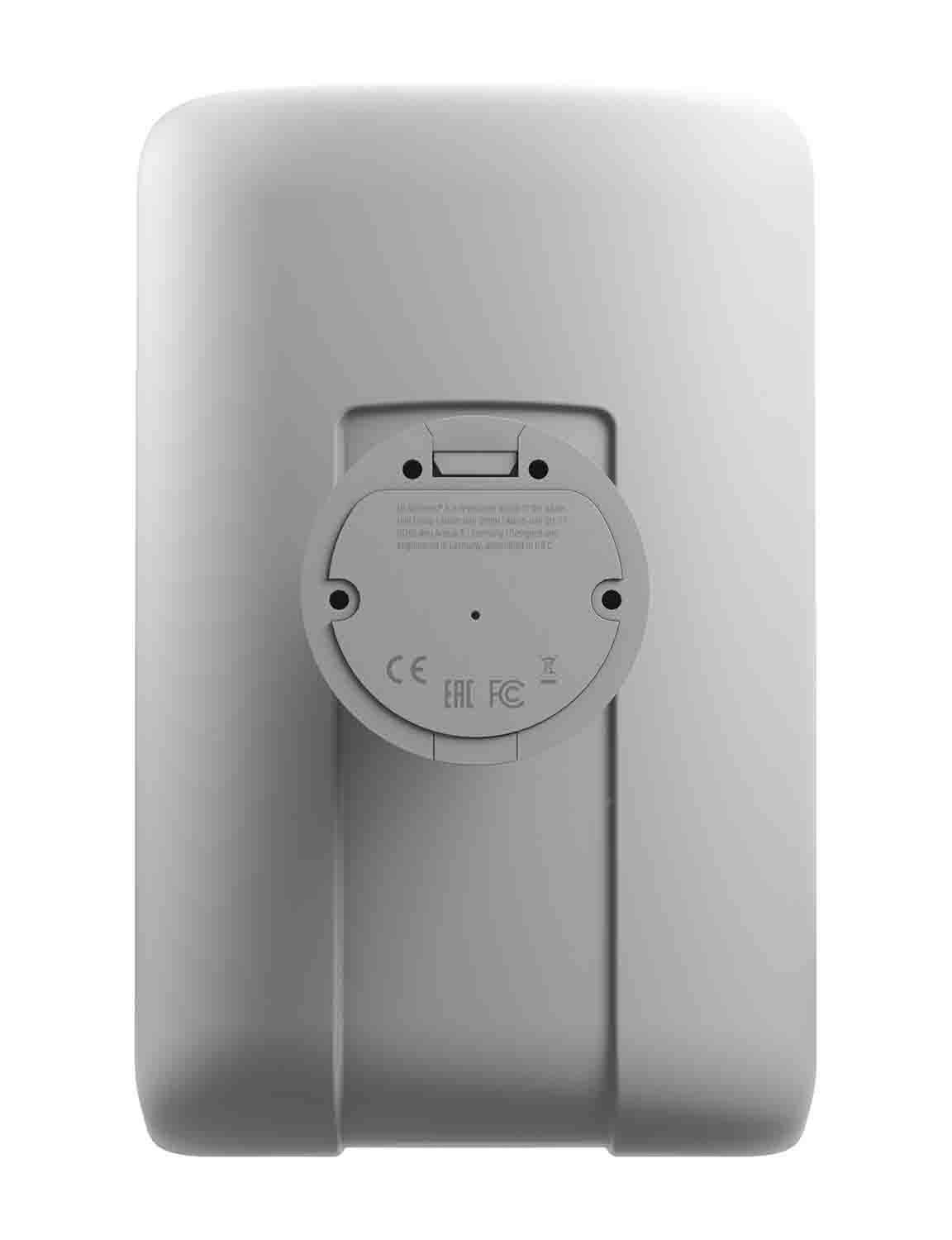

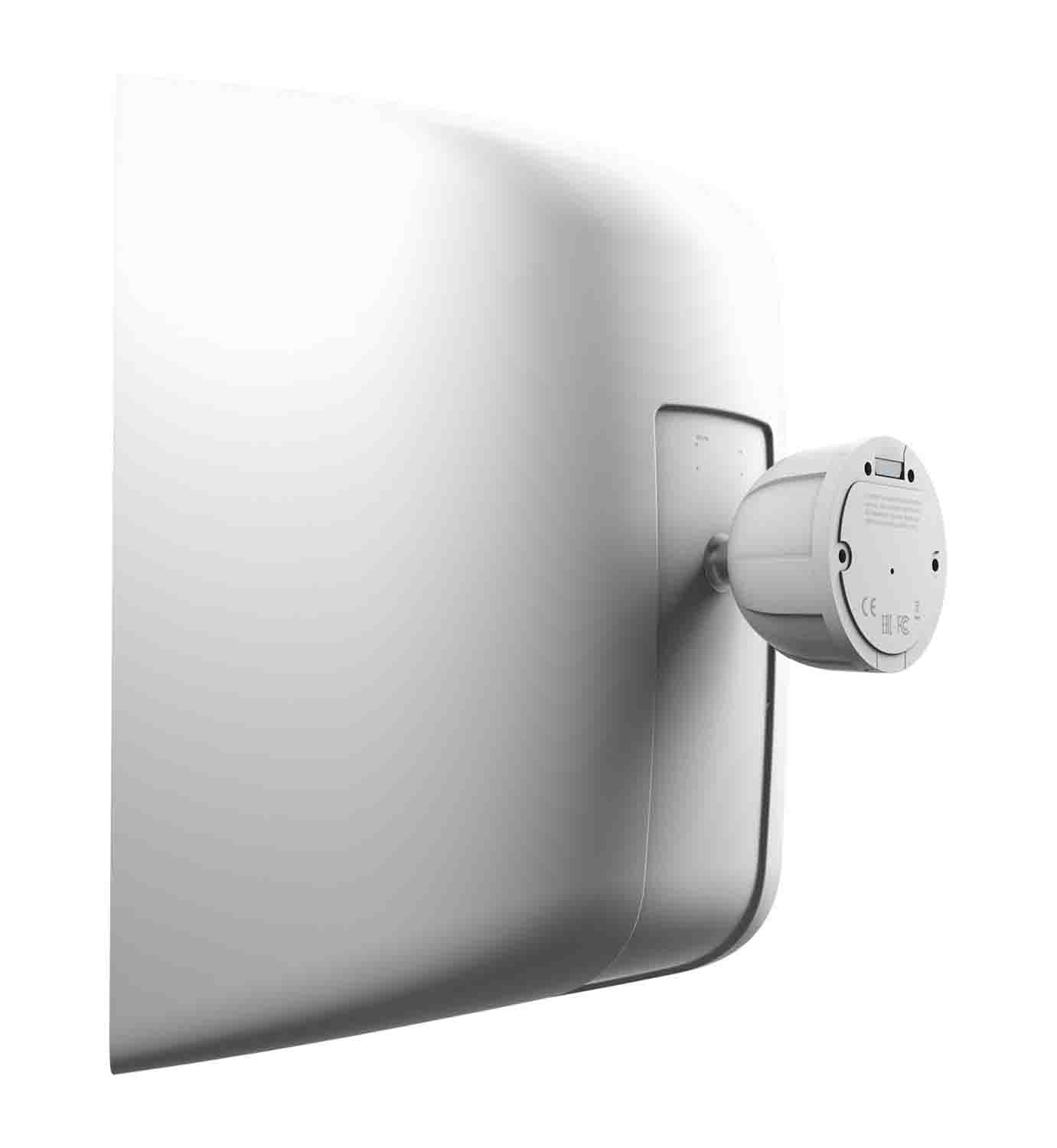

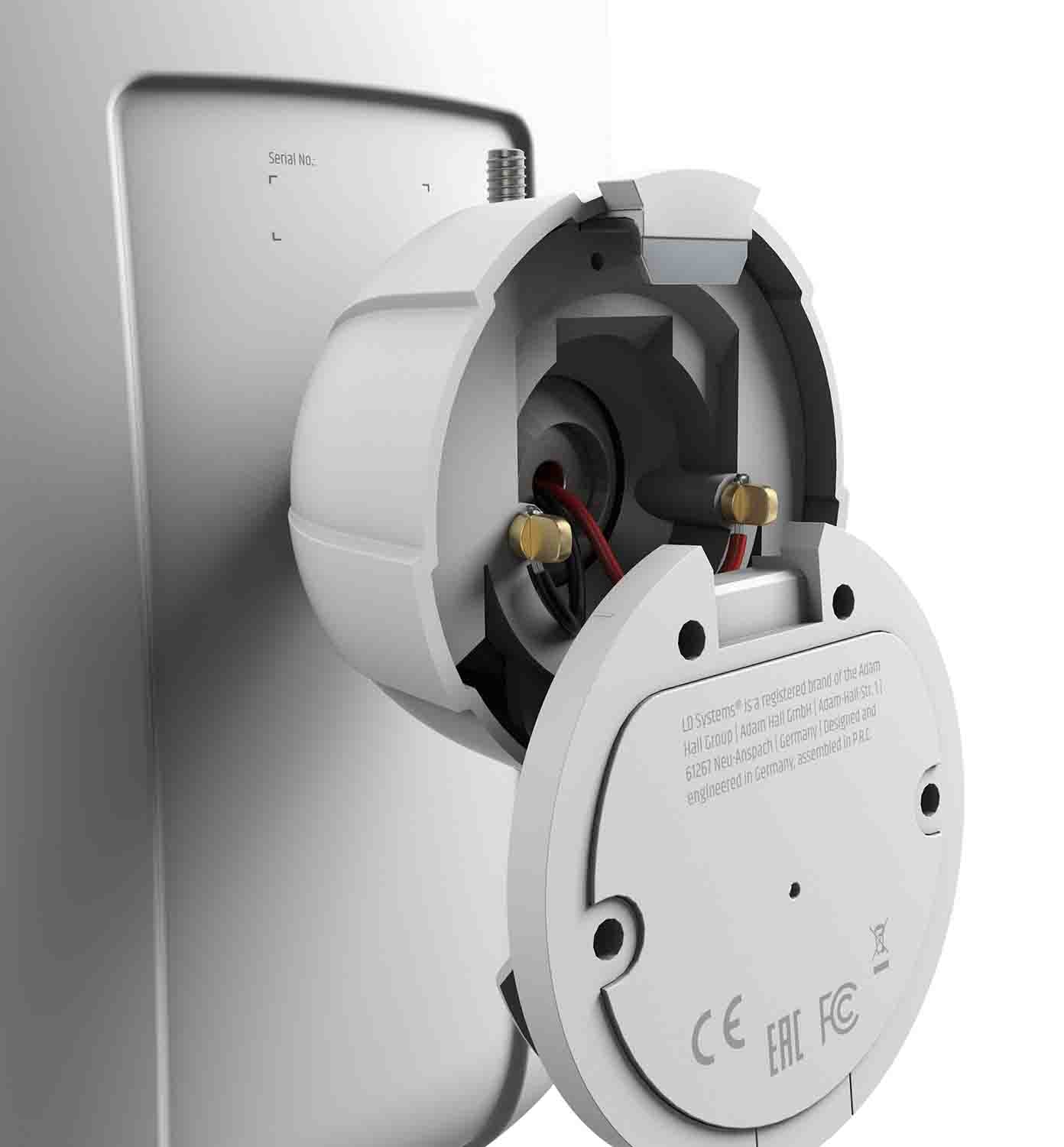

The LD Systems DQOR 8 W is an 8" Two-way Passive Indoor and Outdoor Installation Loudspeaker 8 Ohm White. Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience. Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.
DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.
Product Specifications:
Product Type: PA loudspeaker
Type: Passive

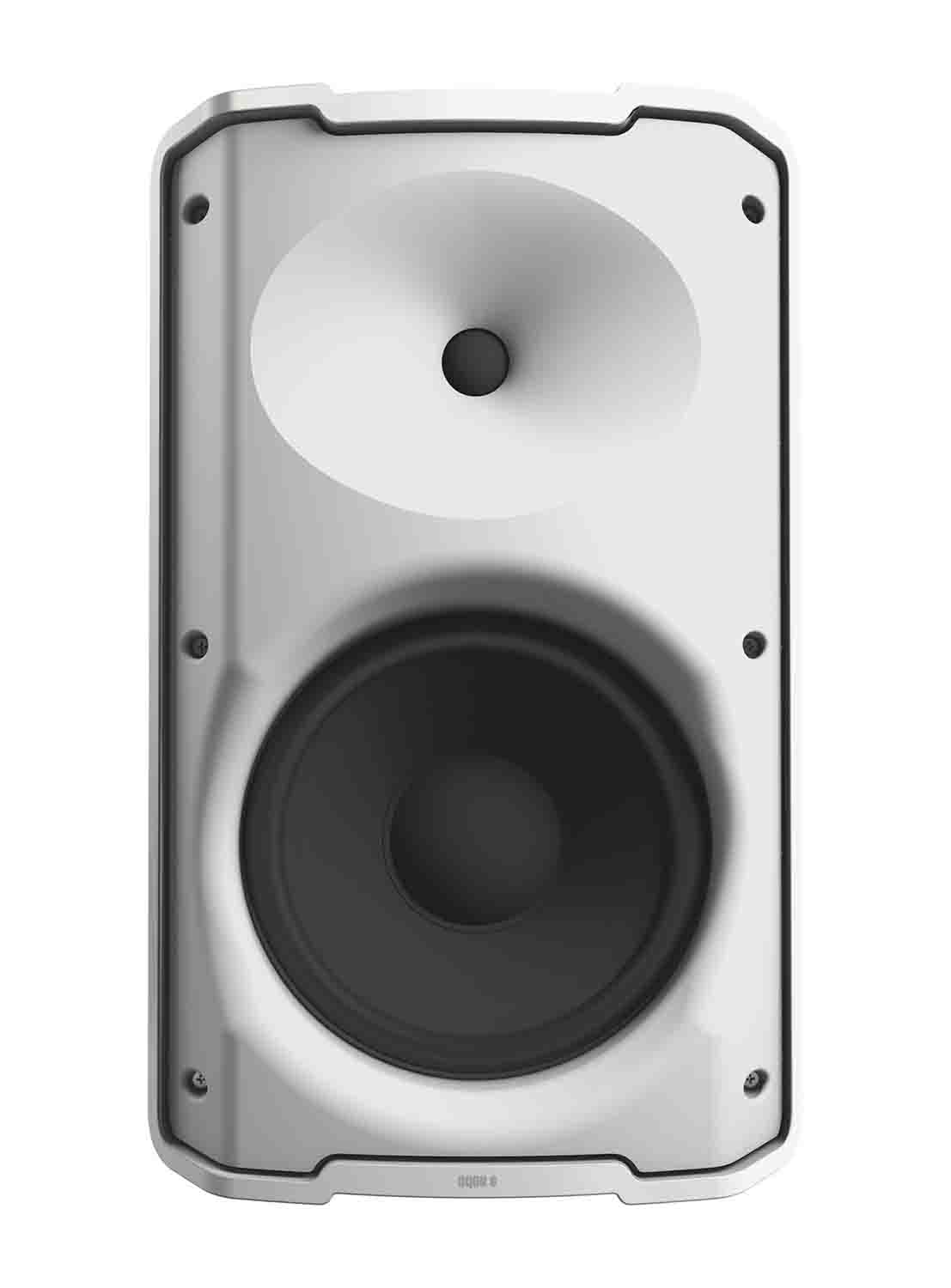

Low/Mid Driver Dimensions: 8 "
Woofer Size: 200 mm
Woofer Magnet: Ferrite
Woofer Voice Coil: 2 "
Woofer Voice Coil (Mm): 50.8 mm
Hf Driver Dimensions: 1 "
Hf Driver Size: 25.4 mm
Hf Driver Voice Coil: 1 "
Hf Driver Voice Coil: 25.4 mm
Load Rating (Rms): 120 W
Peak Power: 240 W (>100Hz)
Frequency Response: 62 - 20000 Hz (-10dB)
Crossover Frequency: 1800 Hz
Spl (1W/1M): 88 dB
Max. Spl: 109 dB
Impedance: 8 Ohm(s)
Cabinet Material: ABS plastic
Cabinet Colour: White (RAL9010)
Protection Class Ip: 55
Width: 255.8 mm
Height: 413.9 mm
Depth: 314,6 mm

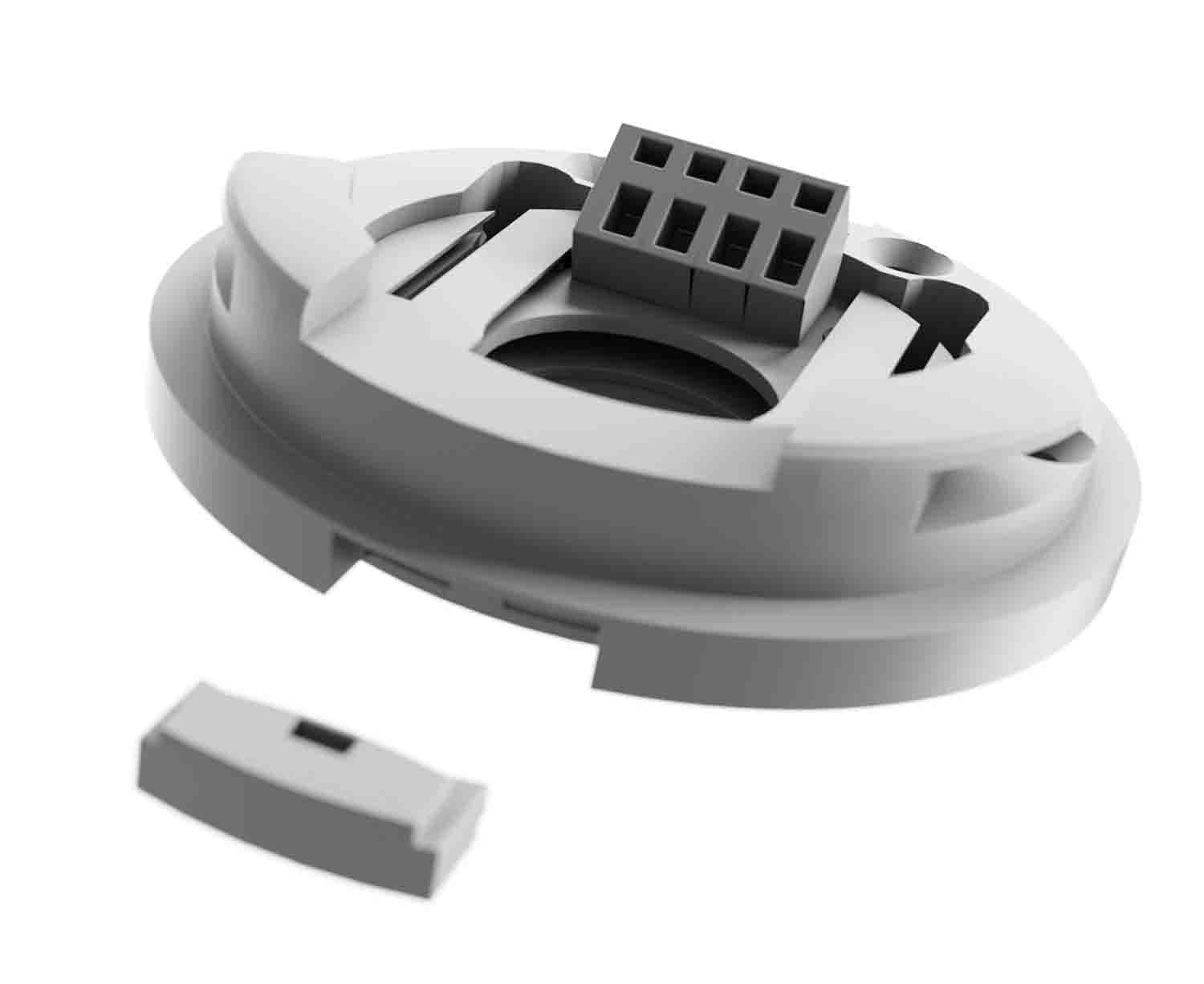

Accessories (Included): Allen Key for the safety screw, Bracket for surface mount
Optional Accessories: LDDQORWMC (rubber cover set for wall mount bracket)
Weight: 5,2 kg
