Description

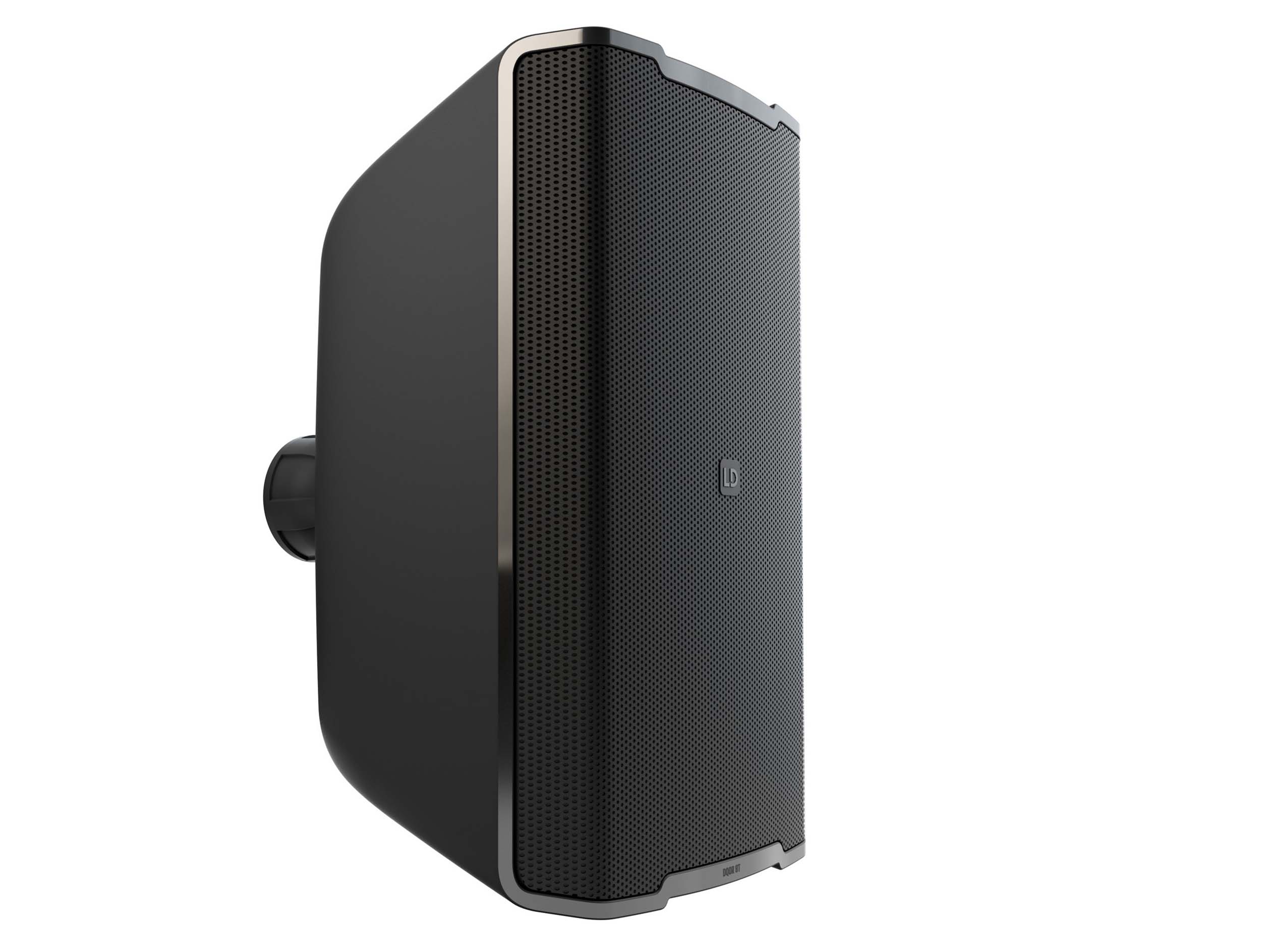

The LD Systems DQOR8TB transforms any space into an inviting, immersive environment with its wide coverage angle and beautifully balanced sound. Designed to keep your customers and guests engaged for longer, this elegant 2-way loudspeaker delivers warm, detailed audio that enhances ambience the moment it’s switched on. Whether placed indoors or outdoors, its sleek aesthetic and exceptional performance make it a standout choice for creating a welcoming atmosphere in any venue.

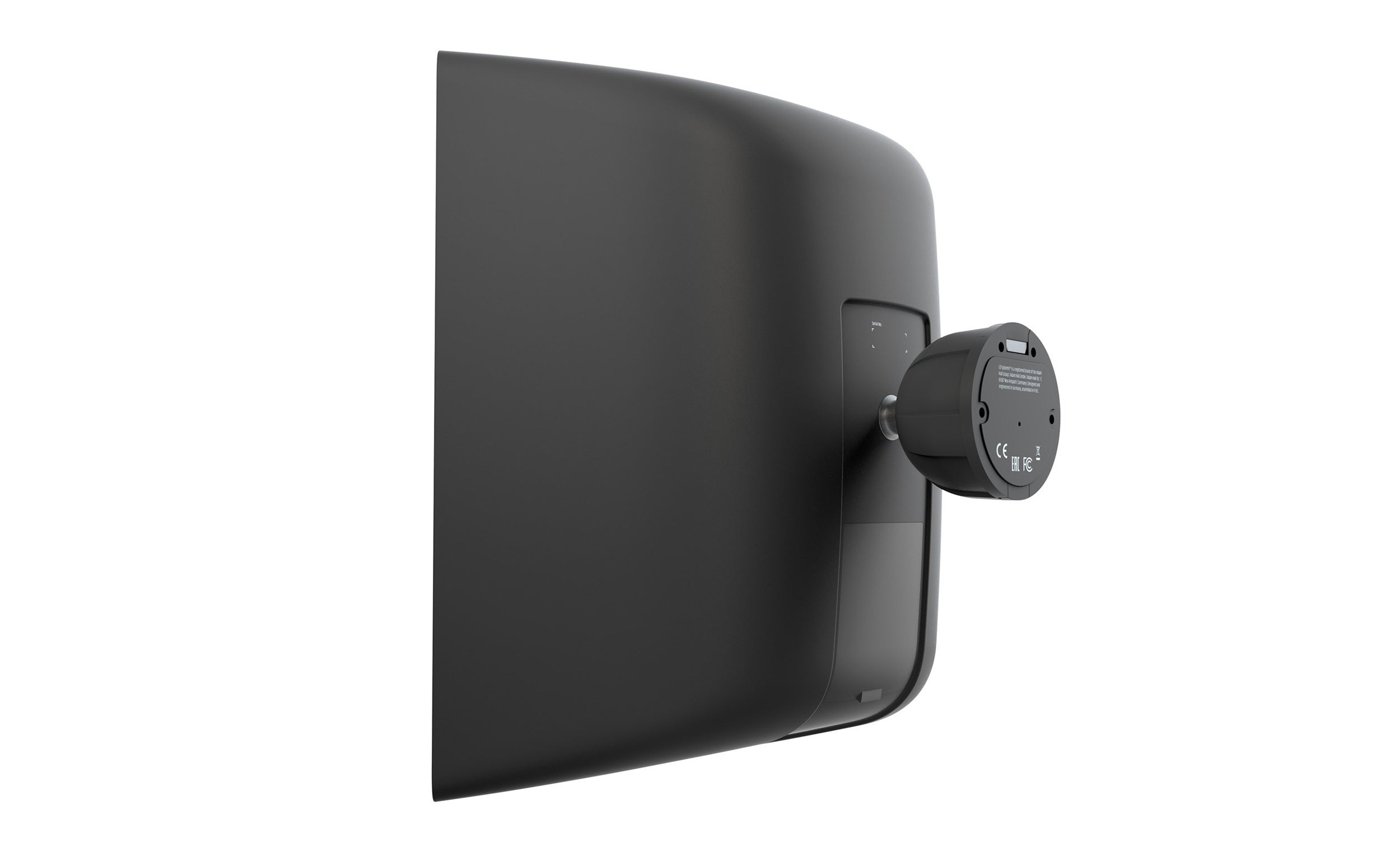

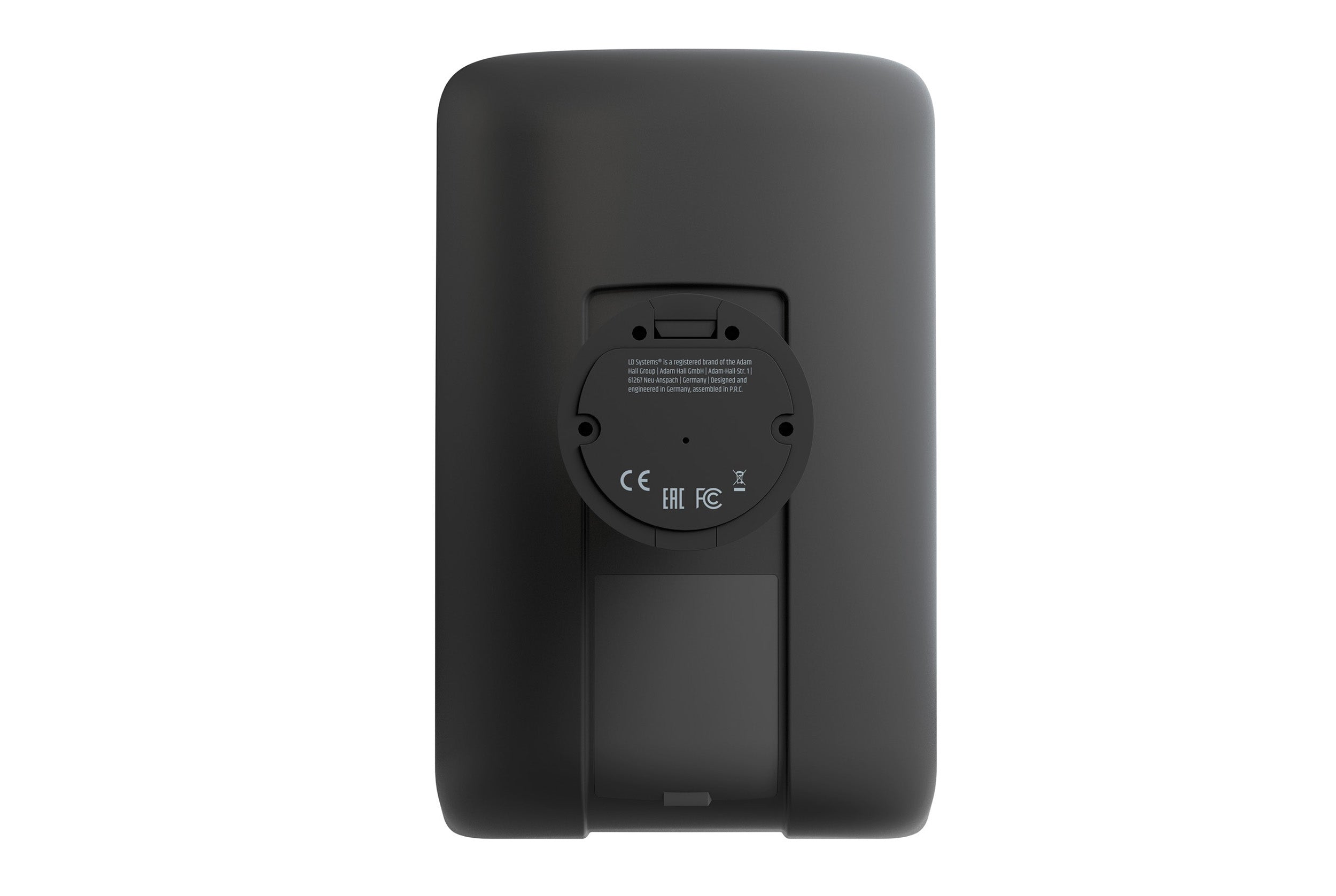

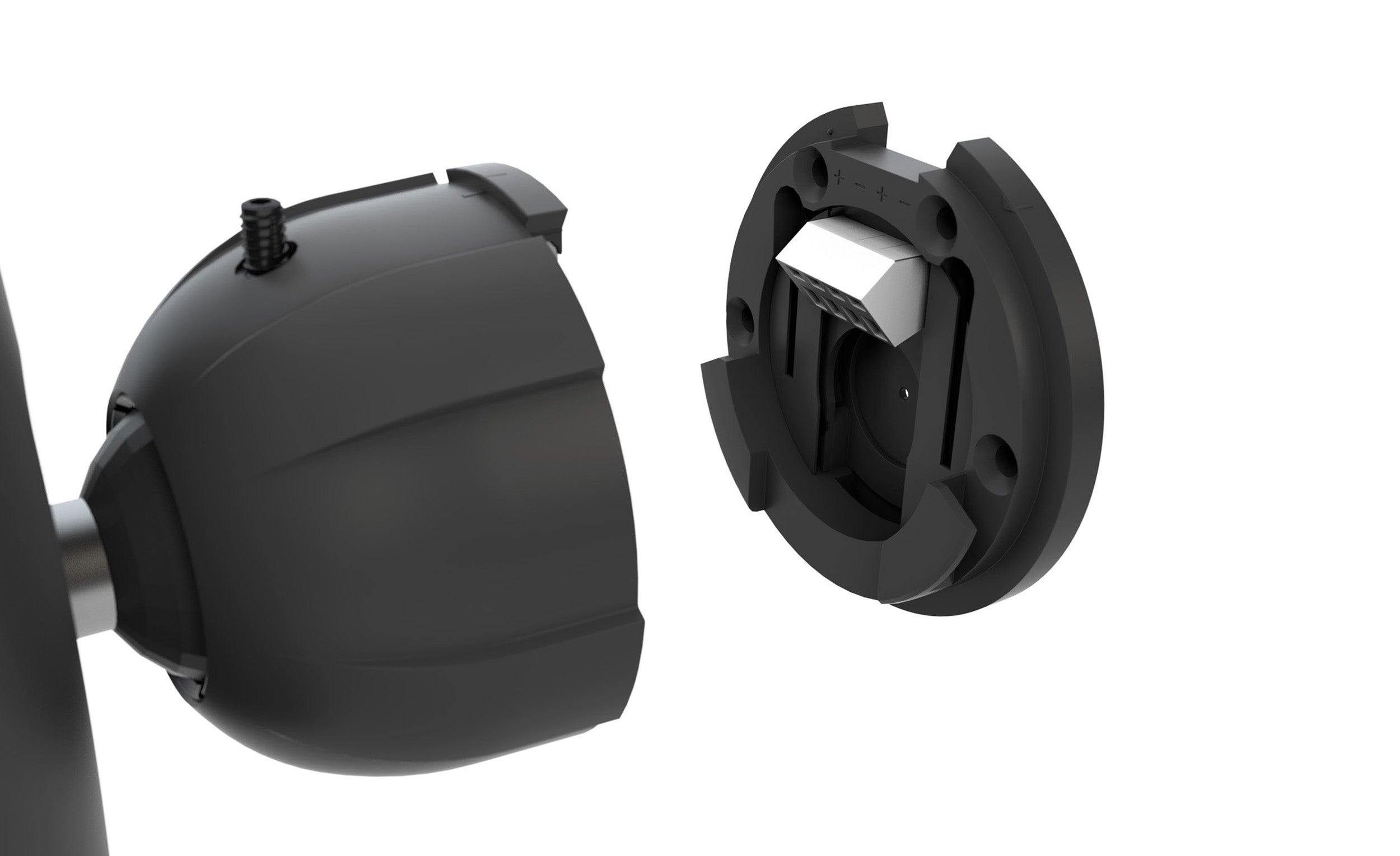

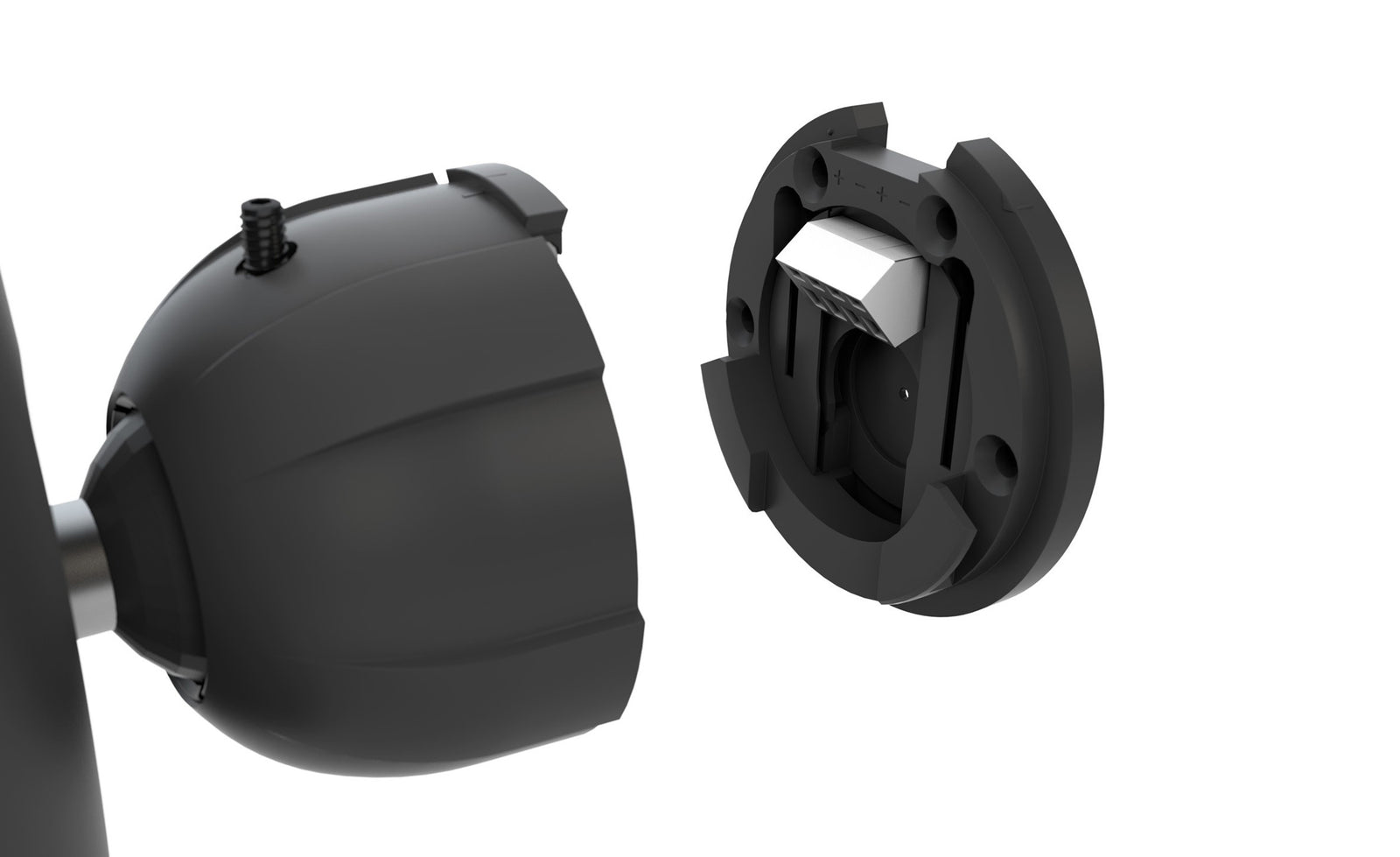

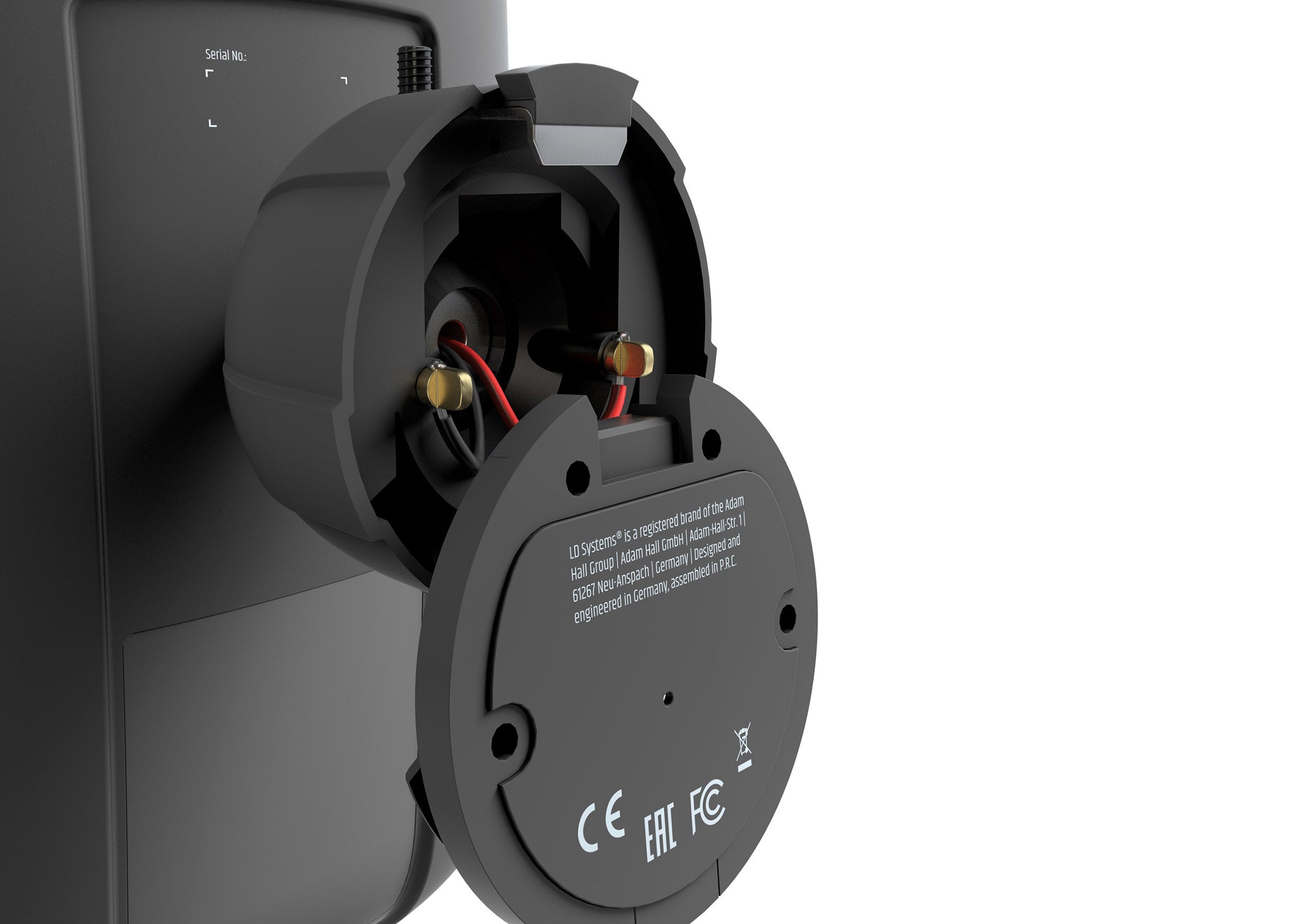

Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.

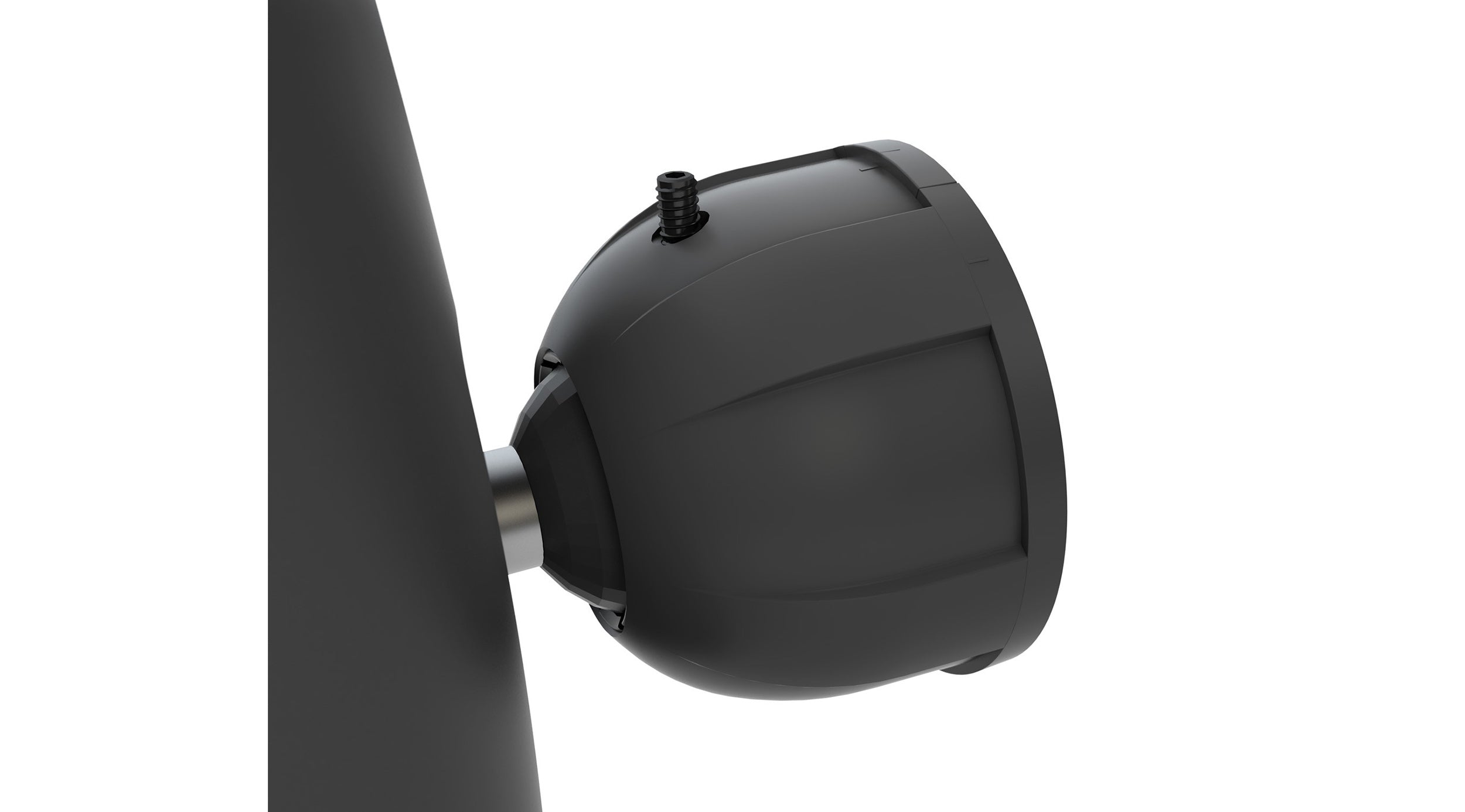

No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.
DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.
Product Specifications:
Peak load capacity: 240 W
RMS load capacity: 120 W
SPL (1 W/1 m): 88 dB
Frequency response (-10 dB, rel. Avg): 62 - 20,000 Hz
Operating modes: 70 V, 100 V, Low resistance (16 Ω)

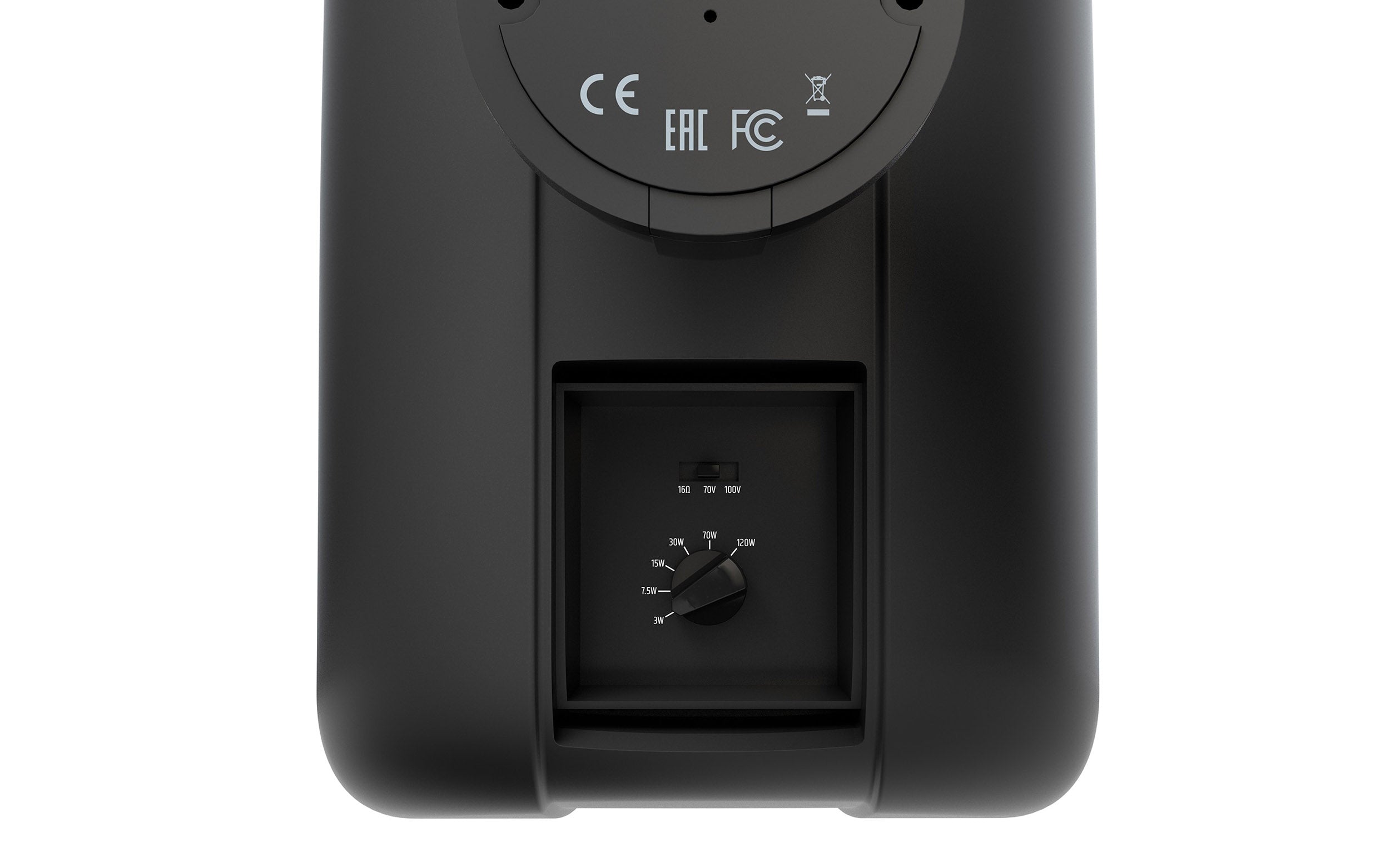

Trans formator taps (100 V): 120 W, 70 W, 30 W, 15 W, 7.5 W, 3 W
Trans formator taps (70 V): 120 W, 70 W, 30 W, 15 W, 7.5 W, 3 W
Impedance: 16 Ω
Speaker system: 2-way system
Crossover frequency: 1,800 Hz
Beam angle: 120° (hor.) / 80° (vert.)

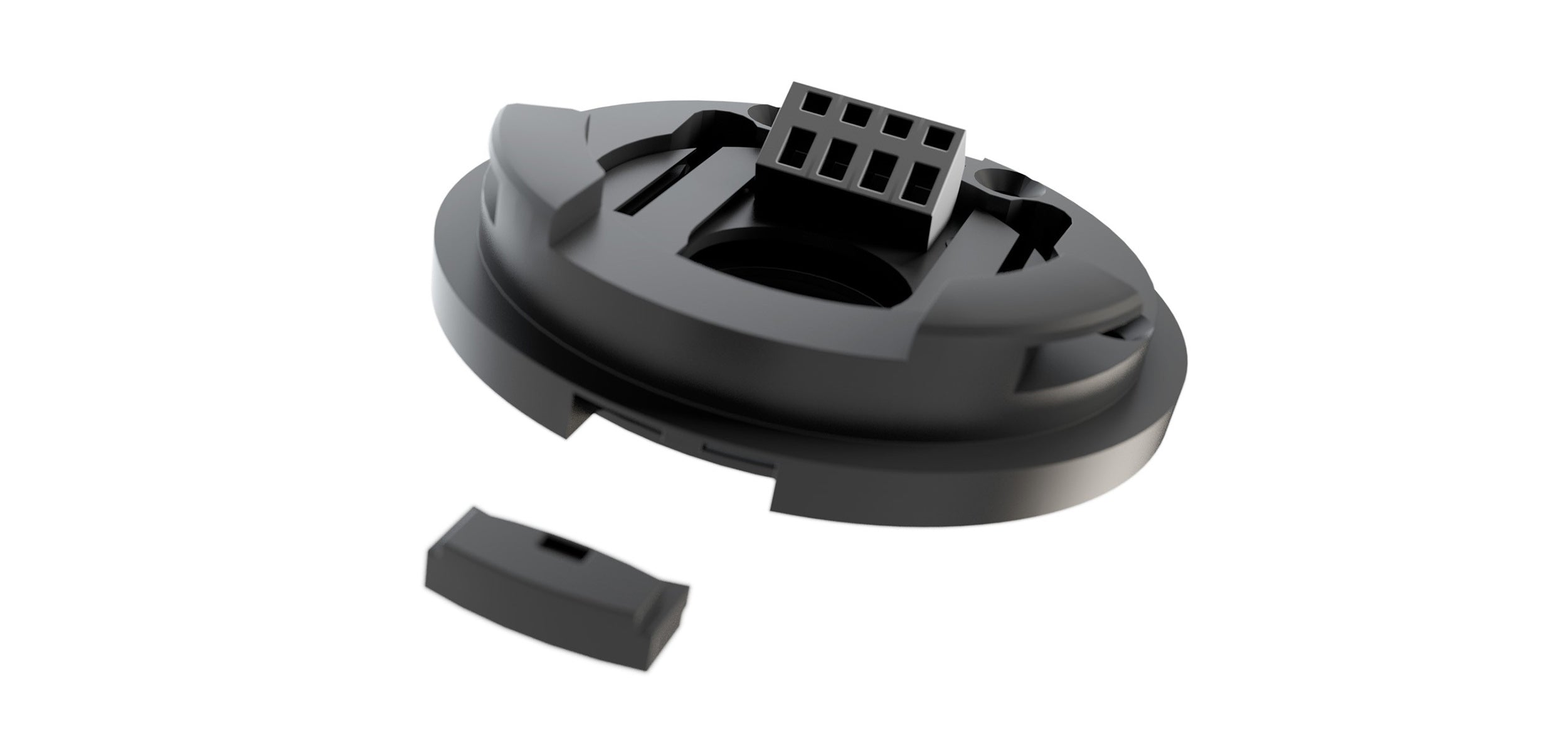

Input connector types: Terminal block 4 pin (Euro block) / 5.08 mm pitch
Color: Black
RAL code: RAL 9005

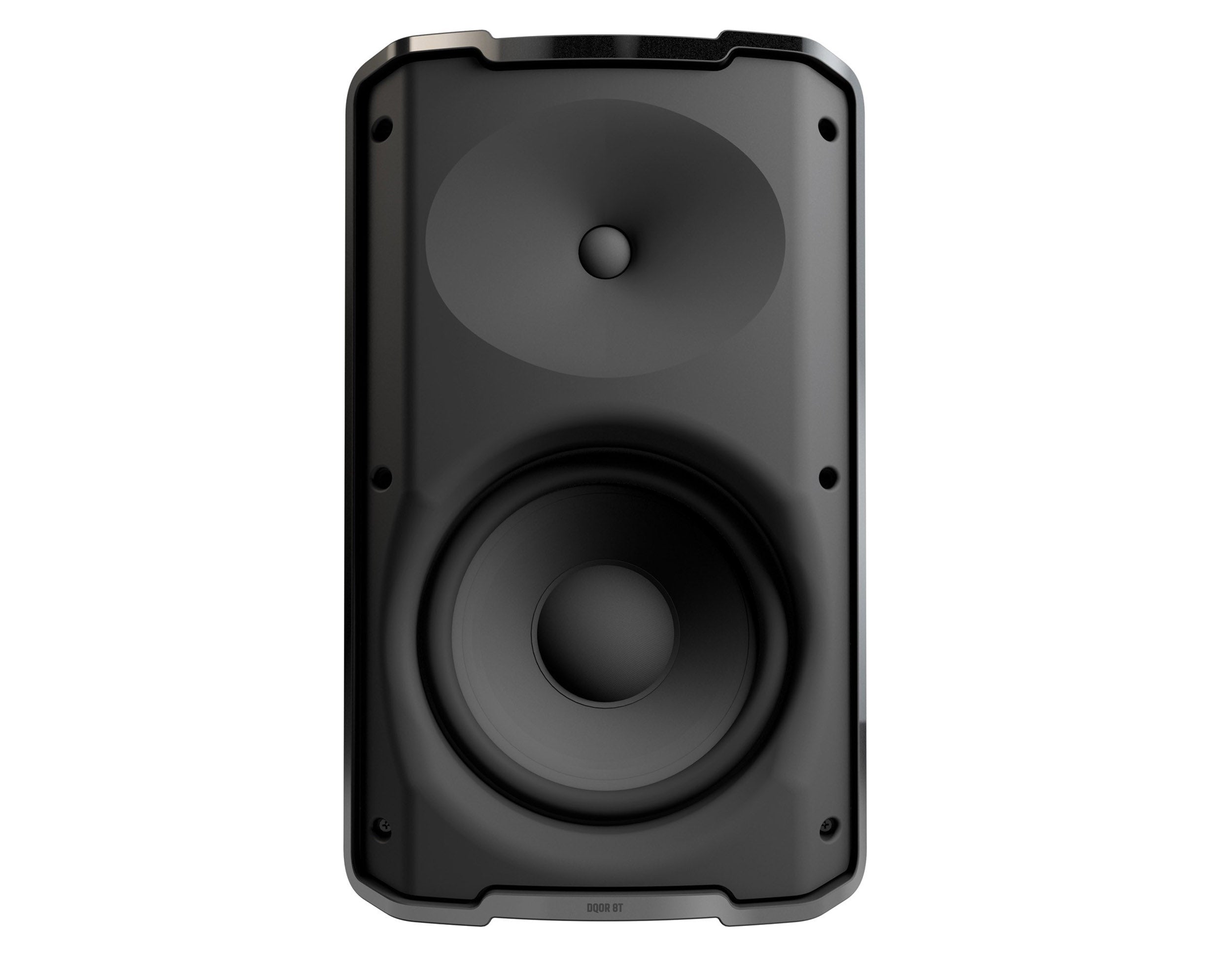

Bass driver:
Size: 8 "
Magnet: Ferrite
Voice coil: 2 "
Tweeter:
Driver size: 1 "
Design: Soft dome tweeter with BEM-optimized HF waveguide
Magnet: Neodymium
Voice coil: 1 "
Housing:
Design: Closed
Mounting type: Wall bracket
Chassis material: ABS

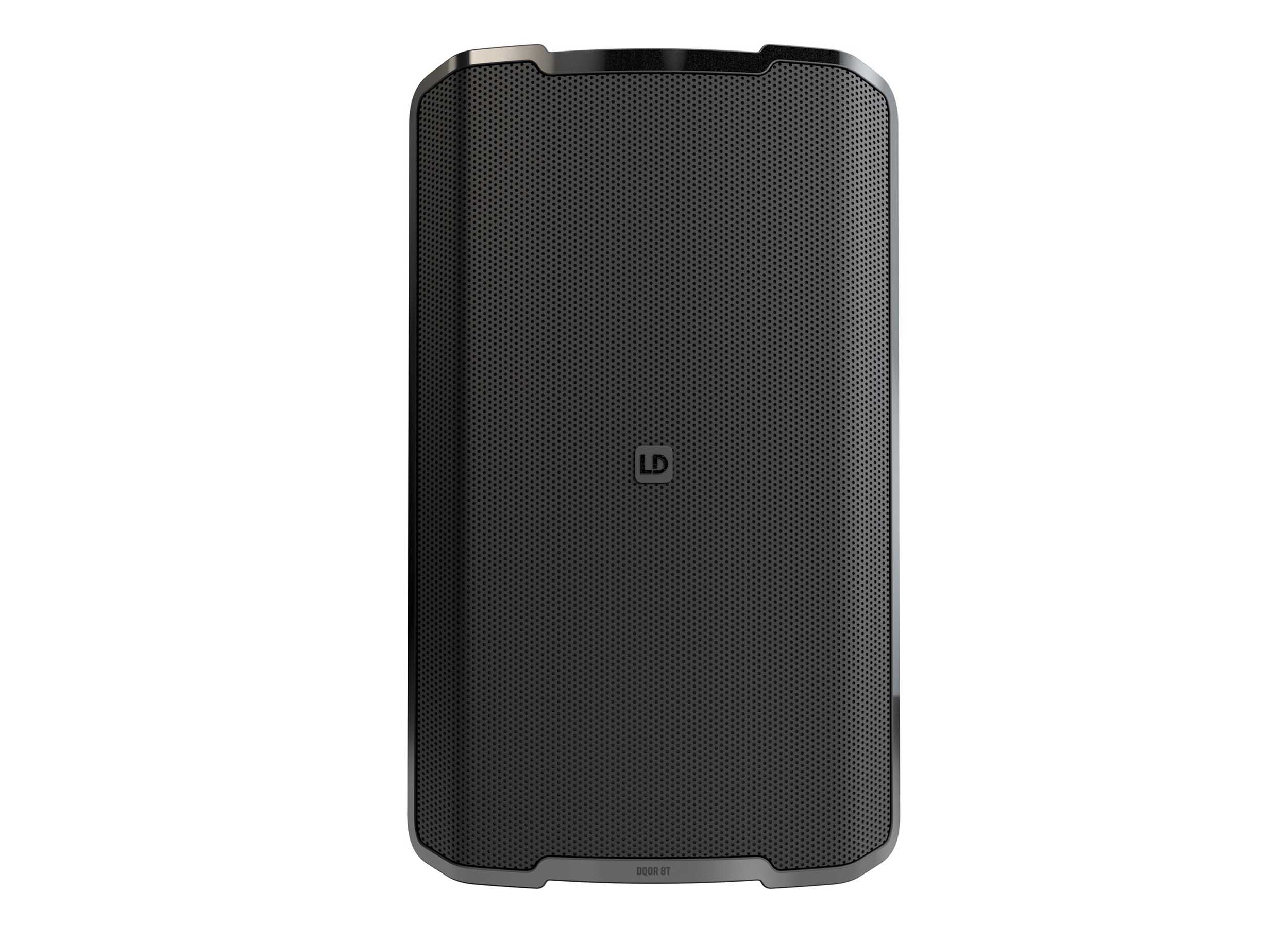

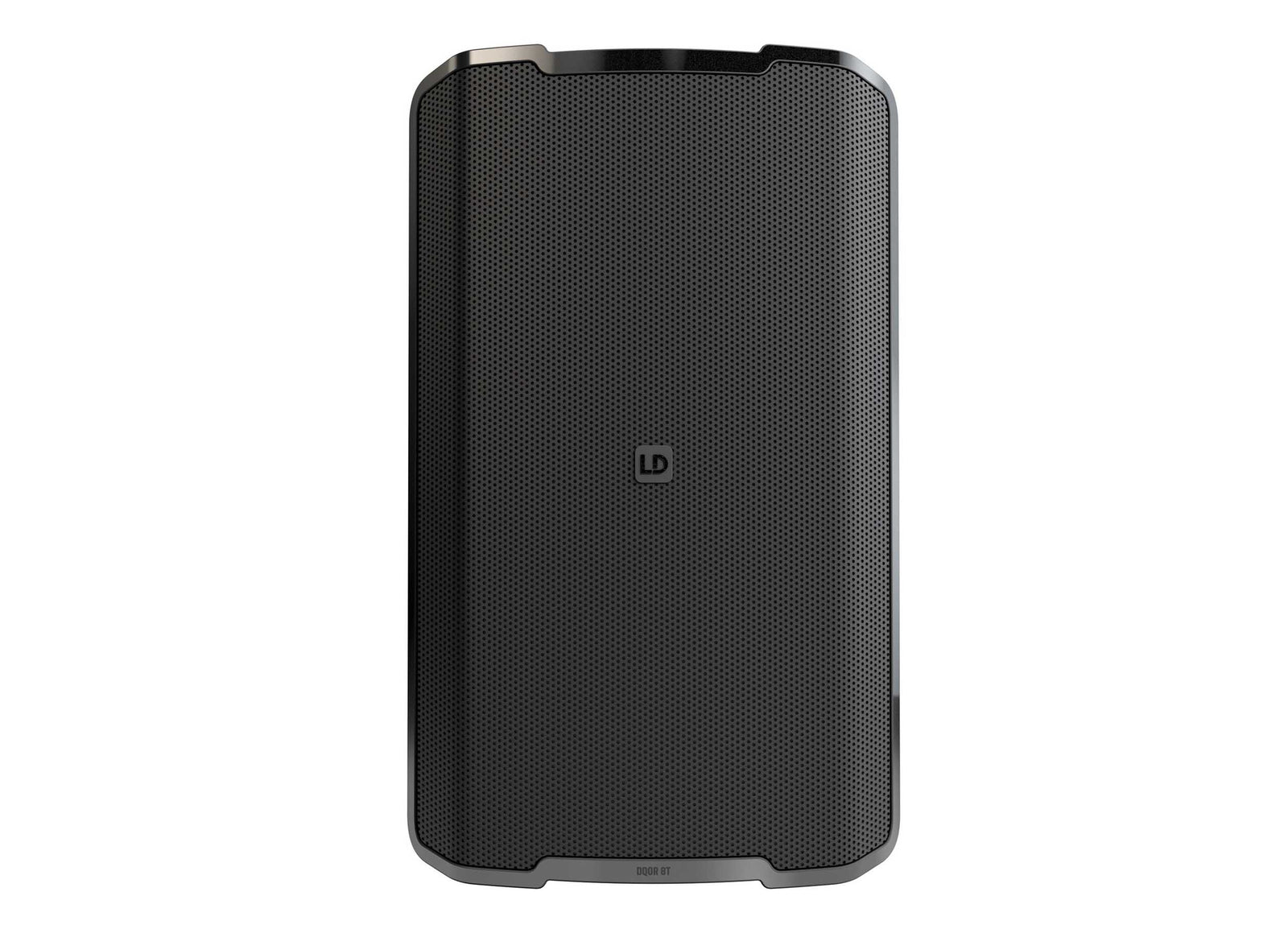

Front grille material: Aluminum
Environmental:

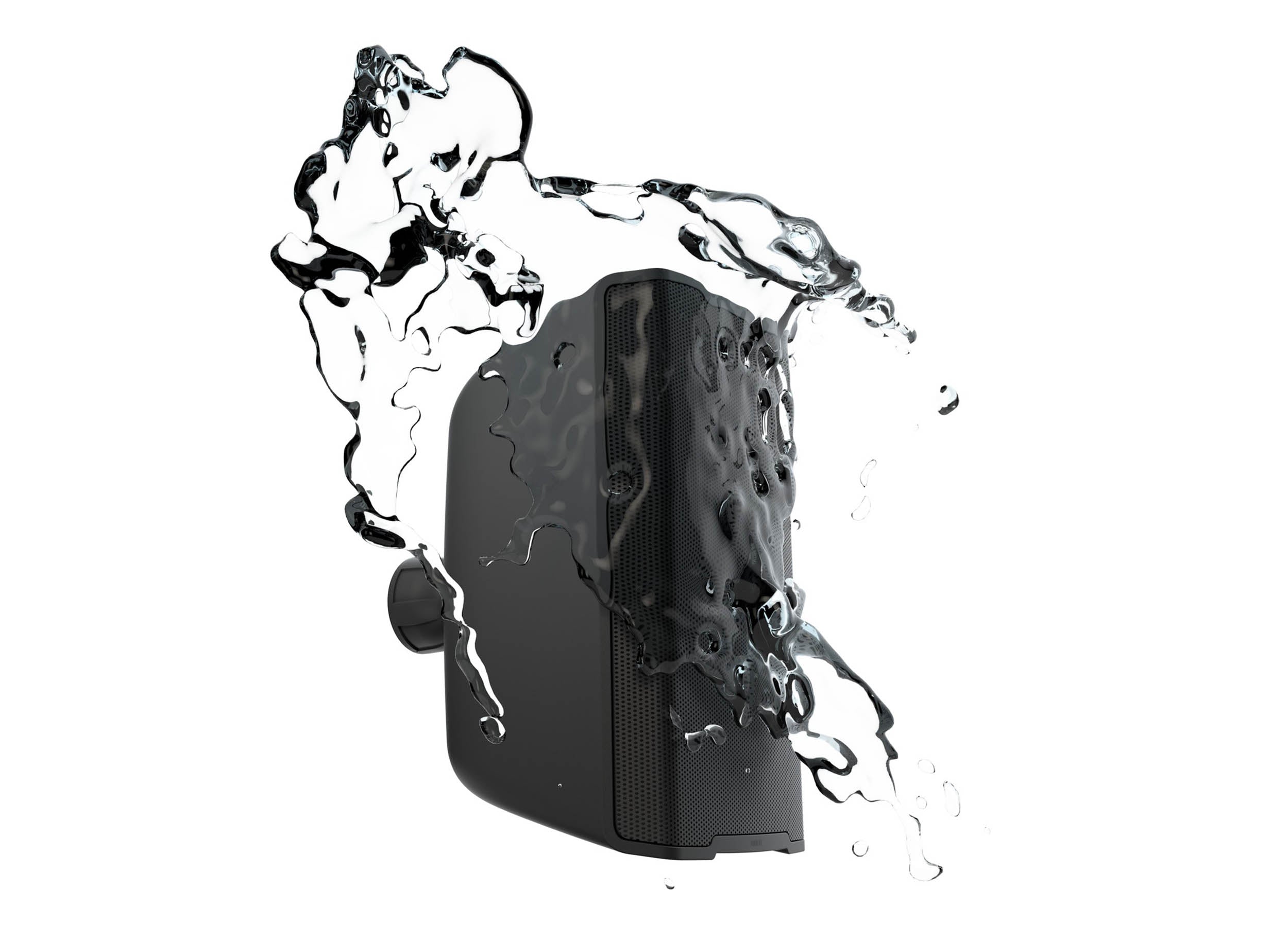

Protection class: IP55
Ambient temperature: -30 - 50 °C
Dimensions & weight:
Width: 255.8 mm (10.07 in)
Height: 413.9 mm (16.30 in)
Depth: 314.5 mm (12.38 in)
Weight: 7.2 kg (15.87 Lbs.)
Included accessories: Fastening material, Hexagon socket spanner.
