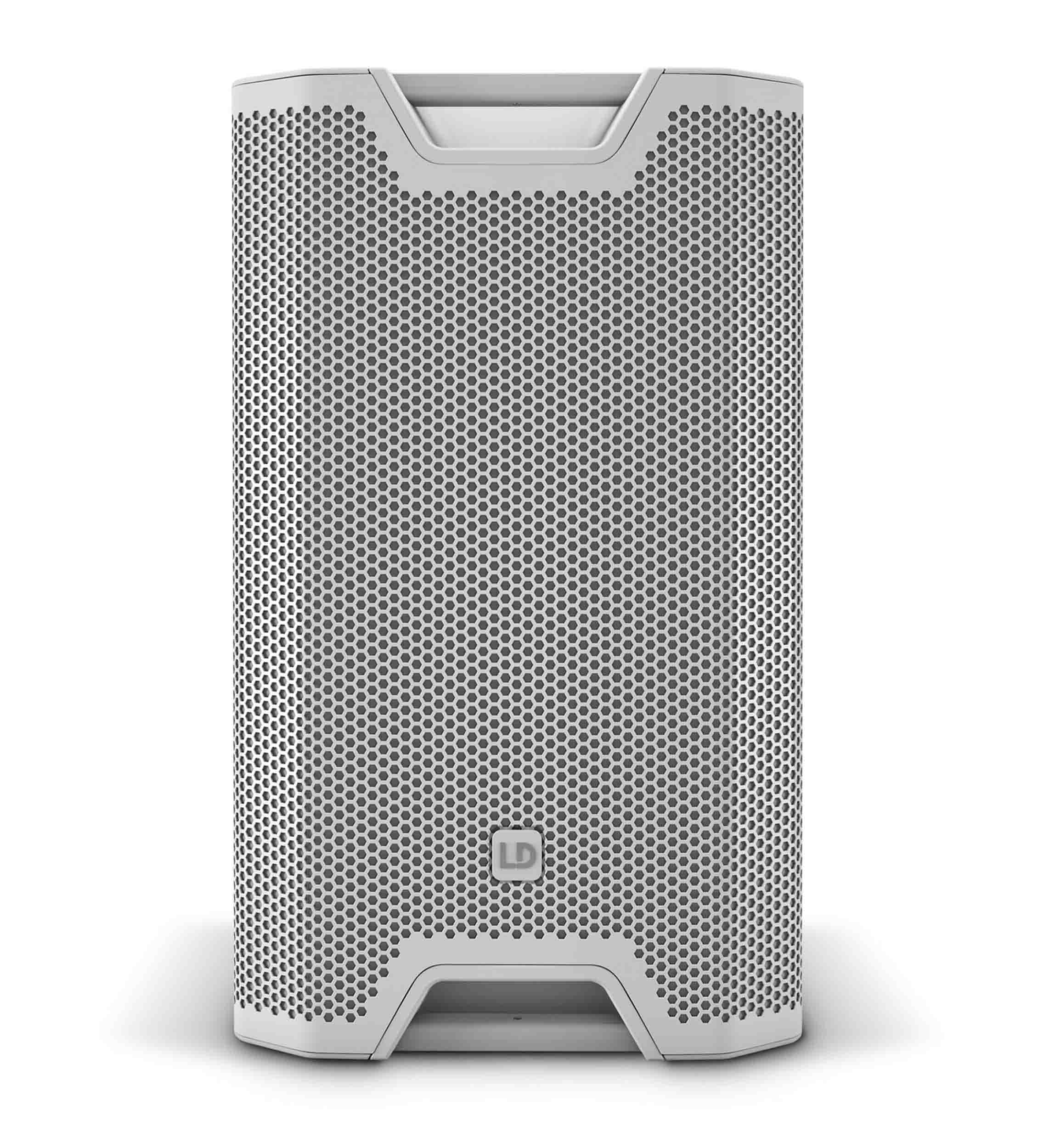

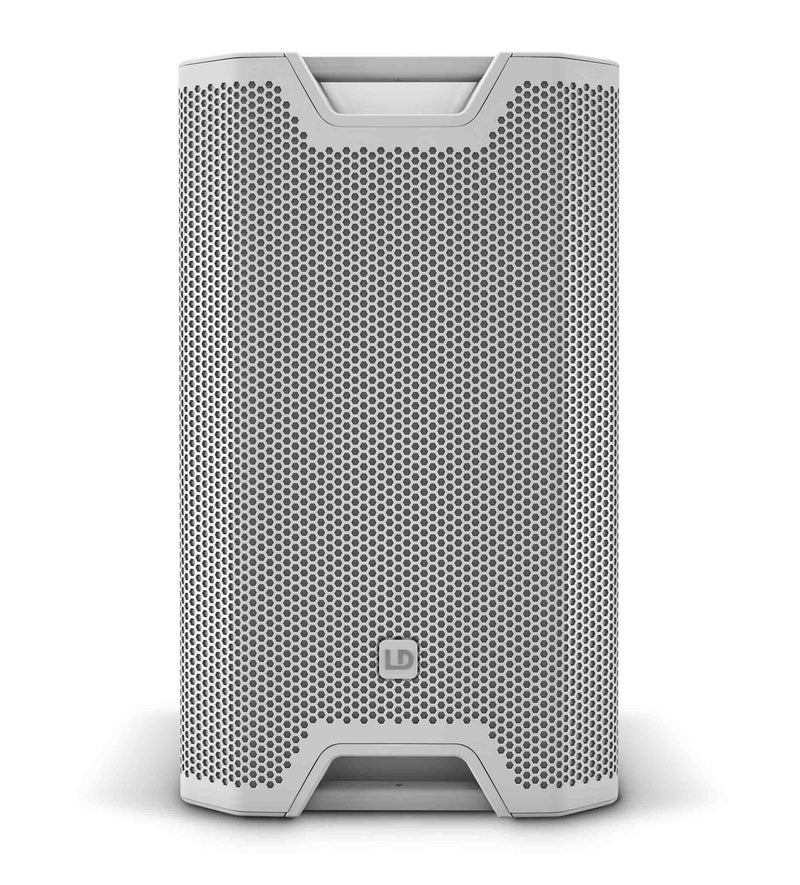

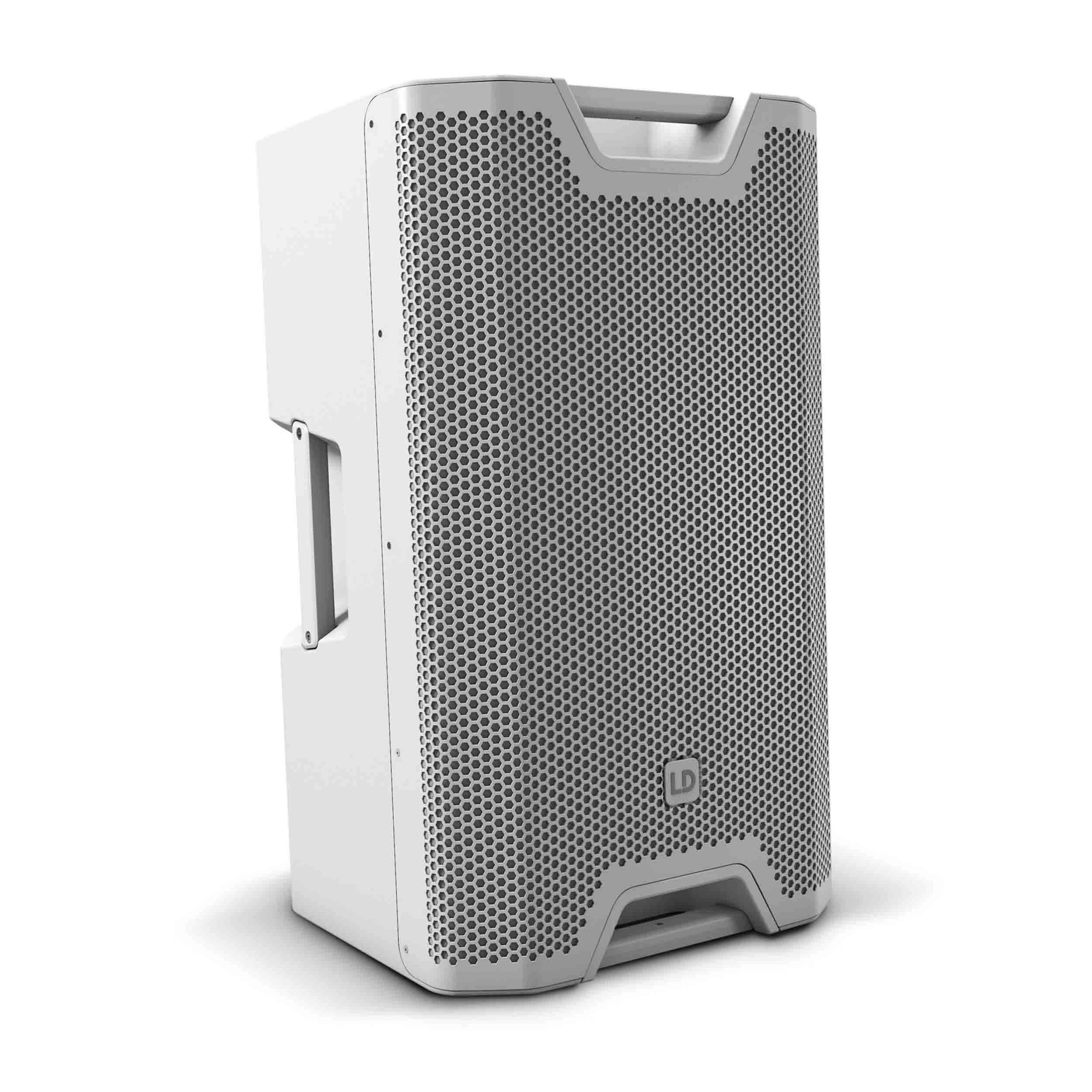

LD Systems ICOA 15 A BT W 15-Inch Powered Coaxial Pa Loudspeaker with Bluetooth - White

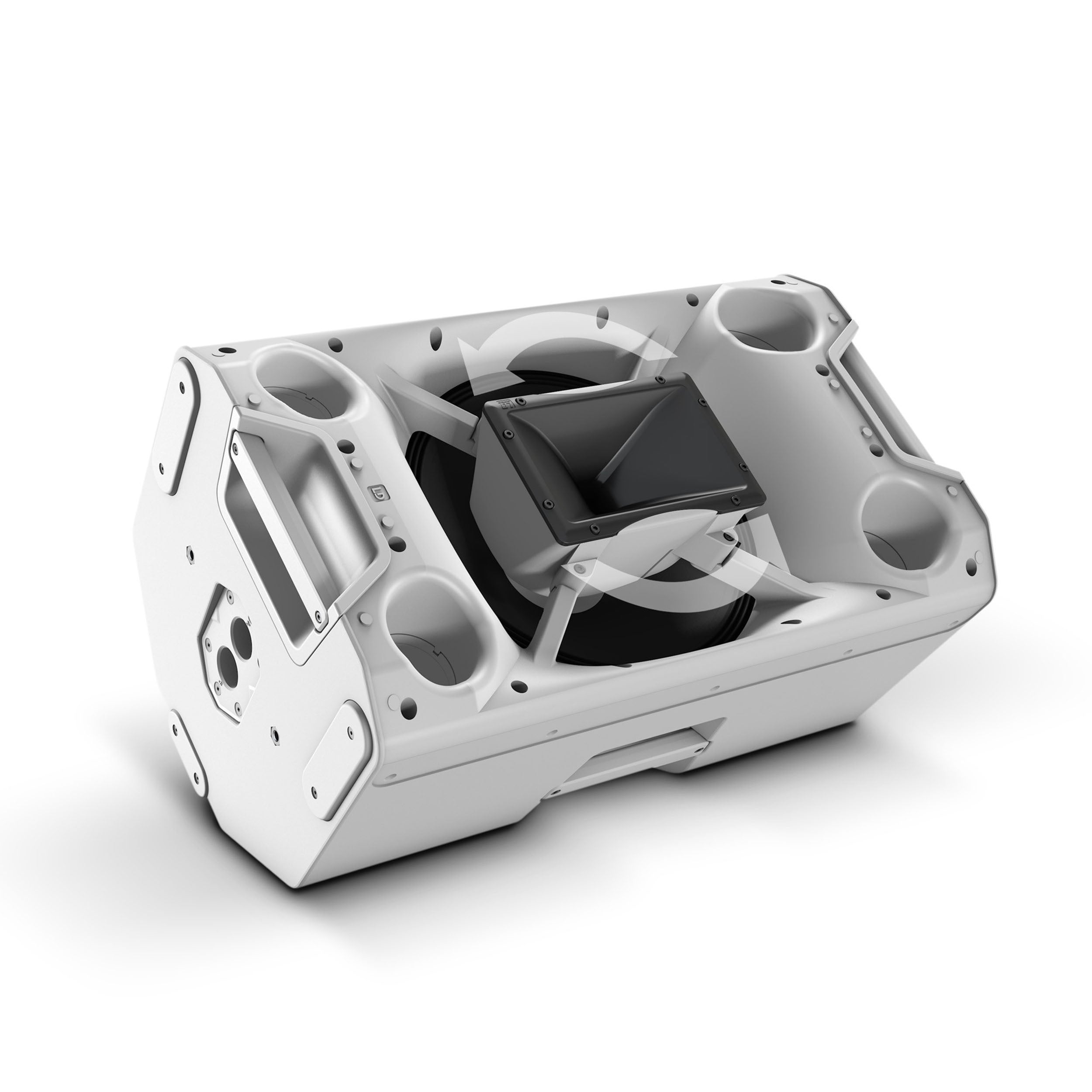

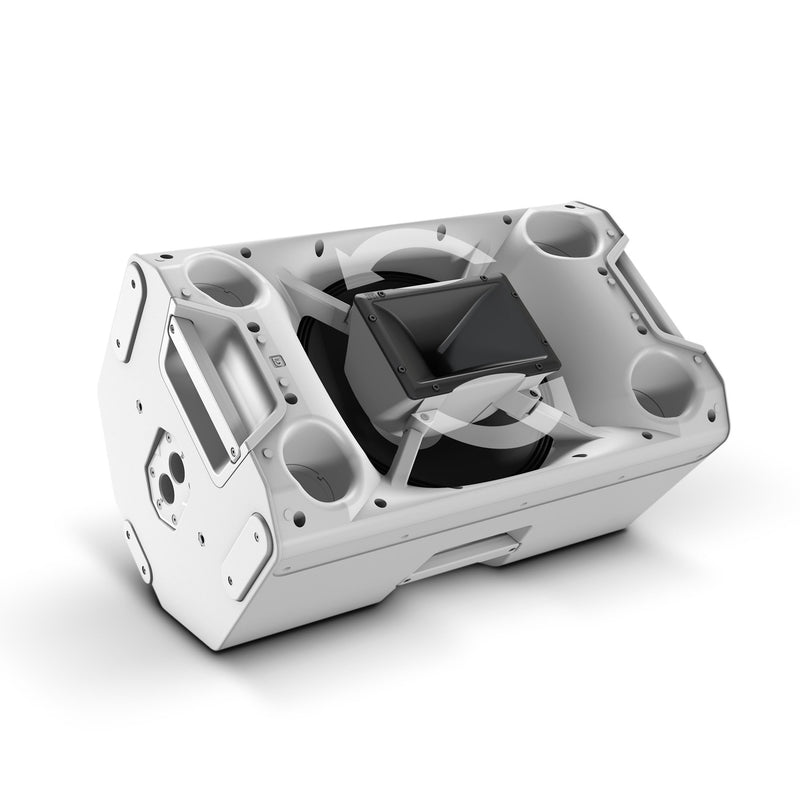

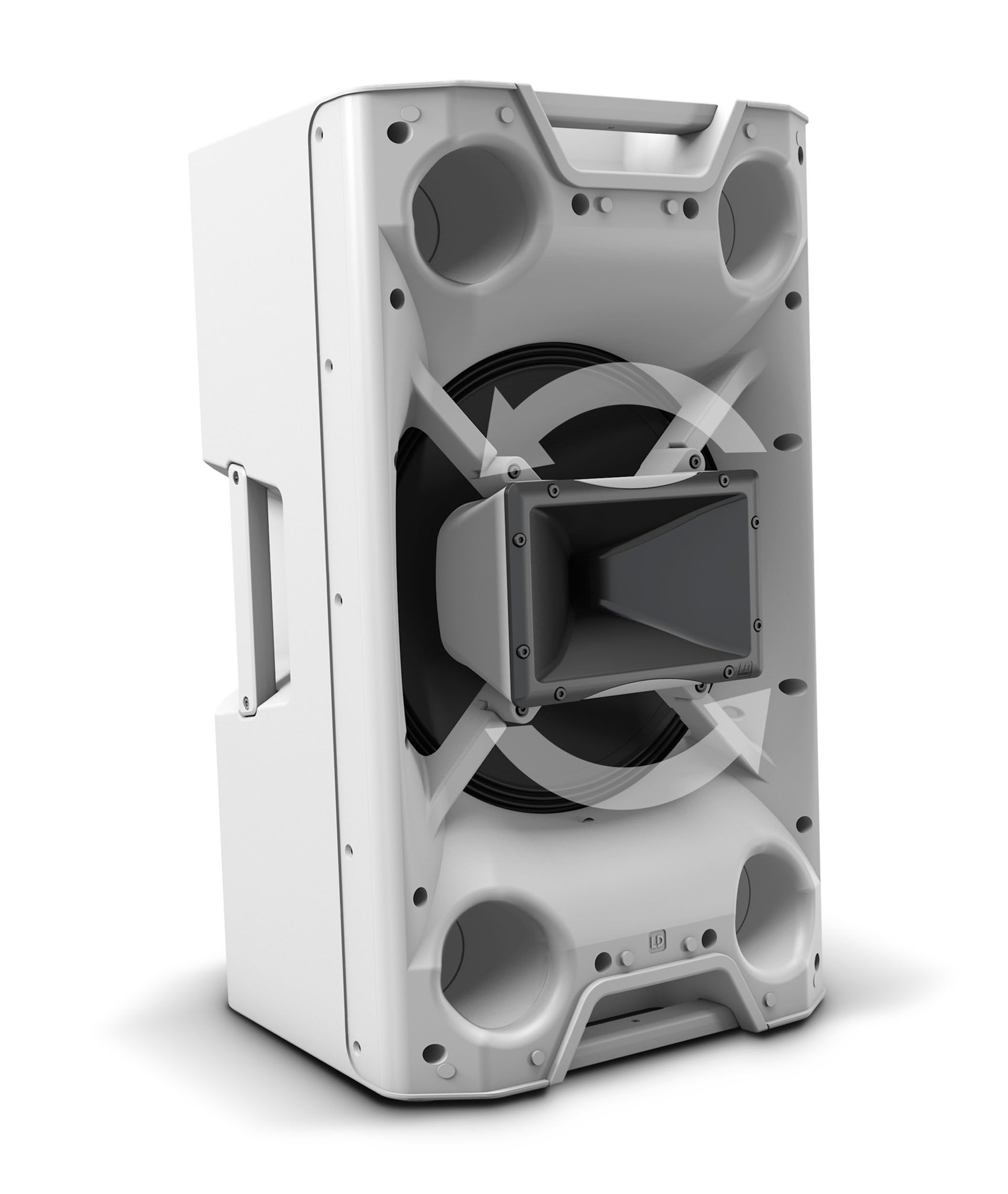

The LD Systems ICOA 15 A BT W 15-Inch Powered Coaxial Pa Loudspeaker with Bluetooth – White is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP pre-sets make this powered 15" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance. Especially the version with white housing and white front grille blends discreetly and unobtrusively into almost any environment.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 pre-sets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

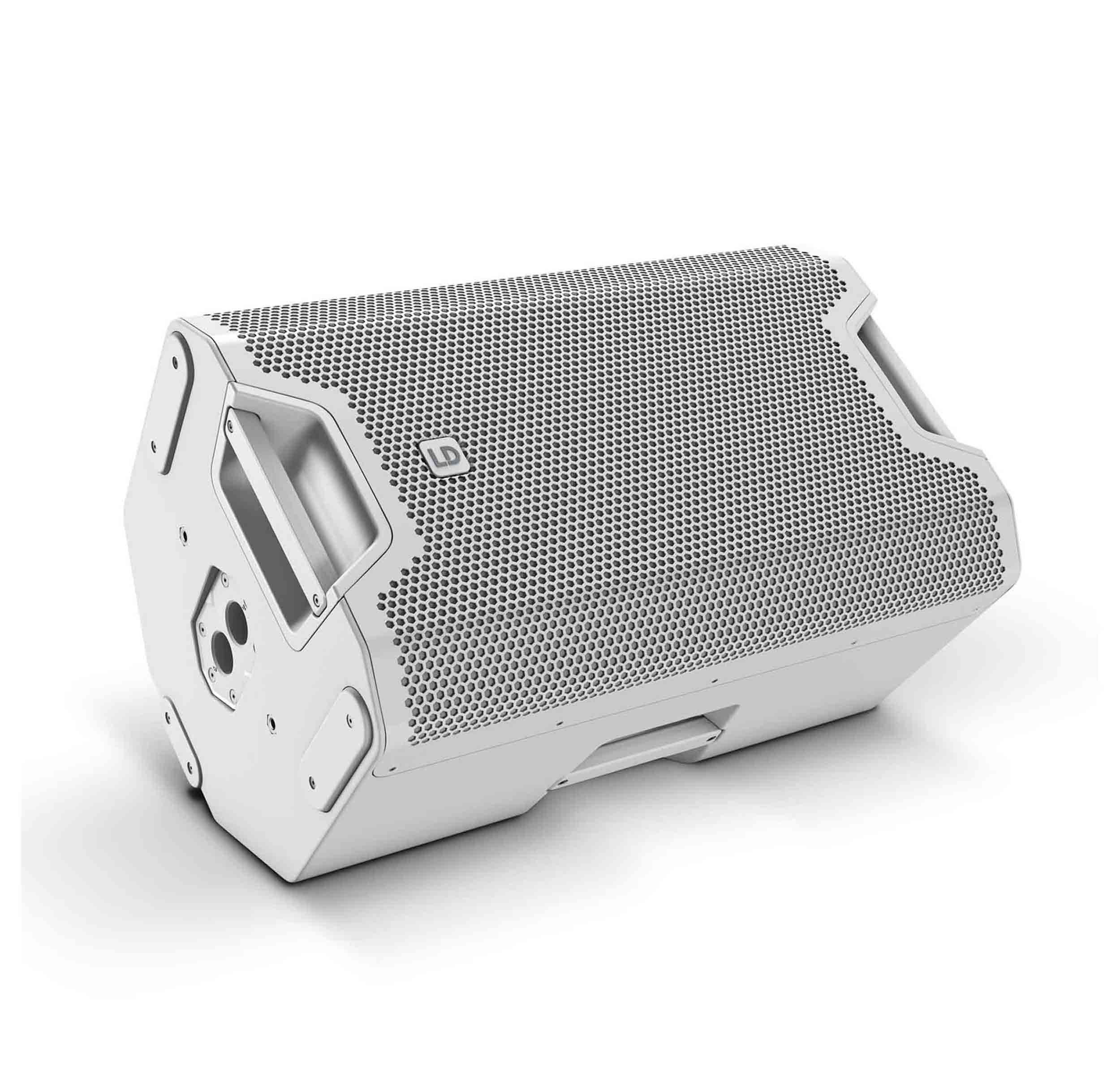

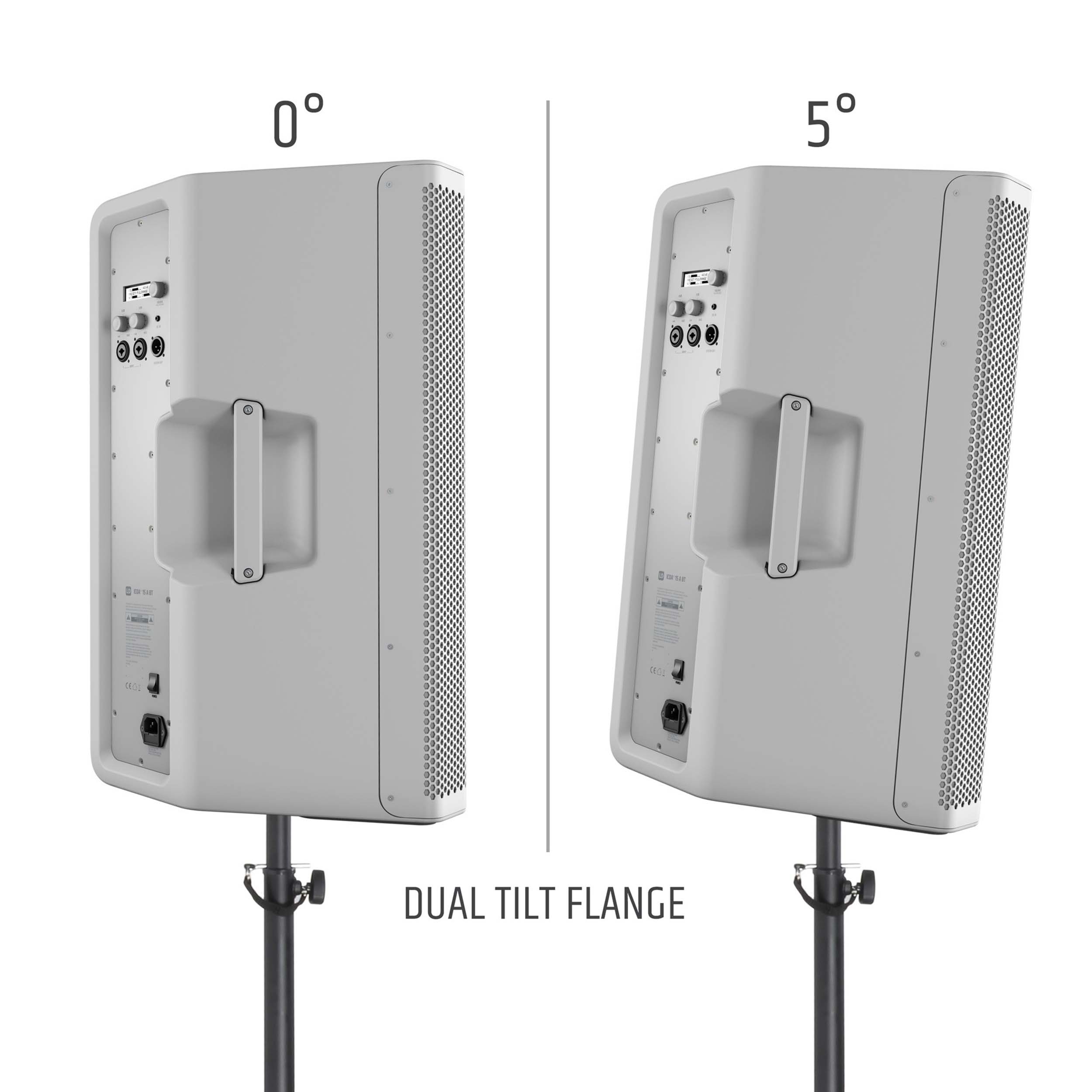

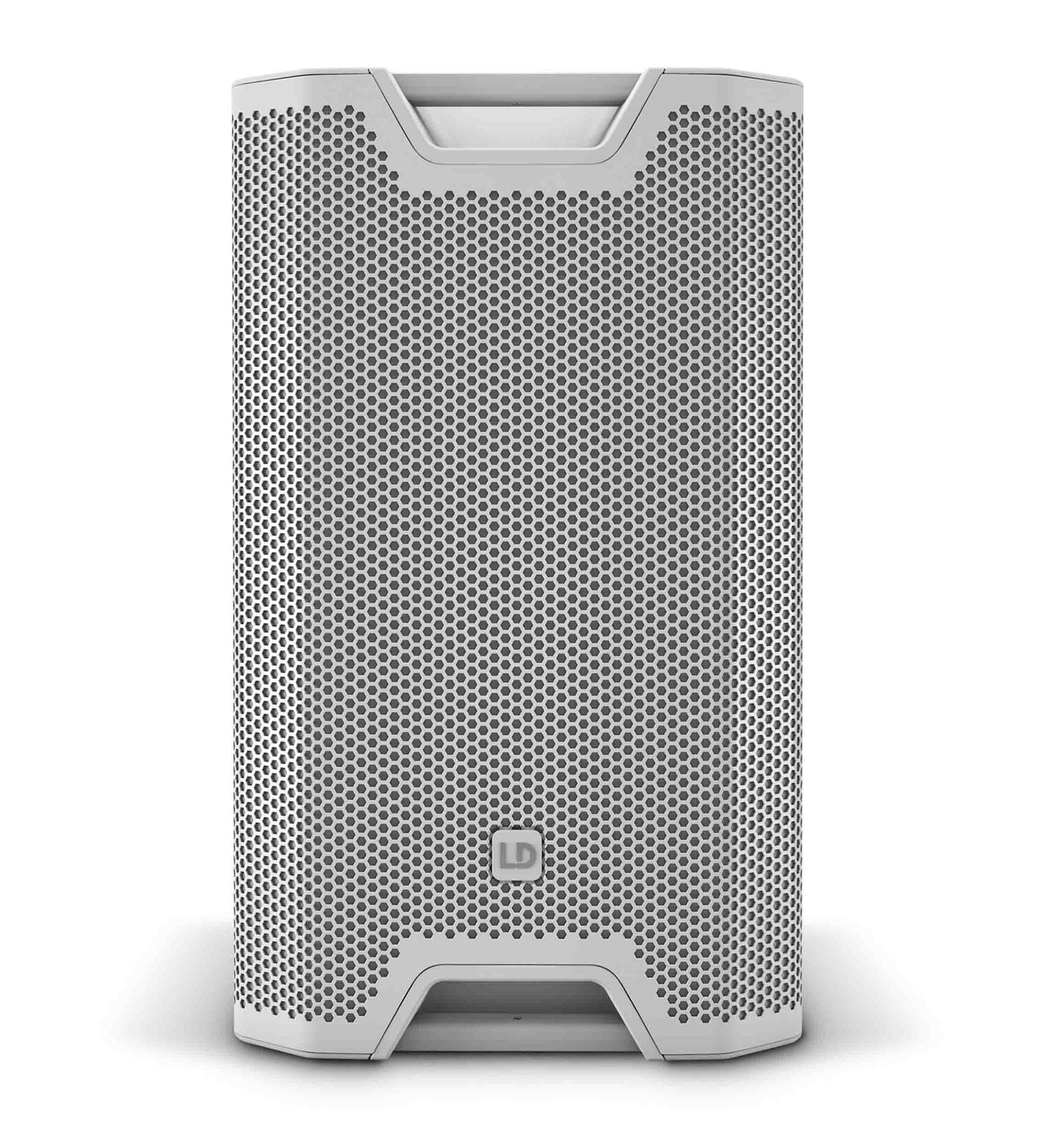

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Product Specifications:

Product Type: PA loudspeaker

Type: Powered

Color: White (RAL 9003)

Bluetooth Audio Decoder: Bluetooth 4.0

Low/Mid Woofer Dimensions: 15 "

Woofer Dimensions (Mm): 381 mm

Woofer: magnet Ferrite

Woofer Brand: Custom-made

Horn: BEM optimized CD Horn

HF Driver Dimensions: 1"

HF Driver Dimensions (Mm): 25.4 mm

HF Driver Magnet: Ferrite

HF Driver Brand: Custom-made

HF Driver Voice Coil: 1.4 "

HF Driver Voice Coil: 34 mm

Amplifier: Class D

Dispersion (H x V): 90° x 50°

System Power (RMS): 300 W

Peak Power: 1200 W

Frequency Response: 48 Hz - 20000 Hz

Crossover Frequency: kHz            2 kHz

Max. Spl (Peak): 128 dB

Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload

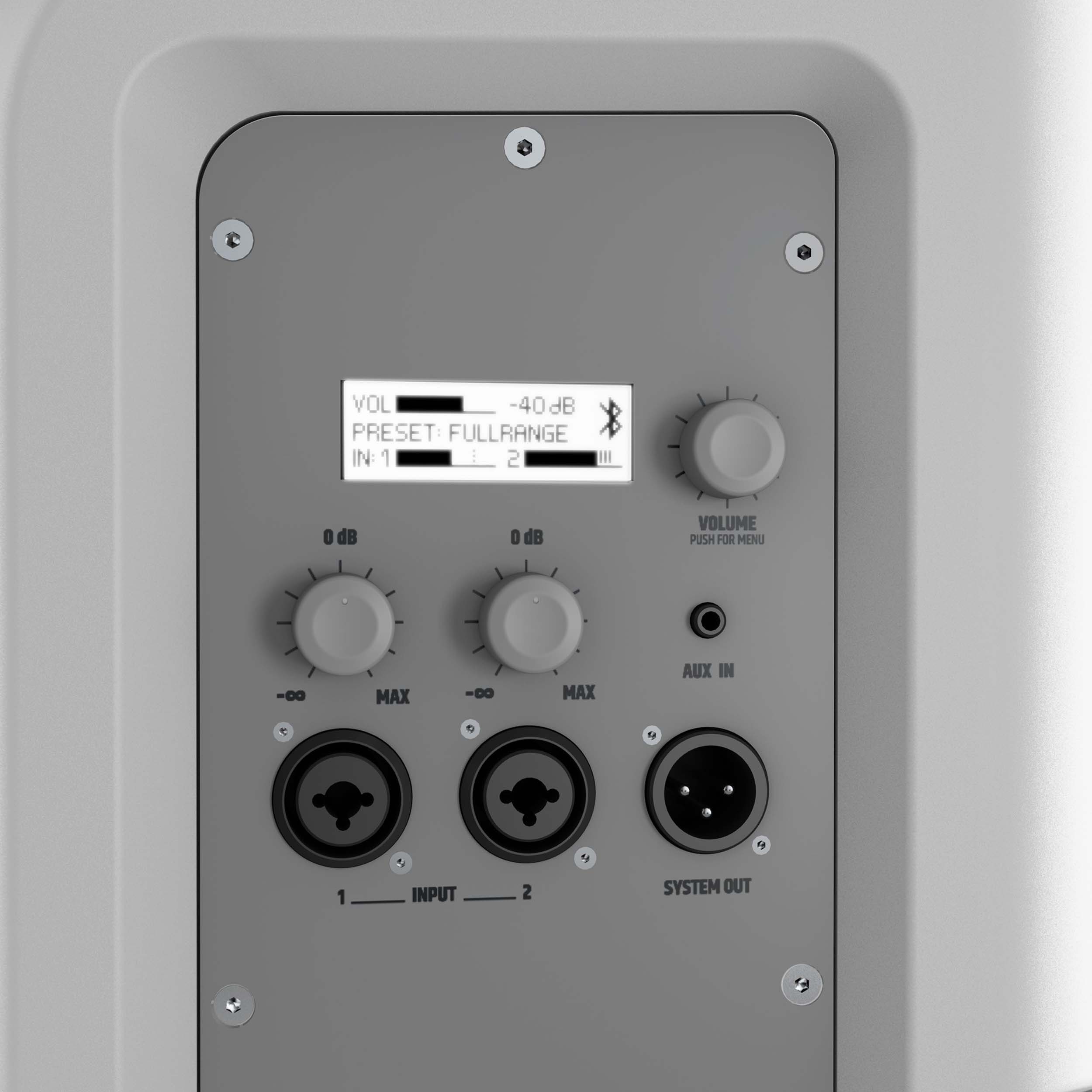

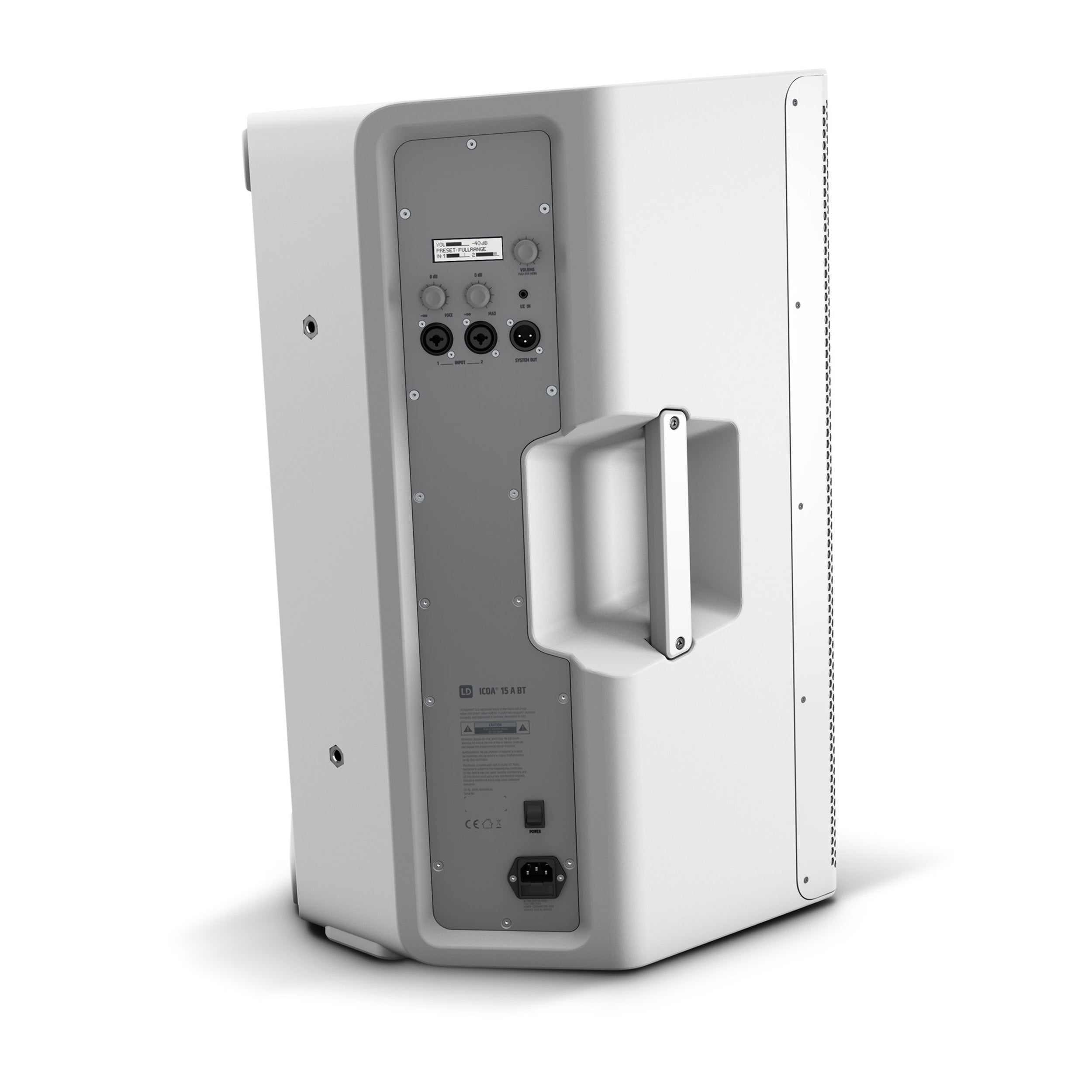

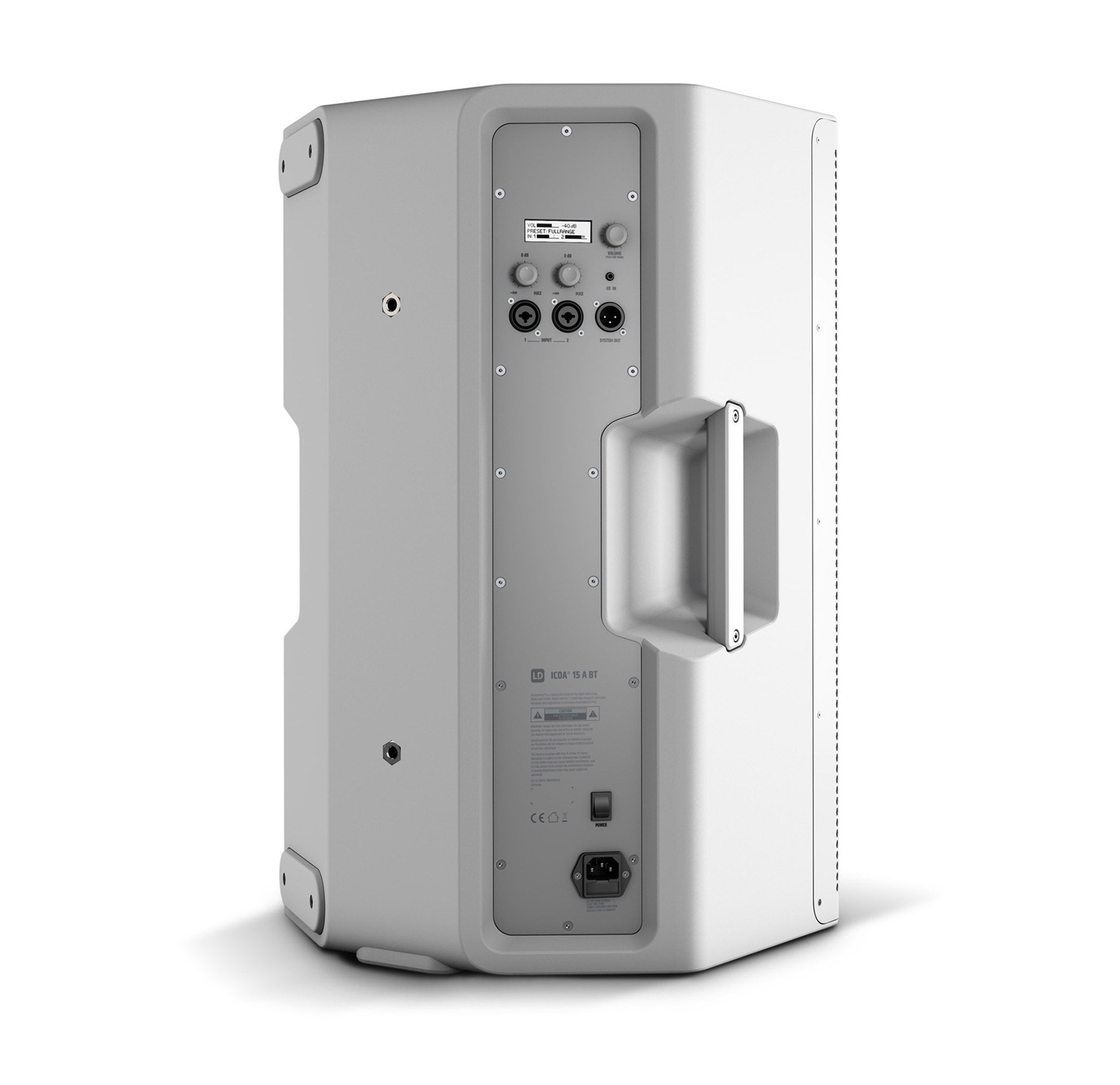

Controls: 2 x gain, On / off switch, Rotary/push encoder

Indicators: LC display

Mic/ Line Inputs: 2

Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR

Line Inputs: 1

Line Input Connectors: 3.5 mm TRS

Line Outputs: 1

Line Output Connectors: XLR

Operating Voltage: SMPS

Power Consumption: 150 W

Ambient Temperature (In Operation): 0 - 40 °C

Operating Voltage: 100 V AC - 240 V AC, 50 - 60 Hz

Relative Humidity: < 80 %, not condensing

Fuse: T4AL 250 V

Cabinet Material: Polypropylene

Accessories (Included): Power cord

Cabinet Construction: Bass Reflex

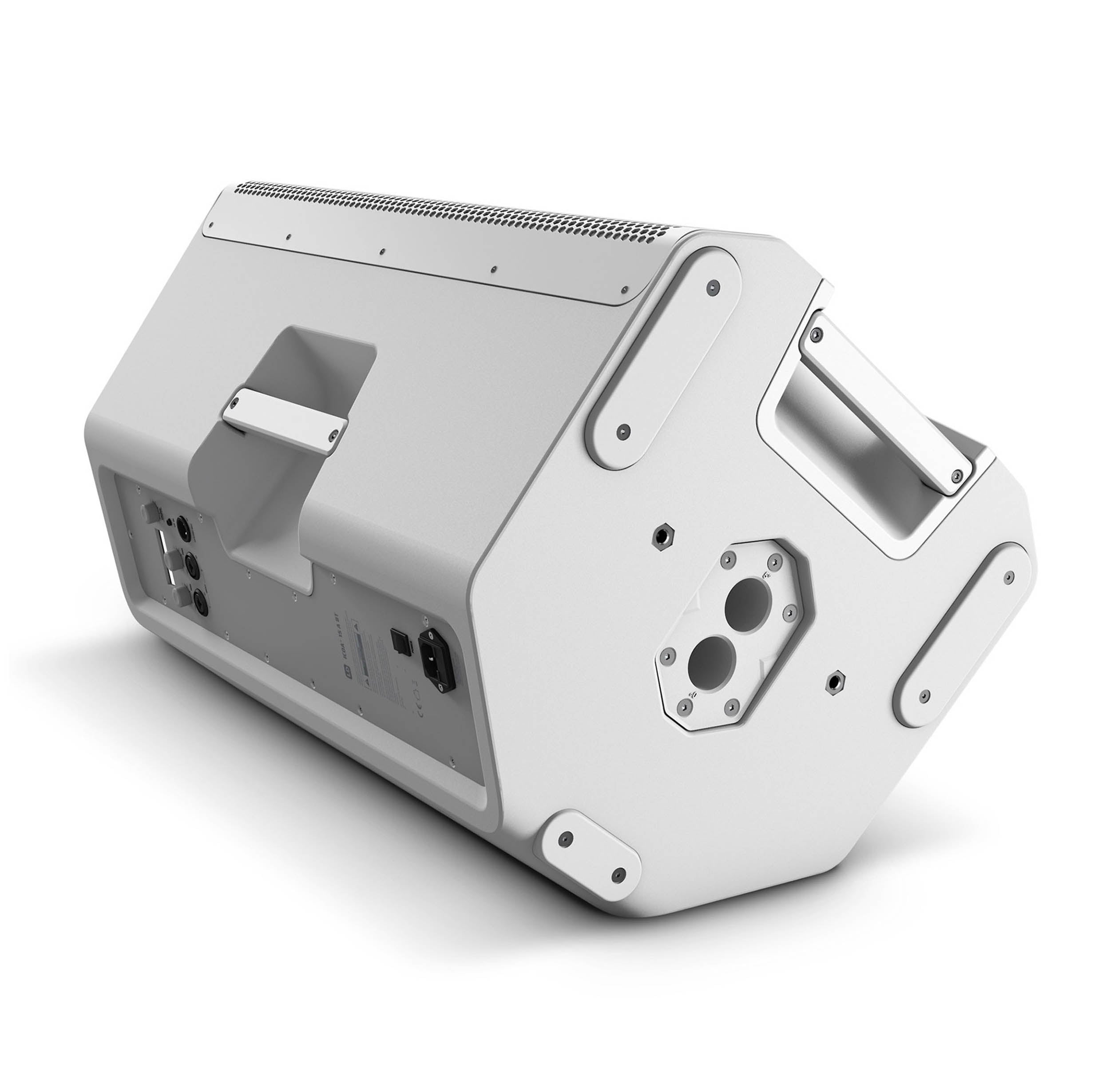

Mounting: 36mm flange (0°, 5°), 6 x M10 flying points

Monitor Angle: 55 °

Width: 16”

Height: 27”

Depth: 16”

Weight: 54 lbs
