Description

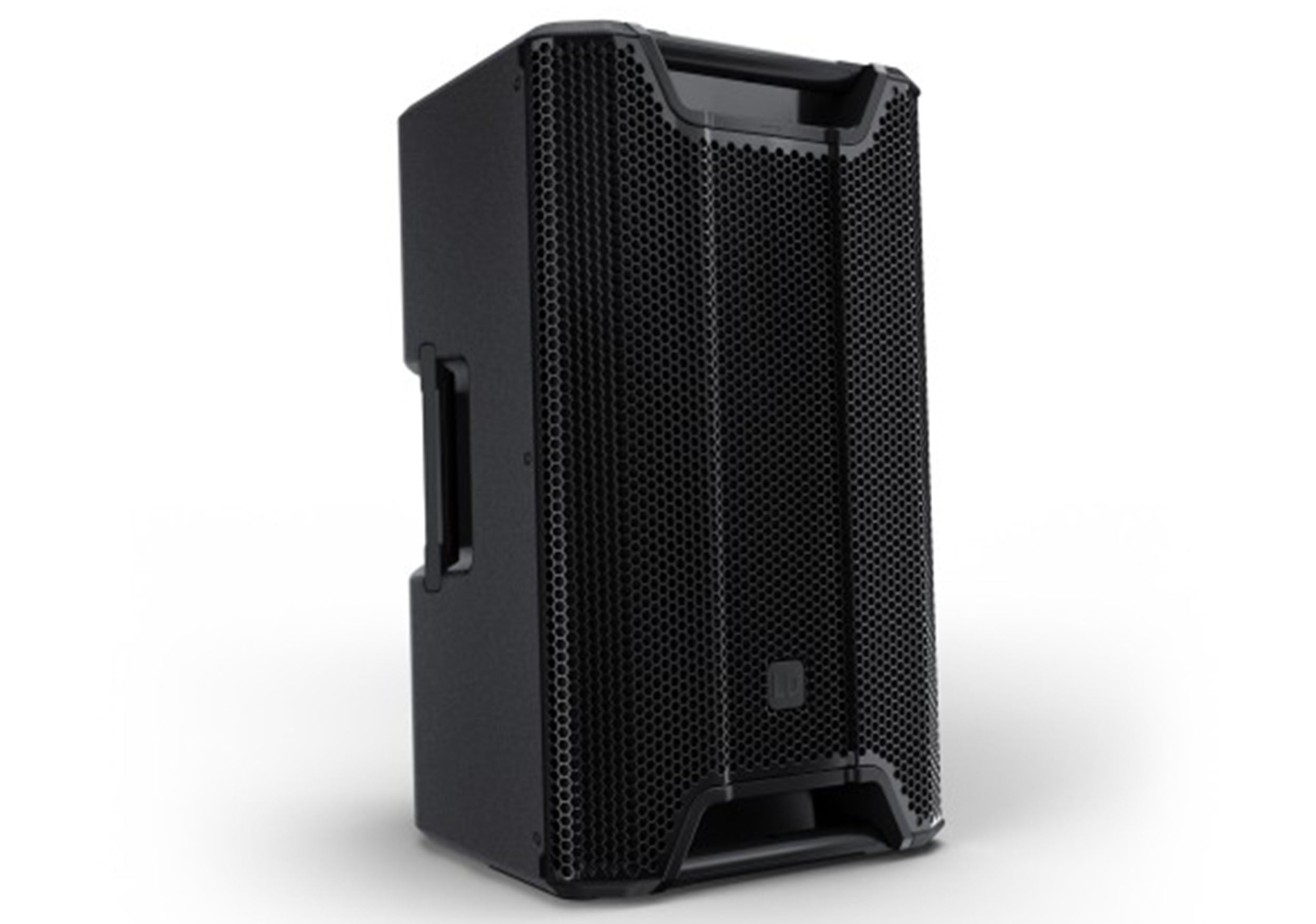

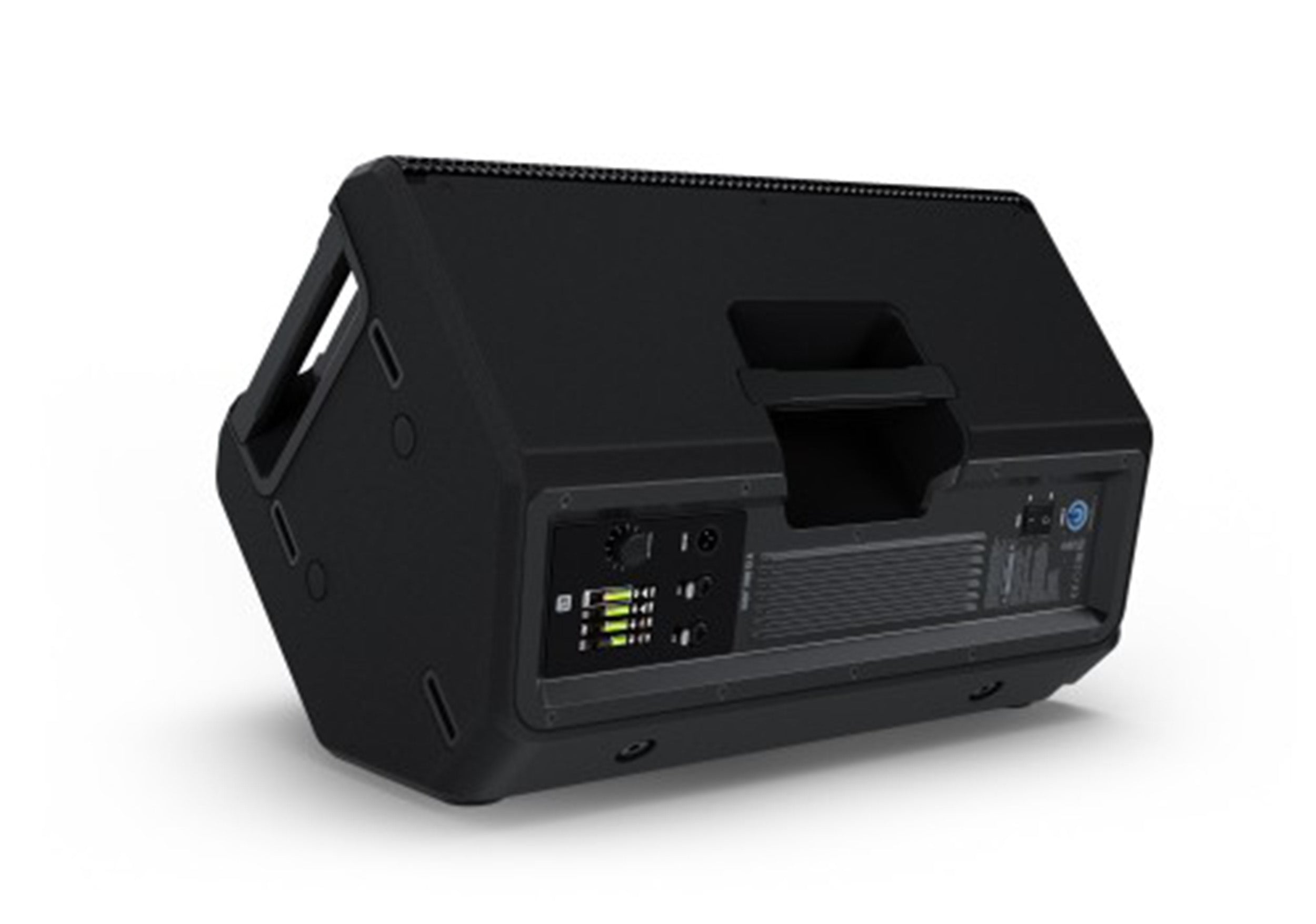

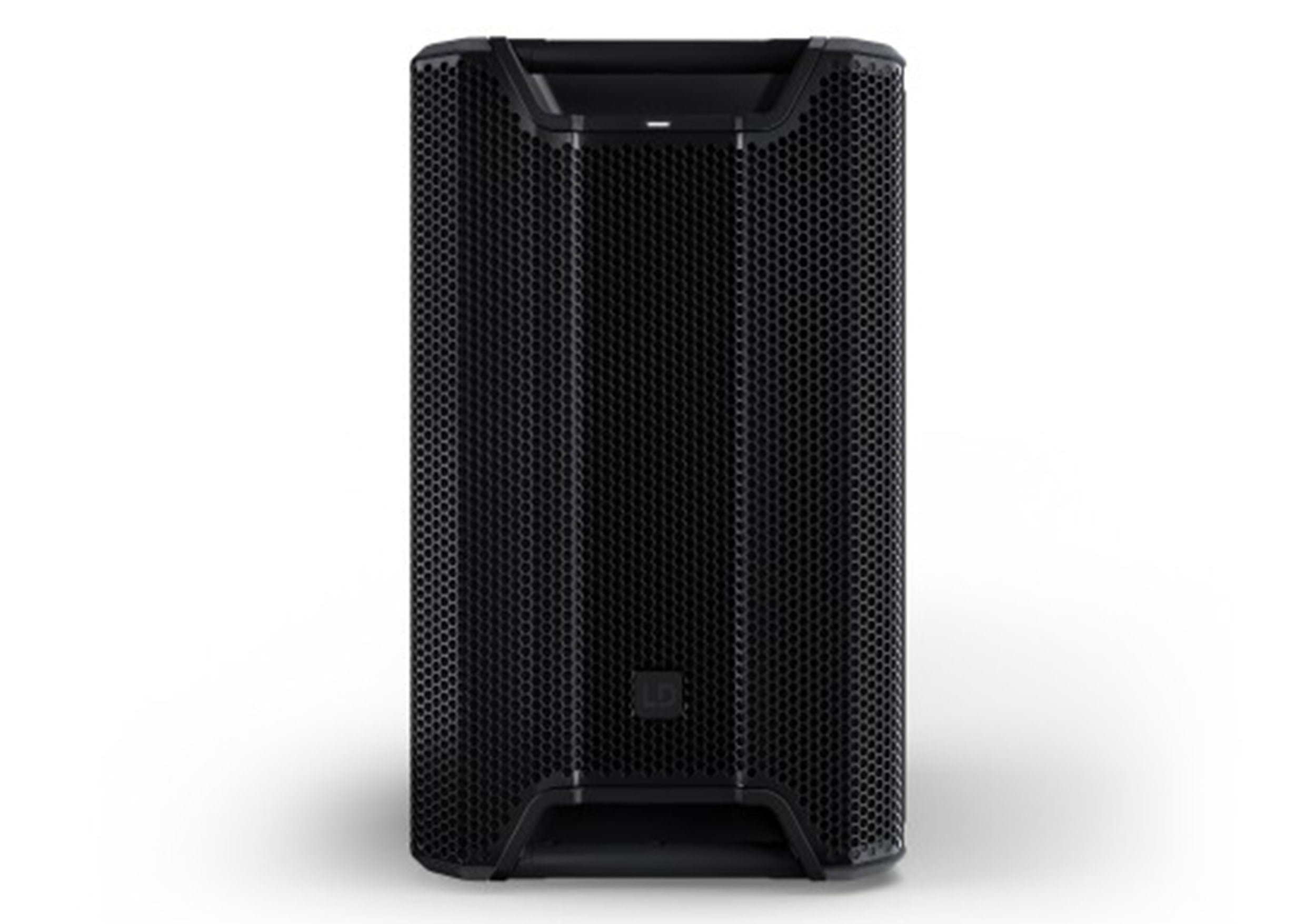

The LD Systems ICOA PRO 12 A is a versatile, high-output 12" powered coaxial loudspeaker designed for full-range, monitor, satellite, or fixed installation use. With a rugged ABS cabinet, powerful DSP, and wireless app control, it delivers detailed, distortion-free audio for both live and installed sound environments.

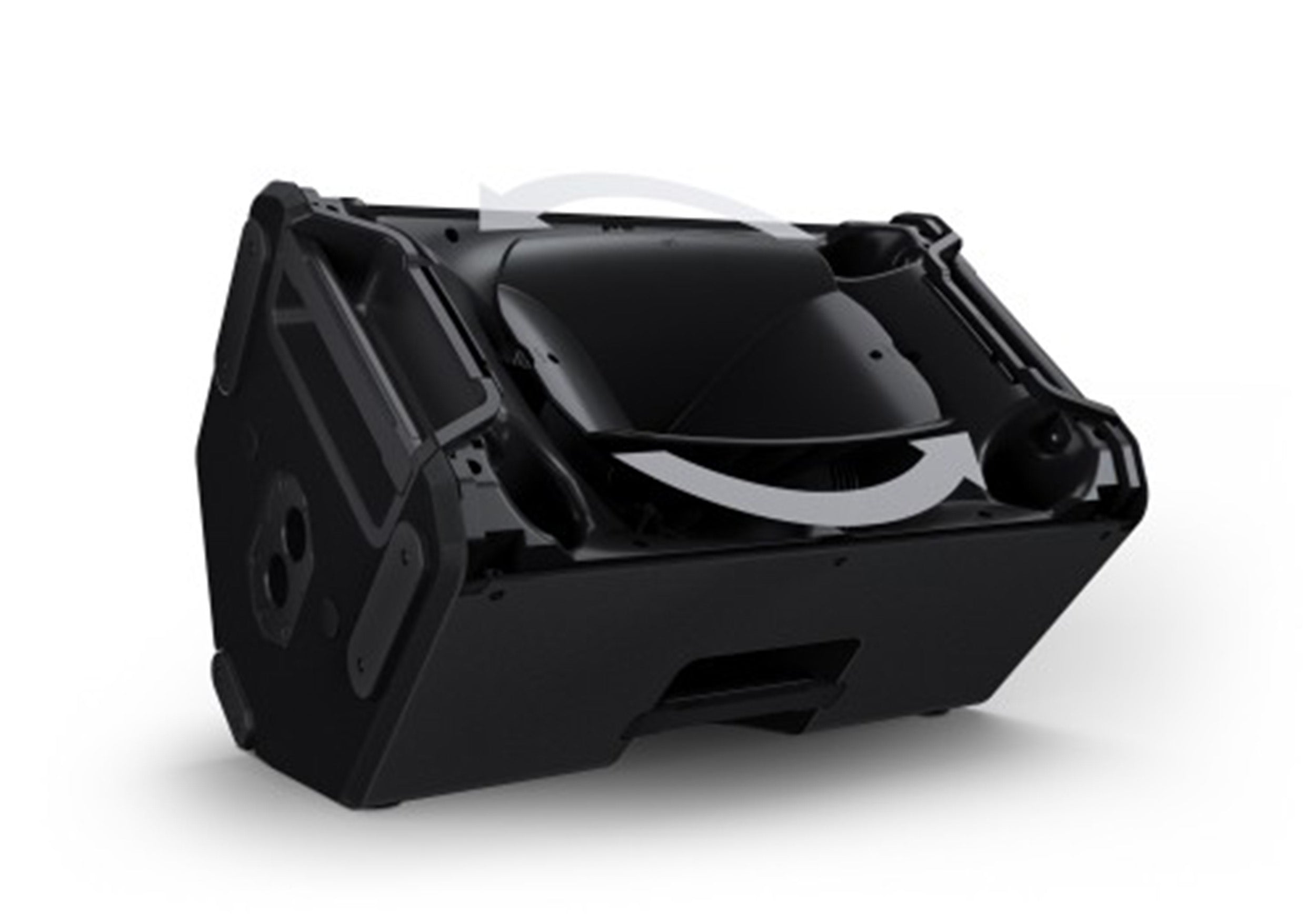

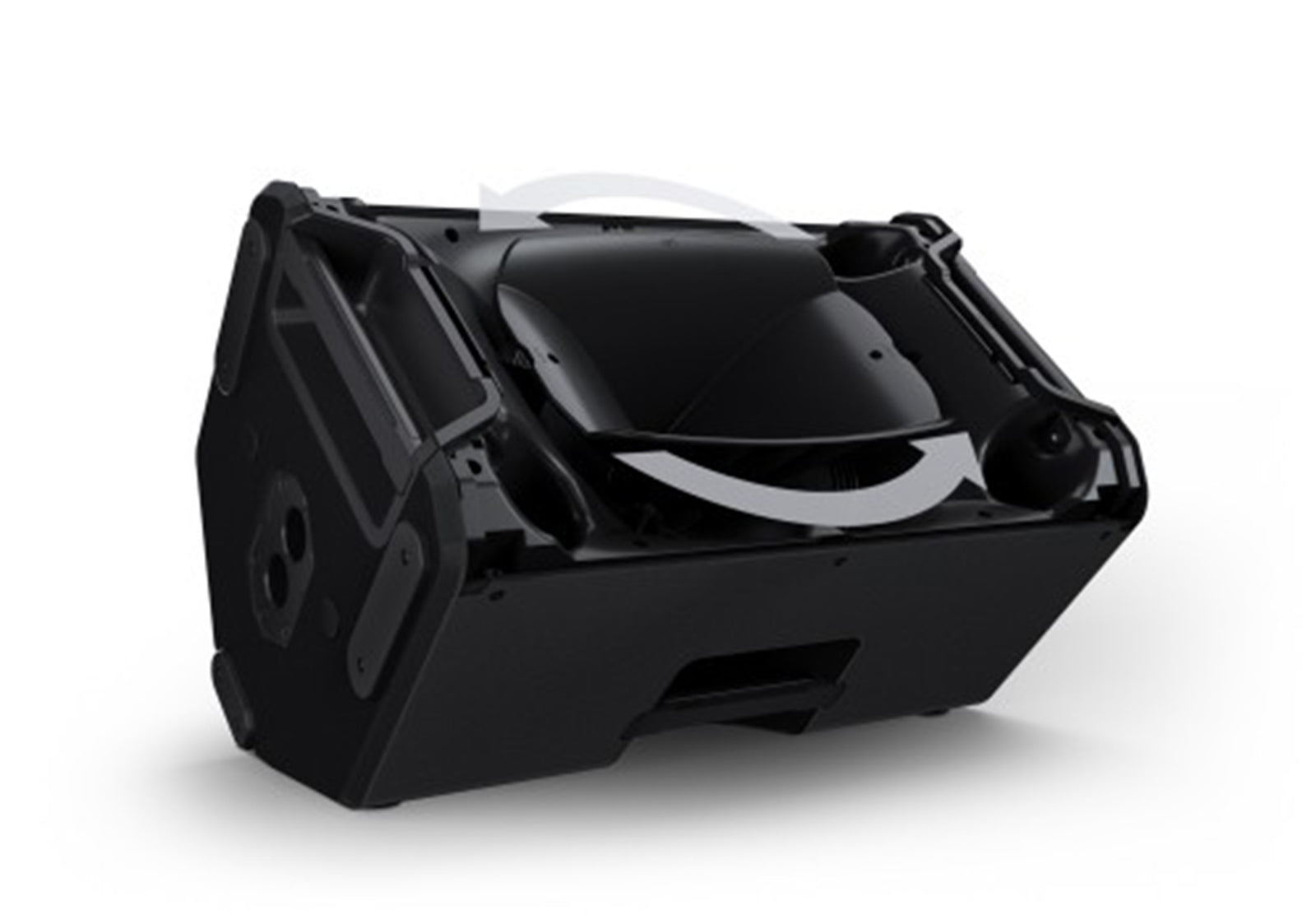

Featuring a true coaxial design with a common motor, a 3" voice coil woofer, and a 3" titanium compression driver, it ensures precise point-source sound with exceptional clarity and coverage. Its advanced SysCore DSP, stereo Bluetooth® 5.1 streaming, and mobile app control make it a flexible solution for professionals seeking high performance and convenience.
Product Specifications:
Type: Active 2-way coaxial PA loudspeaker
Amplifier Class: Class D
Power Output: 2000W Peak / 1000W RMS
Max SPL: 133 dB (pink noise)
Frequency Range (-10 dB): 50 Hz – 20 kHz
Crossover Frequency: 800 Hz

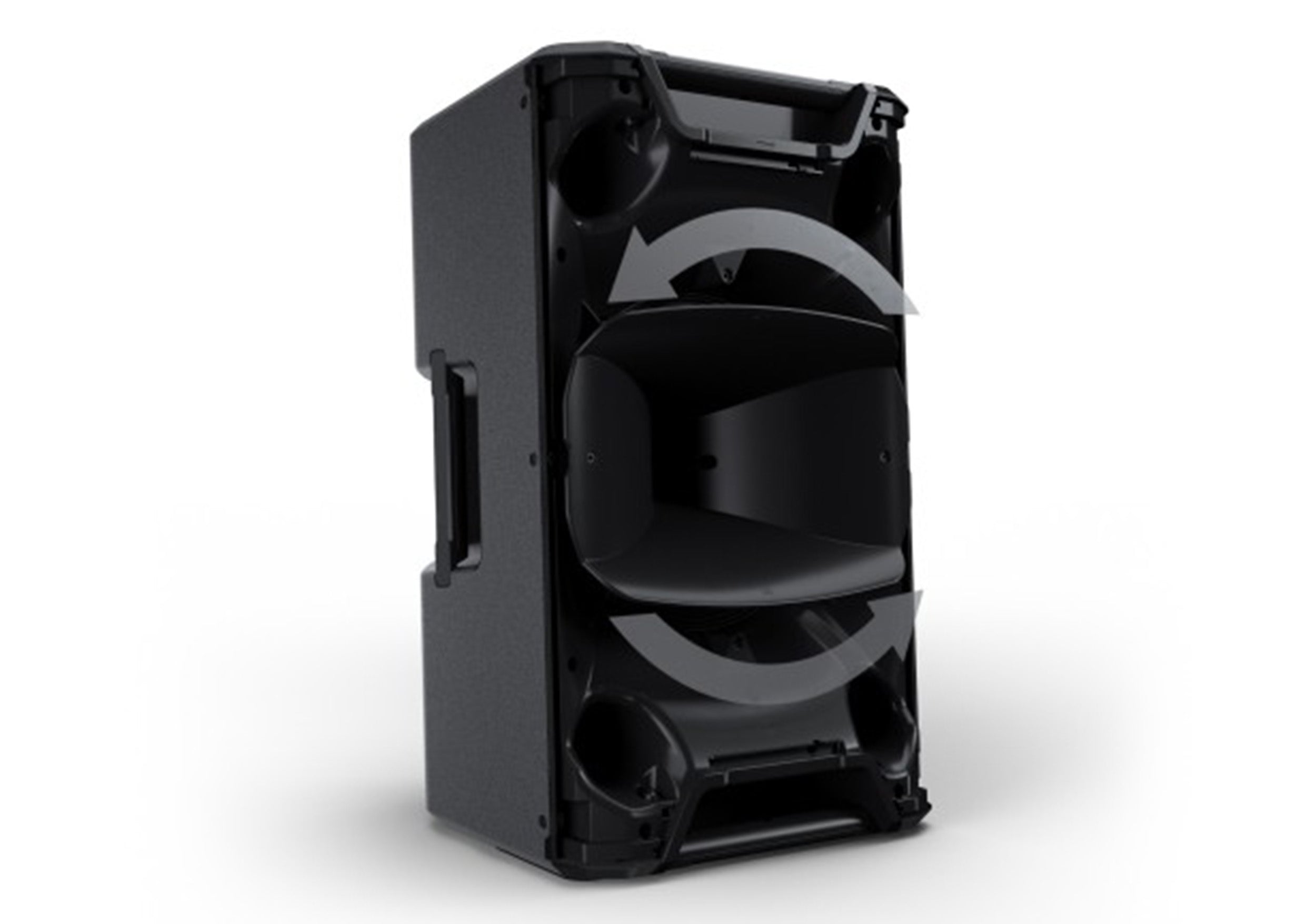

Dispersion: 90° H x 50° V

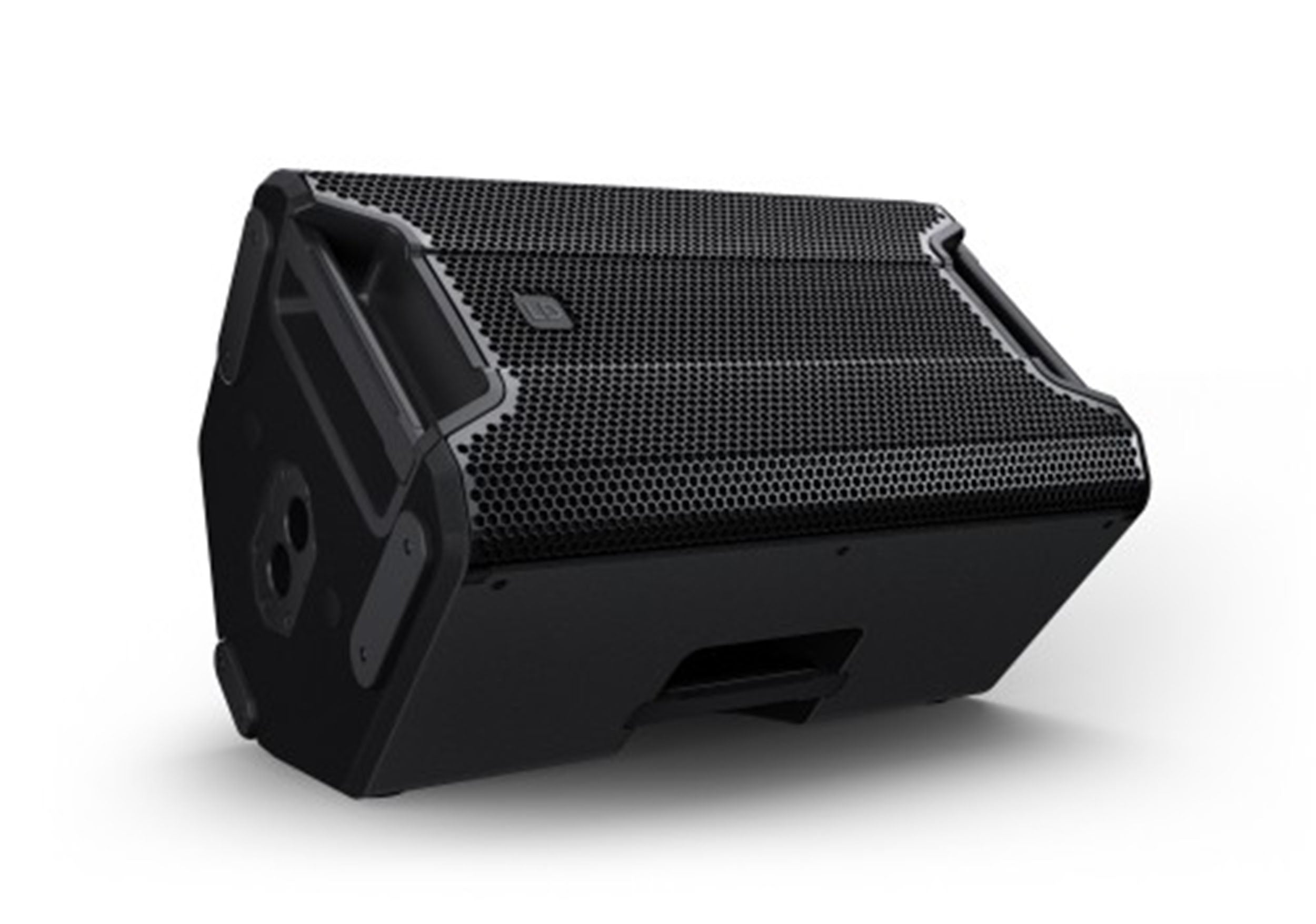

Monitor Angle: 50°
Woofer: 12" ferrite with 3" voice coil
Tweeter: 3" titanium

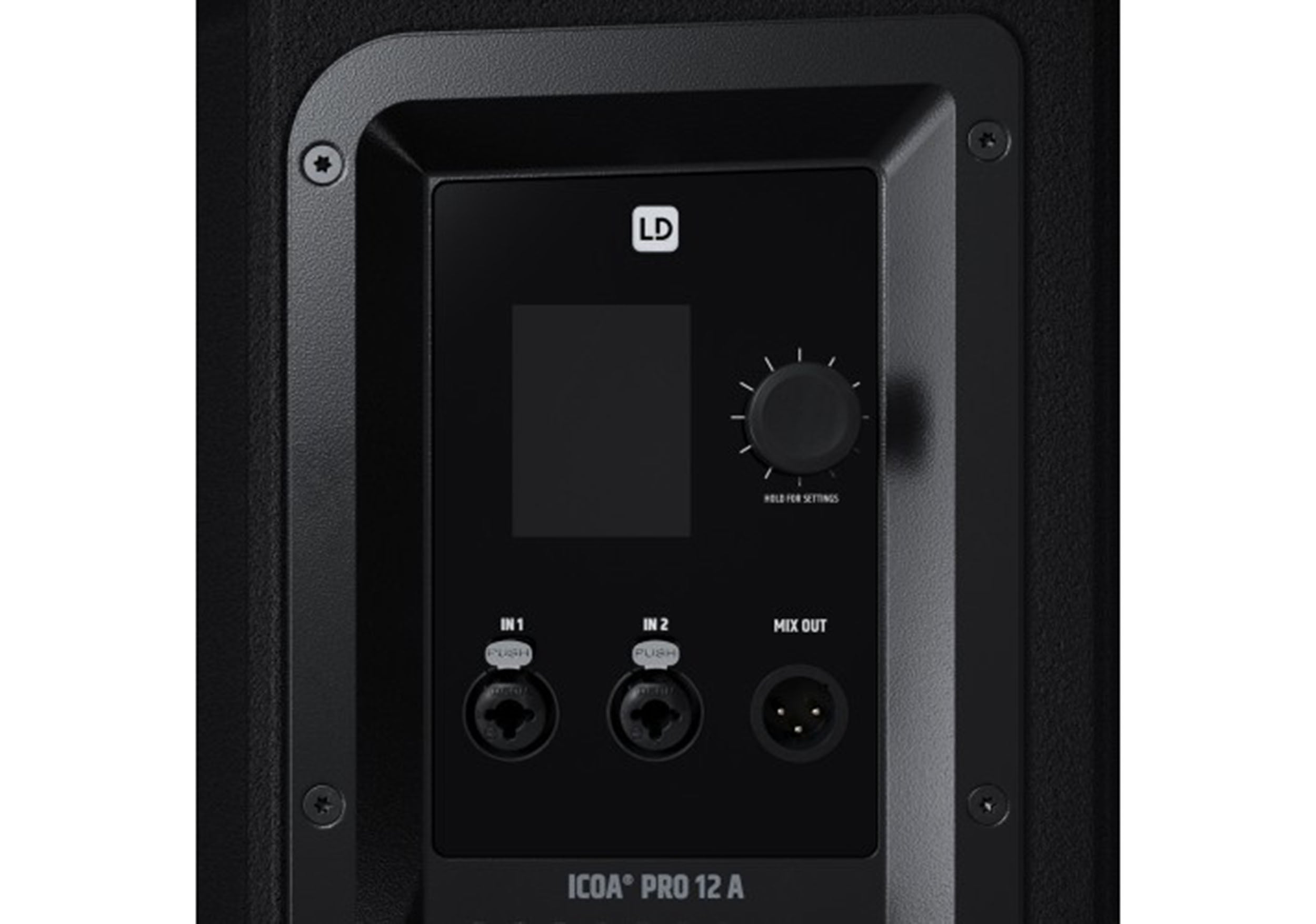

Input Connectors: 2 x XLR combo mic/line inputs
Output Connector: 1 x XLR mix out
DSP: 24-bit / 48 kHz, FIR/IIR filters, 4-band EQ, delay
Bluetooth Version: 5.1 with TWS, app control (SBC, AAC support)
Protection: Multiband limiter, short circuit, overheat, DC
Cabinet Material: ABS with steel reinforcement

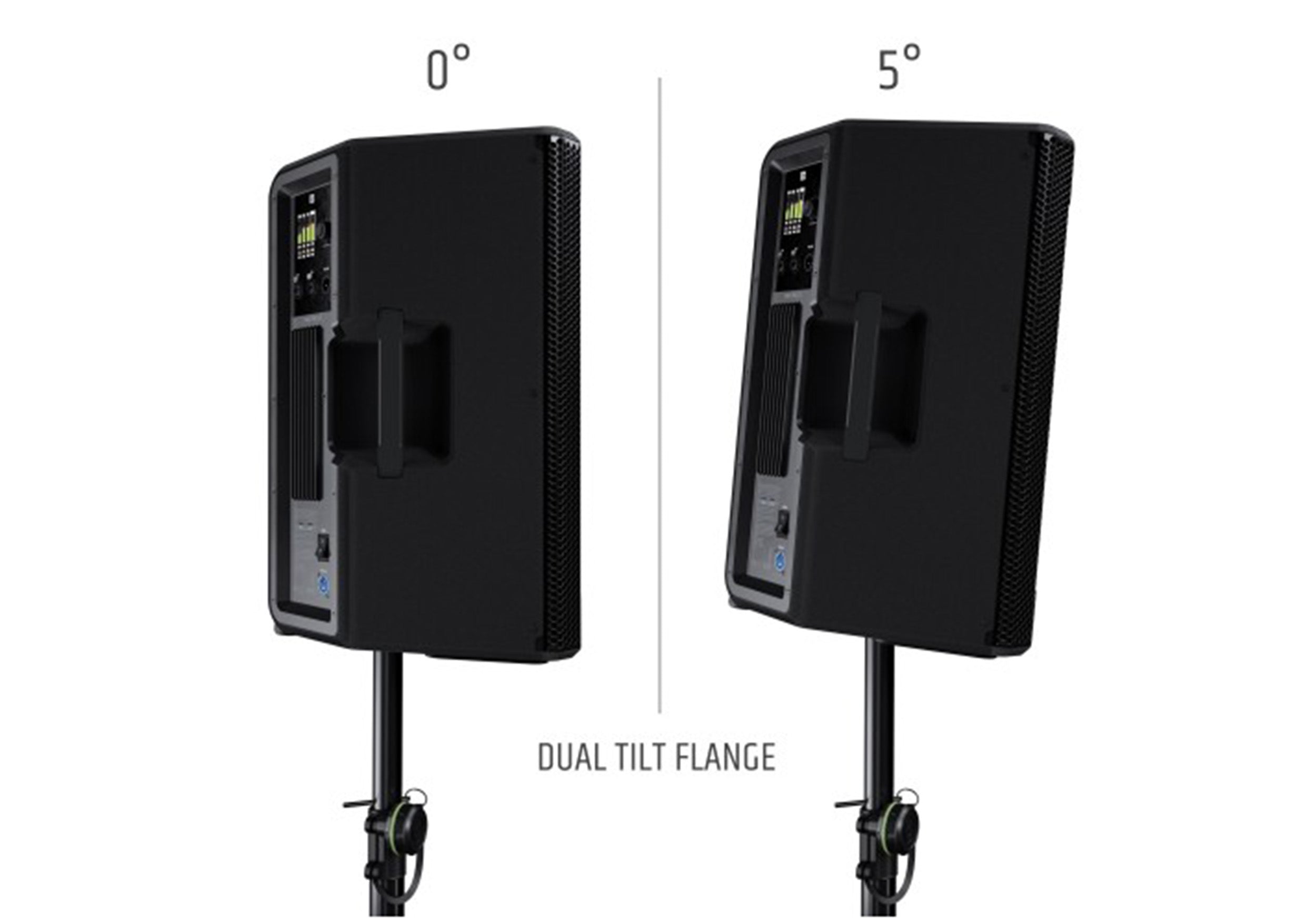

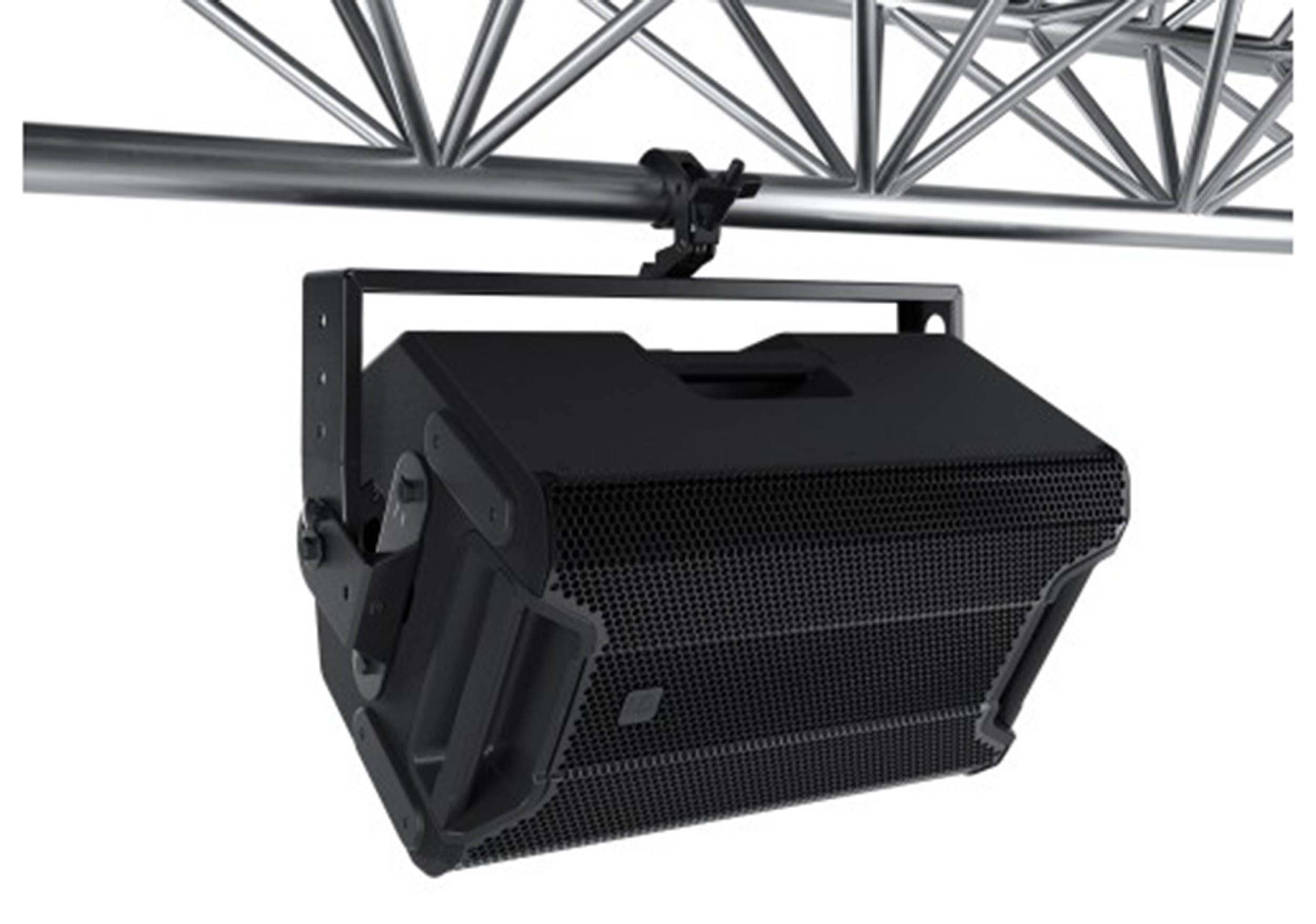

Mounting: 35 mm flange (0° / 5° tilt), 6 x M10 fly points
Cooling: Convection
Power Supply: 100–240V AC, 50/60Hz, 650W SMPS

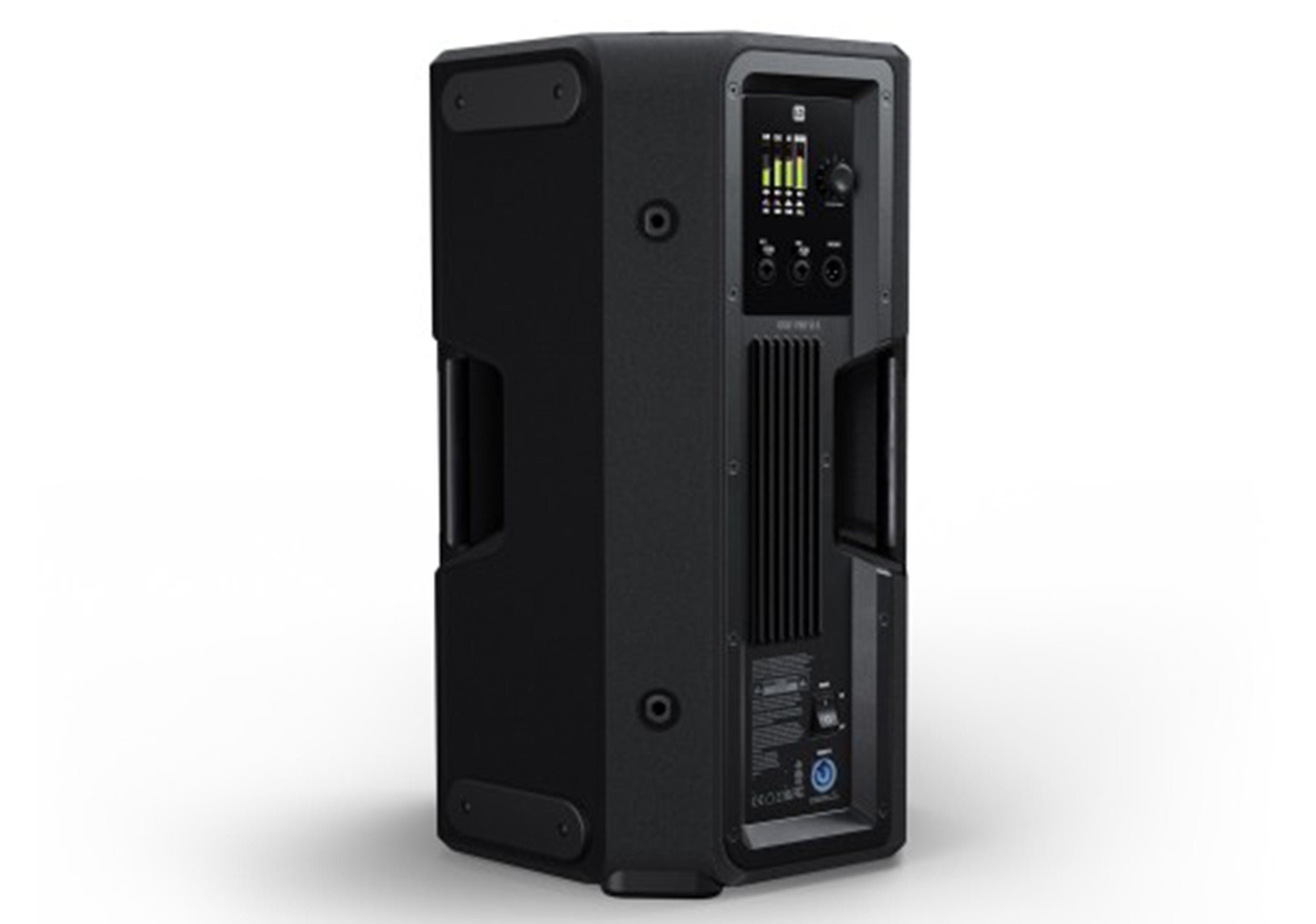

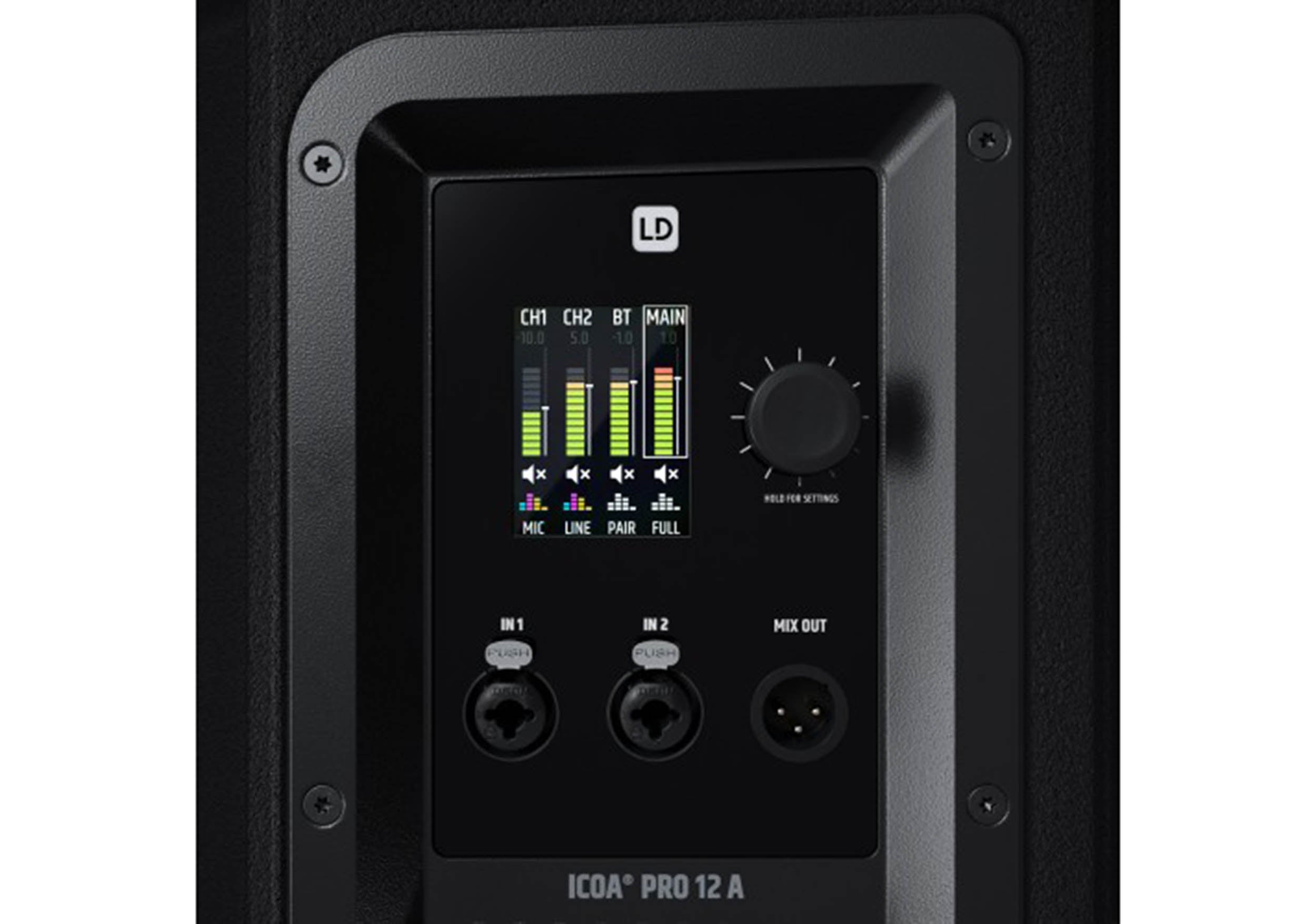

Display: Color display with one-knob control
Weight: 23.1 kg (50.9 lbs)
Dimensions (W x H x D): 376 x 627.8 x 393.6 mm (14.8" x 24.7" x 15.5")
Shipping Info:
Shipping Dimensions: 17" x 28" x 18" (W x H x D)
Shipping Weight: 56 lbs
