Description

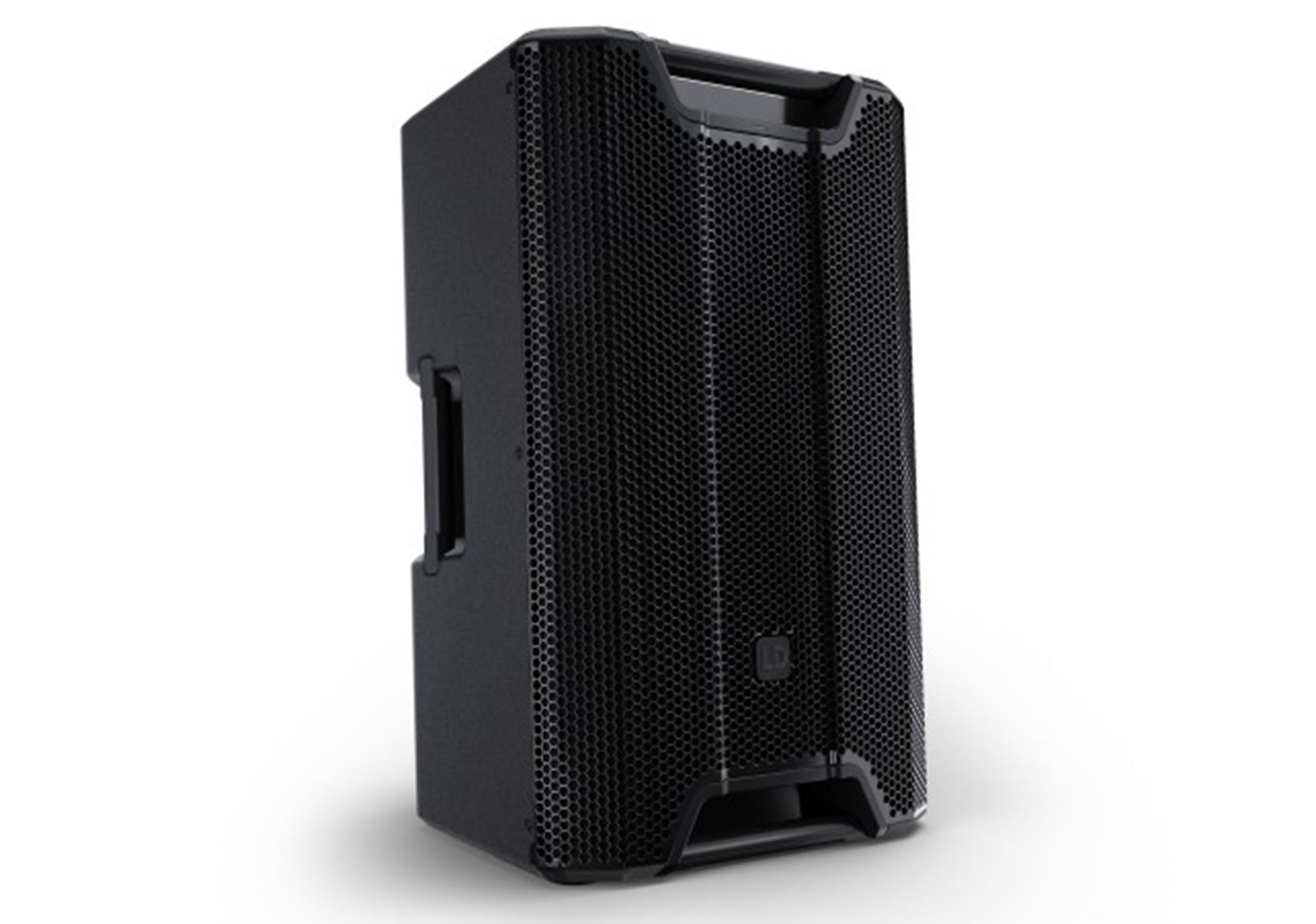

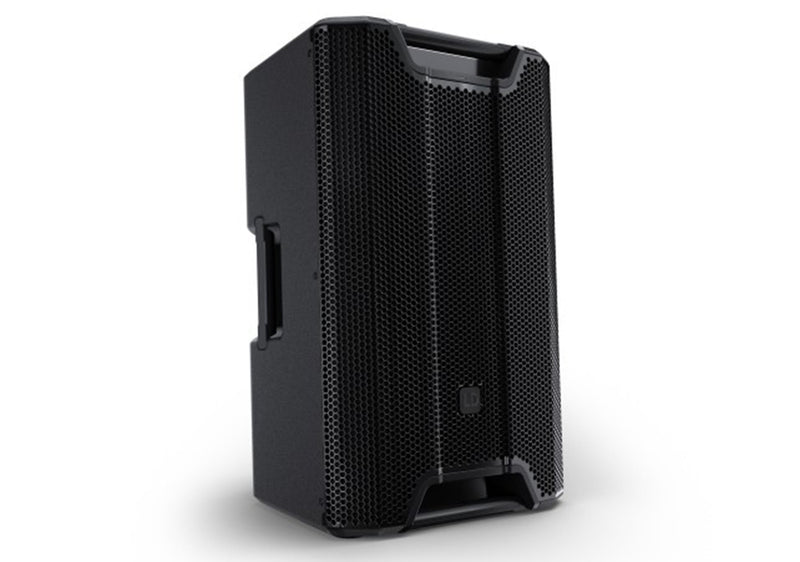

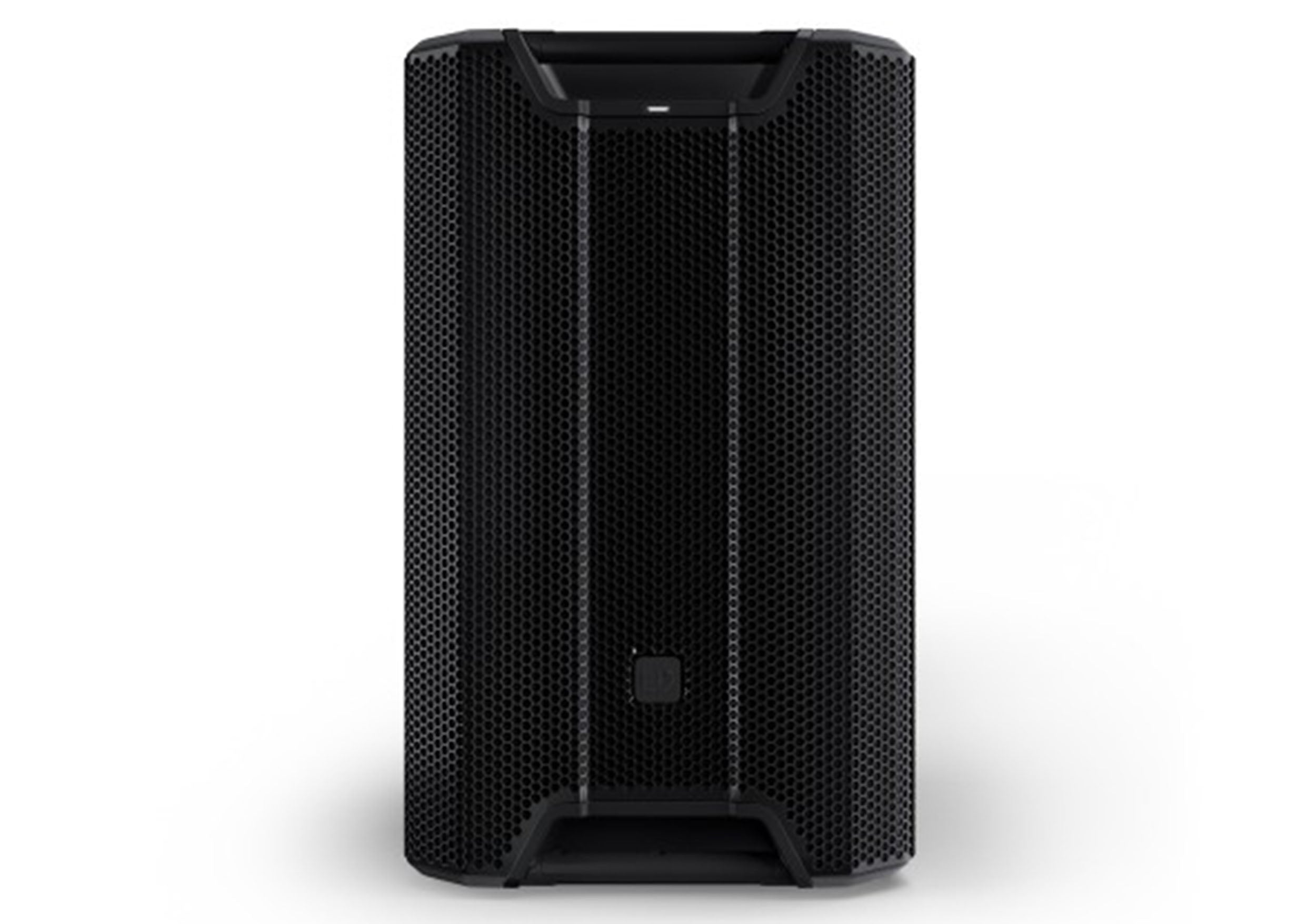

The LD Systems ICOA PRO 15 A is a high-performance active PA loudspeaker delivering crystal-clear sound and unmatched versatility for full-range, satellite, monitor, and fixed installation use. With a coaxial design and premium components, this 15" loudspeaker produces a powerful, natural audio experience-ideal for live events, DJs, and venues demanding professional sound.

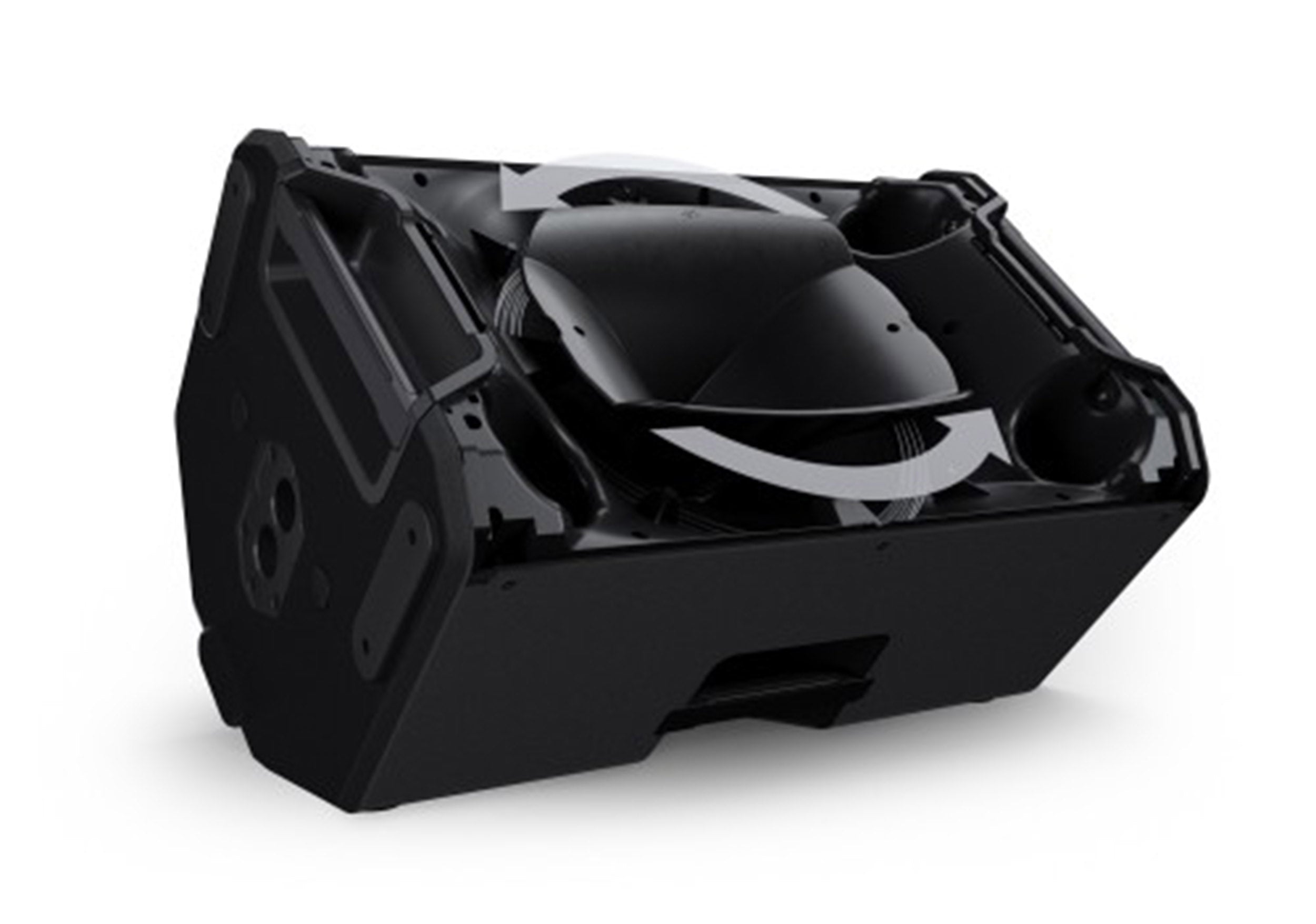

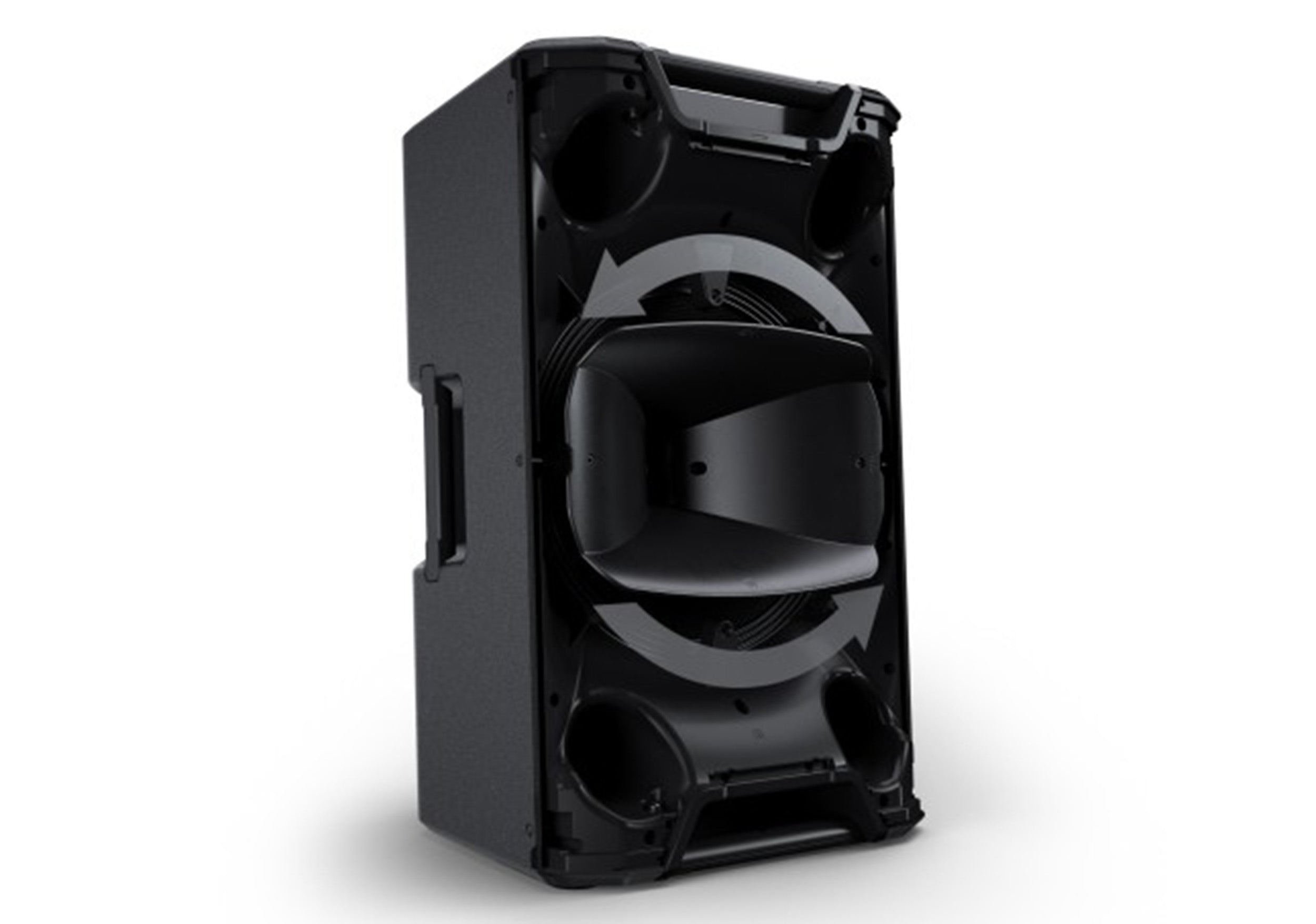

The coaxial speaker features a 15" woofer with a 3" voice coil and a 3" titanium HF driver sharing a common motor, creating a precise point-source output. The rotatable BEM-optimized CD horn ensures consistent 90° x 50° dispersion, while the 800 Hz crossover enhances mid-range projection. Flow-optimized bass reflex ports offer impressive low-end response down to 50 Hz.

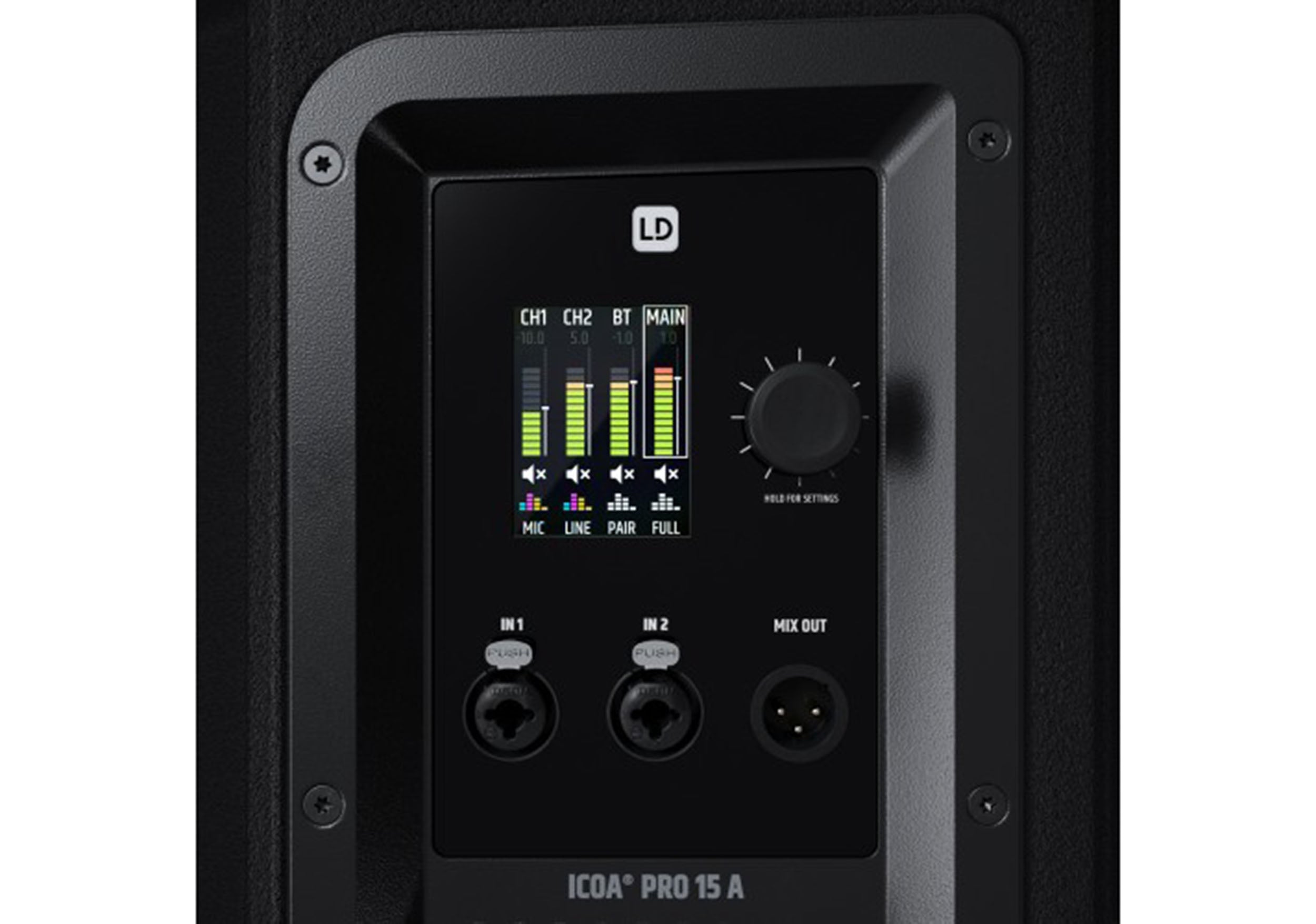

Driven by a 1500W RMS (3000W peak) Class D amplifier and SysCore® DSP, the ICOA PRO 15 A guarantees distortion-free, high-SPL performance (up to 135 dB). Dual mic/line inputs with gain control, a mono mix out, and advanced Bluetooth 5.1 with stereo pairing (TWS) ensure easy connectivity and wireless streaming. Onboard control via color display or free iOS/Android app makes real-time adjustments effortless.

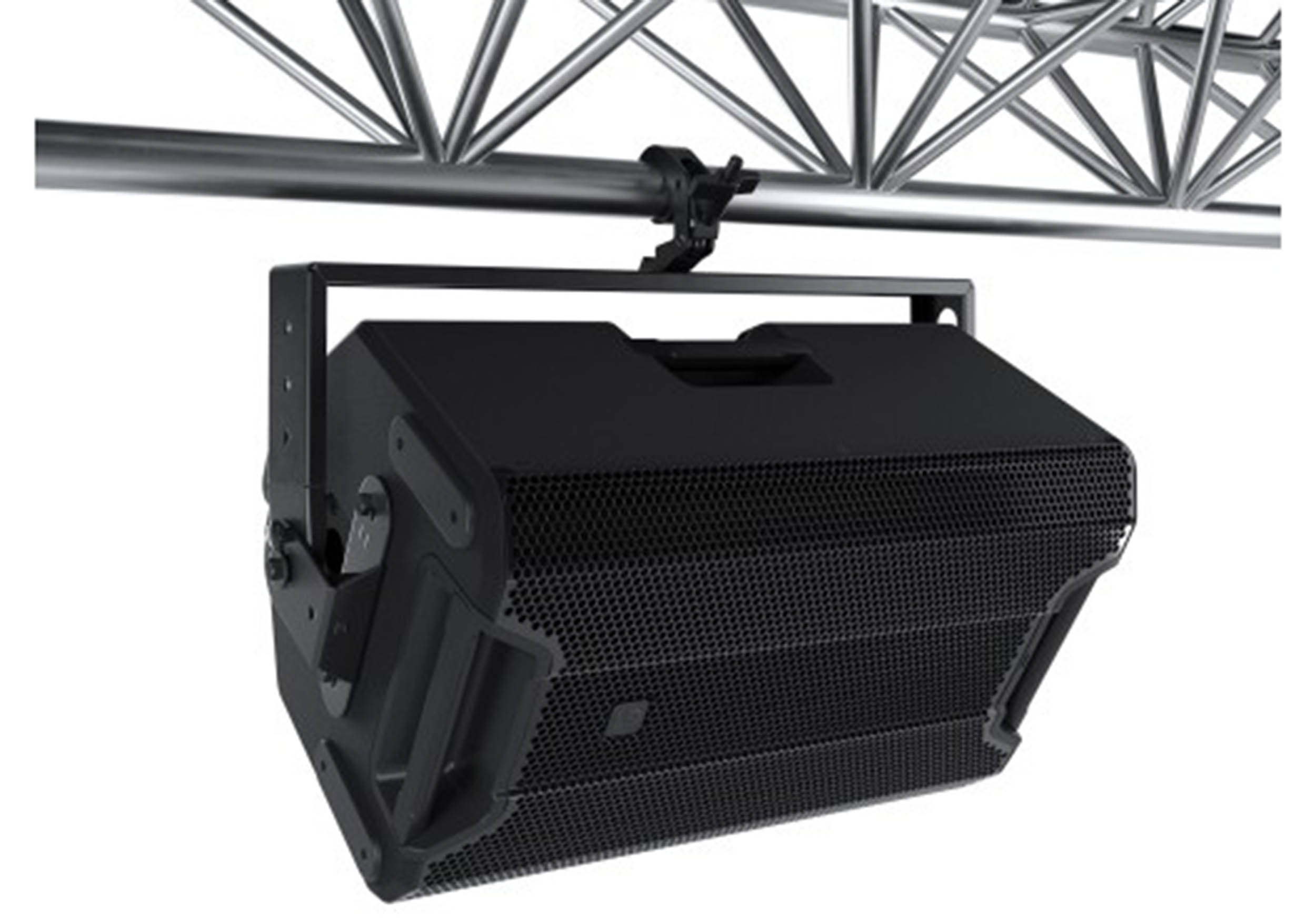

Encased in a rugged ABS housing with integrated steel frame, shock-resistant grille, and multiple mounting options (6x M10, EasyMount® compatible, dual-tilt stand flange), this speaker is built for reliable indoor or outdoor use. Custom-fit padded covers are available for protection and transport.
Product Specifications:
Type: Active 2-way coaxial (common motor design)
Amp Class: Class D
Power Output: 1500W RMS / 3000W peak
Max SPL: 135 dB (peak, pink noise)
Frequency Response: 50 Hz – 20,000 Hz (-10 dB)
Crossover Frequency: 800 Hz
Coverage Pattern: 90° (H) x 50° (V)

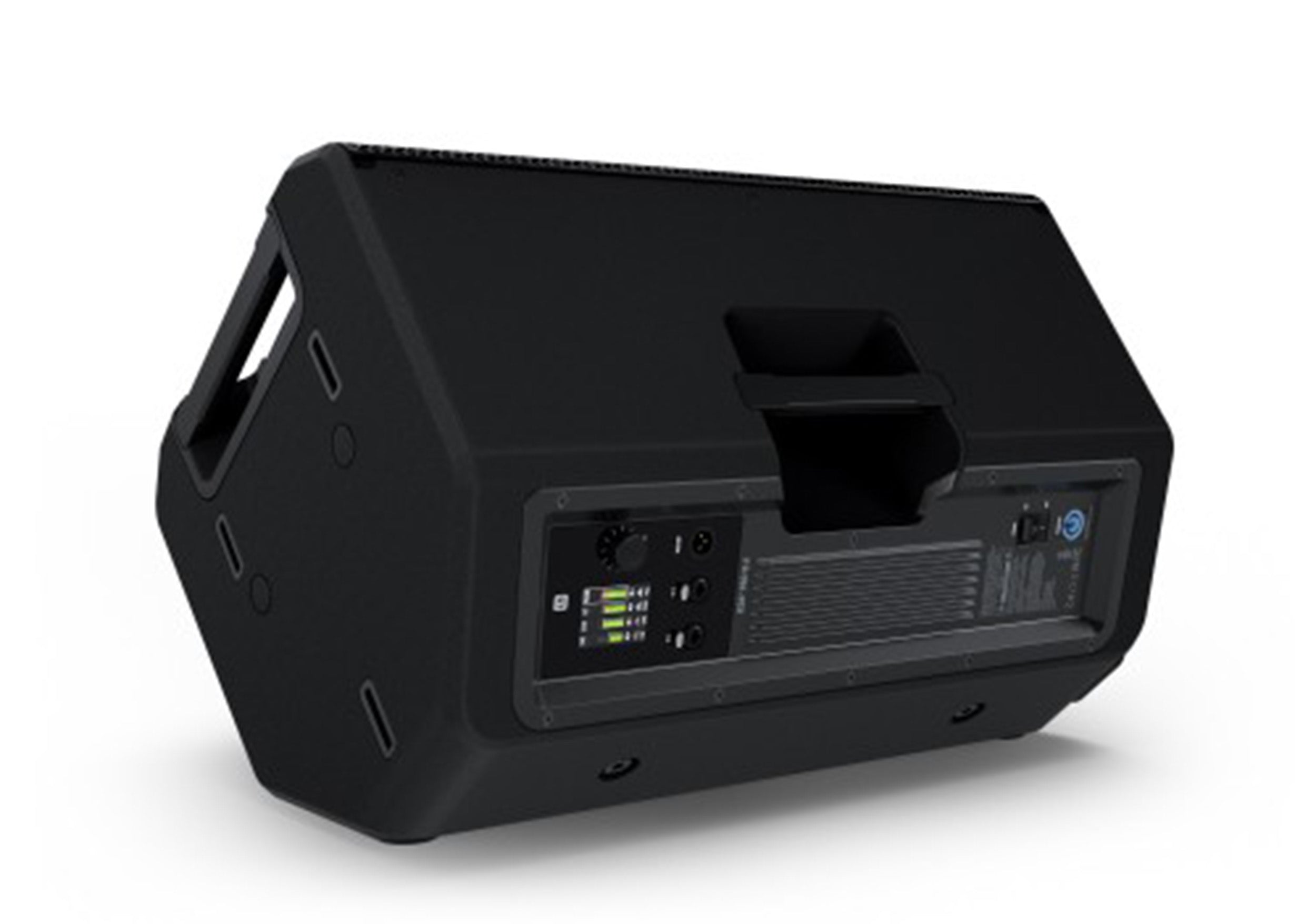

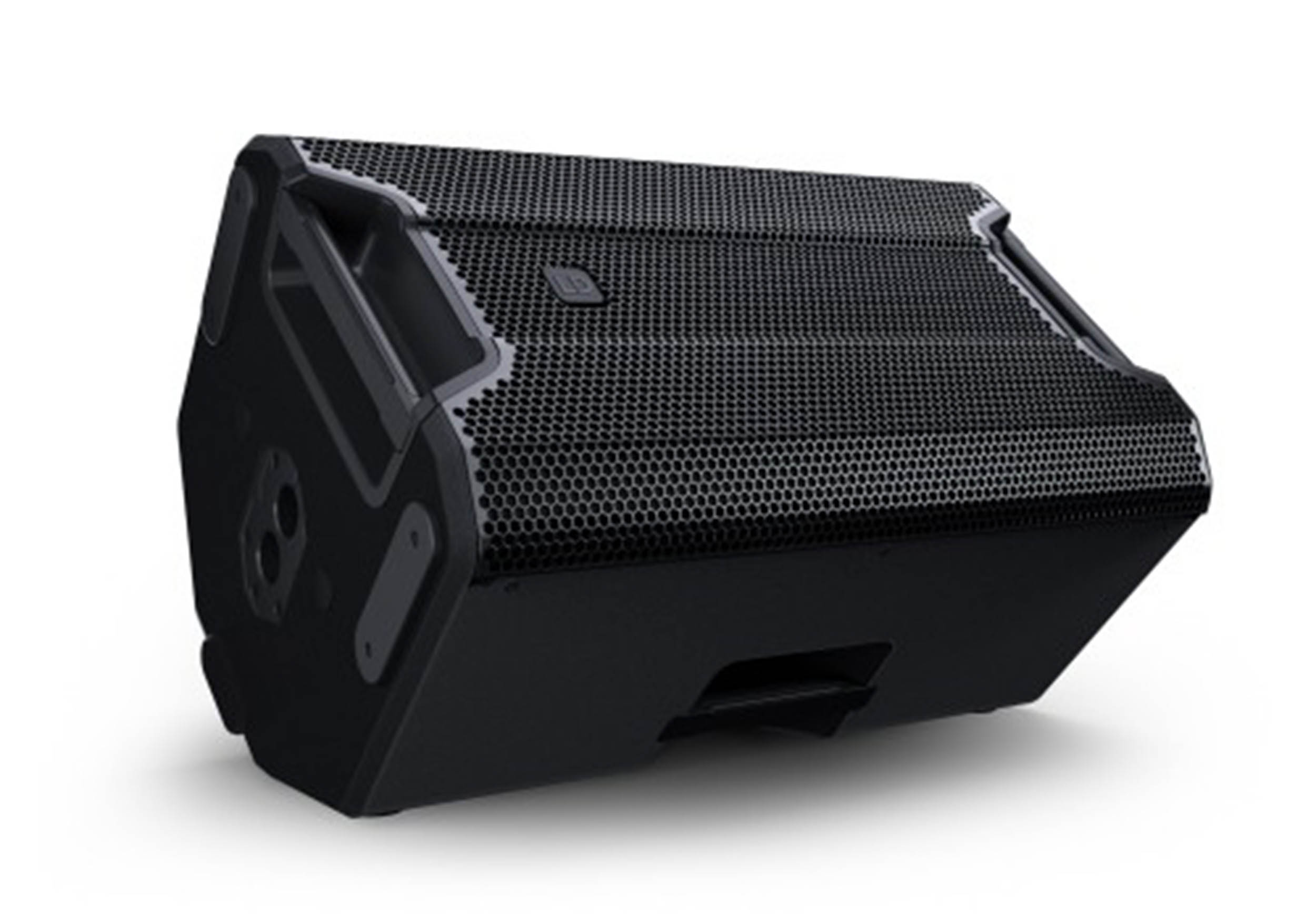

Monitor Angle: 50°
LF Driver:
Size: 15 in (386.3 mm)
Voice Coil: 3 in
Magnet: Ferrite
HF Driver:
Size: 3 in
Outlet: 36.68 mm
Voice Coil: 3 in
Magnet: Ferrite
Inputs:
2 x Mic/Line (XLR combo)
1 x Line In
Outputs: 1 x Mix Out (XLR male)
DSP: FIR/IIR Filters, 4 Presets, 4-band Parametric EQ
Delay Function
AD/DA: 24-bit / 48 kHz
SNR: ≥108 dB
Bluetooth:
Version: 5.1
Features: A2DP, TWS, Mirroring, App control
Codecs: SBC, AAC
Power Supply:
Voltage: 100–240 V AC, 50–60 Hz
Rated Power: 950 W
Type: SMPS
Connector: Indoor Power In (PowerCON®)
Construction:
Enclosure: ABS with steel reinforcements
Cooling: Convection
Handles: 4

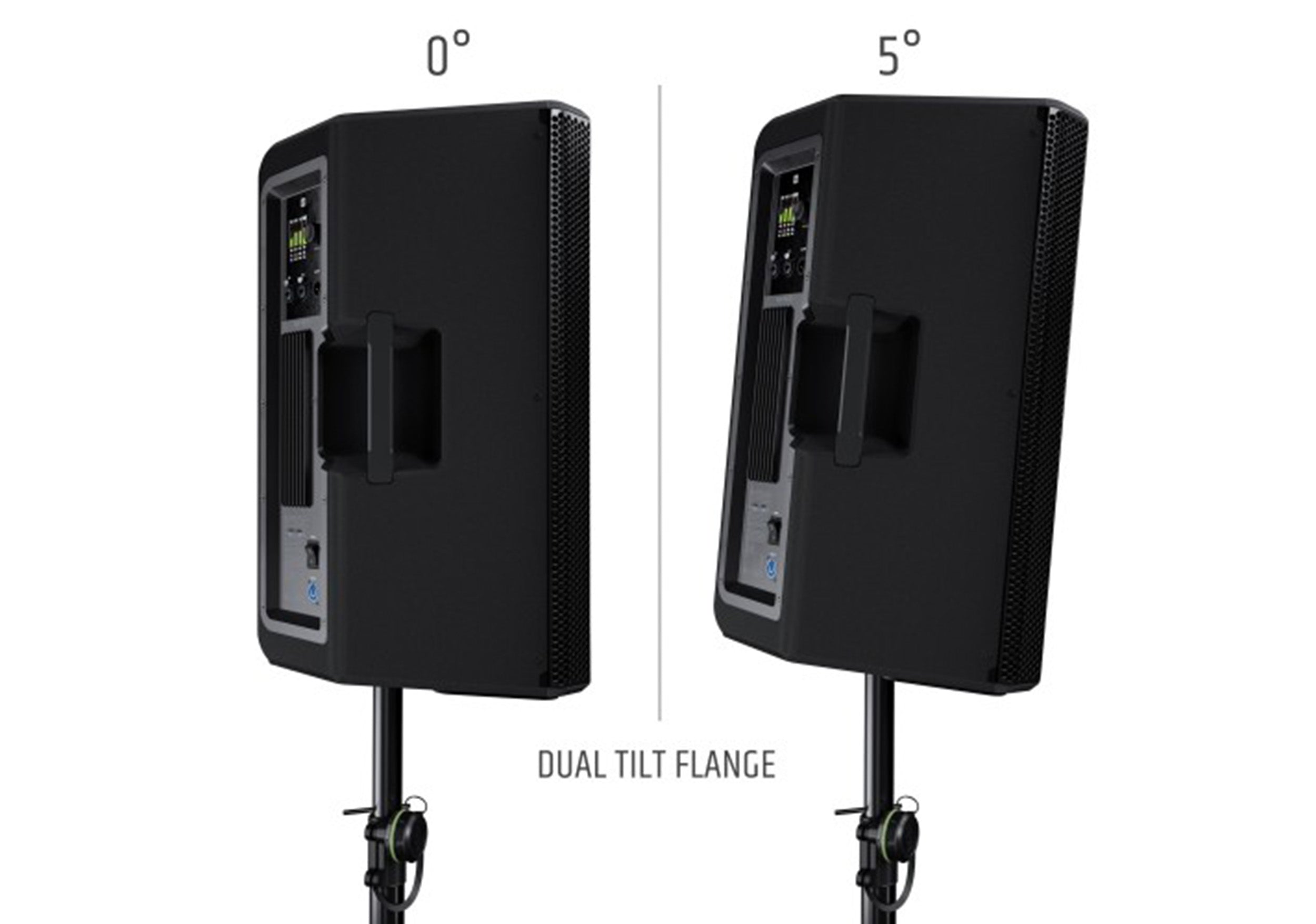

Mounting: 6 × M10 points, EasyMount®, 35 mm flange (0°/5°)
Front Grille: Shock-resistant
LED Indicators: Power, ID, Limiter
Environmental:
Operating Temp: 0–40 °C
Humidity (Max): 80% (non-condensing)
Dimensions (Loudspeaker):
Width: 16.4 in
Height: 27.2 in
Depth: 16.3 in
Net Weight: 56.9 lbs
Shipping Dimensions (Approx.):
Width: 19 in
Height: 30 in
Depth: 19 in
Shipping Weight: 65 lbs
