Description

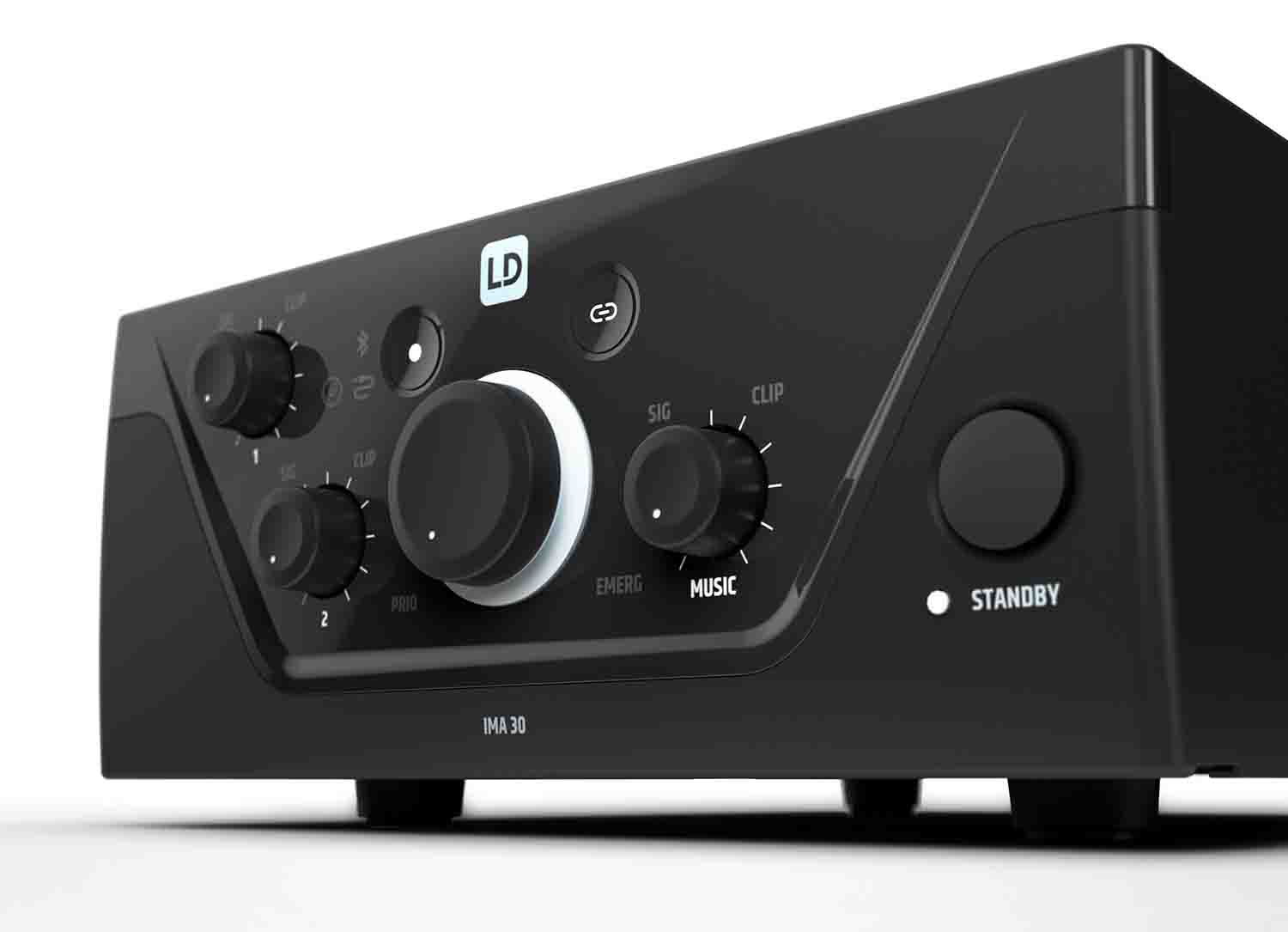

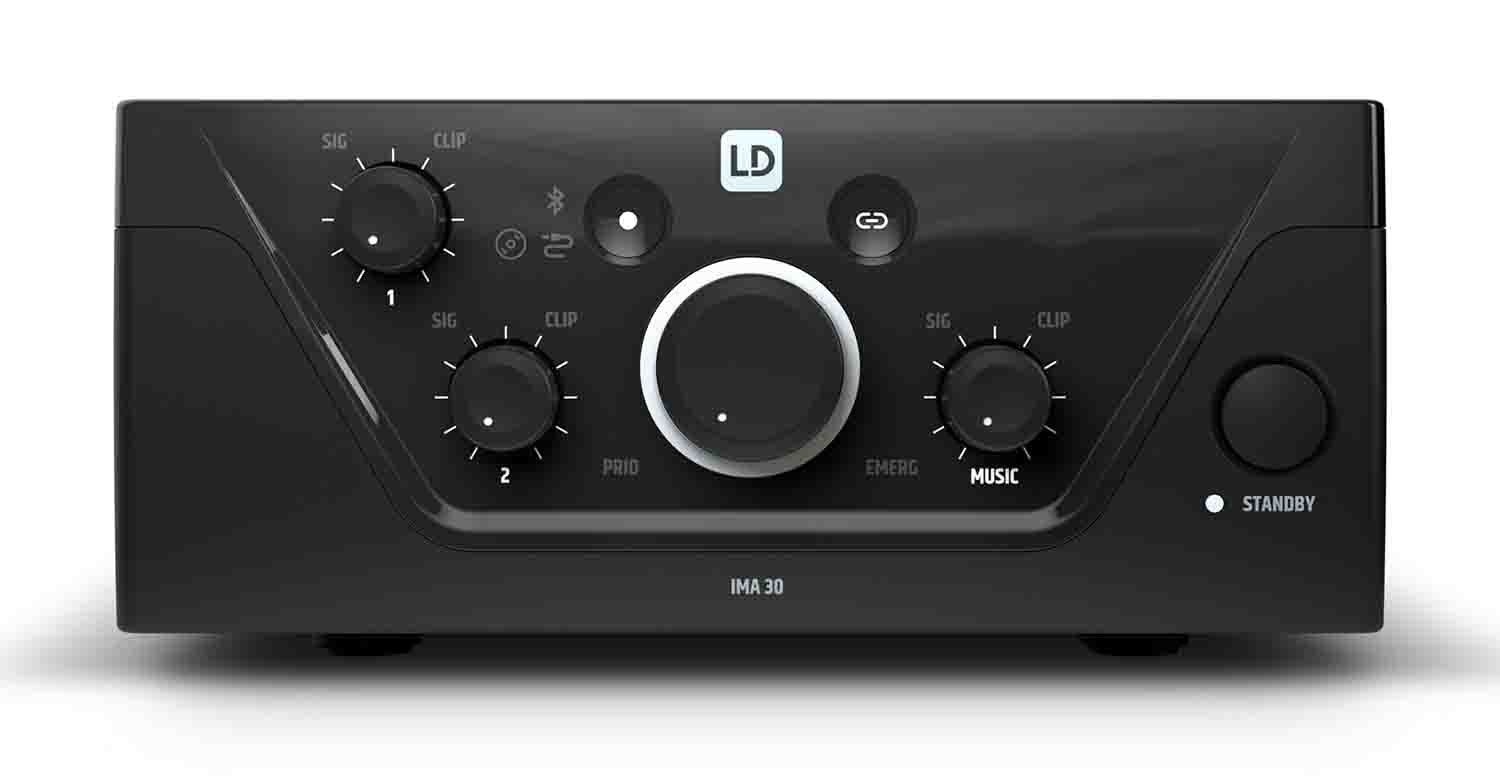

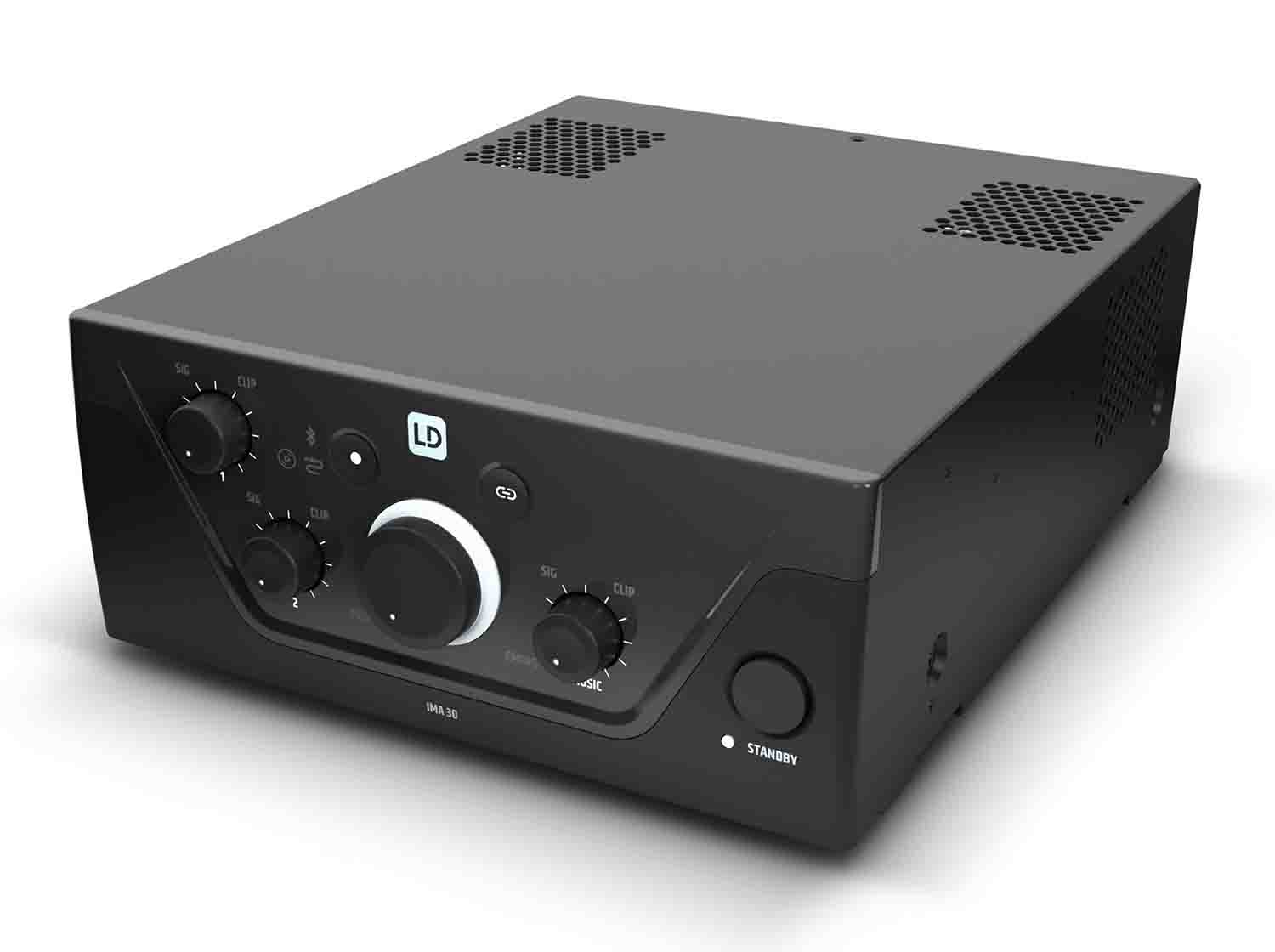

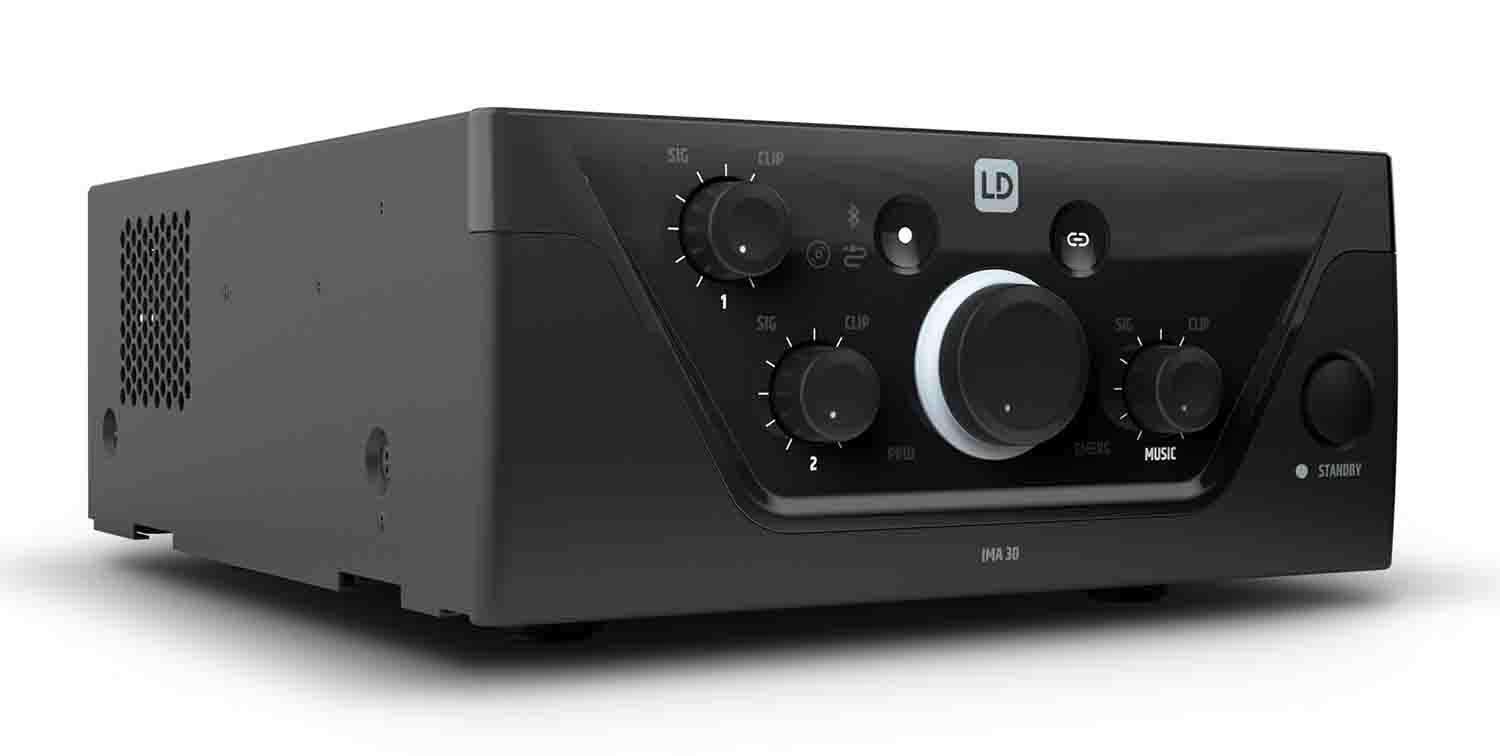

The LD Systems IMA 30 is an Installation Mixing Amplifier 35W, 4 Ohms / 100 V / 70 V. Permanent installations require solutions that offer a visually discrete design that blends into the background while still being flexible and versatile in their functions. You need to be able to connect different audio sources and manage them, to mute non-priority signals during announcements or emergency calls. Seamless integration with IMA 30 is a sure thing in both industrial and commercial applications thanks to the compact 9.5-inch housing design, an array of connection possibilities, including Bluetooth for wireless connection of Audio, and a multistage priority circuit. IMA 30 is equipped with four priority levels to manage all connected audio signals during emergencies or priority announcements. An automatic standby mode can also be activated to reduce power consumption during absence of audio signal.

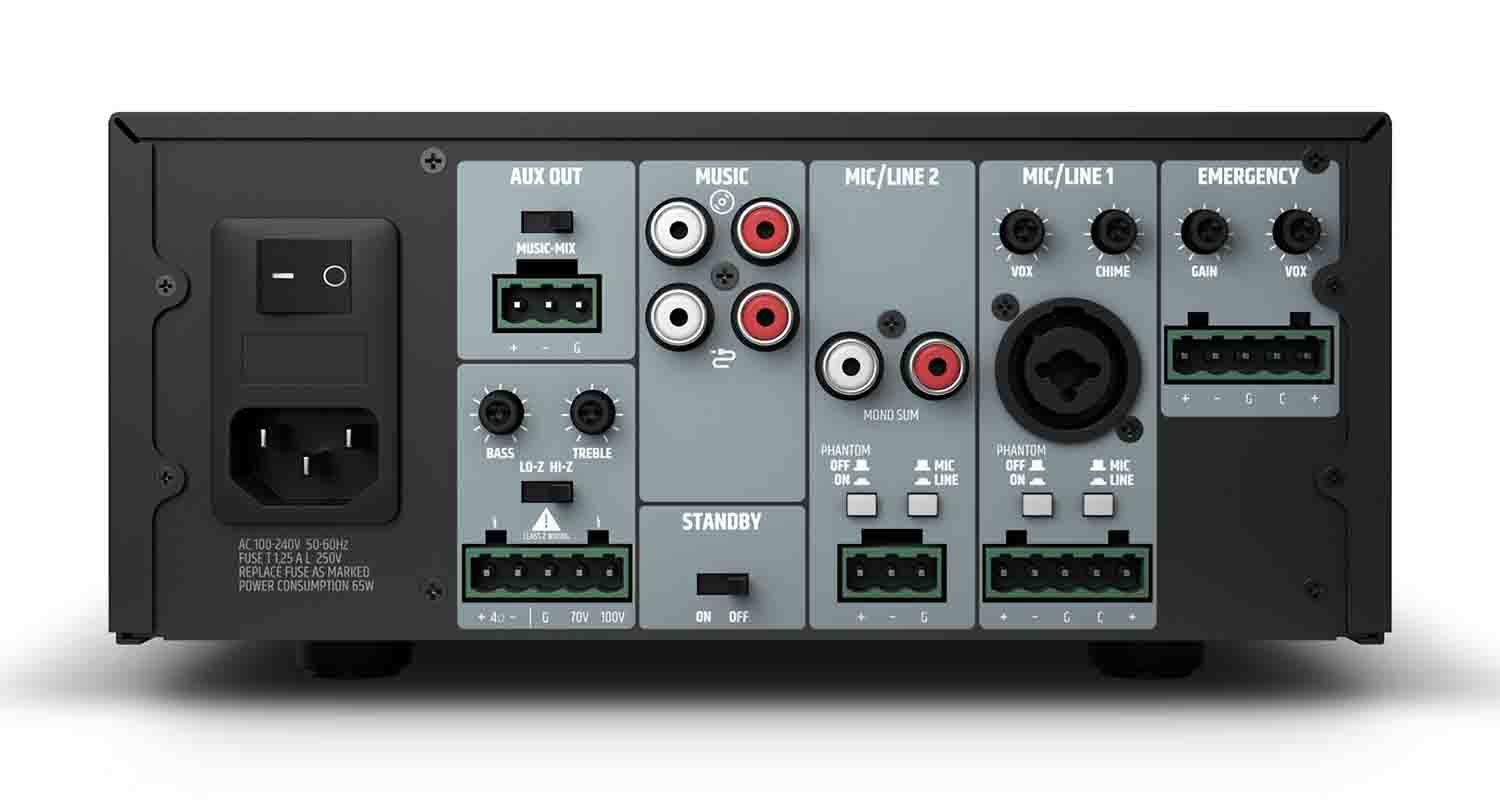

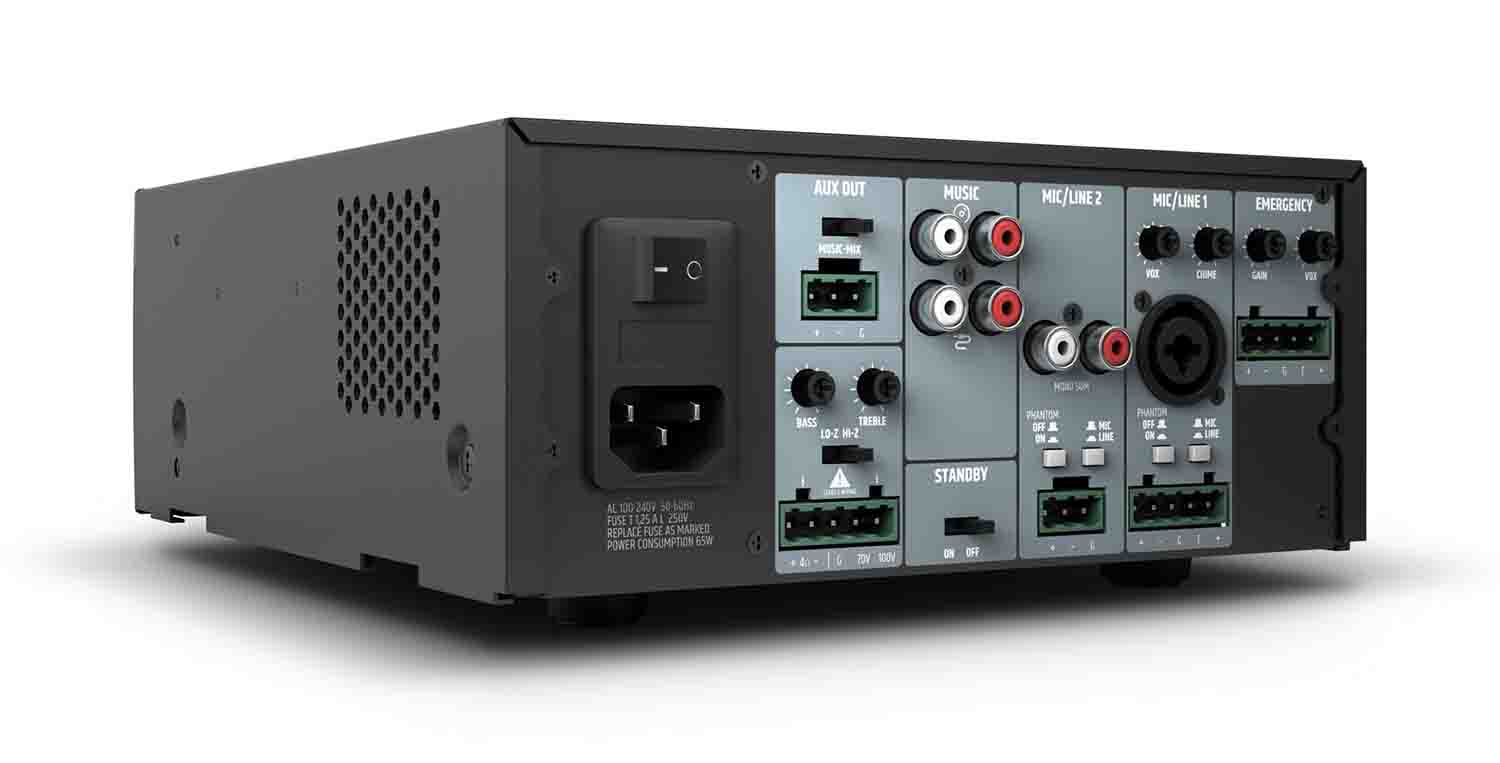

The outputs provide 35 W of power at 4 Ohm, a two-band equalizer for bass and trebles as well as 70 V/100 V tap settings. The Hi-Z and Lo-Z selector switch lets you separate the output signal completely from the output transformer to ensure an optimal frequency response for low impedance applications. The built-in aux output can be used to add external power amplifiers, active subwoofers, or on-hold music systems to the IMA 30. You can also choose to send the entire mix or only the selected music signal source to the aux output using the music-mix selector switch.
Product Specifications:
Product Type: Installation mixer preamplifier
Emergency Input: 1 balanced line input
Mic/ Line Inputs: 2
Music Sources: 2 unbalanced stereo line inputs, Bluetooth 4.0
Line Outputs: 1
Powered Outputs: 1 with output mode selector (Low-Z/High-Z)
Priority Levels: 4
Operating Voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power Consumption (Max.): 70 W
Idle Power Consumption: 7 W (no signal input)
Operating Temperature (Non-Condensing): 0°C - 40°C; < 85% humidity, Non condensing
Dimensions (W X H X D: 210 x 96.5 x 266.76 mm
Optional Accessories: Rack mounting hardware
Weight: 2,39 kg
