Description
The LD Systems wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 meters in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300 systems can be used simultaneously in each frequency band. Convenient one-touch synchronization via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone's frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack's input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.
The U300 Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500-series replaceable heads.

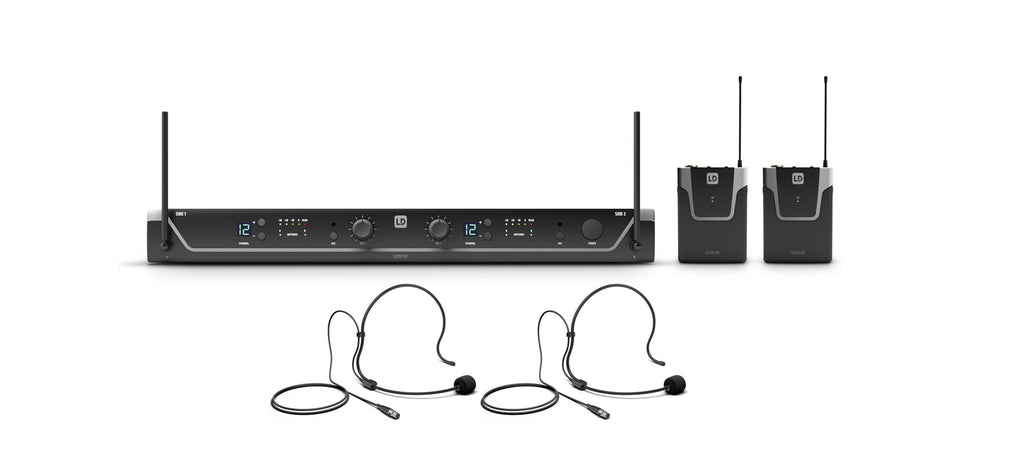

What’s Included,
LDU3047BP - LD Systems U304.7 BPH 2 (USA version) 470-490 MHz Pocket Transmitter (USA Version)
LDU3047R2 - LD Systems U304.7 BPH 2 (USA version) Dual receiver - 470 - 490 MHz (USA Version)
LDWS100MH1 - LD Systems U304.7 BPH 2 (USA version) Headset Microphone, Black
Product Specifications:
Product type: Wireless Microphone Systems
Kind: Set
HF frequency range: 470 - 490 MHz
Weight: 1.35 kg (2.98 Lbs.)

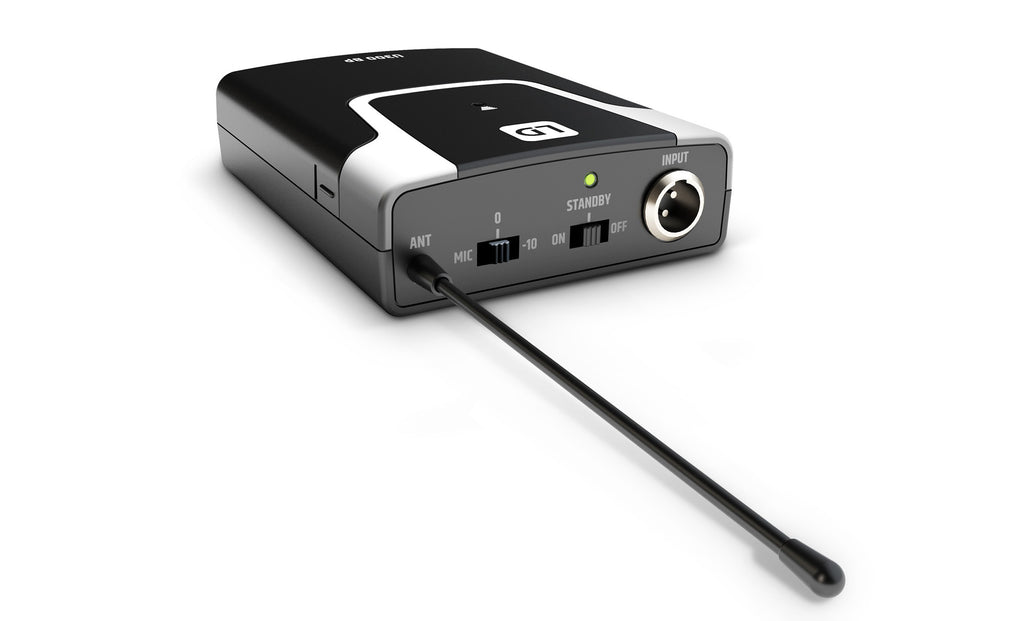

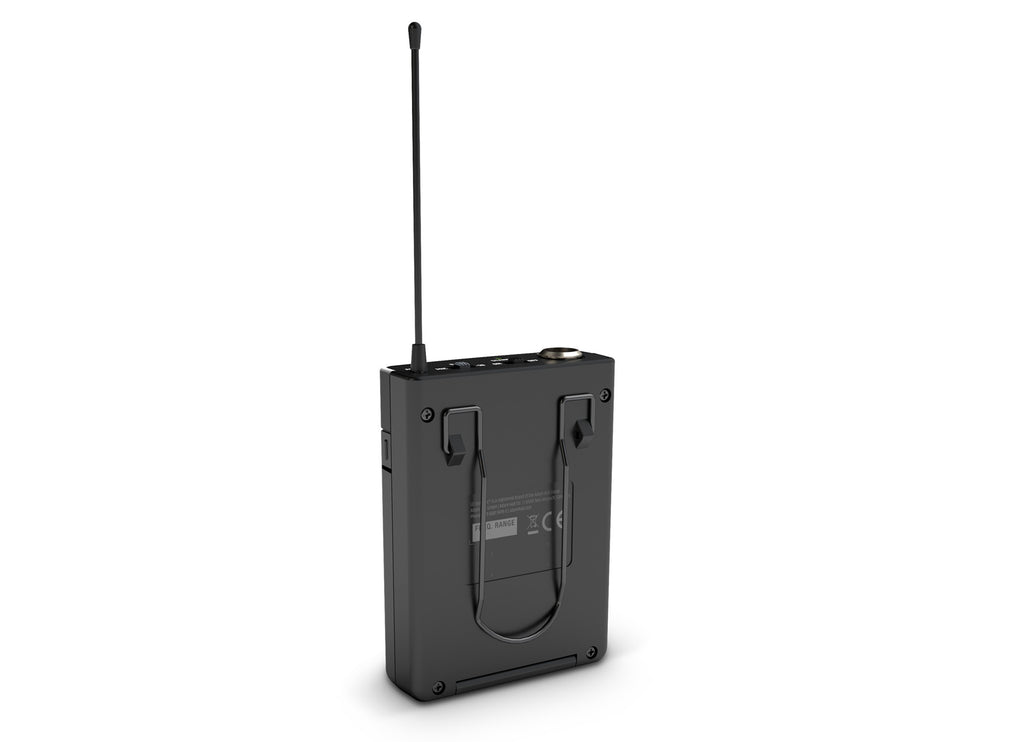

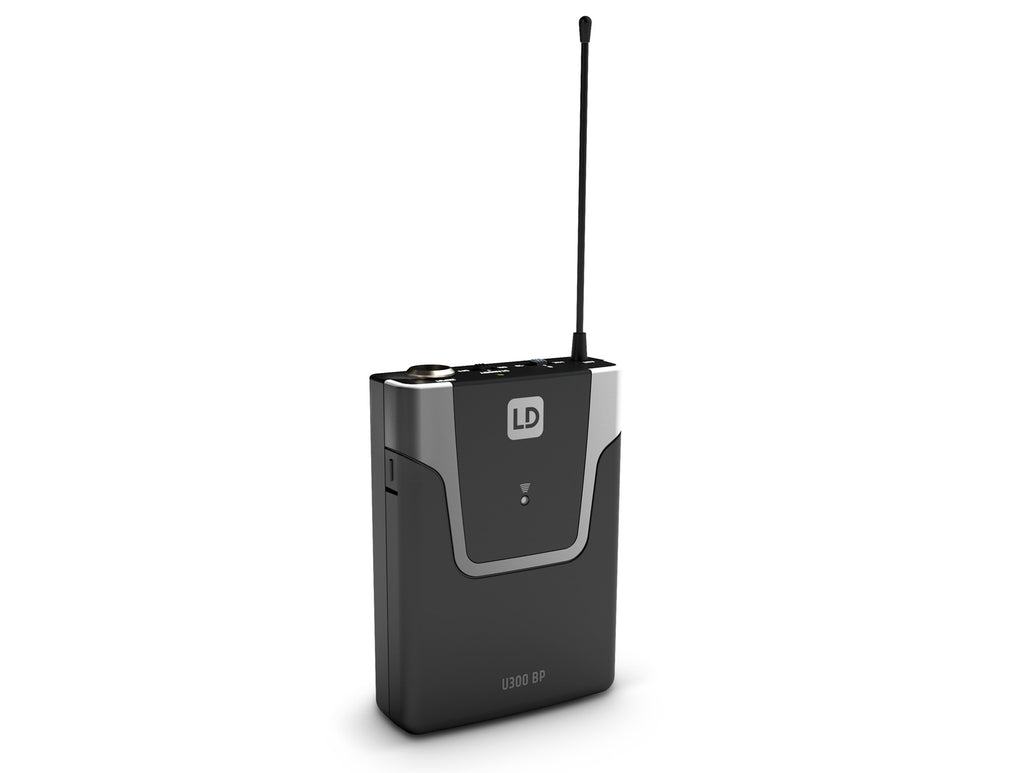

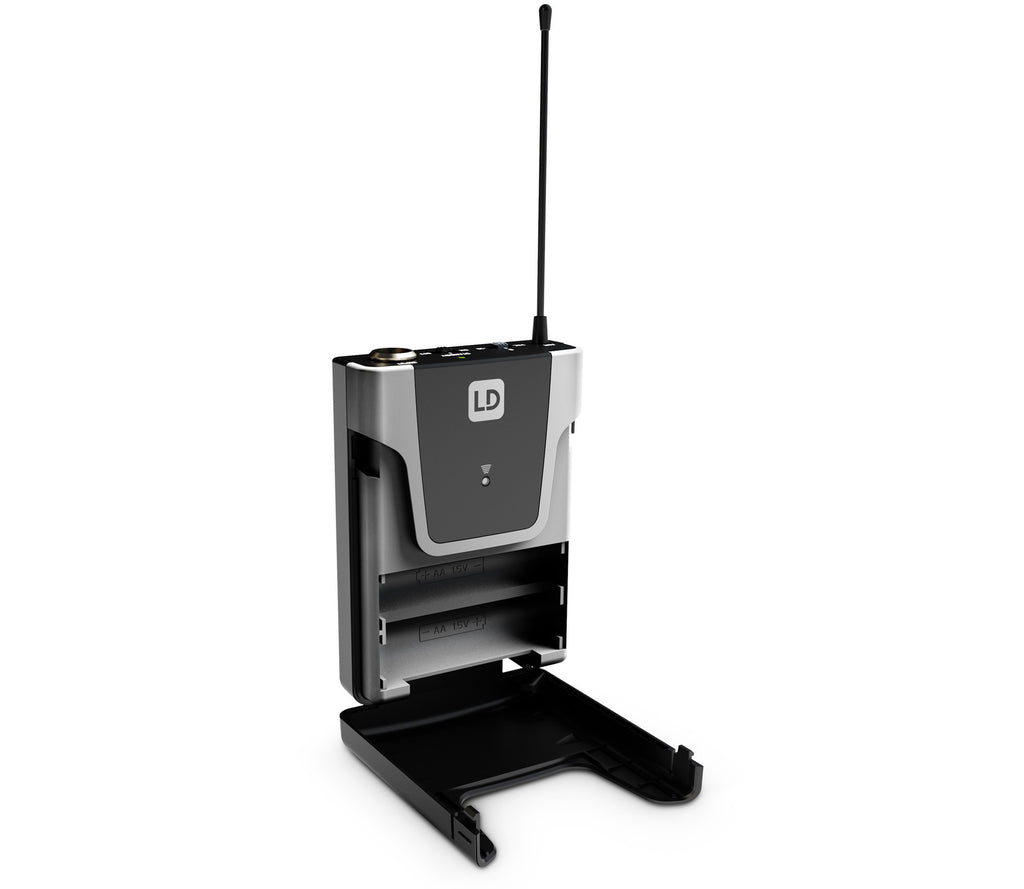

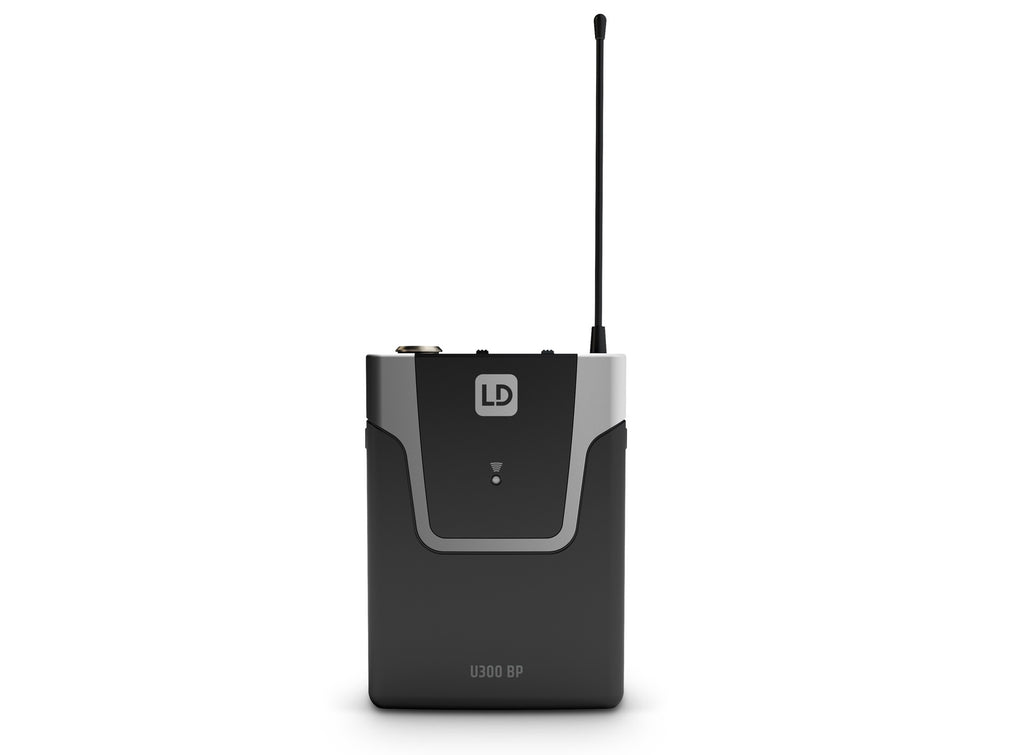

LDU3047BP - LD Systems U304.7 BPH 2 (USA version) 470-490 MHz Pocket Transmitter (USA Version)
Product type: Accessories for wireless microphone systems
Kind: Belt Transmitter
HF frequency range: 470 - 490 MHz
Canals: 12
Groups: 1
Entrances: Mini-XLR (phantom-powered “Low-Z” / “High-Z” instrument)
Frequency response: 25 - 16000
RF output power: 10 mW
Signal-to-noise ratio: 104 dB
Power supply: 2 LR06 (AA) batteries
Autonomy: >10 hours
Settings: Gain (3-position switch), Power On/Off
Indicators: IR ASC sync (green LED, flashing yellow), Battery LED (red when low), Power (green when ON)
Width: 65 mm (2.56 in)
Height: 91 mm (3.58 in)
Depth: 25 mm (0.98 in)
Weight: 0.085 kg (0.19 lbs)
Other properties: Belt clip, Infrared HF frequency synchronization, Pilot signal

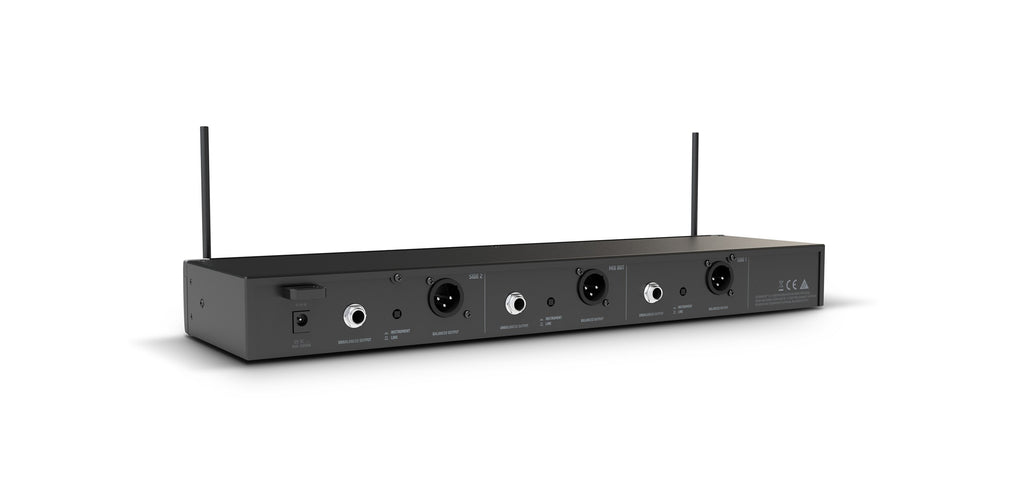

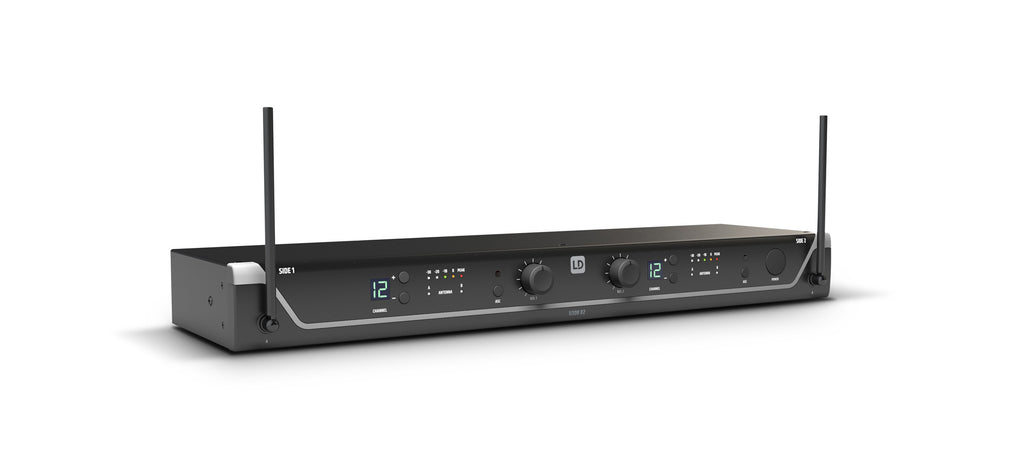

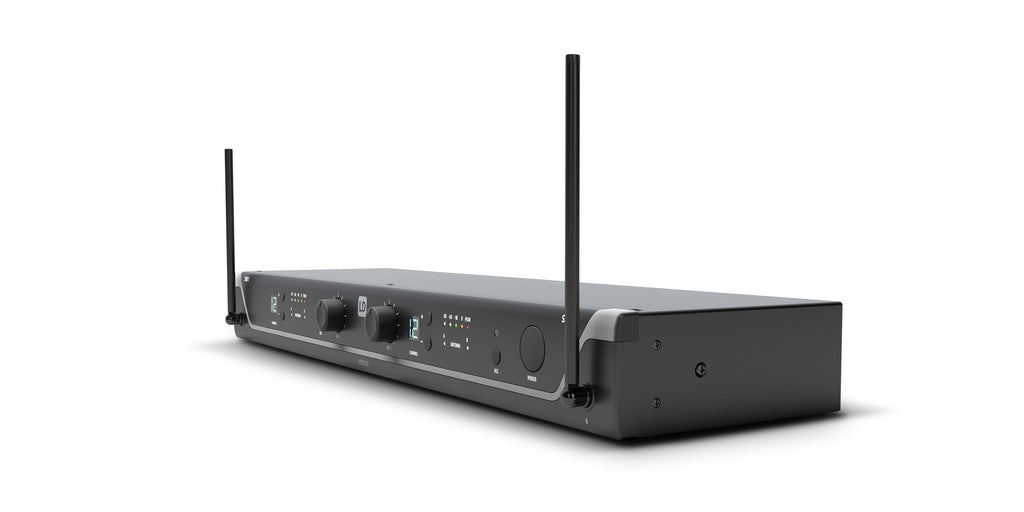

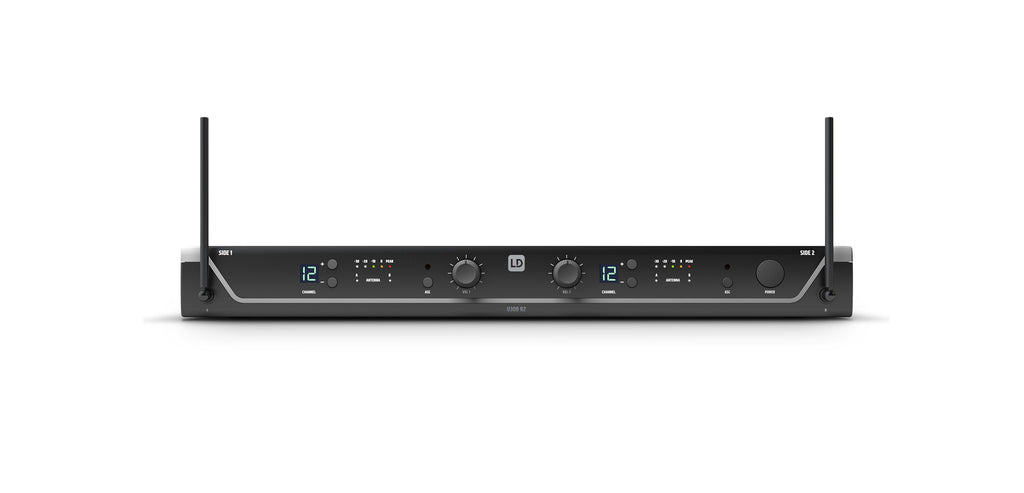

LDU3047R2 - LD Systems U304.7 BPH 2 (USA version) Dual receiver - 470 - 490 MHz (USA Version)
Product type: Accessories for wireless microphone systems
Kind: Receptors
Modulation type: FM
HF frequency range: 470 - 490 MHz
Canals: 12
Groups: 1
Antenna inputs: 2 x fixed
Frequency response: 35 - 16000
Noise reduction: Squelch
Transmission optimization: Pilot signal
Distortion rate (THD): < 0.3%
Signal-to-noise ratio: 104 dB
Balanced audio output: 3 x XLR
Asymmetrical audio output: 6.35 mm jack, switchable unbalanced output level (Line/Instrument)
Balanced Mix Audio Output: XLR
Audio output, asymmetrical mix: 6.35 mm jack
Maximum output level: +10 dBu (balanced), +7 dBV (unbalanced, line), +2.5 dBV (unbalanced, instr.) dBu
Settings: 2 x Volume, Channel Down, Channel Up, Line/Instrument Level, Power On/Off
Indicators: 5-LED VU Meter, A/B Antenna, LCD Display
Main’s voltage: 12 V DC, 500 mA
Width: 410 mm (16.14 in)
Height: 43 mm (1.69 in)
Depth: 120 mm (4.72 in)
Weight: 1.265 kg (2.79 lbs.)
Accessories (included): 2 x AA (LR06) batteries, AC adapter
Other properties: Infrared HF frequency synchronization, Pilot signal

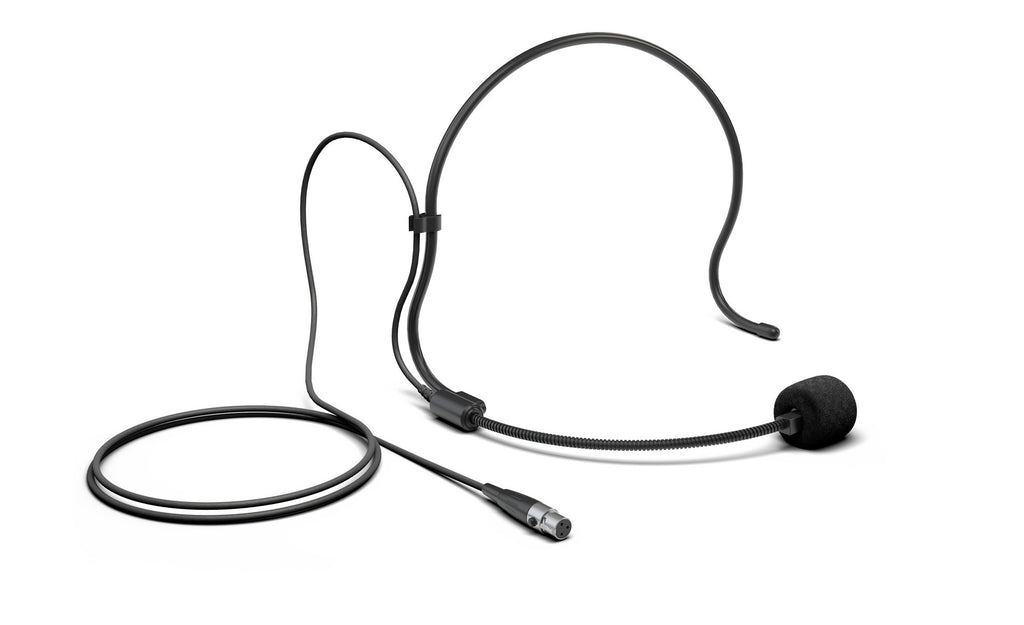

LDWS100MH1 - LD Systems U304.7 BPH 2 (USA version) Headset Microphone, Black.
Directivity: Cardioid
Capsule type: Condense
Nominal impedance: 680 Ω
Sensitivity (transfer factor): 6.31 mV/Pa
Ghost power supply: 5V
Output connector type: Mini XLR female
Cable length: 1 m
Material: ABS
Frequency response (-6 dB, rel. Avg): 100 - 12,000 Hz
Color: Black
Weight: 49 g (0.11 lbs.)
