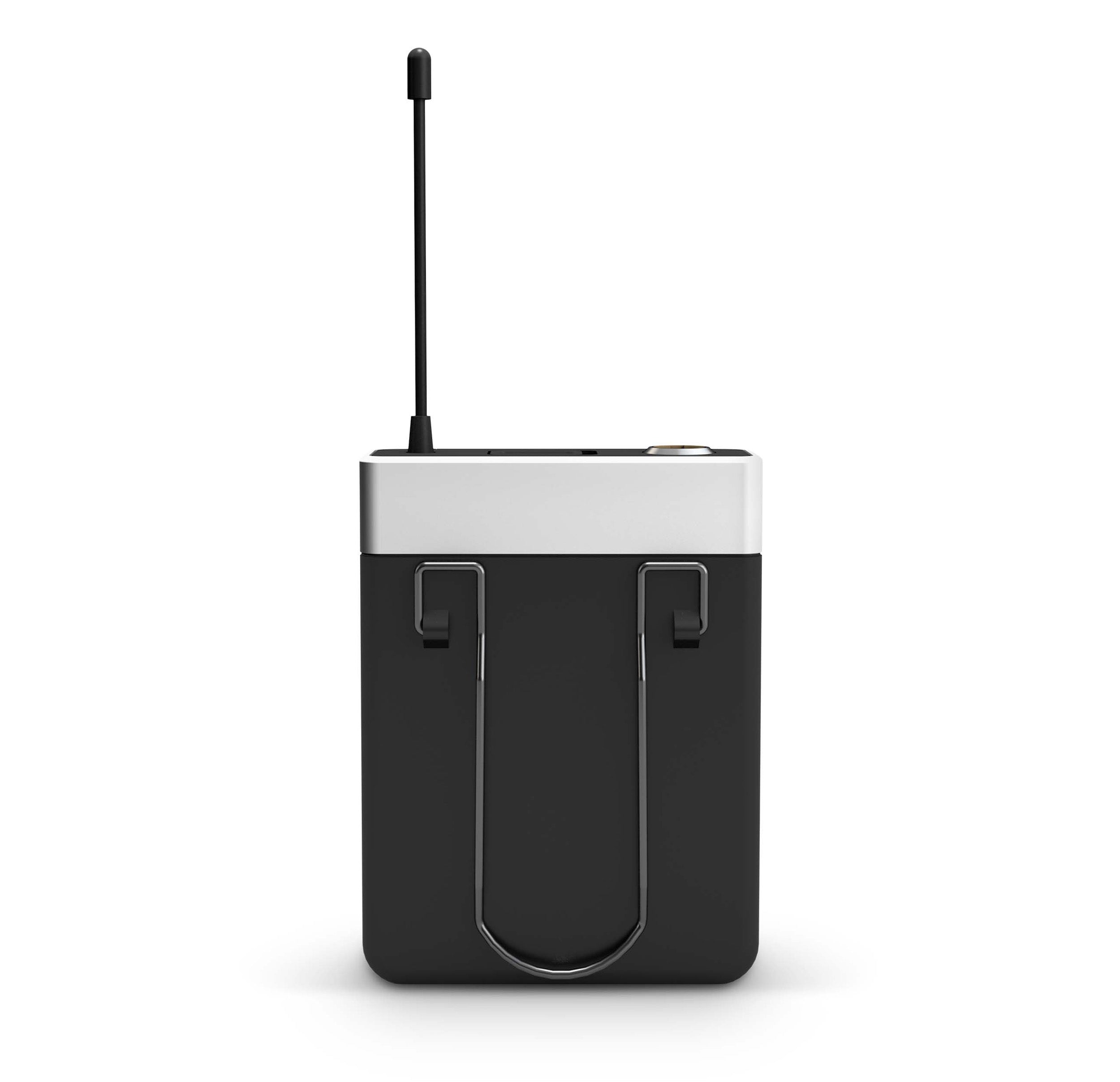

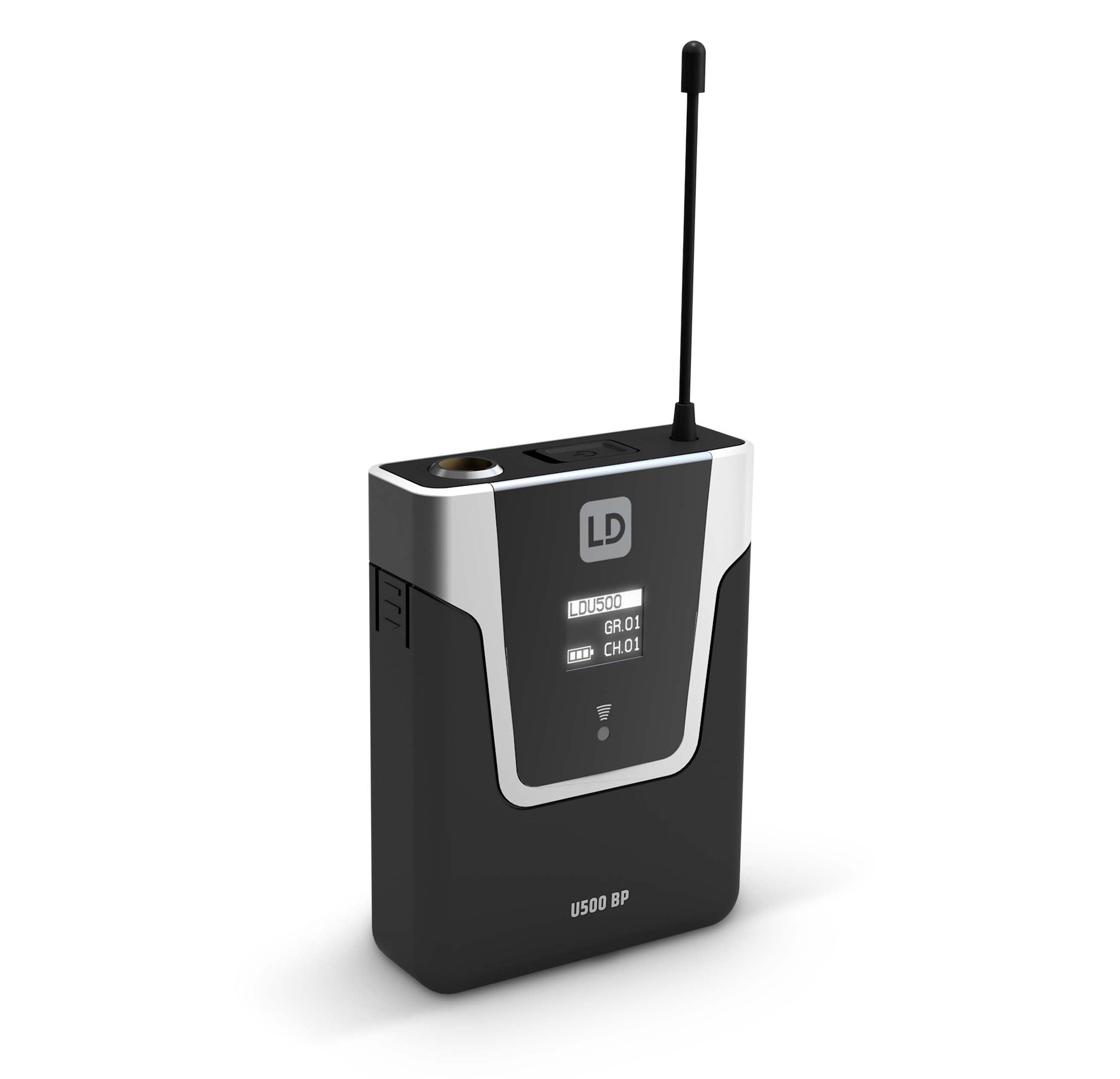

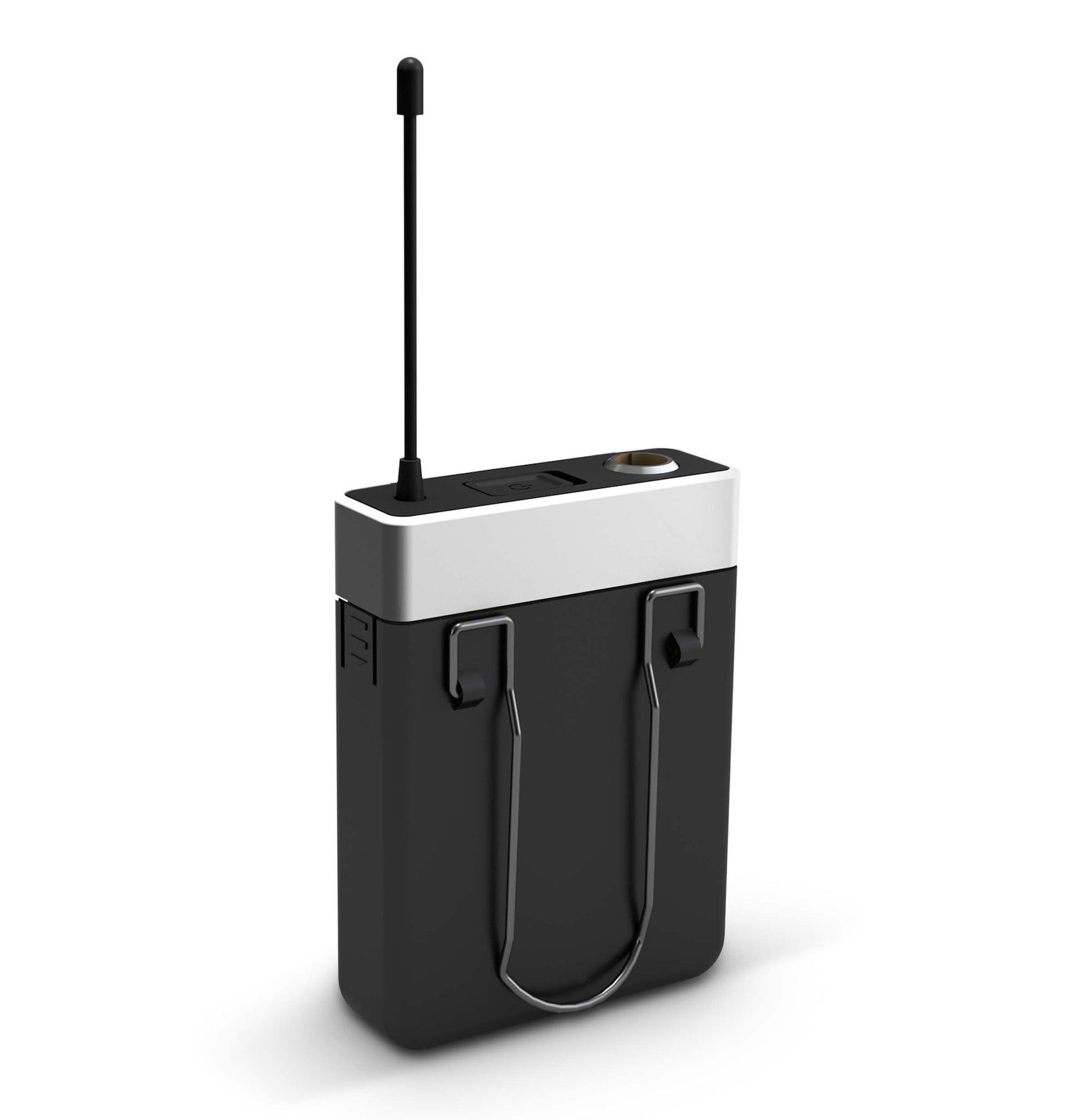

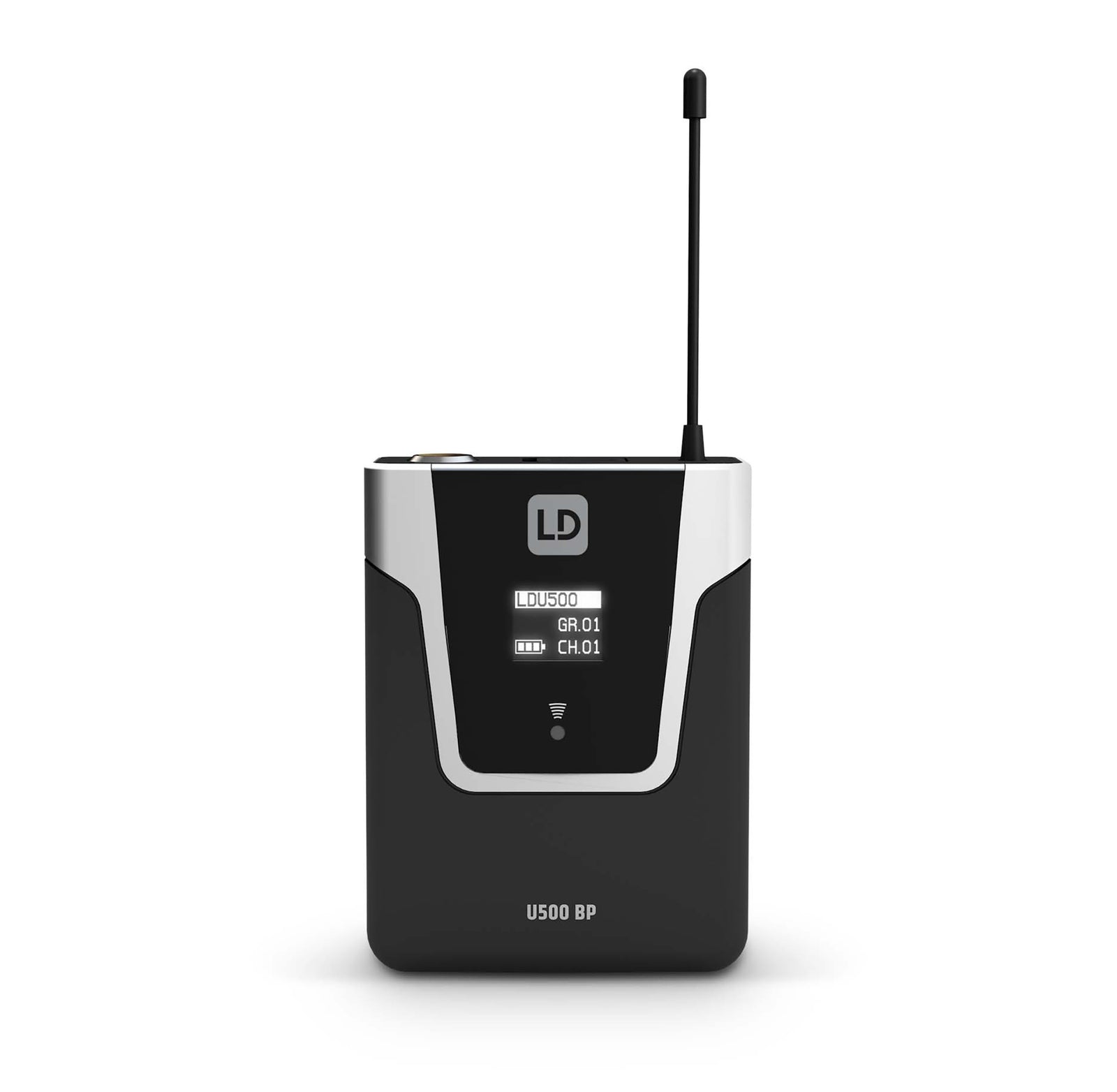

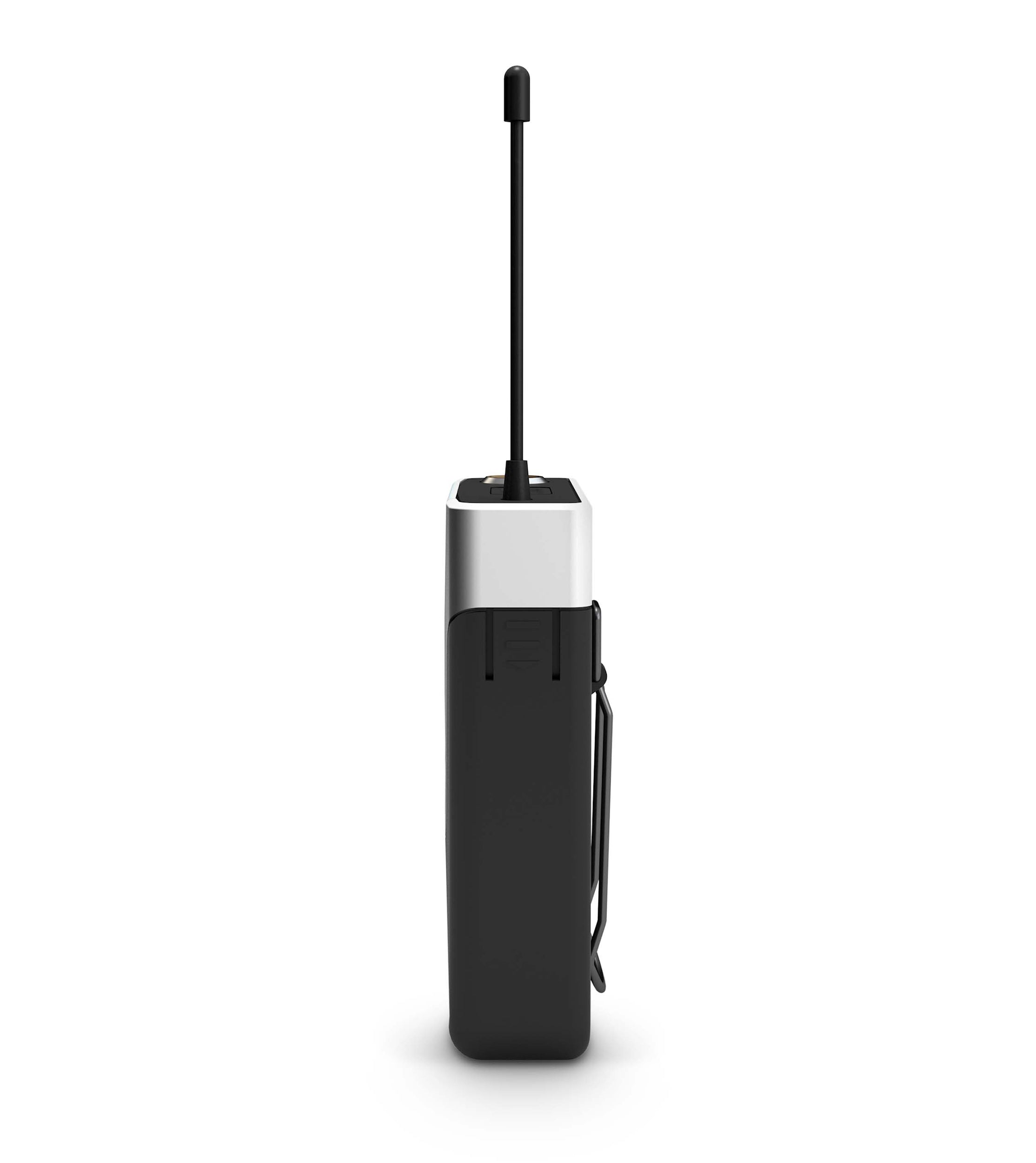

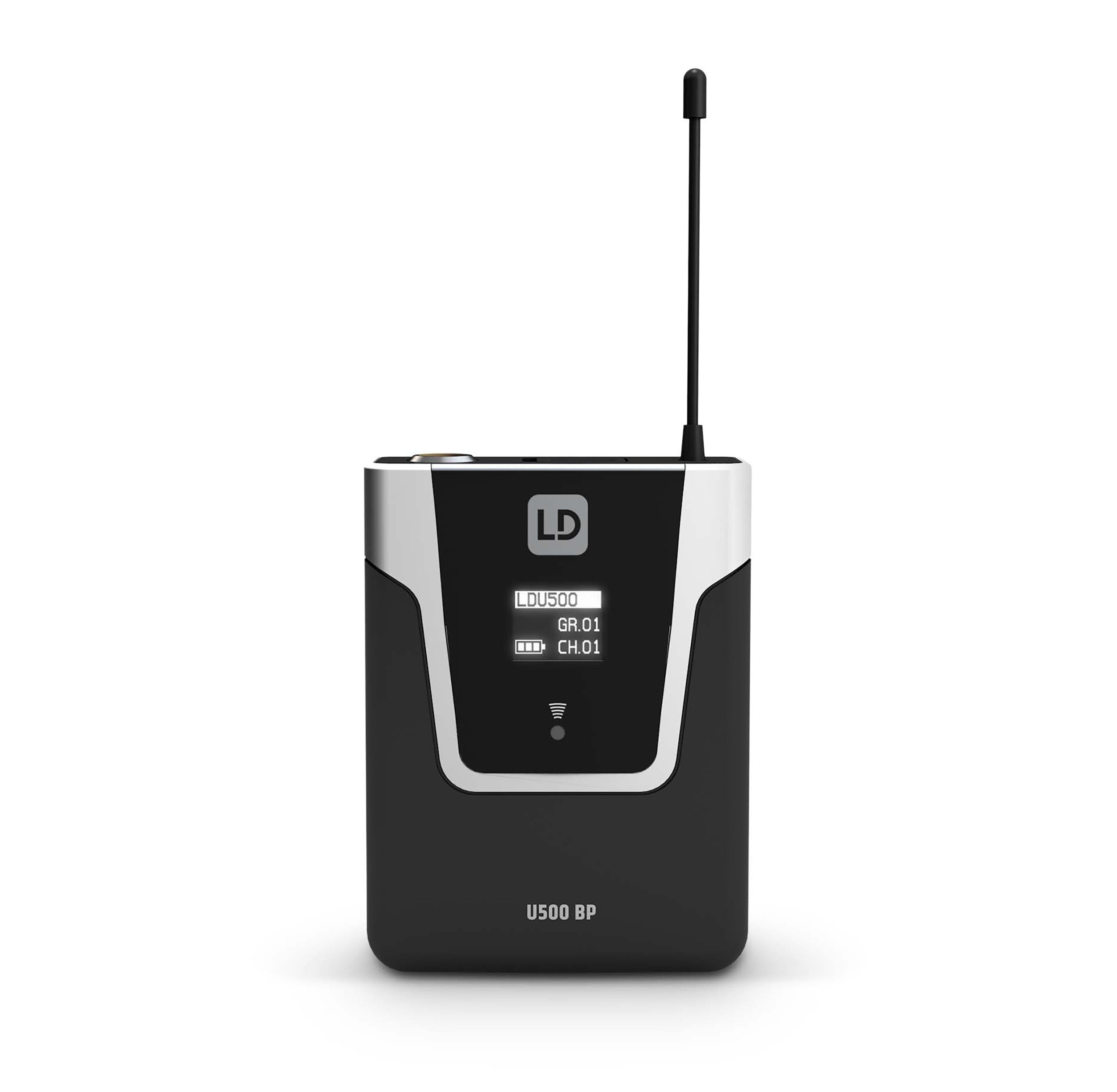

LD Systems U505.1 BP US Bodypack Transmitter - 512 - 542 MHz

Save 23%

Sale price$249.99 Regular price$324.98
Sold out

Notify me when available

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.


The LD Systems LDS-U5051BPUS Bodypack Transmitter 512 - 542 MHz we have developed the U500 Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500 Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500 Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

U500 vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The U500 conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

Product Specification:

Product Type: Wireless Microphone System Accessories

Type: Bodypack

Transmission Frequency Range: 512 - 542 MHz

Channels: 96 (8 groups of 12 channels)

Groups: 8

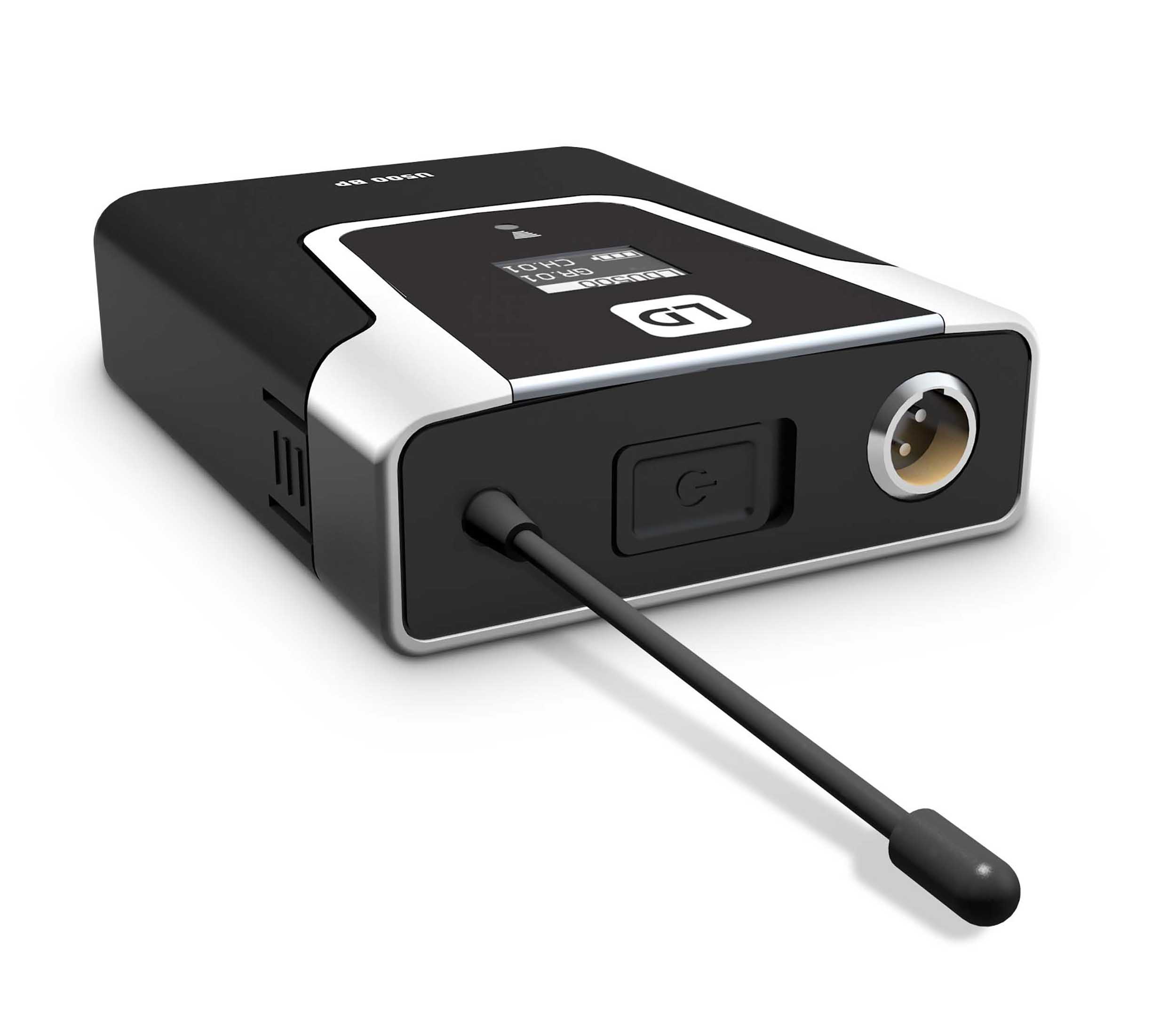

Inputs: Mini-XLR (3-pin)

Frequency Response: 30 - 16000 Hz

Signal-to-Noise Ratio: >90 dB

Rated HF Output Power: Variable (2mW, 10mW, 30mW)

Controls: arrow keys (up/down value entry), Power On/Off, select

Indicators: OLED Display

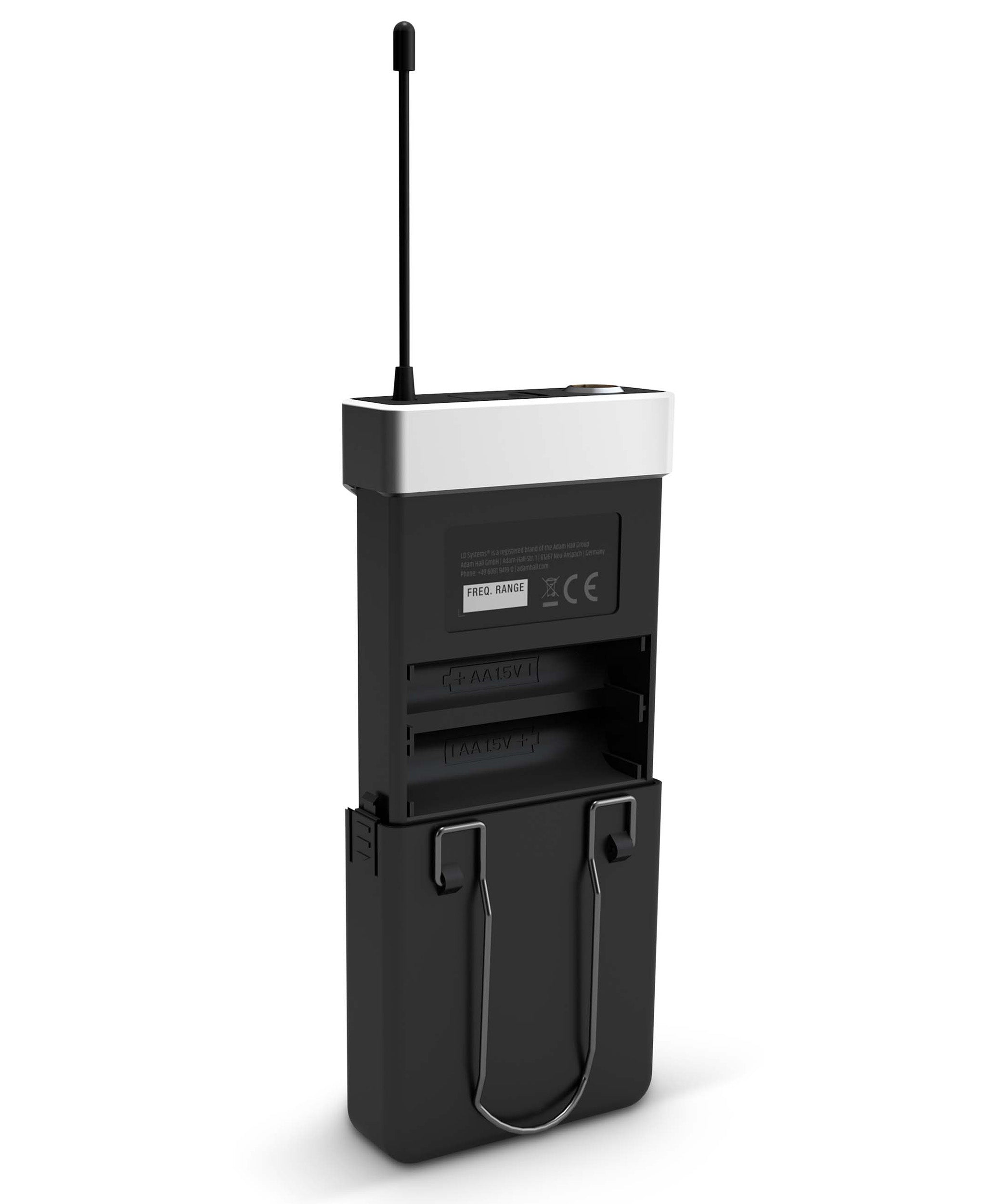

Power Supply: 2 x 1.5 V AA

Operating Time: >10 h (with alkaline batteries)

Width: 65 mm

Height: 86 mm

Depth: 23 mm

Weight: 0,09 kg
