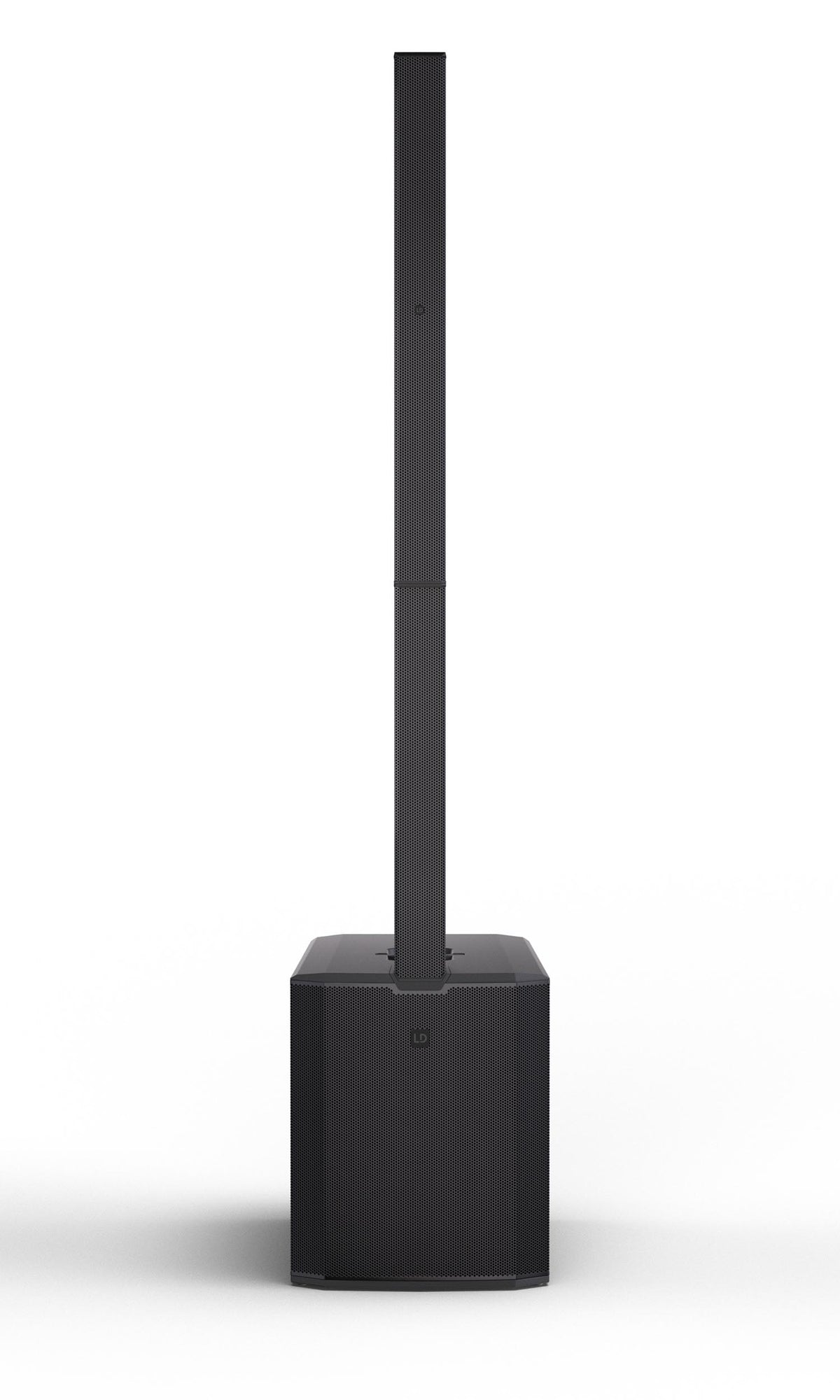

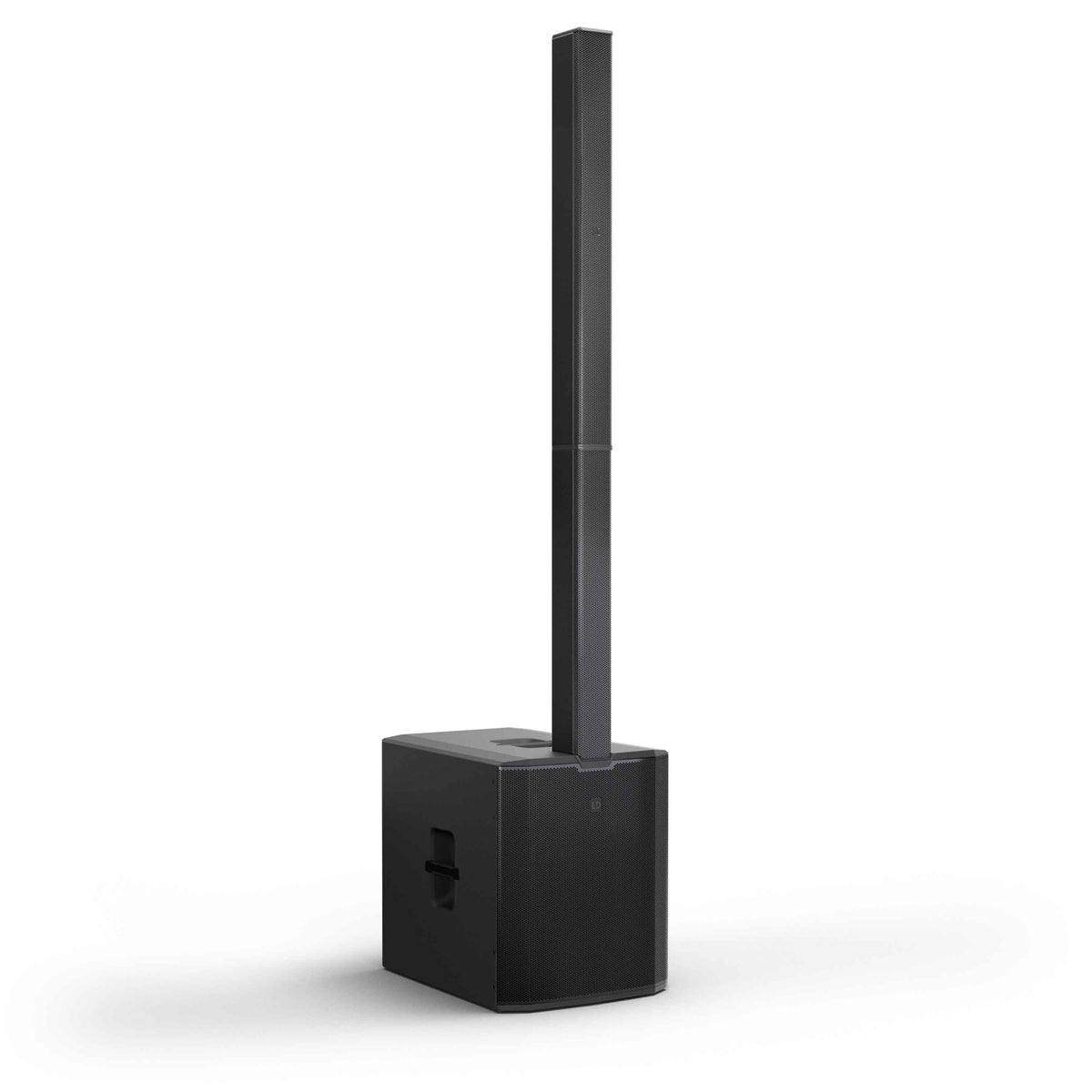

The LD Systems MAUI 66 G3 is a flagship, fully active 4-way cardioid column PA system designed for professional DJs, bands, live performances, and event production. Delivering 3,800W peak power and a maximum SPL of 135 dB, it combines powerful full-range sound with an extended-range column and controlled dispersion. Its integrated design offers substantial headroom, streamlined setup, and professional sound reinforcement for demanding indoor and outdoor applications.

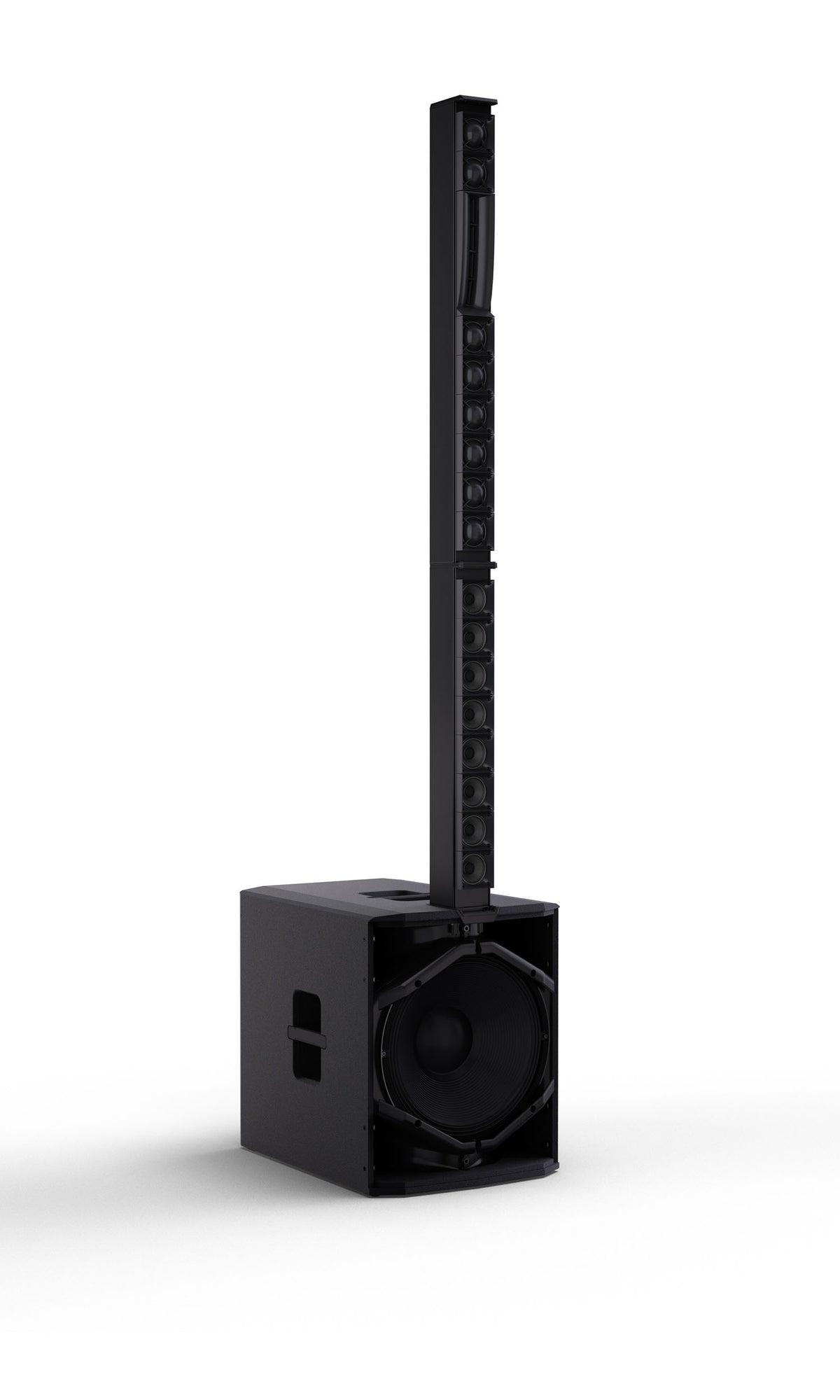

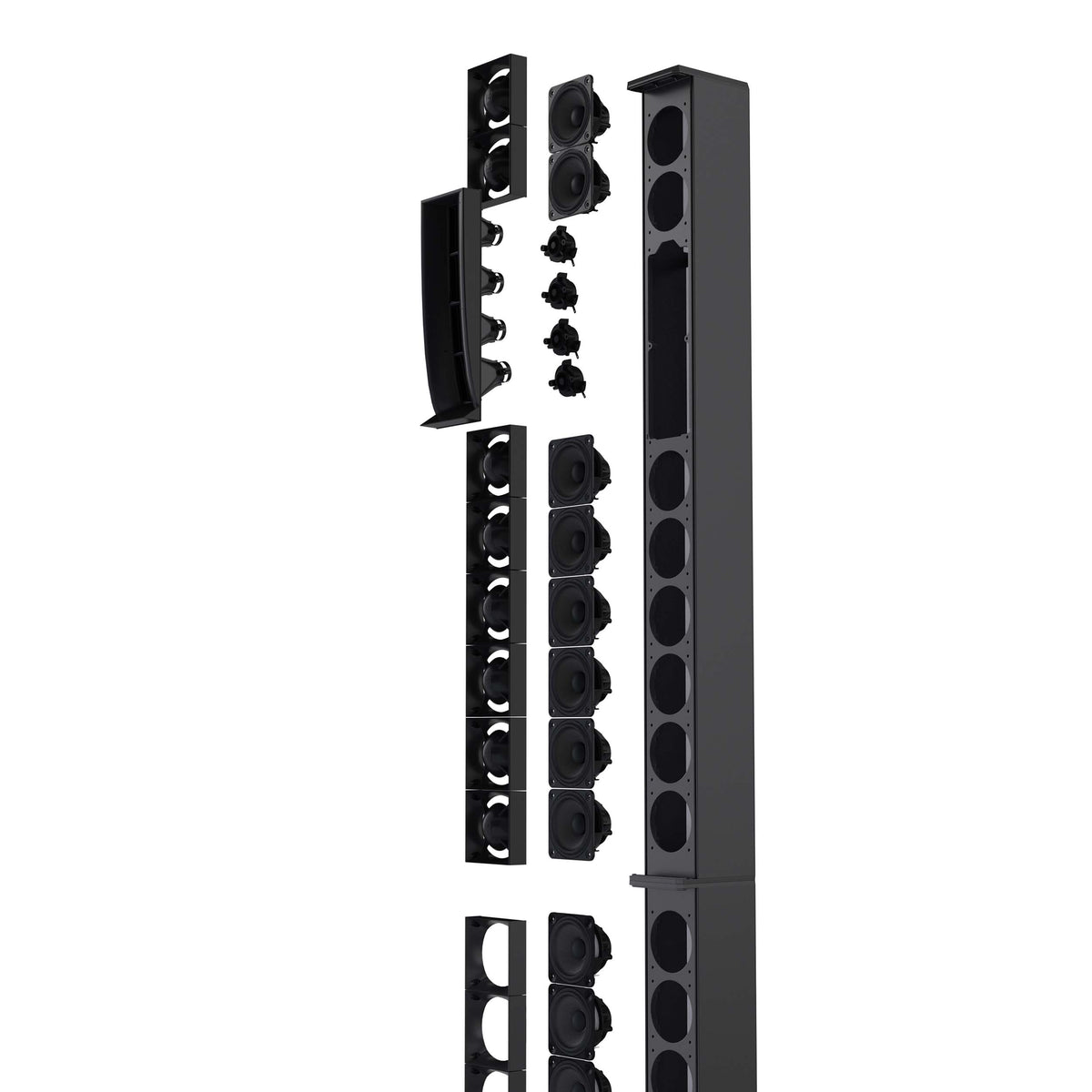

The two-piece column houses 16 × 3.5-inch neodymium midrange drivers and four 1-inch compression drivers. Two midrange drivers are positioned above the high-frequency section to extend the system's reach and help maintain midrange clarity in open-air applications. BEM-optimized waveguides, specially developed phase plugs, and horn-loaded midrange drivers contribute to efficient sound projection and coherent mid- and high-frequency reproduction. The system provides a nominal dispersion pattern of 120° horizontally by 25° vertically.

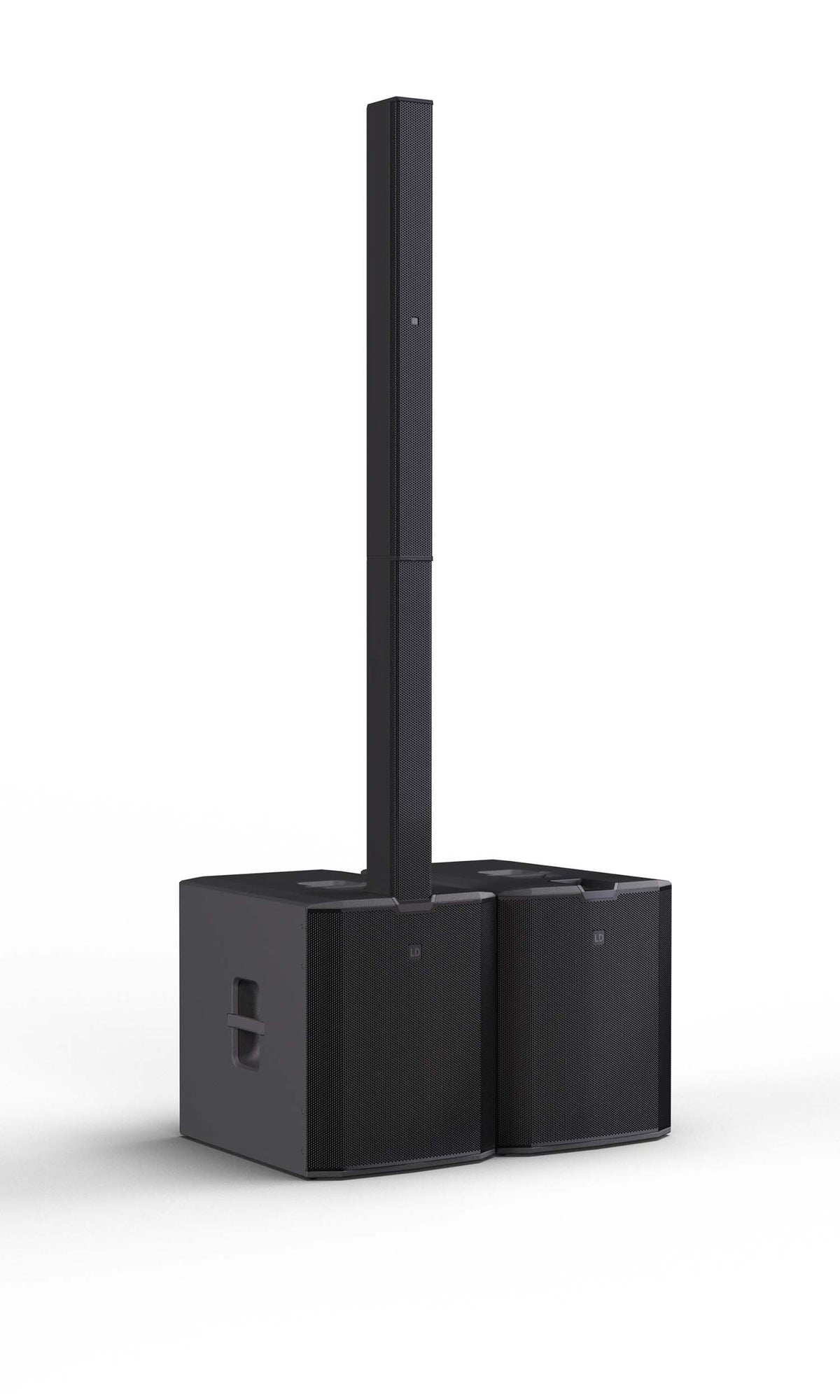

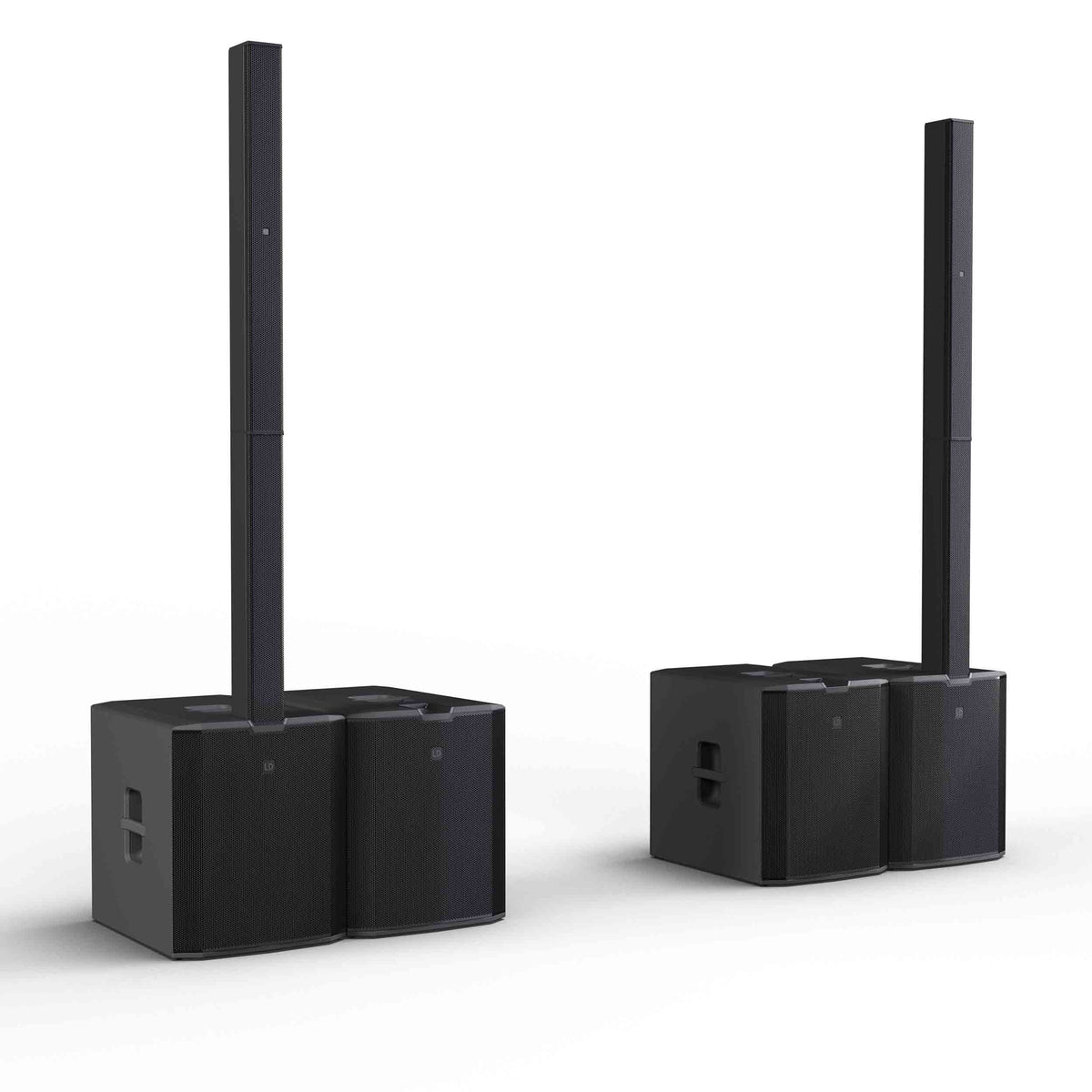

The passive cardioid column design directs sound toward the audience while reducing rearward radiation by up to 18 dB. When paired with an additional MAUI 66 G3 subwoofer facing rearward and configured with the Cardioid preset, the cardioid principle can also be extended into the low-frequency range. Alternatively, a forward-facing second subwoofer can increase low-frequency sound pressure by up to 6 dB under the specified configuration.

Key Features

• Fully active 4-way cardioid column PA system.
• 3,800W peak power and 1,900W RMS amplifier power.
• Maximum SPL of 135 dB.
• 18-inch high-power neodymium subwoofer.
• Low-frequency response down to 28 Hz.
• Sixteen 3.5-inch neodymium midrange drivers.
• Four 1-inch compression drivers.
• Extended-range column with two elevated midrange drivers.
• Passive cardioid column with up to 18 dB rear attenuation.
• 120° × 25° nominal dispersion.
• Rugged aluminum columns with recessed handles.

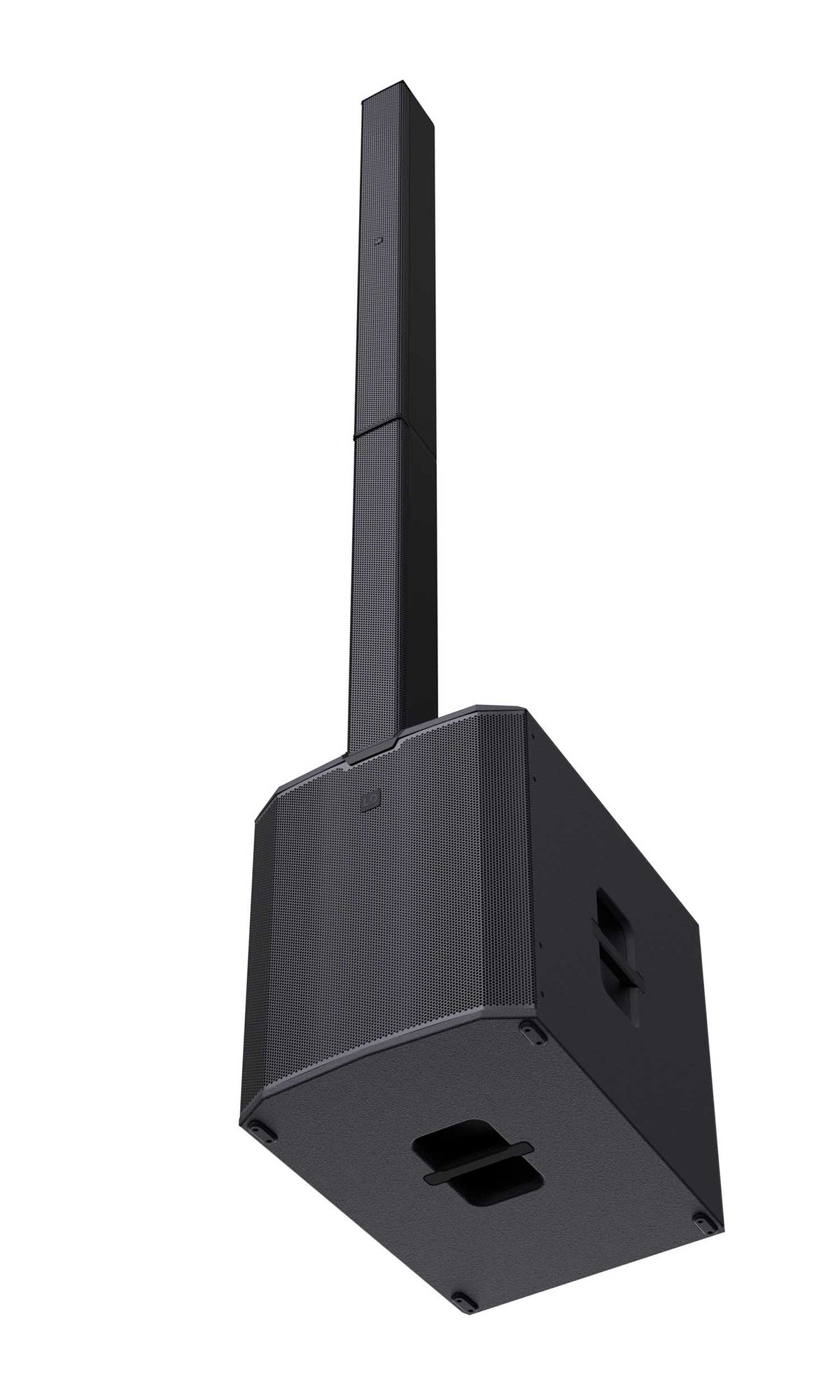

• Four ergonomic carrying handles on the subwoofer.

Ideal For

• Professional DJs and mobile entertainers.
• Live bands and musicians.
• Concerts and outdoor performances.
• Festivals and large event productions.
• Corporate events and conferences.
• Wedding and event service providers.
• Professional sound rental companies.
• Applications requiring deep bass, extended reach, and controlled stage sound.

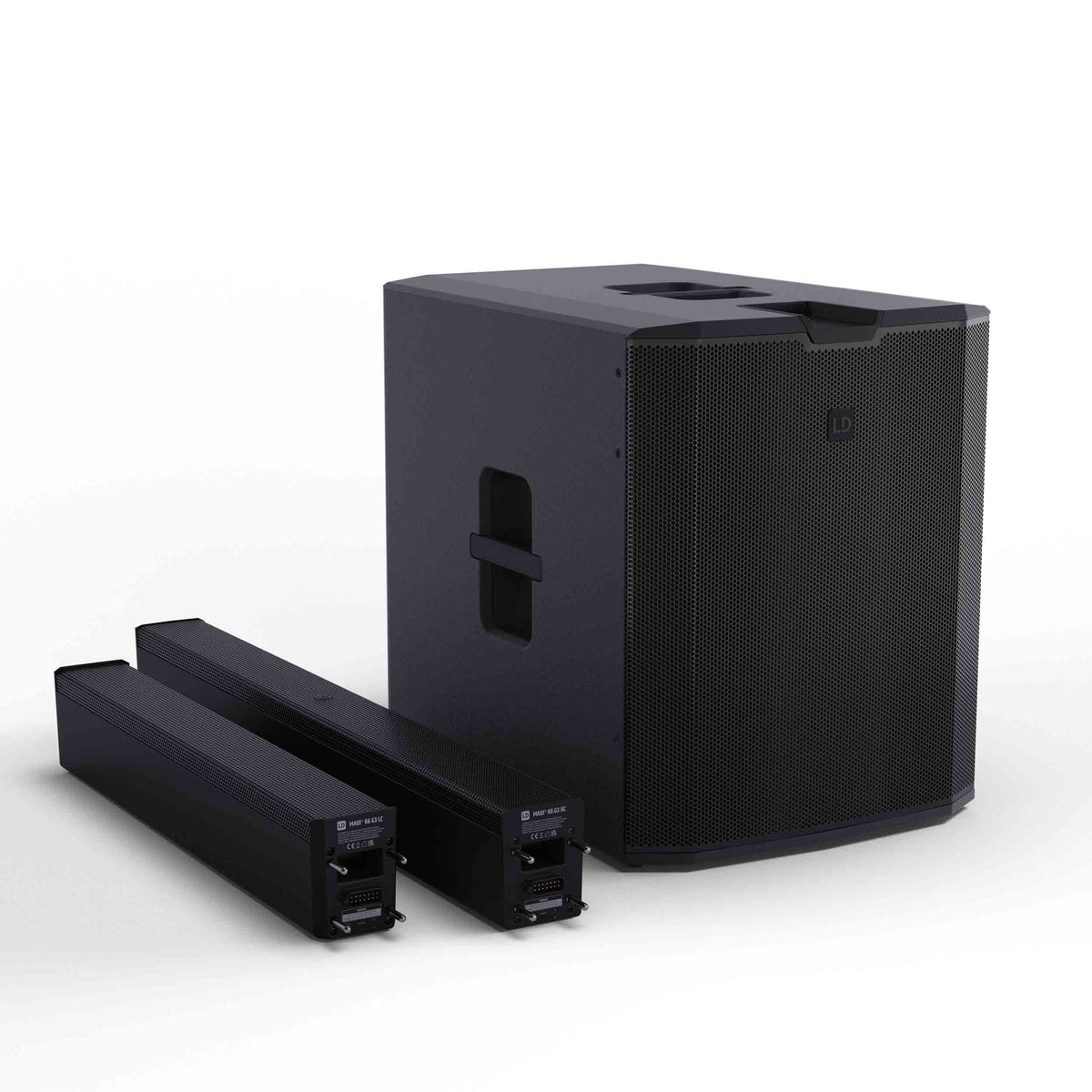

What's in the Box

• LD Systems MAUI 66 G3 subwoofer.
• Upper column section.
• Lower column section.
• Verify the exact included components and accessories with the manufacturer or supplier before publishing.

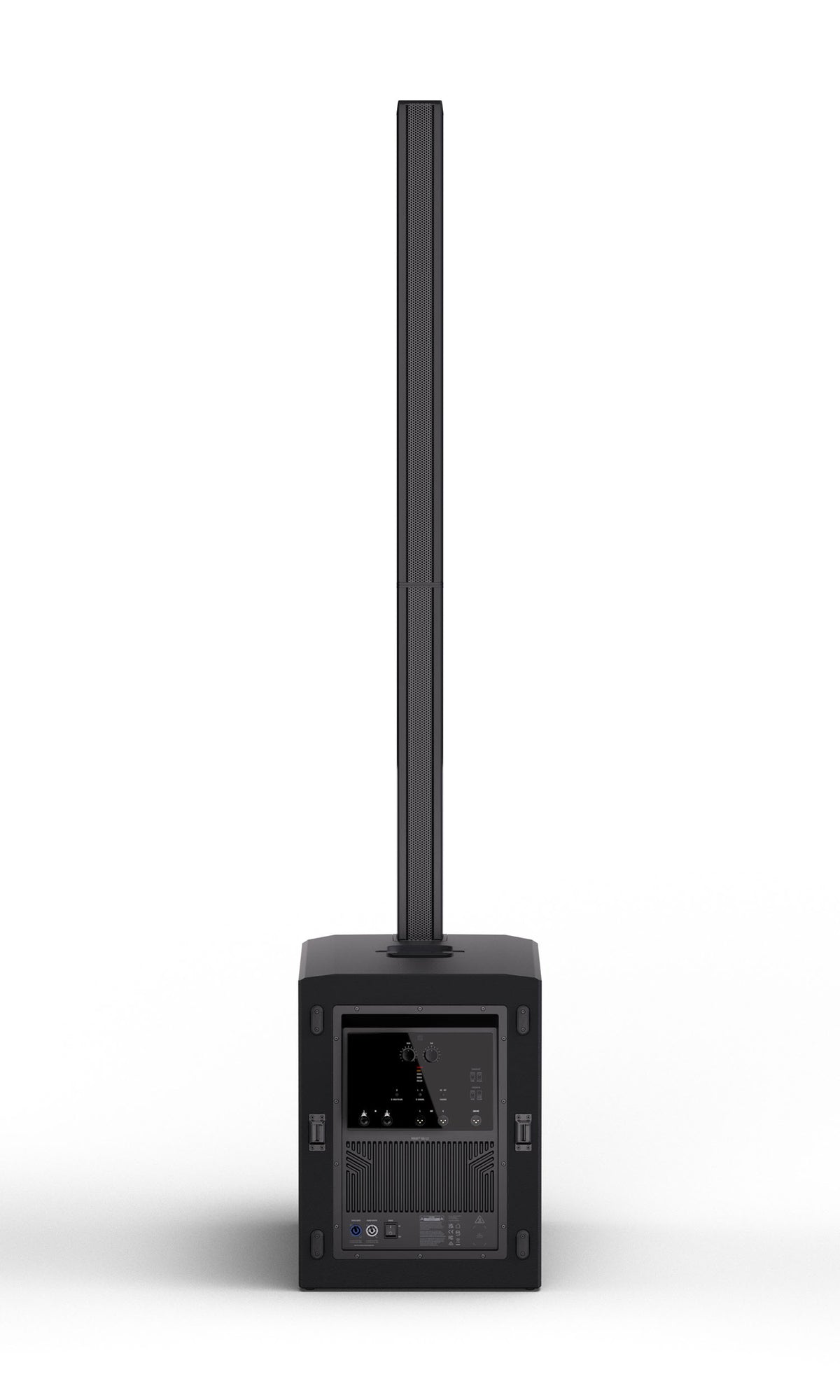

Inputs & Outputs

• Audio Inputs Two XLR/TRS combo inputs.
• Thru Outputs Two Thru outputs.
• Subwoofer Output One dedicated subwoofer output.
• Wireless Audio Bluetooth 5.4 with SBC and AAC codec support.

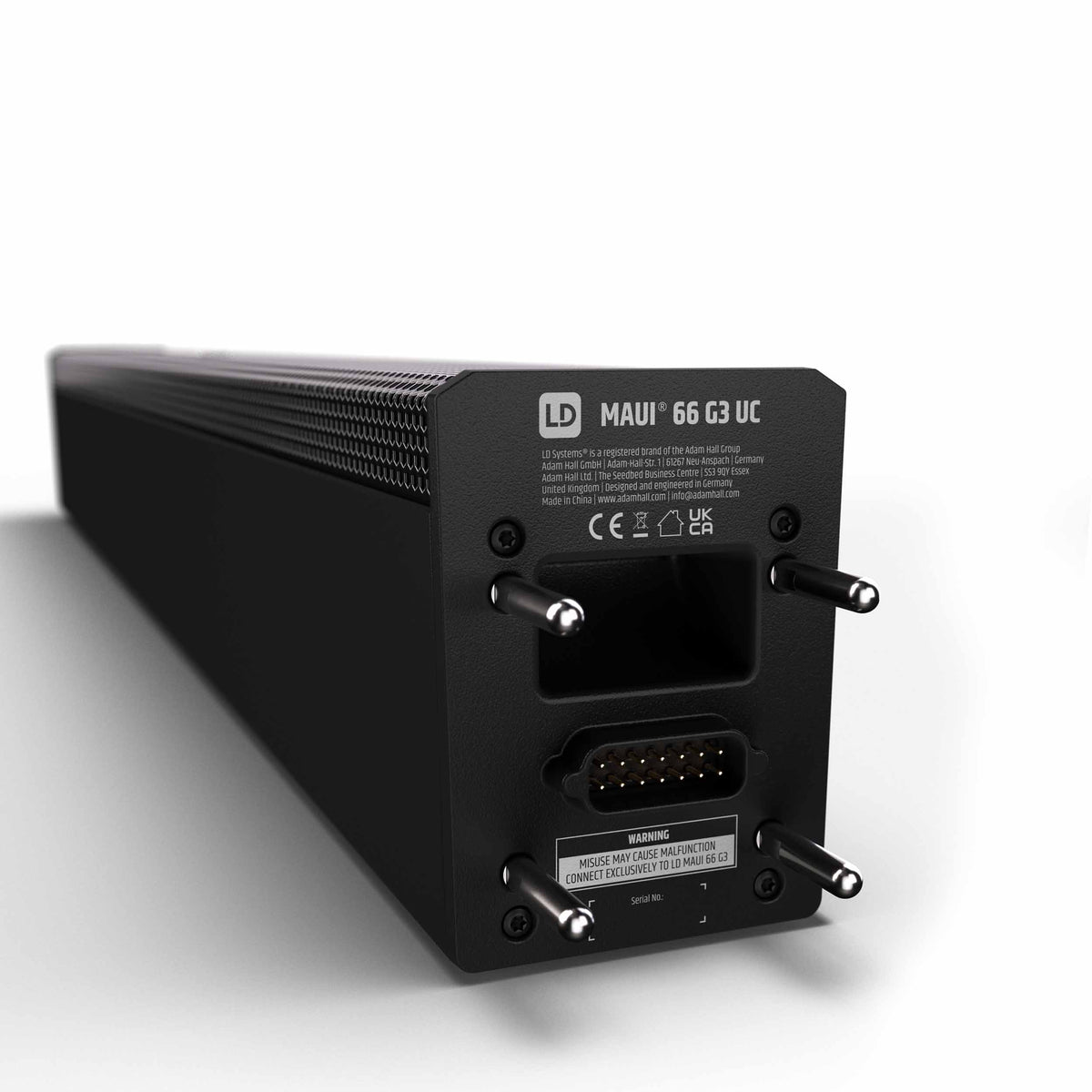

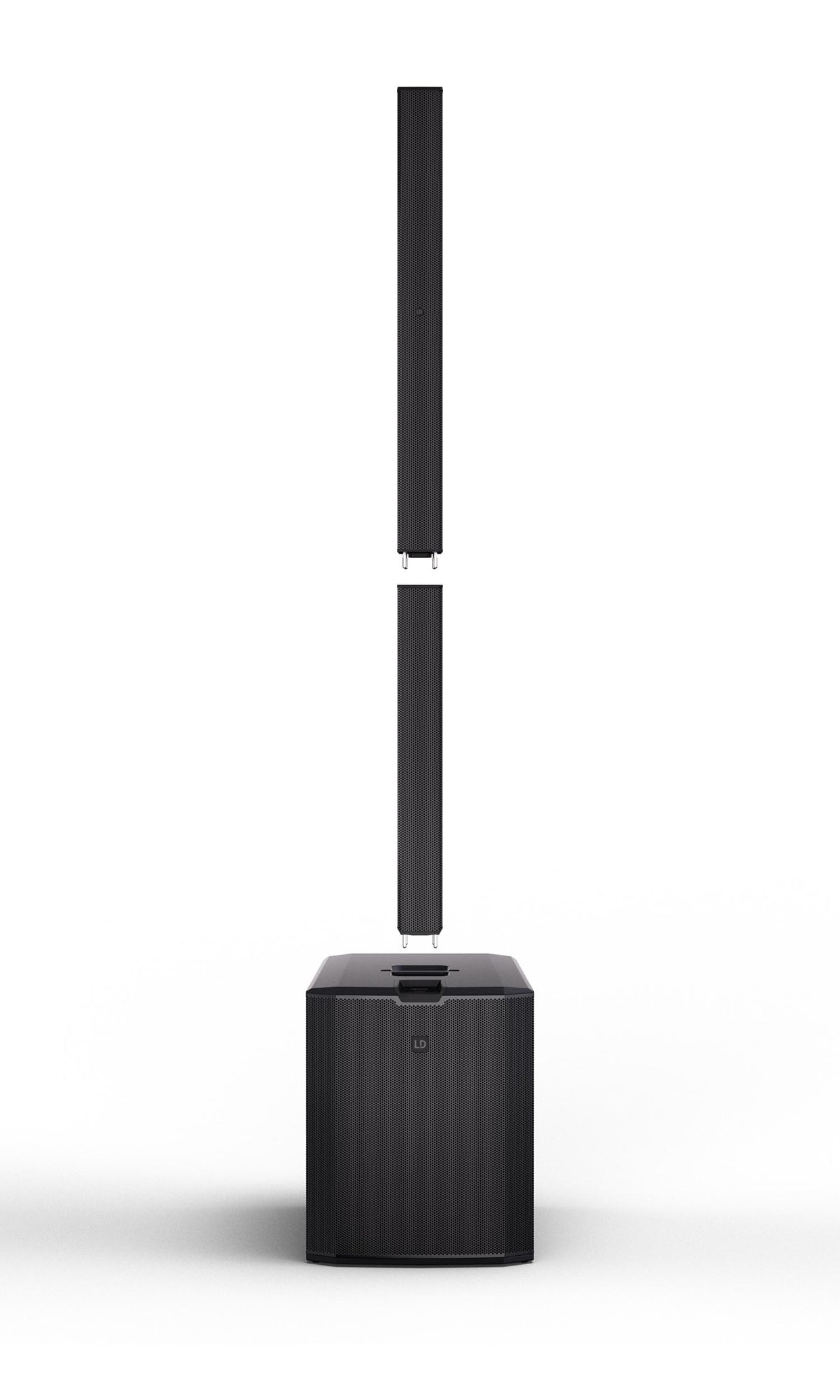

• Column Connection Cable-free connection between column sections and subwoofer.
• Column Detection Automatic column detection.

Frequently Asked Questions

What type of sound system is the LD Systems MAUI 66 G3 ?

It is a flagship, fully active 4-way cardioid column PA system designed for professional sound reinforcement.

How much power does the MAUI 66 G3 deliver?

Its Class-D amplifier delivers 1,900W RMS and 3,800W peak power.

What is the maximum SPL?

The system provides a maximum sound pressure level of 135 dB.

How deep can the subwoofer reproduce bass?

The 18-inch neodymium subwoofer delivers low-frequency response down to 28 Hz.

How many drivers are in the column?

The column includes 16 × 3.5-inch neodymium midrange drivers and four 1-inch compression drivers.

Does the system reduce sound behind the column?

Yes. Its passive cardioid design reduces rearward radiation by up to 18 dB.

Does it support Bluetooth audio?

Yes. Bluetooth 5.4 supports wireless audio playback using SBC and AAC codecs.

Can an additional subwoofer be used?

Yes. A second MAUI 66 G3 subwoofer can extend low-frequency performance or support a cardioid subwoofer configuration.

What audio connections are available?

The system has two XLR/TRS combo inputs, two Thru outputs, and a dedicated subwoofer output.

What DSP technology does it use?

It uses DynX® DSP Gen. 2 with advanced peak, RMS, and thermal limiters.

Is the system suitable for outdoor performances?

Its extended-range column and controlled dispersion make it suitable for open-air applications when used in accordance with the manufacturer's environmental and operating requirements.

Full Technical Specifications

General Specifications

Brand	LD Systems
Model	MAUI 66 G3
Product Type	Flagship All-in-One Column PA System
System Configuration	Fully active 4-way
Column Design	Passive cardioid
Peak Power	3,800W
RMS Power	1,900W
Maximum SPL	135 dB
Application	Professional sound reinforcement

Audio & Driver Specifications

Subwoofer Driver	1 × 18-inch high-power neodymium woofer
Midrange Drivers	16 × 3.5-inch neodymium drivers
High-Frequency Drivers	4 × 1-inch compression drivers
Low-Frequency Response	Down to 28 Hz
Horizontal Dispersion	120°
Vertical Dispersion	25°
Rear Attenuation	Up to 18 dB

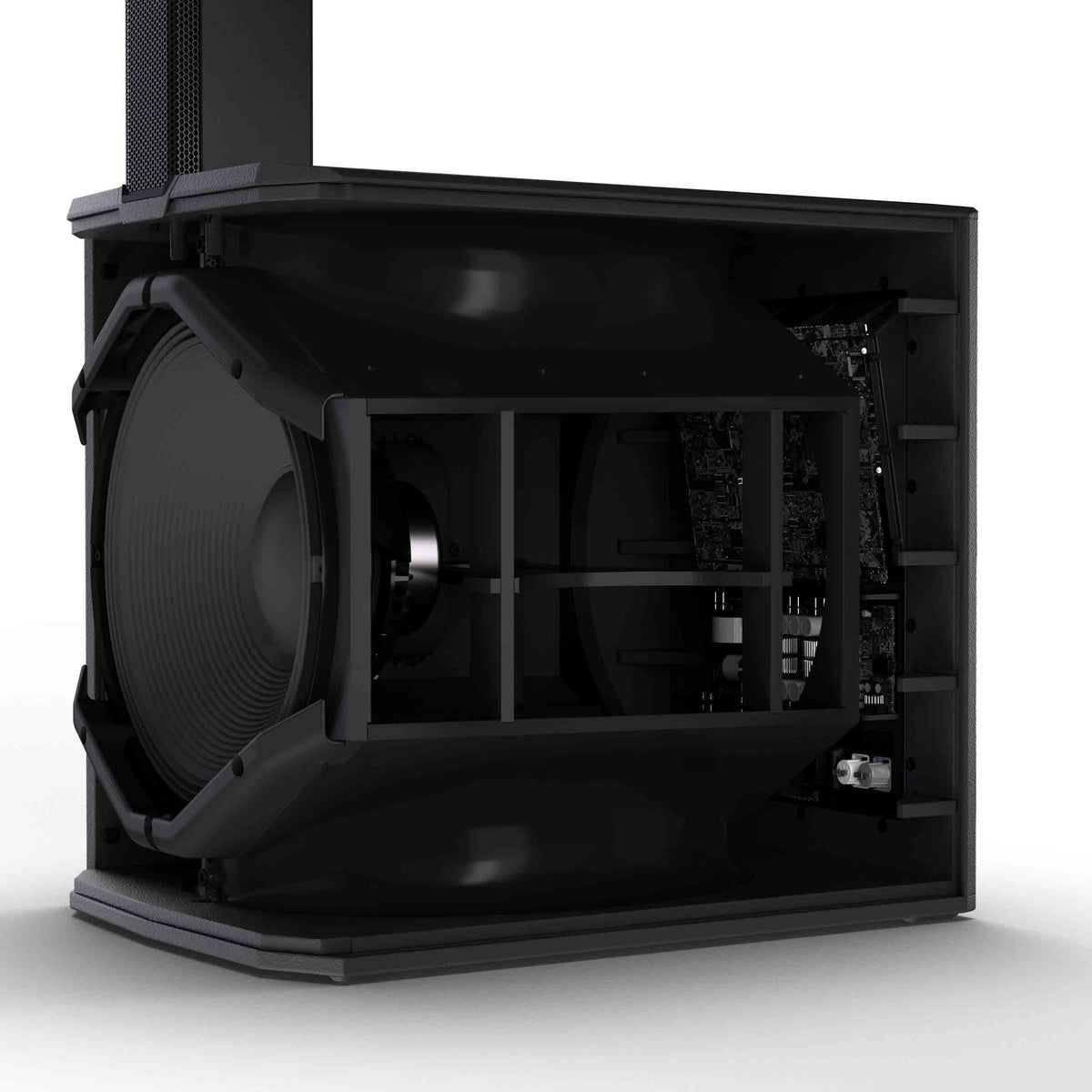

Bass Enclosure	Low-tuned bass reflex
Bass Port Design	Elliptical, airflow-optimized
Midrange Design	Horn-loaded drivers in the lower column section
Waveguides	BEM-optimized
Phase Plugs	Specially developed
Column Configuration	Two-piece extended-range column

Connectivity Specifications

Analog Inputs	2 × XLR/TRS combo
Thru Outputs	2
Dedicated Subwoofer Output	1
Bluetooth Version	5.4
Bluetooth Codecs	SBC and AAC
Column Connection	Cable-free
Automatic Column Detection	Yes

Expansion Specifications

Additional Subwoofer Support	Second MAUI 66 G3 subwoofer
Cardioid Subwoofer Setup	Supported with rear-facing subwoofer and Cardioid preset
Forward-Facing Dual-Subwoofer Setup	Up to +6 dB low-frequency sound pressure under the specified configuration

Construction Specifications

Subwoofer Enclosure	Birch plywood
Subwoofer Coating	Polyurea
Column Material	Aluminum
Subwoofer Handles	4 ergonomic carrying handles
Column Handles	Recessed handles
Setup Design	Cable-free column connection

Physical Specifications

Shipping Dimensions (L × W × D)	20.39 × 96.31 × 27.14 in
Shipping Weight	129 lbs
Wireless Streaming	Bluetooth 5.4
Color	Black
