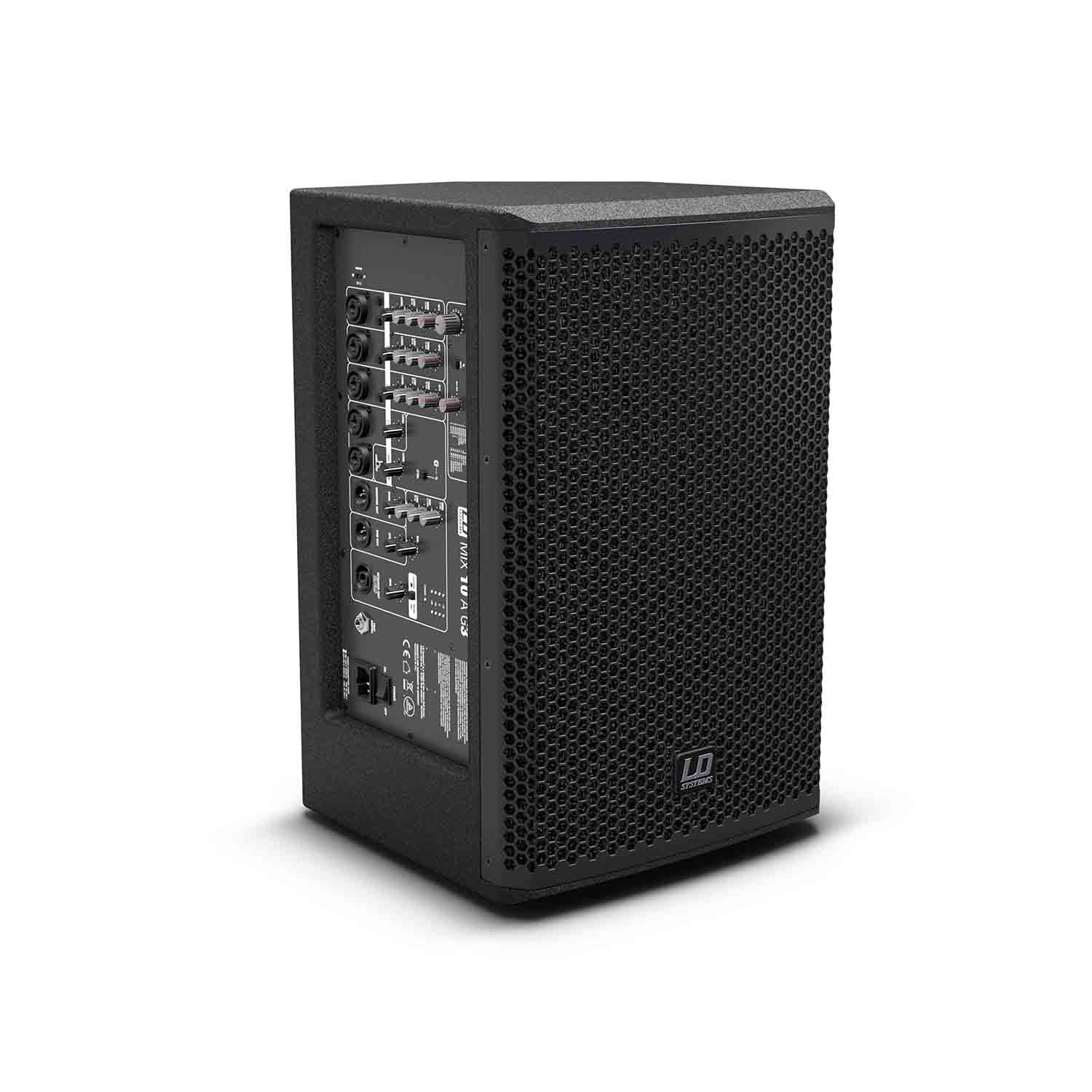

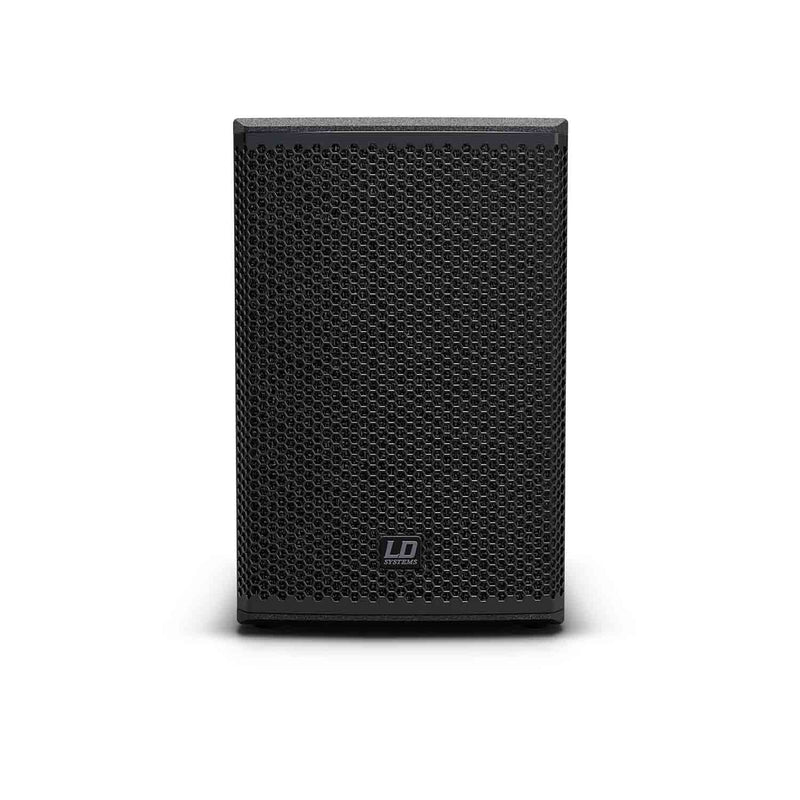

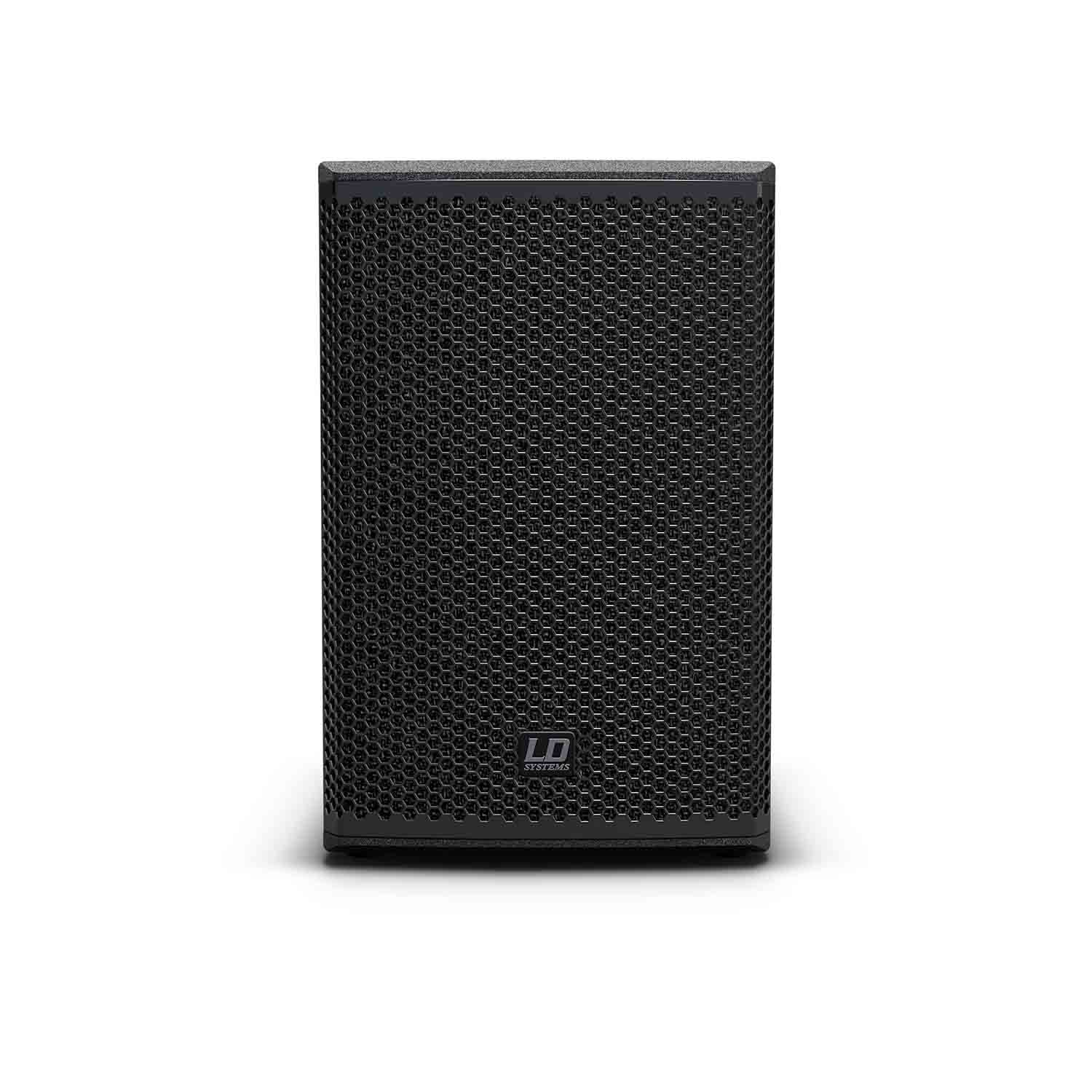

LD Systems MIX 10 A G3 Active 2 Way Loudspeaker with Integrated 7 Channel Mixer

The LD Systems MIX 10 A G3 Active 2 Way Loudspeaker an ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass-reflex loudspeaker features a 10" custom woofer and 1" Celestino HF driver complement, 65 Hz to 20 kHz frequency response, and 90° x 60° dispersion delivering crystal clear sound with punch and detail.

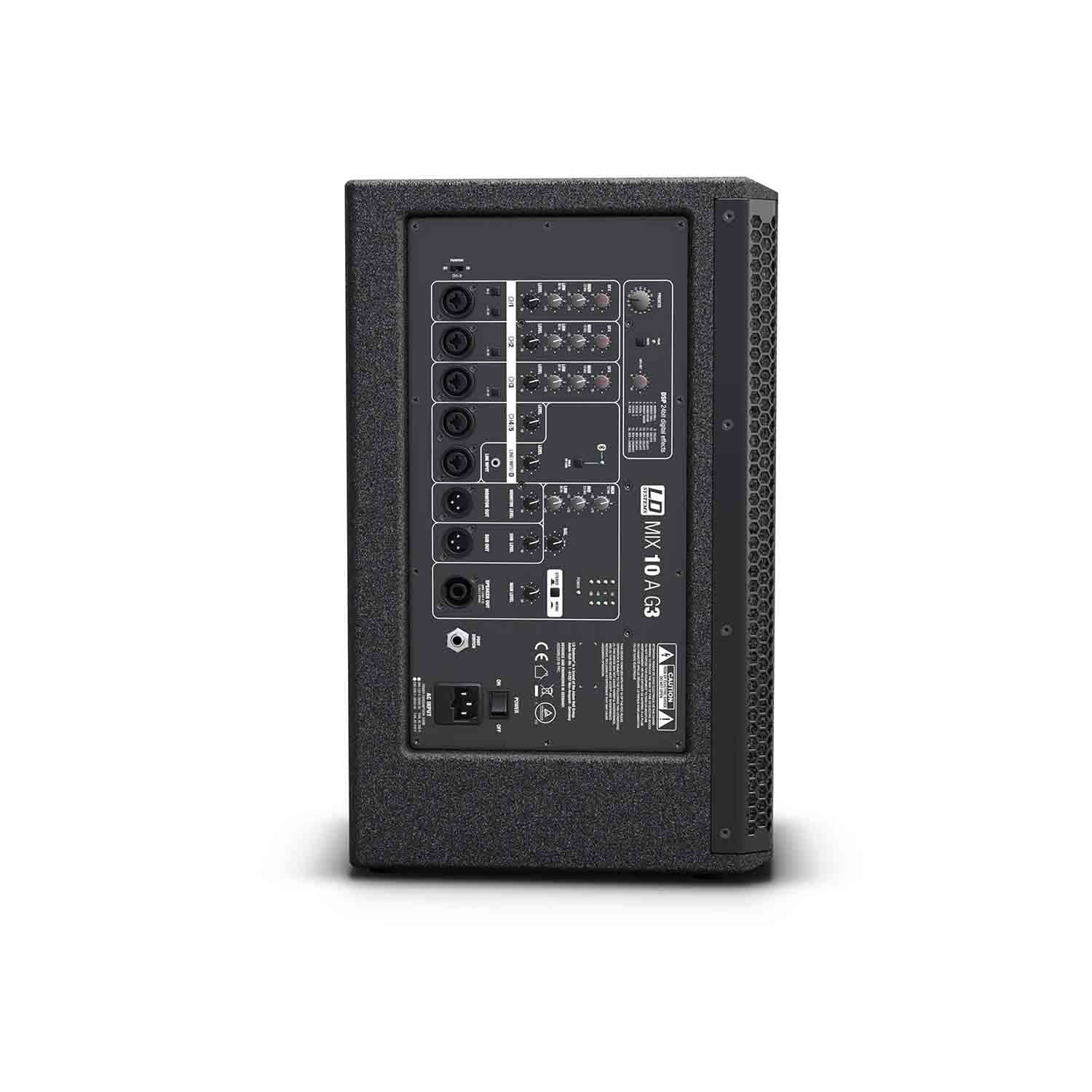

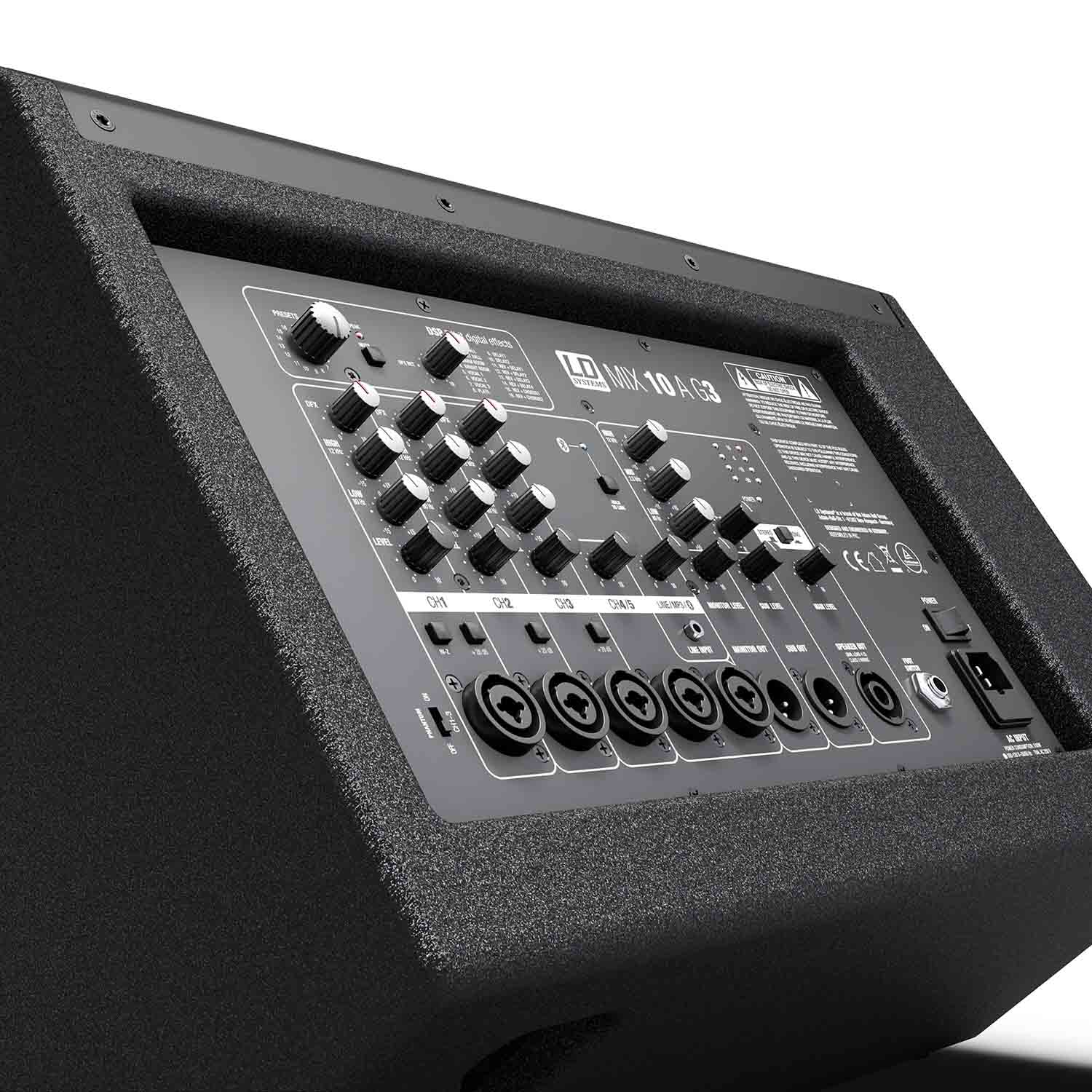

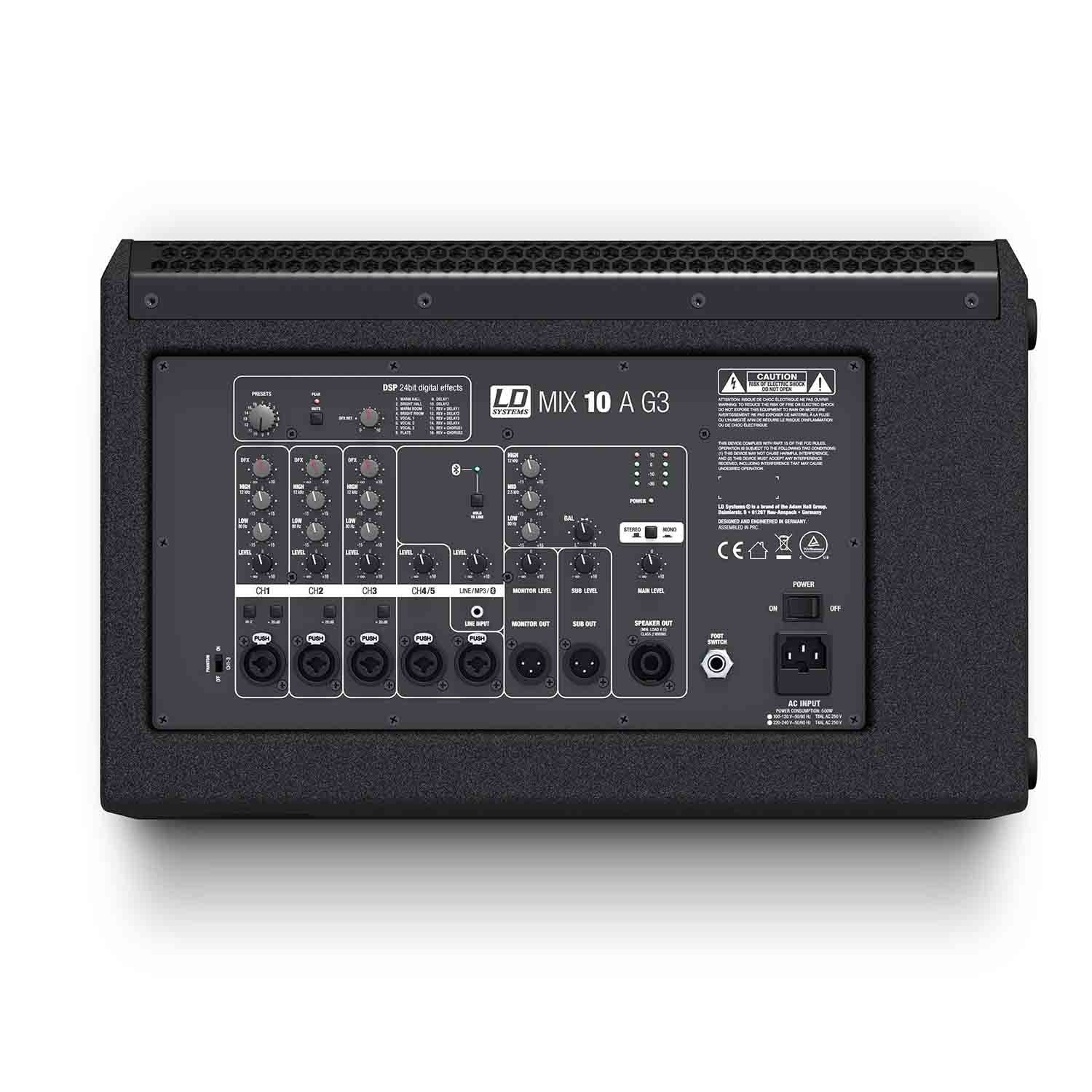

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3, and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1), and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effects presets, limiter and overcurrent, overload, short circuit and thermal protection. A speak ON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

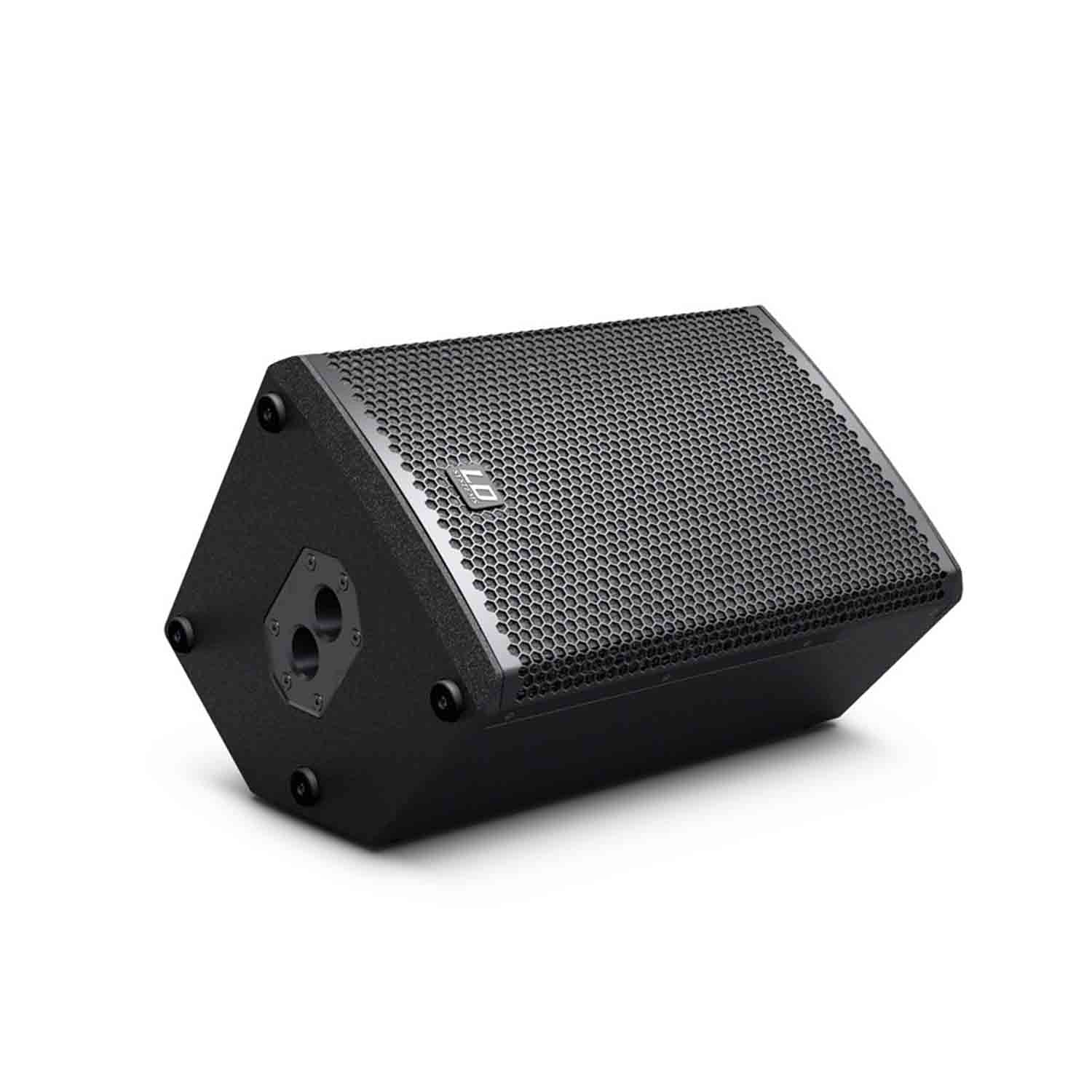

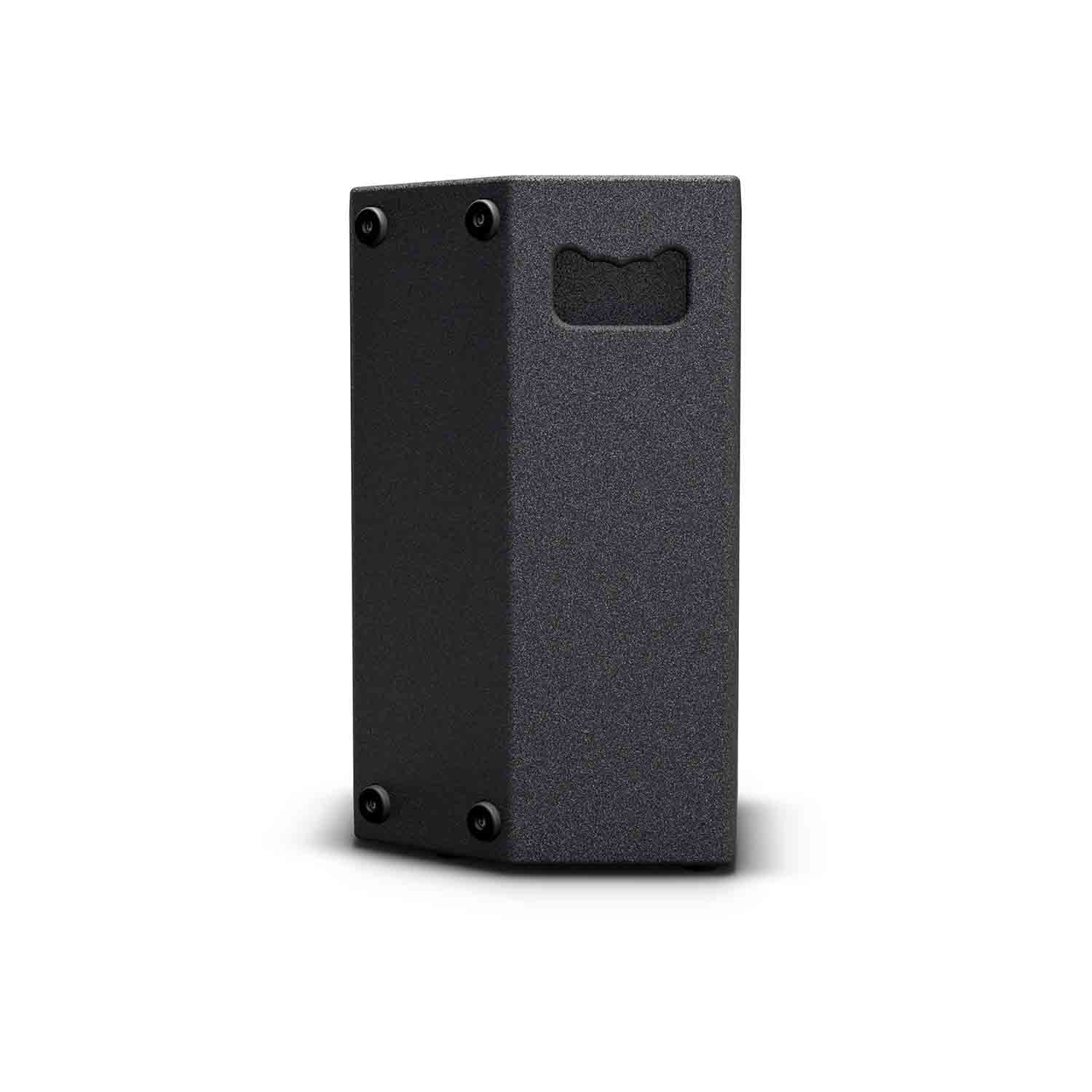

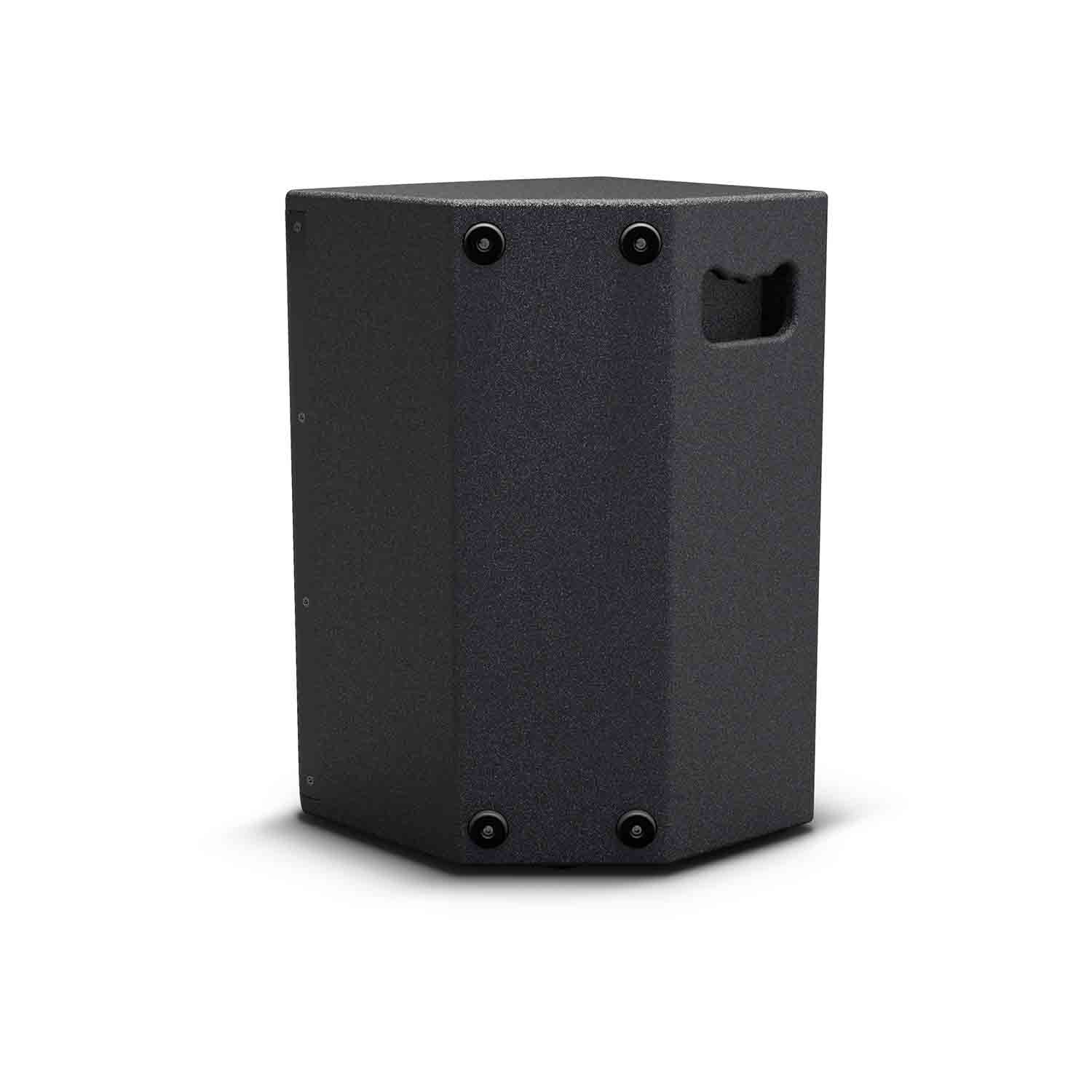

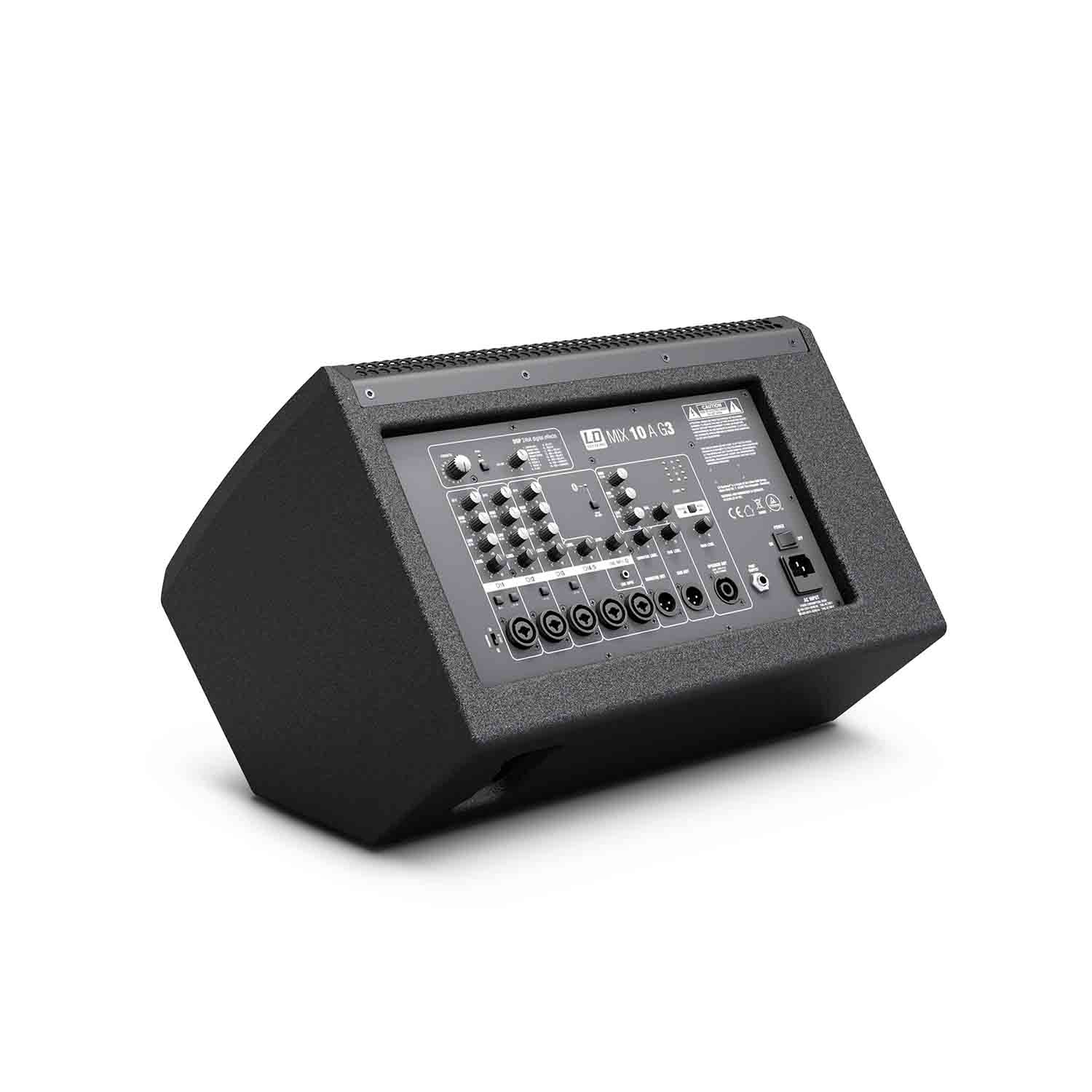

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and a Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Product Specifications:

Product Type: PA Loudspeaker

Type: Active

Woofer Dimensions: 10 "

Woofer Size: 254 mm

Woofer Brand: Custom-Made

Tweeter Dimensions: 1 "

Tweeter Dimensions (Mm): 25.4 mm

Tweeter Brand: Celestion

Dispersion (H x V): 80 x 70

Frequency Response: 65 - 20.000 Hz

Amplifier: Class D

Amplifier Output (RMS): 2 x 200 W

Amplifier Output (Peak): 2 x 400 W

Max. SPL: 124 dB

Protection Circuits: Limiter, Over-Current, Overload, Short Circuit, Thermal Overload
