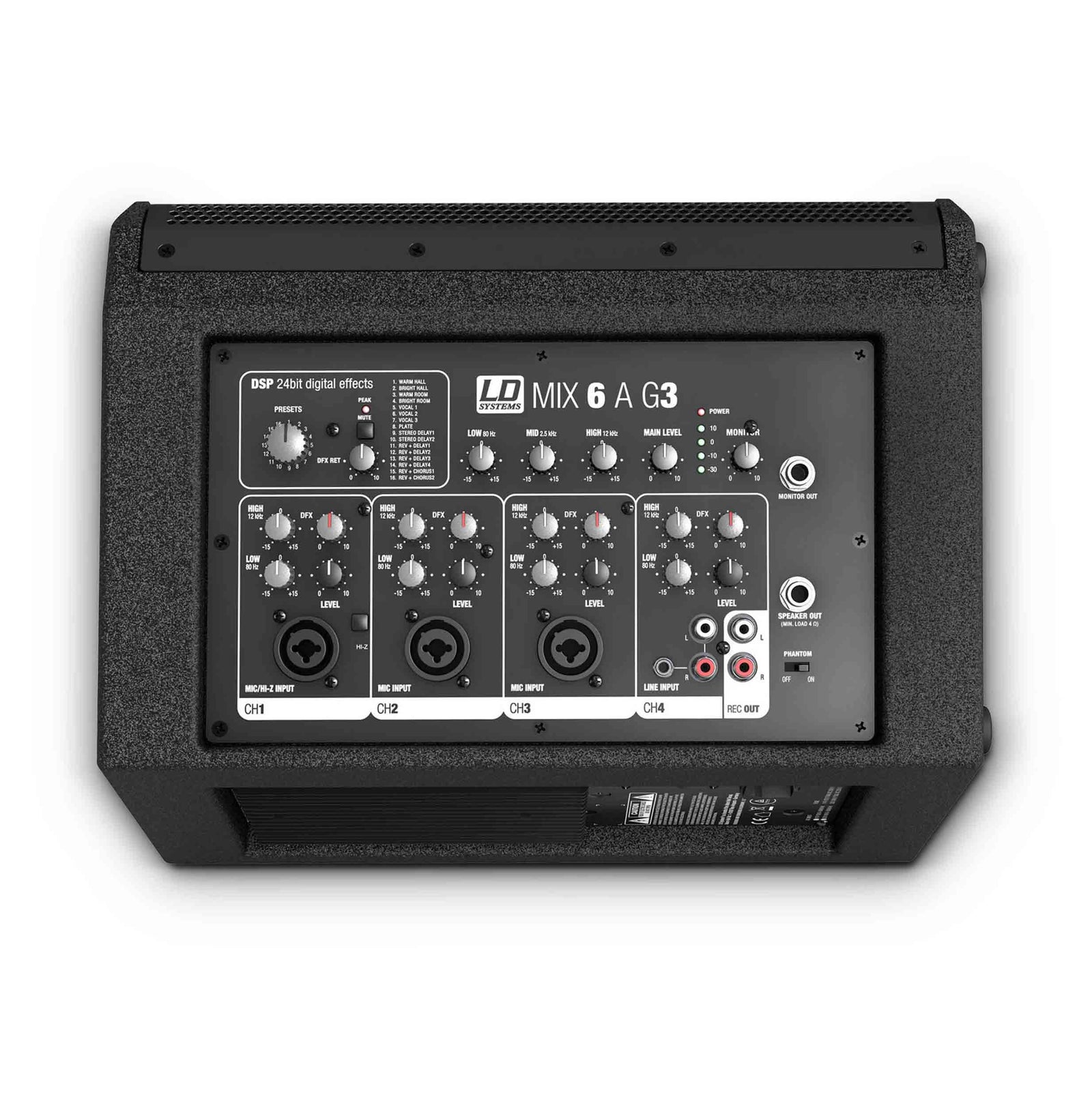

LD Systems MIX 62 A G3 Active 2-Way Speaker w/ Integrated 4-Channel Mixer

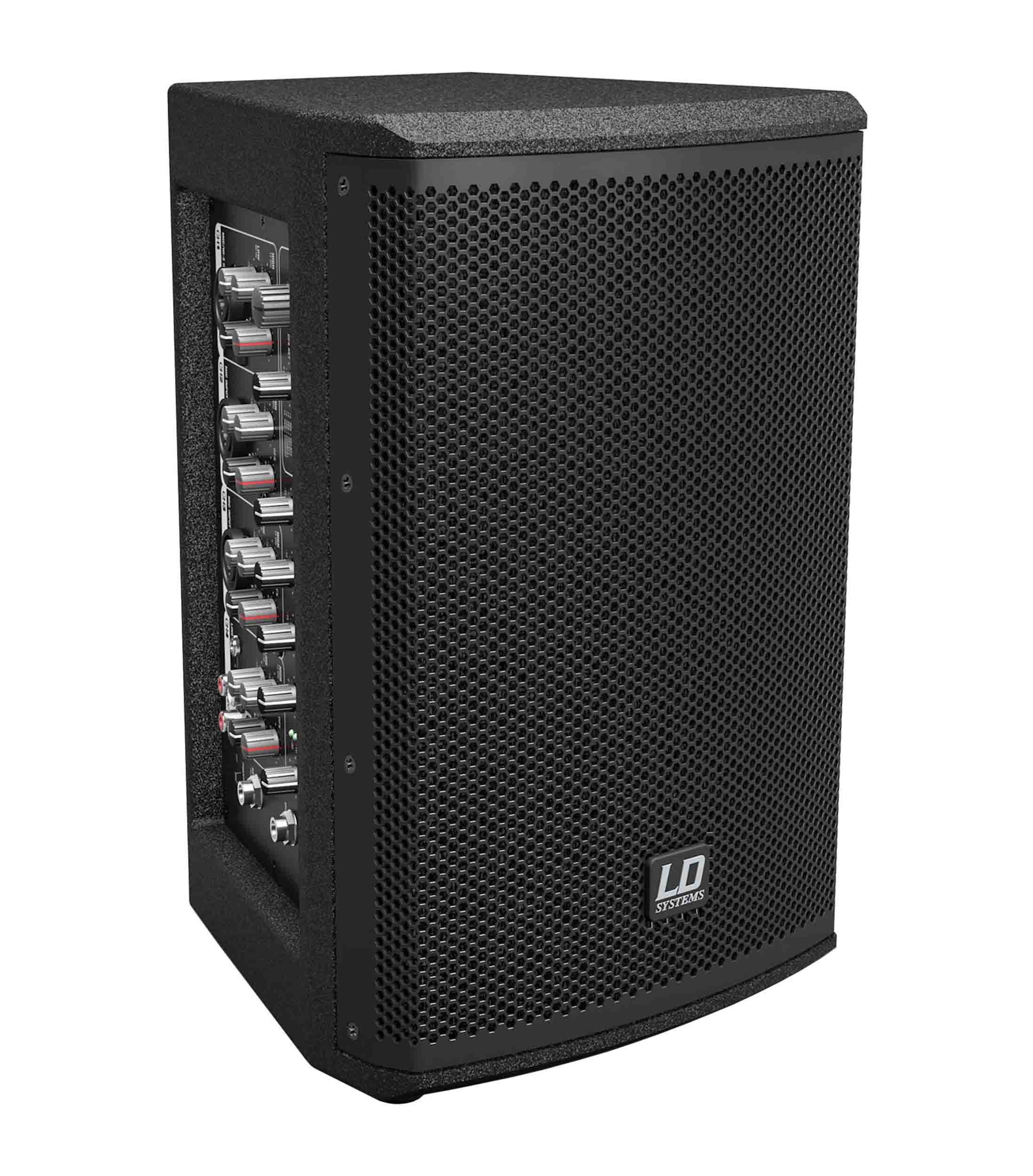

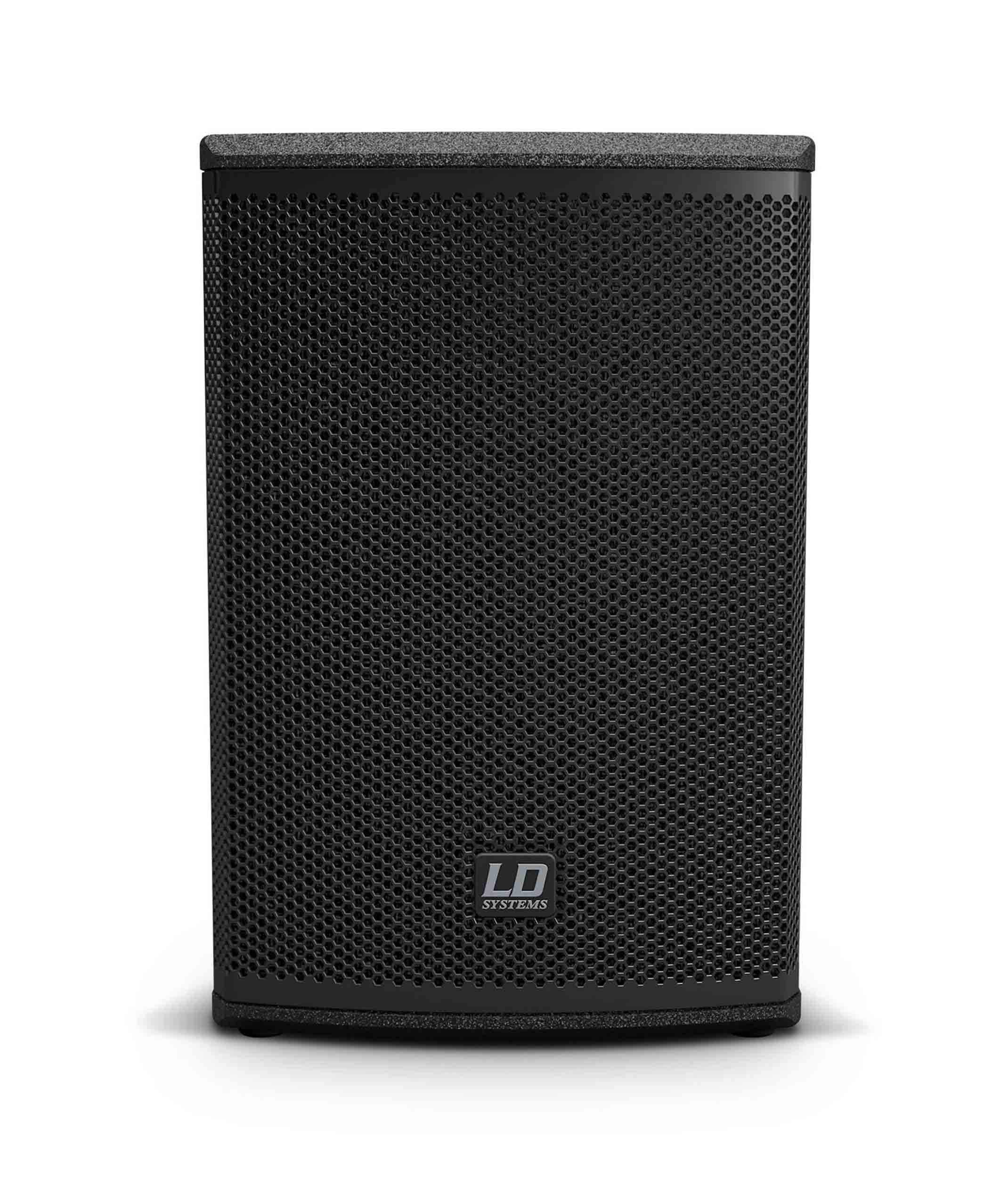

The LD Systems MIX 62 A G3 Active 2-Way Loudspeaker with Integrated 4-Channel Mixer consists of a custom 6.5" woofer and a 1" horn-loaded compression driver driven by 280W of Class-D amplification. An additional 280W amplifier is supplied to power an LD MIX 6 G3 passive loudspeaker (sold separately) via the 1/4" speaker output.

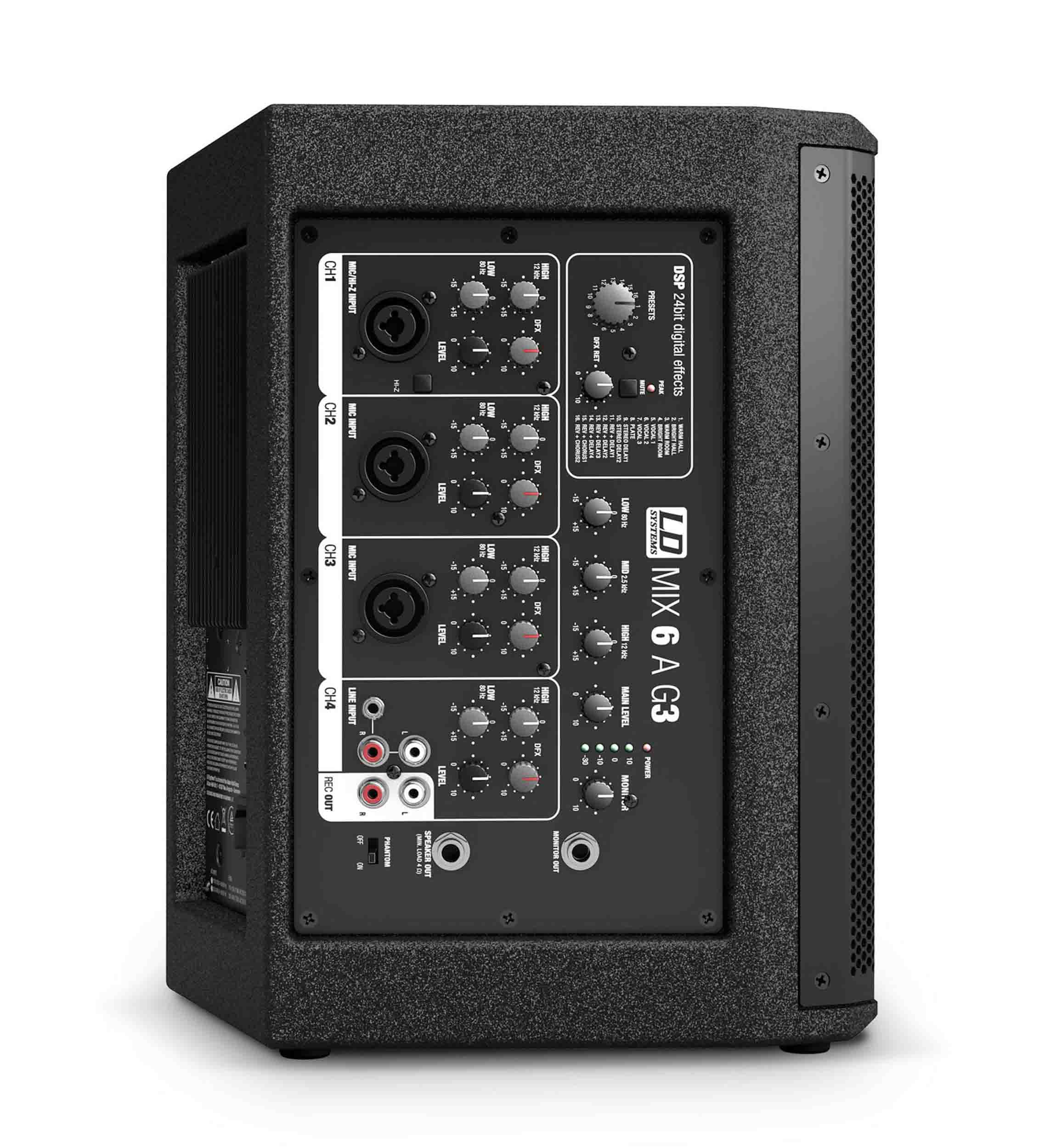

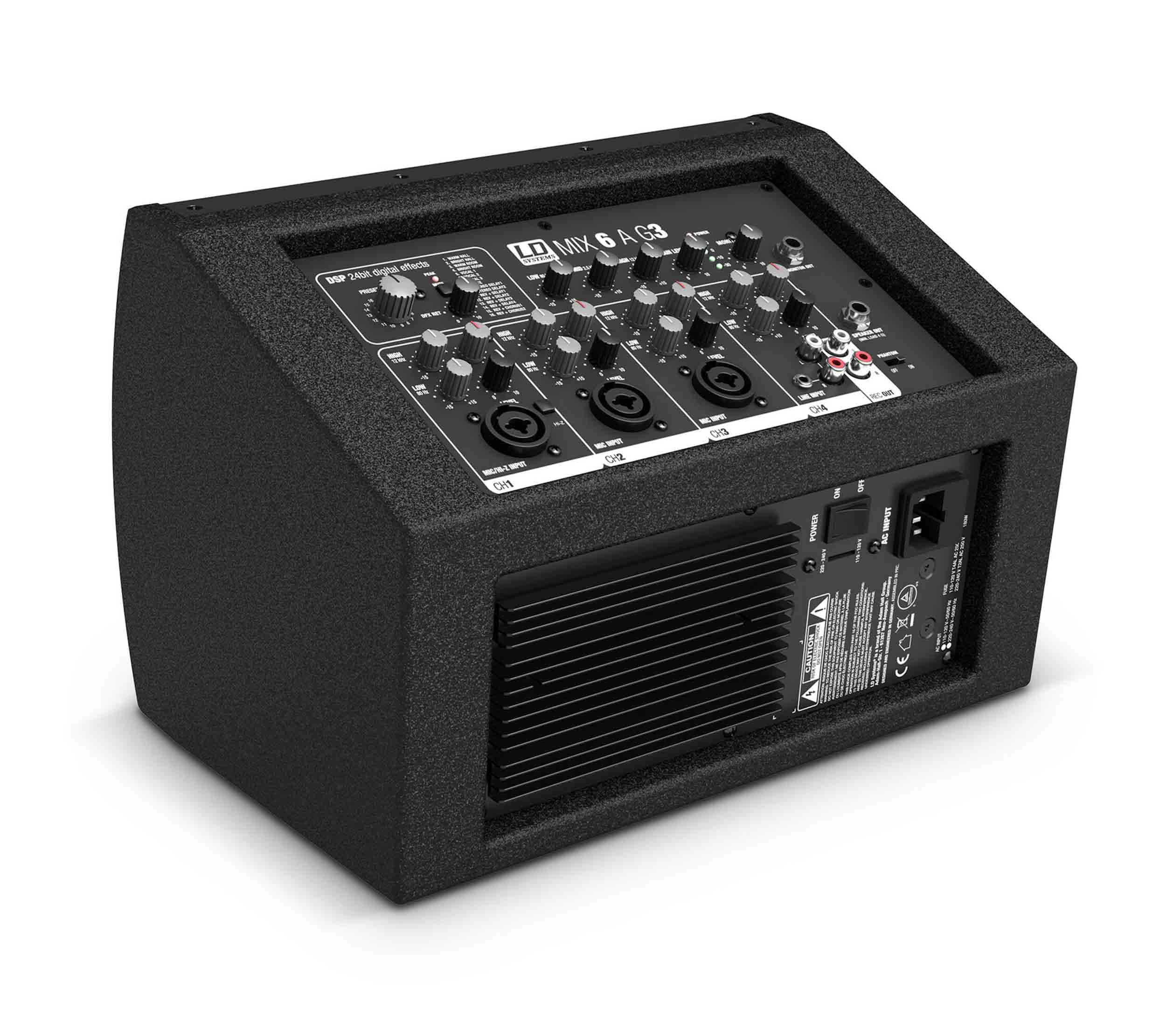

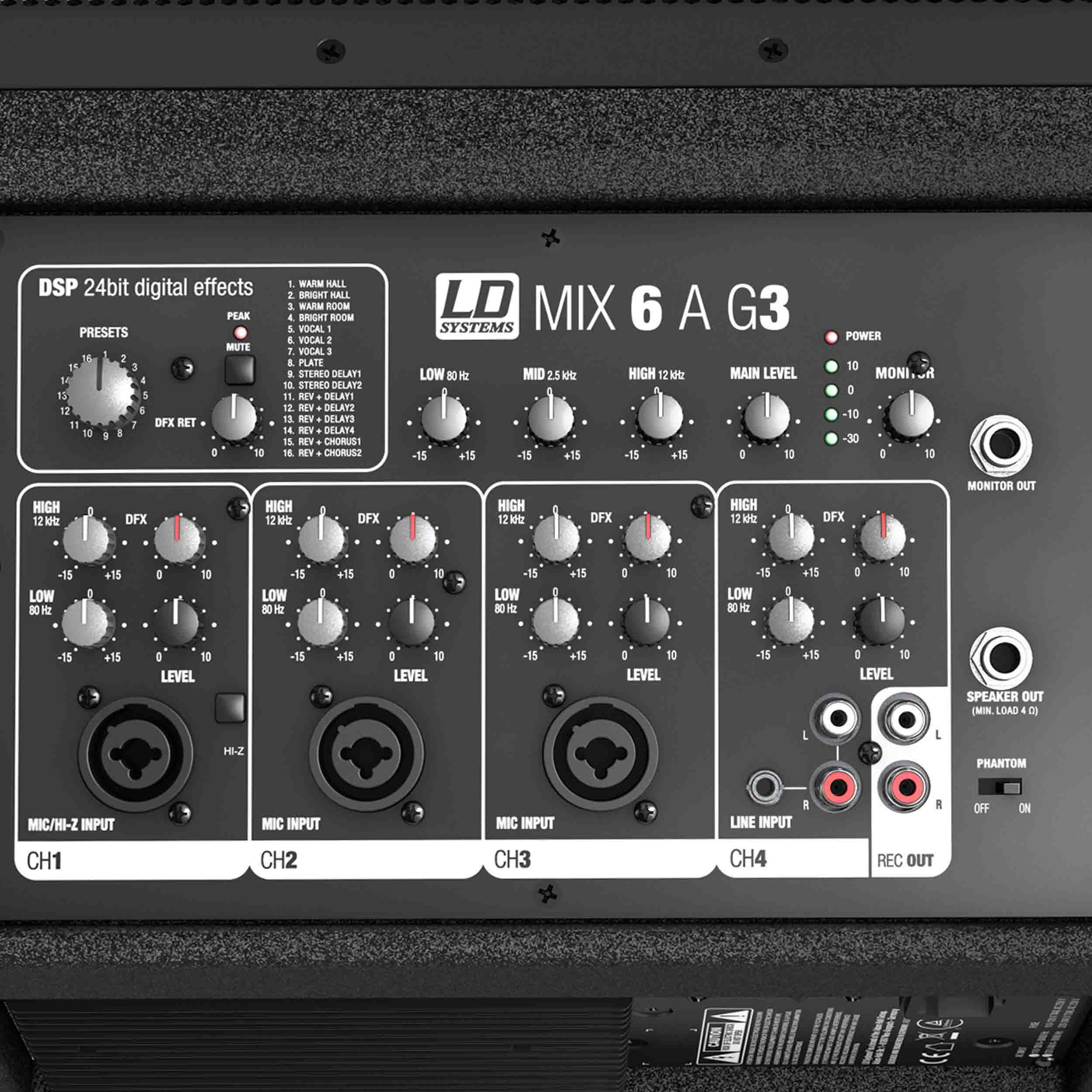

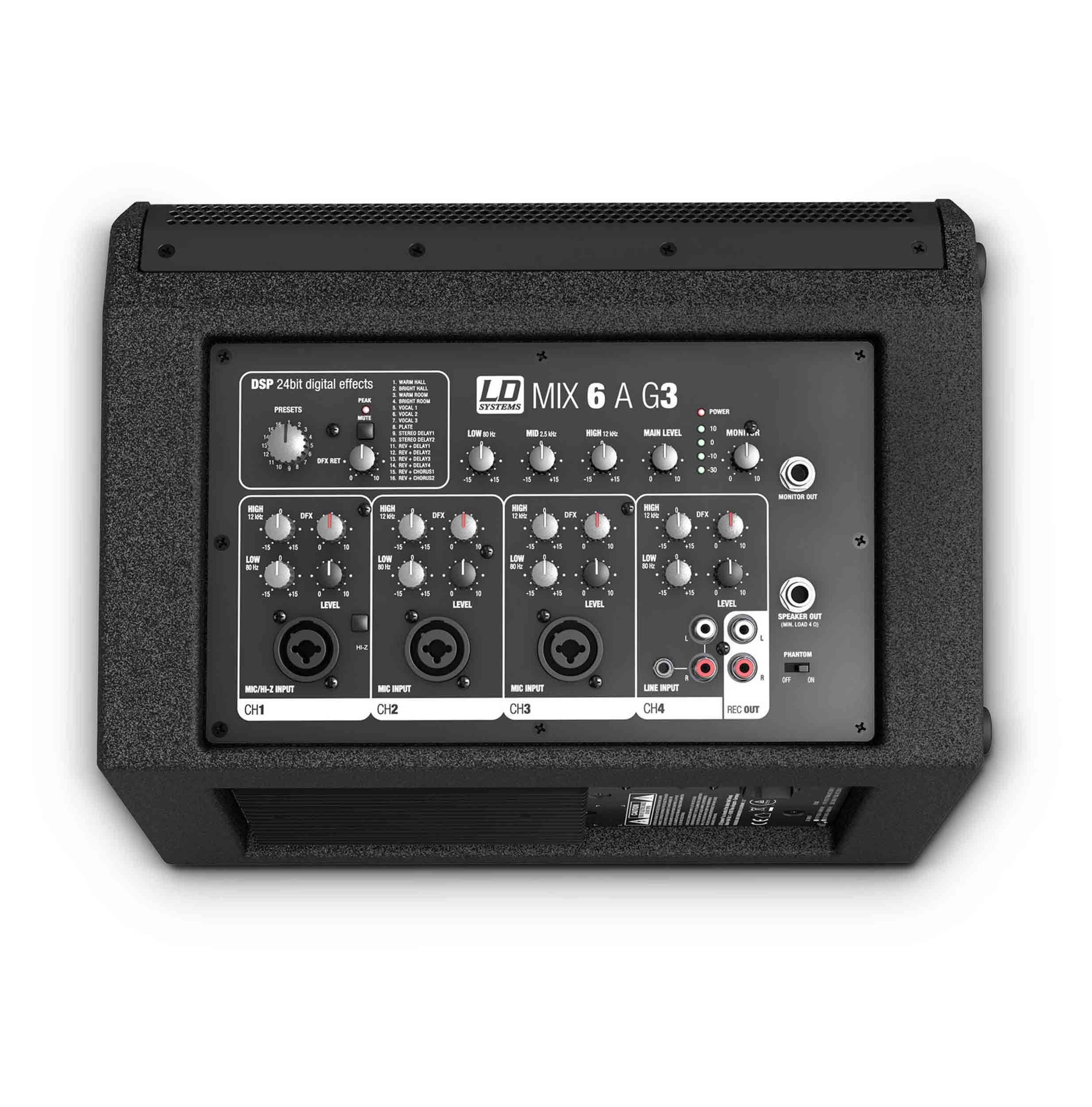

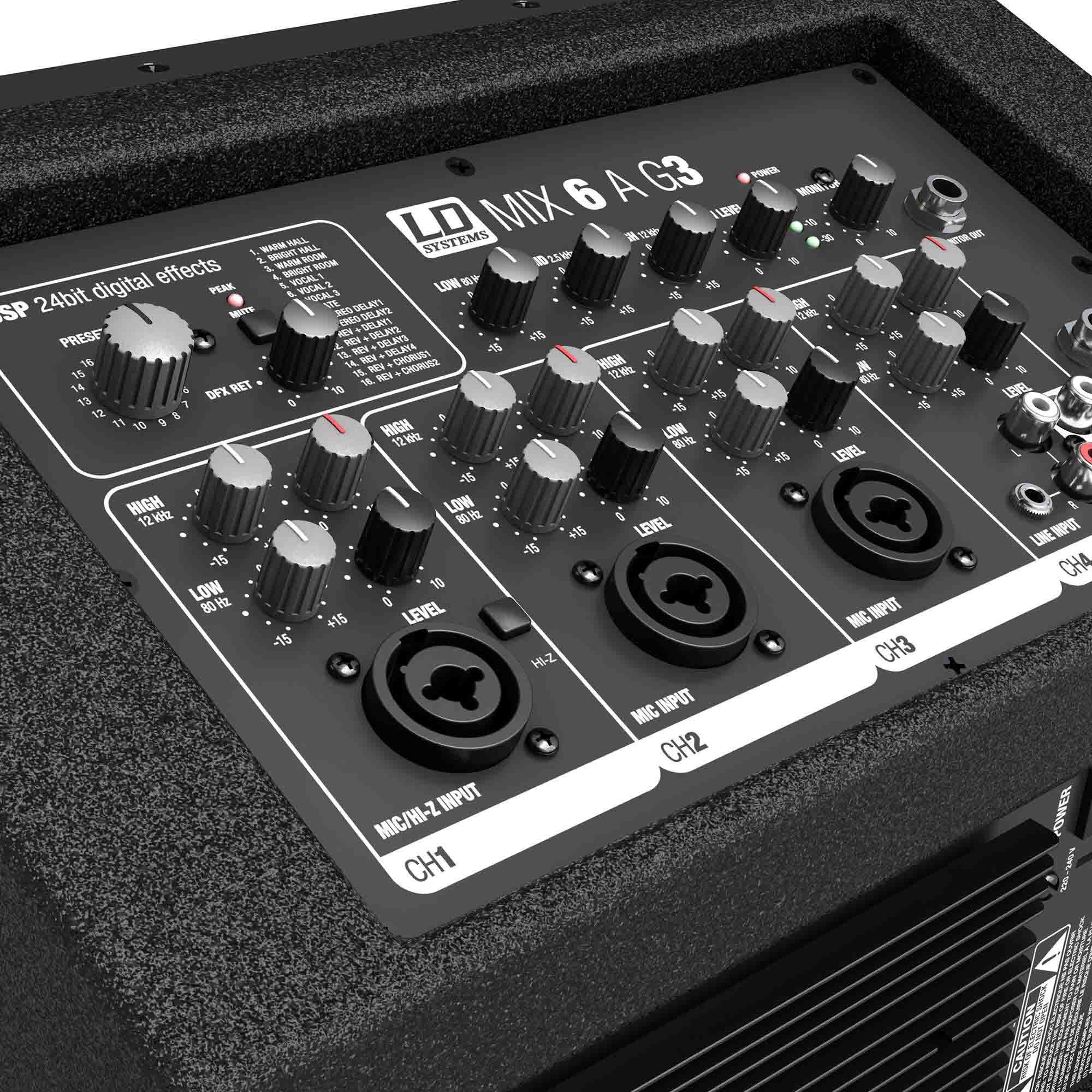

The MIX 6 A G3's mixer can accommodate a wide variety of input sources, including microphones, electric instruments, smartphones, tablets, MP3 players, and more. Channels 1-3 sport combo XLR-1/4" microphone inputs, while channel 1 includes a Hi-Z switch for instruments. Channel 4 features a 3.5mm and stereo RCA connectors compatible with line-level inputs. Additionally, there is a stereo RCA recording output as well as a 1/4" monitor output. Each channel includes a level control, 2-band EQ, and an effect send. The onboard DSP features 16 effects pre-sets with reverb and delay. The master section includes a 3-band EQ to help dial in your best sound. The MDF enclosure includes two pole cups: one on the side and one on the bottom for flexibility in deployment (horizontal or vertical). The MIX 6 A G3 includes a power cord.

Product Specifications:

Speaker Configuration: 1 x 2-Way Loudspeaker

Amplifier Class: Class-D

Frequency Response: 80 Hz to 20 kHz

Maximum SPL: 122 dB

Coverage Angle : 80° H x 70° V

Line Input: -5 dB

Mic Input: 14 Kilohms

Line Input: 4.4 Kilohms

Hi-Z Input: 100 Kilohms

Power Consumption: 180 W

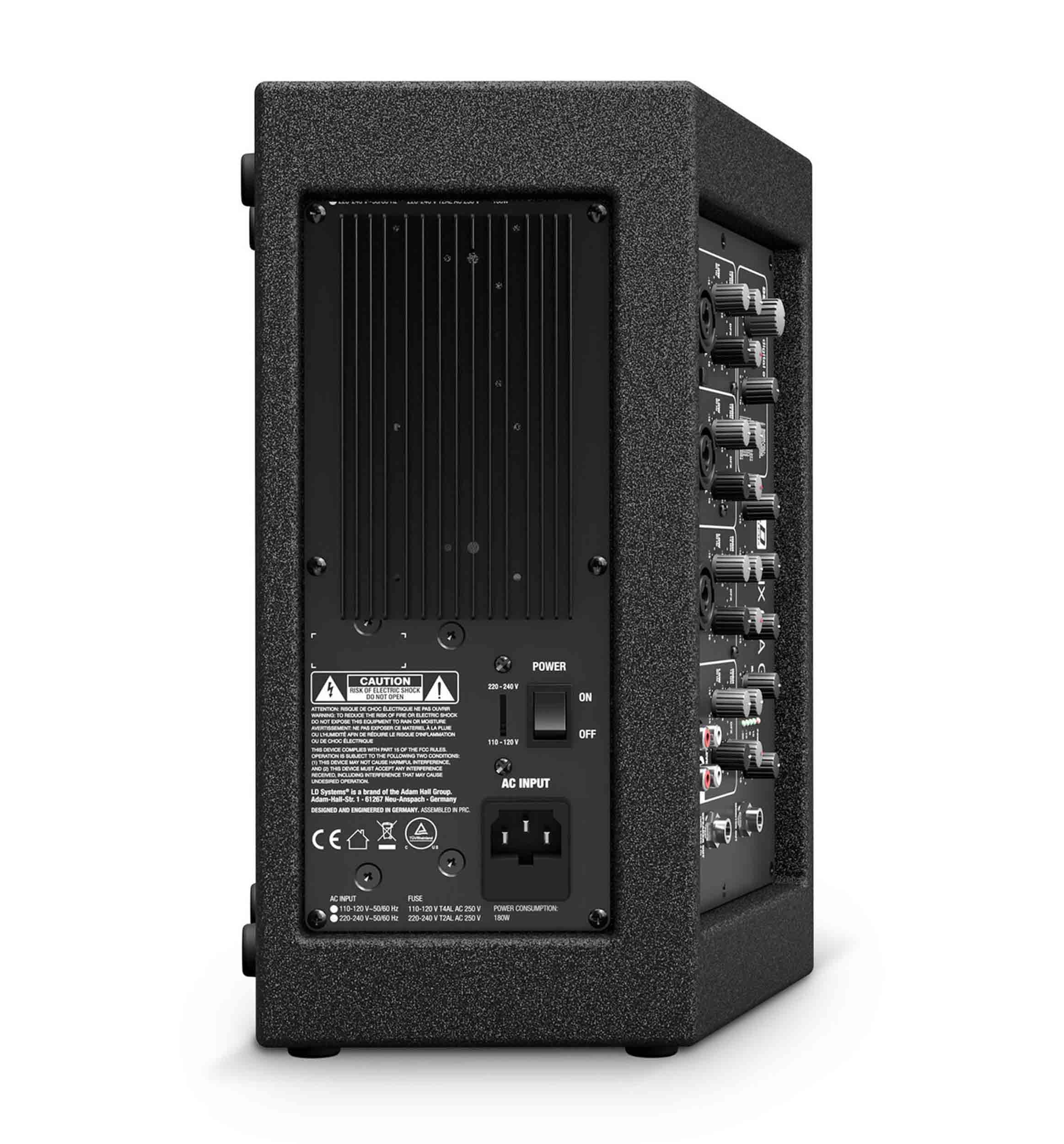

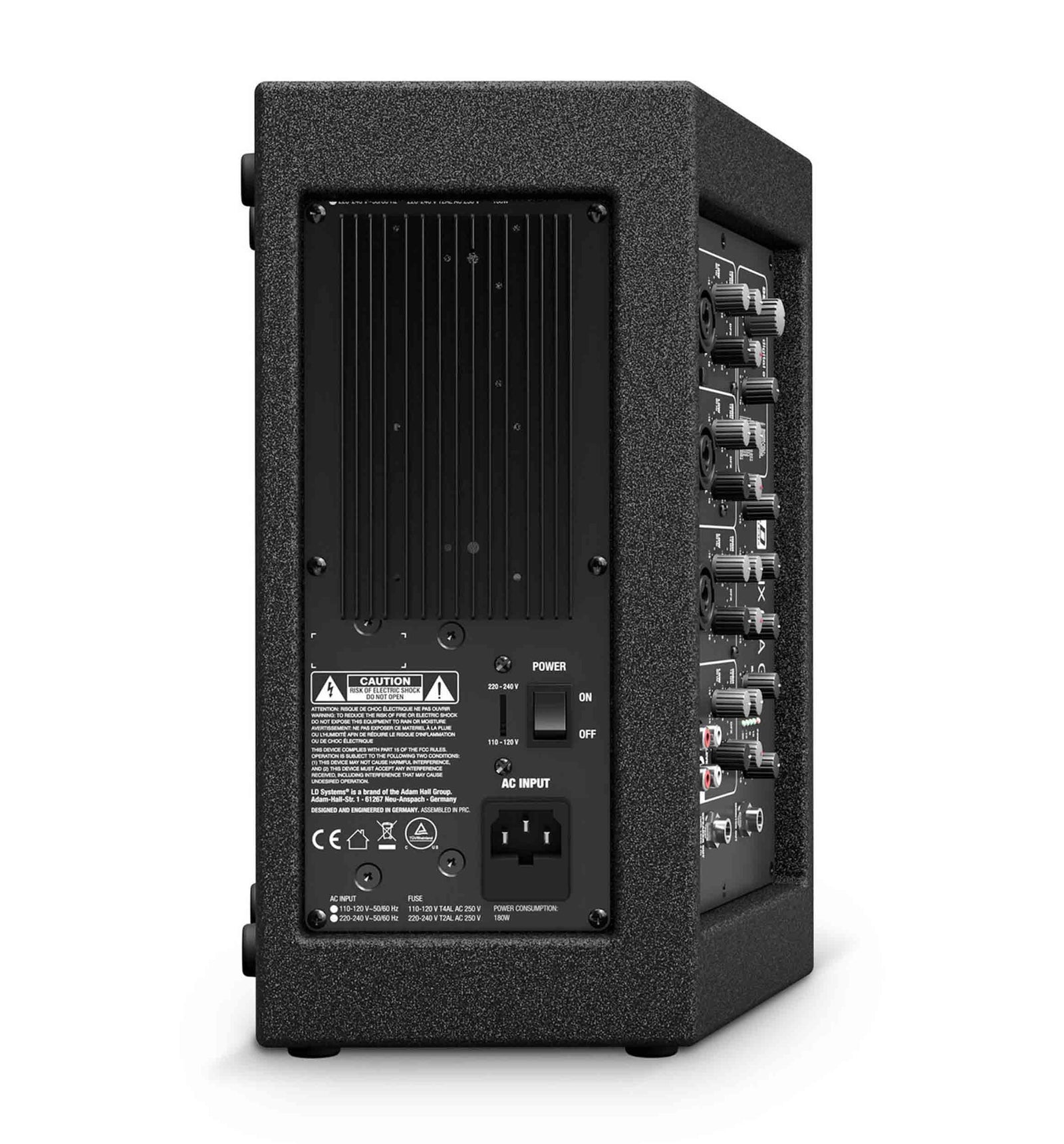

AC Power I/O: 1 x IEC Input

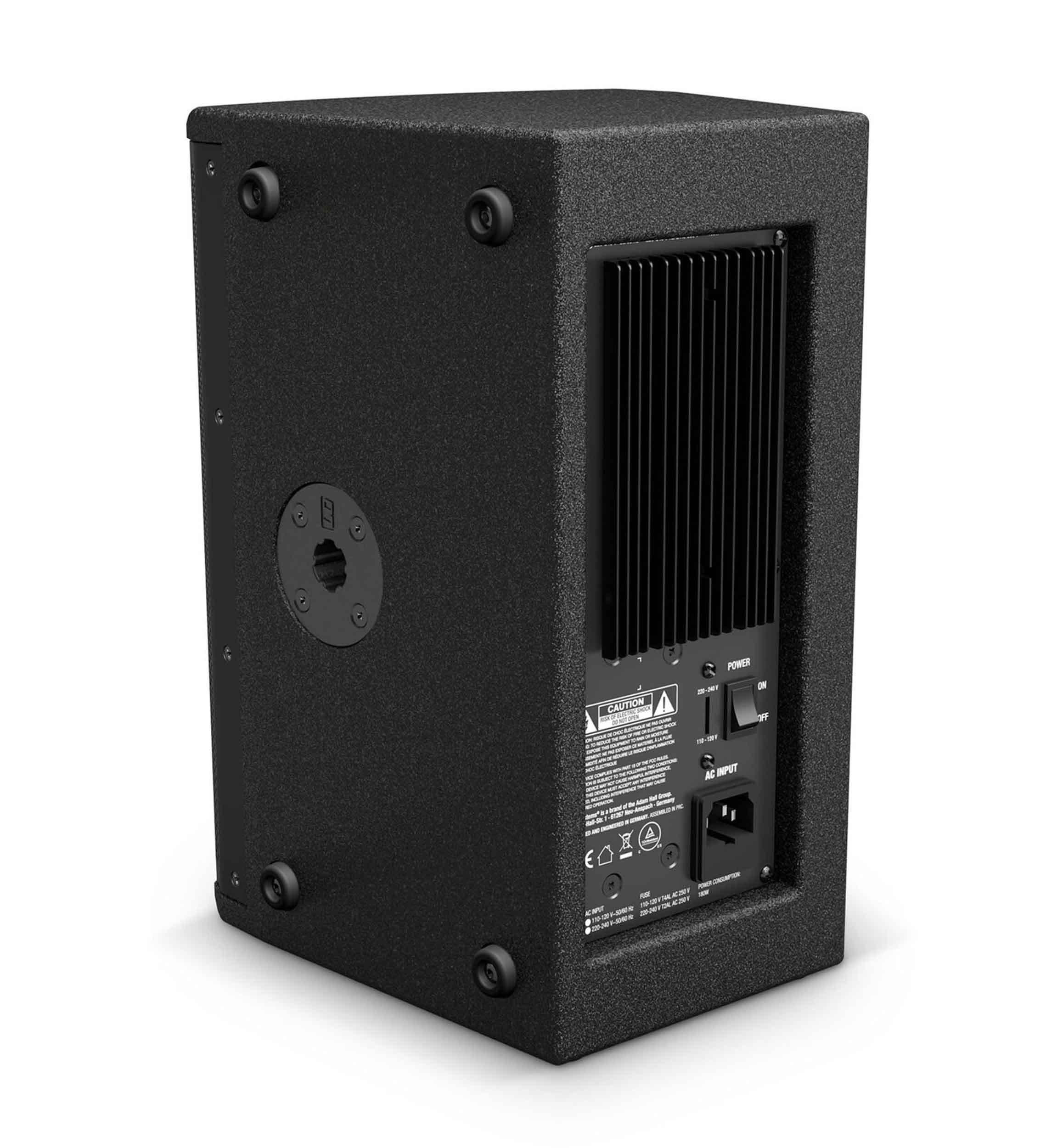

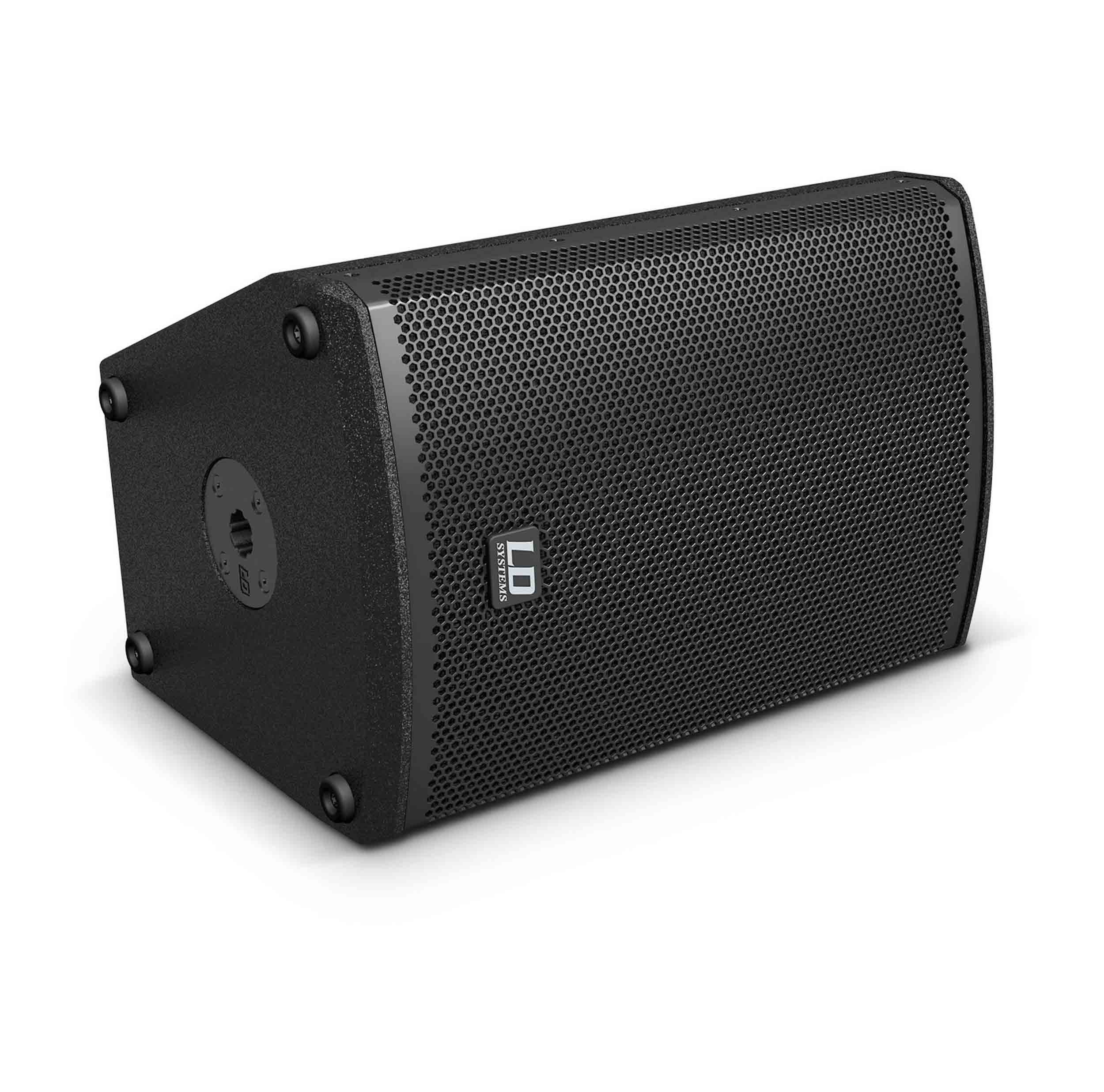

Mounting: 2 x 0.6" / 16 mm Pole Socket (Bottom, Side)

Construction Material: MDF

Dimensions: 12.7 x 8.7 x 8.4"

Weight: 15.4 lb
