Description
The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications. The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz.
Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.

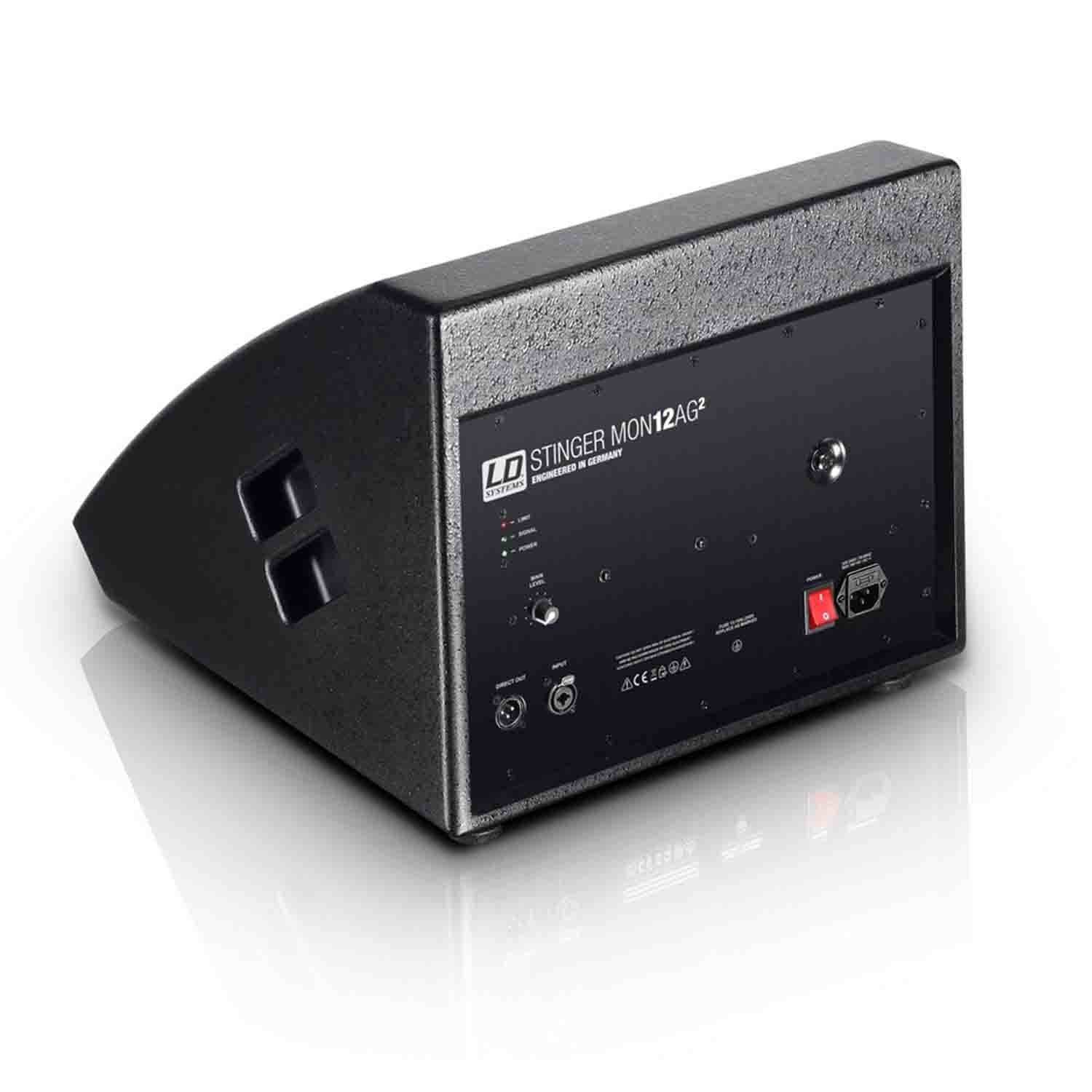

The input is an XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include volume control, IEC power socket, LED indicators of various colors for power, signal, and the limiter function.

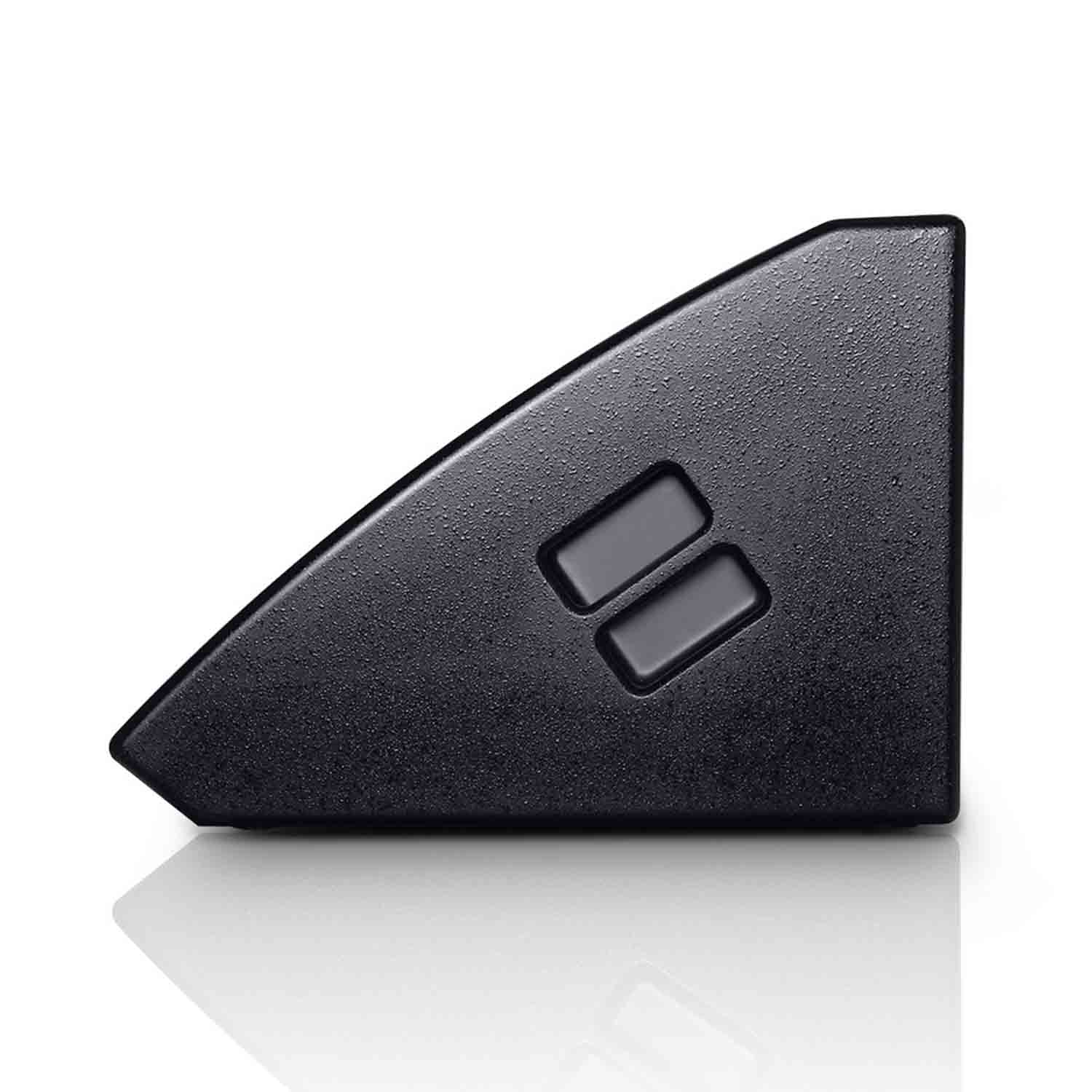

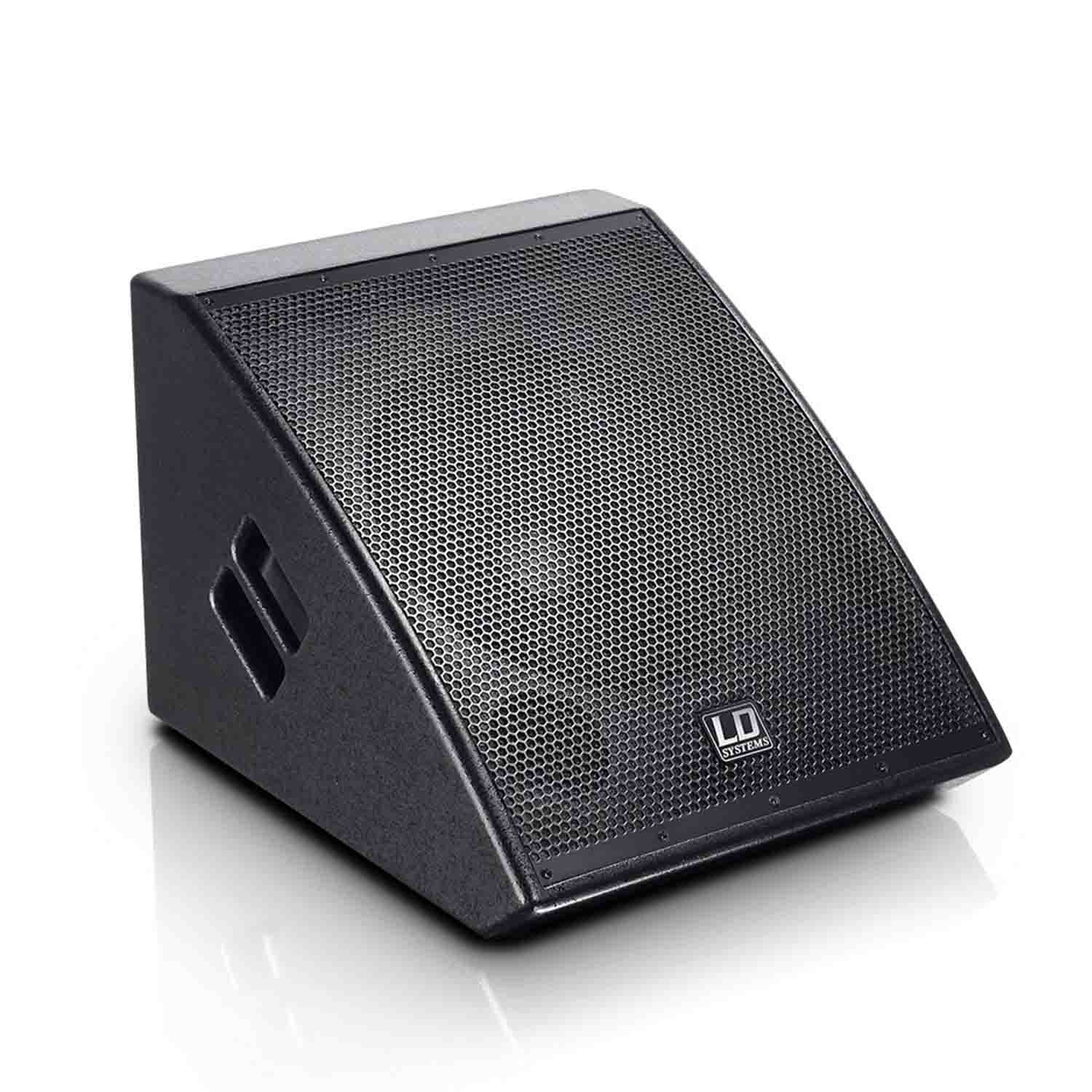

The elegant-looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.
Product Specifications:
Type: PA loudspeaker
Type: Powered
Low/mid Driver Dimensions: 12 "
Woofer Size: 304 mm
Woofer Type: Coaxial Loudspeaker
Woofer Magnet: Ferrite
Woofer Brand: Custom-Made
Woofer Voice Coil: 2 "
Woofer Voice Coil (mm): 50.8 mm
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class A/B
Dispersion (H x V): 75 x 75
RMS: 250 W
Peak Power: 1000 W
Frequency Response: 80 - 20000 Hz
Crossover Frequency: 2200 Hz
SPL (1W/1m): 100 dB
Max. SPL (continuous): 116 dB
Max. SPL (peak): 124 dB
Protection Circuits: limiter, short circuit
Controls: On / Off, volume
Indicators: Limit, Power, Signal
Line Inputs: 1
Line Input Connectors: 6.3 mm jack, XLR
Line Outputs: 1
Line Output Connectors: XLR
Operating Voltage: Transformer
Operating Voltage: 230 V AC / 50-60 Hz
Cabinet Material: 15 mm Plywood
Cabinet Construction: Bass Reflex
Monitor Angle: 35 °
Width: 440 mm
Depth: 360 mm
Height: 514 mm
Weight: 17,8 kg
