Description

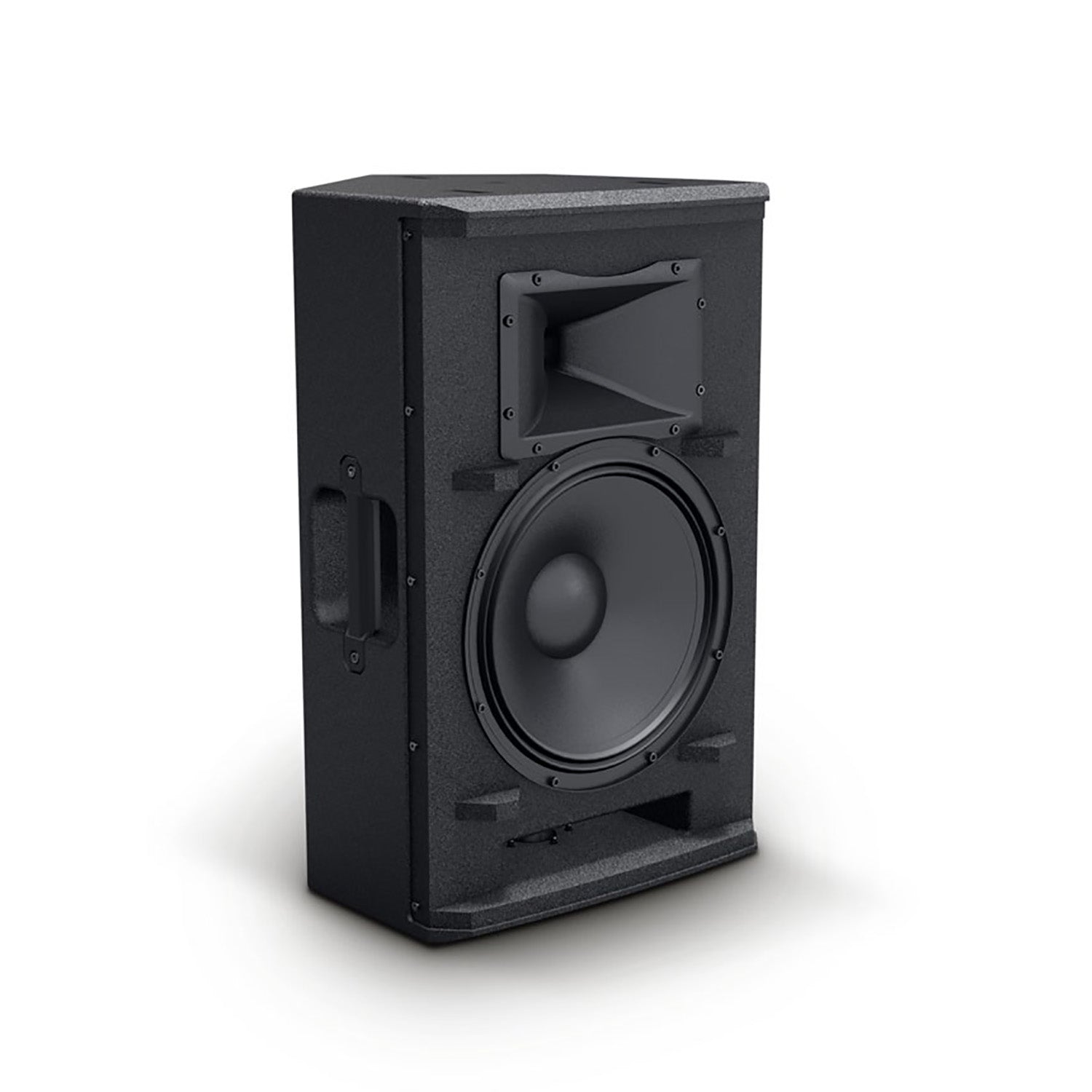

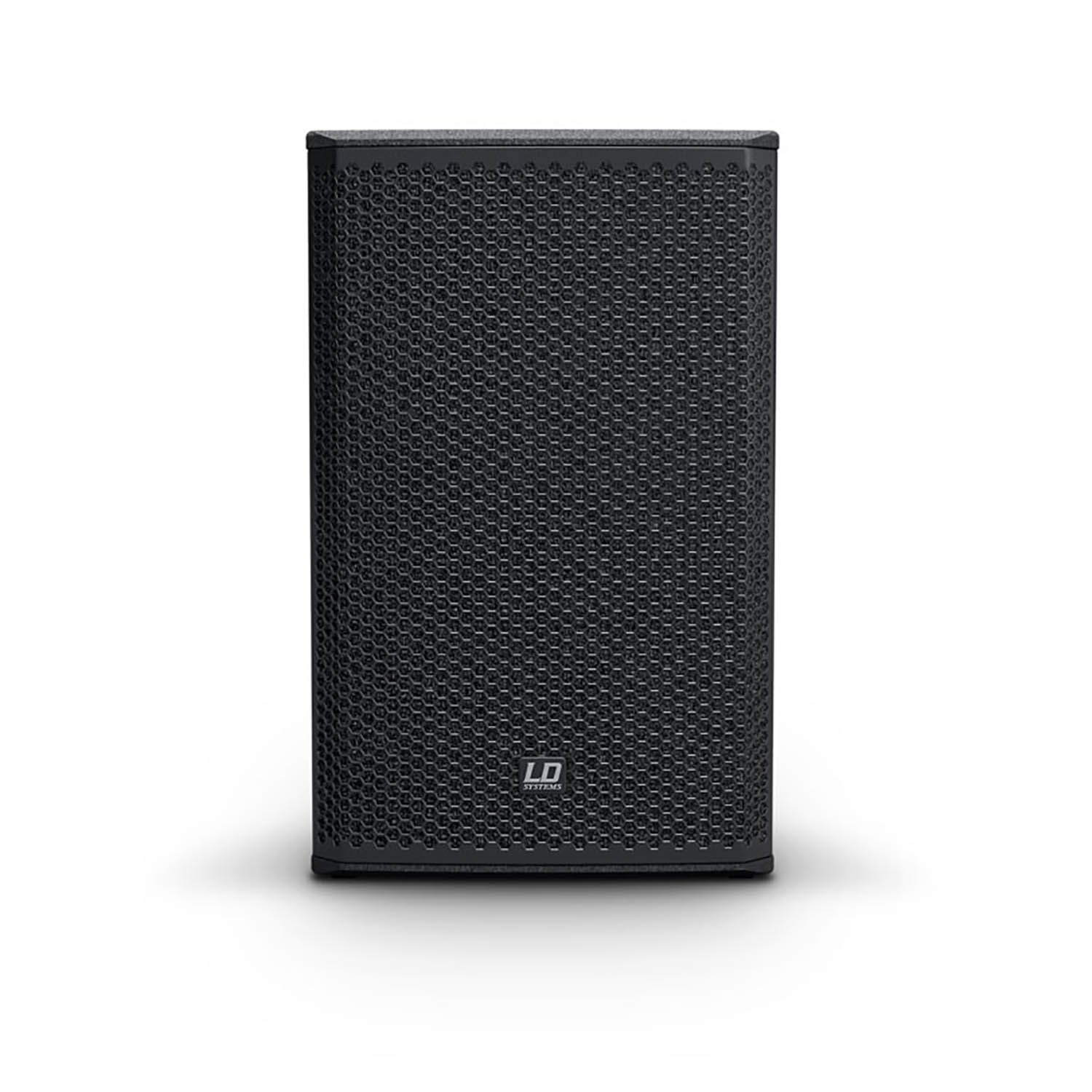

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite, and ground monitor, it is suited to mobile and fixed PA systems. The Stinger 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs.
The waveguide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

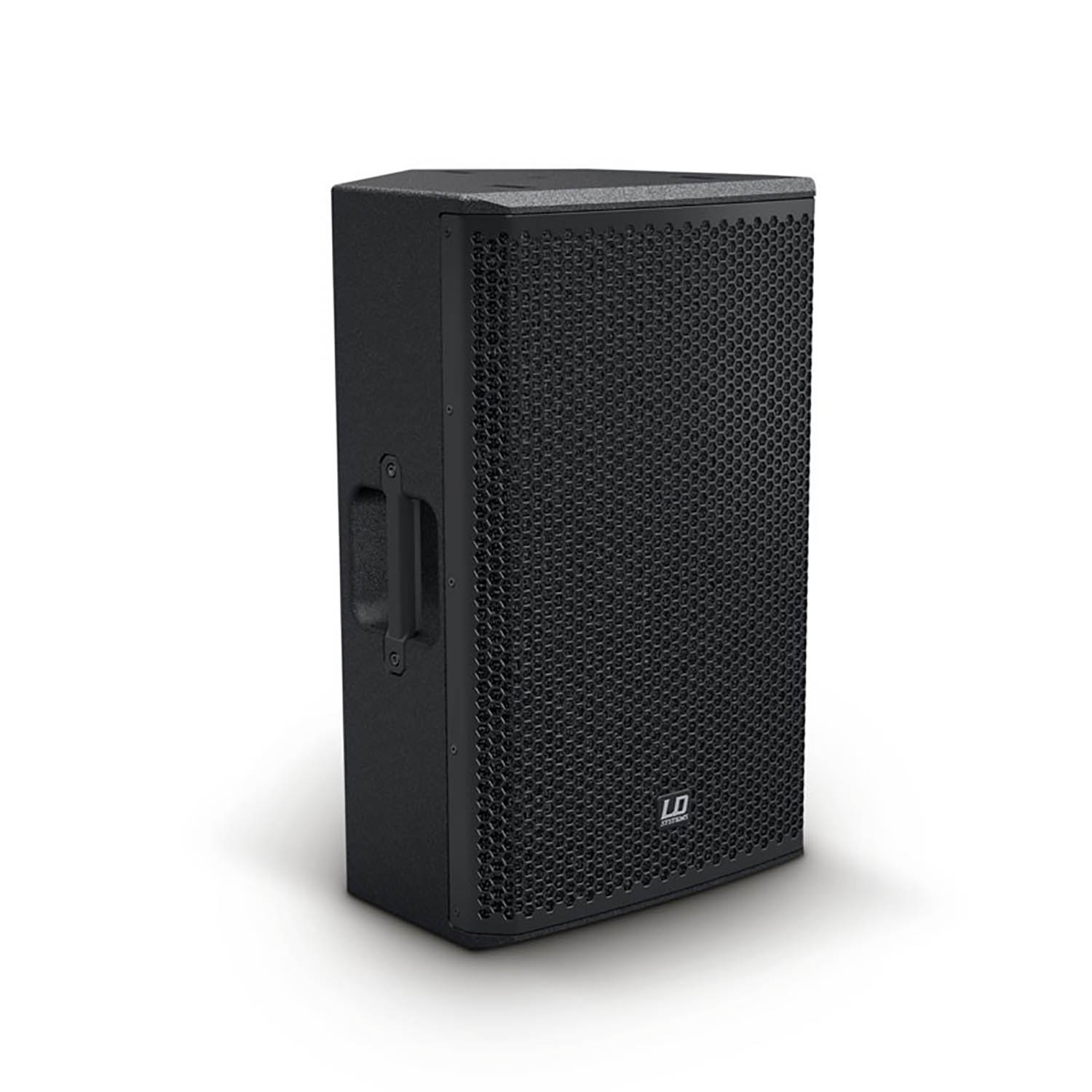

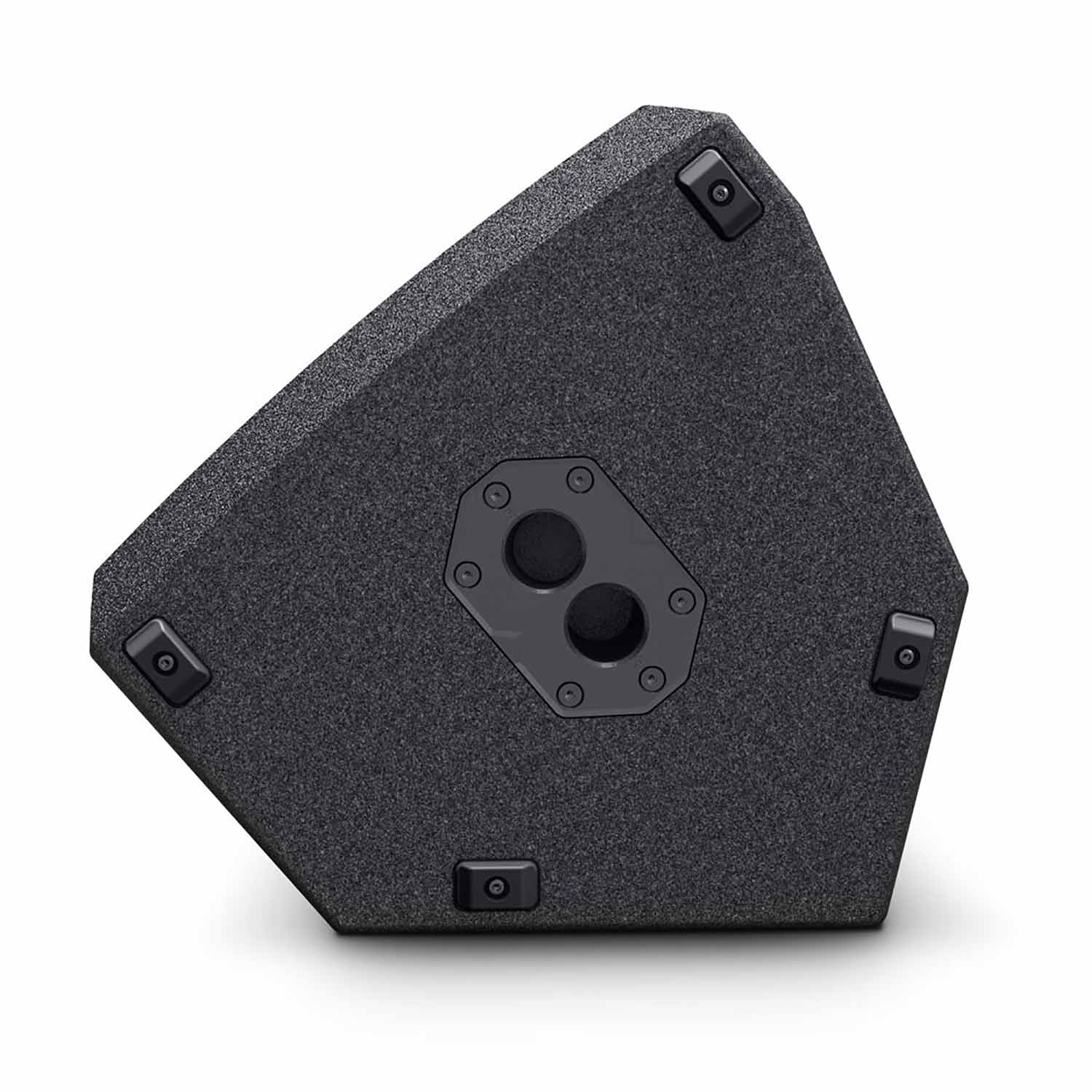

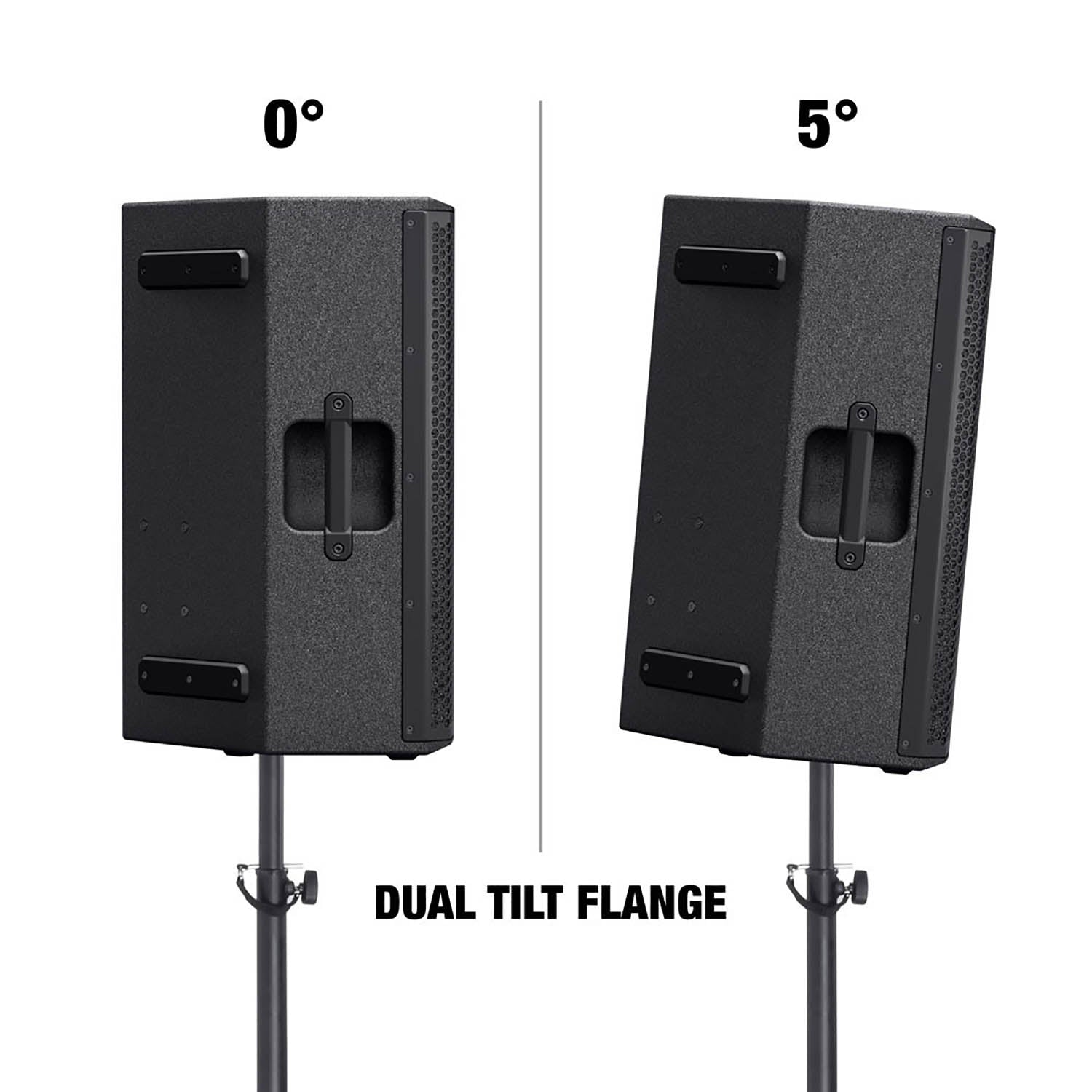

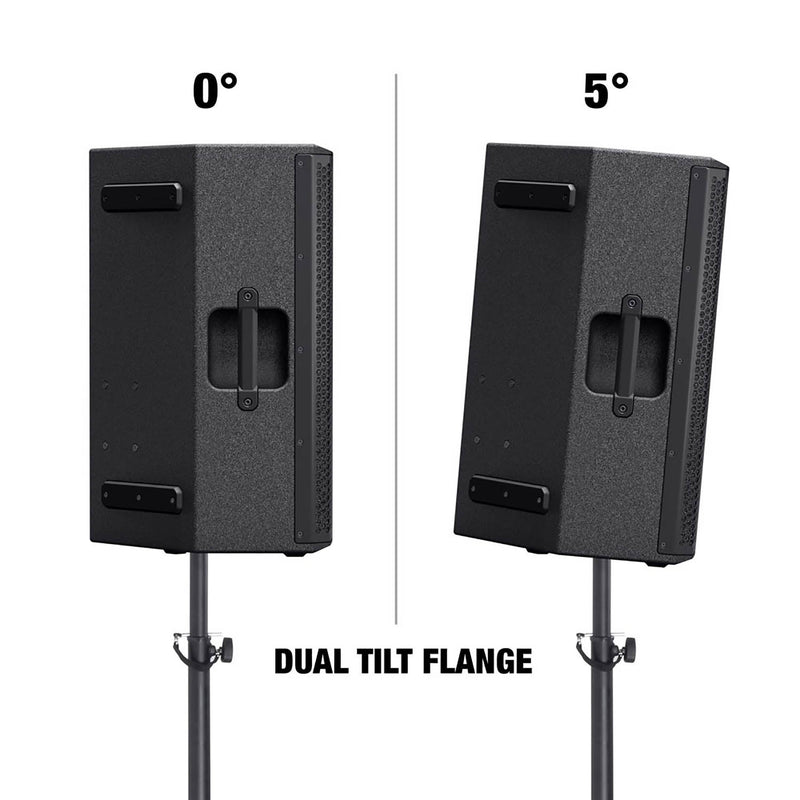

The Stinger 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points, and ergonomic handles. The Stinger 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
Product Specifications:
Product Type: PA loudspeaker
Type: Passive
Low/mid driver dimensions: 12"
Woofer size: 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5"
Woofer voice coil (mm): 63.5 mm
Horn: BEM optimized CD Horn
HF driver dimensions: 1"
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1"
HF Driver Voice Coil: 25.4 mm
Dispersion (H x V): 90 x 50 °
Load Rating (RMS): 400 W
Peak power: 800 W
Frequency response: 58 - 20000 Hz
SPL (1W/1m): 99 dB
Max. SPL: 125 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver

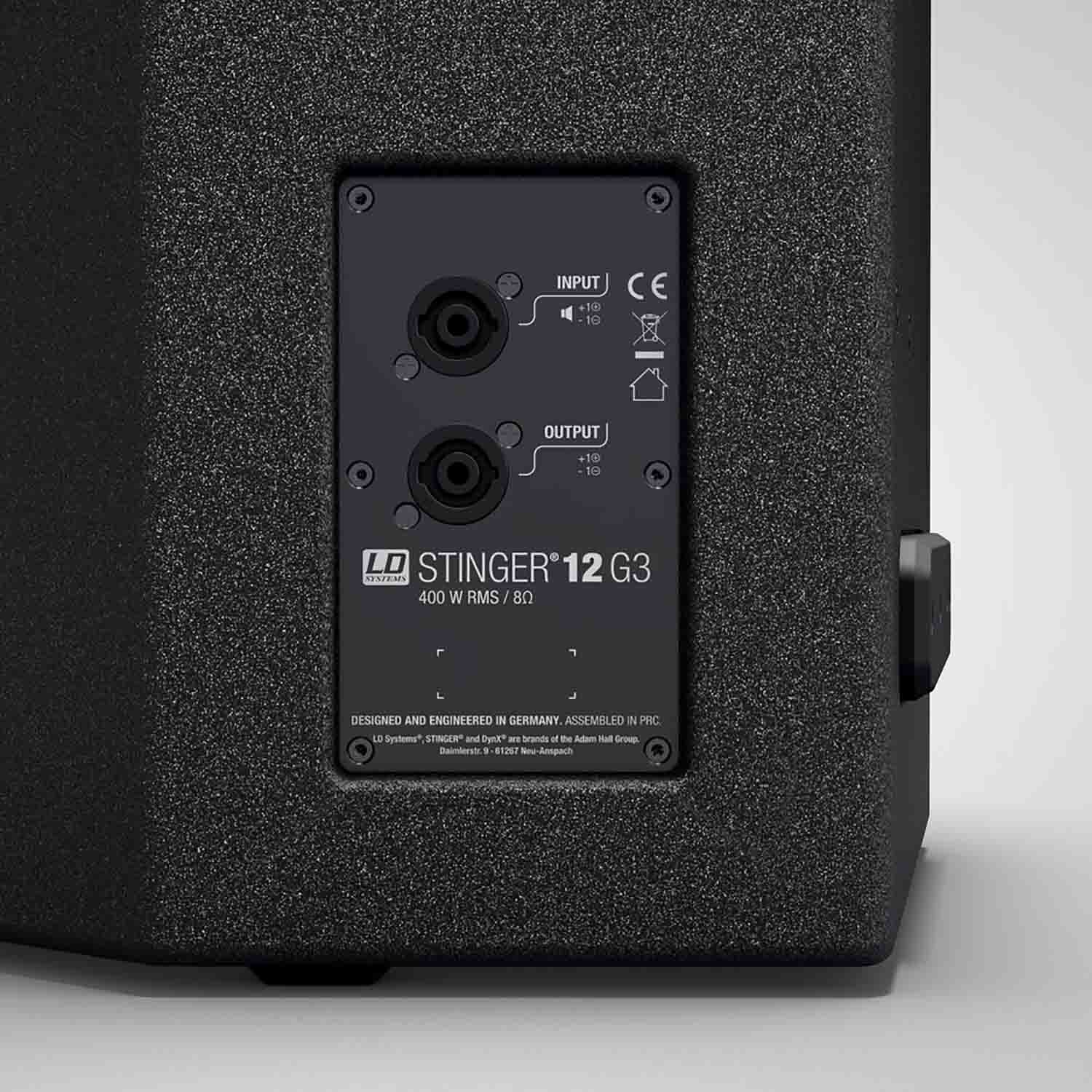

Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Speakers per amplifier channel (DSP44/45K): 3
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: Bass Reflex

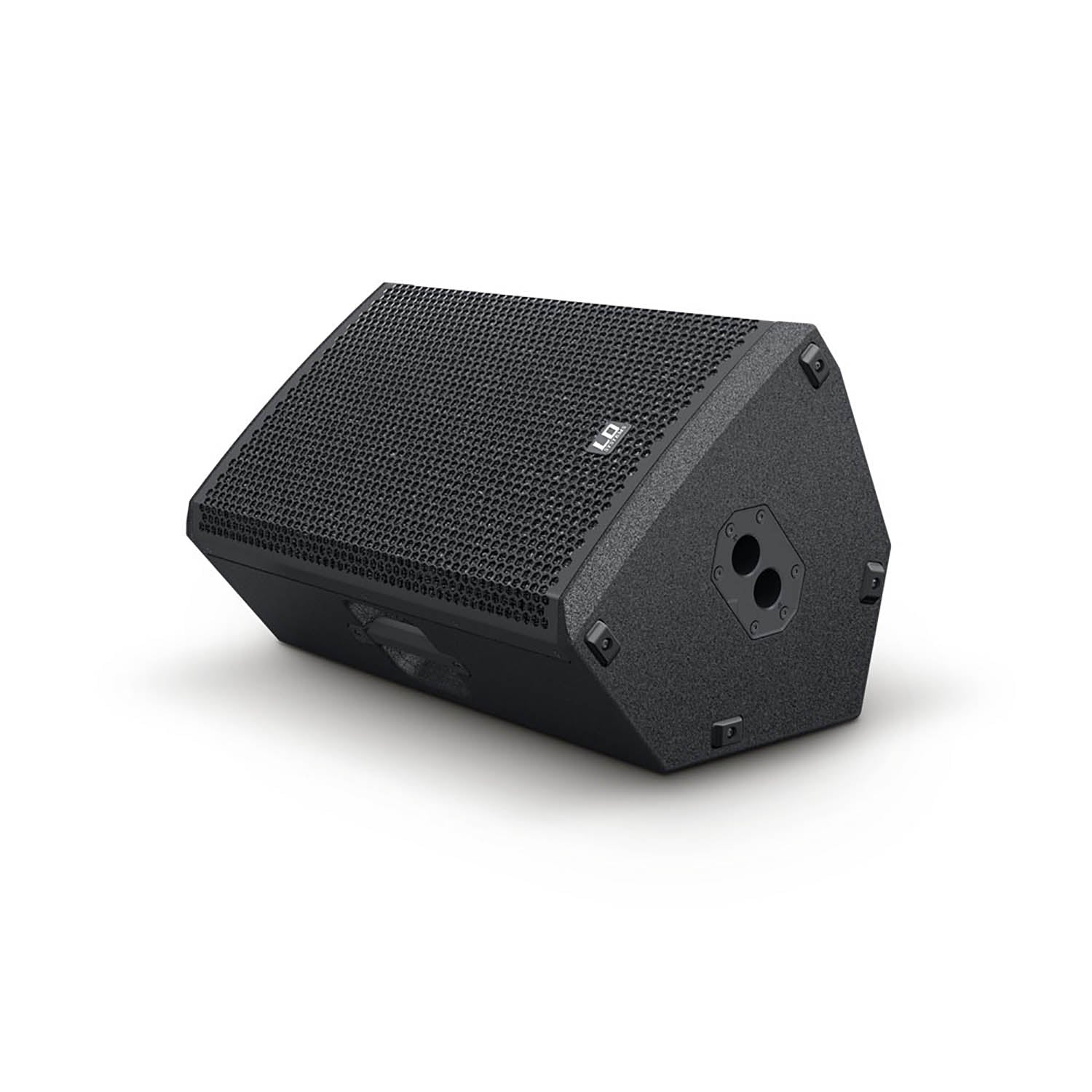

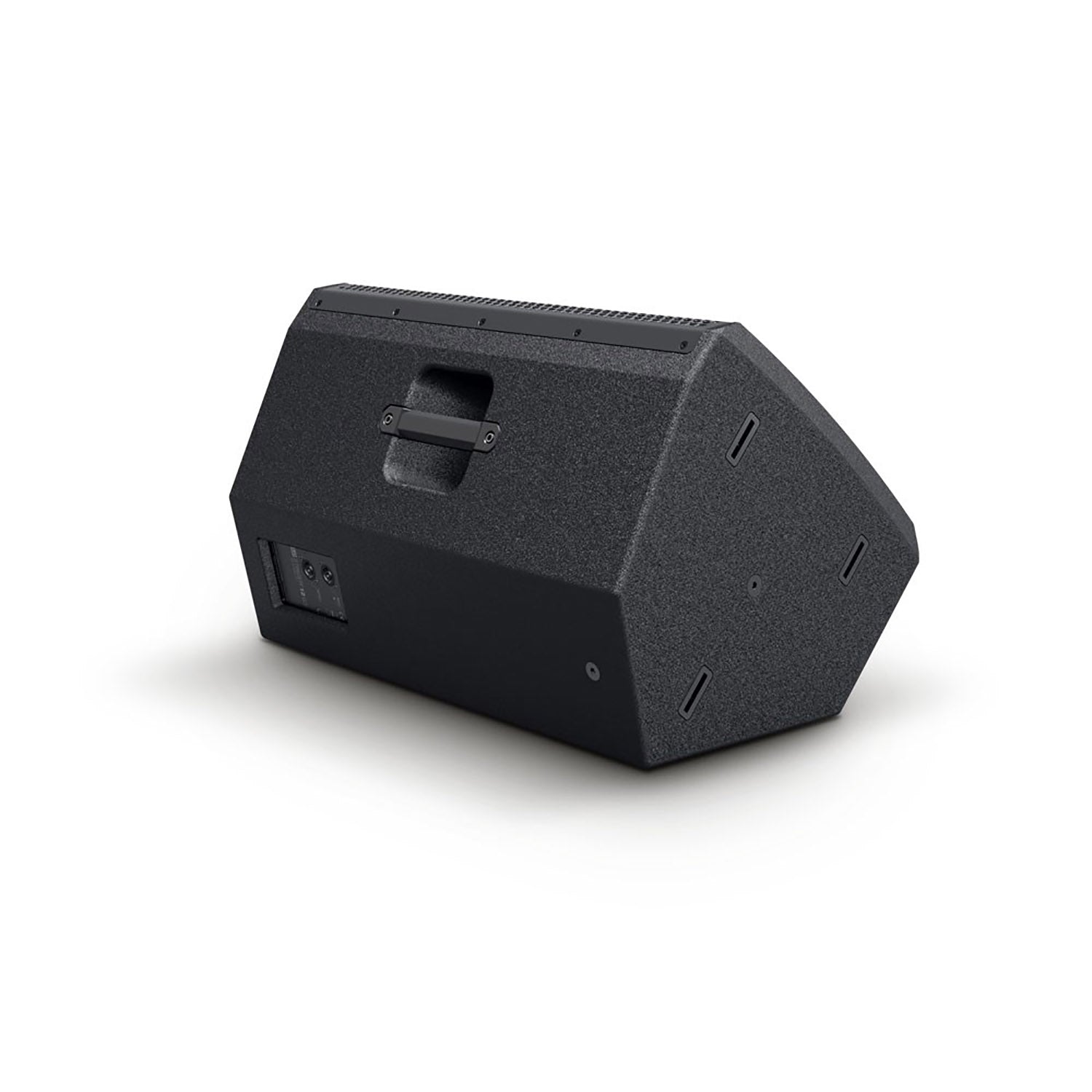

Monitor angle: 54 °
Width: 390 mm
Height: 627 mm
Depth: 377 mm
Weight: 19,4 kg
