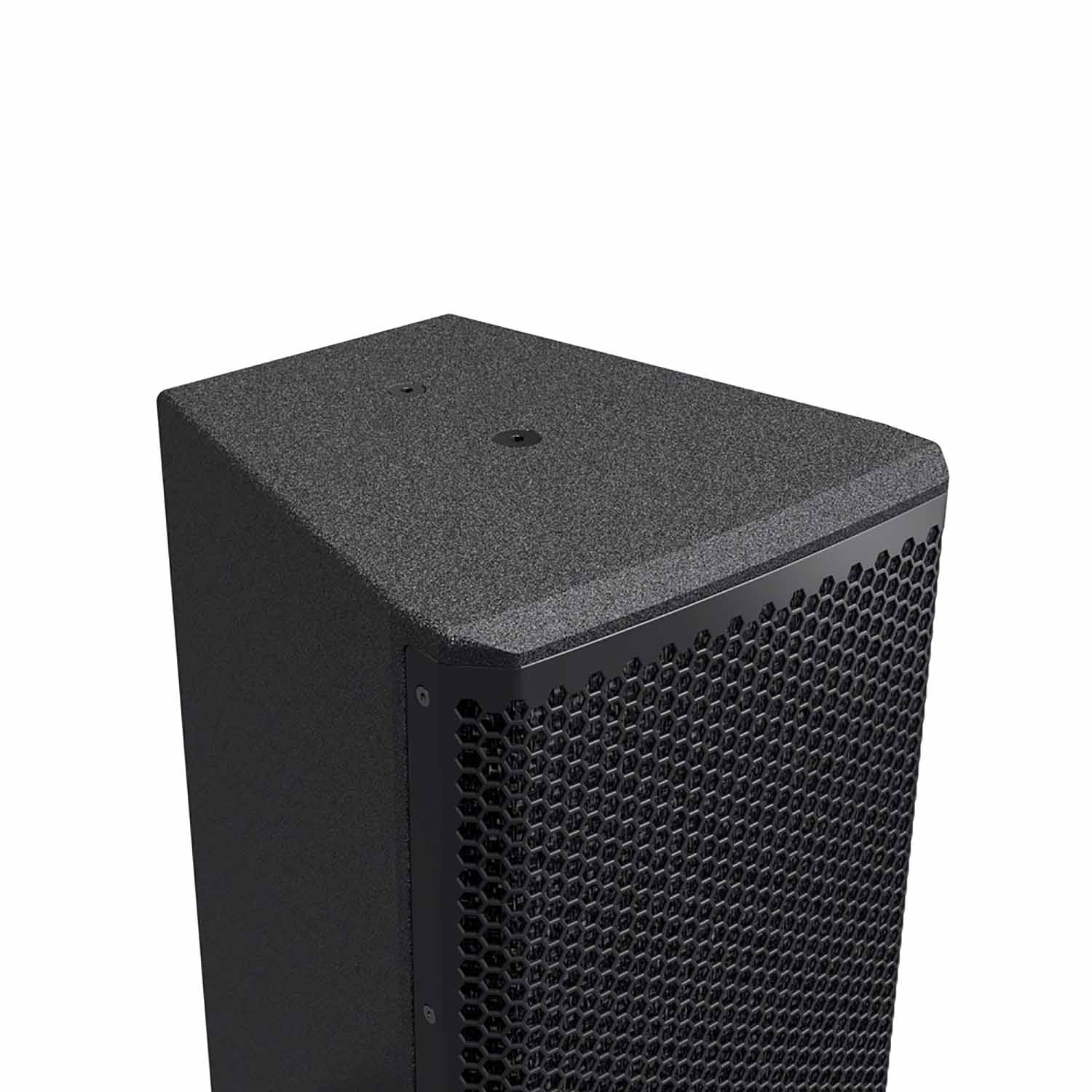

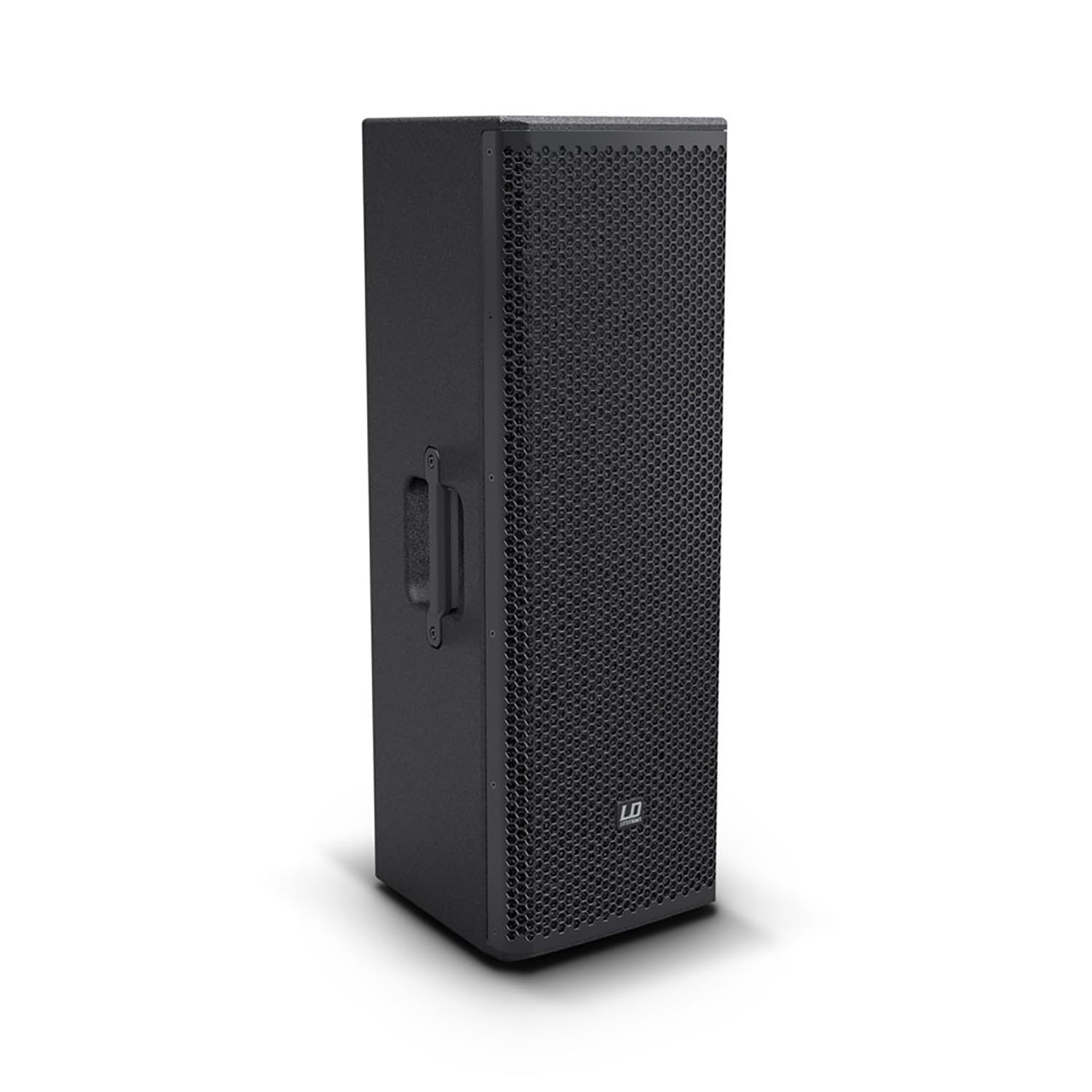

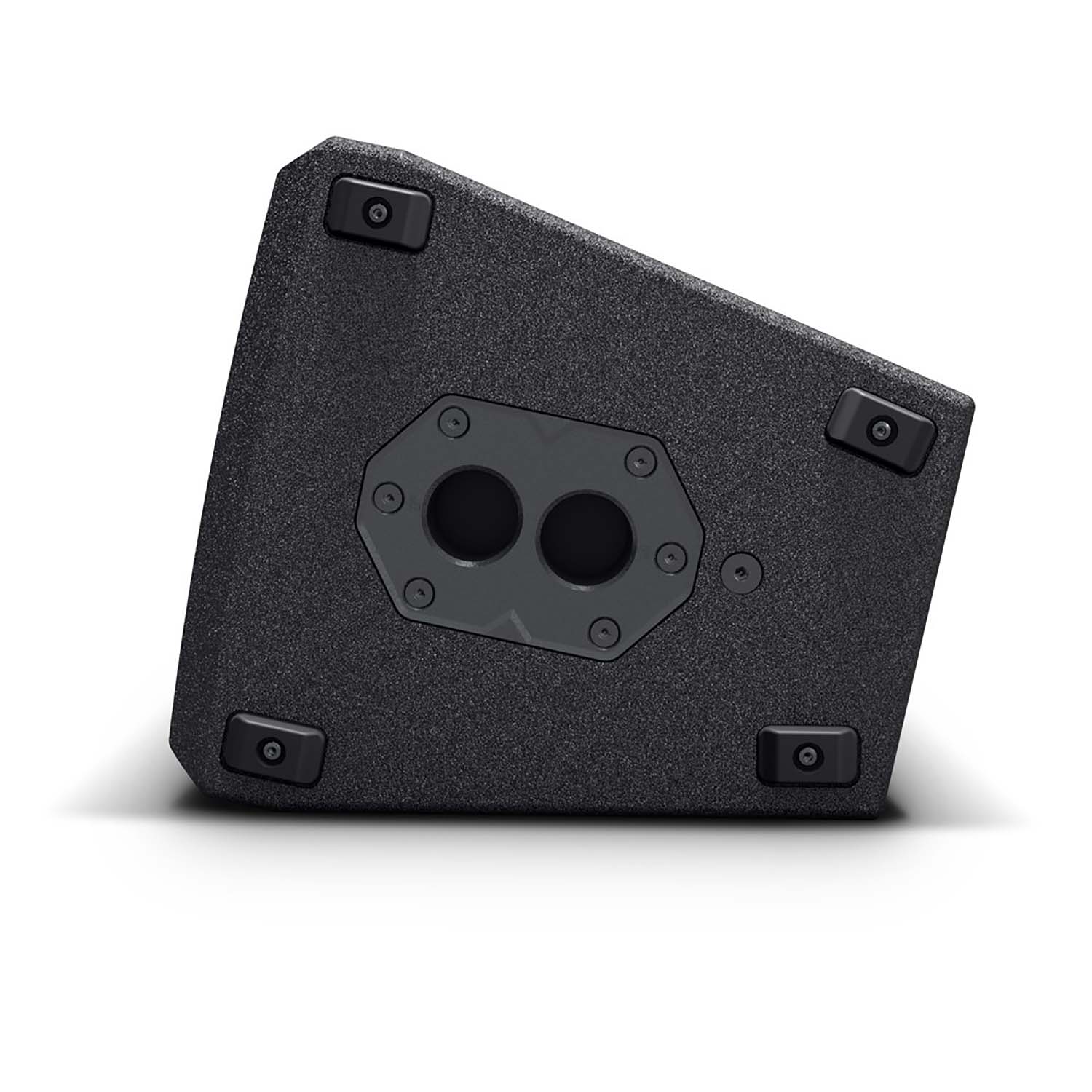

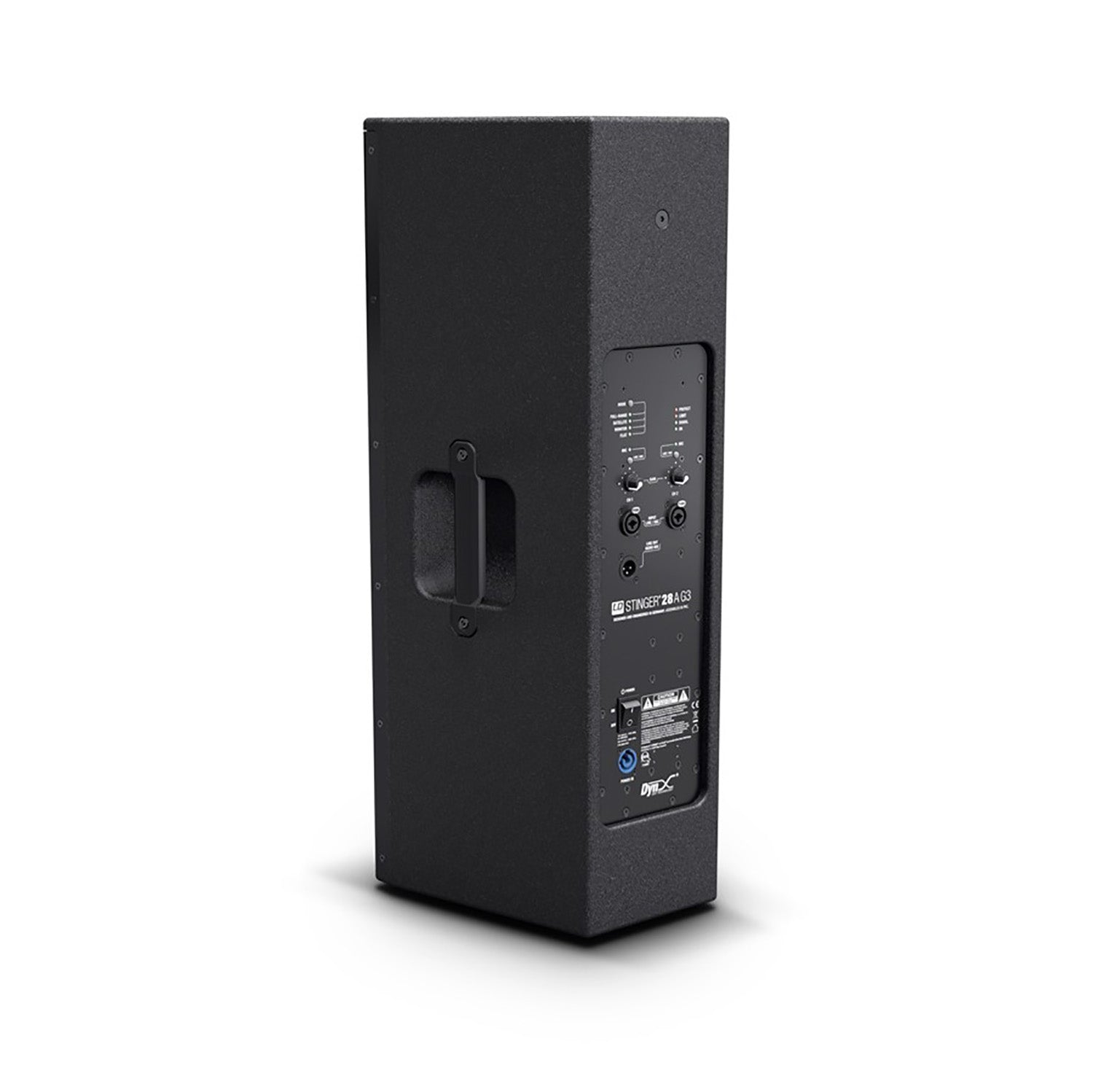

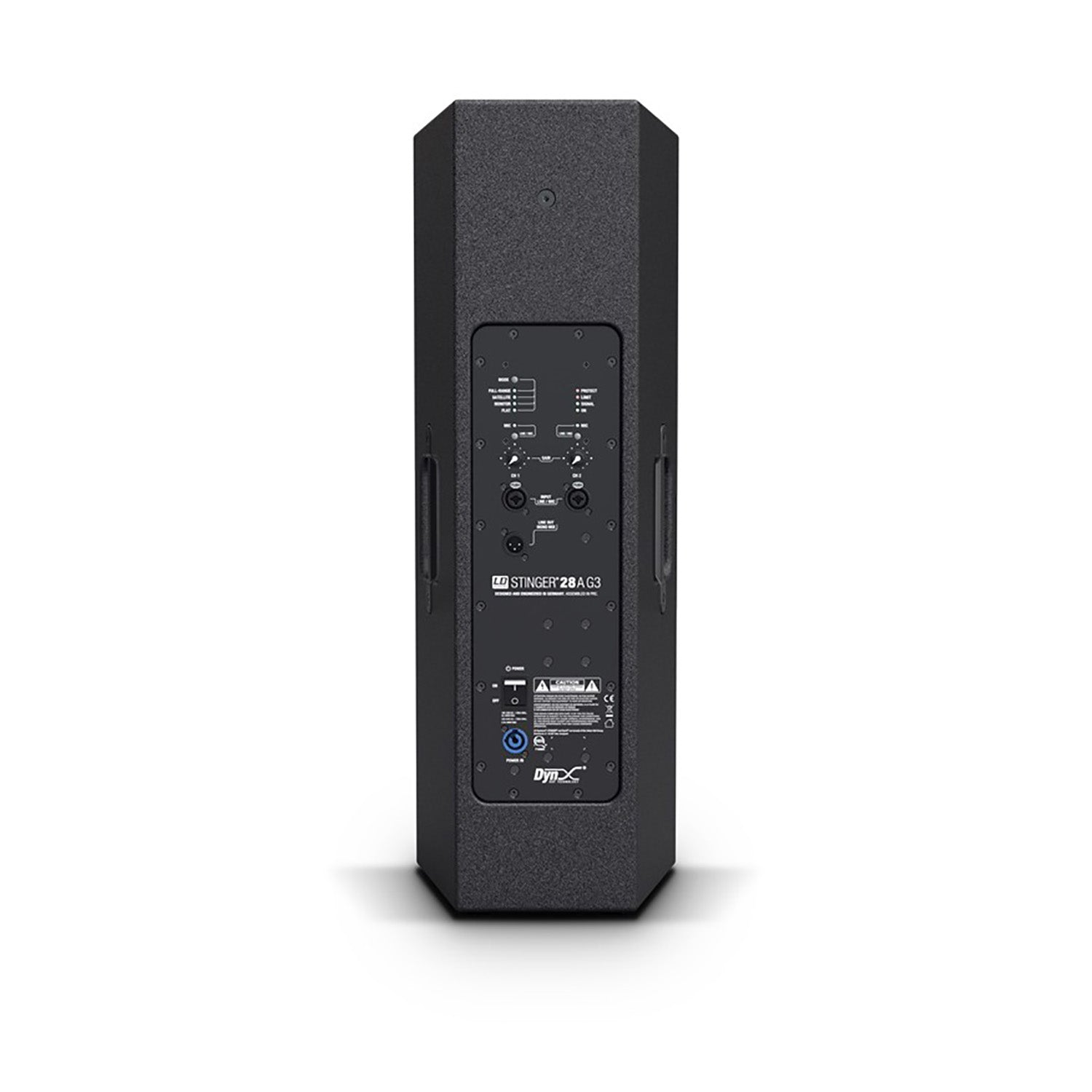

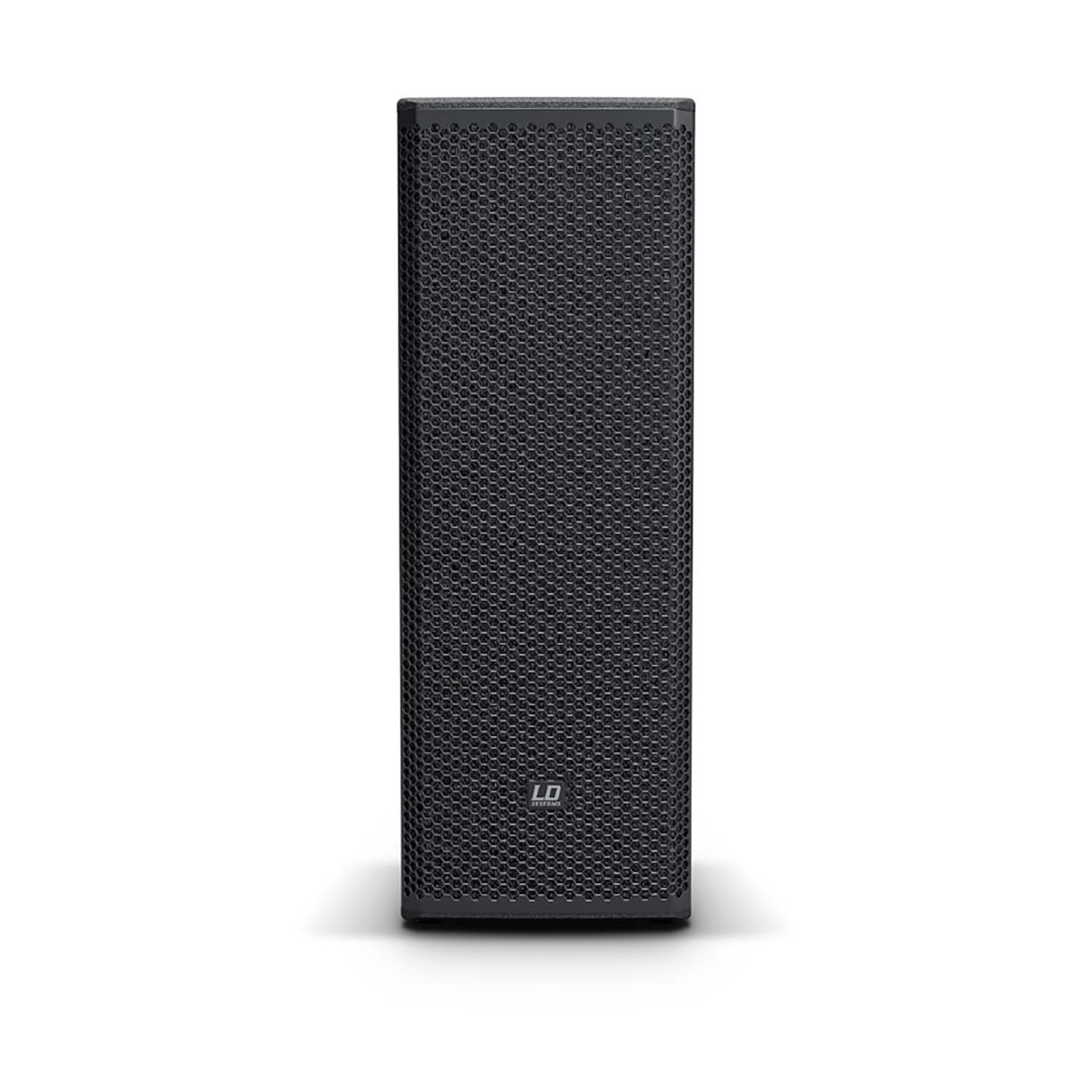

LD Systems STINGER 28 A G3, 2 Way Bass-Reflex Active PA Speaker - 2 X 8 Inches

This highly professional 2-way active system is designed for absolute, long-term reliability. With its rugged bass reflex housing and finely tuned, user-friendly presets, it is suitable for use as a full-range speaker, satellite or monitor. The Stinger 28 A G3 is powered by a highly efficient Class-D amplifier with a powerful 500-watt continuous output. Its two specially developed 8" woofers and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion.

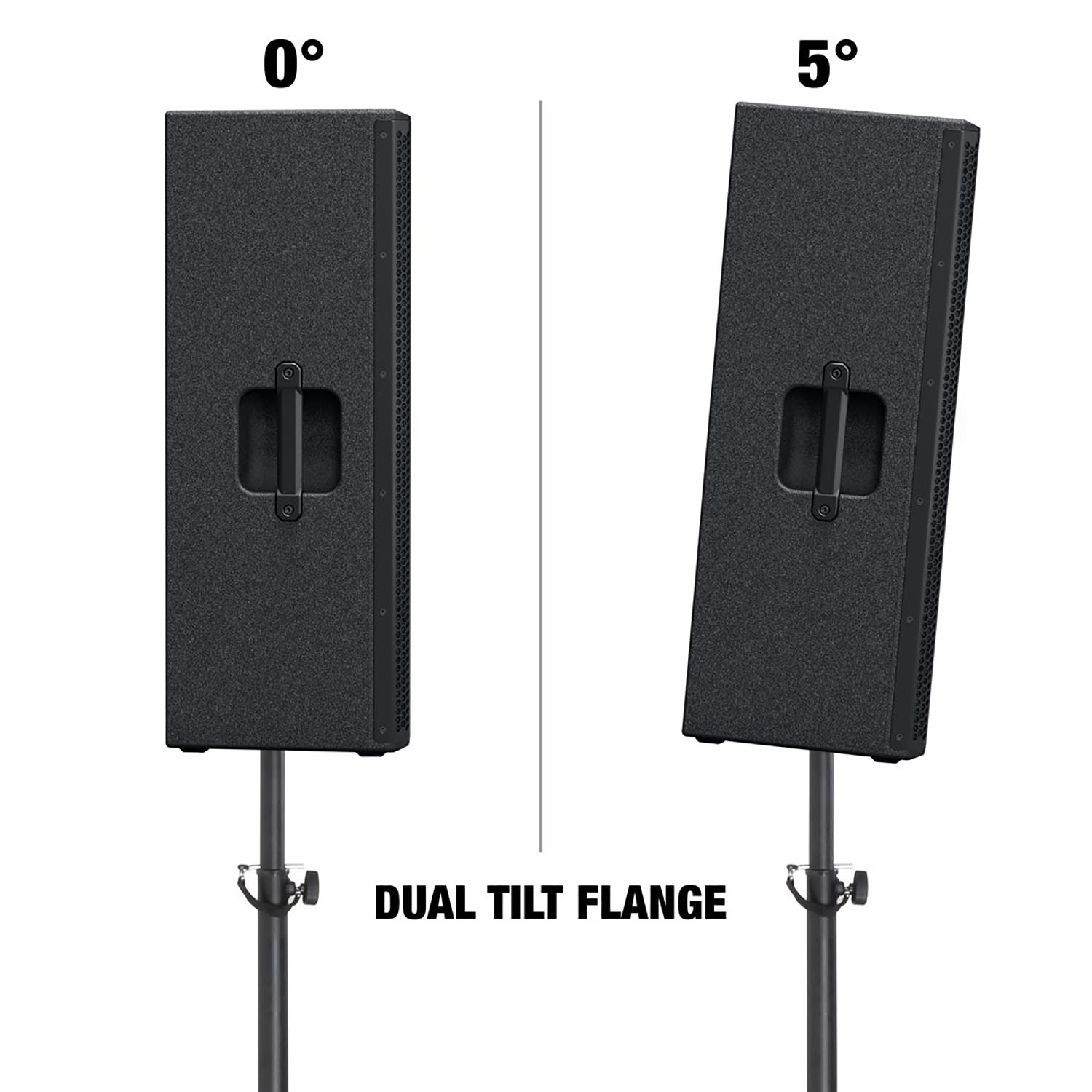

LD Systems’ proprietary DynX DSP technology means that the Stinger 28 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger 28 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Product Specifications:

Product Type: PA loudspeaker

Type: Active

Low/mid driver dimensions: 2 x 8 "

Woofer size: 2 x 203.2 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice coil: 2 "

Woofer voice coil (mm): 50.8 mm

Horn: BEM optimized CD Horn

HF driver dimensions: 1"

HF Driver Size: 25.4 mm

HF driver magnet: Ferrite

HF driver brand: BMS

HF driver voice coil: 1"

HF Driver Voice Coil: 25.4 mm

Amplifier: Class D

Dispersion (H x V): 90 x 50 °

RMS: 500 W

Peak Power: 1000 W

Frequency Response: 58 - 20000 Hz

Max. SPL (peak): 131 dB

Protection circuits: Multiband limiter, over voltage, over-current , thermal overload

Input sensitivity: -5 dBu

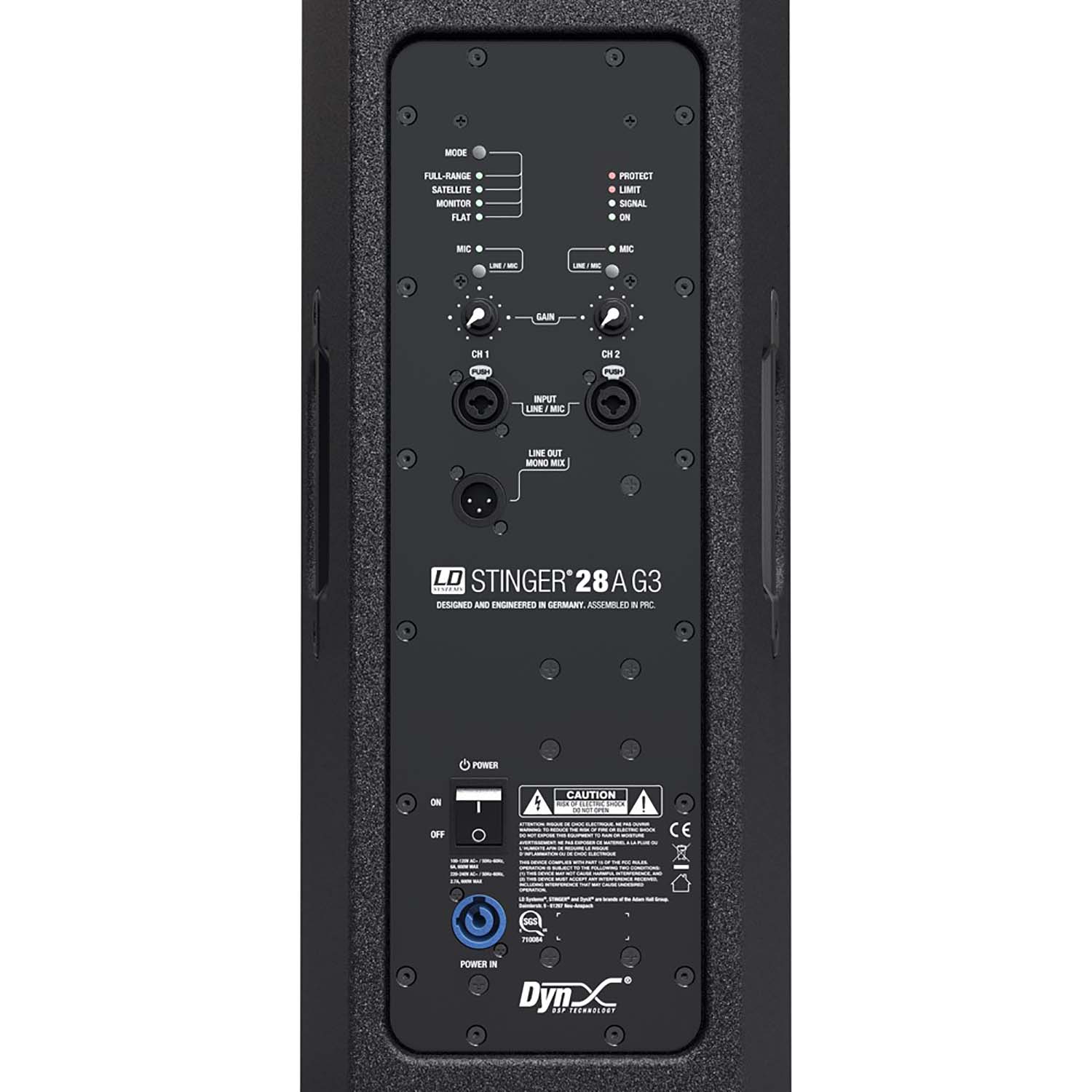

Controls: 2 x gain, 2 x Mic/Line, Mode

Indicators: Limit, Mode, On , Protect (protection circuit engaged) , Signal

Line inputs: 2

Line input connectors: 6.3 mm jack, XLR

Line outputs: 1

Line output connectors: XLR

Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)

Operating Temperature: 0 - 40 °C

Relative Humidity: < 80% (non-condensing)

Cabinet material: 12 mm Plywood

Cabinet surface: Polyurea

Cabinet construction: Bass Reflex

Width: 270 mm

Height: 756 mm

Depth: 290 mm

Weight: 20,5 kg
