Description
Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction, it is equally suitable for the full range, satellite, or monitor use in live PA systems and permanent installations. The Stinger 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation, and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes, and achieves a controlled uniform coverage pattern.

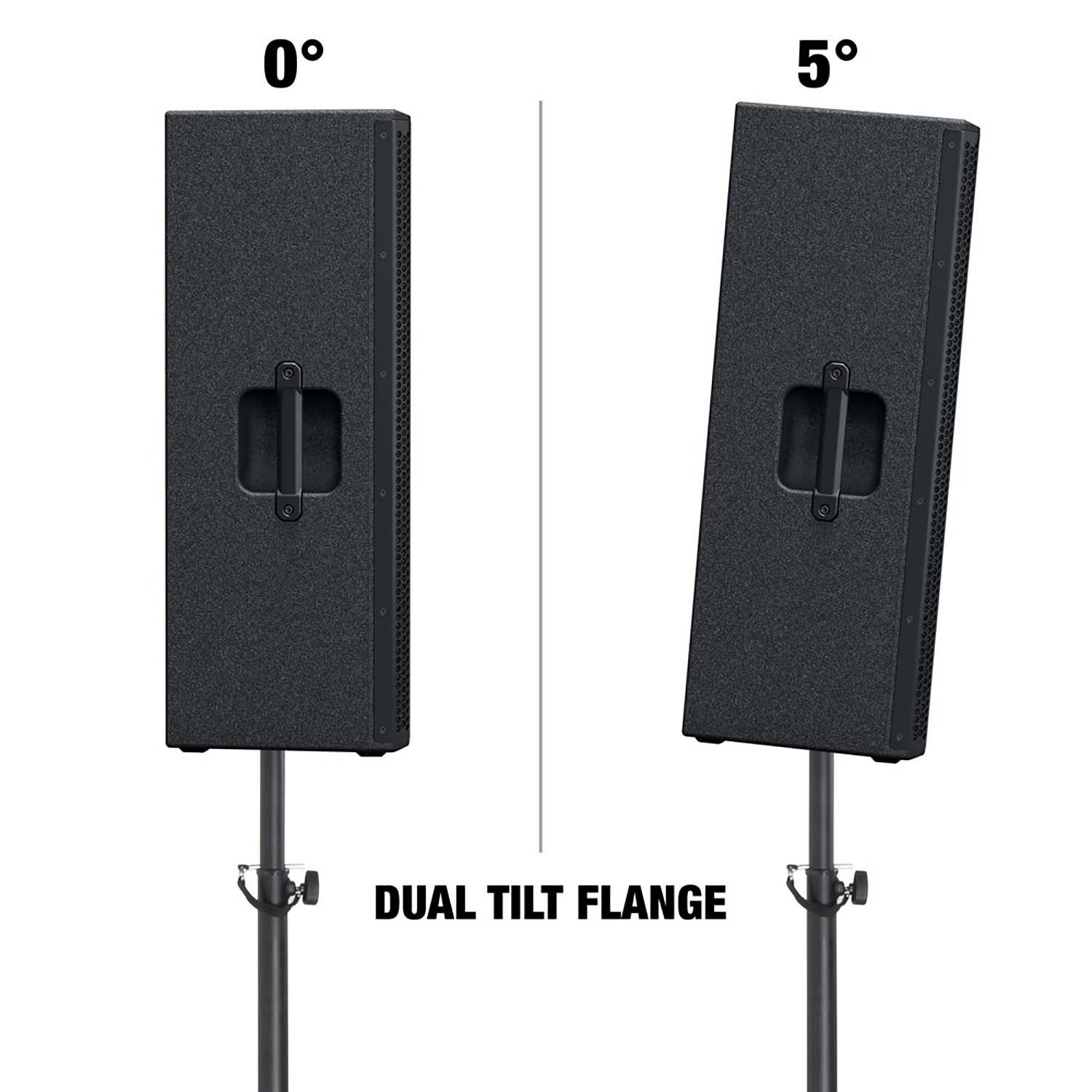

The Stinger 28 G3 is designed to be a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra-tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points, and ergonomic handles the Stinger 28 G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitates live and installed applications.
Product Specifications:
Product Type: PA Loudspeaker
Type: Passive
Low/Mid Driver Dimensions: 2 x 8 "
Woofer Size: 2 x 203.2 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Woofer Voice Coil: 2"
Woofer Voice Coil (Mm): 50.8 mm
Horn: BEM optimized CD Horn
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: BMS
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Dispersion (H X V): 90 x 50 °
Load Rating (RMS): 400 W
Peak Power: 800 W
Frequency Response: 58 - 20000 Hz
SPL (1W/1m): 99 dB
Max. SPL: 125 dB
Impedance: 8 Ohm(s)
Protection Circuits: HF Driver

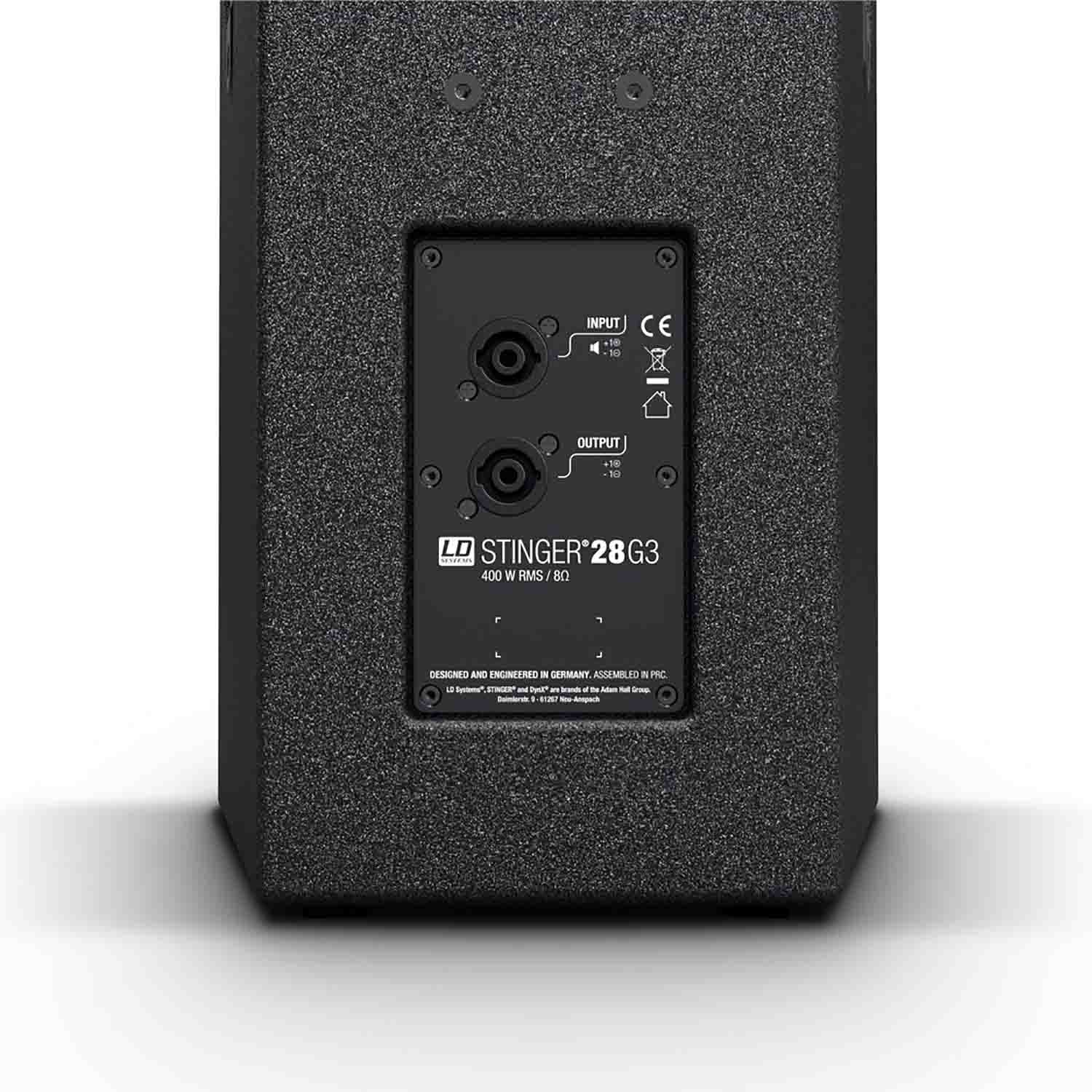

Loudspeaker Inputs: 1
Speaker Input Connections: Speakon compatible
Loudspeaker Outputs: 1
Speaker Output Connections: Speakon compatible
Speakers per Amplifier Channel (DSP44/45K): 3
Cabinet Material: 12 mm Plywood
Cabinet Surface: Polyurea
Cabinet construction: Bass Reflex
Width: 270 mm
Height: 756 mm
Depth: 290 mm
Weight: 19,3 kg
