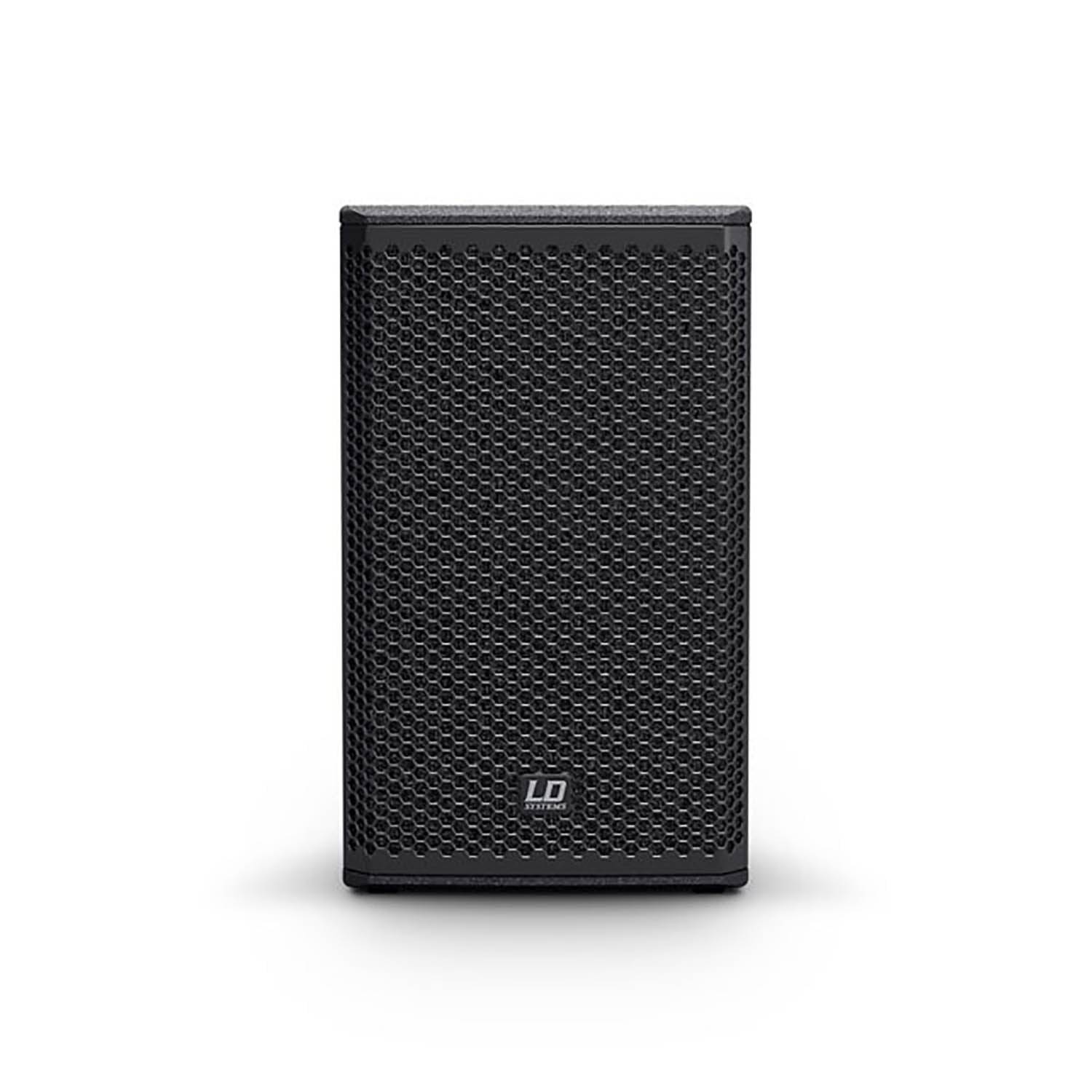

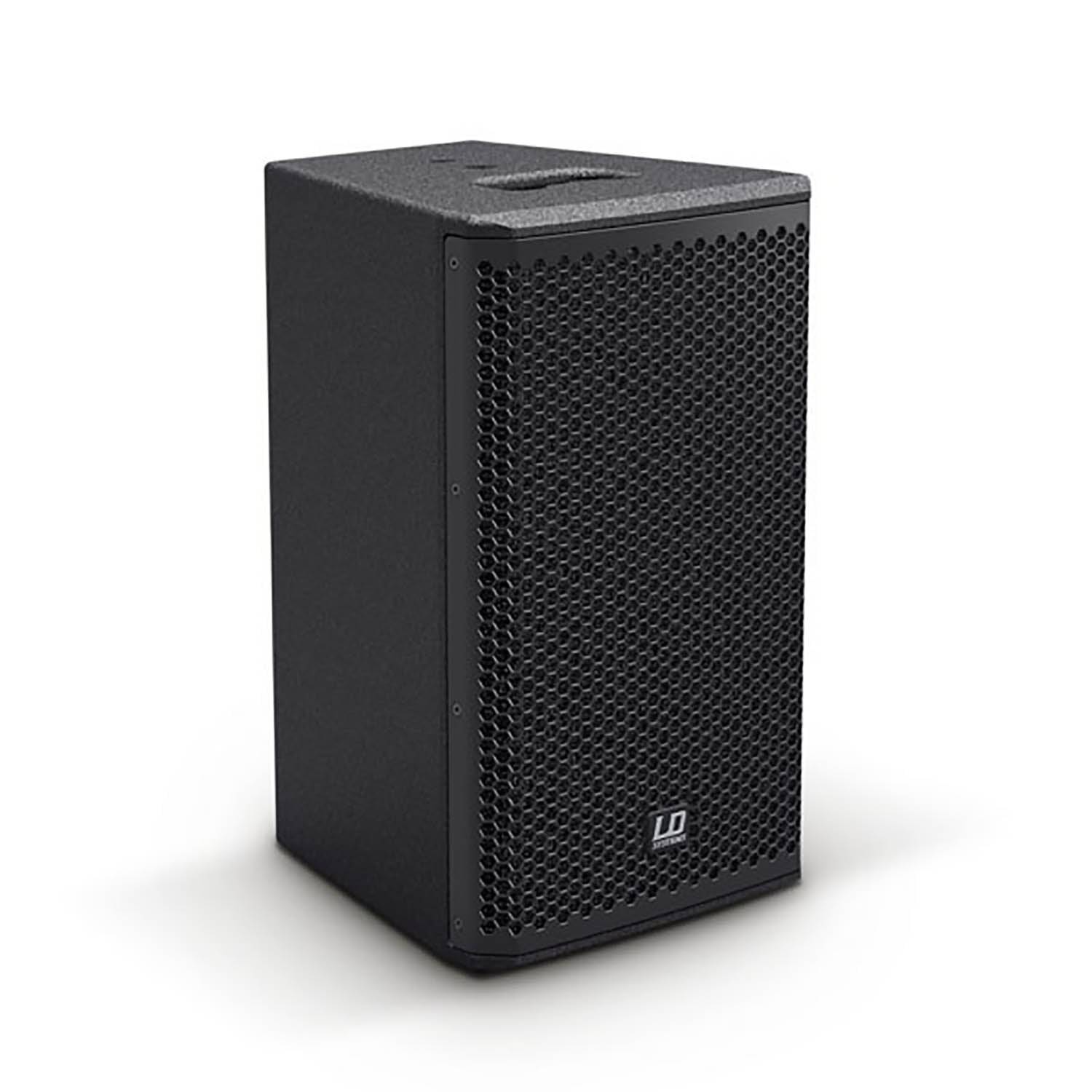

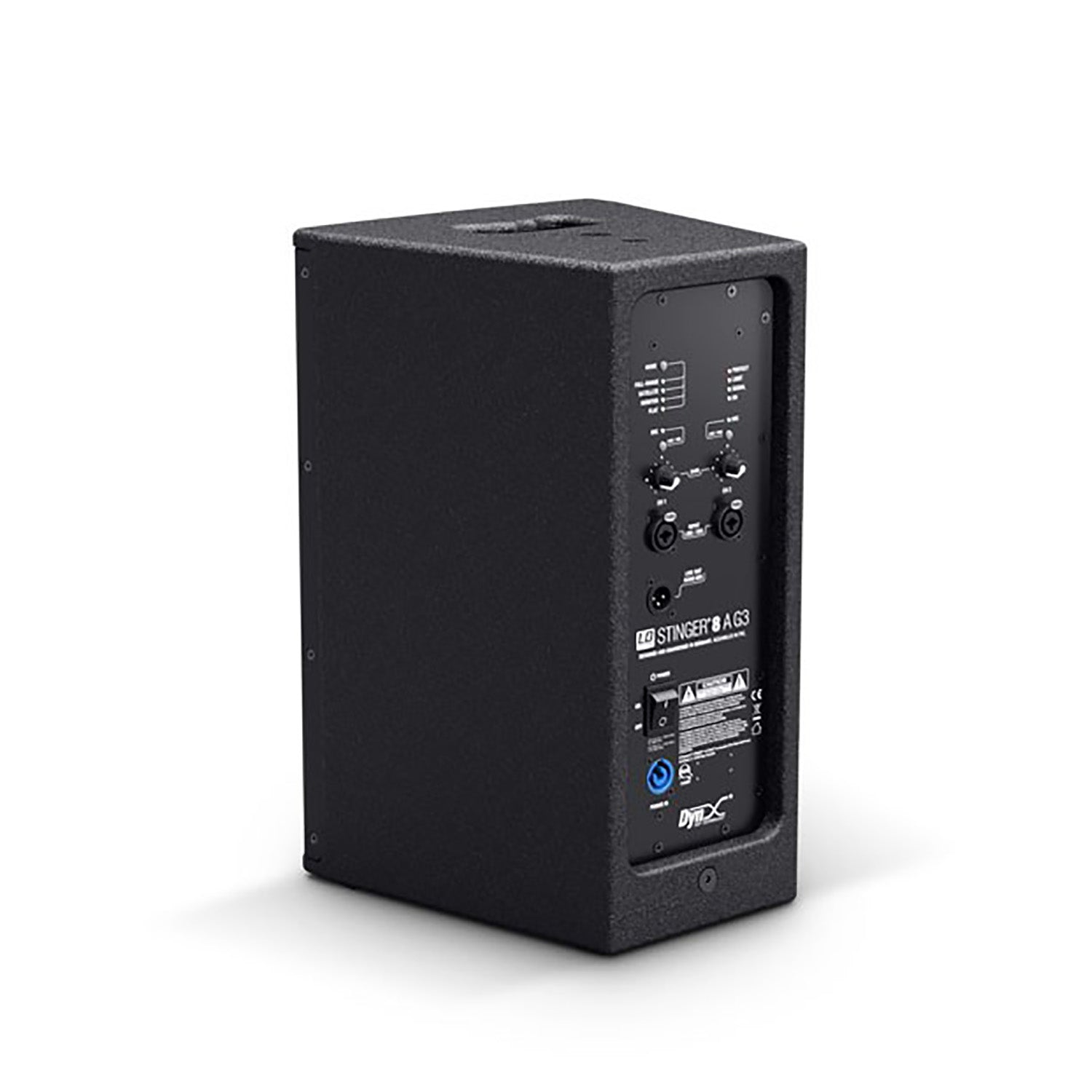

LD Systems STINGER 8 A G3, 2 Way Bass Reflex Active PA Speaker - 8 Inches

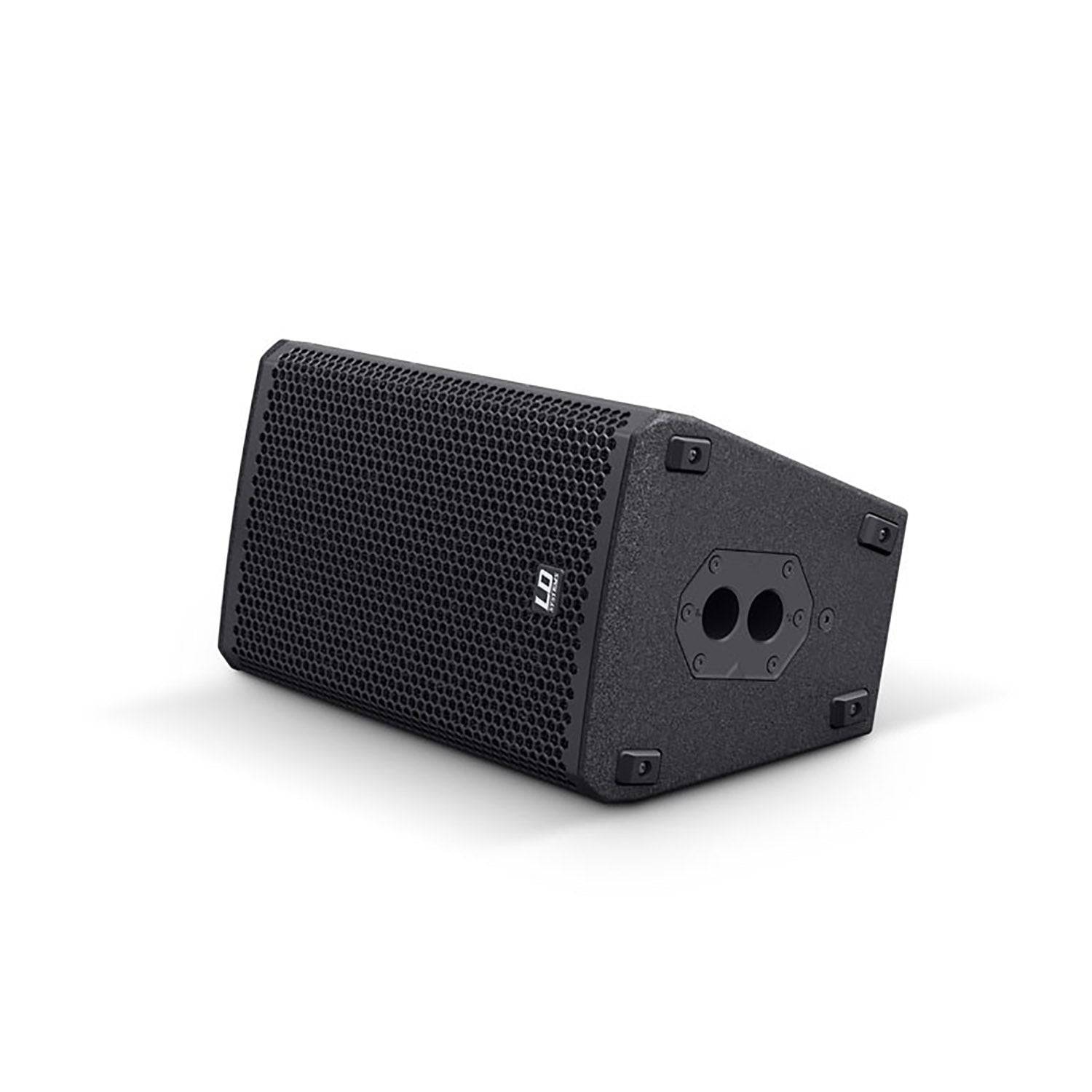

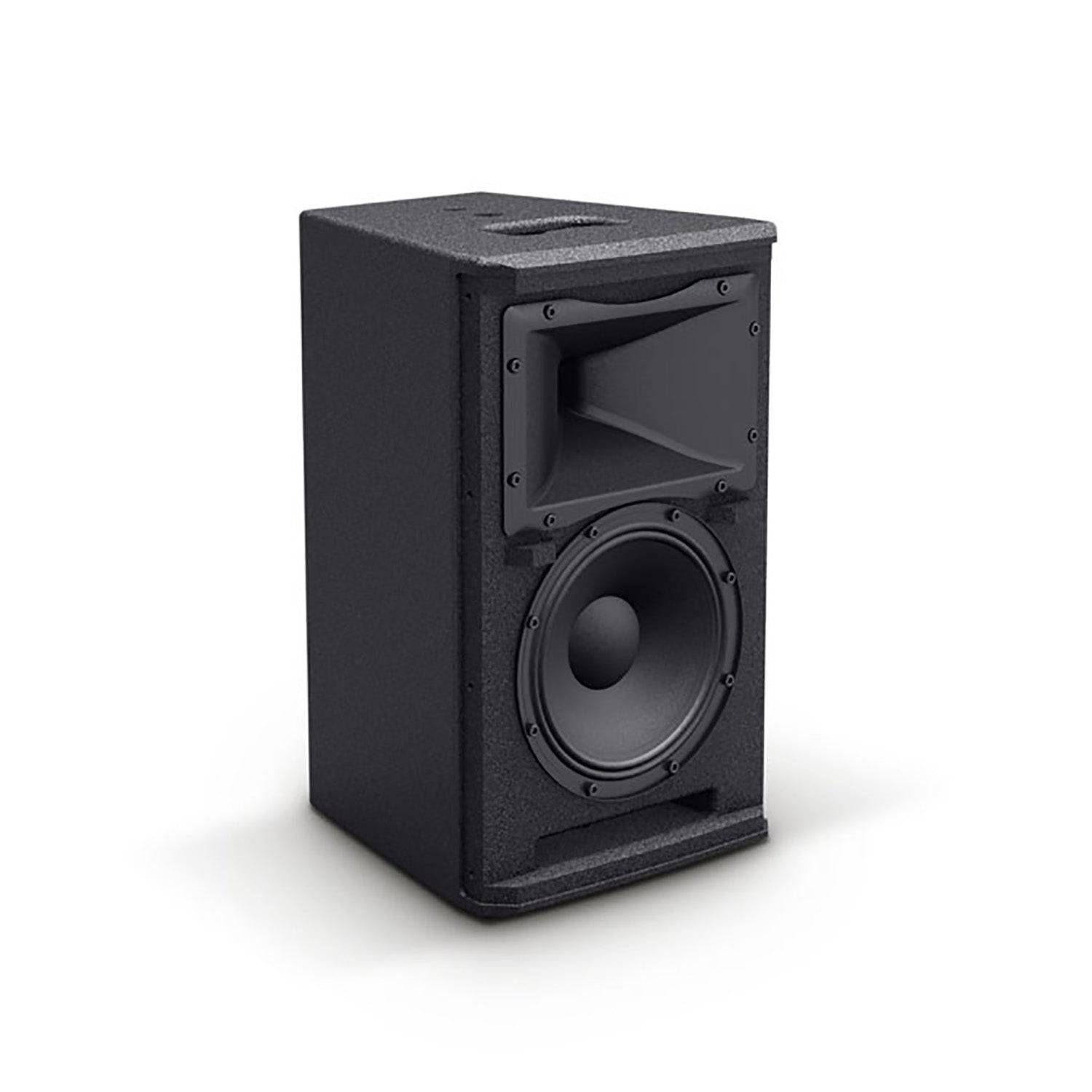

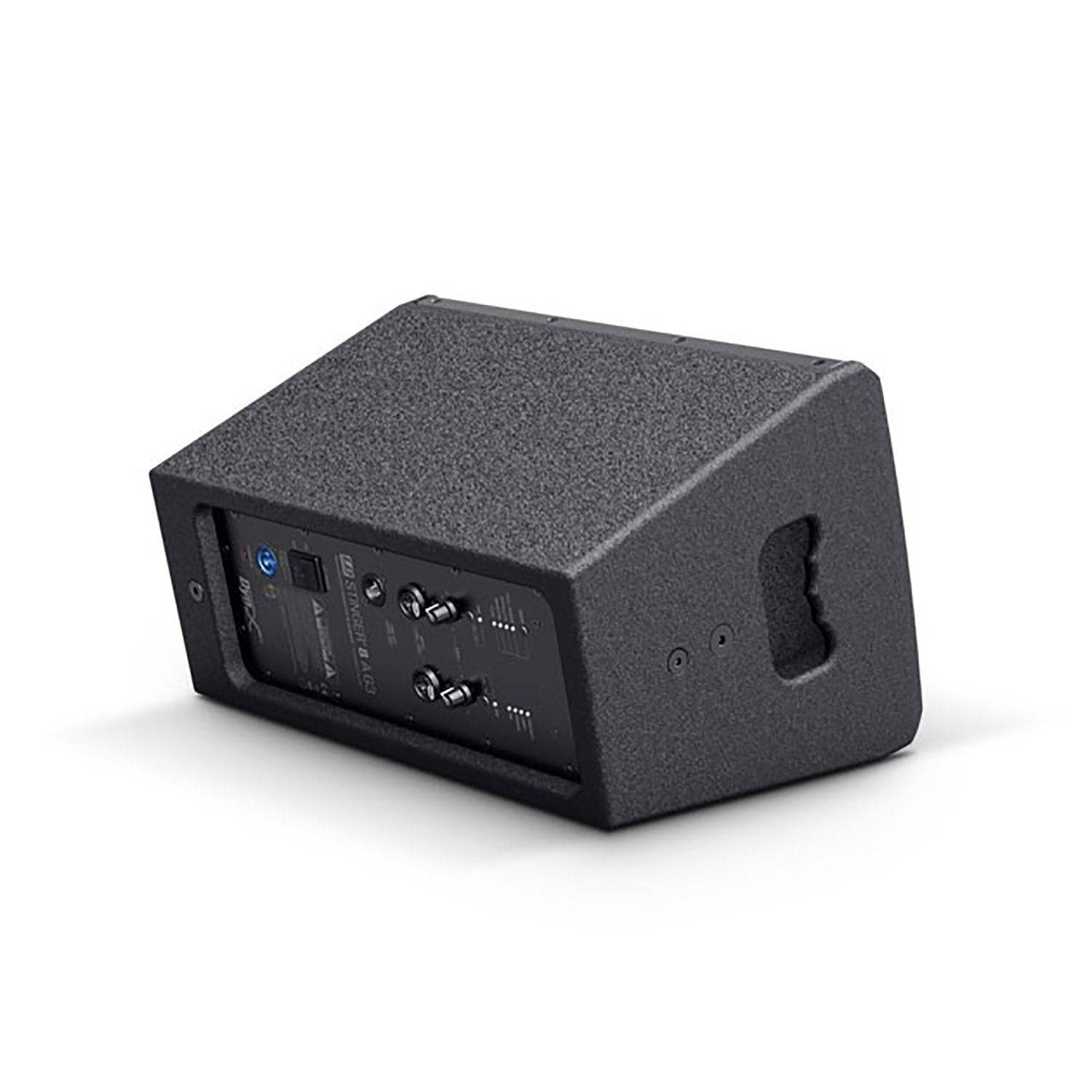

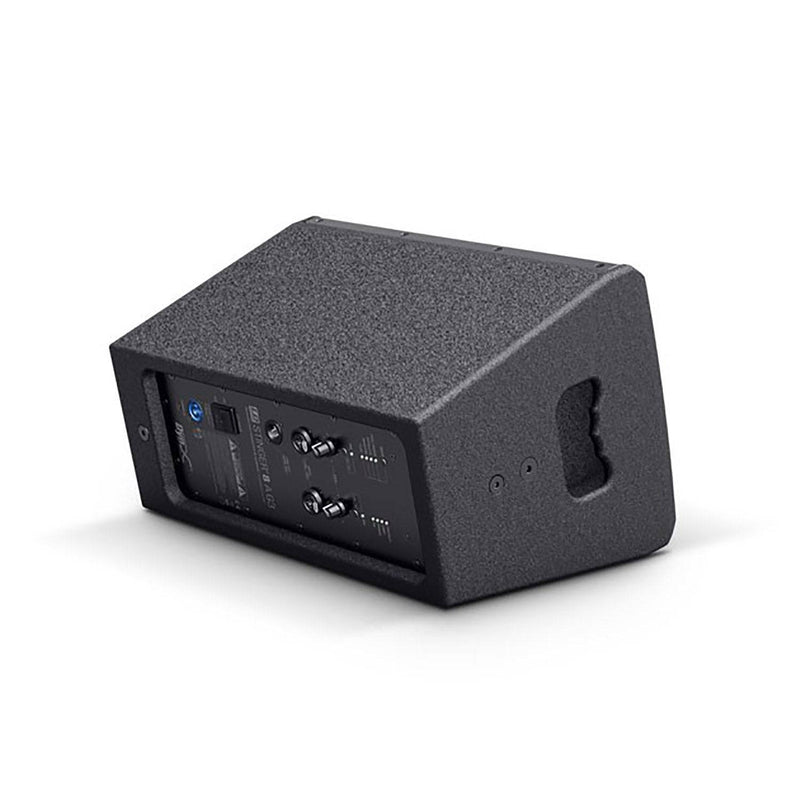

Engineered for rock-solid reliability day in, day out this active 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for the full range, satellite, or floor monitor applications. The Stinger 8 A G3 is powered by high-efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom-designed 8” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation, and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes, and achieves a controlled uniform coverage pattern.

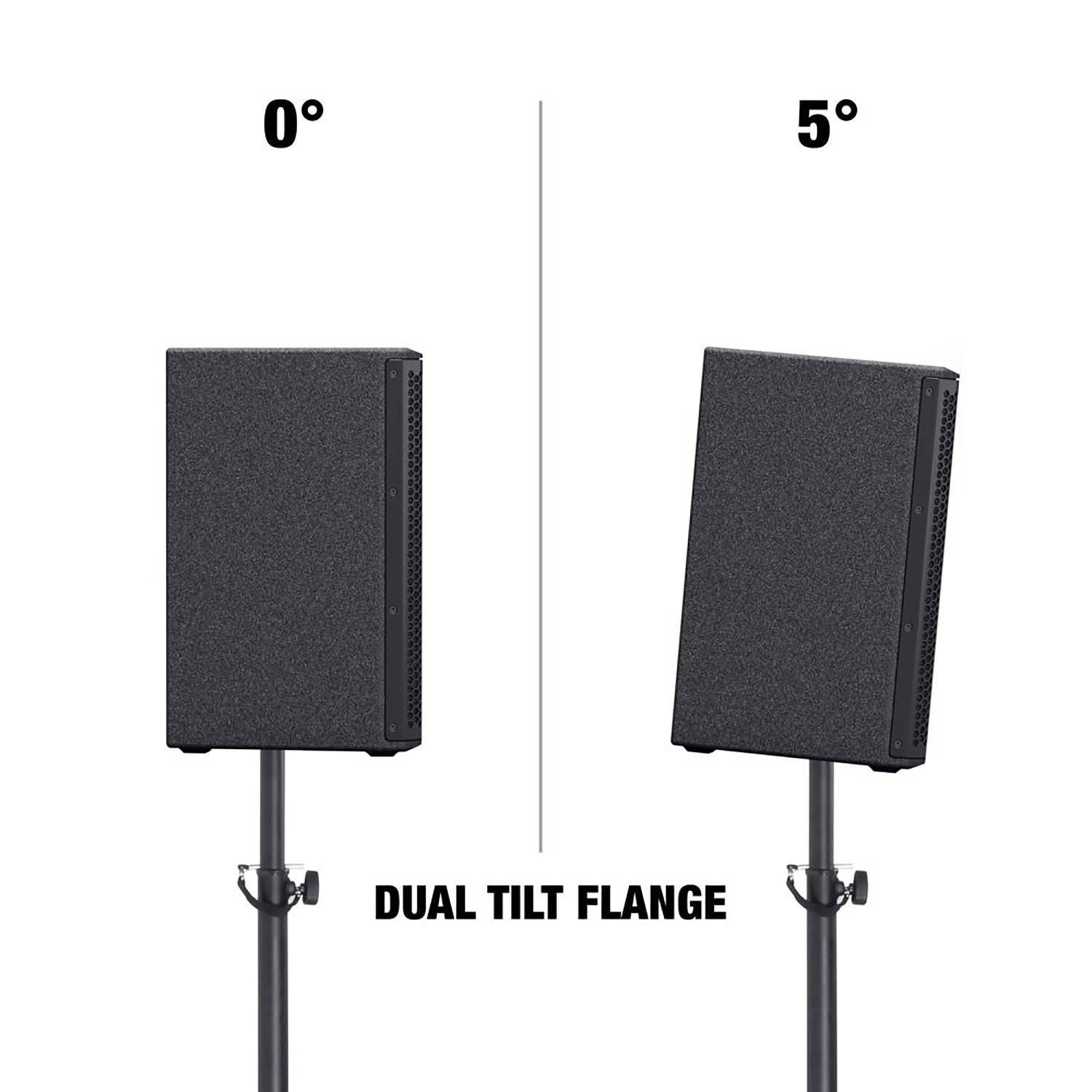

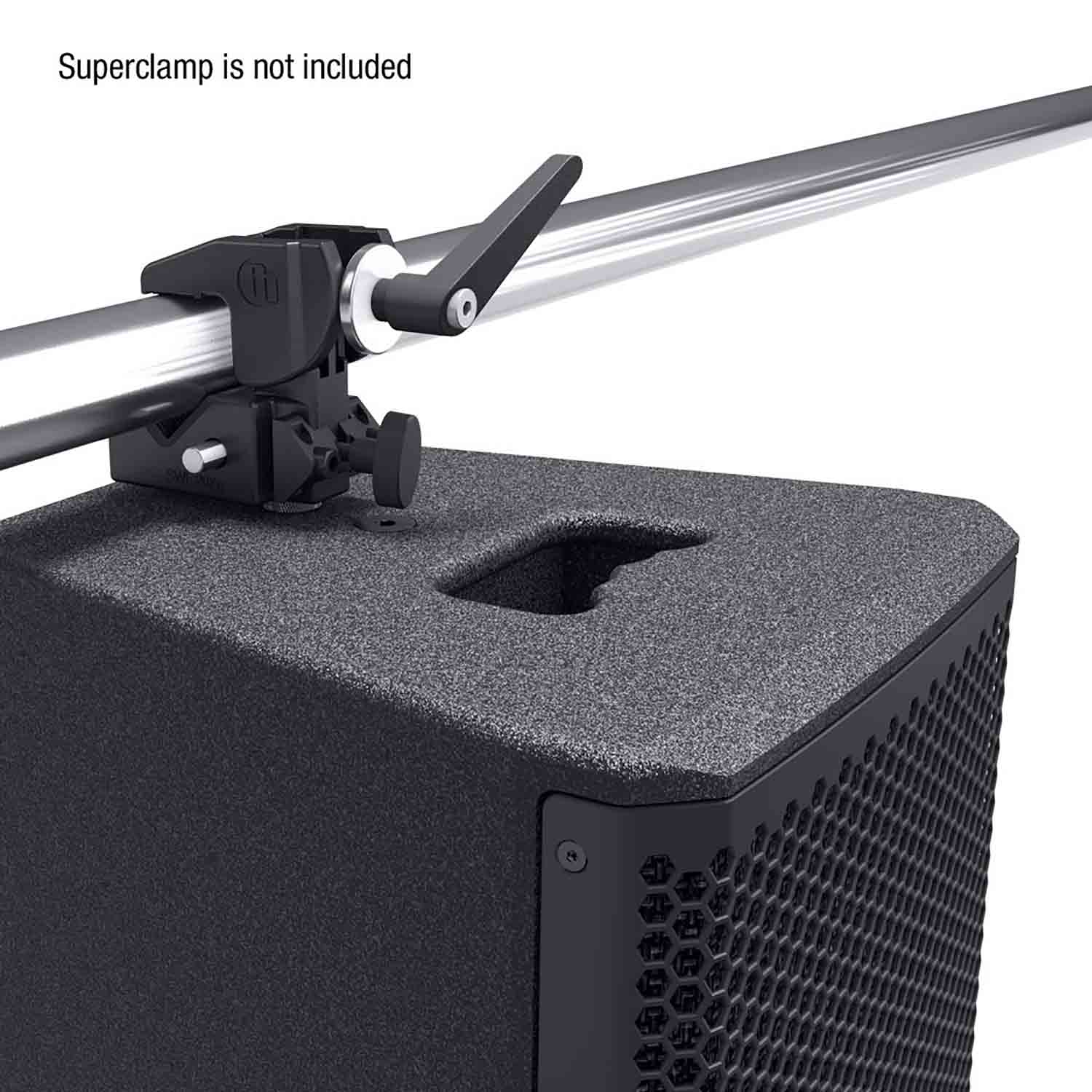

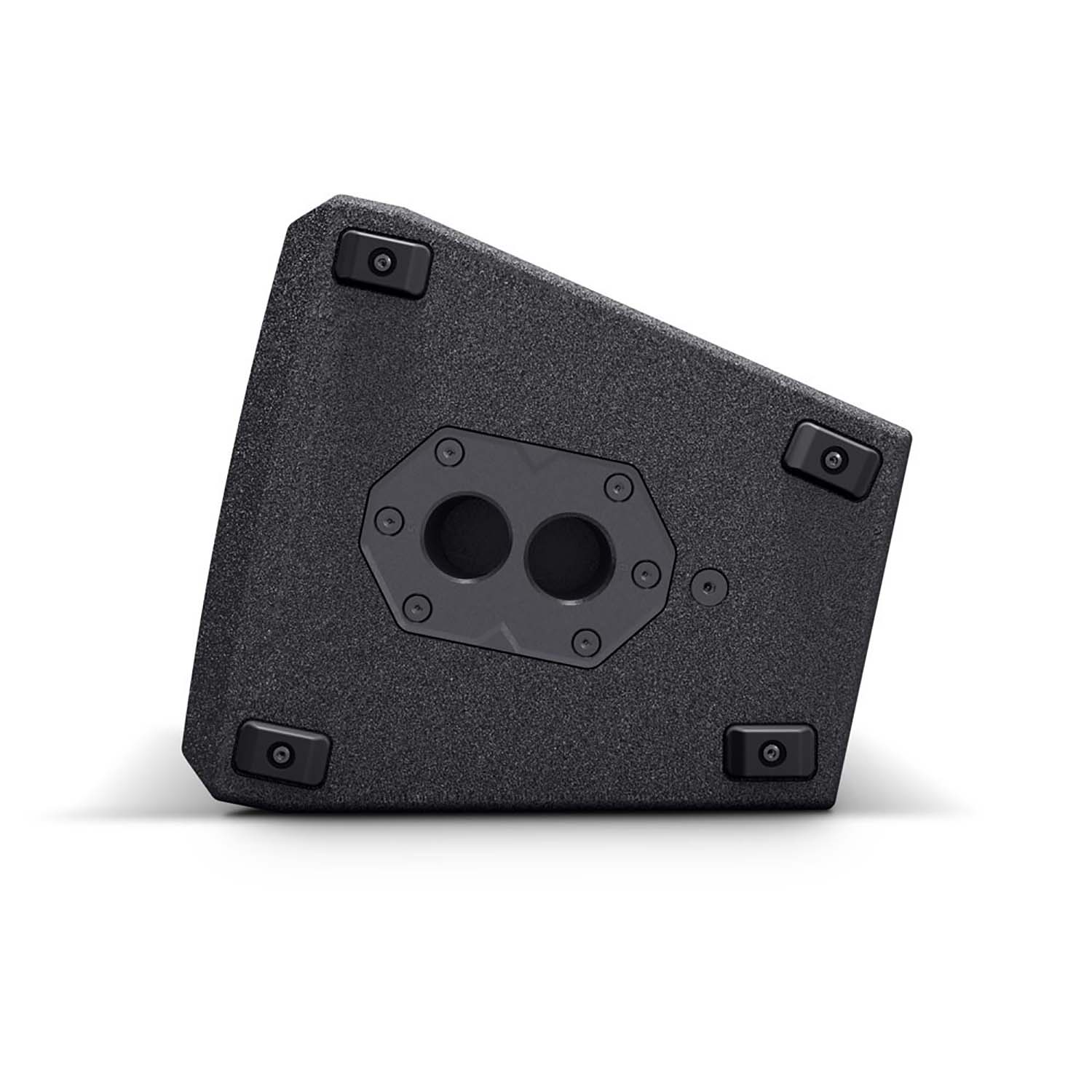

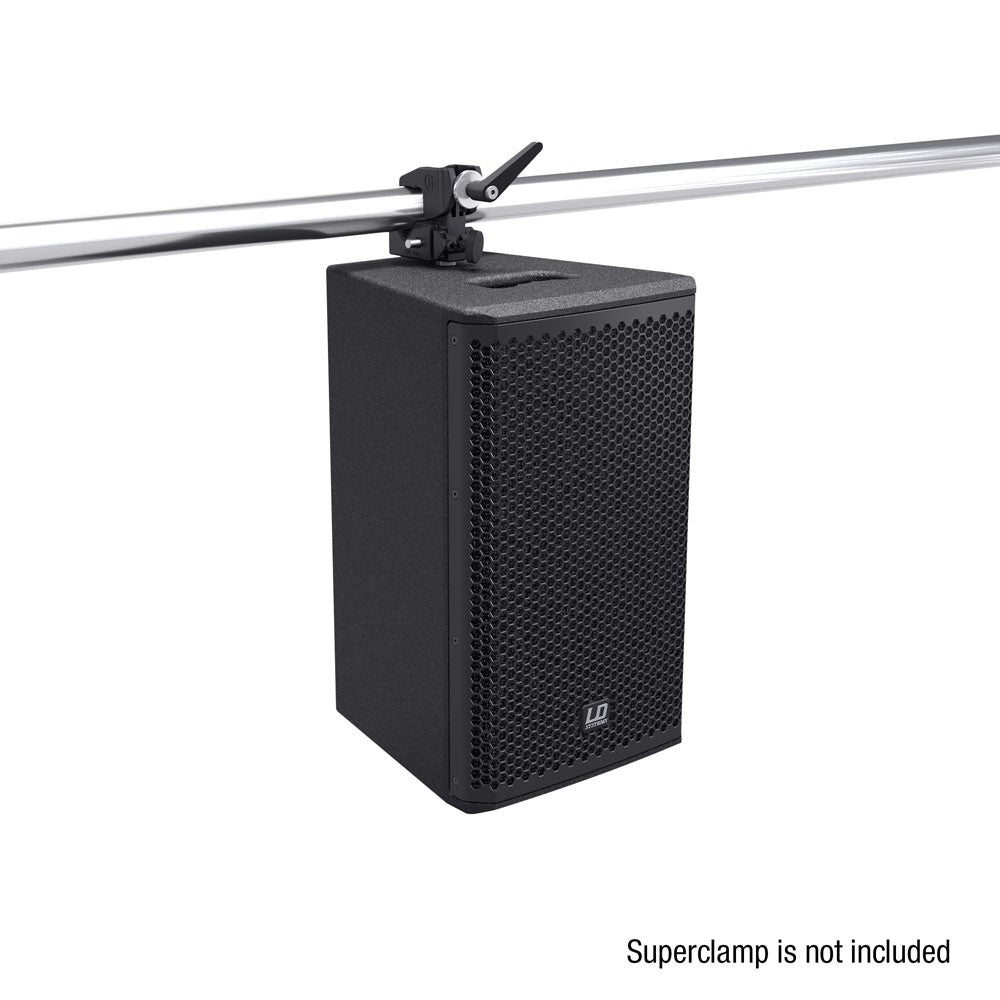

The Stinger 8 A G3 incorporates LD Systems’ proprietary DynX DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra-tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points, and ergonomic handles the Stinger 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitates live and installed applications.

Product Specifications:

Product Type: PA loudspeaker

Type: Active

Low/mid driver dimensions: 8"

Woofer size: 203.2 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice coil: 2"

Woofer voice coil (mm): 50.8 mm

Horn: BEM optimized CD Horn

HF driver dimensions: 1"

HF Driver Size: 25.4 mm

HF driver magnet: Ferrite

HF driver brand: BMS

HF driver voice coil: 1"

HF Driver Voice Coil: 25.4 mm

Amplifier: Class D

Dispersion (H x V): 90 x 50 °

RMS: 300 W

Peak Power: 600 W

Frequency Response: 70 - 20000 Hz

Max. SPL (peak): 125 dB

Protection Circuits: Multiband limiter, over-voltage, over-current, thermal overload

Input sensitivity: -9 dBu

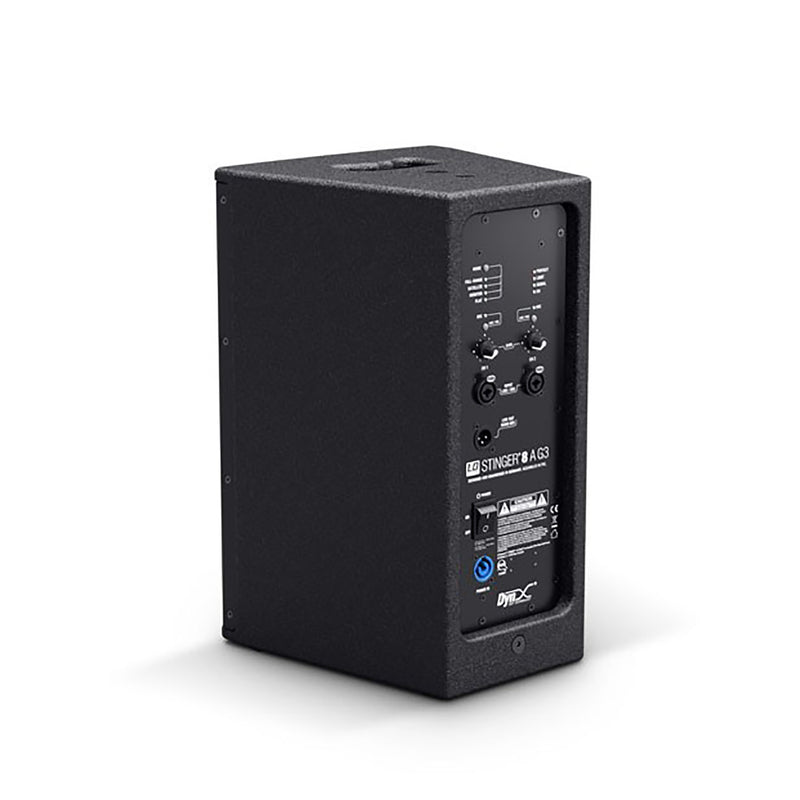

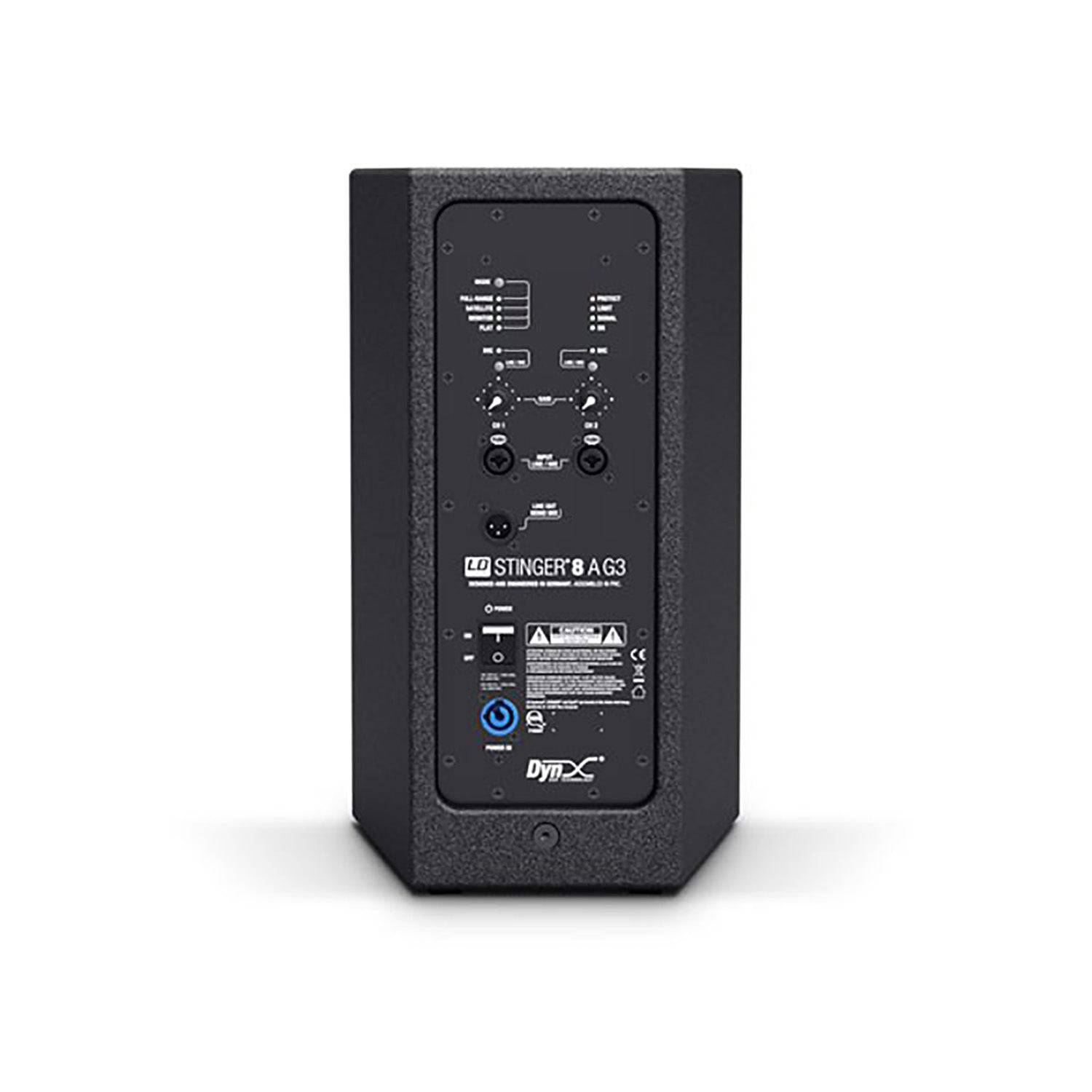

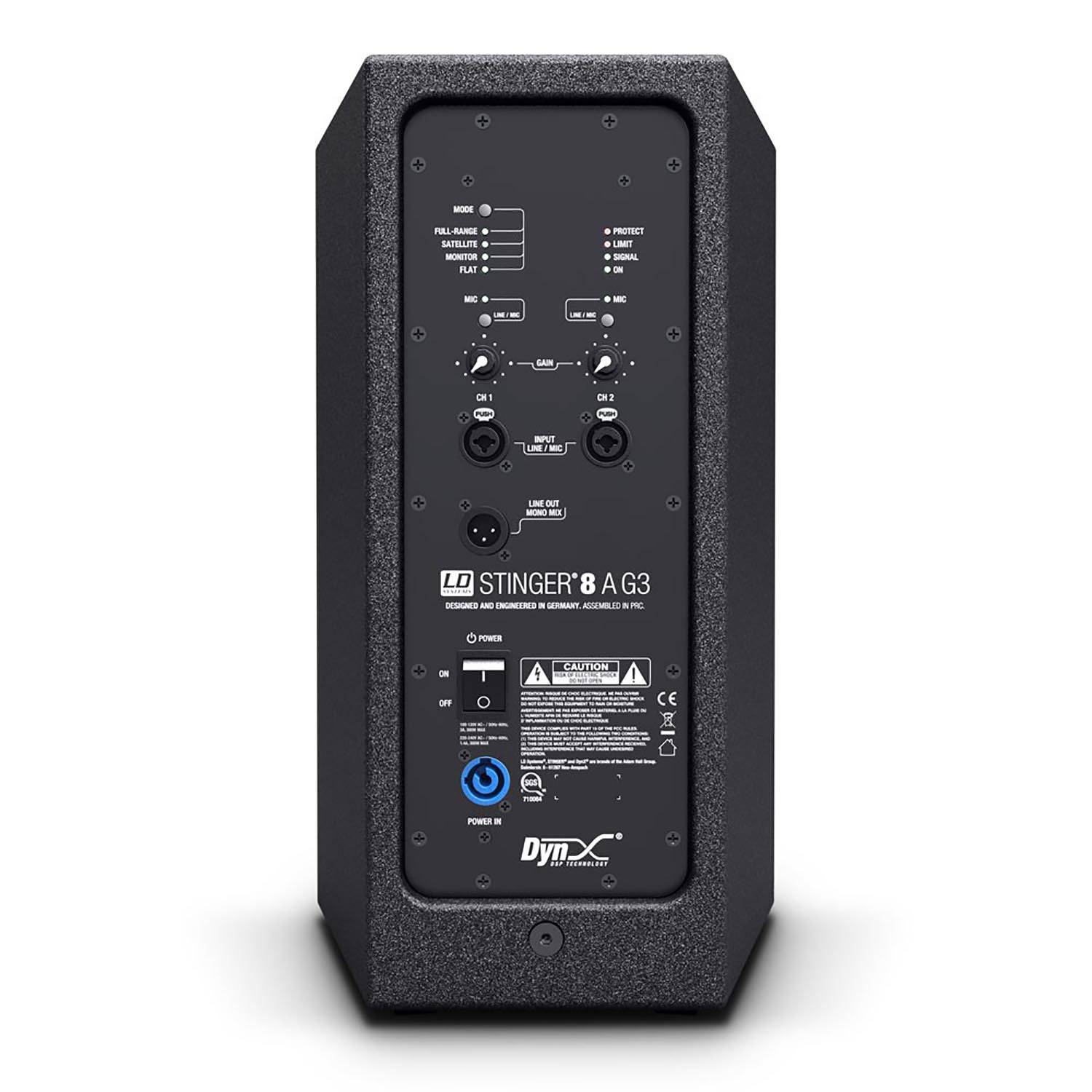

Controls: 2 x gain, 2 x Mic/Line , Mode

Indicators: Limit, Mic, Mode, On, Protect (protection circuit engaged), Signal

Line inputs: 2

Line input connectors: 6.3 mm jack, XLR

Line outputs: 1

Line output connectors: XLR

Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) , Switching power supply

Operating Temperature: 0 - 40 °C

Relative Humidity: < 80% (non-condensing)

Cabinet material: 12 mm Plywood

Cabinet surface: Polyurea

Cabinet construction: Bass Reflex

Width: 270 mm

Height: 457 mm

Depth: 290 mm

Weight: 10,5 kg
