Description

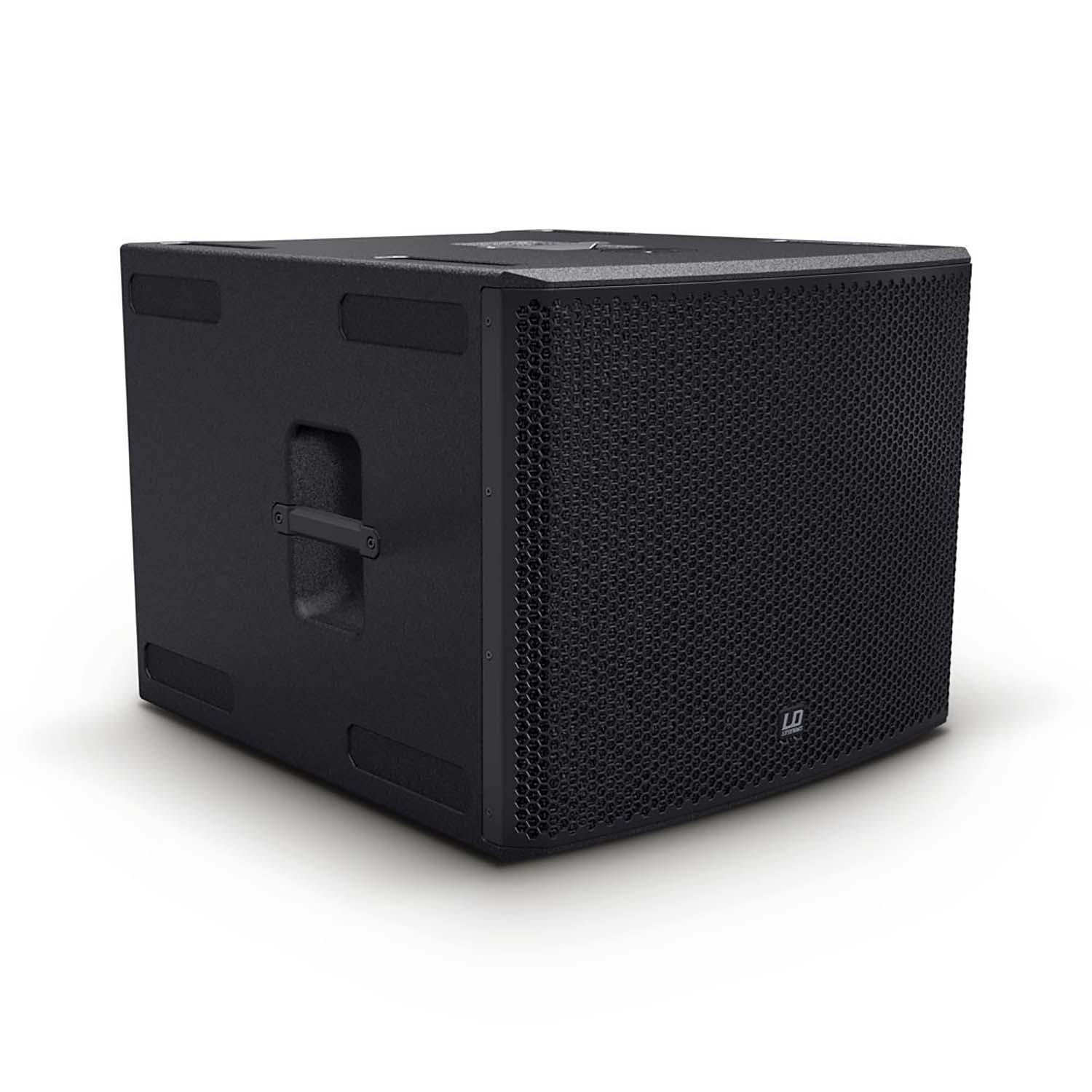

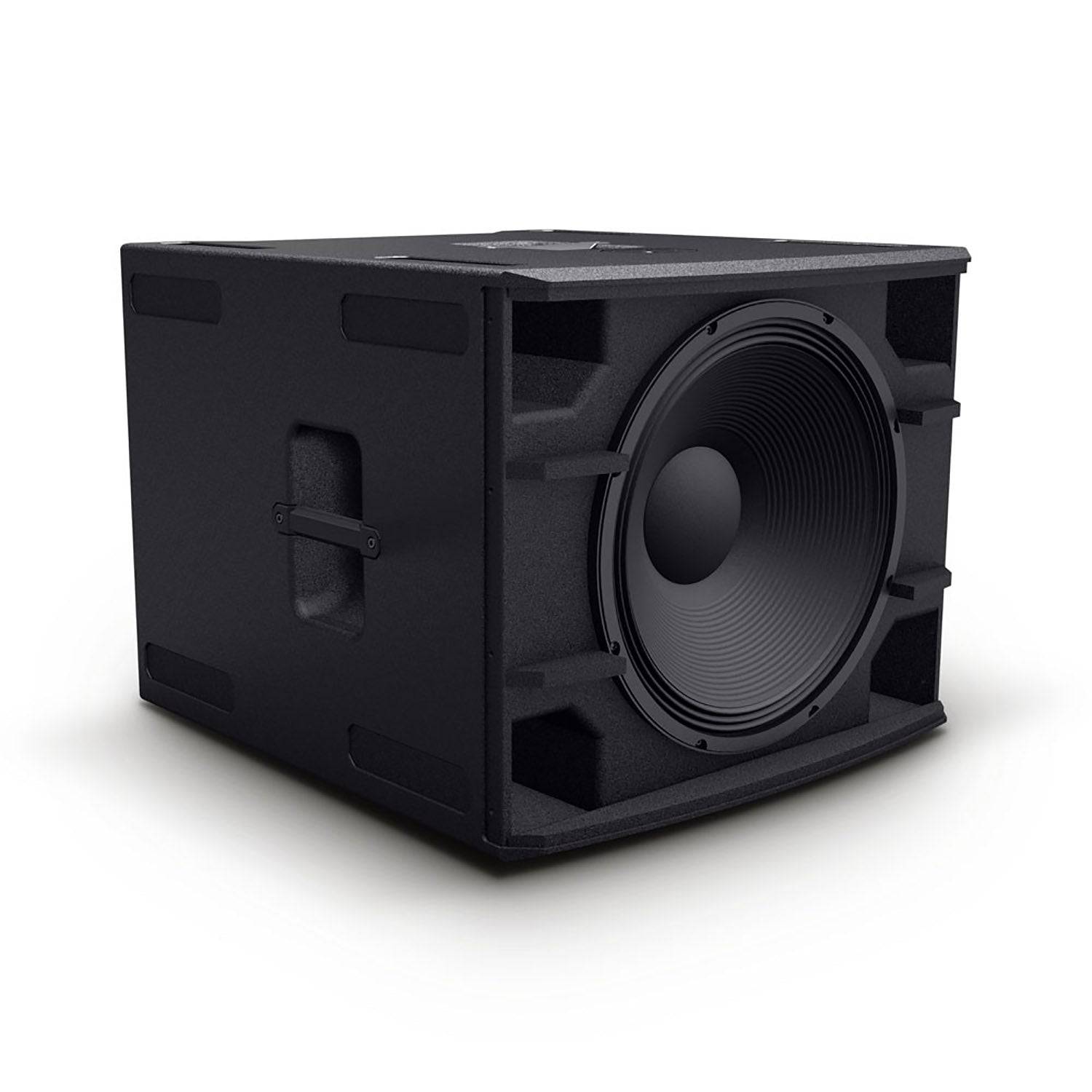

Engineered for rock-solid reliability day in, day out this active subwoofer is a truly professional performer. With built-in presets for quick system integration and a variety of cardioid array configurations it is completely user-friendly. The Stinger SUB 18 A G3 is powered by high-efficiency Class D amplification with a giant 800 watts RMS output. It drives a custom-designed 18” woofer delivering a huge bottom end with a terrific punch and excellent definition.

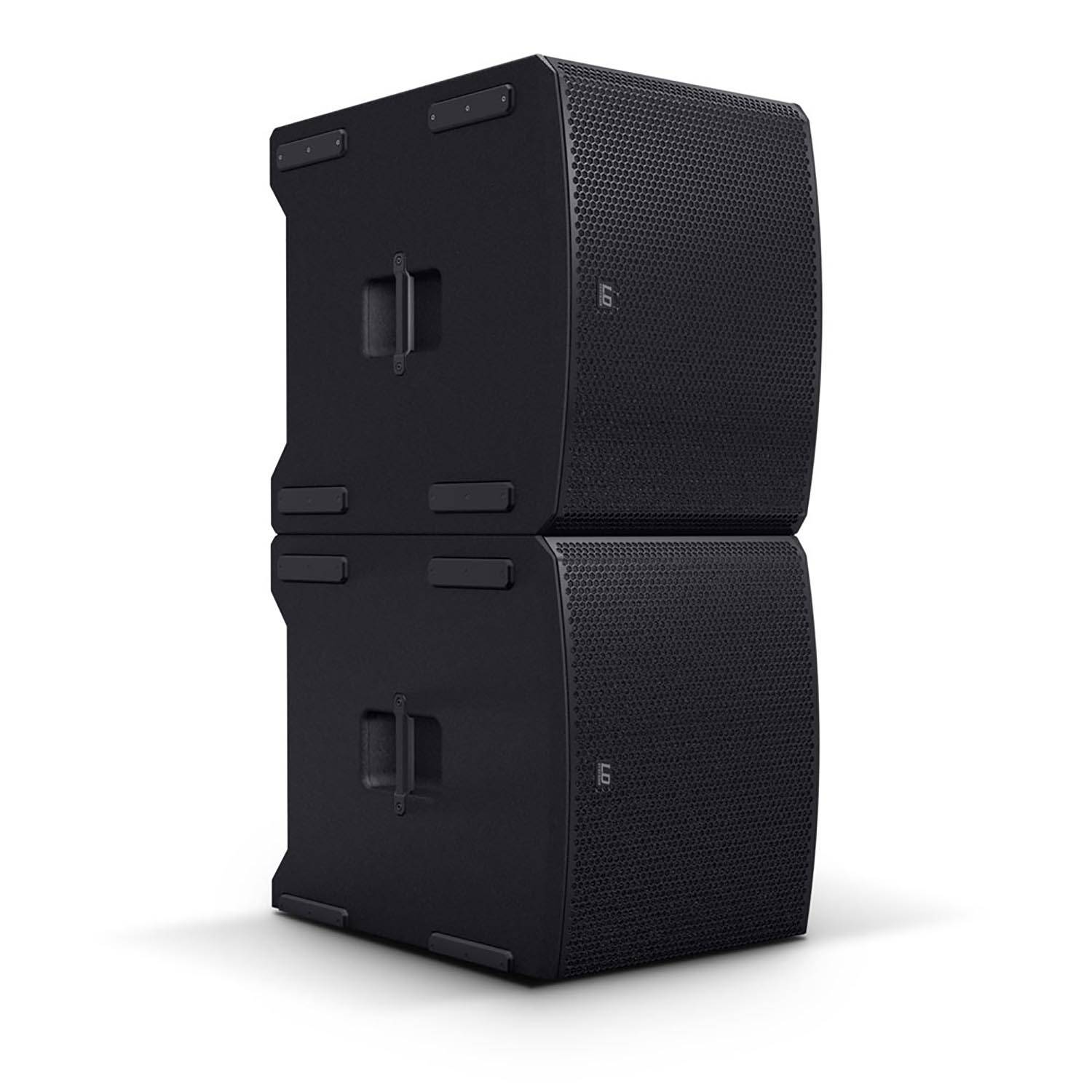

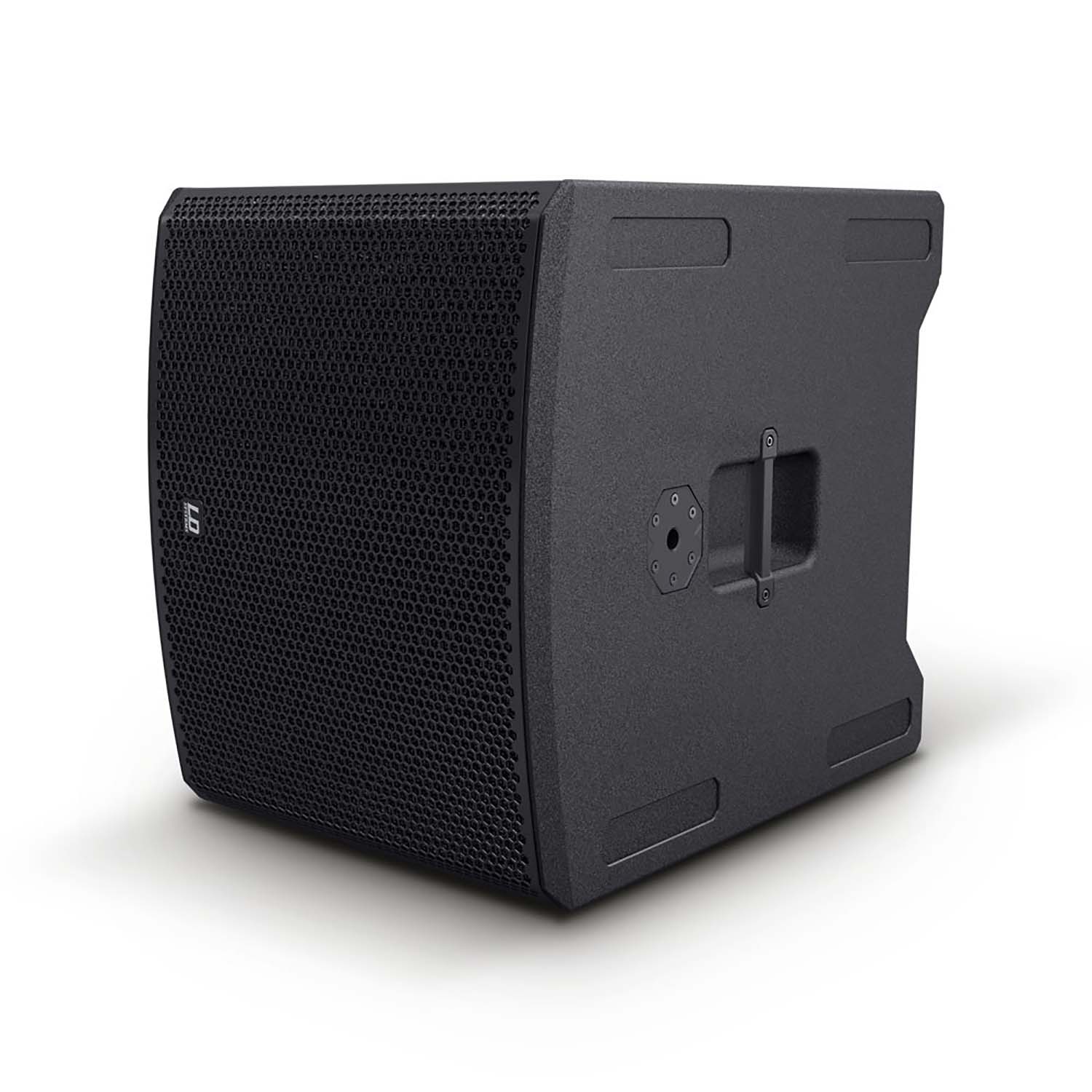

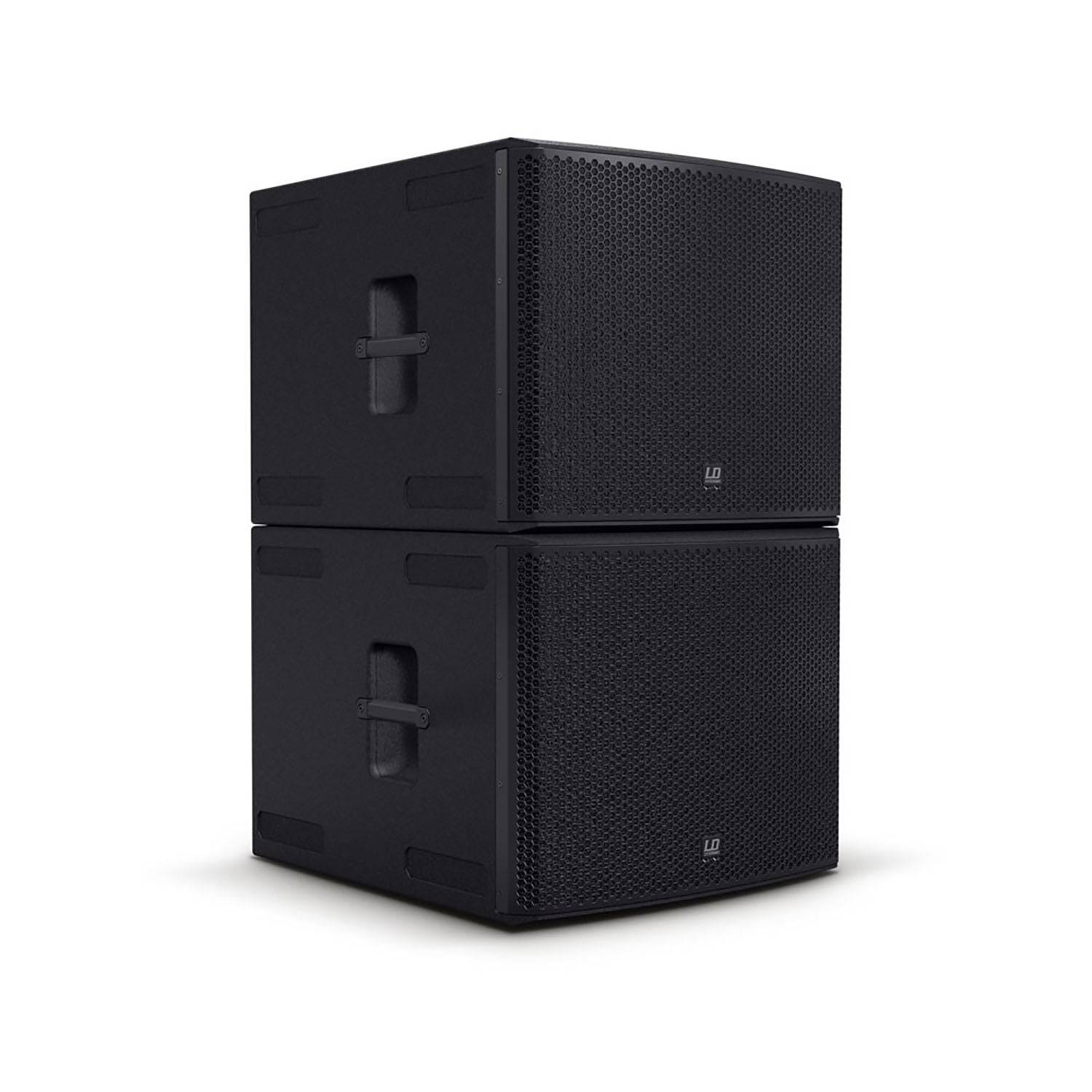

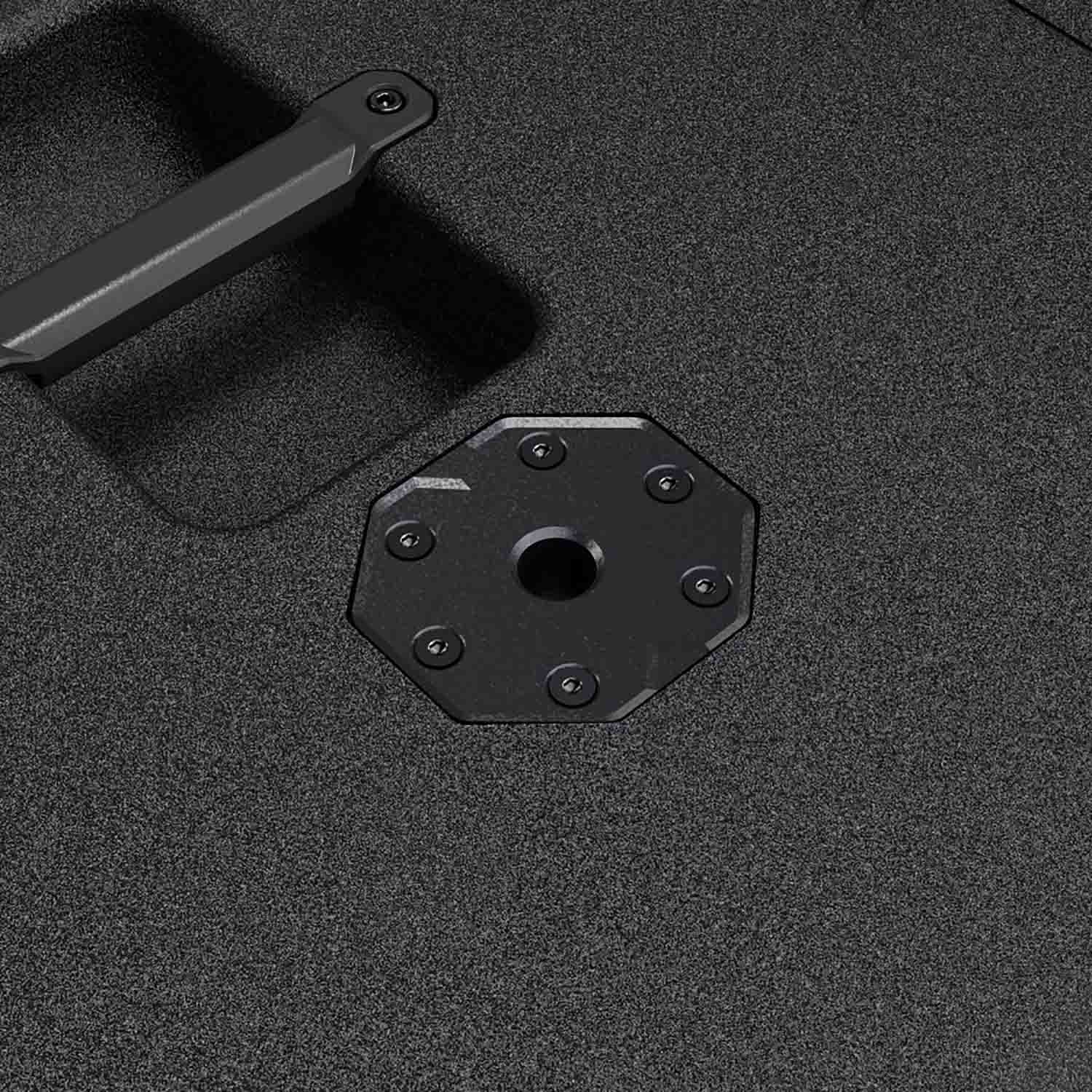

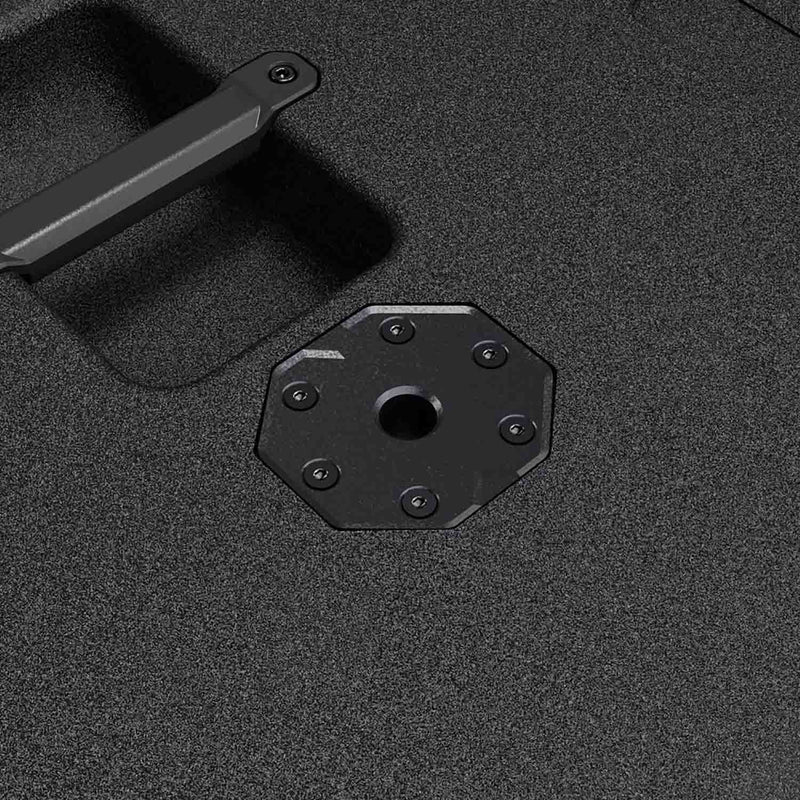

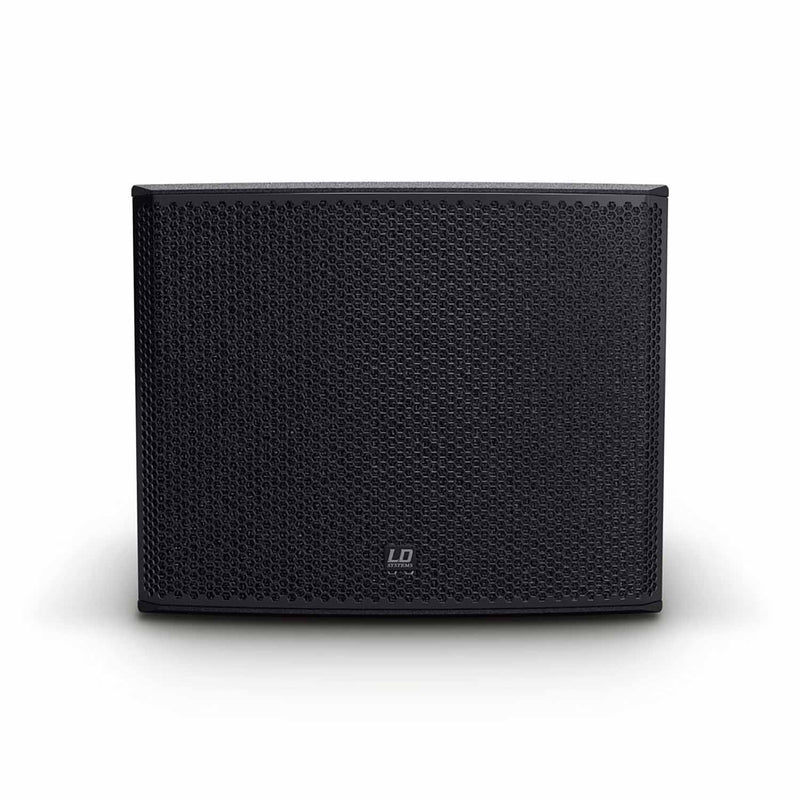

The Stinger SUB 18 A G3 incorporates LD Systems’ proprietary DynX DSP technology to ensure top-level performance and pristine, distortion-free bass reproduction at all times. Designed to be a real workhorse throughout, the well-braced bass reflex enclosure is constructed for horizontal and vertical orientation. It is made of rigid 18 mm birch ply and coated with ultra-tough polyurea for extraordinary strength and durability. Sporting a steel front grille, M20 threaded pole insert, stacking recesses and ergonomic handles the Stinger 18 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitates live and installed applications.
Product Specifications:
Product Type: PA subwoofer
Type: Active
Low/mid Driver Dimensions: 18"
Woofer Size: 457.2 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Woofer Voice Coil: 4"
Woofer Voice Coil (mm): 101.6 mm
Amplifier: Class D
RMS: 800 W
Peak Power: 1600 W
Frequency Response: 35 - Low-Pass Hz
Max. SPL (peak): 135 dB
Protection Circuits: DC, limiter, over-voltage, short circuit
Input Impedance: 30000 Ohm(s)
Input Sensitivity: 0.3 V

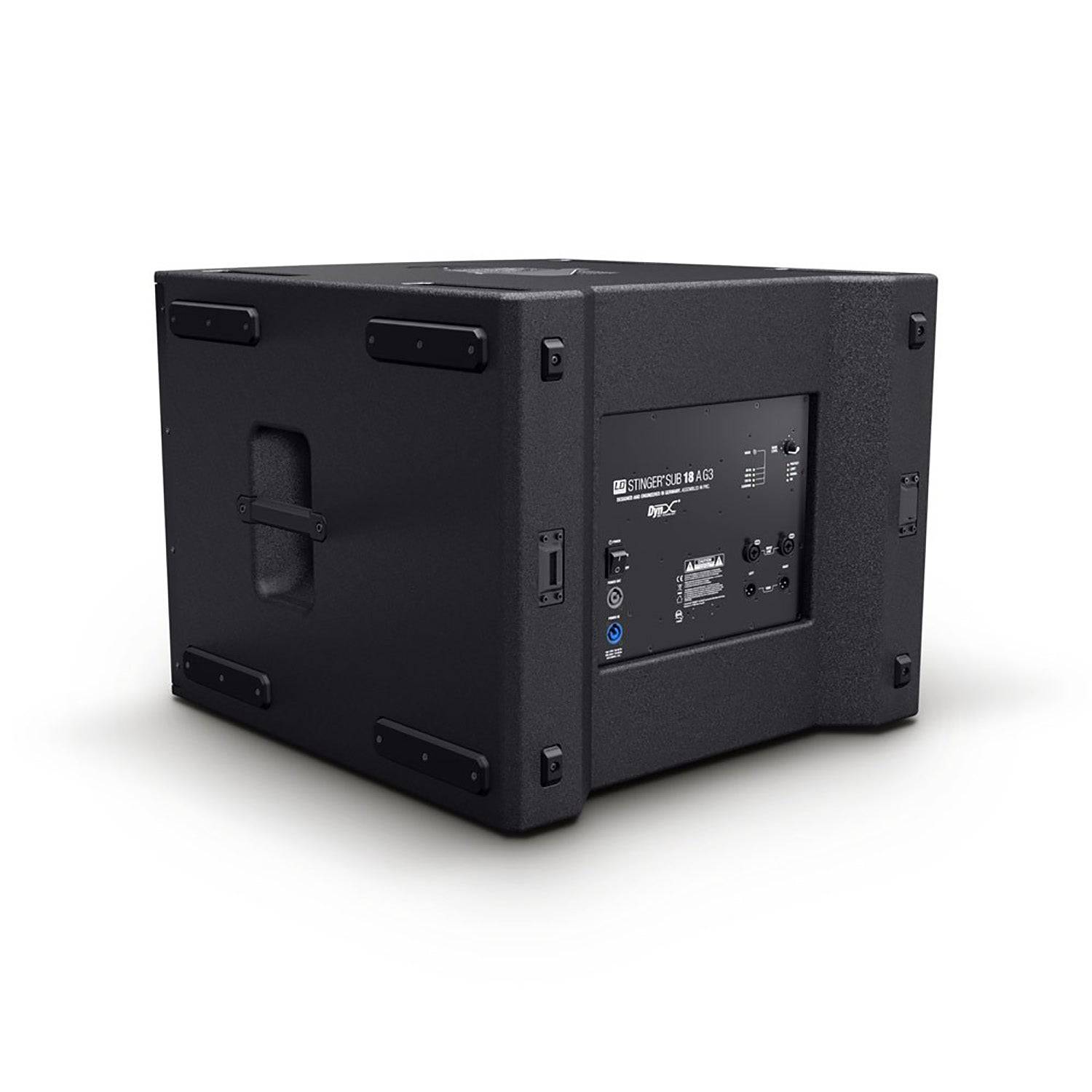

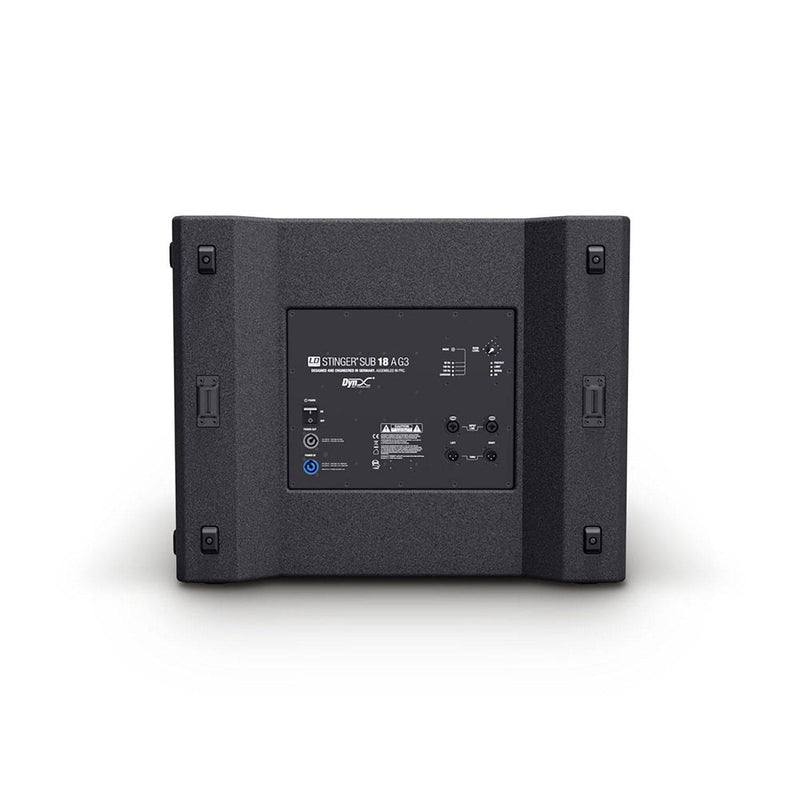

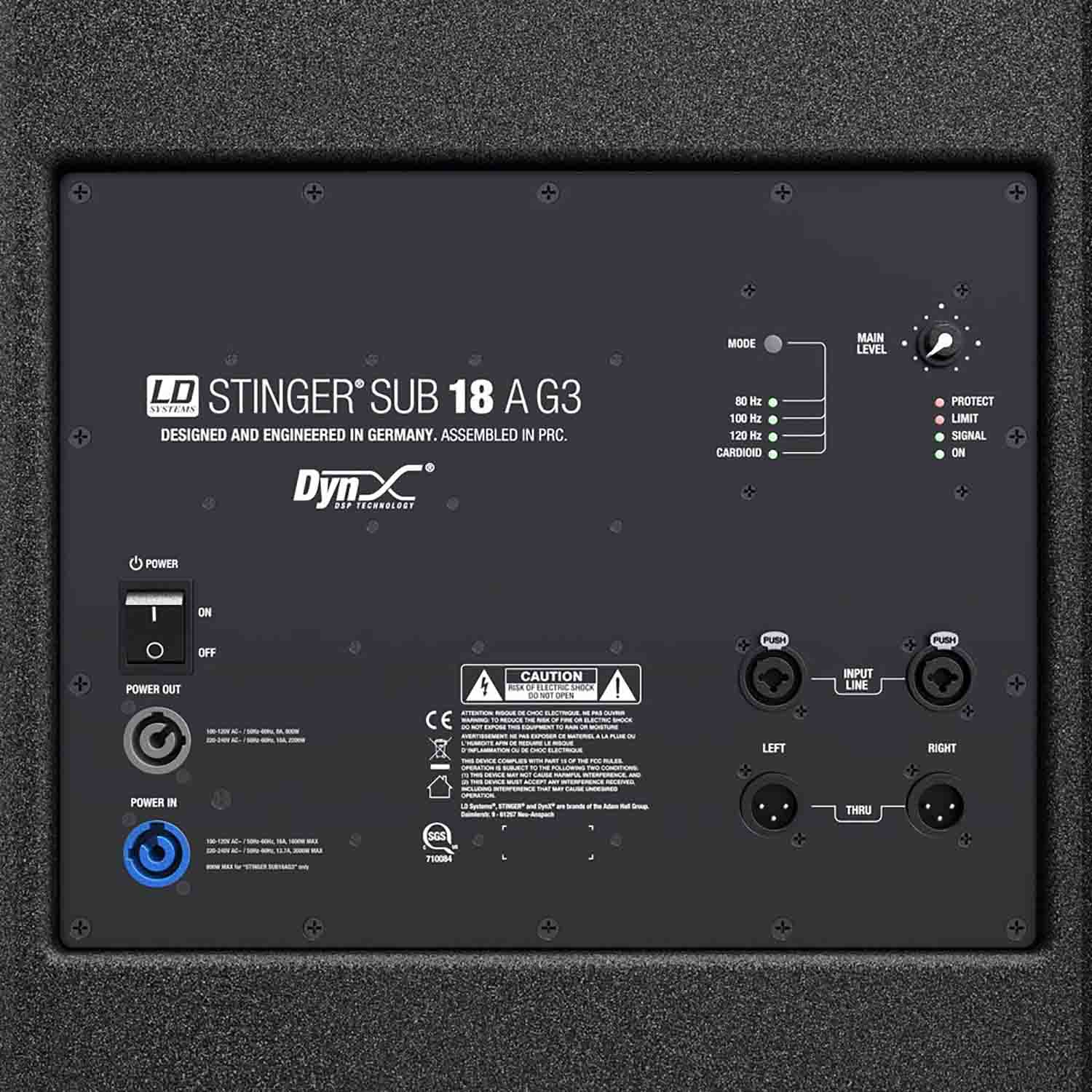

Controls: Main level, Mode
Indicators: Limit, Mode, On, Protect (protection circuit engaged), Signal
Line Inputs: 2
Line Input Connectors: 6.3 mm jack, XLR
Line Outputs: 2
Line Output Connectors: XLR
Operating Voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) , SMPS
Power Consumption (max.): 600 W
Operating Temperature: 0 - 40 °C
Relative Humidity: < 80% (non-condensing)
Cabinet material: 18 mm Plywood
Cabinet Surface: Polyurea
Cabinet Construction: Bass Reflex
Width: 677 mm
Height: 547 mm
Depth: 740 mm
Weight: 42,6 kg
