Description

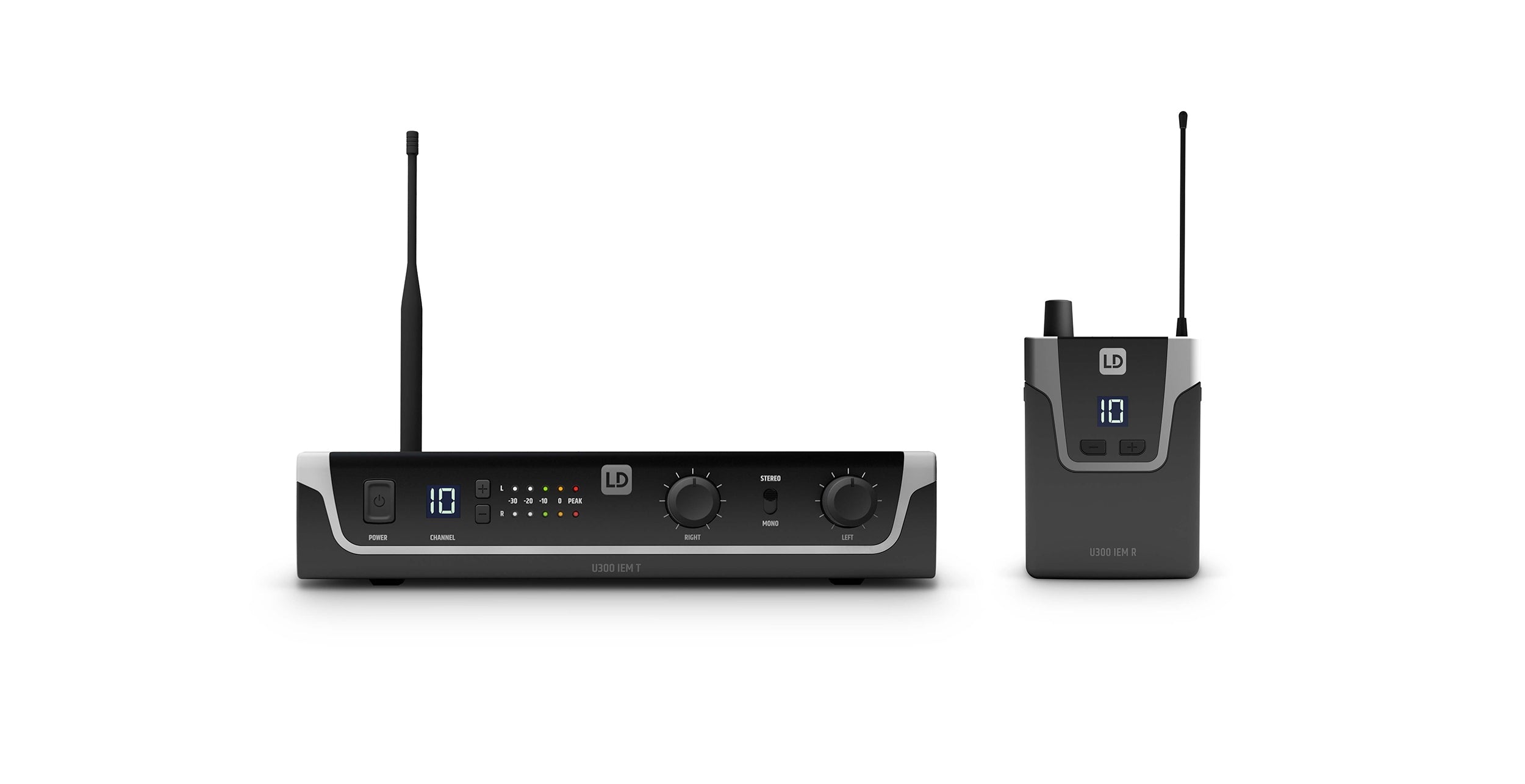

The LD Systems LDS-U3047IEM(US) Wireless In-Ear Monitoring System is for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300 in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

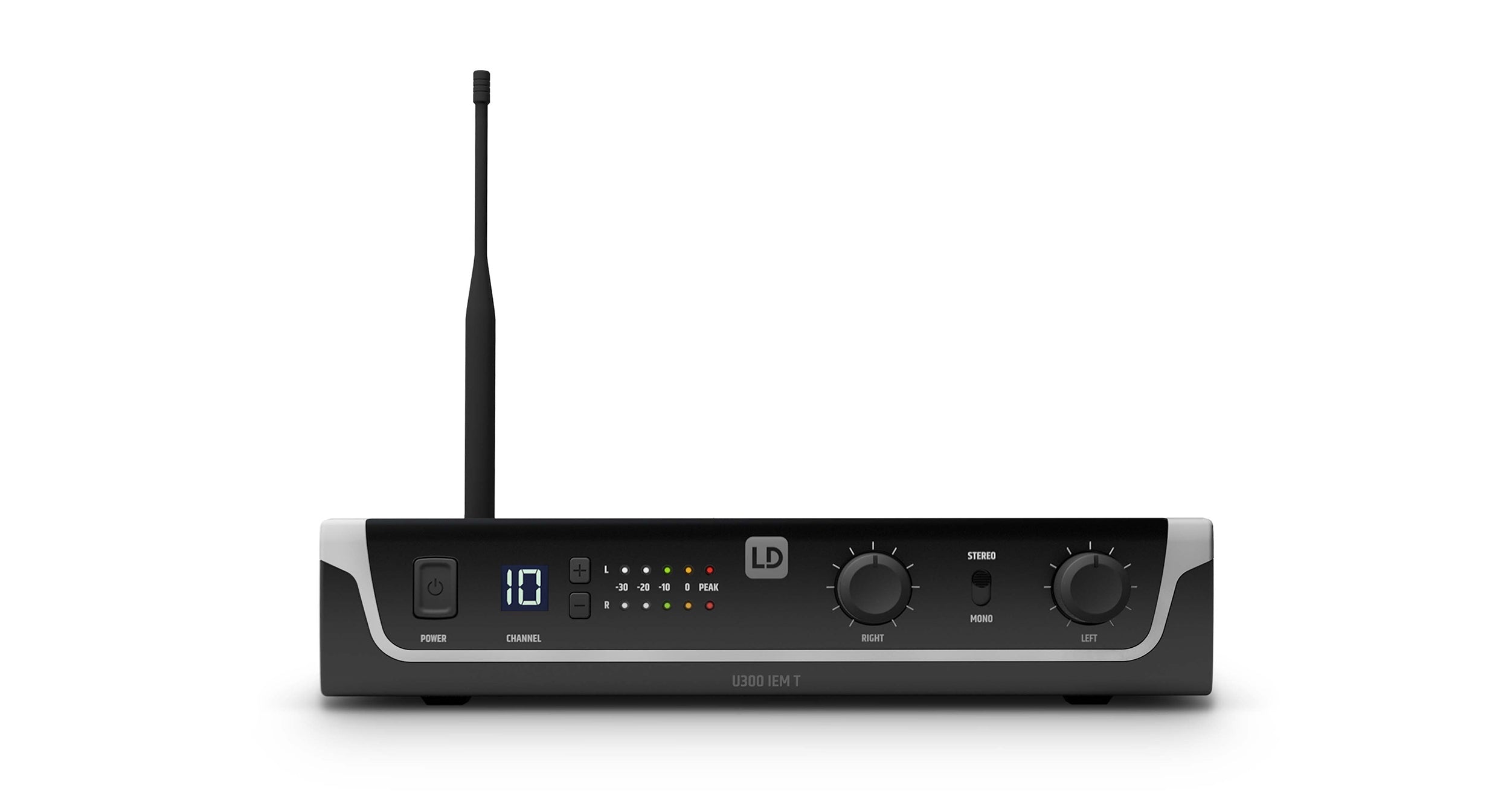

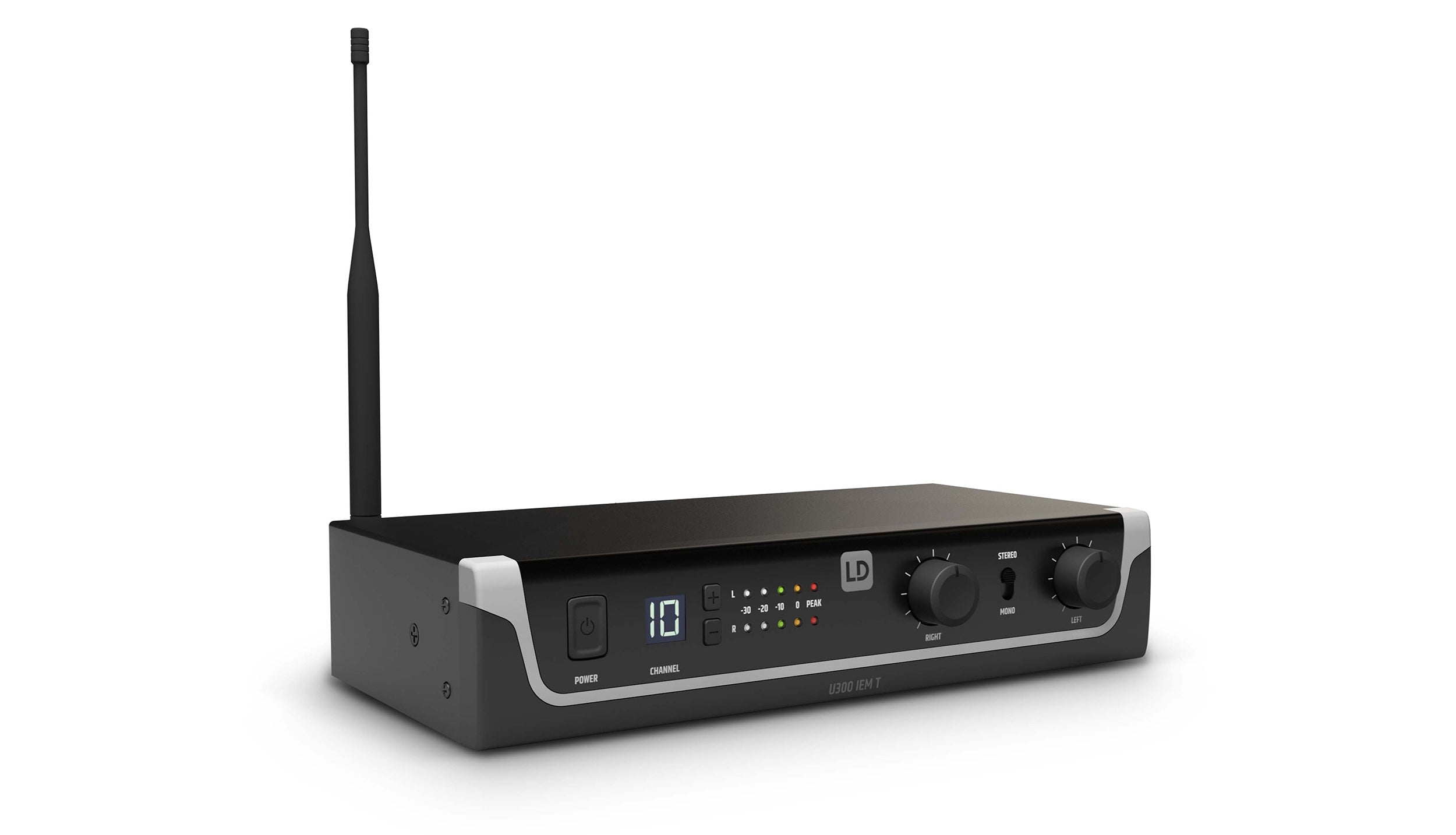

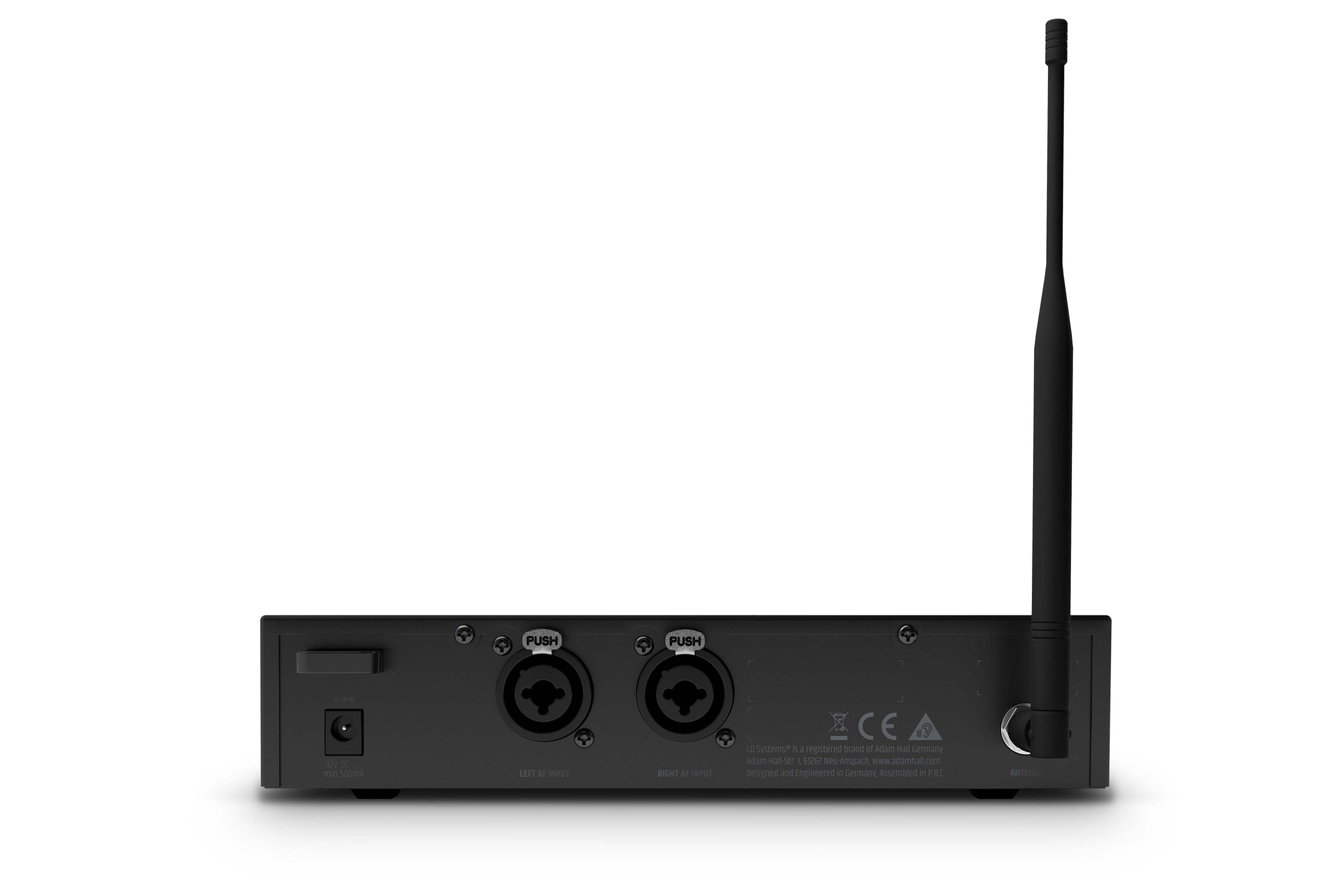

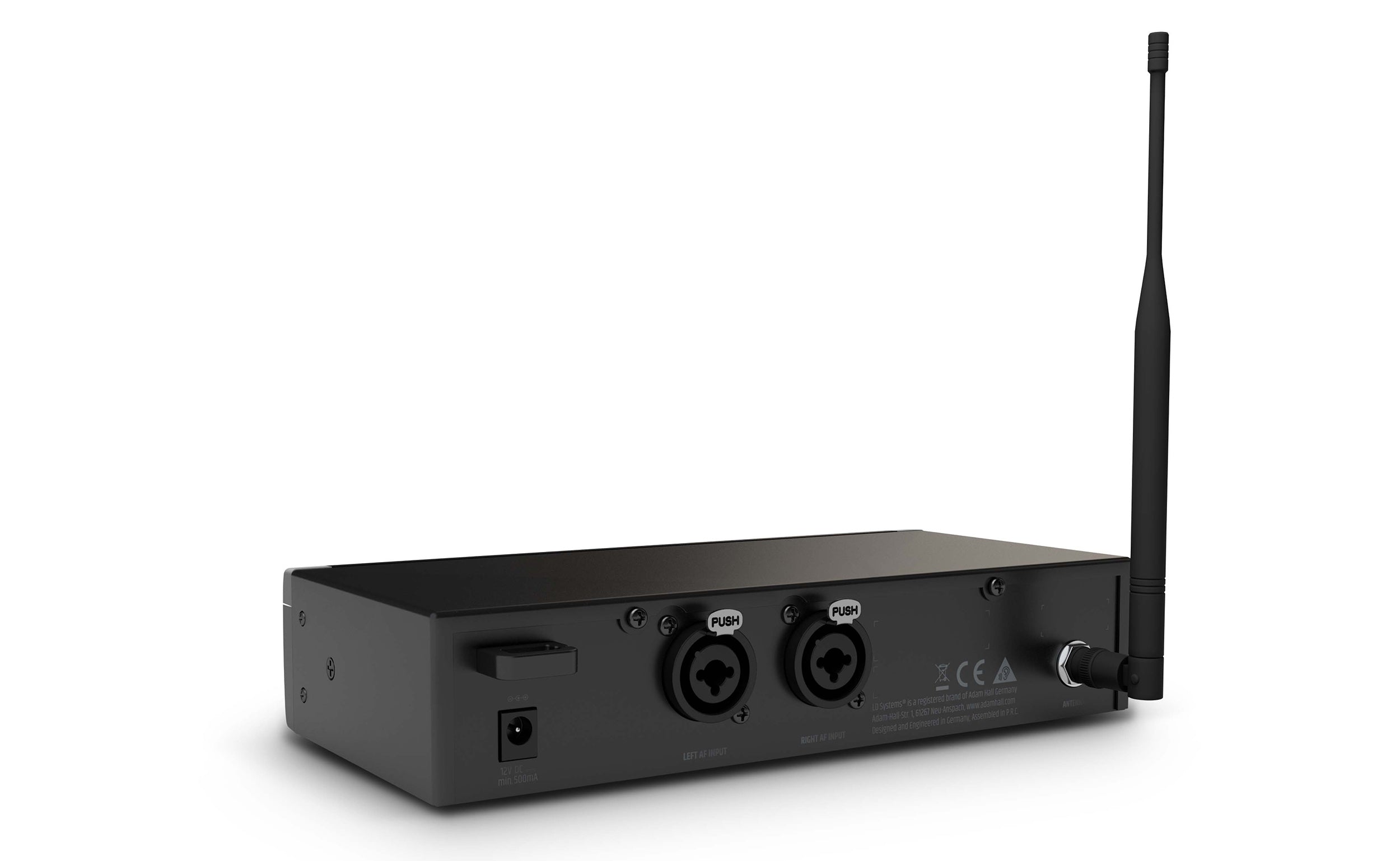

The U300 in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

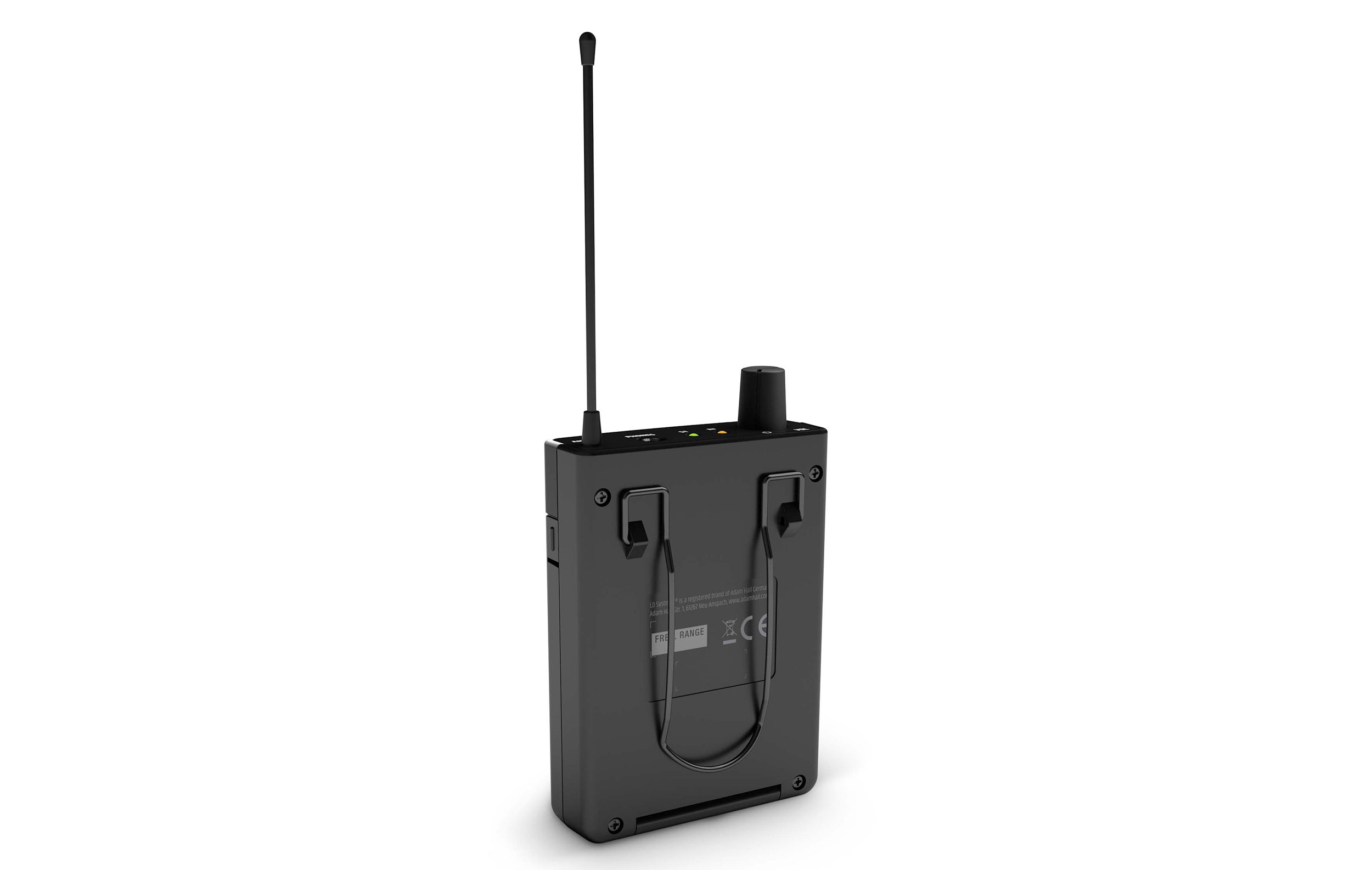

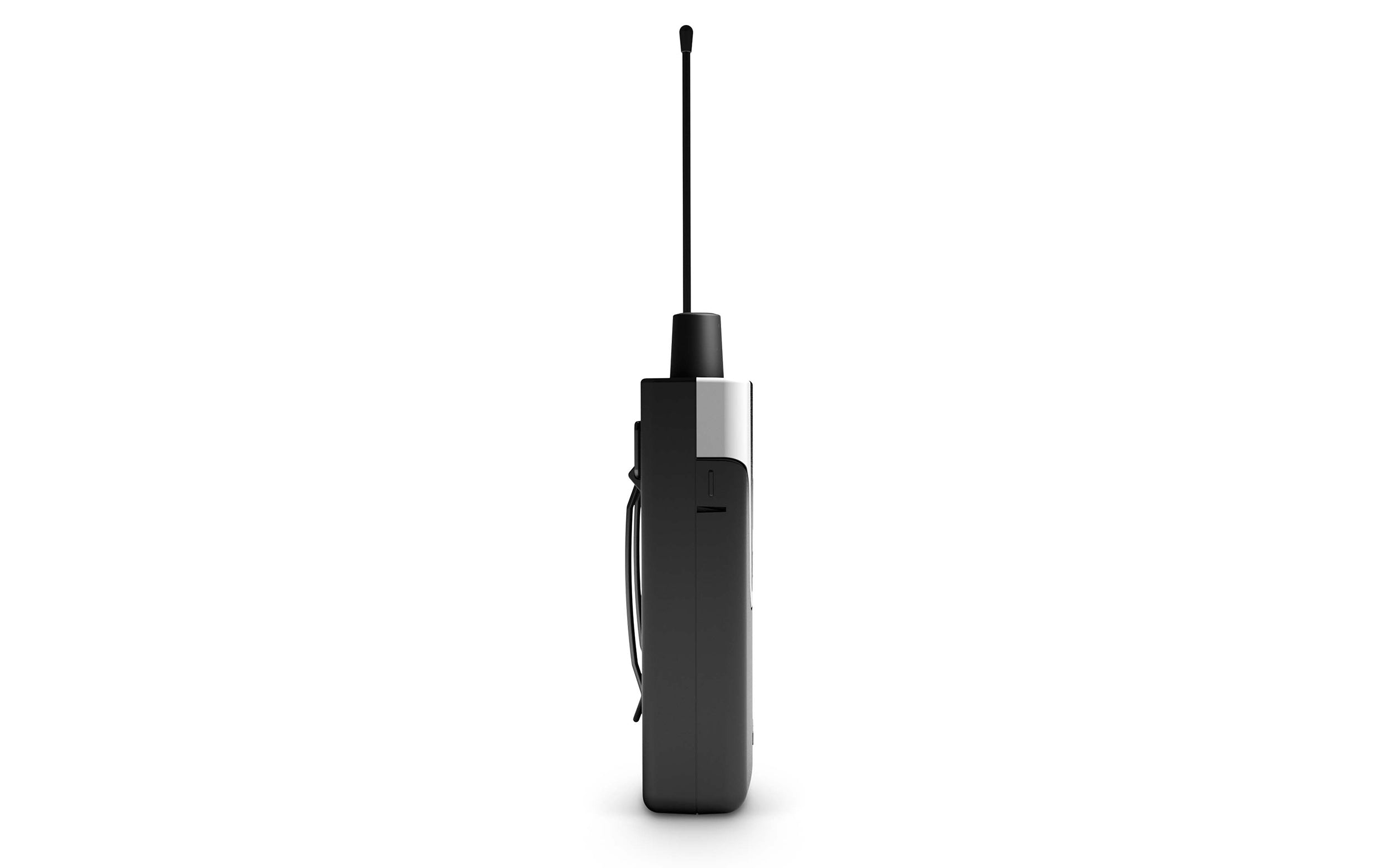

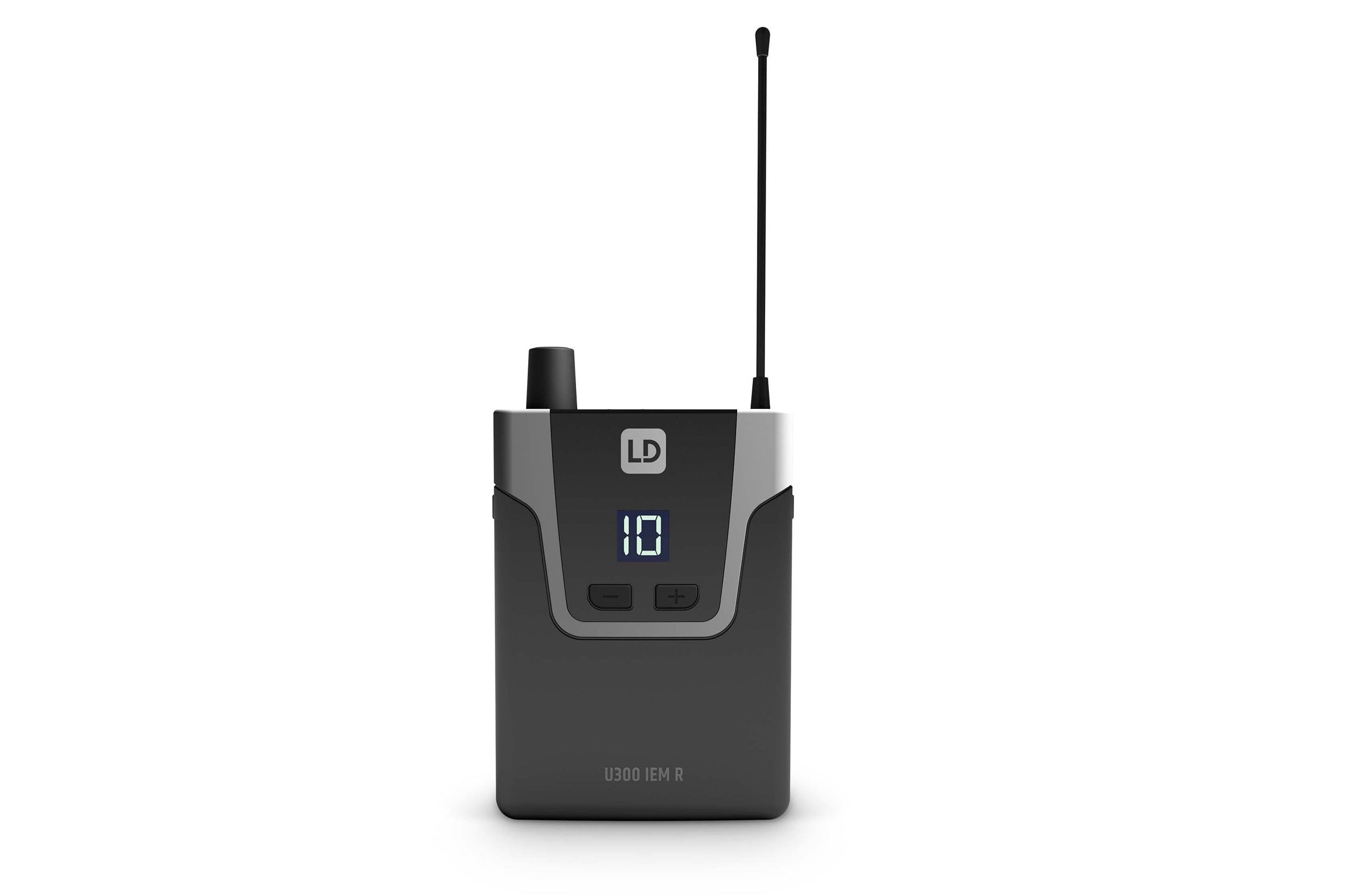

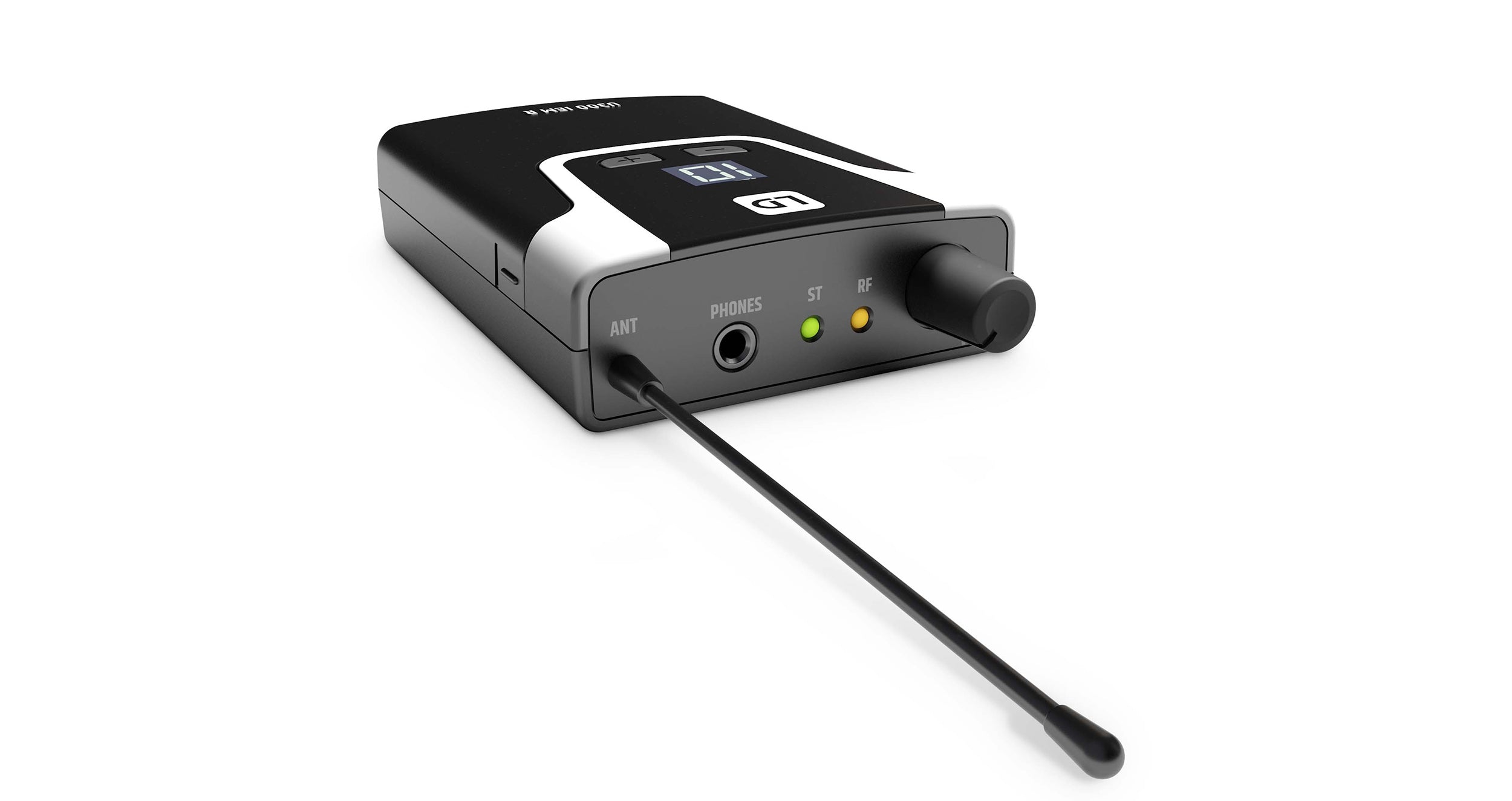

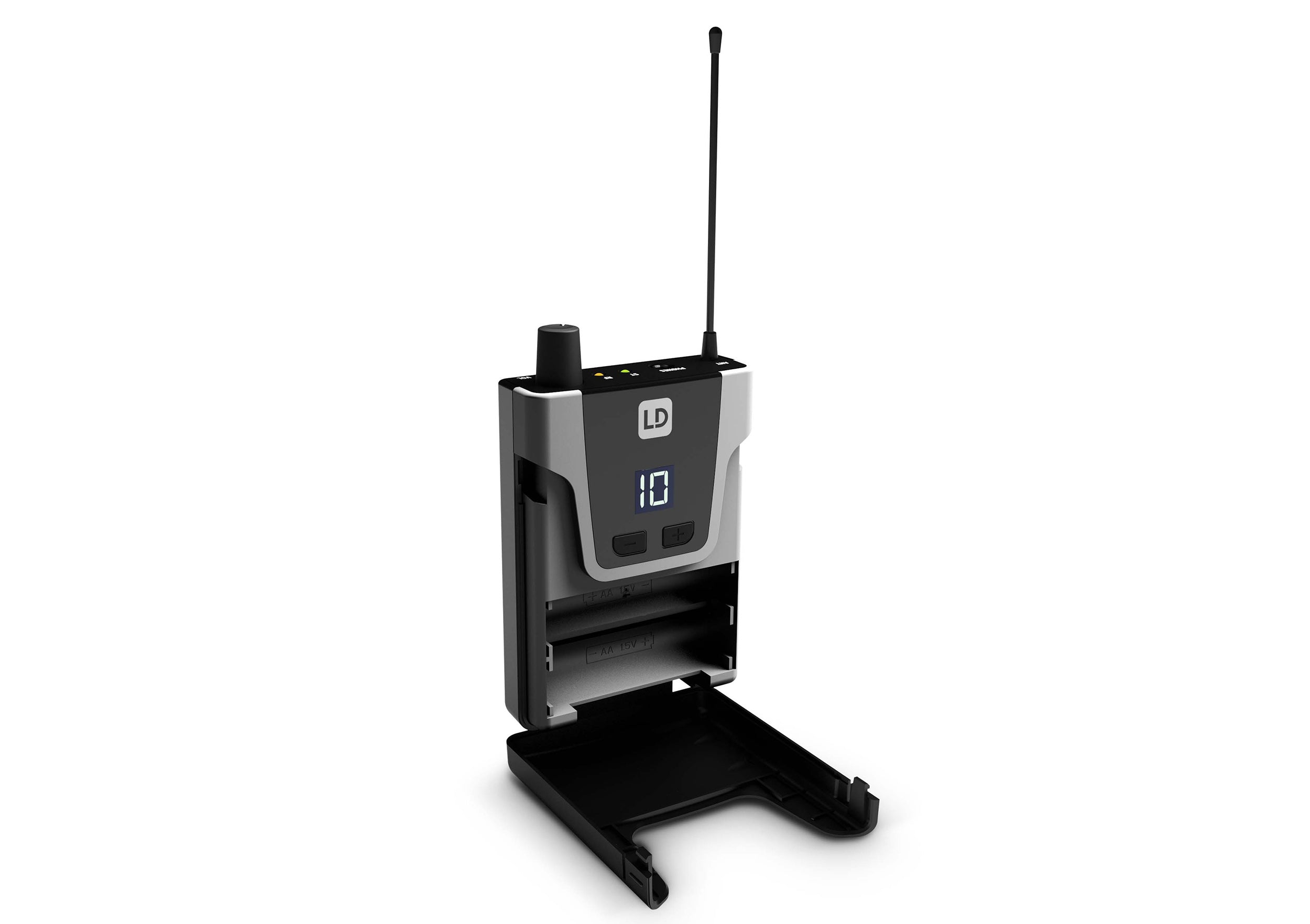

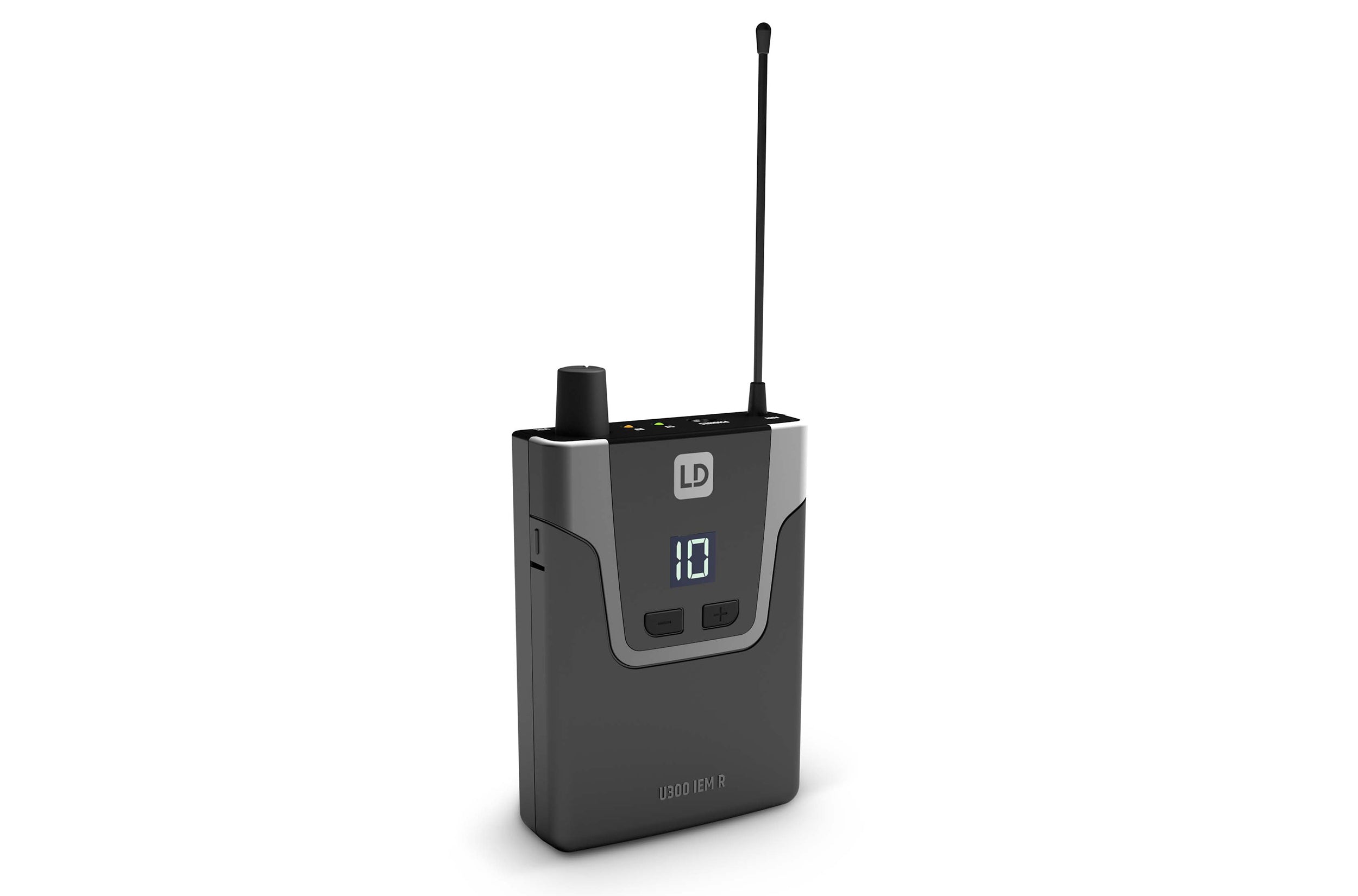

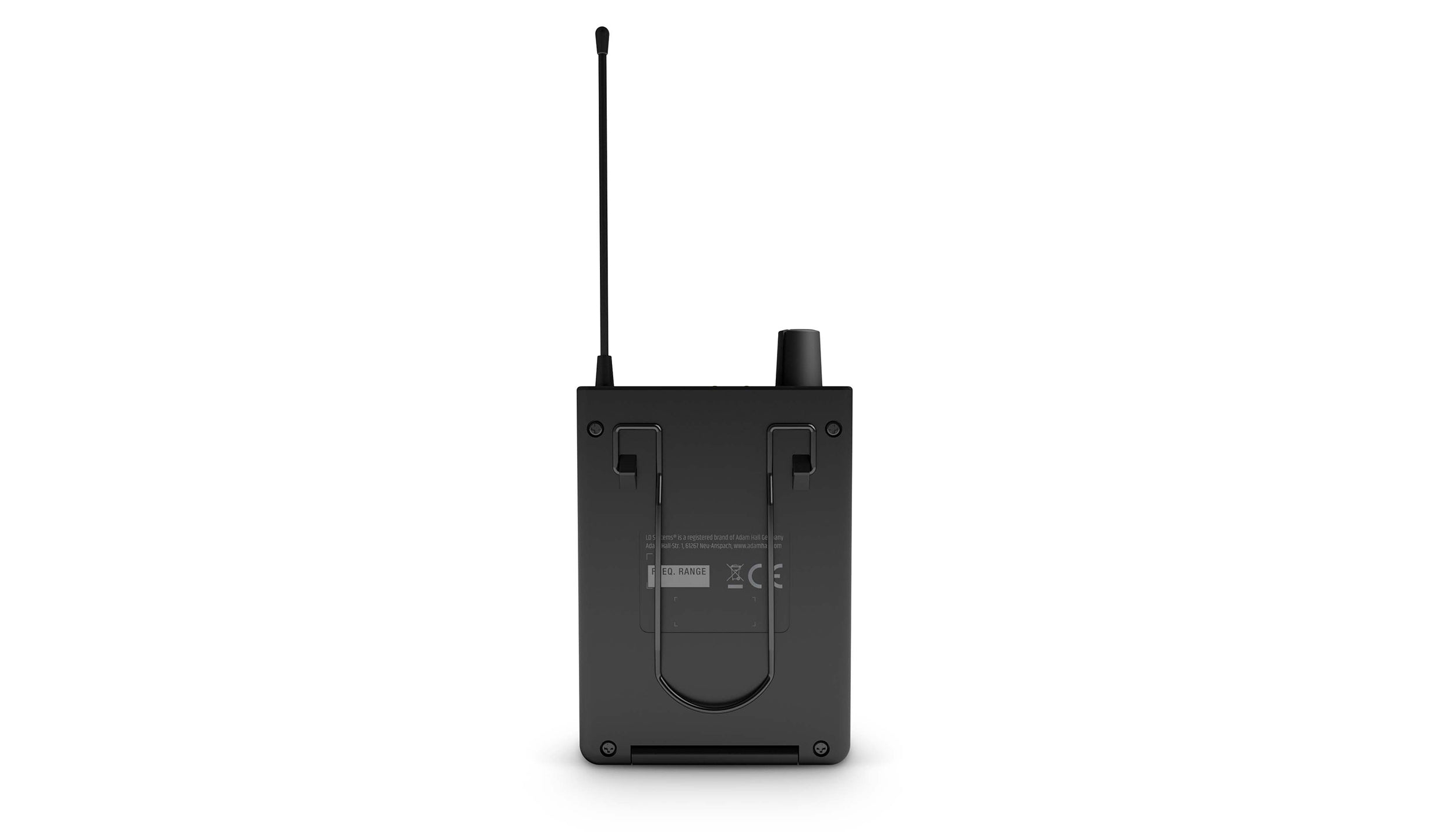

The U300 bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.
What’s Included,
1 LDU3047IEMR - LD Systems U304.7 IEM (USA version) Receiver
1 LDU3047IEMT - LD Systems U304.7 IEM (USA version) Transmitter - 470 - 490 MHz
Product Specifications:
Product type: In-ear Monitoring
Type: Set
Transmission frequency range: 470 - 490 MHz
Weight: 1.51 kg (3.33 Lbs.)
LDU3047IEMR - LD Systems U304.7 IEM (USA version) Receiver (Only in USA)
Product type: In-ear Monitoring Accessories
Type: Receivers
Transmission frequency range: 470 - 490 MHz
Channels: 12
Transmission method: FM, mono/stereo
Frequency response: 50 - 16.000
Total Harmonic Distortion (THD): 0.25 %
Audio output: 3.5 mm TRS
Minimum connected impedance: 16 Ohm(s)
Max. audio output level: 100 (@ 16 Ohms load capacity) mW, 73 (@ 33 Ohms load capacity) mW
Antenna connector: Fixed to housing
Controls: On/off switch, Channel down, Channel up, volume control
Indicators: RF (LED)
Power supply: 2 x 1.5 V AA
Operating time: < 10 hours
Width: 64 mm (2.52 in)
Height: 103 mm (4.06 in)
Depth: 24 mm (0.94 in)
Weight: 0.085 kg (0.19 Lbs.)
Features: Battery status LED, incl. batteries
LDU3047IEMT - LD Systems U304.7 IEM (USA version) Transmitter - 470 - 490 MHz (Only in USA)
Product type: In-ear Monitoring Accessories
Type: Transmitters
Transmission frequency range: 470 - 490 MHz
Channels: 12
Modes of operation: mono/stereo
Transmission method: FM, stereo
Frequency response: 50 - 16.000
Rated HF output power: 10 mW
Total Harmonic Distortion (THD): <0.5%
Signal-to-noise ratio: 90 dB
Dynamic range: 88 dB
Antenna connector: BNC
Controls: Input level, Mono/stereo switch, Power On/Off
Inputs: 2
Input connectors: 3.5 mm stereo jack (AUX In), XLR
Indicators: LC display, multifunction LC display
Input impedance (kOhms): 8.5 kOhm
Power supply: 12 - 18 V DC
Input sensitivity: -4.5 dBu V
Width: 212 mm (8.35 in)
Height: 43 mm (1.69 in)
Depth: 123 mm (4.84 in)
Power consumption: 1.7 W
Weight: 0.66 kg (1.46 lbs.)
Accessories (included): 19" Rack mount kit, BNC-Antenna, Power supply
