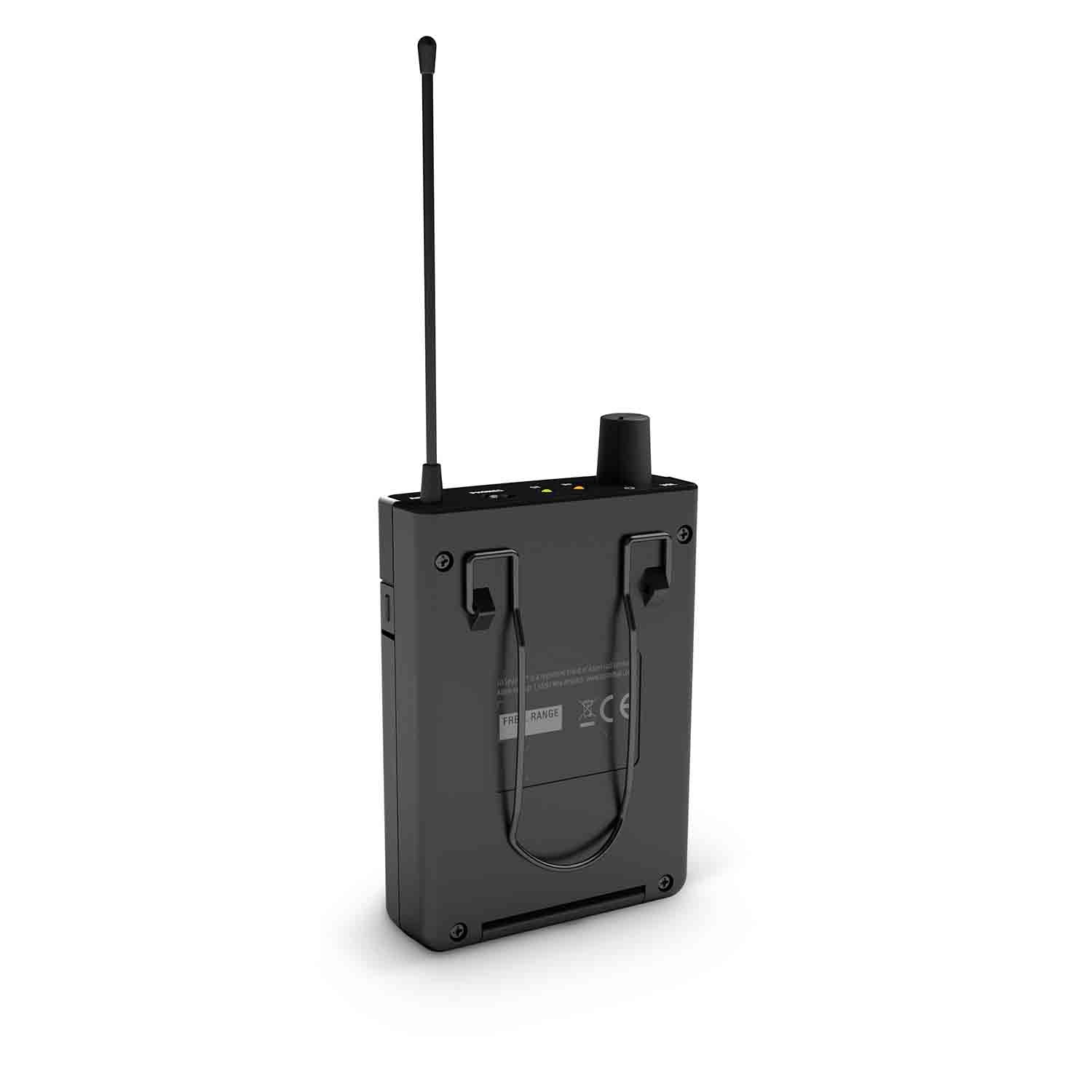

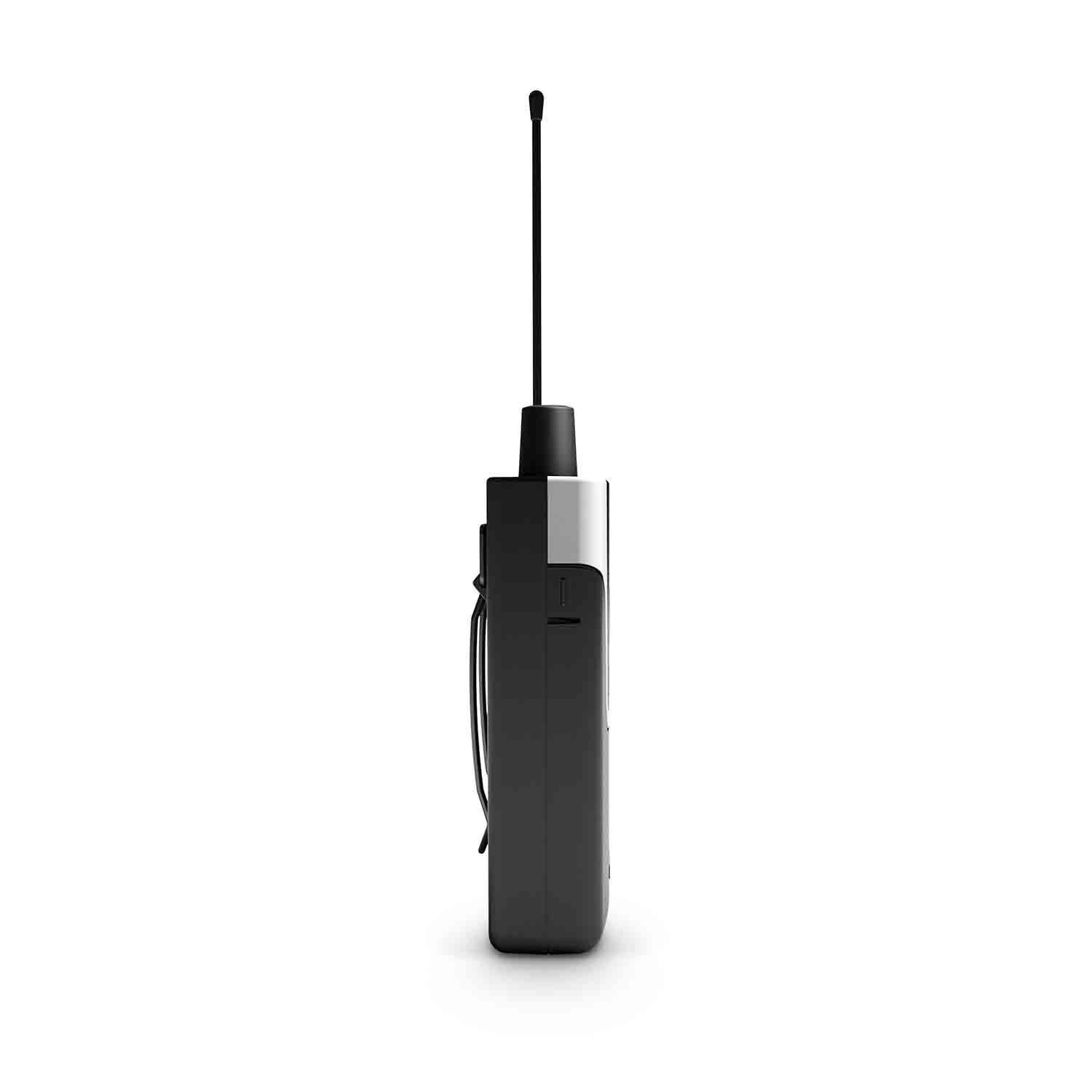

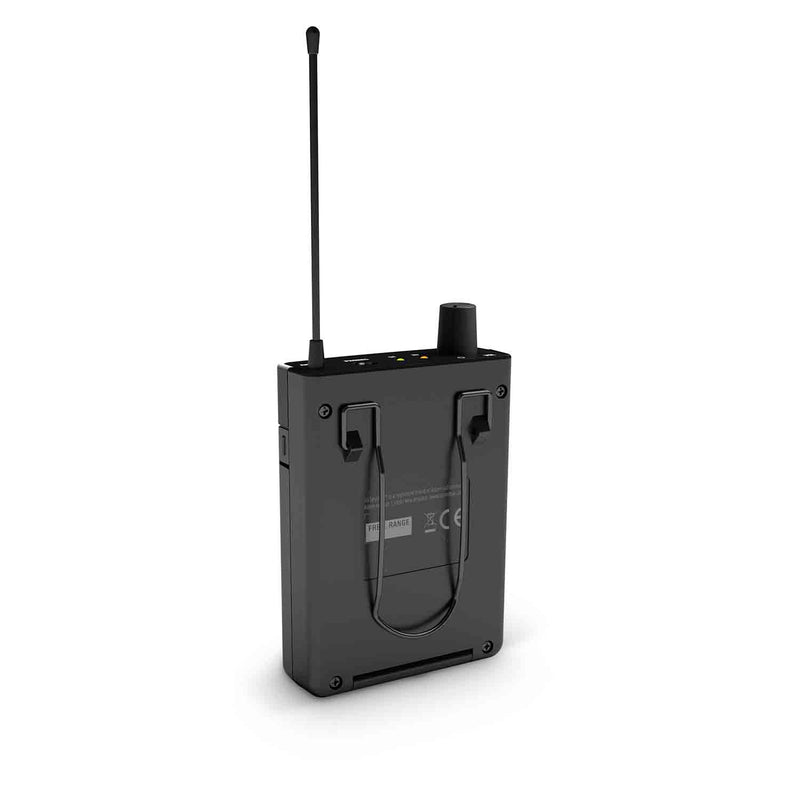

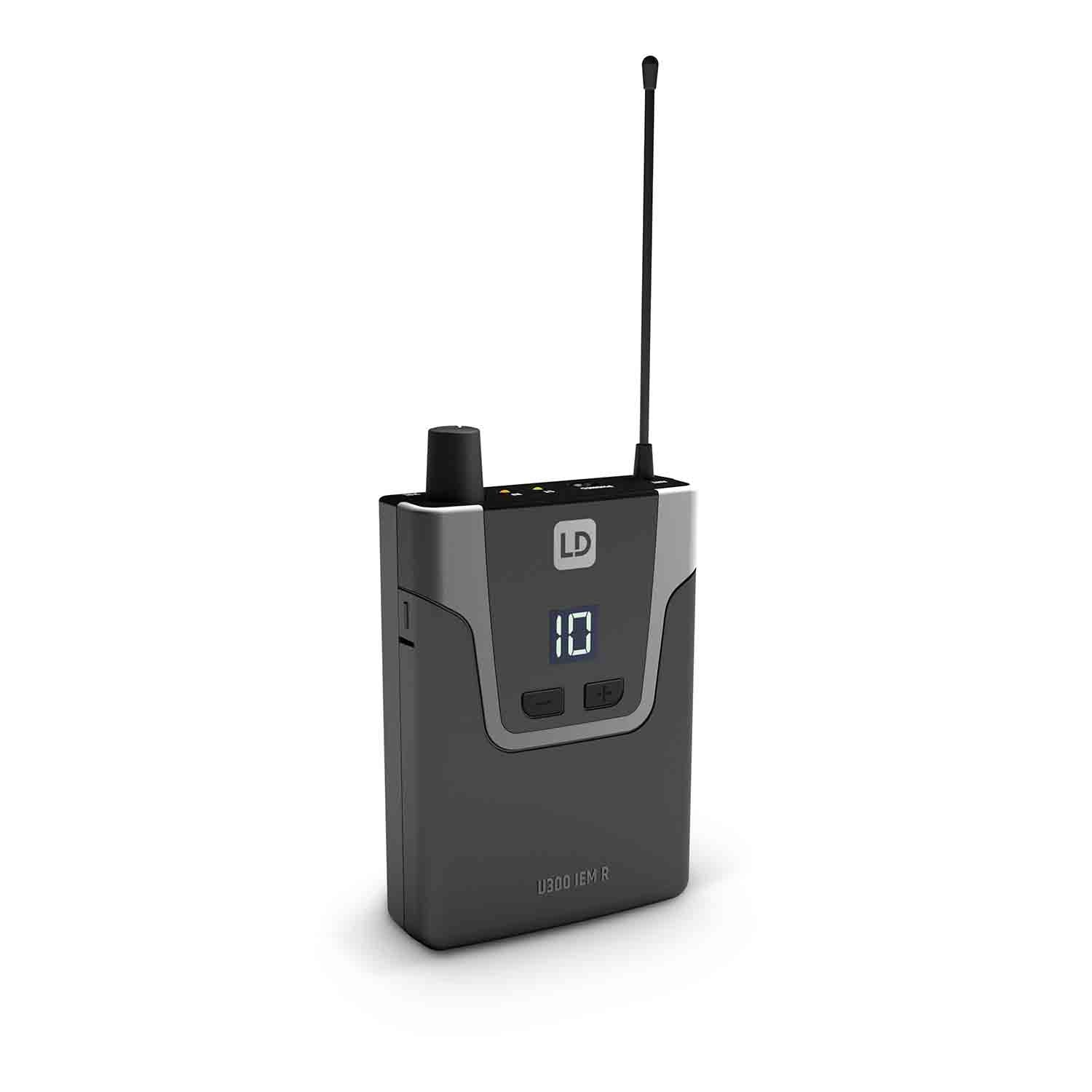

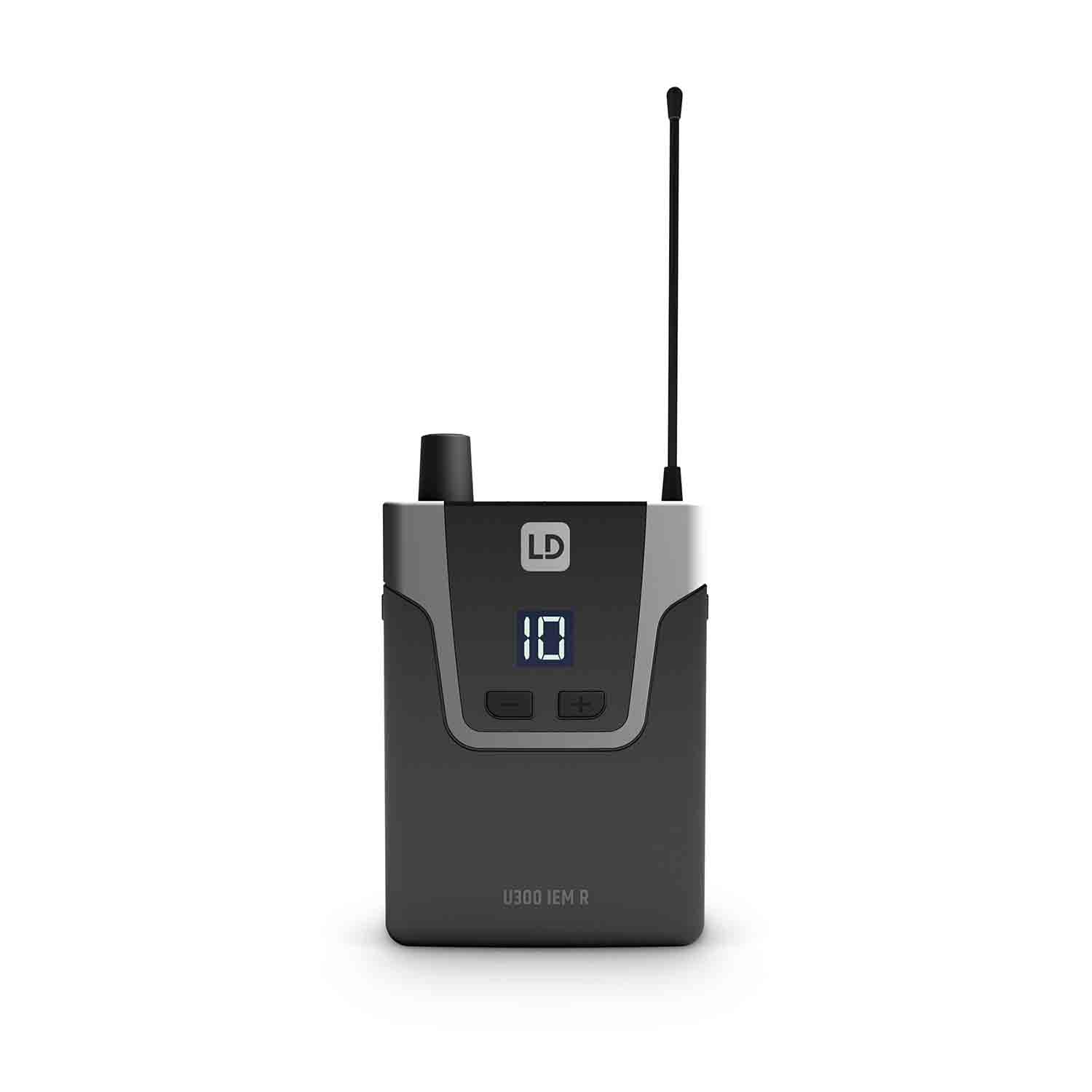

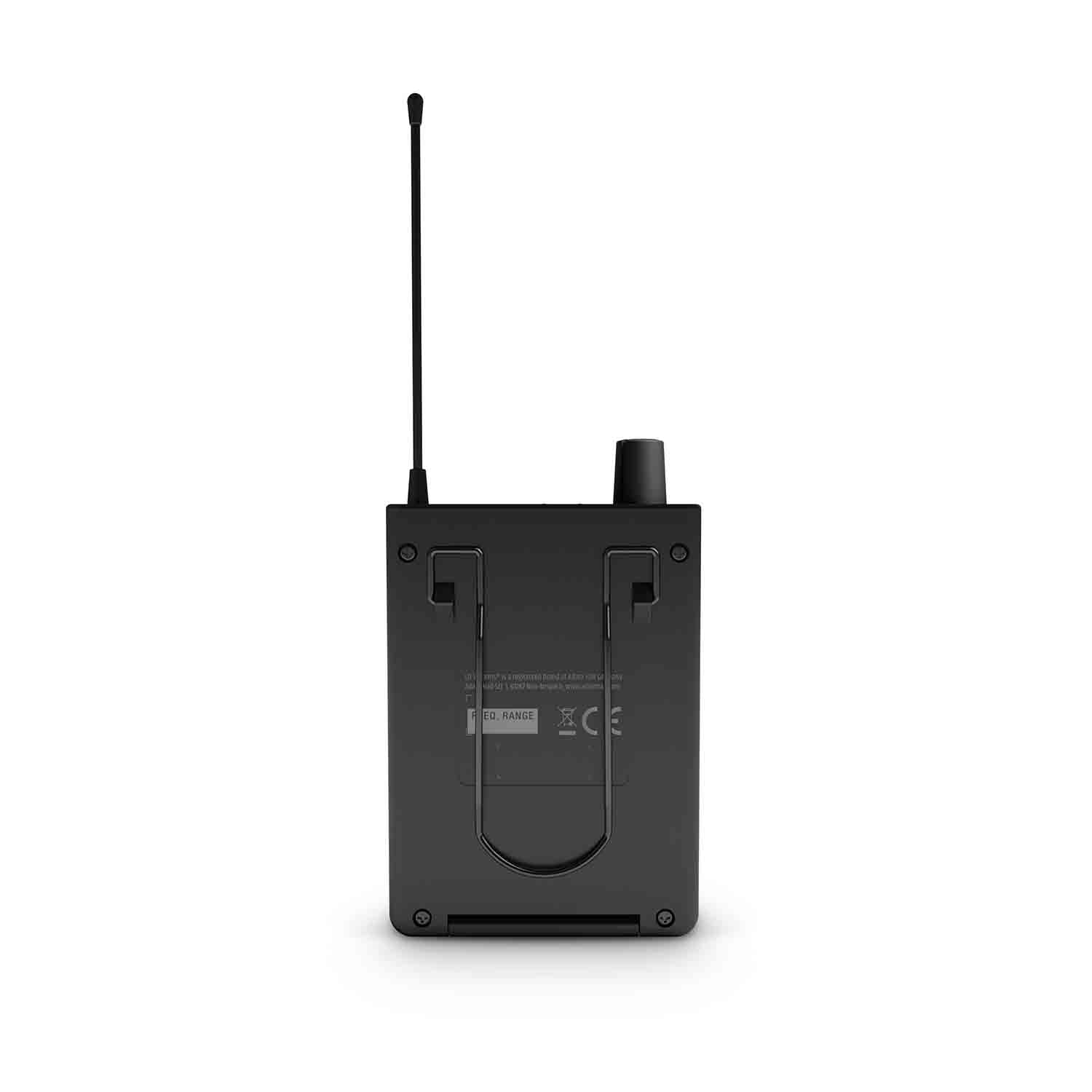

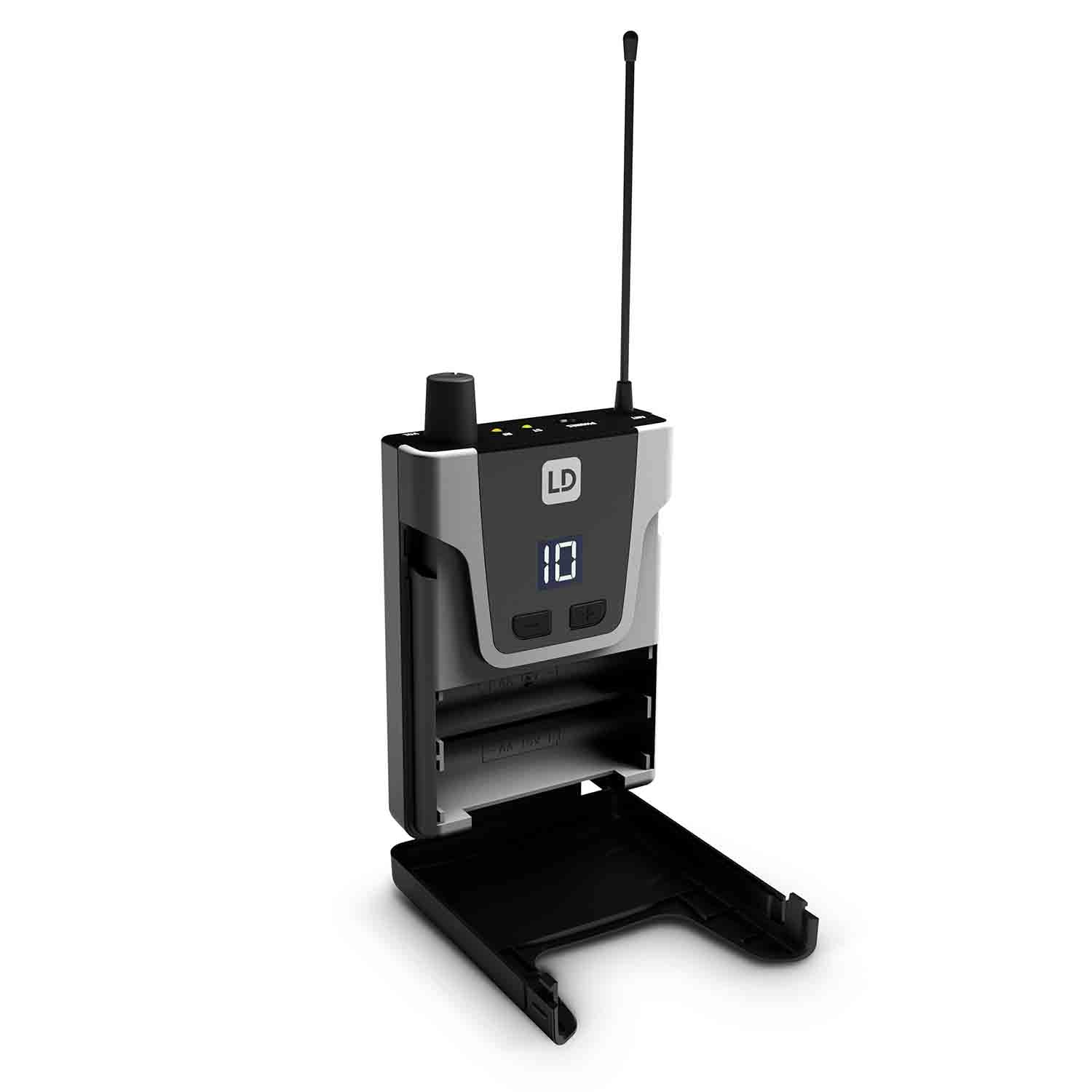

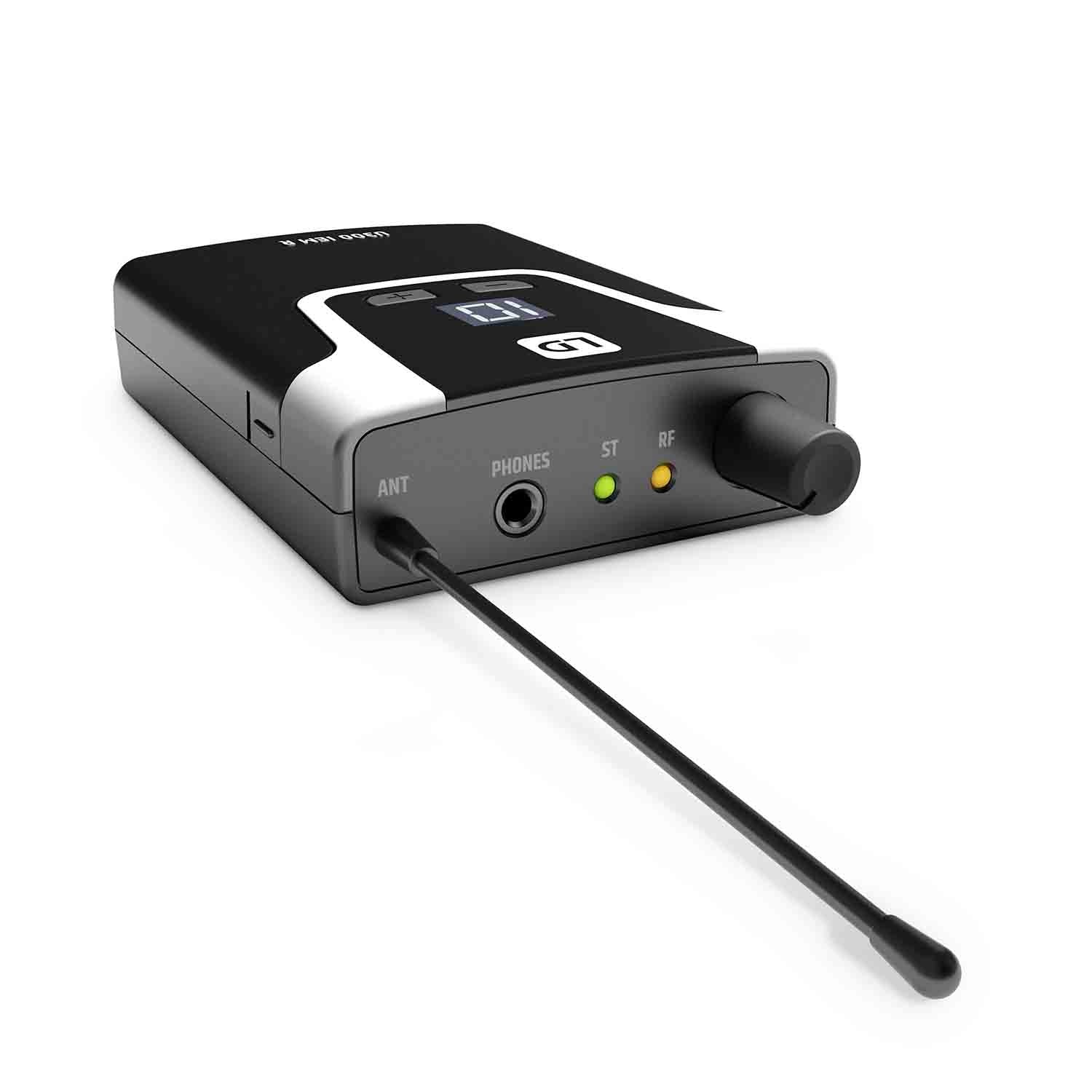

LD Systems U305.1 IEM R In-Ear Monitoring System Receiver

The LD Systems LD Systems U305.1 IEM R In-Ear Monitoring-System with 12 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 – 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz.

The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz - 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The U 300 IEM permits the simultaneous operation of up to 6 systems.

Both transmitter and receiver feature multifunctional displays that show all important system information. With high-quality batteries, it is possible to attain running times of 10 hours and more.

Product Specifications:

Product Type: In-Ear Monitoring Accessories

Type: Receivers

Transmission Frequency Range: 514 - 542 MHz

Channels: 12

Transmission Method: FM, mono/stereo

Frequency Response: 50 - 16.000 Hz

Total Harmonic Distortion (Thd): 0.25 %

Audio Output: 3.5 mm TRS

Minimum Connected Impedance: 16 Ohm(s)

Max. Audio Output Level: 100 (@ 16 Ohms load capacity) mW , 73 (@ 33 Ohms load capacity) mW

Antenna Connector: Fixed to housing

Controls: Channel Down , Channel Up , On/Off Switch , Volume Control

Indicators: RF (LED)

Operating Voltage: 2 x 1.5 V AA

Operating Time: < 10 hours

Width: 64 mm

Height: 103 mm

Depth: 24 mm

Weight: 0,085 kg

Features: Battery Status LED , Incl. Batteries
