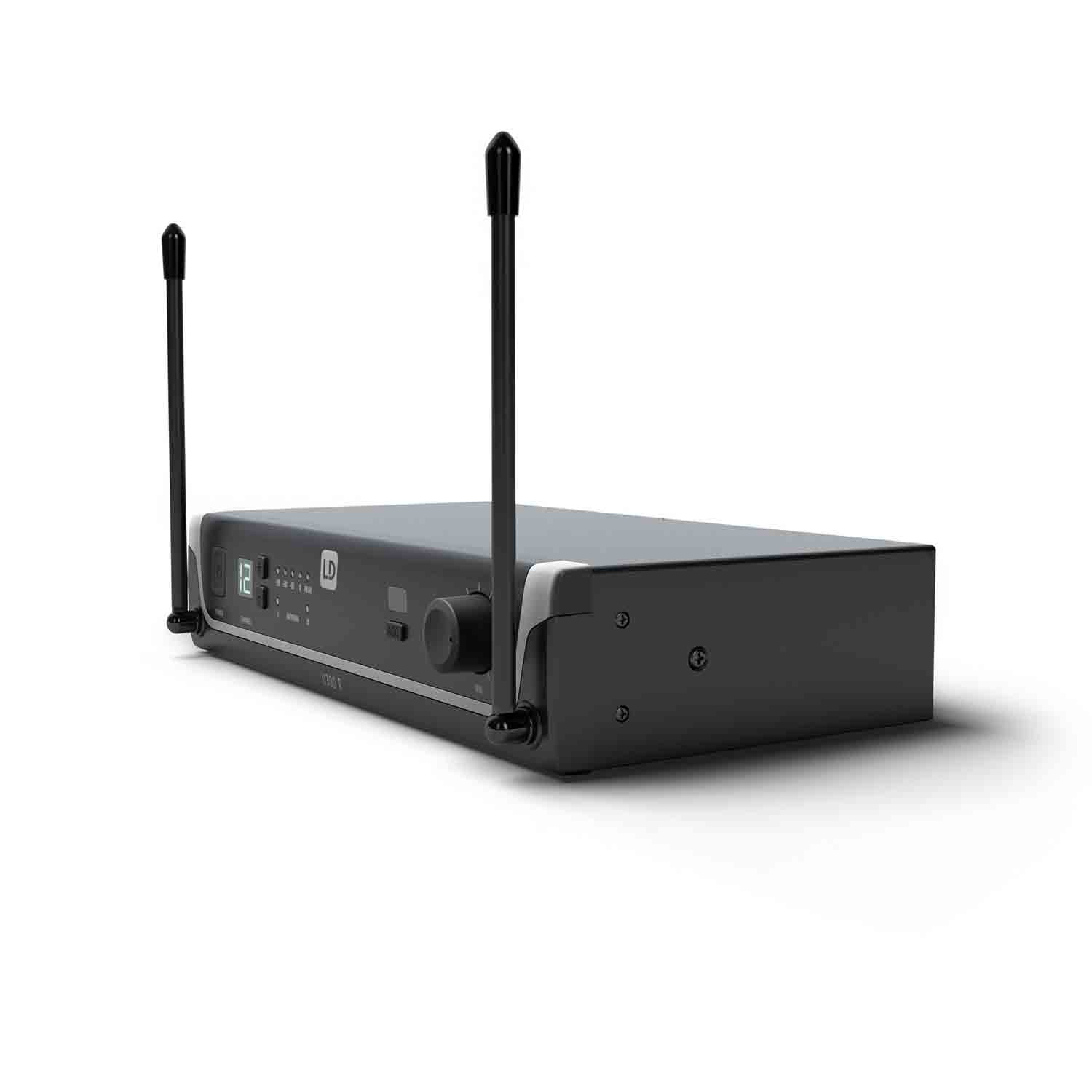

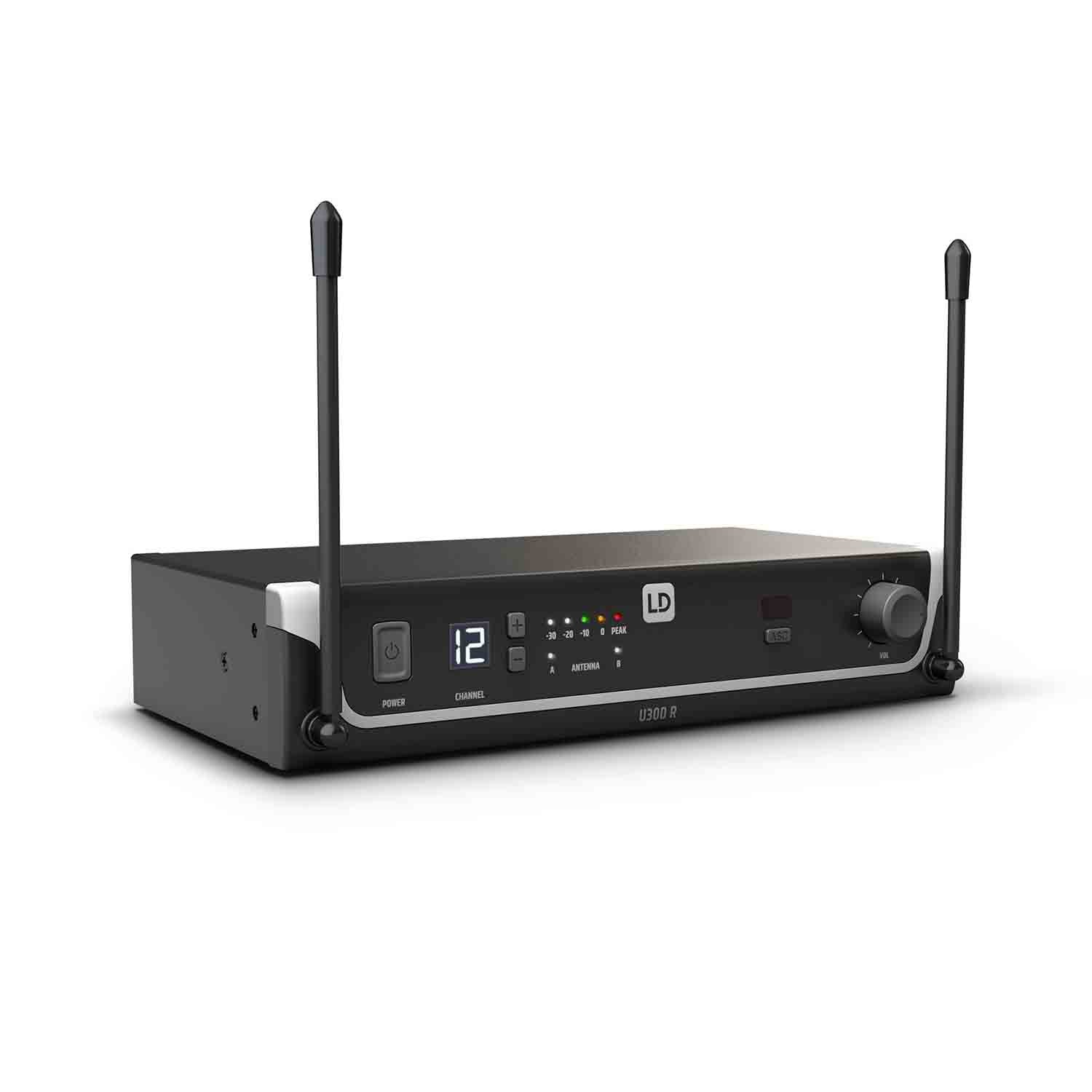

LD Systems U305.1 R, 12-Channel UHF Receiver

The LD Systems U305.1 R, 12-channel UHF receiver operates with FM technology in the frequency band 514–542 MHz, and features a 25 Hz to 16 KHz frequency response. Convenient one-touch synchronization via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series.

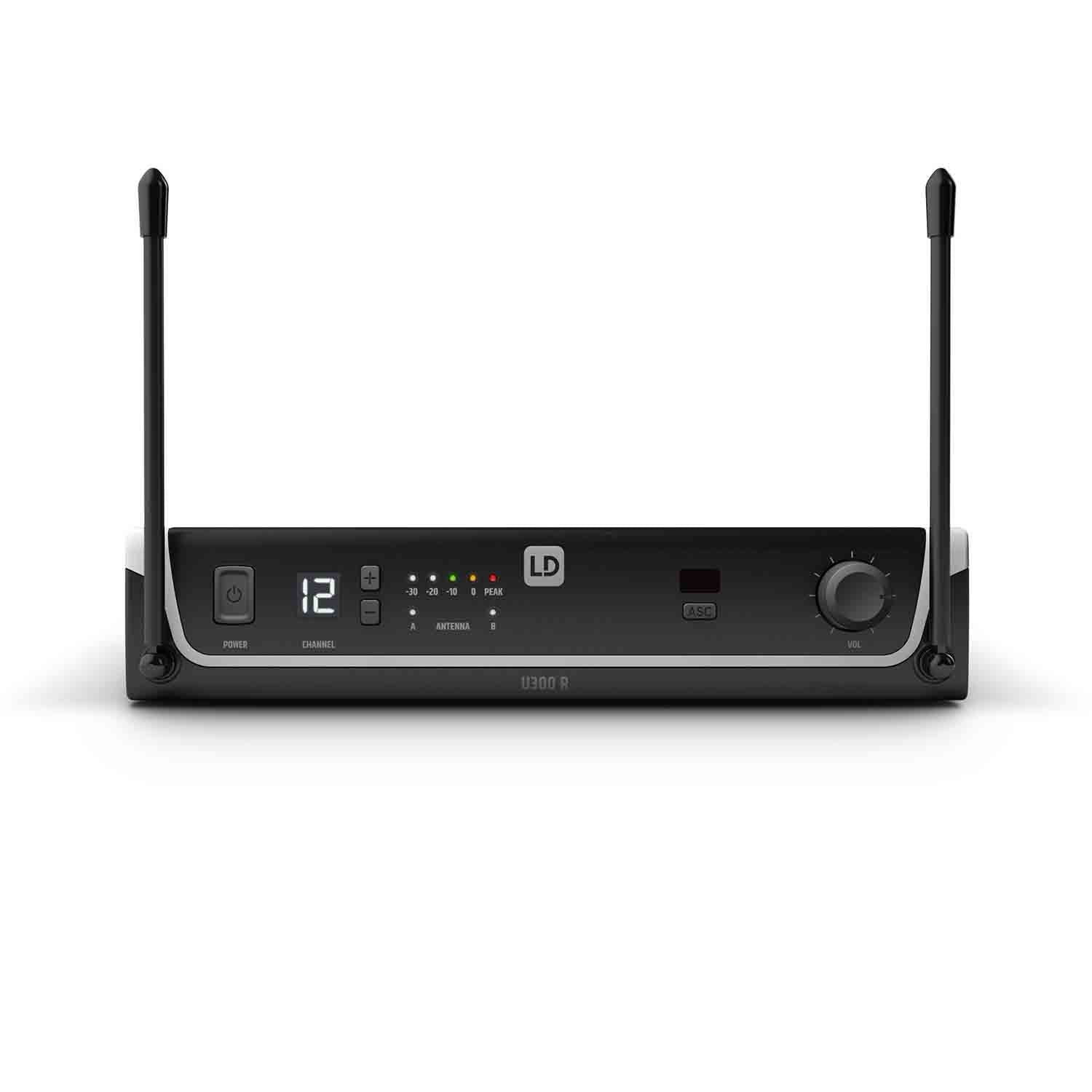

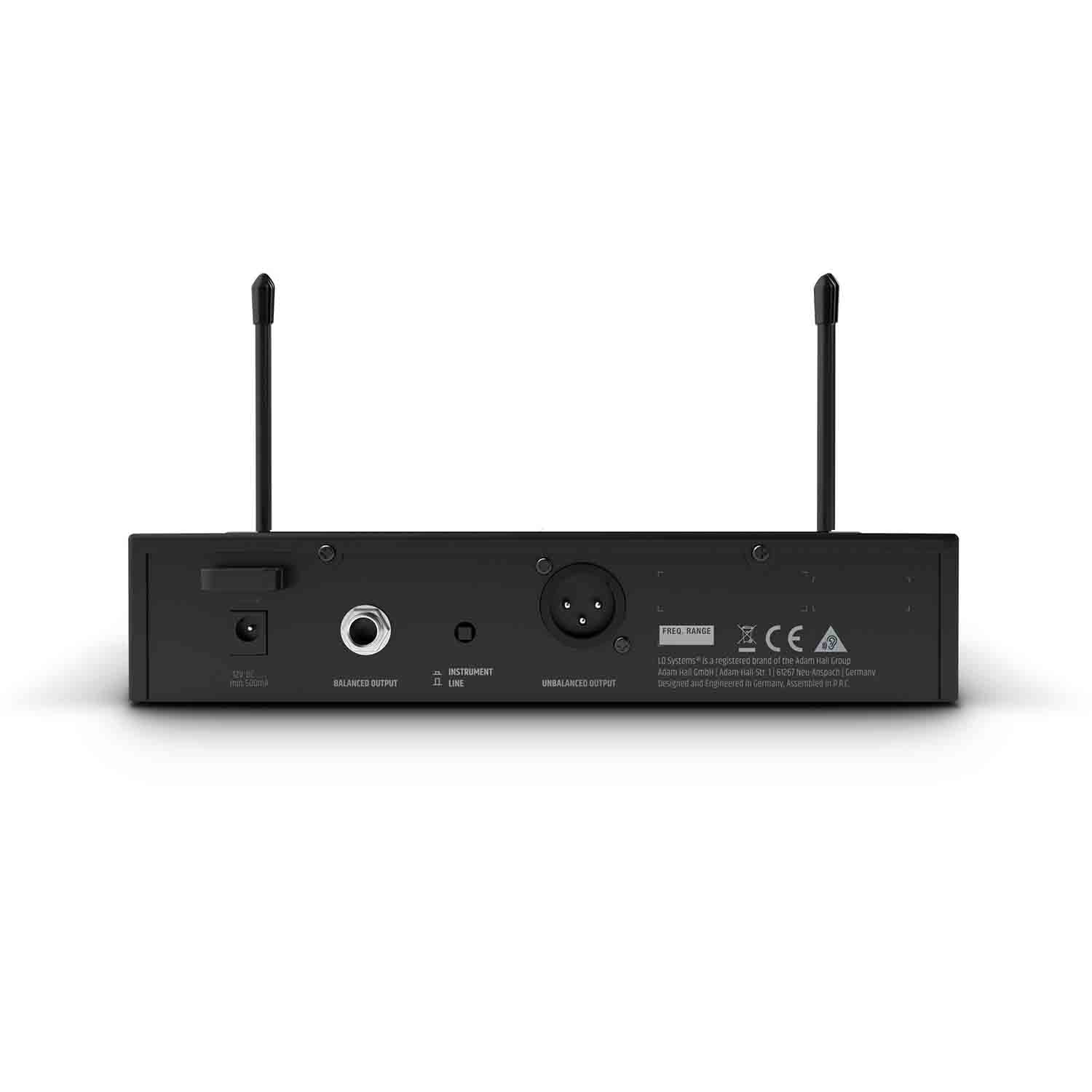

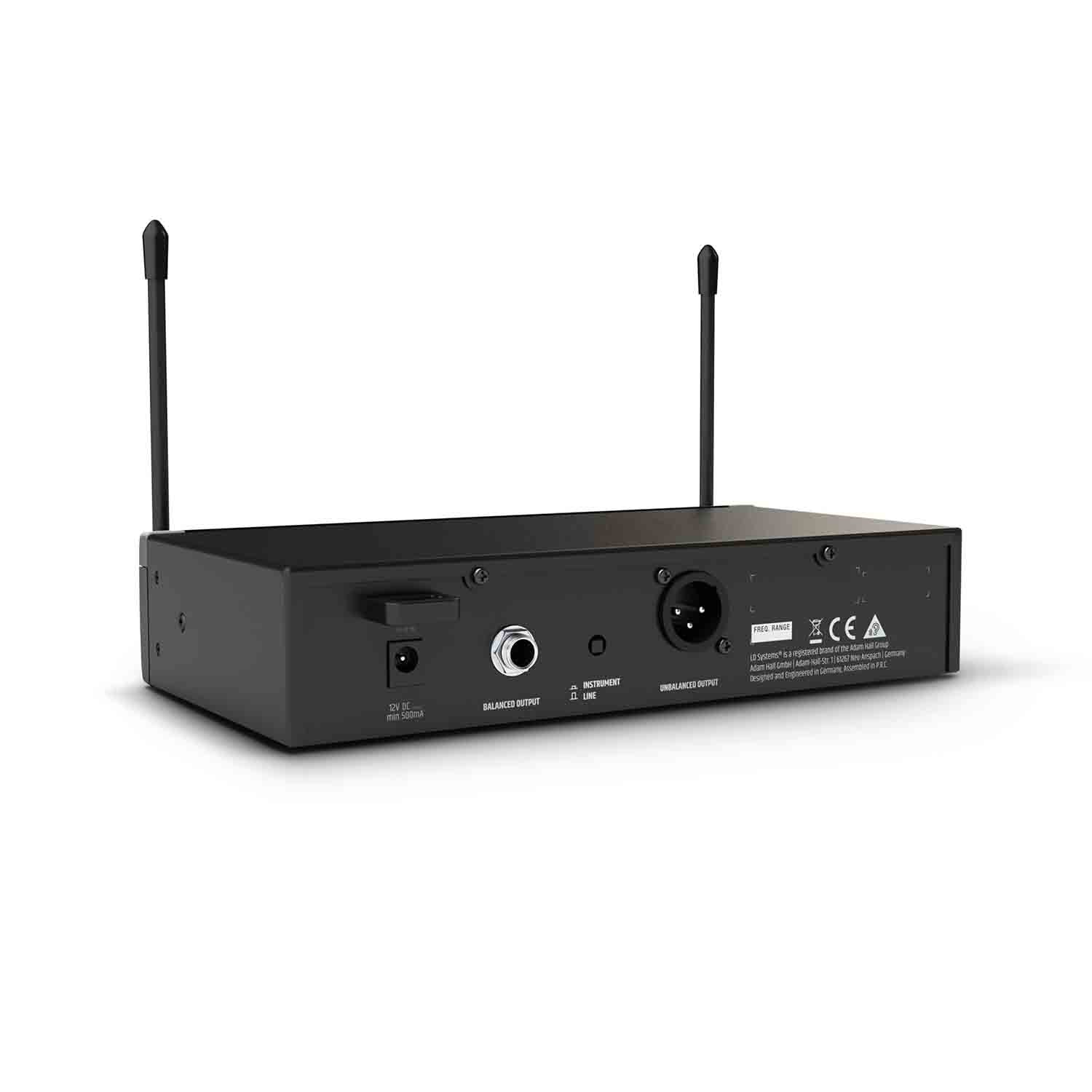

 A squelch with pilot tone ensures disruption-free operation. The U3051 receiver features elegant metal housing with a bright LCD channel display, channel selection keys and LEDs that display audio signal strength and active antenna. The rear side features both a balanced XLR and unbalanced 6.35 mm audio output that is switchable to instrument level for directly connecting to guitar and bass guitar amps. Includes a power adapter and balanced XLR cable.

Product Specifications:

Product Type: Wireless Microphone System Accessories

Type: Receivers

Modulation Type: FM

Transmission Frequency Range: 514 - 542 MHz

Channels: 12

Groups: 1

Antenna Inputs: 2 x fixed

Frequency Response: 25 - 16.000 Hz

Noise Reduction: Squelch

Transmission Optimization: Pilot Tone

Total Harmonic Distortion (Thd): < 0.3 %

Signal-To-Noise Ratio: 104 dB

Audio Output, Balanced: XLR

Audio Output, Unbalanced: 6.3 mm jack, switchable unbalanced output level

Audio Mix Output, Balanced: XLR

Audio Mix Output, Unbalanced: 6.3 mm jack

Max. Output Level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu

Headphones Outputs: 6.3 mm TRS

Controls: ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume

Indicators: 5 LED VU meters , Antenna A/B , LC display

Operating Voltage: 12 V DC - 18 V DC (500 mA), external power supply

Width: 211 mm

Height: 43 mm

Depth: 120 mm

Weight: 0,7 kg

Accessories (Included): 2 x AA batteries , Audio cable , Power supply

Other Features: IR Frequency Synchronisation
