Description
The LD Systems U504.7 BPH (USA Version) is part of the advanced U500® Series, engineered in Germany to deliver professional-grade wireless performance for vocals, speech, presentations, and live events. Designed for reliability and clarity, this UHF True Diversity system offers stable signal transmission, premium audio quality, and effortless setup—ideal for professional users who demand consistency and precision.
Featuring selectable transmit power up to 30 mW, the system provides a free-field range of over 100 meters, ensuring freedom of movement on stage. The automatic frequency scan identifies the best available channel, while one-touch IR synchronisation seamlessly pairs the transmitter and receiver for fast, trouble-free configuration.
High-contrast OLED displays on both transmitter and receiver offer clear visibility of channels, groups, RF strength, signal status, battery life, and even support custom usernames. A built-in silent pilot tone and squelch function ensure fail-safe operation by preventing interference and muting unwanted signals. With low power consumption, the bodypack transmitter runs for up to 10 hours on AA batteries, making it dependable for long performances.

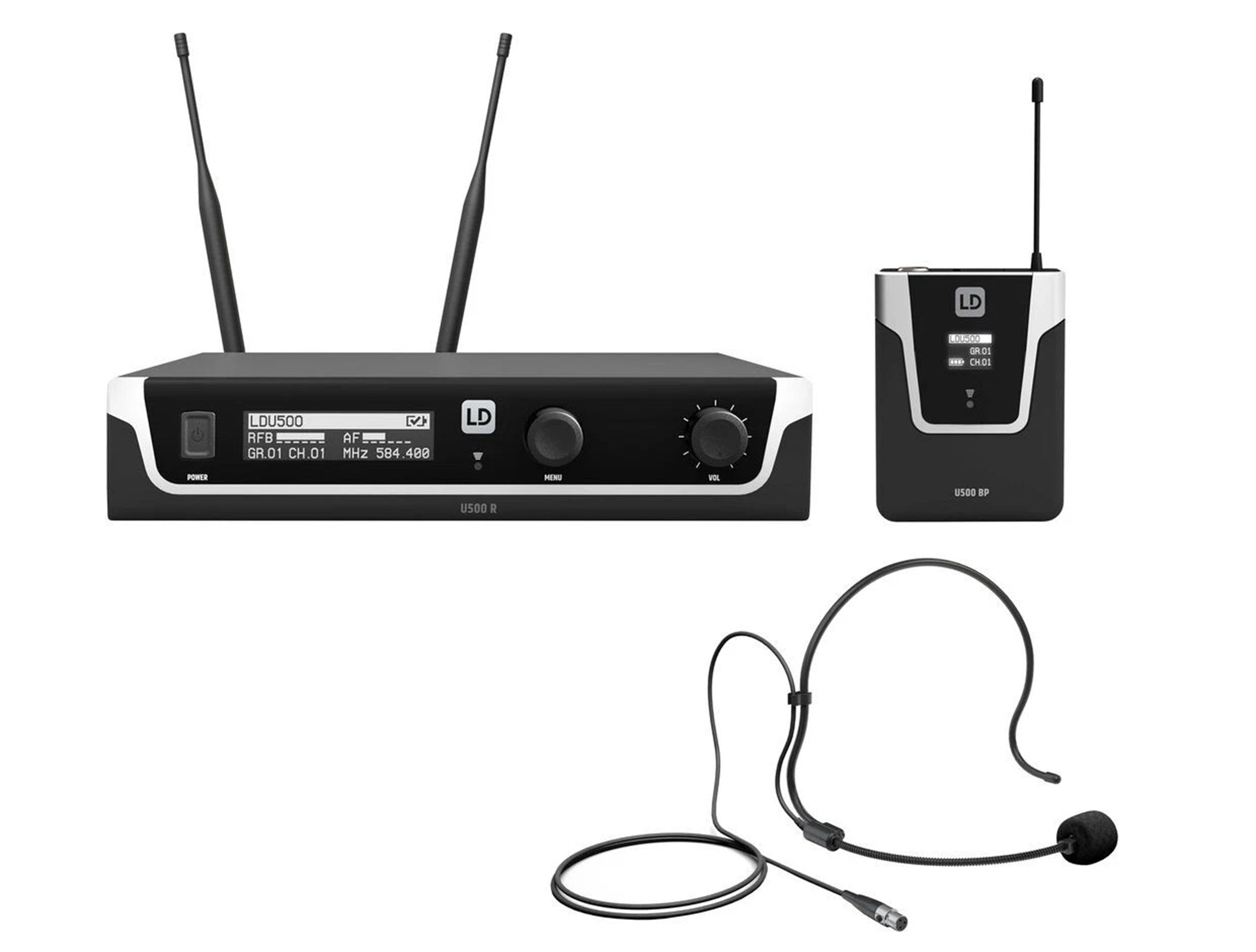

The U504.7 BPH system includes a bodypack transmitter, dual true-diversity receiver, and a cardioid headset microphone for clear, stable, and distortion-free voice reproduction without latency or artifacts.
Product Specification:

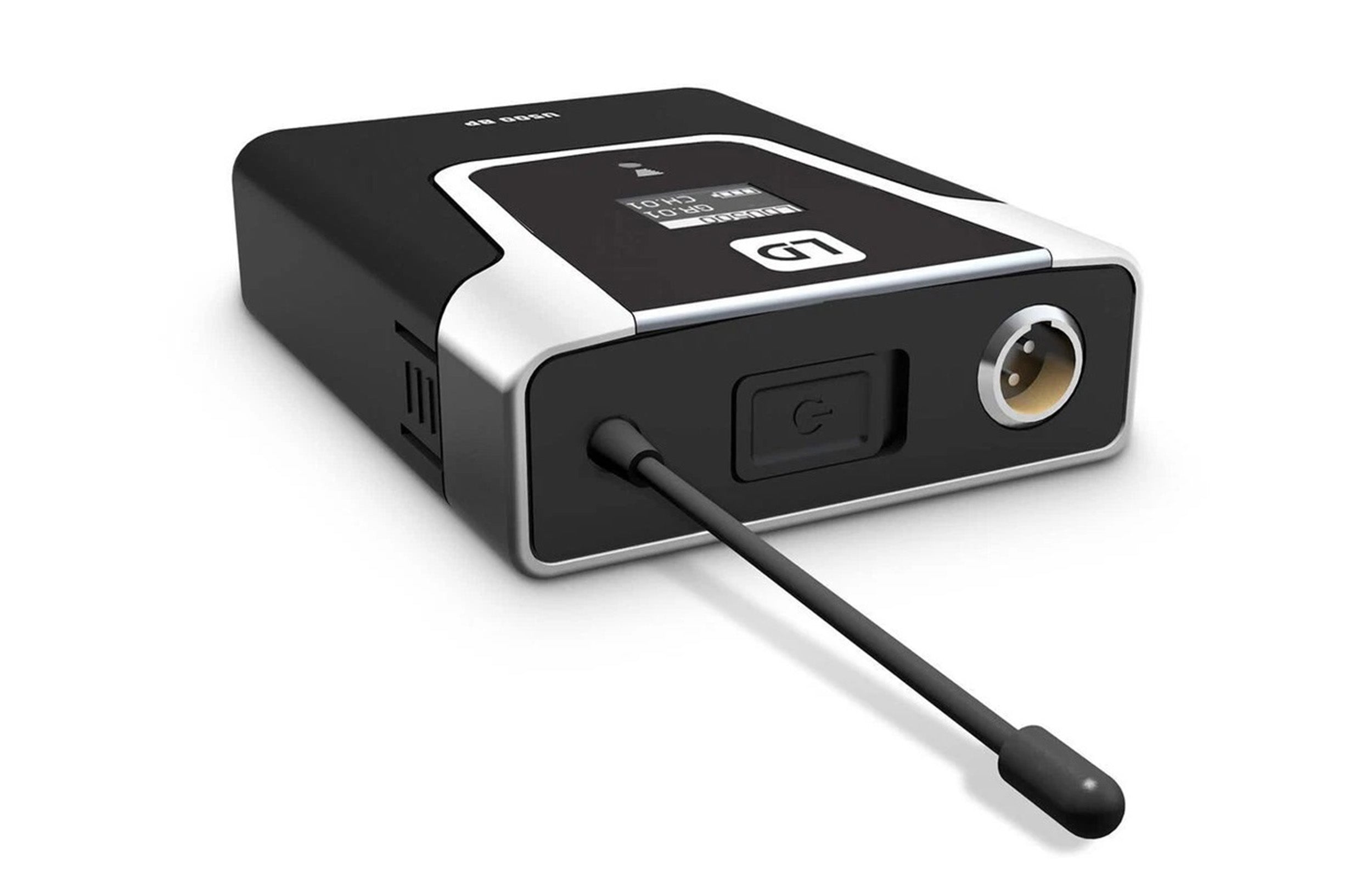

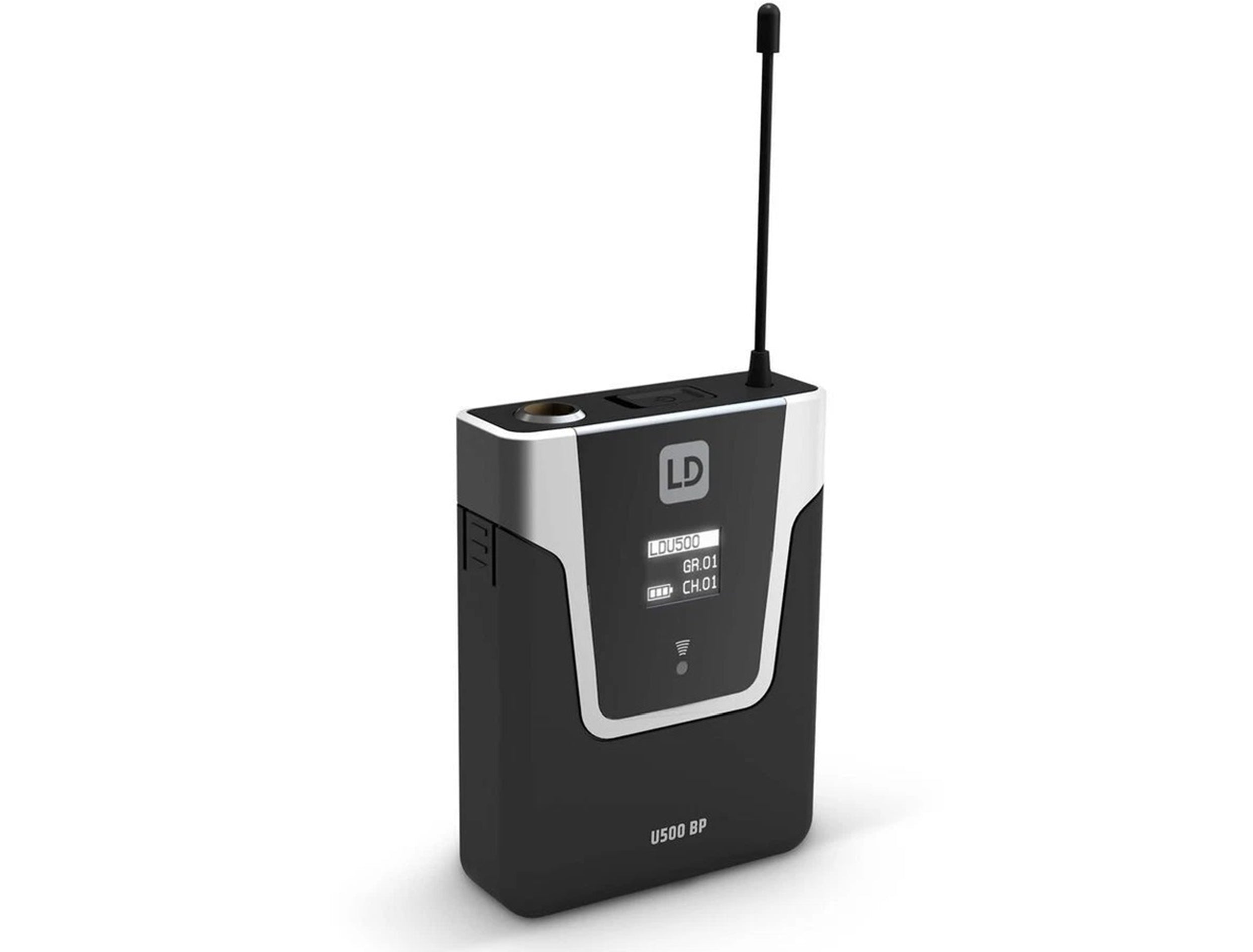

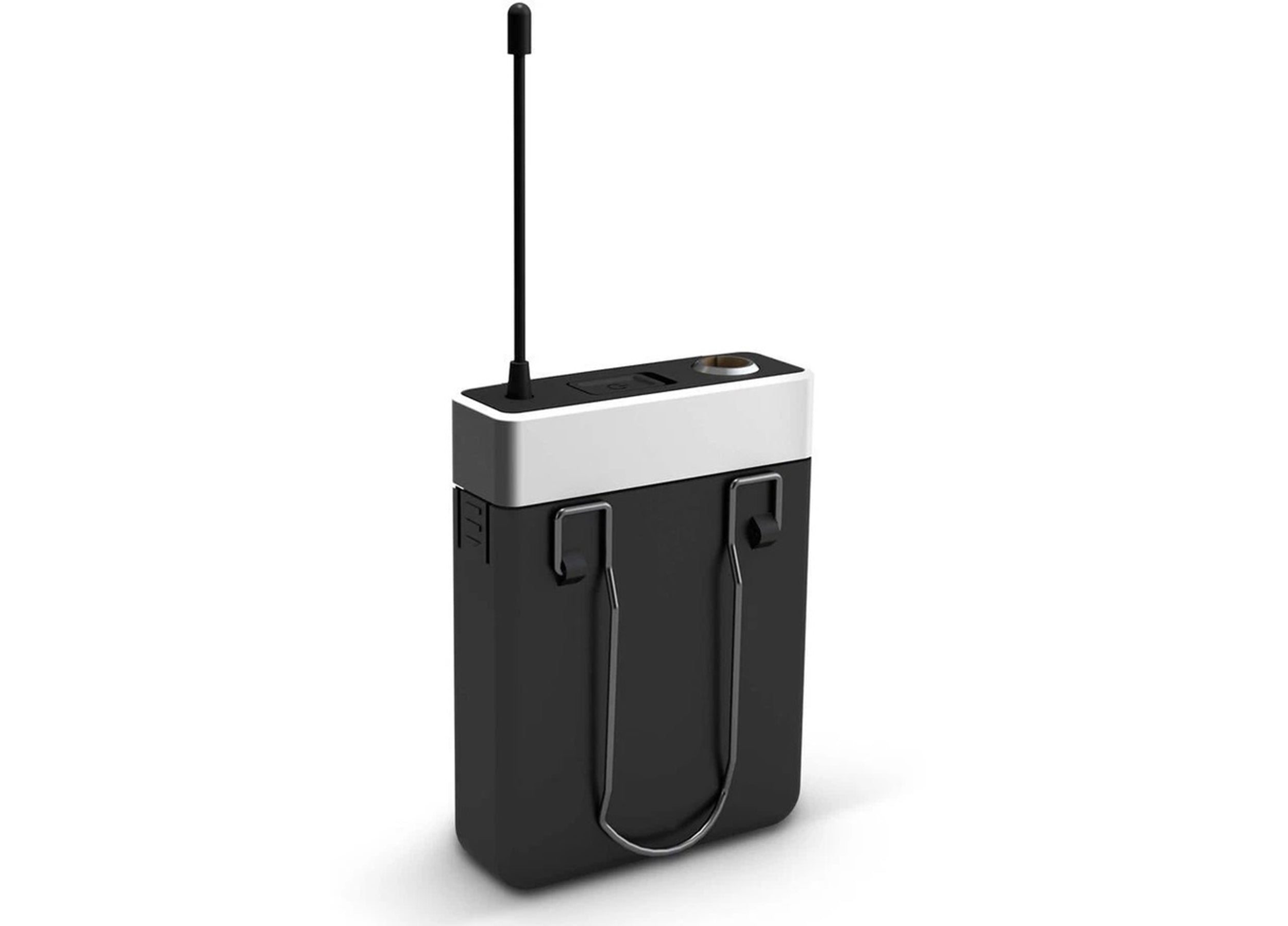

LD Systems U504.7 BP Bodypack Transmitter (USA Version)
Product Type: Wireless Microphone System Accessories
Type: Bodypack
Transmission Frequency Range: 470–490 MHz
Technical Specs
Channels: 96 (8 groups × 12 channels)
Groups: 8
Inputs: Mini-XLR (3-pin)
Frequency Response: 30–16,000 Hz
Signal-to-Noise Ratio: >90 dB
RF Output Power: 10 / 30 / 50 mW (variable)
Controls: Arrow keys, Power On/Off, Select
Indicators: OLED display
Power:
Power Supply: 2 × AA batteries
Operating Time: >10 hours (alkaline)
Dimensions
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Weight: 0.09 kg

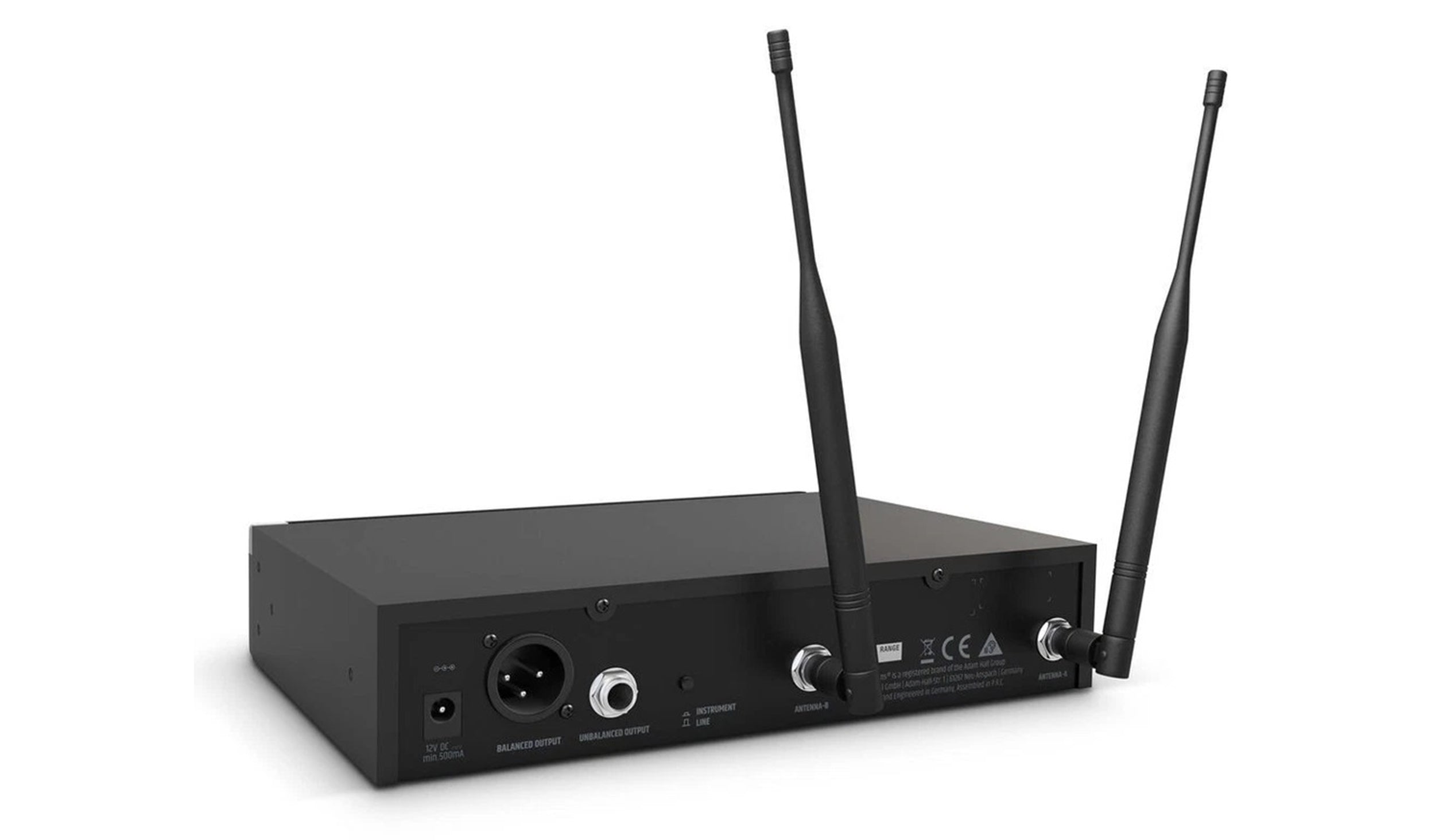

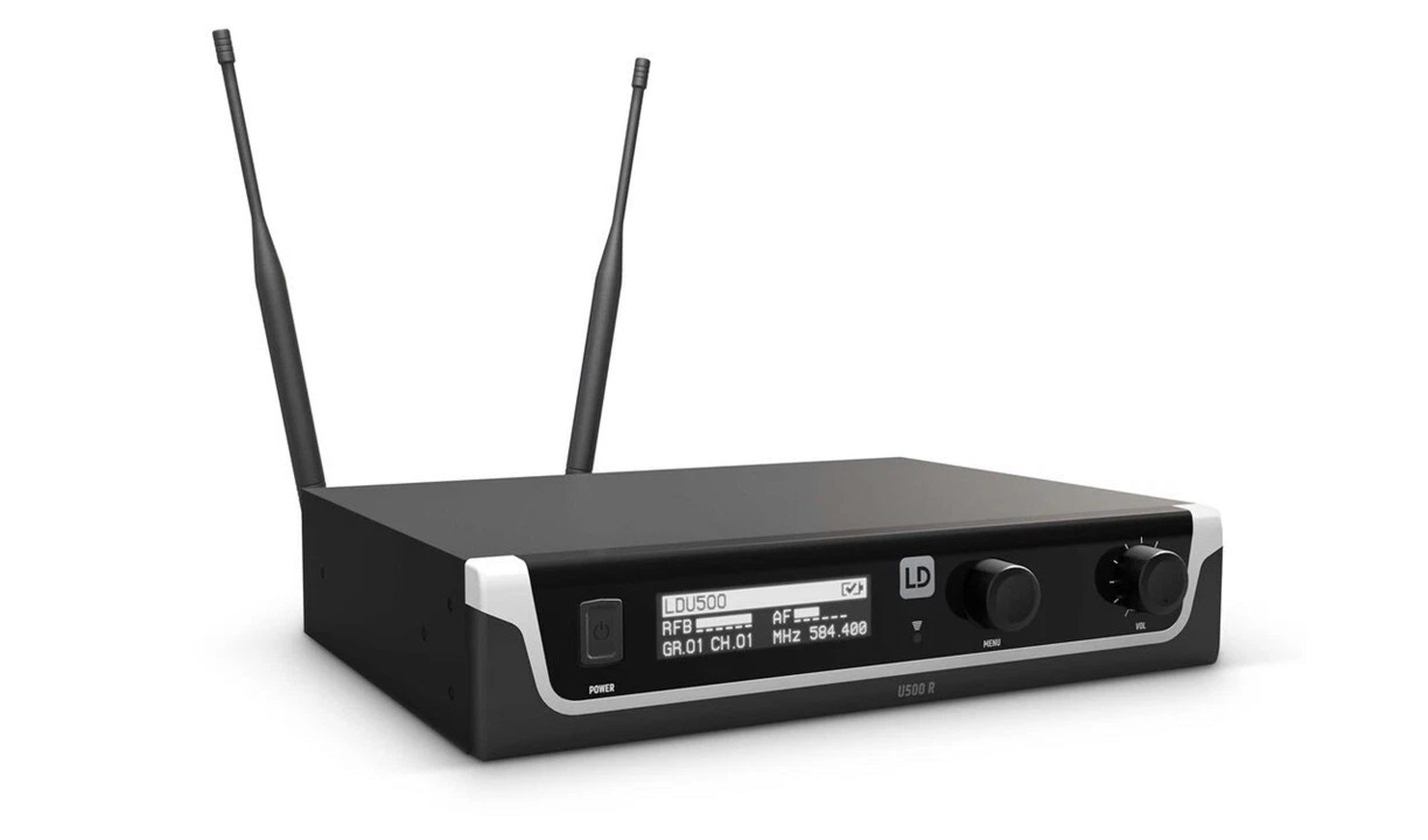

LD Systems U504.7 R 2 Dual Receiver (USA Version)
Product Type: Wireless Microphone System Accessories
Type: True Diversity Receiver
Modulation: FM
Transmission Frequency Range: 470–490 MHz
Technical Specs
Channels: 2 × 96 (8 groups × 12 channels)
Groups: 8
Antenna Inputs: 2
Antenna Connectors: BNC
Frequency Response: 30–16,000 Hz
Noise Reduction: Squelch
THD: <0.1%
Signal-to-Noise Ratio: >100 dB
Outputs
Balanced: 2 × XLR
Unbalanced: 2 × 6.3 mm TS
Mix Output (Balanced): XLR
Mix Output (Unbalanced): 6.3 mm jack
Max Output Level: +10 dBu
Headphone Output: 6.3 mm TRS
Controls:
2 × Volume
Up / Down
Power On/Off
Indicators: 2 × OLED display
Power:
Operating Voltage: 12 V DC, 1000 mA
Dimensions:
Width: 484 mm
Height: 44 mm
Depth: 200 mm
Weight: 2.05 kg
Included Accessories:
2 × Antennas
Audio cable
Power adapter

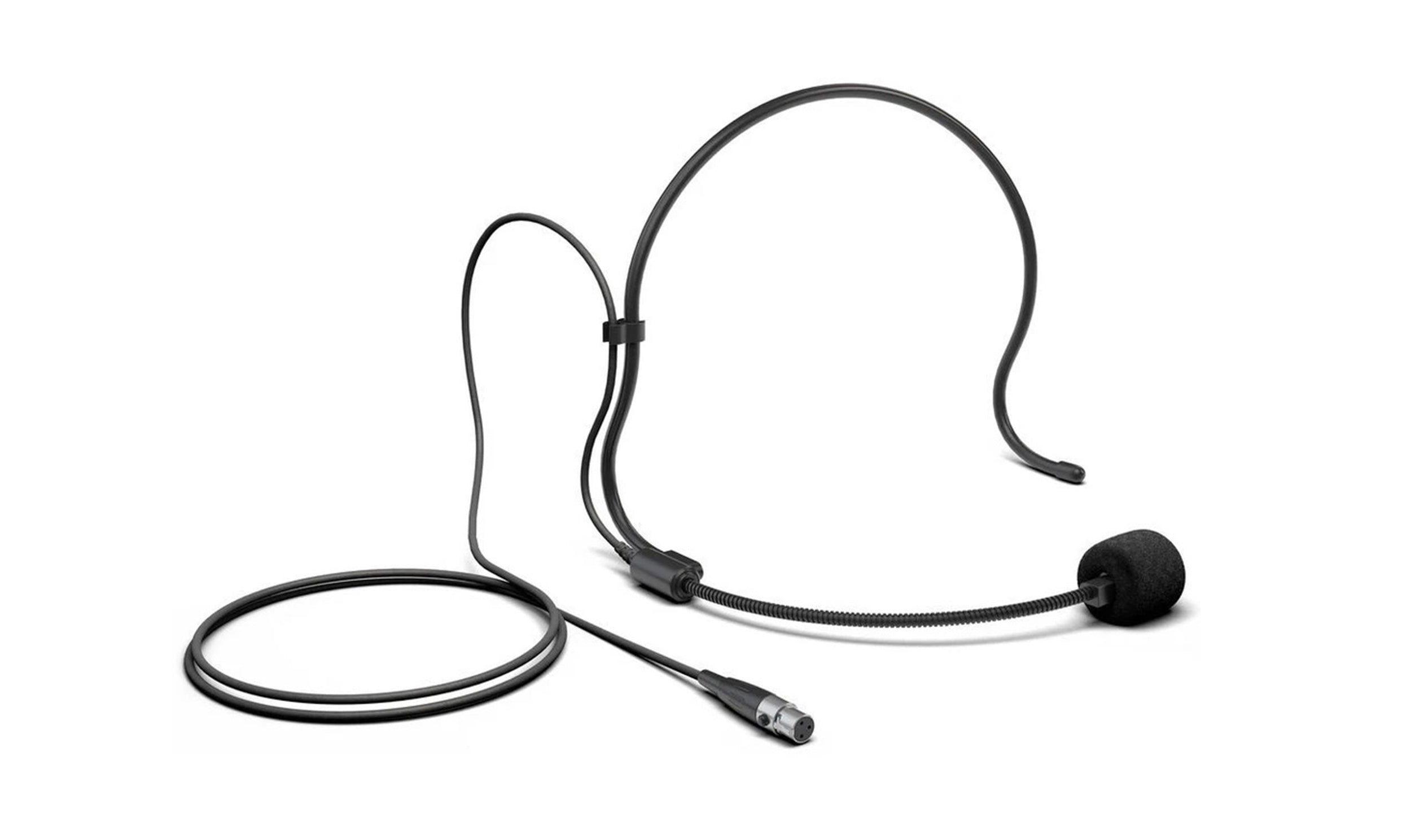

LD Systems WS 100 MH 1 Headset Microphone (Black)
Technical Specs:
Directivity: Cardioid
Capsule Type: Condenser
Nominal Impedance: 680 Ω
Sensitivity: 6.31 mV/Pa
Phantom Power: 5 V
Connector: Mini XLR Female
Cable Length: 1 m
Material: ABS
Frequency Response: 100–12,000 Hz
Colour: Black
Weight: 49 g
