Description
The LD Systems U5047BPL(US) developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500 vocal sets with a free-field range of over 100 meters. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter's silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500's efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries. The U500 Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

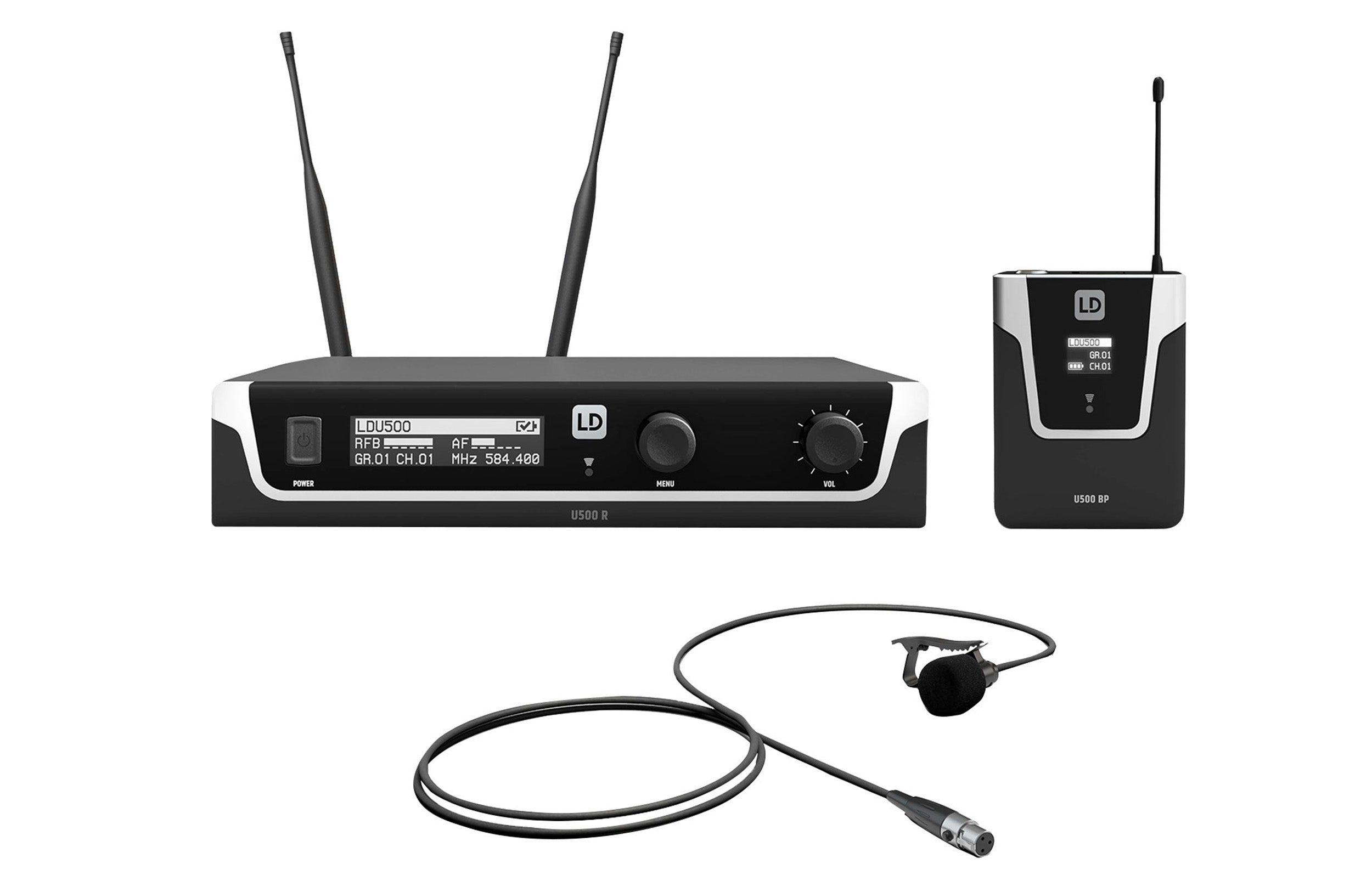

What’s in the Box:
(1) LD Systems U504.7 BPL (USA version) Bodypack transmitter 470 - 490 MHz
(1) LD Systems U504.7 BPL (USA version) Dual receiver 470 - 490 MHz
(2) Antenna
(1) Audio cable
(1) Power adapter
(1) LD Systems U504.7 BPL (USA version) Lavaliere Microphone
(1) Attaching clip
(1) Foam windscreen
Product Specifications:
Product type: Wireless Microphone Systems
Type: Set
Transmission frequency range: 470 - 490 MHz
Weight: 2.4 kg (5.29 Lbs)

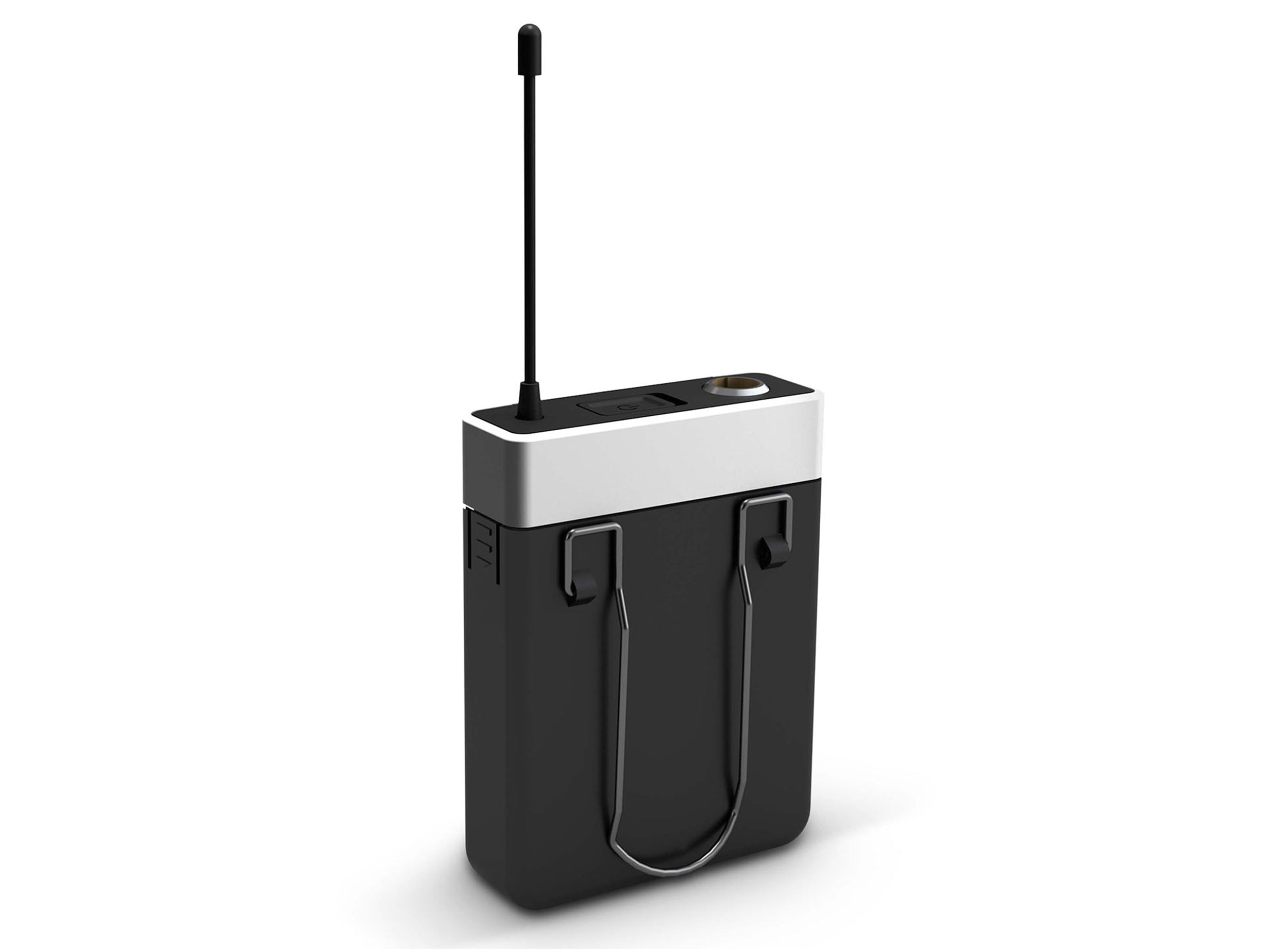

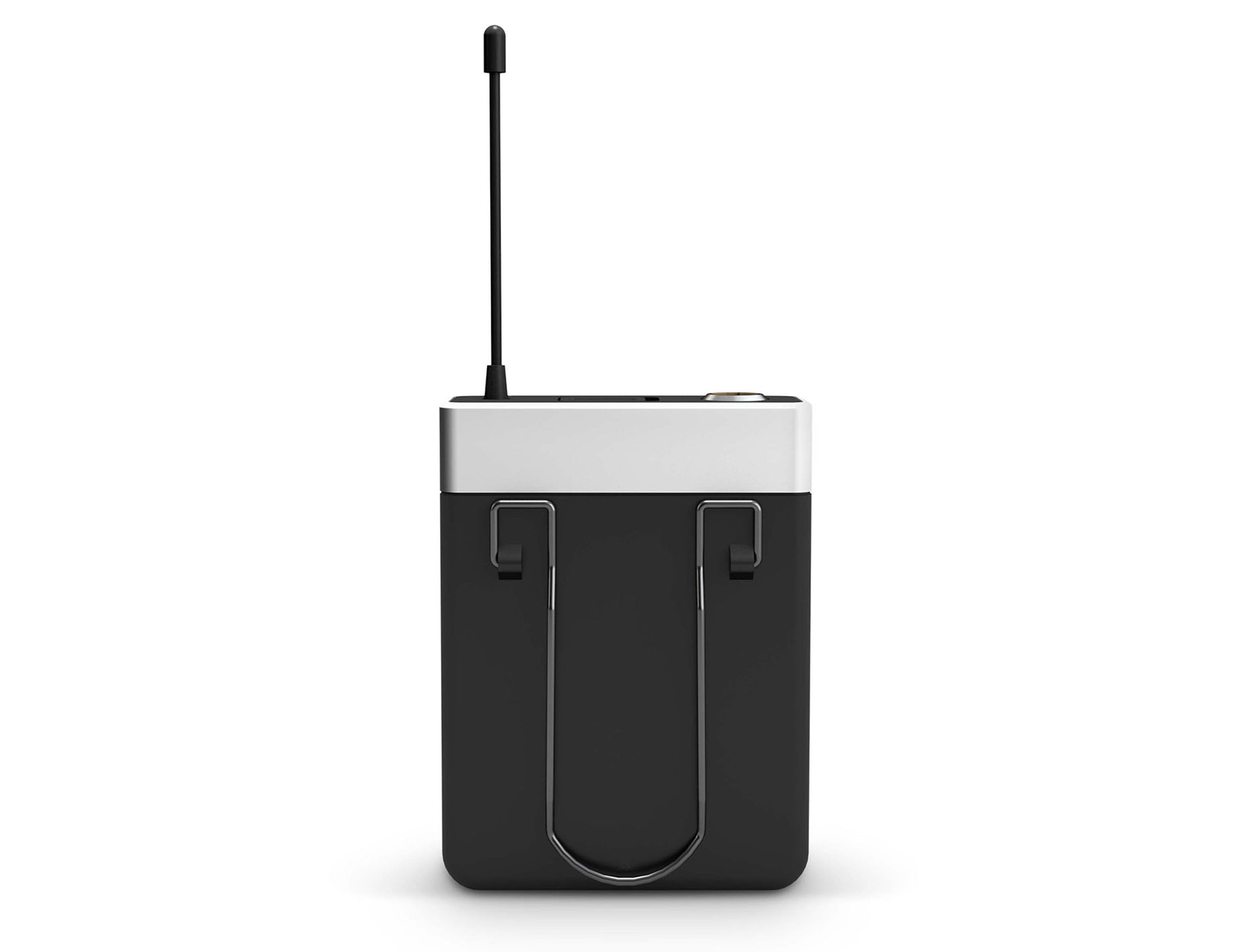

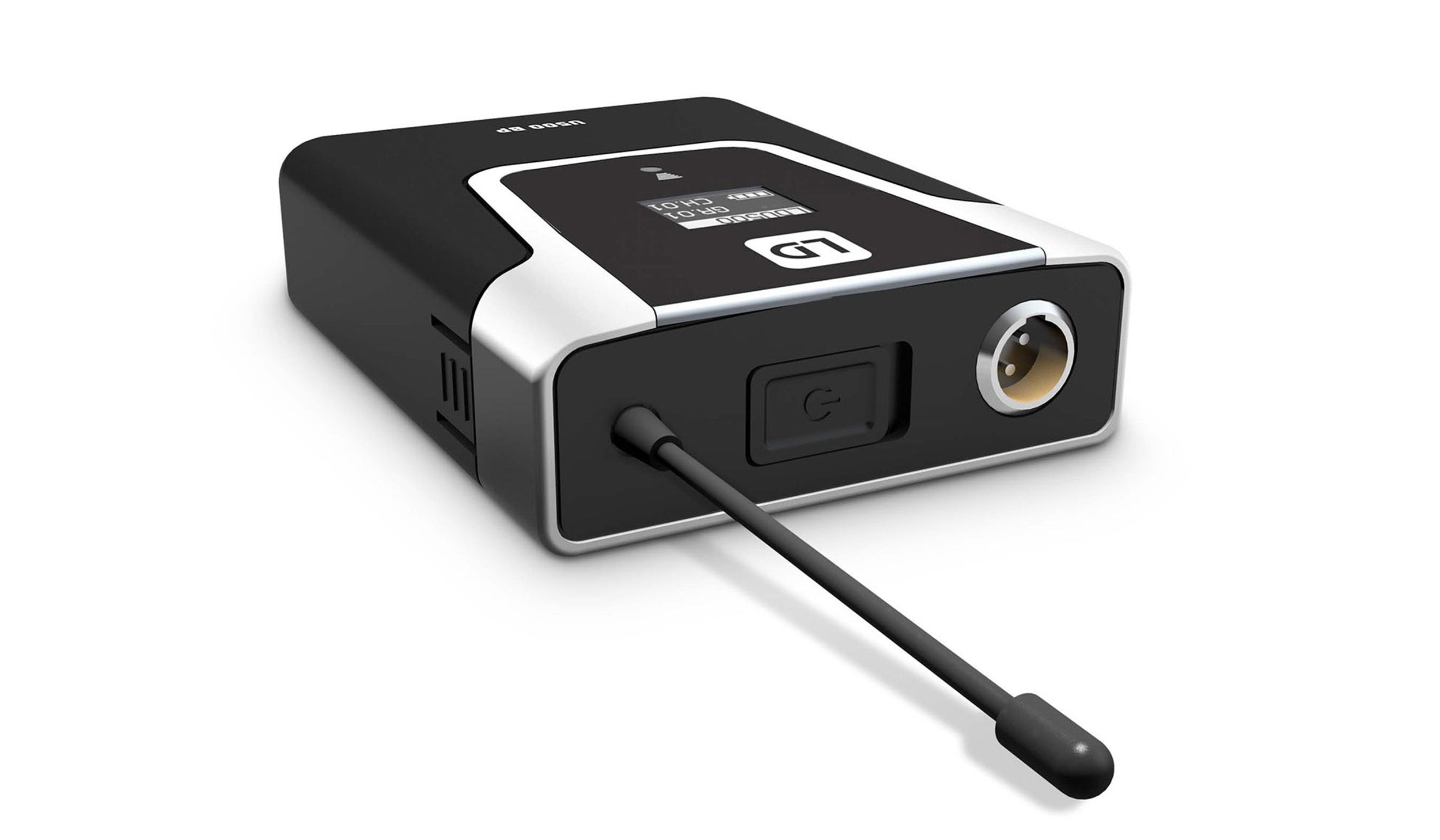

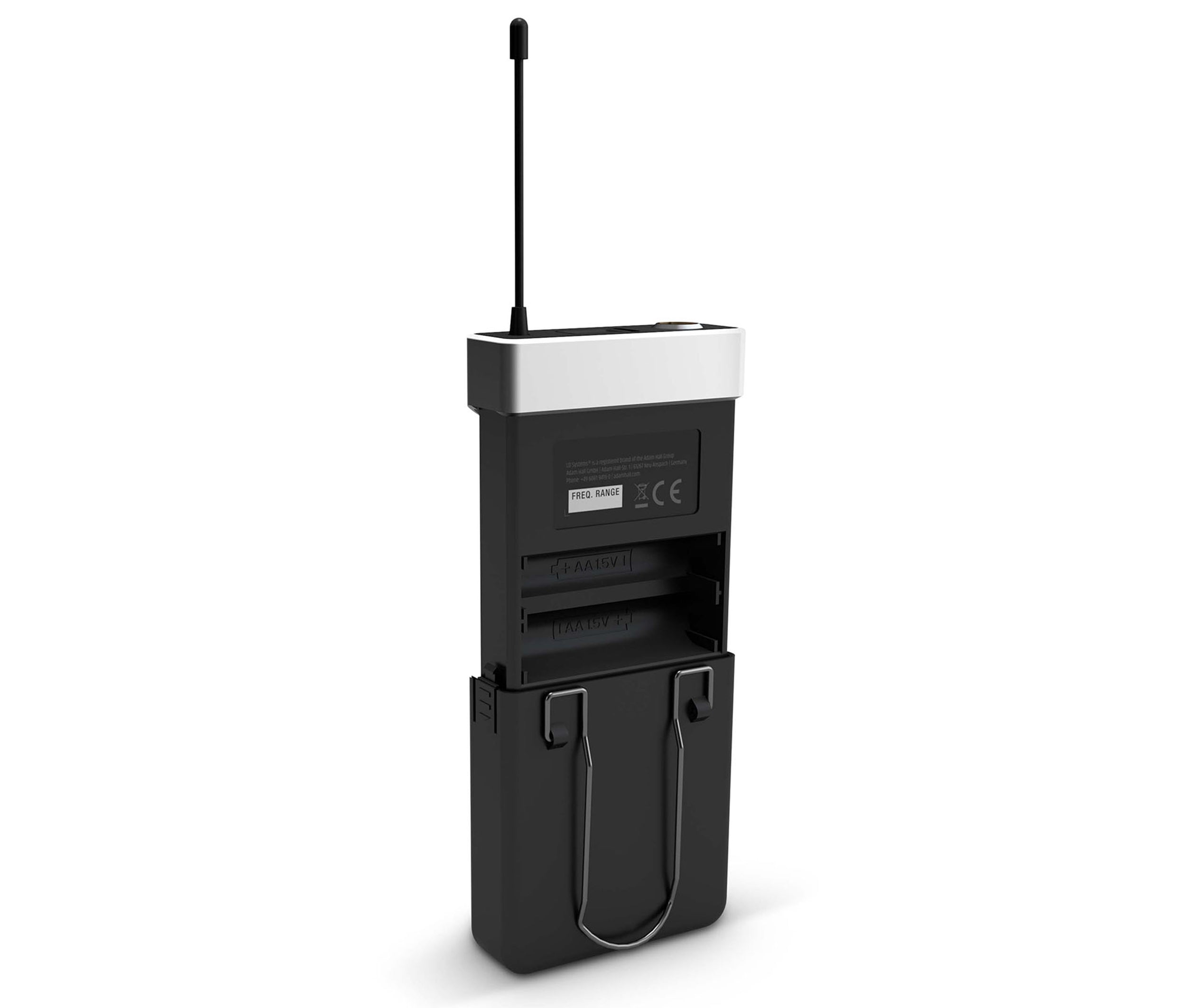

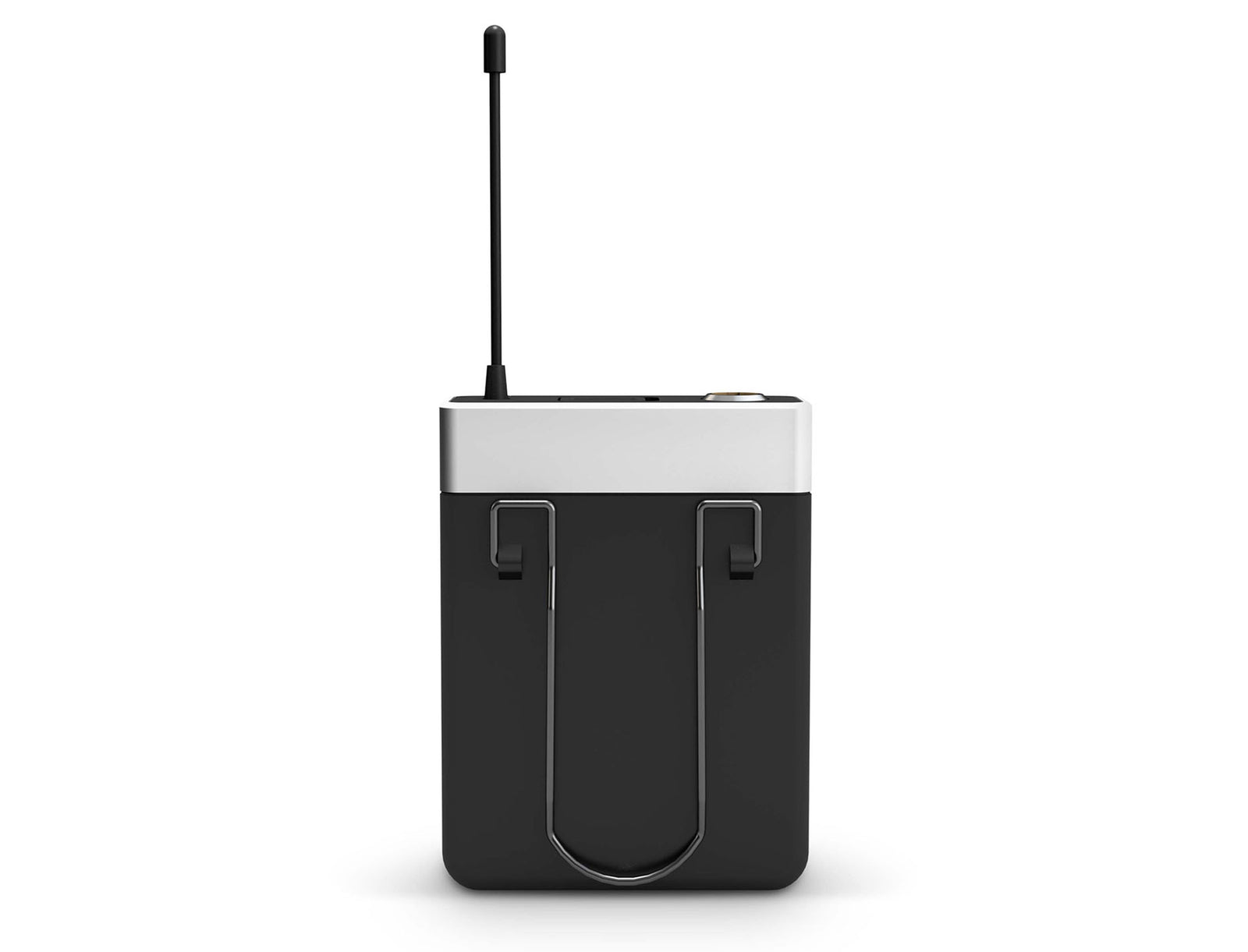

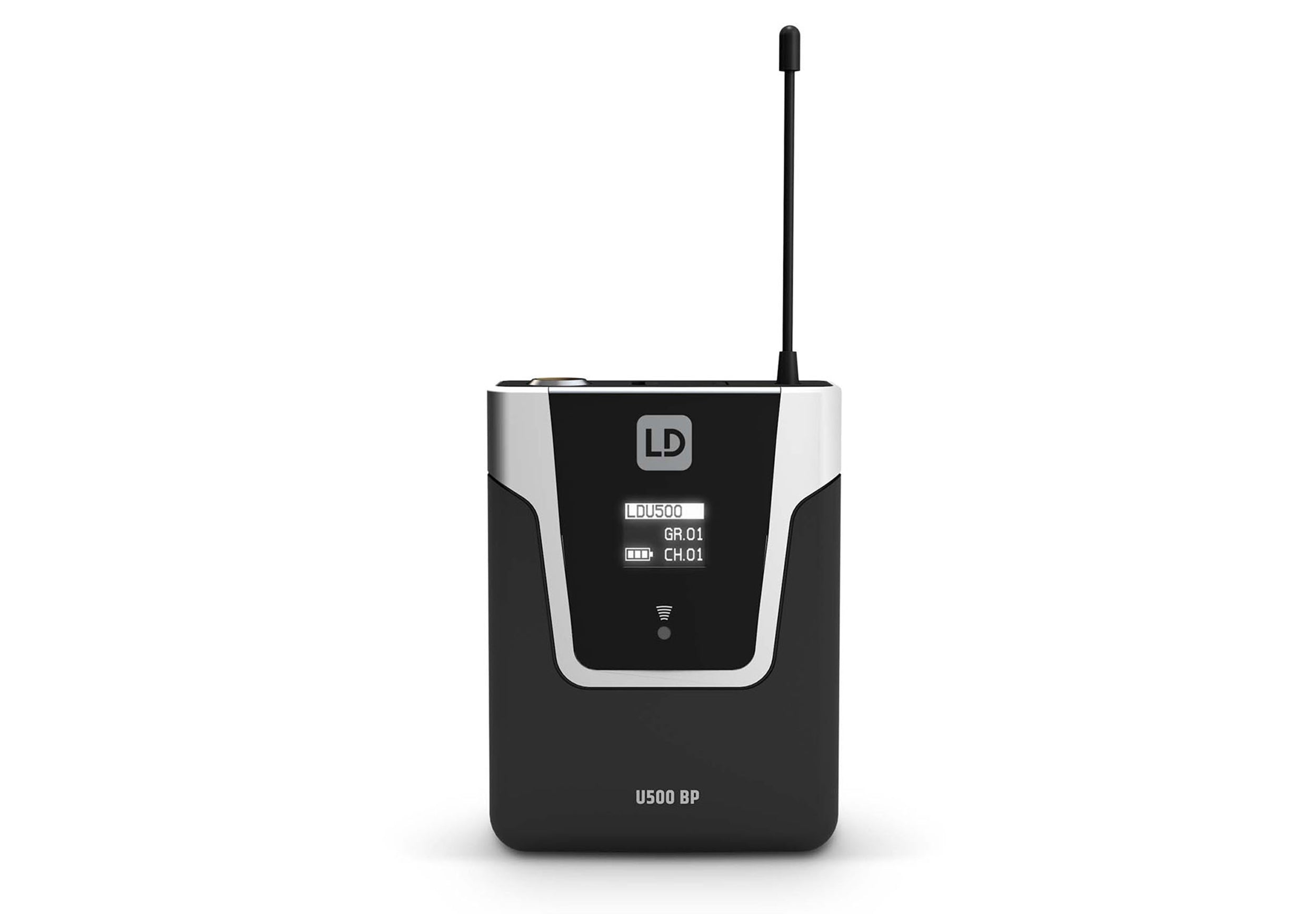

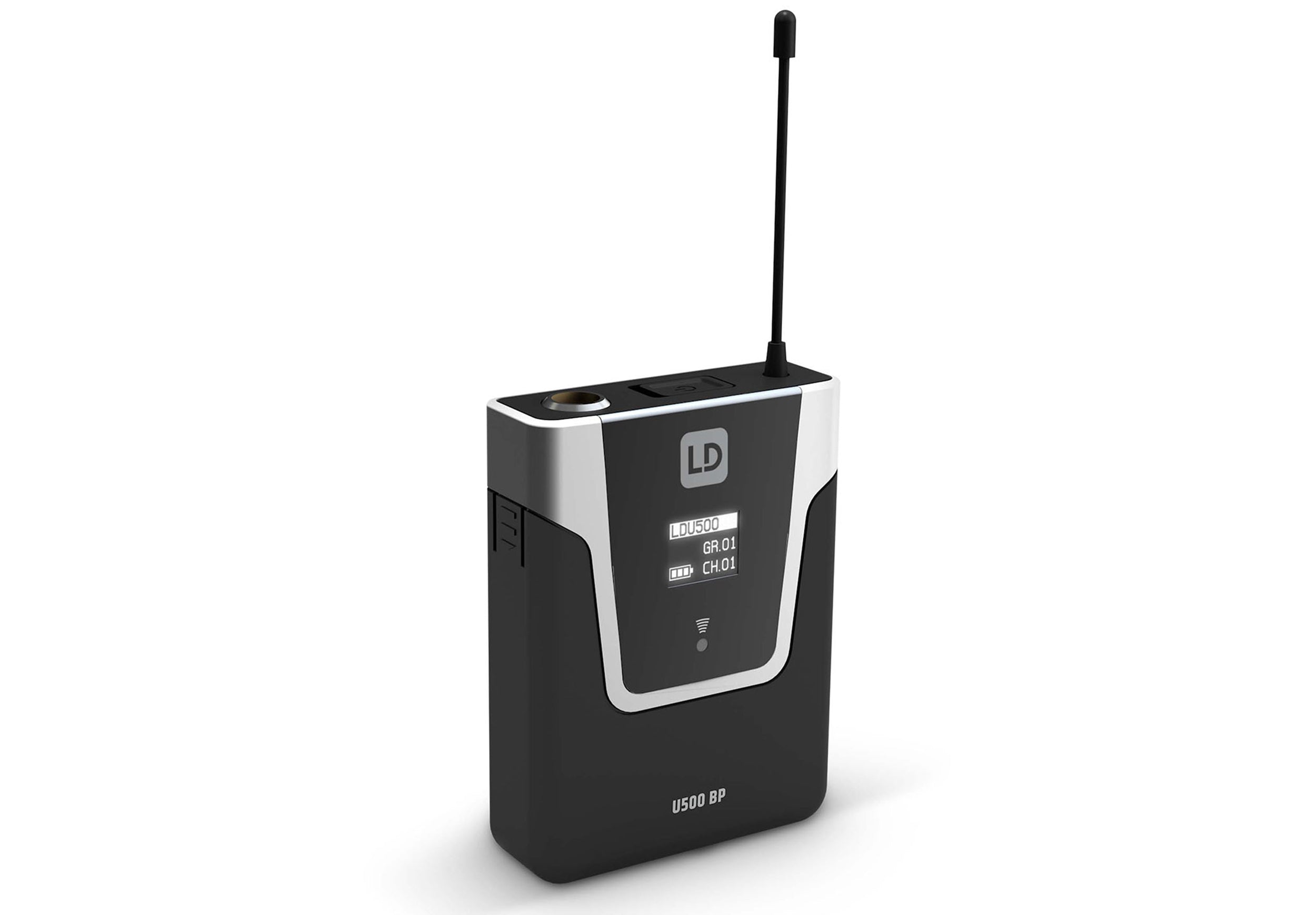

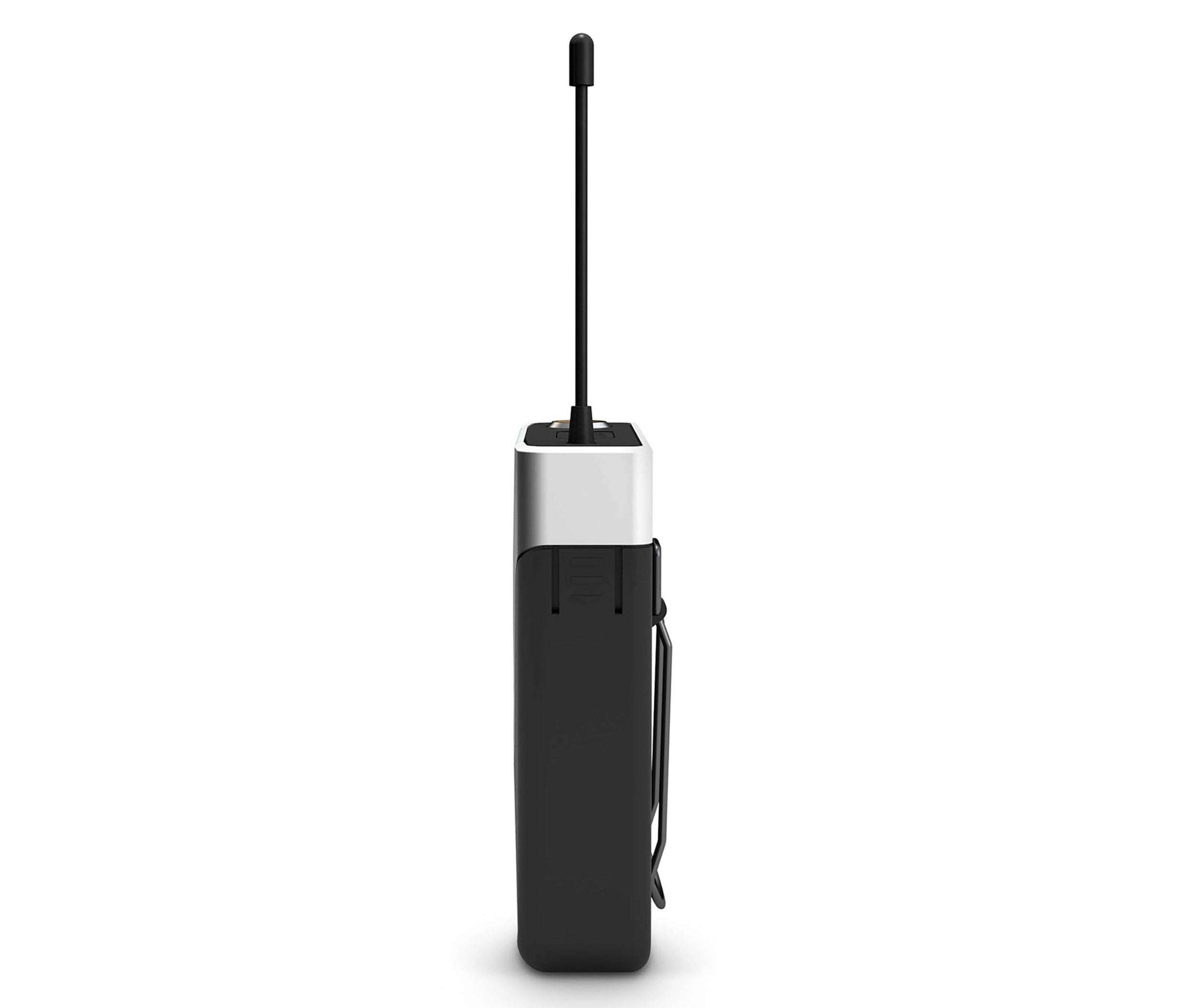

LDU5047BPUS - LD Systems U504.7 BPL (USA version) Bodypack transmitter 470 - 490 MHz (only available in the USA)
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 470 - 490 MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Inputs: Mini-XLR (3-pin)
Frequency response: 30 - 16000 Hz
Rated HF output power: Variable (10, 30, 50 mW)
Signal-to-noise ratio: >90 dB
Power supply: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Controls: Arrow keys (up/down value entry), Power On/Off, select
Indicators: OLED Display
Width: 65 mm (2.56 in)
Height: 86 mm (3.39 in)
Depth: 23 mm (0.91 in)
Weight: 0.09 kg (0.20 Lbs)
Other features: Detachable antenna, IR frequency synchronization, Pilot tone squelch, switchable gain, switchable RF power

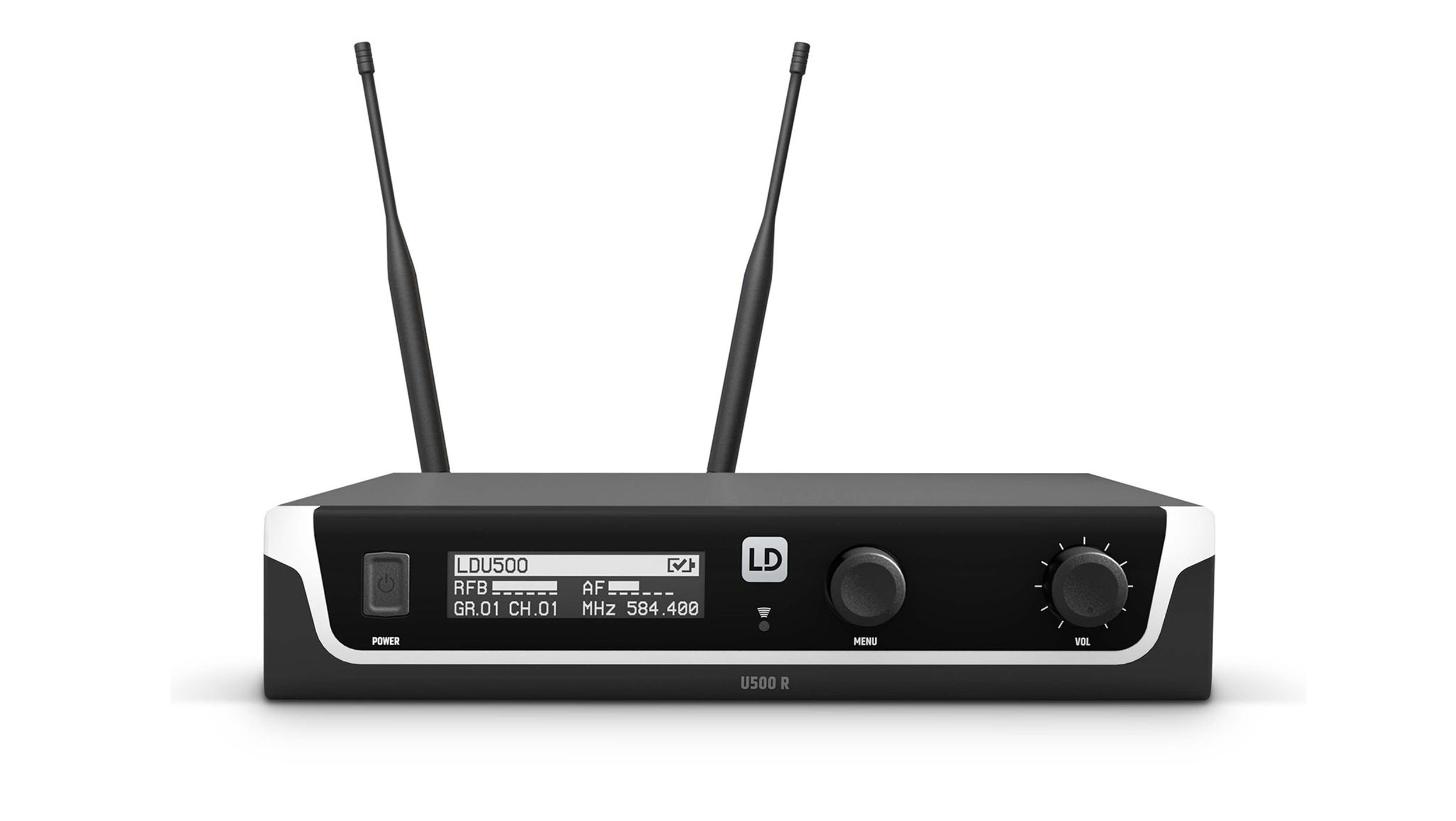

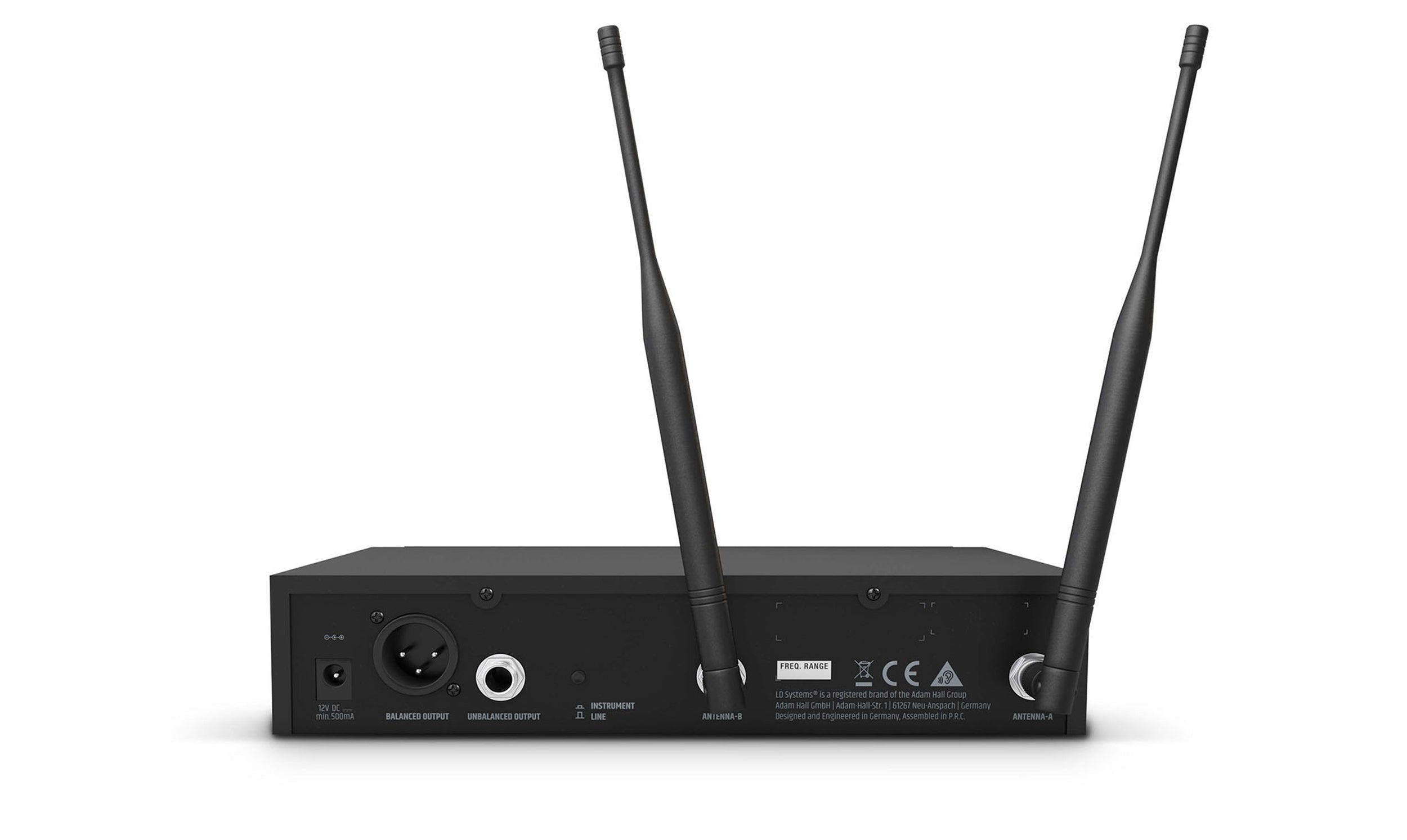

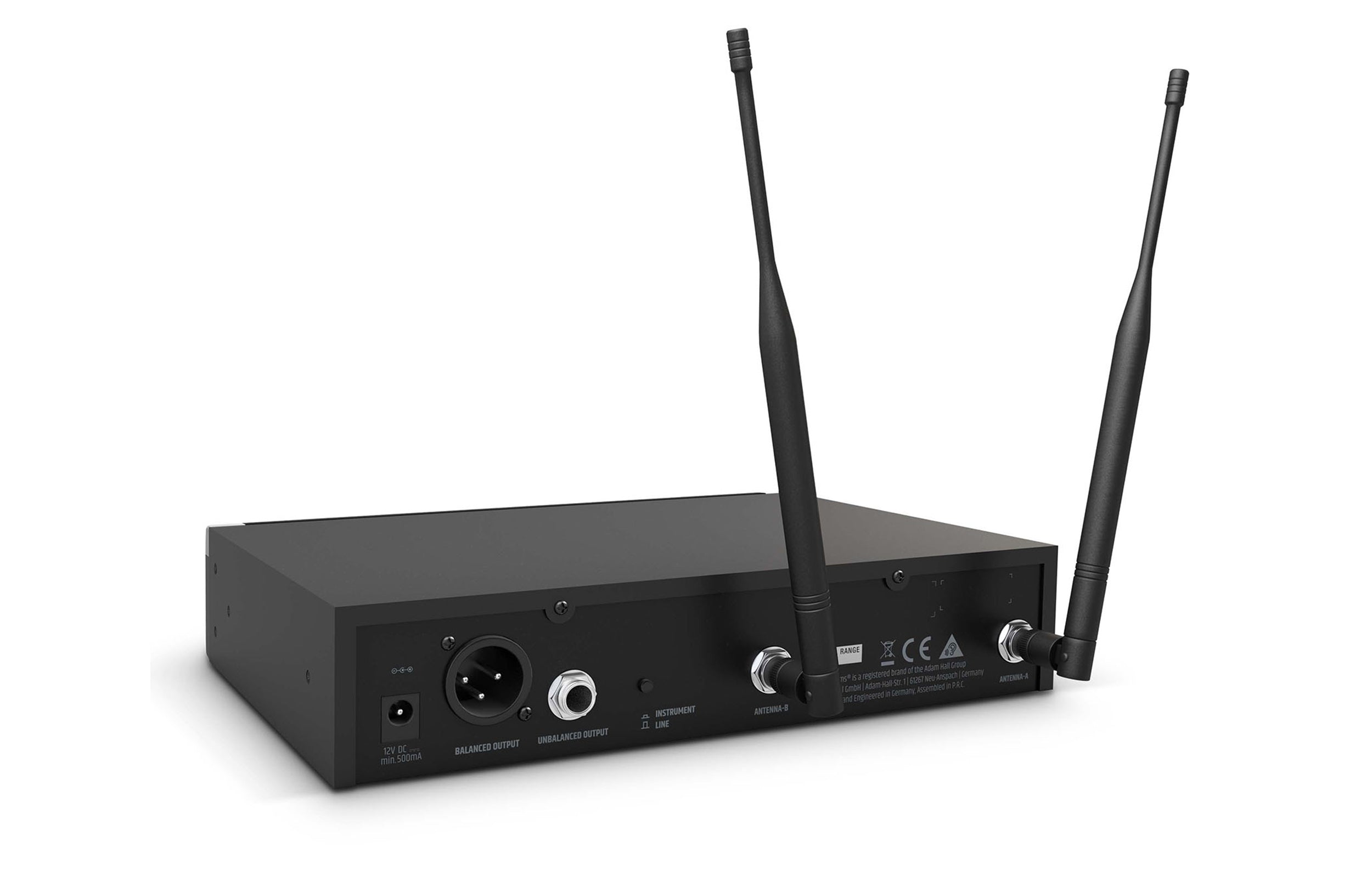

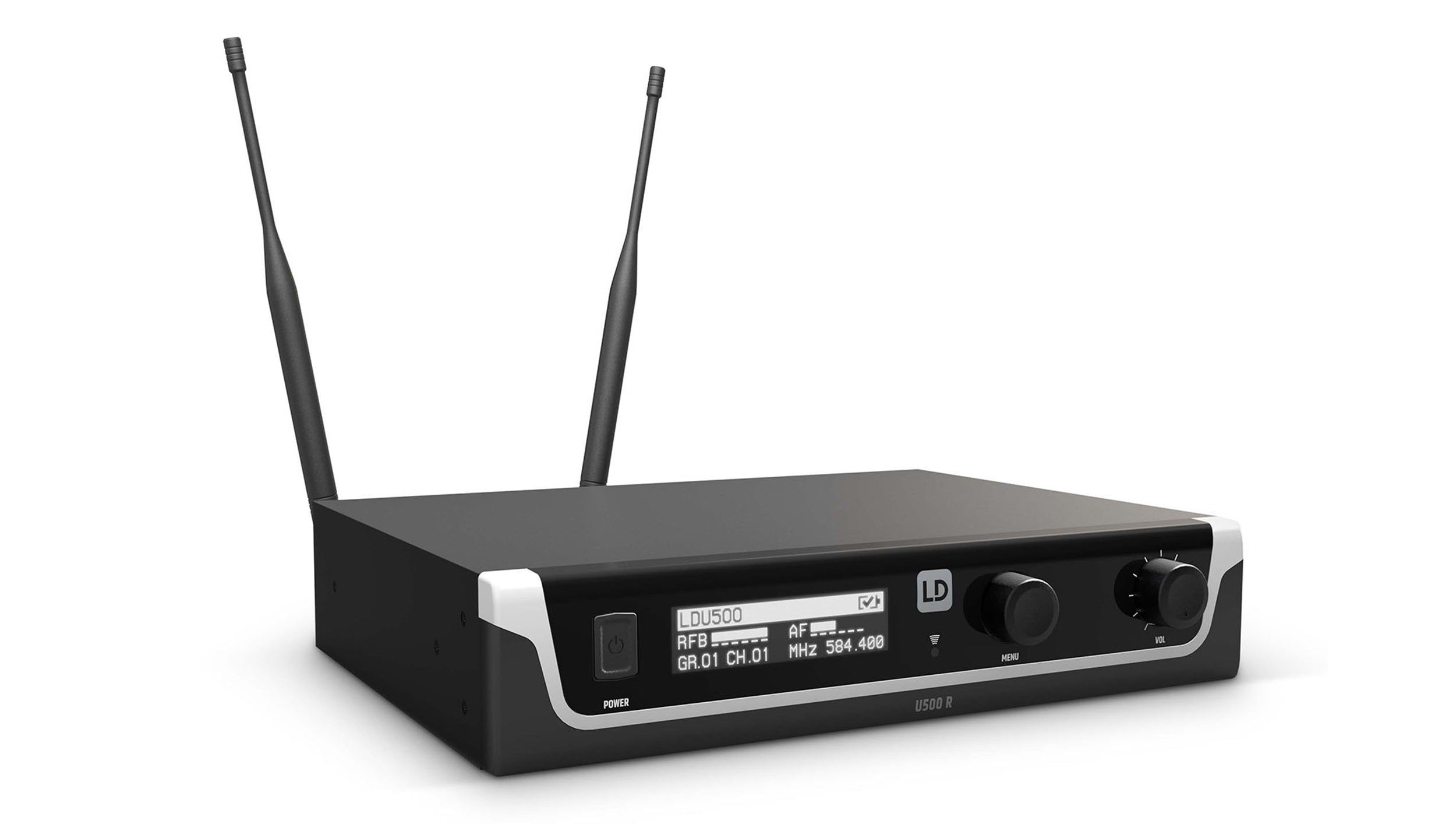

LDU5047R2US - LD Systems U504.7 BPL (USA version) Dual receiver 470 - 490 MHz (only available in the USA)
Product type: Wireless Microphone System Accessories
Type: Receivers, true diversity
Modulation Type: FM
Transmission frequency range: 470 - 490 MHz
Channels: 2 x 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16000 Hz
Noise reduction: Squelch
Total Harmonic Distortion (THD): < 0.1 %
Signal-to-noise ratio: > 100 dB
Audio output, balanced: 2 x XLR
Audio output, unbalanced: 2 x 6.3 mm TS
Audio mix output, balanced: XLR
Audio mix output, unbalanced: 6.3 mm jack
Max. output level: +10 dBu
Headphones output: 1
Headphones outputs: 6.3 mm TRS
Controls: 2 x volume, Down, Power On/Off, Up, volume
Indicators: 2 x OLED Display
Operating voltage: 1,000 mA, 12 V DC
Width: 484 mm (19.06 in)
Height: 44 mm (1.73 in)
Depth: 200 mm (7.87 in)
Weight: 2.05 kg (4.52 Lbs)
Accessories (included): 2 x antenna, Audio cable, power adapter
Other features: Channel search function, IR frequency synchronization, Pilot tone
LDWS100ML - LD Systems U504.7 BPL (USA version) Lavaliere Microphone
Product type: Wireless Microphone System Accessories
Type: Microphones
Frequency response: 20 - 20,000 Hz
Directivity: Cardioid
Nominal impedance: 680 Ohm(s)
Phantom power requirements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Accessories (included): Attaching clip, Foam windscreen
Weight: 0.026 kg (0.057 Lbs)
