LD Systems U5051BPH2 (US) Dual Wireless Mic System - 512-542 MHz

The LD Systems U500 Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500 vocal sets with a free-field range of over 100 meters. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500 Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

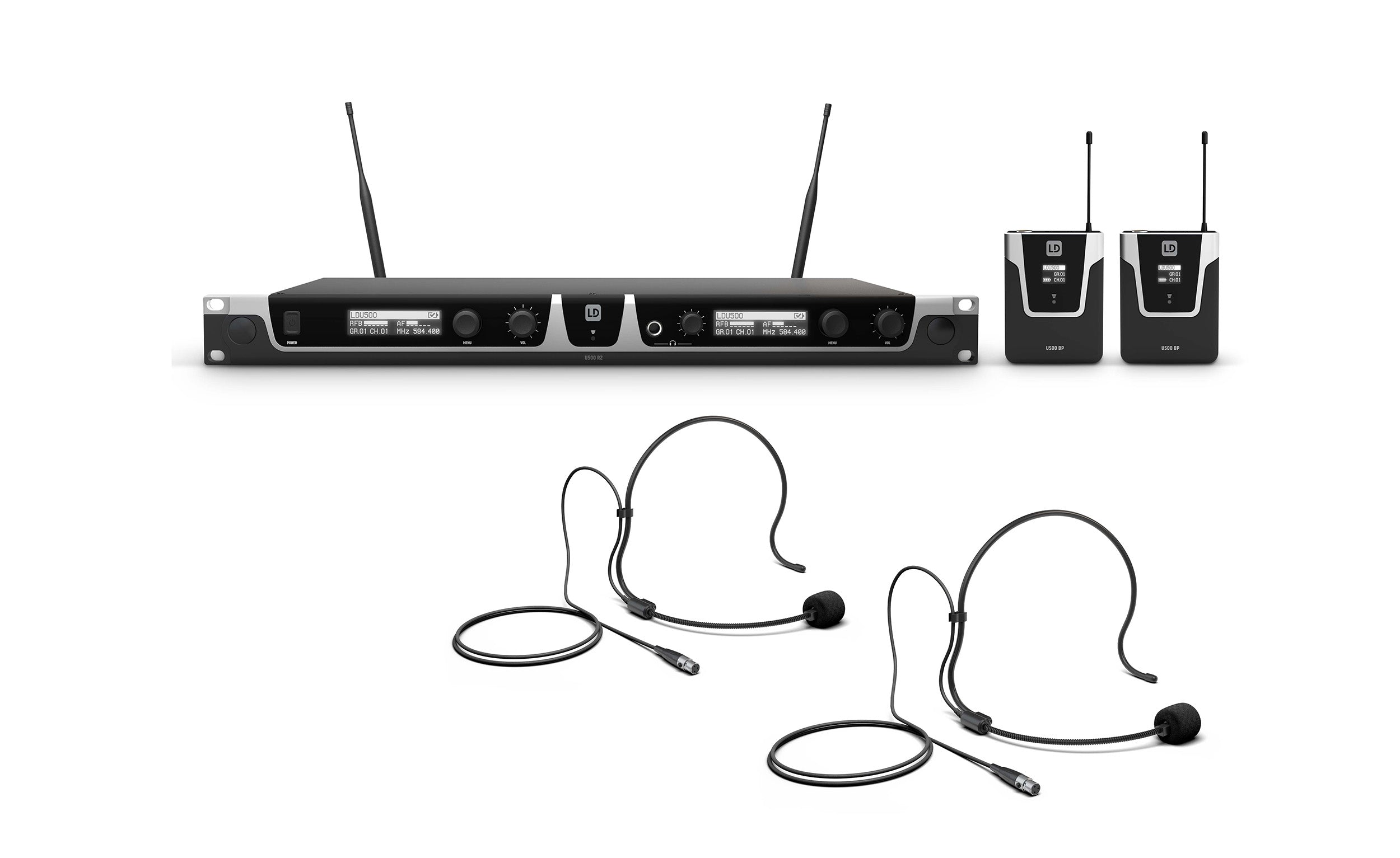

What’s Included,

2 x LDU5051BPUS, 2 x LDU5051R2US & 2 x LDWS100MH1

Product Specifications:

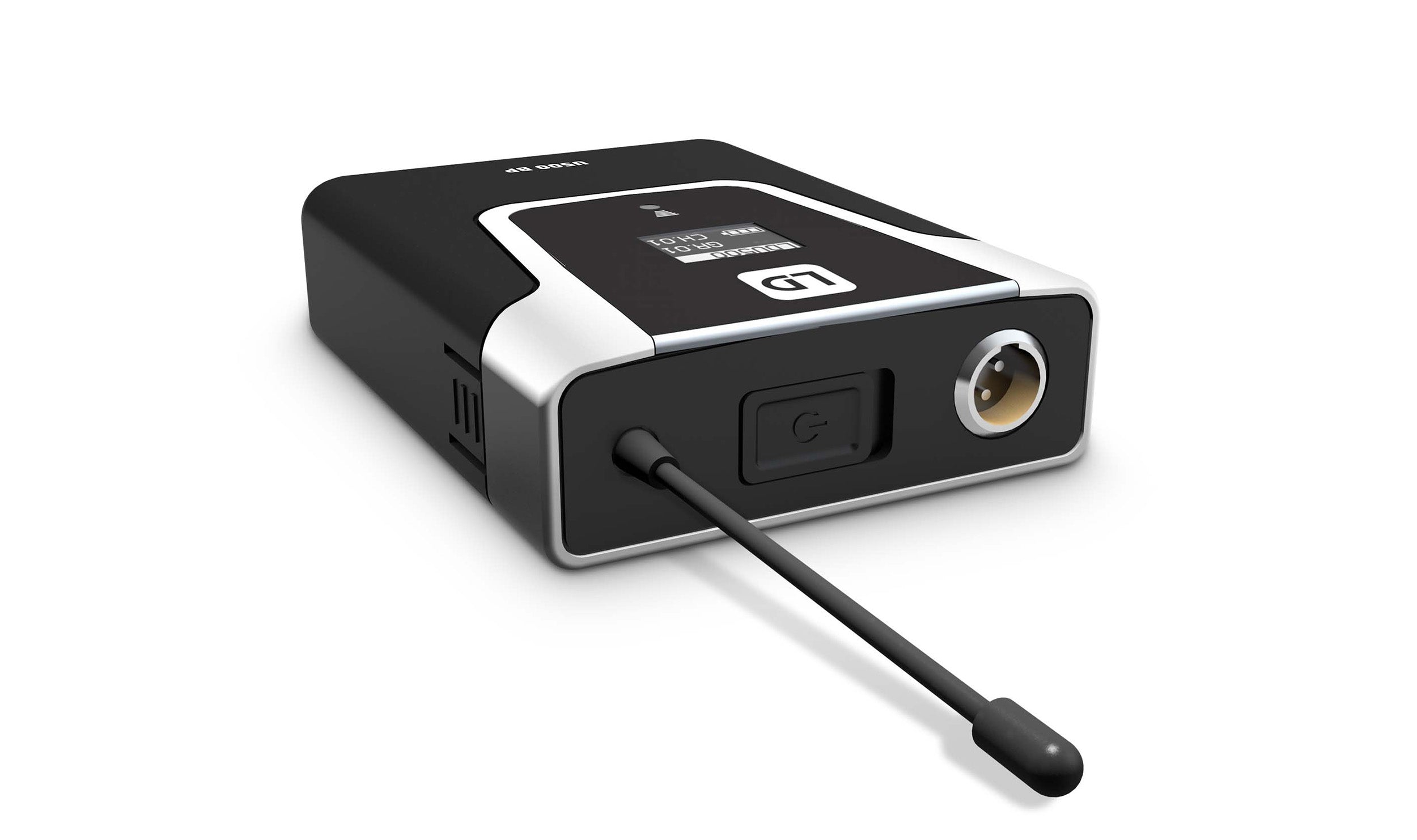

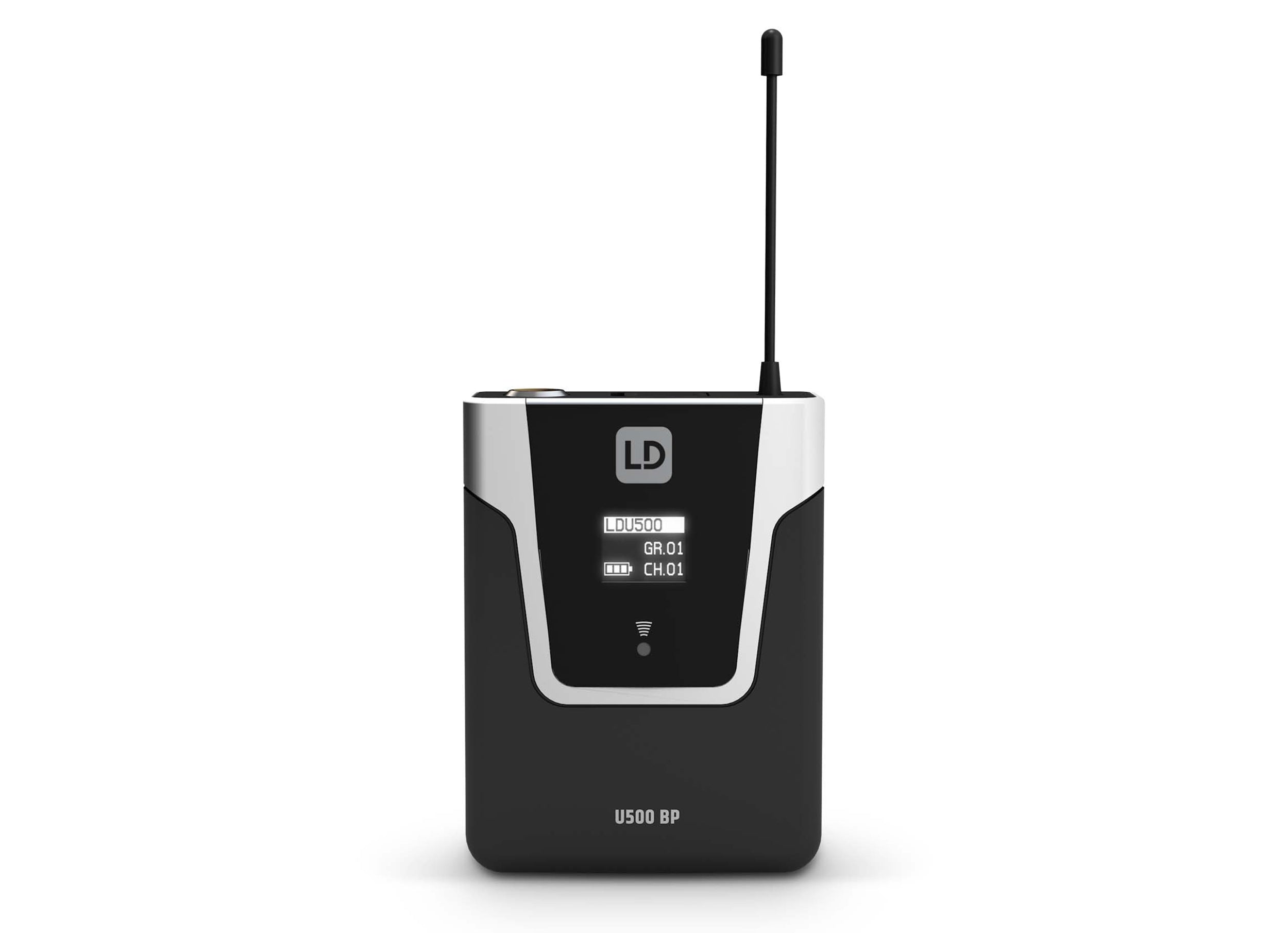

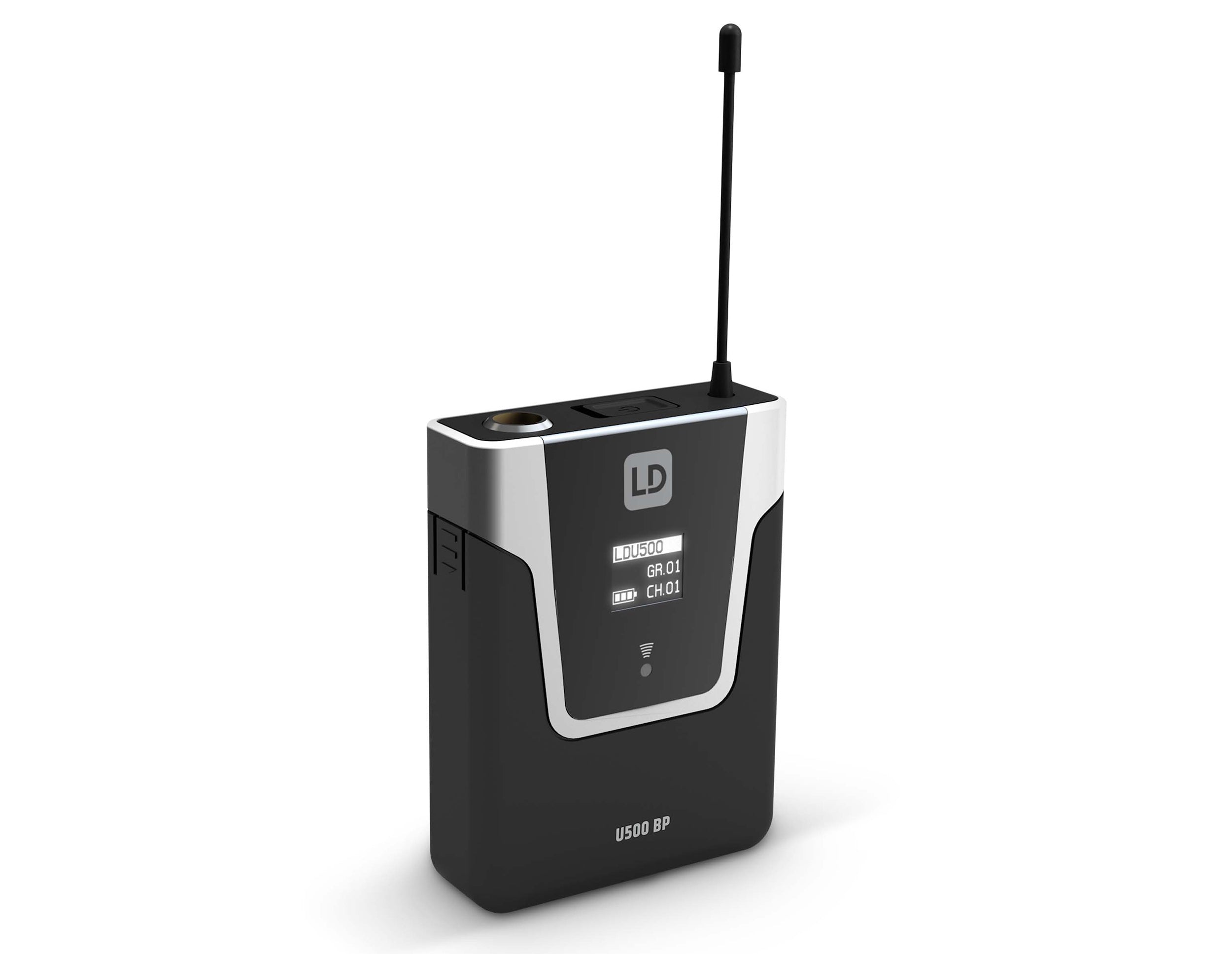

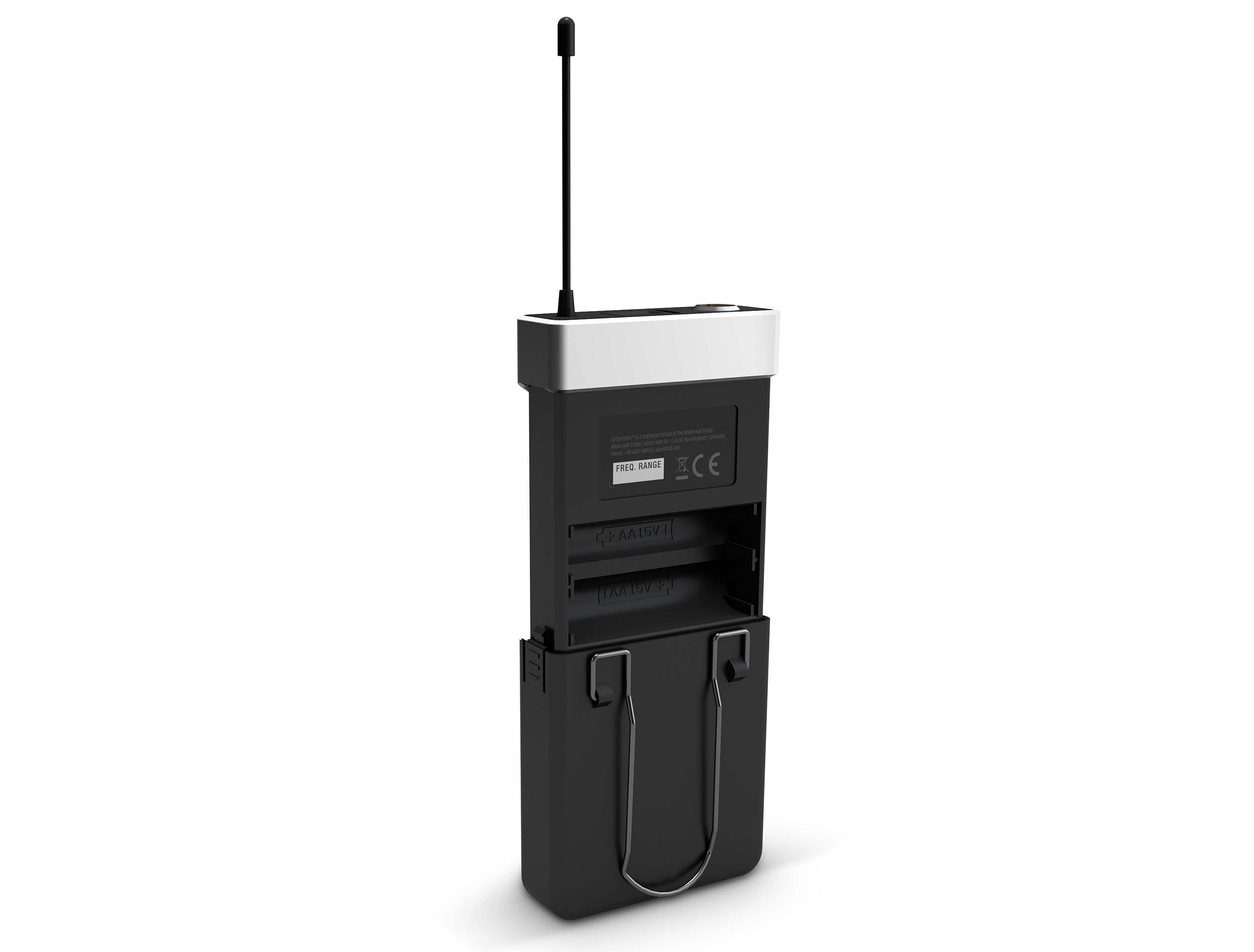

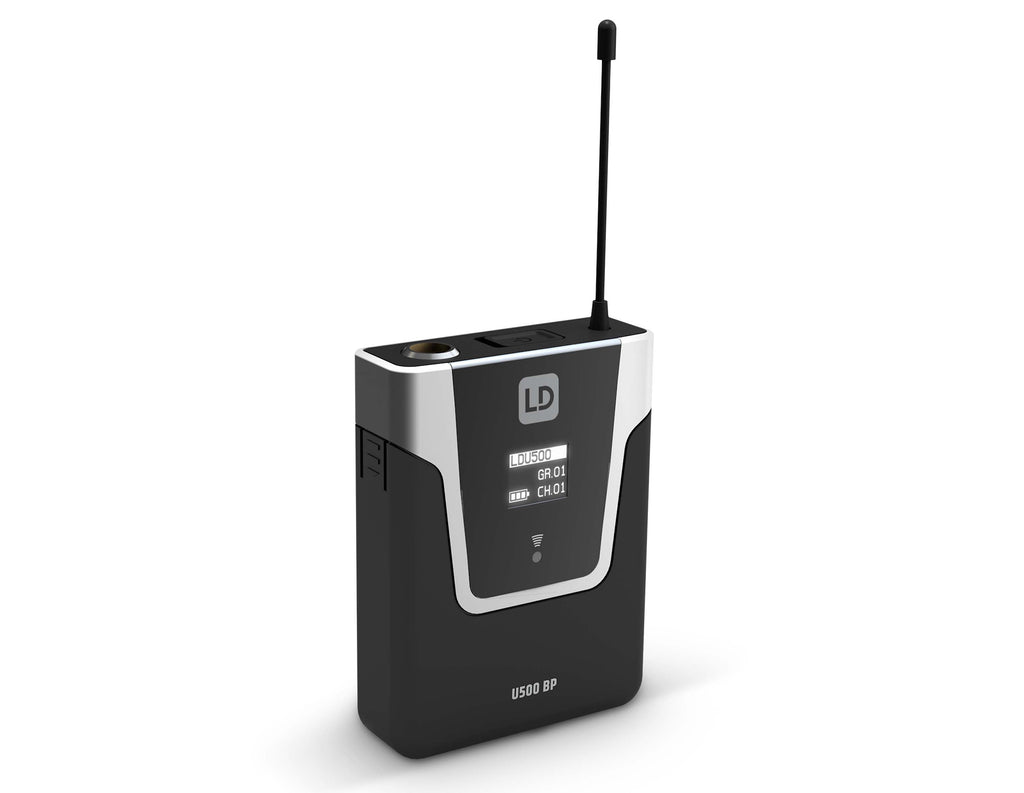

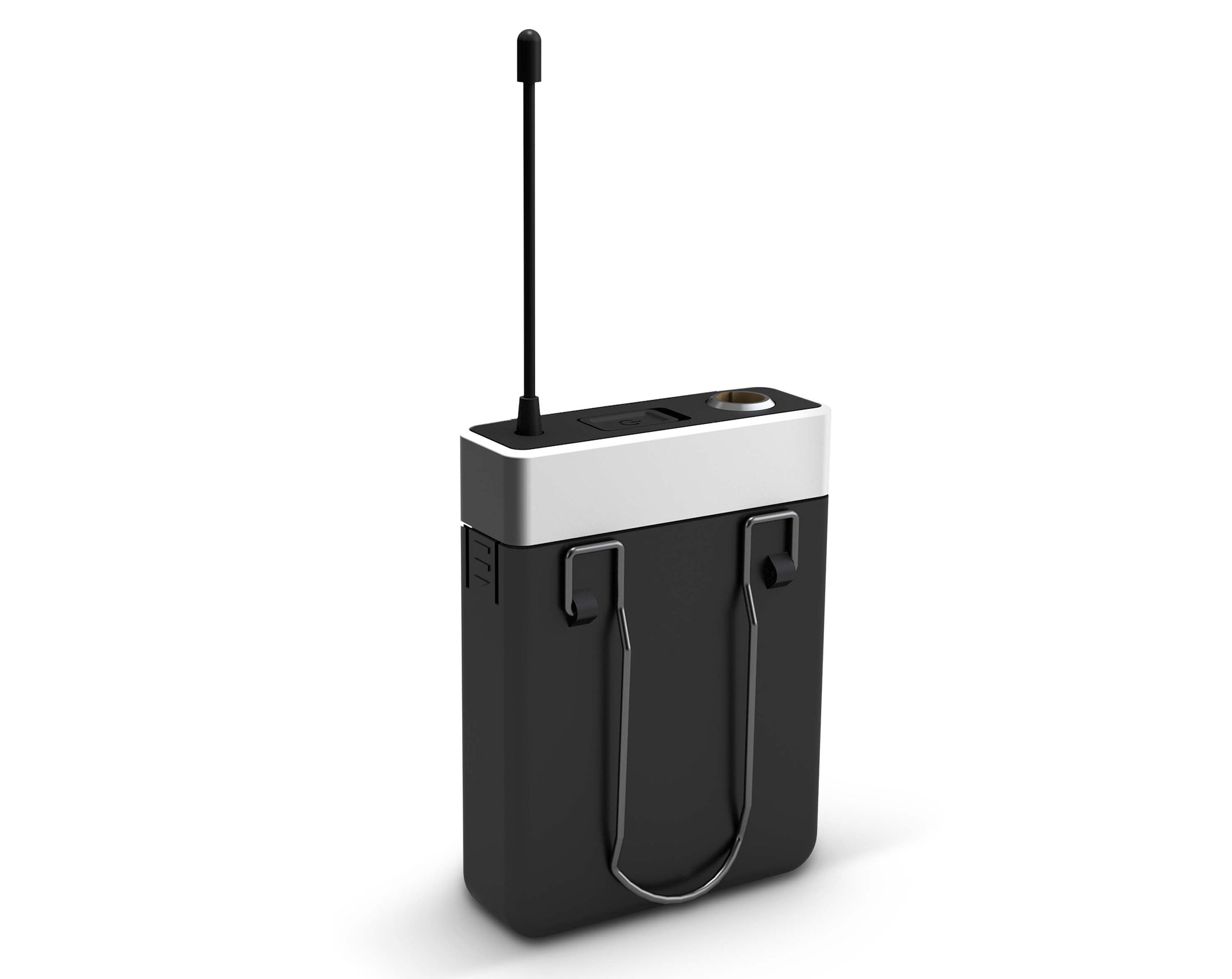

LDU5051BPUS - LD Systems U505.1 BPH 2 (USA version) Bodypack transmitter 512 - 542 MHz (only in USA)

Product Type: Wireless Microphone System Accessories

Type: Bodypack

Transmission Frequency Range: 512 - 542 MHz

Channels: 96 (8 groups of 12 channels)

Groups: 8

Inputs: Mini-XLR (3-pin)

Frequency Response: 30 - 16000 Hz

Rated HF Output Power: Variable (2mW, 10mW, 30mW)

Signal-to-Noise Ratio: >90 dB

Power Supply: 2 x 1.5 V AA

Operating Time: >10 h (with alkaline batteries)

Controls: arrow keys (up/down value entry), Power On/Off, select

Indicators: OLED Display

Width: 65 mm (2.56 in)

Height: 86 mm (3.39 in)

Depth: 23 mm (0.91 in)

Weight: 0.09 kg (0.20 Lbs)

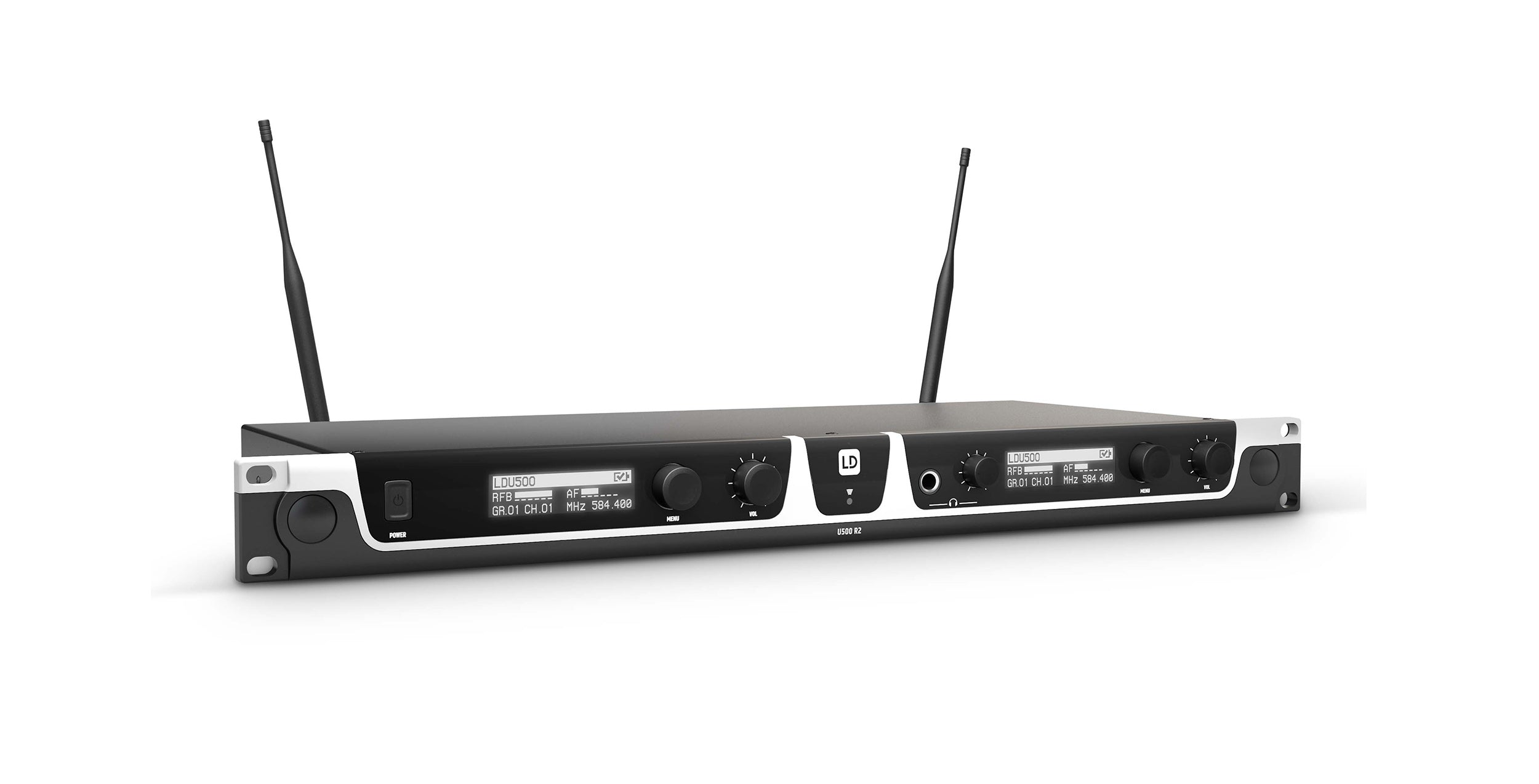

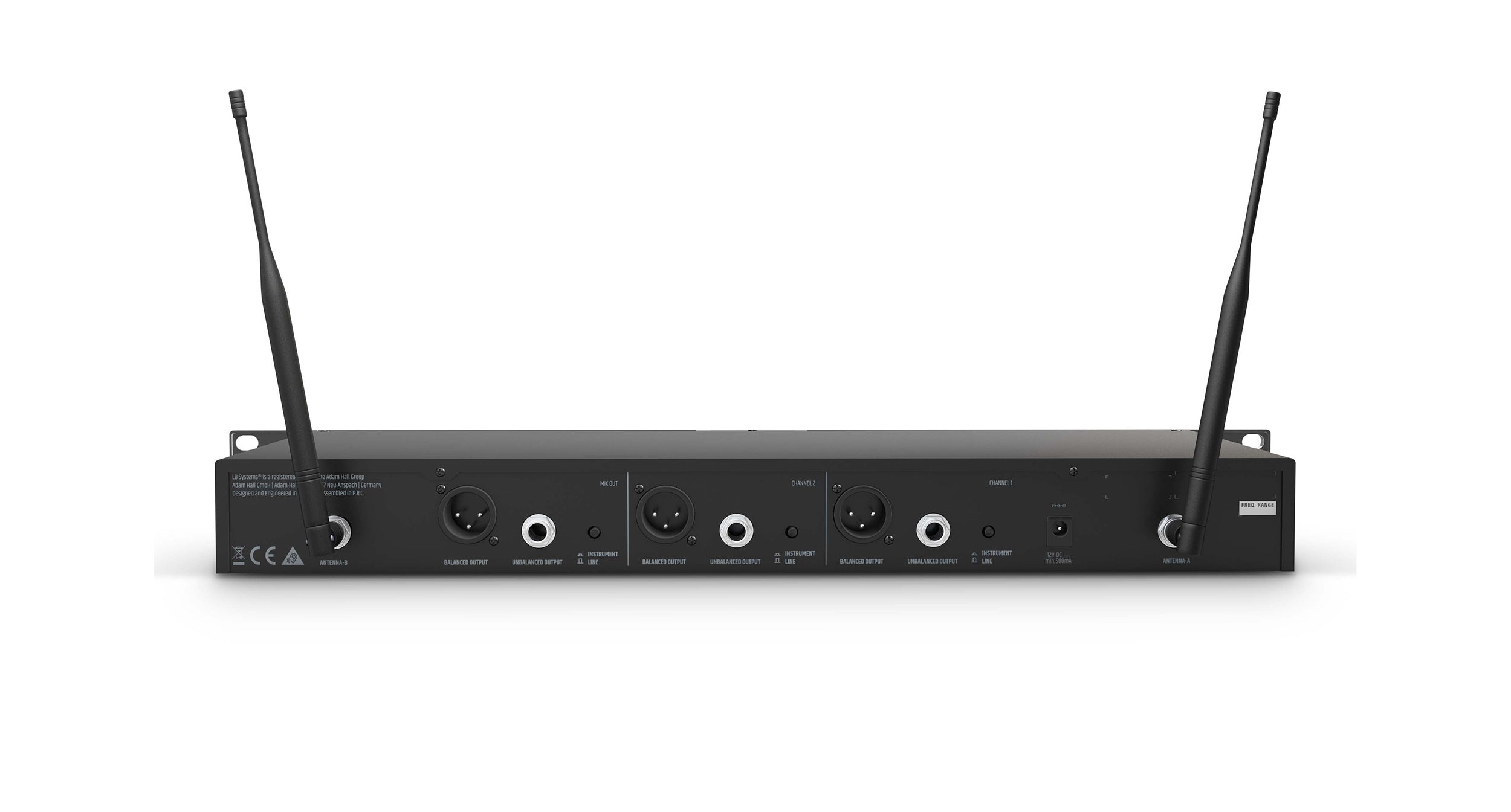

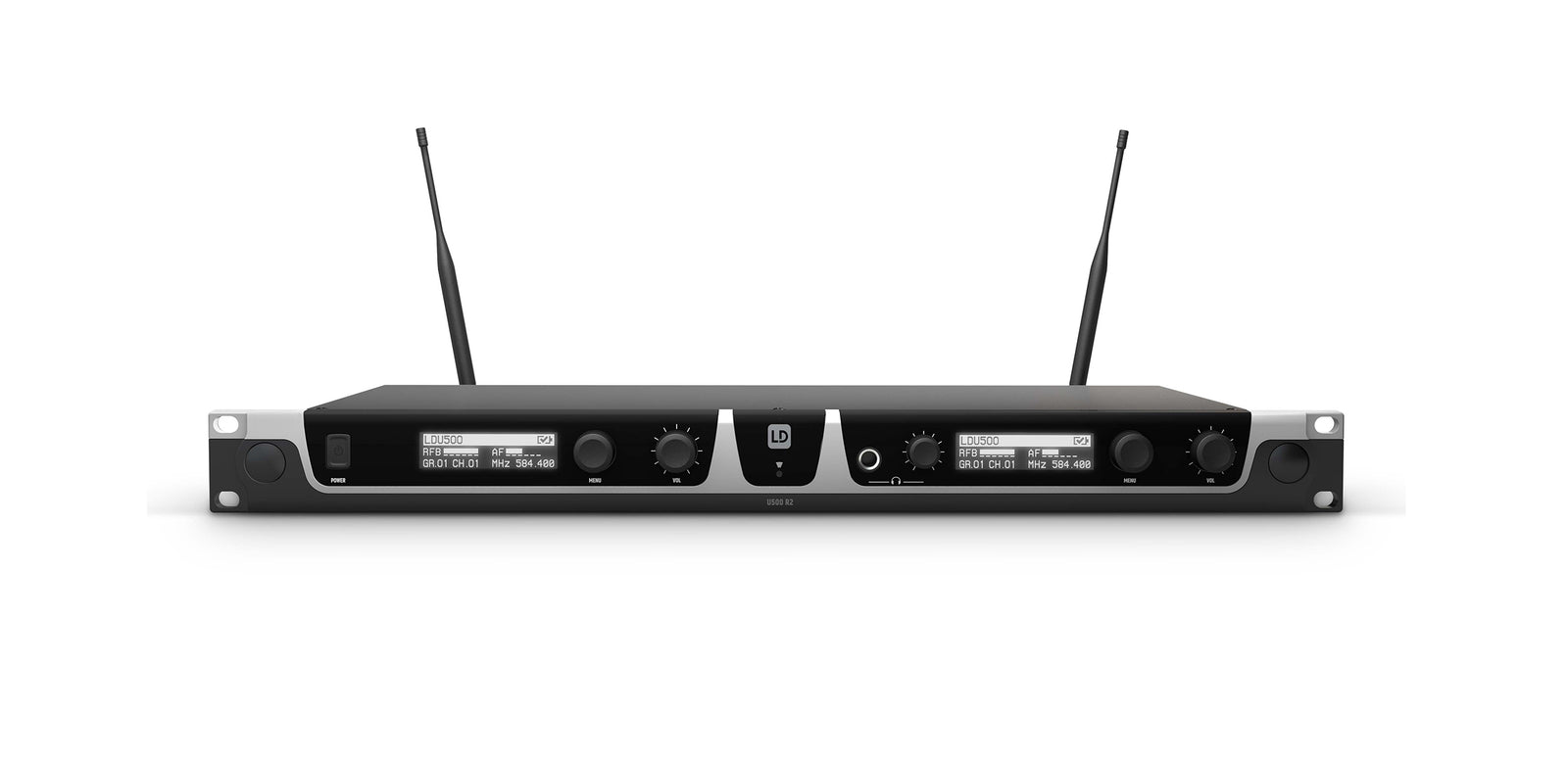

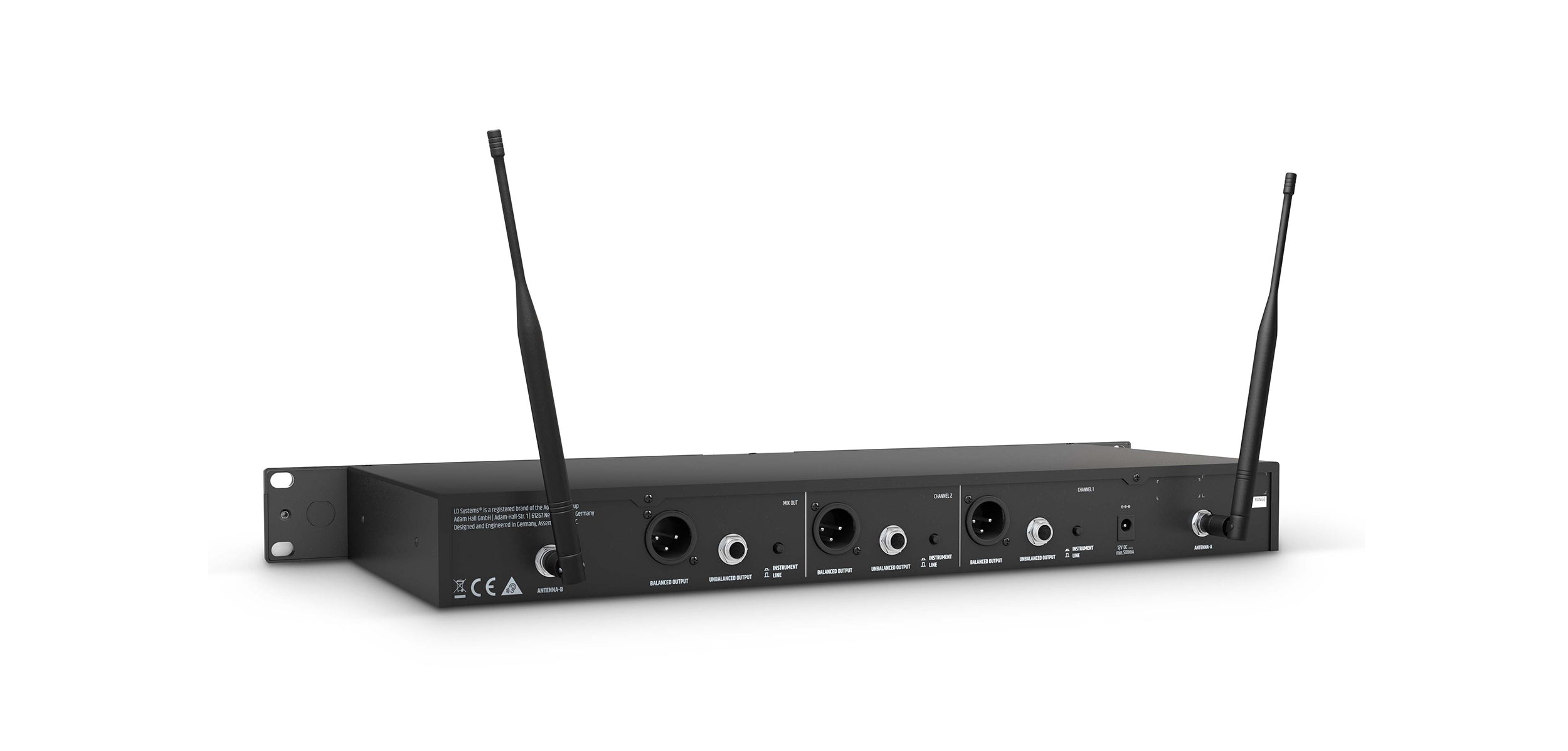

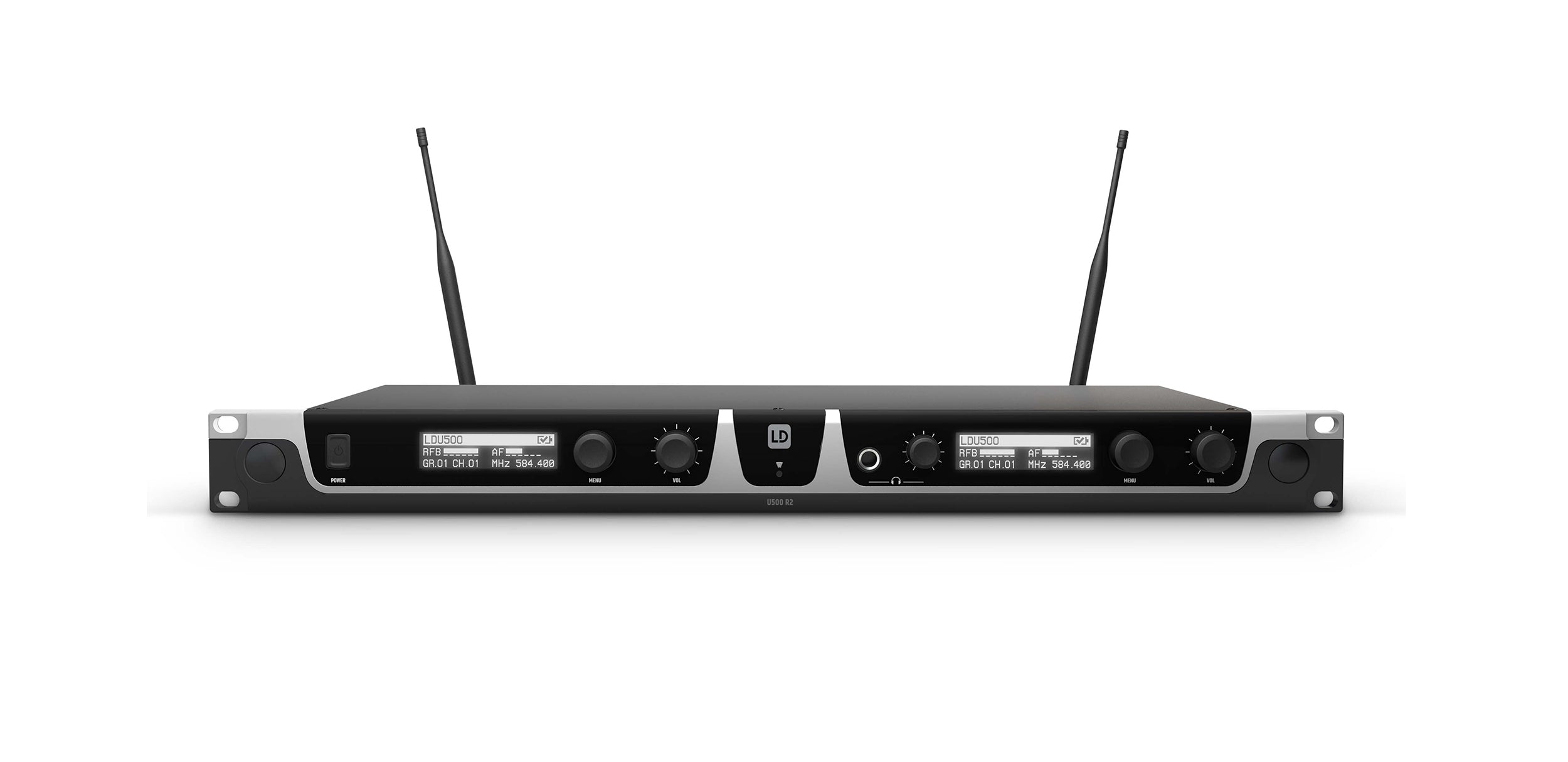

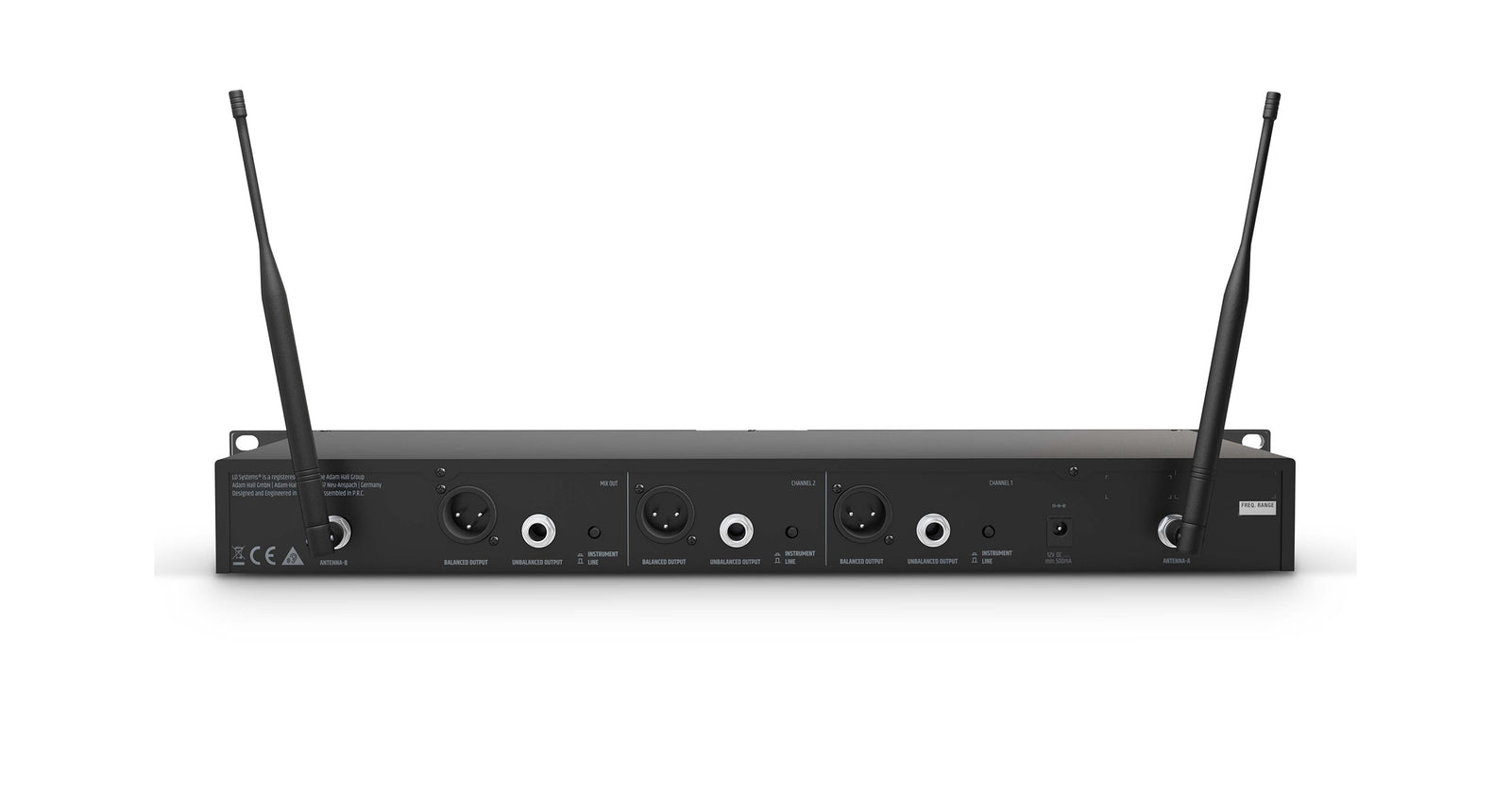

LDU5051R2US - LD Systems U505.1 BPH 2 (USA version) Dual receiver 512 - 542 MHz (only in USA)

Product type: Wireless Microphone System Accessories

Type: Receivers, true diversity

Modulation Type: FM

Transmission frequency range: 512 - 542 MHz

Channels: 2 x 96 (8 groups of 12 channels)

Groups: 8

Antenna Inputs: 2

Antenna Connector: BNC

Frequency Response: 30 - 16000 Hz

Noise reduction: Squelch

Total Harmonic Distortion (THD): < 0.1 %

Signal-to-Noise Ratio: > 100 dB

Audio output, Balanced: 2 x XLR

Audio output, Unbalanced: 2 x 6.3 mm TS

Audio mix output, Balanced: 2 x XLR

Audio mix output, Unbalanced: 2 x 6.3 mm TS

Max. Output Level: +10 dBu

Headphone’s Output: 1

Headphones Outputs: 6.3 mm TRS

Controls: 2 x volume, Down, Power On/Off, Up, volume

Indicators: 2 x OLED Display

Operating voltage: 1,000 mA, 12 V DC

Width: 484 mm (19.06 in)

Height: 44 mm (1.73 in)

Depth: 200 mm (7.87 in)

Weight: 2.05 kg (4.52 Lbs)

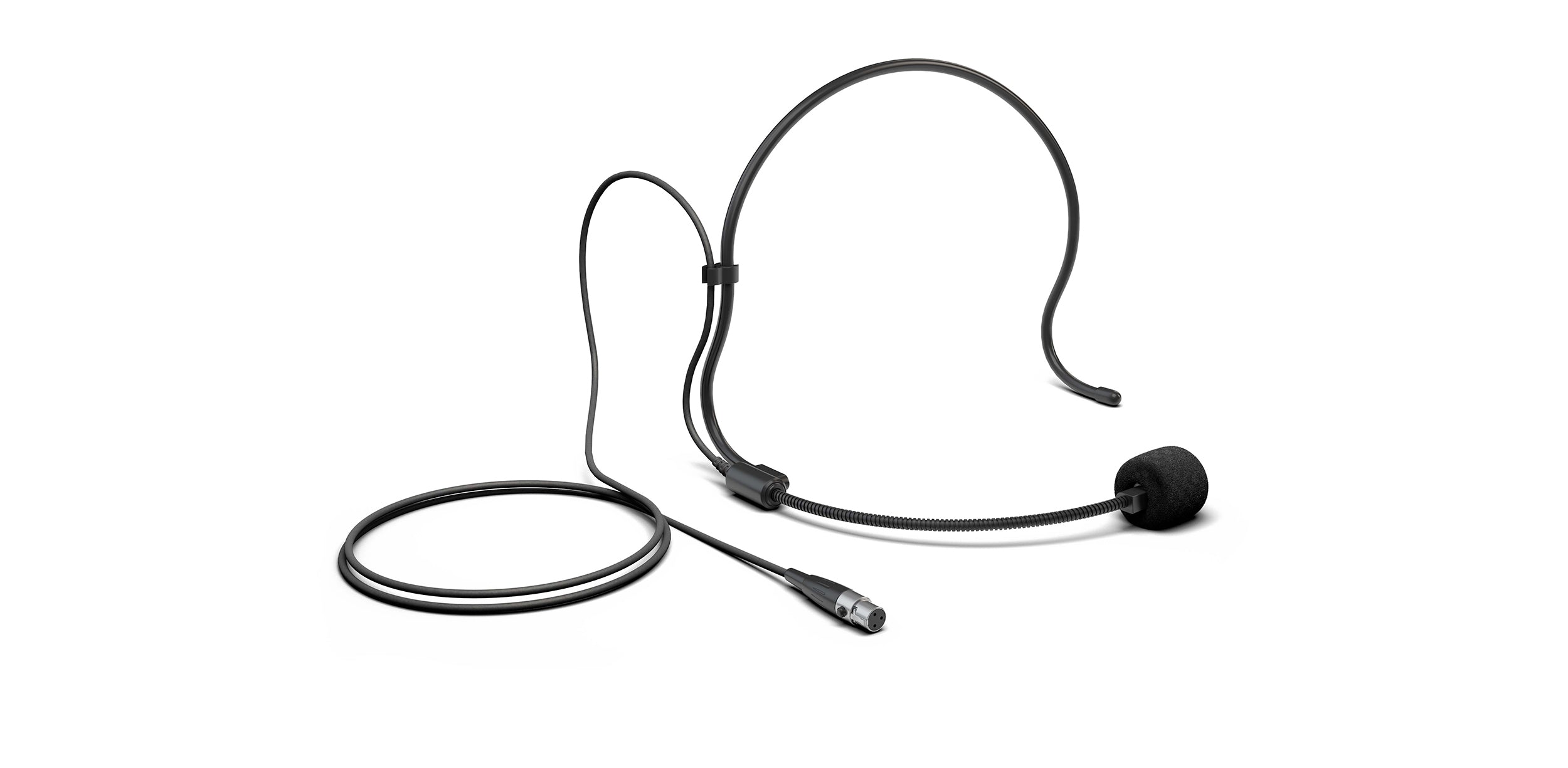

LDWS100MH1 - LD Systems U505.1 BPH 2 (USA version) Headset microphone, Black

Colour: Black

Directivity: Cardioid

Capsule Type: Condenser

Nominal Impedance: 680 Ω

Frequency Response (-6 dB, rel. Avg): 100 - 12,000 Hz

Sensitivity (transfer factor): 6.31 mV/Pa

Phantom Power: 5 V

Output Connector Type: Mini XLR female

Cable Length: 1 m (39.37 in)

Material: ABS

Weight: 49 g (0.11 Lbs)
