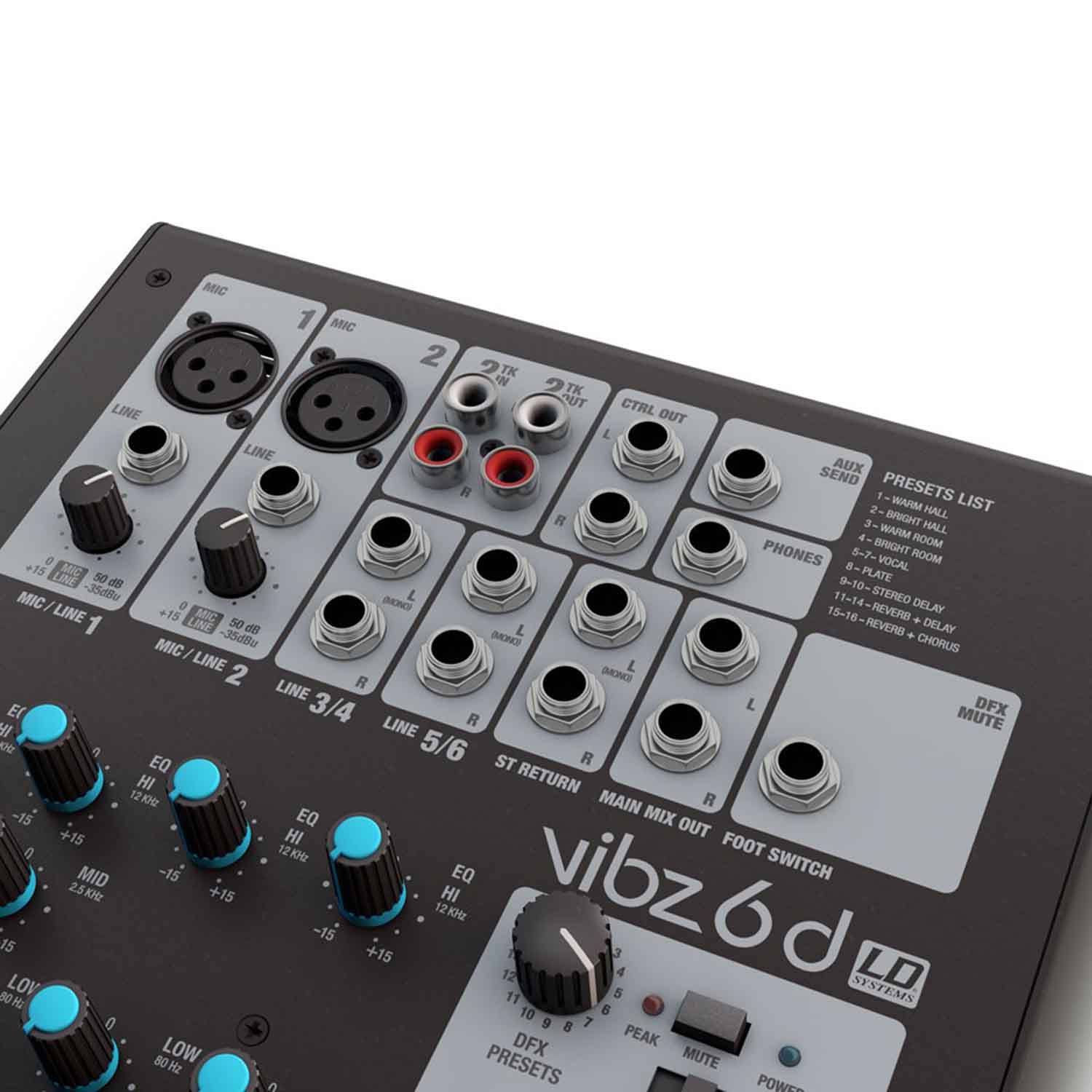

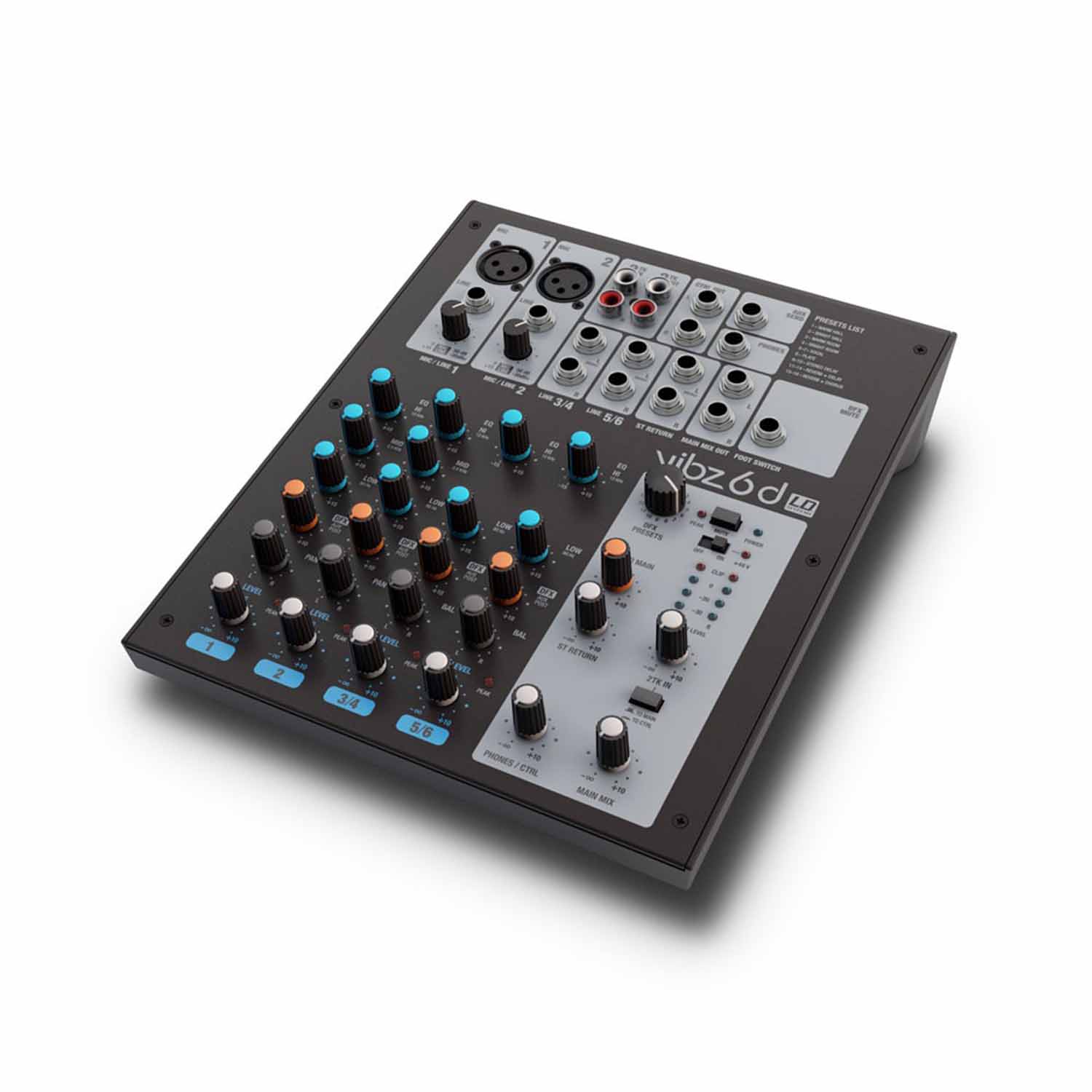

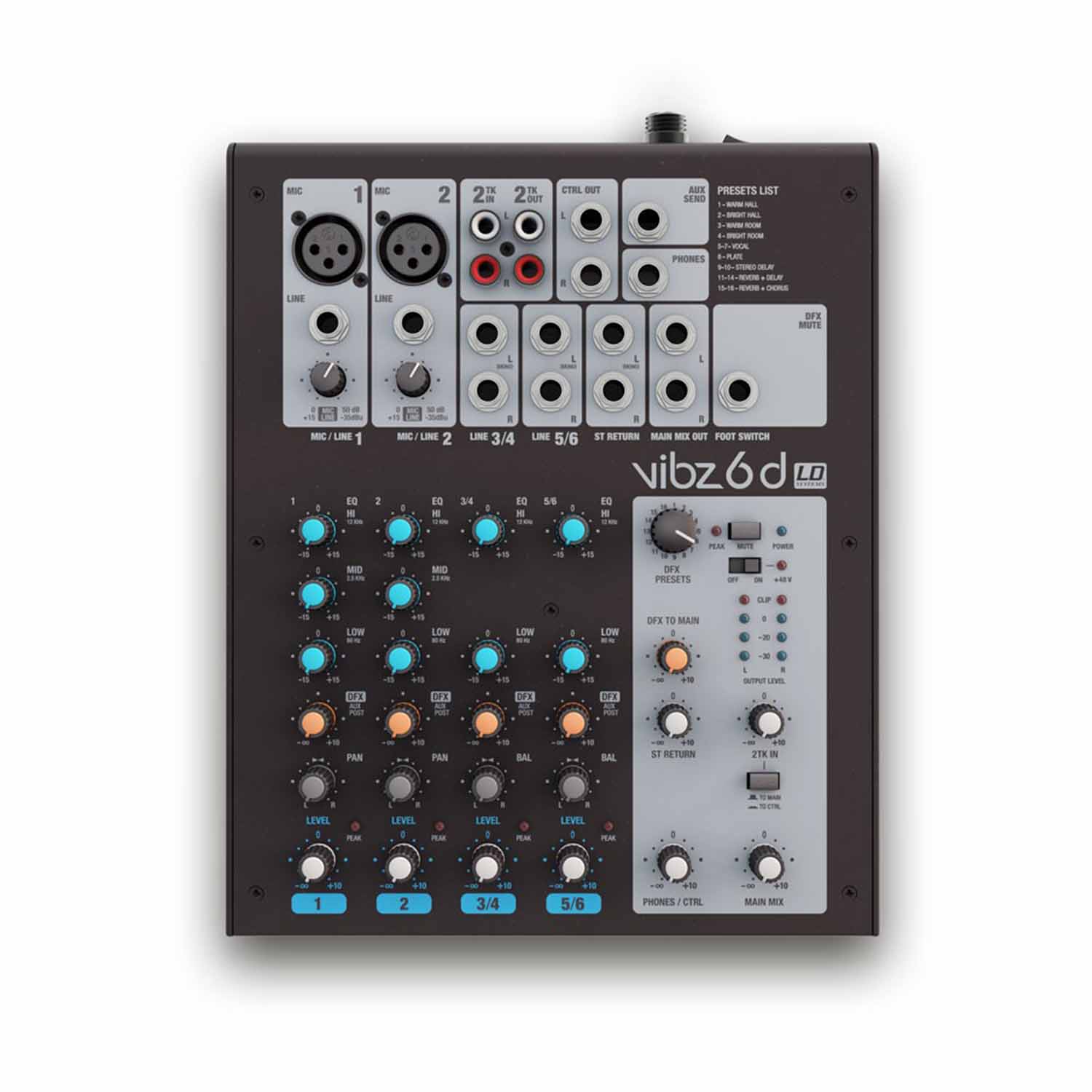

The LD Systems VIBZ 6 D 6-Channel Mixing Console is Compact. Which is perfectly suited to entertainers, small bands, home recording, and installations. It features two balanced microphone inputs with high-quality preamps, phantom power, and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop. The master section of the VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack, and 16 digital effects preset, which are foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use, and offers a warm differentiated sound. The external power supply can be screwed on tightly. A footswitch for the effects section and an adapter for mounting the VIBZ 6 on microphone stands are available as accessories.
Product Specifications:
Mono Mic/Line Input Channels: 2
Mono Mic/Line Input Connections: XLR-F, 1/4" TRS
Mono Mic Input Type: Balanced
Mic Frequency Response: 10 Hz to 45 kHz
Mic Amplification Range: 50 dB
Channel Crosstalk: 62 dB
Mic THD: 0.0058%
Mic Input Impedance: 4 kOhms
Mic SNR: 113 dB
Mono Line Input Type: Balanced
Line Amplification Range: 50 dB
Line THD: 0.0045%
Line Impedance: 21 kOhms
Line SNR: 116 dB
Mono Channel Eq Range: Treble: ±15 dB @ 12 kHz
Mids: ±15 dB @ 2.5 kHz
Bass: ±15 dB @ 80 Hz
Phantom 48 Vdc Power: Yes
Channel Controls: Gain, EQ Hi, EQ Mid, EQ Low, DFX, Pan, Level
