Description

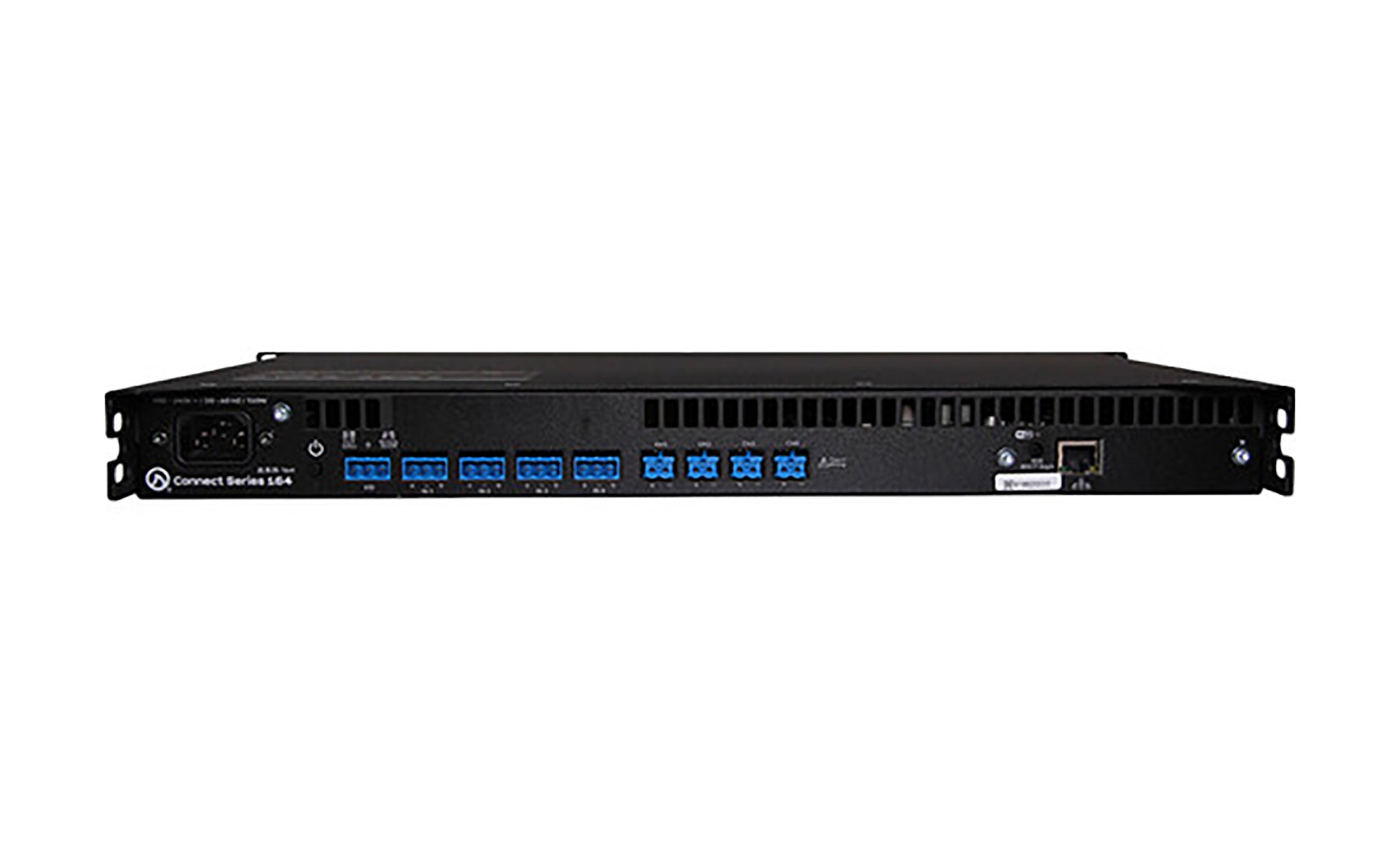

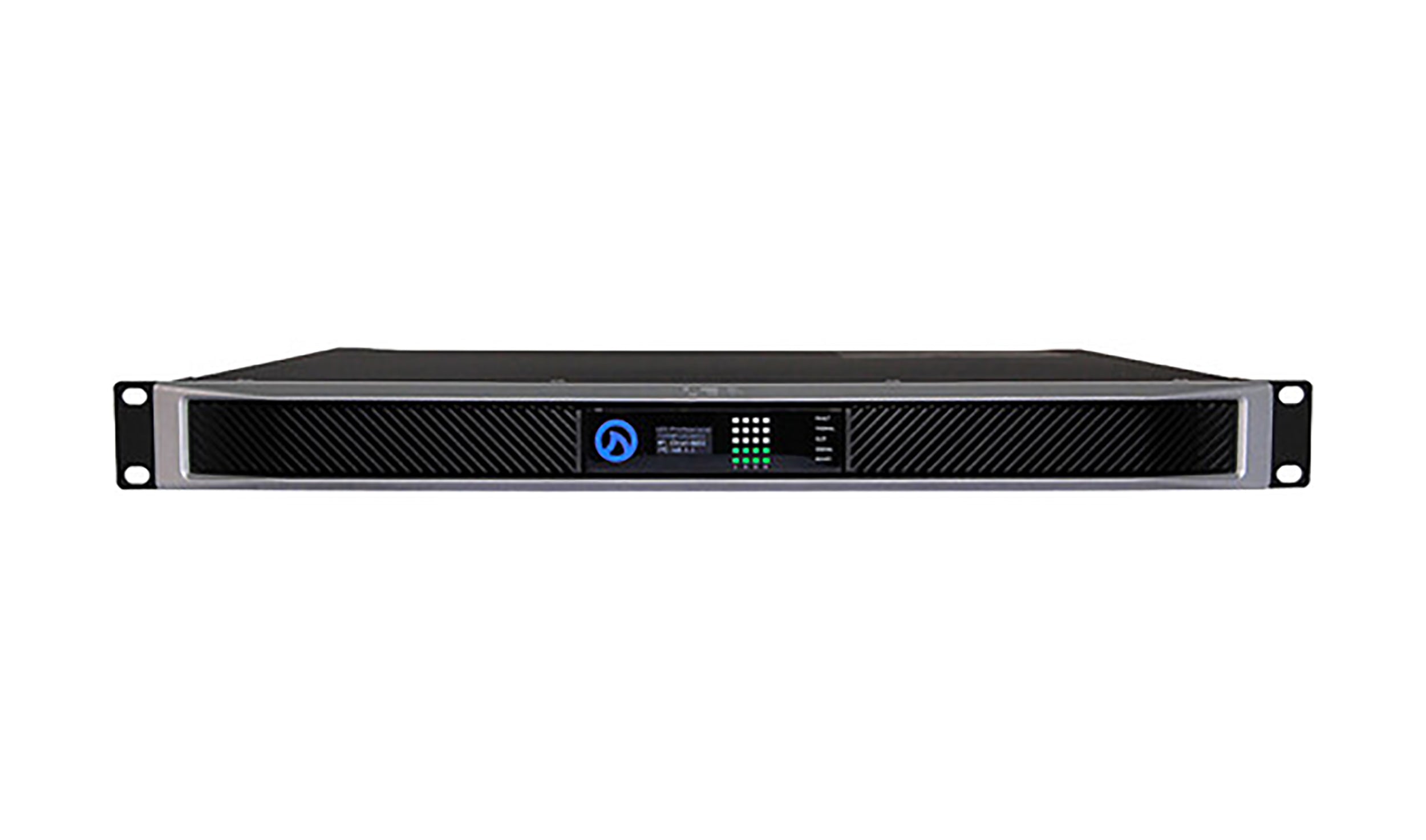

The LEA Professional CS164 Connect Series 640W 4-Channel Class-D Networked Power Amplifier with DSP, Ethernet & Wi-Fi Control is a professional-grade amplifier designed for small to medium-sized commercial audio installations. Delivering 160 watts per channel across four channels, it supports both low-impedance (2Ω, 4Ω, and 8Ω) and high-impedance (70V/100V) speaker systems, providing outstanding flexibility for distributed audio applications. Its efficient Class-D design ensures reliable performance while minimizing power consumption and heat generation.
Powered by a 32-bit / 96 kHz Analog Devices DSP processor, the CS164 provides advanced audio optimization with flexible input routing, 8-band parametric EQ, 48 dB/octave crossover filters, user-adjustable speaker limiters, output delay, and real-time load monitoring. LEA's proprietary Smart Power Bridge technology allows any individual channel to deliver increased output power when required without compromising the performance of the remaining channels, making it ideal for demanding commercial audio installations.
The CS164 offers comprehensive network connectivity with built-in Wi-Fi, Ethernet, browser-based control, cloud management, and third-party API integration for seamless remote monitoring and configuration. Users can connect through the built-in Wi-Fi access point, an existing Wi-Fi network, or a local Ethernet network. Combined with balanced analog inputs, external I/O for remote on/off and fault monitoring, and a universal 100–240V switch-mode power supply with power factor correction, the CS164 is an excellent solution for houses of worship, hospitality venues, educational facilities, retail spaces, corporate environments, and other professional installed sound systems.
Product Specifications:
Power Output: 160W per Channel (640W Total)
Supported Speaker Loads: 2Ω, 4Ω, 8Ω, 70V, 100V
Analog Inputs: 4 x Balanced Inputs
Amplifier Class: Class D with Smart Power Bridge Technology
DSP Processor: 32-Bit / 96 kHz Analog Devices DSP
Frequency Response: 20Hz–20 kHz (±0.5 dB)
THD+N: ≤0.1%
Signal-to-Noise Ratio: 105 dB
Crosstalk: 70 dB
Audio Delay: Adjustable Up to 4000 ms
EQ: 8-Band Parametric EQ
Crossovers: Up to 48 dB/Octave Filters
Speaker Limiting: Peak Limiter
Load Monitoring: Real-Time Load Monitoring
Network Connectivity: Ethernet, Built-in Wi-Fi & Cloud Control
Wi-Fi Modes: Access Point, Existing Wi-Fi Network, Local Area Network
User Interface: Web Browser, LEA Cloud & Third-Party API Control
External I/O: Remote On/Off & Fault Monitoring
AC Power: 100–240 VAC, 50/60 Hz
Power Connector: IEC
Power Supply: Universal Switch-Mode Power Supply with PFC
Cooling: Variable-Speed Fan
Display: LED Status Indicators
Rack Size: 1U
Product Dimensions: 19" × 17.8" × 2" (482.6 × 452.1 × 50.8 mm)
Product Weight: 12.25lbs (5.56kg)
Shipping Weight: 16.55lbs (7.51kg)
Shipping Dimensions: 22.4" × 19.7" × 3.7"
