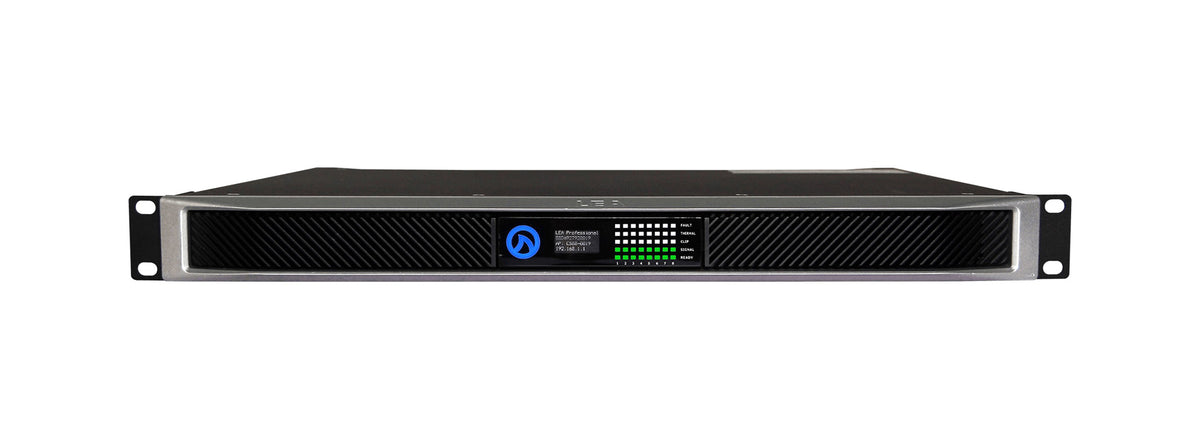

The LEA Professional CS88D is an eight-channel smart amplifier designed for small to medium-scale professional audio installations. Delivering 80 watts per channel at 4Ω, 8Ω, 25V, and 70V/100V, along with 40 watts per channel at 2Ω, it provides flexible amplification for distributed loudspeaker systems. Its Dante CONNECTSERIES platform combines analog and Dante network audio inputs with advanced digital signal processing, making it suitable for installations that require efficient audio distribution and centralized system control.

The CS88D offers three network connection methods: its built-in Wi-Fi access point, an existing venue Wi-Fi network, or a wired Ethernet LAN connection using Cat5 or Cat6 cable. The browser-based Web UI allows users to configure and monitor the amplifier from compatible devices without installing additional software. LEA Cloud adds remote control, monitoring, and notifications from virtually anywhere with an internet connection, without requiring a VPN.

Integrated 96kHz Analog Devices Sigma DSP provides flexible input routing, IIR crossover filters, eight-band parametric EQ per channel, up to 100 milliseconds of output delay per channel, adjustable speaker limiting, and real-time load monitoring. The amplifier also supports selectable low-impedance and high-impedance operation per channel, including 70V or 100V output, and features external I/O for remote on/off control and amplifier health monitoring. Its efficient Class D output stage and universal switch-mode power supply support professional installation requirements.

Key Features

• Eight-channel smart amplifier delivering 80 watts per channel at 4Ω, 8Ω, 25V, and 70V/100V.
• Provides 40 watts per channel at 2Ω.
• Dante audio networking with 8 × 8 Dante channels at 48kHz or 96kHz.
• AES67 configurable through Dante Controller software.
• Three network connection methods: built-in Wi-Fi access point, venue Wi-Fi, or Ethernet LAN.
• LEA Cloud provides remote control, monitoring, and notifications without a VPN.
• Selectable low-impedance and high-impedance operation, with 70V or 100V per channel.
• 96kHz DSP with input routing, crossover filters, and eight-band parametric EQ per channel.
• Real-time load monitoring, pilot tone detection, and adjustable speaker limiters.
• External I/O supports remote on/off control and amplifier health monitoring.

Ideal For

• Small to medium-scale commercial audio installations.
• Corporate offices and meeting rooms.
• Educational facilities and classrooms.
• Houses of worship and multipurpose venues.
• Hospitality and distributed background music systems.
• Networked audio installations requiring Dante connectivity and remote management.

What's in the Box

• LEA Professional CS88D 8-channel smart amplifier.
• Additional accessories and documentation: Not specified in the supplied product information.

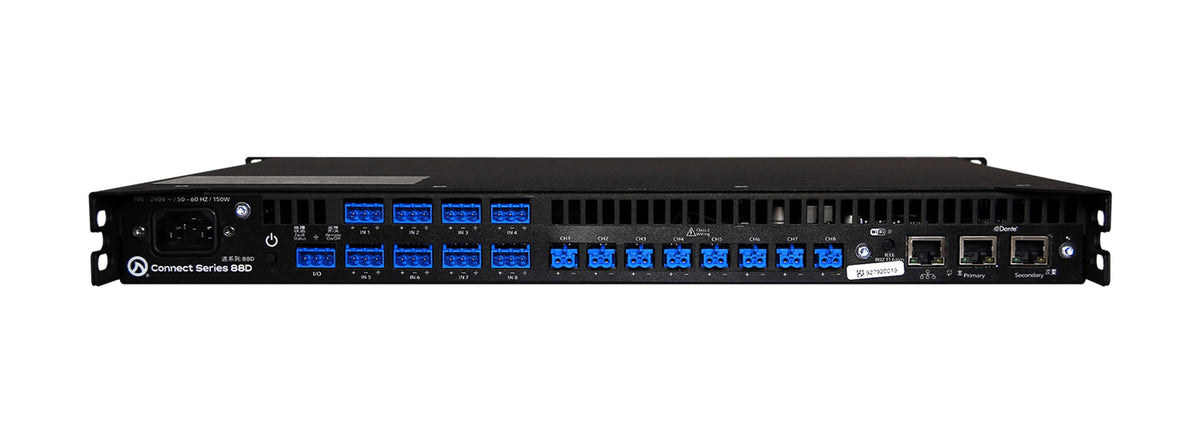

Inputs & Outputs

• Analog Inputs: 8 balanced inputs.
• Analog Input Sensitivity: Selectable 26dB or 34dB.
• Dante Inputs: 8 × 8 Dante at 48kHz or 96kHz, multicast or unicast.
• AES67: Configurable through Dante Controller software.
• Network Connectivity: Built-in Wi-Fi access point, existing Wi-Fi network, and Ethernet LAN.
• Amplifier Outputs: 8 channels with low-impedance and high-impedance operation.
• External I/O Input: Remote on/off control.
• External I/O Output: Amplifier health indication.

Frequently Asked Questions

How many channels does the LEA Professional CS88D provide?

The CS88D features eight amplifier channels, each delivering up to 80 watts at 4Ω, 8Ω, 25V, and 70V/100V.

Does the CS88D support Dante and AES67?

Yes. It supports 8 × 8 Dante audio at 48kHz or 96kHz, with multicast or unicast operation. AES67 can be configured through Dante Controller software.

Can the amplifier be controlled remotely?

Yes. It supports a browser-based Web UI, third-party API control, and LEA Cloud for remote monitoring and control. Cloud control does not require a VPN.

Does the CS88D support 70V and 100V loudspeakers?

Yes. Each channel can be configured for low-impedance or high-impedance operation, with 70V or 100V selectable per channel.

What DSP features are included?

The amplifier includes 96kHz DSP, input routing, IIR crossovers up to 48dB per octave, eight-band parametric EQ per channel, 100 milliseconds of output delay per channel, adjustable limiting, and real-time load monitoring.

What are the power requirements?

The CS88D operates on 100–240V AC, ±15%, at 50Hz or 60Hz.

Full Technical Specifications

Product Overview

Product Type	Smart Amplifier
Series	CONNECTSERIES
Model	CS88D
Amplifier Channels	8
Amplifier Class	Class D
Network Version	Dante Connect
Dante Channel Capacity	8 × 8
Dante Sample Rates	48kHz or 96kHz
Dante Transmission	Multicast or unicast
AES67 Support	Configurable through Dante Controller

Audio & Amplifier Specifications

Output at 2Ω	40W per channel
Output at 4Ω, 8Ω, 25V, 70V/100V	80W per channel
Analog Inputs	8 balanced inputs
Analog Input Sensitivity	Selectable 26dB or 34dB
THD+N	0.1% (20Hz–20kHz)
Frequency Response	20Hz–20kHz, ±0.5dB at 4Ω, 8Ω, 70V, and 100V
Frequency Response at 2Ω	-2.5dB at 20kHz
Signal-to-Noise Ratio	105dB (20Hz–20kHz, referenced to 8Ω)
Crosstalk	70dB (20Hz–20kHz)
Output Configuration	Low-impedance and high-impedance
High-Impedance Selection	70V or 100V per channel

DSP & Signal Processing

DSP Architecture	Analog Devices Sigma DSP
DSP Processing Rate	96kHz
DSP Core	32-bit with sample rate converters
Input Matrix	Any input routable to any output
Input Priority	Primary and secondary input priority
IIR Crossovers	Up to 48dB/octave
Crossover Types	Linkwitz-Riley and Butterworth
Parametric EQ	8 bands per channel
Output Delay	100ms per channel
Output Protection	DC, VHF, AC mains, overtemperature, current limiting, and fan fault detection
Adjustable Limiting	Peak voltage and RMS voltage
Load Monitoring	Real-time load monitoring
Pilot Tone Detection	Internal or external sources
DSP Architecture	Analog Devices Sigma DSP

Network & Control

Network Connection Methods	Built-in Wi-Fi access point, existing Wi-Fi, or Ethernet LAN
Ethernet Connection	Cat5 or Cat6 cable
User Interface	Browser-based Web UI
Cloud Control	Remote control, monitoring, and notifications
VPN Requirement for Cloud Control	Not required
Third-Party Control	Third-party API
External I/O Input	Toggles remote on/off

Power & Cooling

AC Mains	100–240V AC, ±15%
Mains Frequency	50Hz or 60Hz
Power Supply	Universal switch-mode power supply
Power Factor Correction	Yes
Cooling System	Front-to-rear variable-speed fan
Fan Noise at Idle	50dB at 1m
Fan Noise at 50% Speed	57dB at 1m
Fan Noise at Full Speed	63dB at 1m

Physical Specifications

Product Dimensions (L × W × H)	14.25 × 19 × 1.75 inches
Product Weight	13.55 lbs
Shipping Dimensions (L × W × H)	20 × 22.75 × 3.75 inches
Shipping Weight	17.95 lbs
