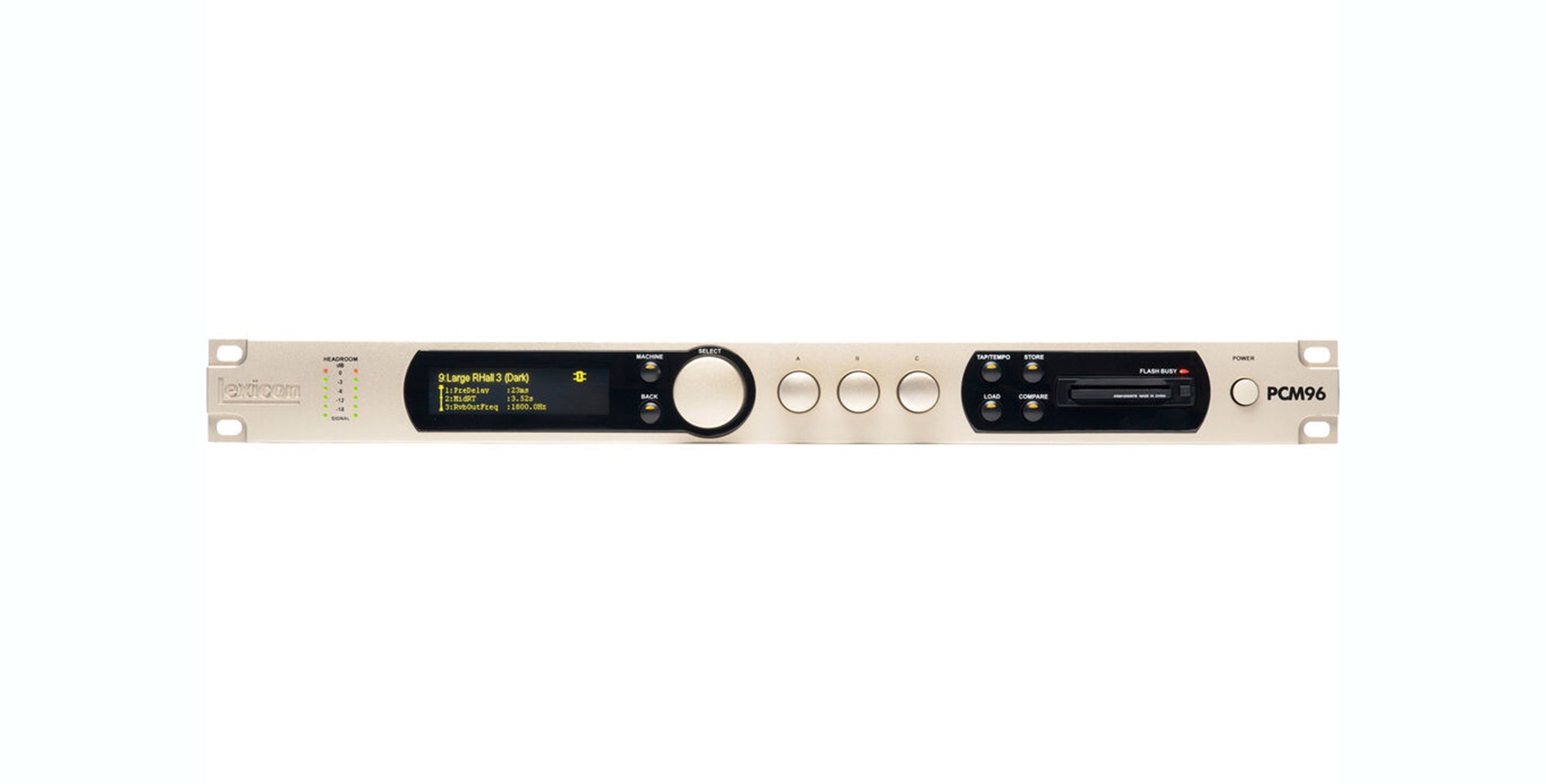

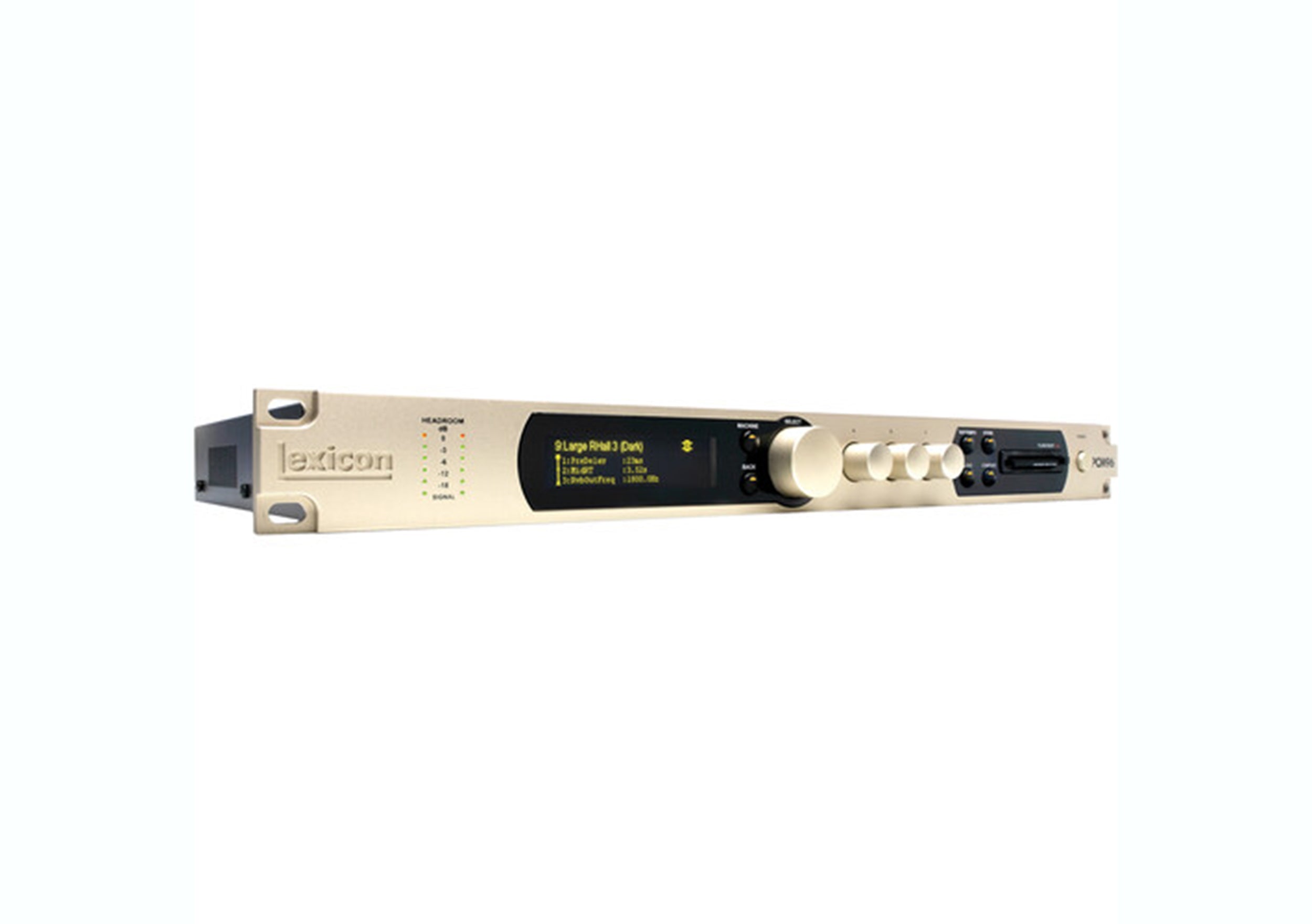

Lexicon PCM96, Stereo Reverb/Effects Processor

The Lexicon PCM96 is a high-performance stereo reverb and effects processor that combines the best of Lexicon’s legendary heritage with modern innovation. Featuring 28 classic and new algorithms, including reverbs, delays, and modulation effects, the PCM96 offers a refined and dynamic audio experience. Its new Room algorithm allows users to select, scale, and equalize Reflection patterns while simultaneously processing audio, delivering rich reverb textures with extended decays and a stronger sense of space. With its powerful 32-bit floating point processing, the PCM96 is perfect for both music production and post-production. It offers seamless automation and control via Ethernet or FireWire, making it an excellent choice for the modern studio. With two channels of XLR analog I/O, two channels of XLR AES/EBU digital I/O, and a wide array of connectivity options like MIDI, Ethernet, and word clock, this unit integrates easily into any recording or live sound setup.

At a Glance:

The PCM96 builds on Lexicon's rich history of audio processing, offering a stereo reverb processor that draws from their iconic 480L, 960L, and PCM series. With 28 renowned and innovative Lexicon effects, it introduces a new Room algorithm designed to create immersive room-related effects for music and post-production. With over 1,200 factory presets, including familiar classics from Lexicon's library, the PCM96 supports up to 96 kHz sample rates and utilizes advanced 32-bit floating point processing for optimal performance. This device offers flexible control and automation options via Ethernet and supports Compact Flash cards for additional storage.

What’s in the Box:

Lexicon PCM96 Stereo Reverb/Effects Processor

AC Power Cable

Ethernet Cable

Software CD-ROM

Product Specifications:

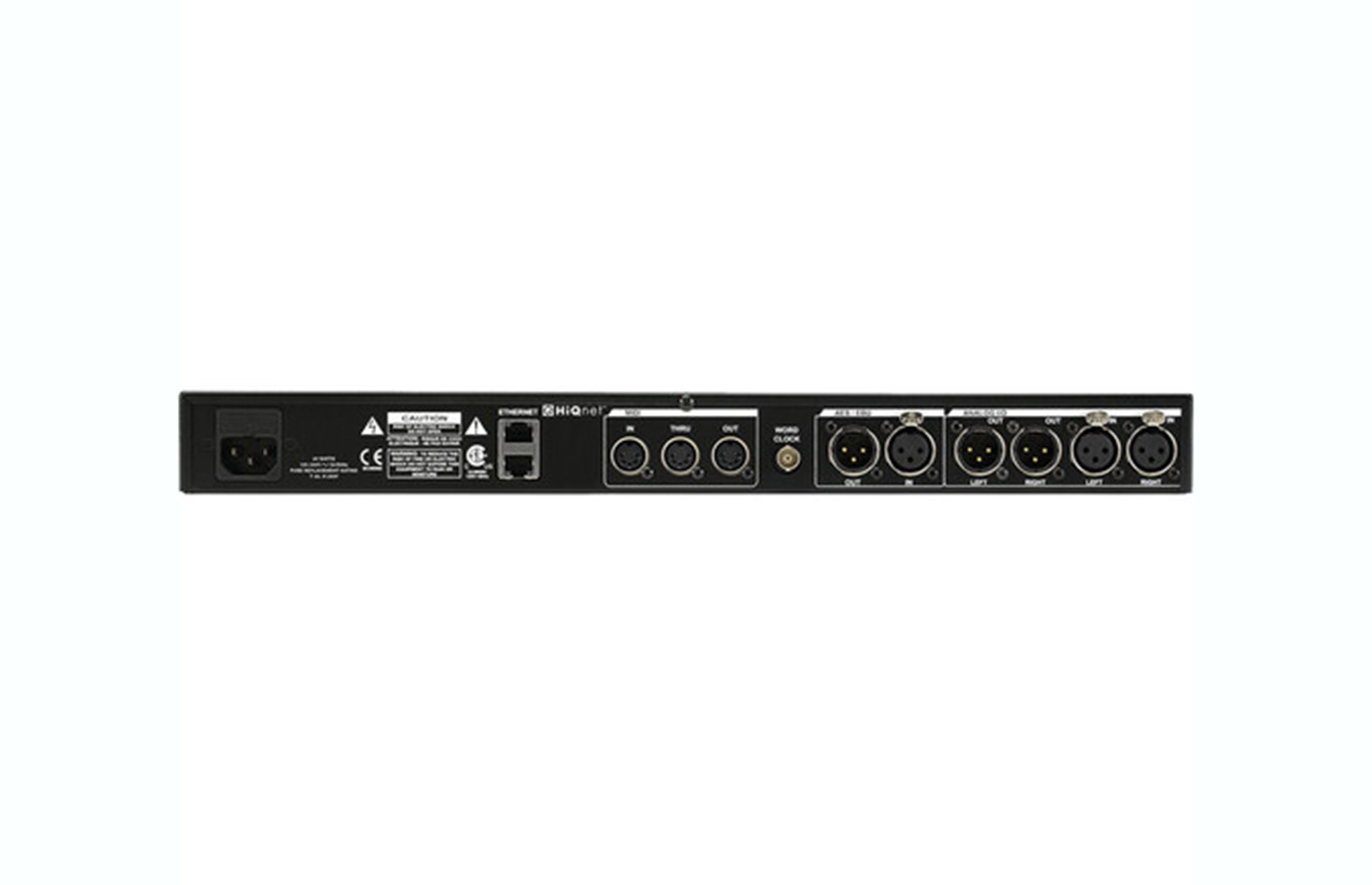

Audio Inputs/Outputs:

2x XLR 3-Pin Line Input (Analog)

2x XLR 3-Pin Line Output (Analog)

1x XLR 3-Pin AES3 Digital Input

1x XLR 3-Pin AES3 Digital Output

Control Interfaces:

2x RJ45 Ethernet Ports for Control

1x BNC Wordclock Input (75 Ohms)

1x 5-Pin DIN MIDI Input

1x 5-Pin DIN MIDI Output

1x 5-Pin DIN MIDI Thru

AC Input Power: 100 to 240 VAC, 50/60 Hz

Power Consumption: 20W Maximum

Operating Temperature: 59 to 95°F / 15 to 35°C

Operating Humidity: 75%

Storage Temperature: -22 to 158°F / -30 to 70°C

Mounting: 1x Rackmount (1 RU)

Weight: 8.65 lbs. (3.92 kg)

Dimensions: 19 x 12.5 x 1.75 inches

Shipping Weight: 13 lbs.

Shipping Dimensions: 23 x 15 x 4 inches
