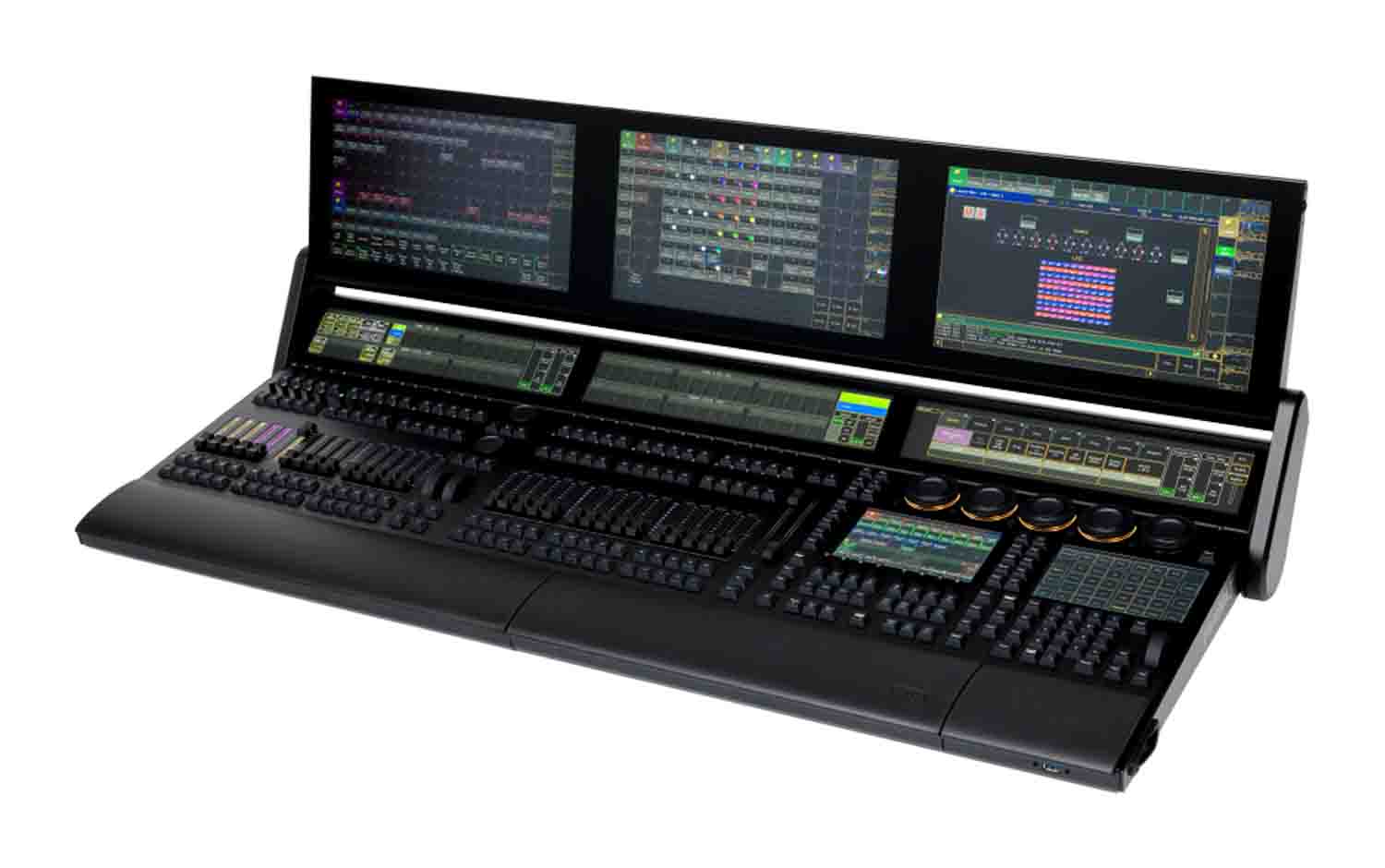

MA Lighting grandMA3 Full-Size Flagship Console

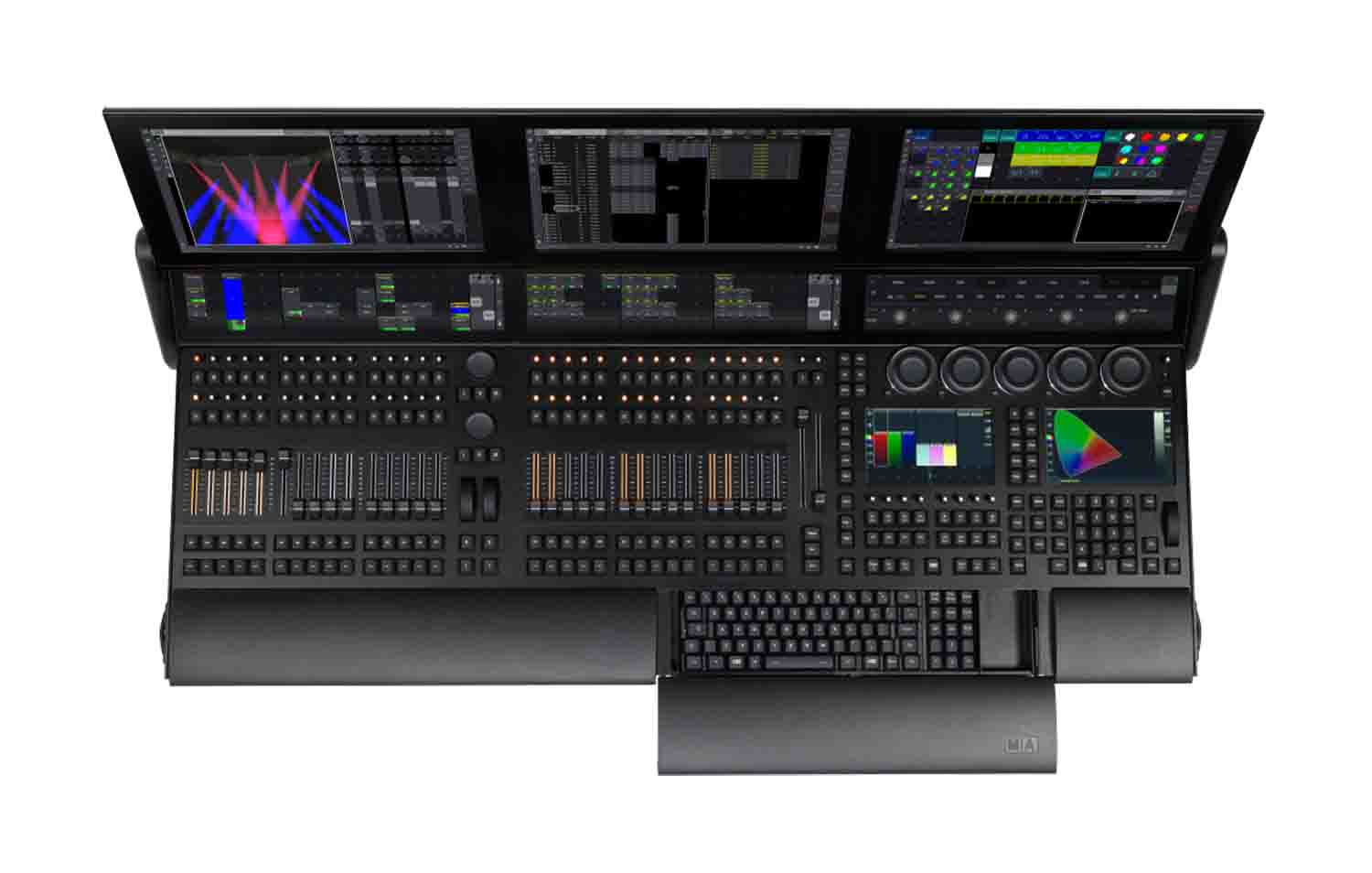

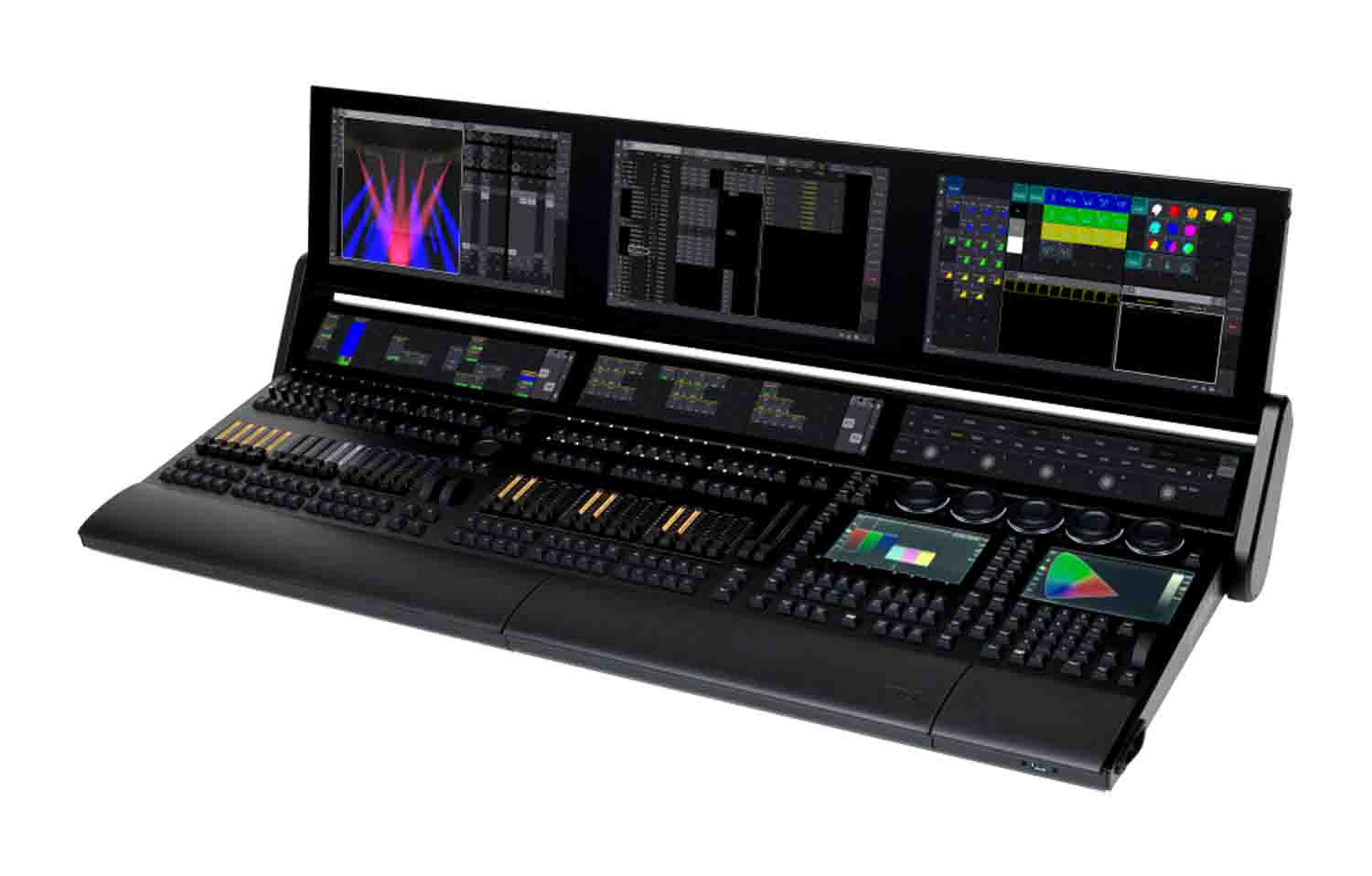

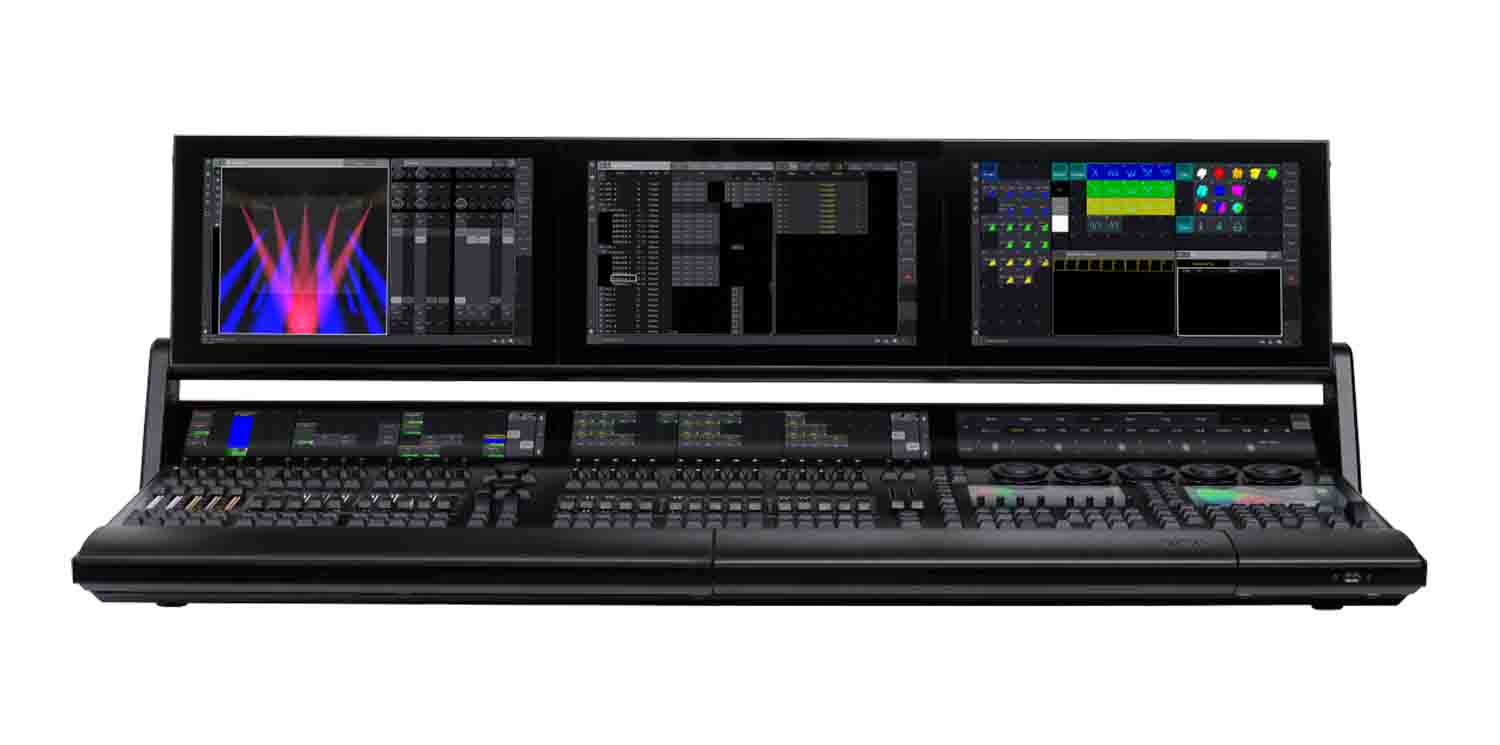

The MA Lighting grandMA3 is a Full-Size Flagship Console. The grandMA3 full-size console is the flagship of the range. It offers the ultimate MA lighting control hardware and is designed for professionals that appreciate the hands-on flexibility that a no-compromise solution can offer. The assignable custom area and a dedicated master area provide fingertip access to powerful functionality. Add the 120 physical playbacks and 16 assignable x-keys and the grandMA3 full-size console offers the most flexible playback platform MA Lighting has ever produced. The grandMA3 full-size console includes 20 480 control parameters as standard, ensuring that it is the perfect base platform for the world’s most prestigious entertainment lighting applications. The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units. Huge multi-touch screen real estate provides instant access to programming tools and is fully configurable to suit individual needs. The three letterbox screens are context-sensitive and dedicated to providing feedback and options for the grandMA3 playback and encoder hardware. The grandMA3 full-size is compatible with grandMA2 and grandMA3 software. The hardware is ergonomically optimized and can be considered a silent version by default.

The grandMA3 lighting control consoles offer a fresh user interface with an optimized command area for intuitive and fast access. The grandMA3 consoles feature dual encoders, which provide users with intuitive control of additional features and functions. Feature mapping of the dual encoders will be customizable, facilitating ease of use and faster programming. Long-life motorized playback faders are used across the entire grandMA3 console range. The faders incorporate a color-changing light pipe. All playbacks have direct access to button pushes as well as intensity and timing changes thanks to the new rotary RGB backlit encoders. The grandMA3 operating system is completely new and has been designed to feel more welcoming to fresh converts without alienating existing grandMA programmers. Extensive user feedback has been incorporated to ensure the new functionality address’ the real-world needs of the MA family.

The fundamental syntax of the grandMA2 has been preserved and extended to facilitate the new functionality. The grandMA3 software has an elegant new system architecture incorporating new fixtures, features, and effects-handling at its very heart. These ground-breaking concepts from top industry visionaries, are presented within a refined user interface and are designed to make practical tasks more intuitive. Selecting fixtures, adjusting values, storing presets, and playing back cues should all feel familiar, but improved in many details of the process. A better overview, faster access, and more accurate information will create an improved user experience in programming and busking a show. Fixture information is now generic and allows simpler sharing of programmed data between fixtures. We also support the new GDTF (General Device Type Format) natively, allowing fixture manufacturers to ensure their own fixtures are controlled as intended.

Product Specifications:

Parameters: 20 480 (HTP/LTP)

Parameters Mode2: 8 192 (HTP/LTP)

Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz

Power: max. 300 VA

Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F

Dimensions:

1 256 x 539 x 181 mm / 50 x 22 x 8 in

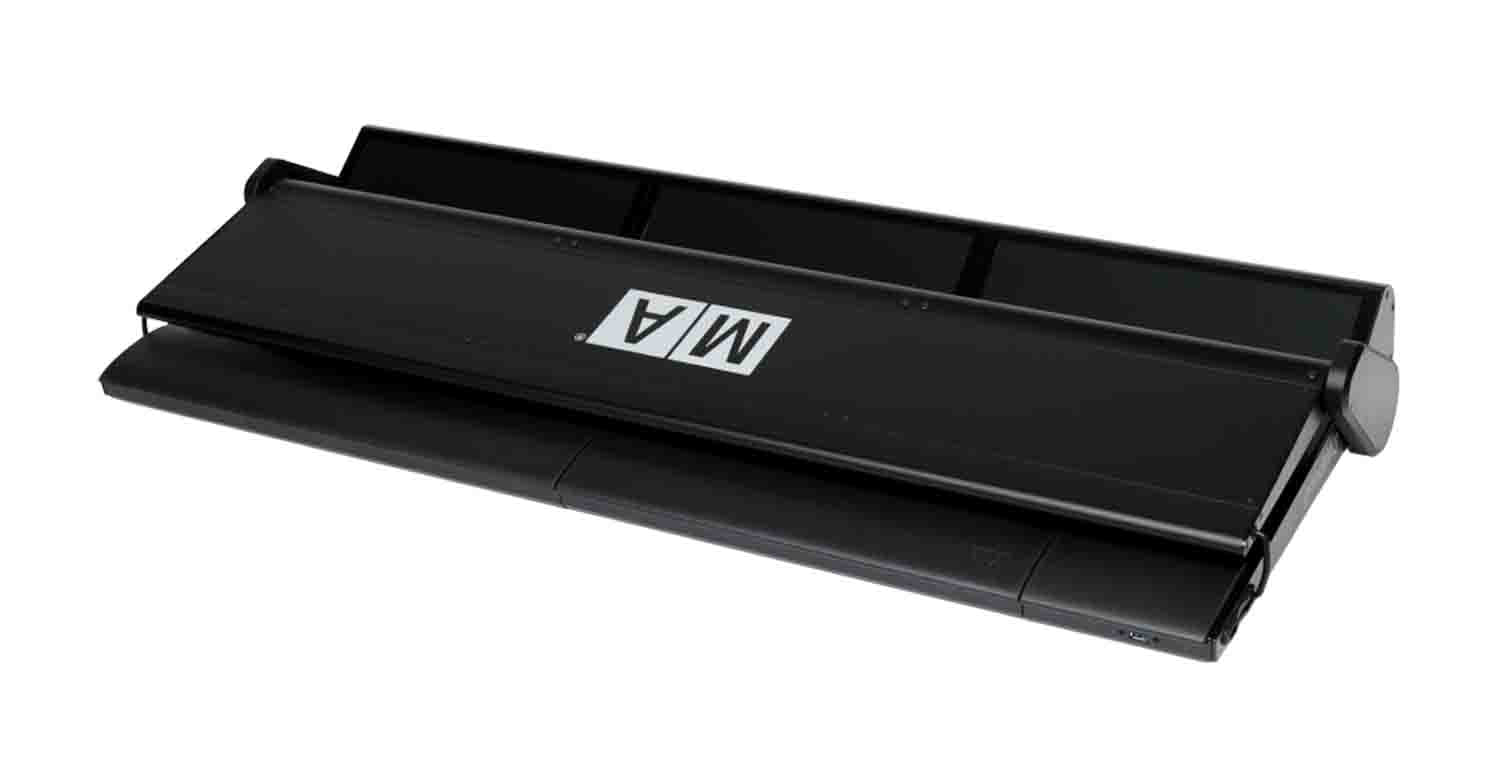

(width x depth x height, folded and the drawer closed)

1 256 x 584 x 409 (max. 450) mm / 50 x 23 x 17 (max. 18) in

(width x depth x height, unfolded for operation)

1 256 x 871 x 255 mm / 50 x 35 x 10 in

(width x depth x height, maximally unfolded and the drawer opened)

Net weight: 44 kg / 98 lbs

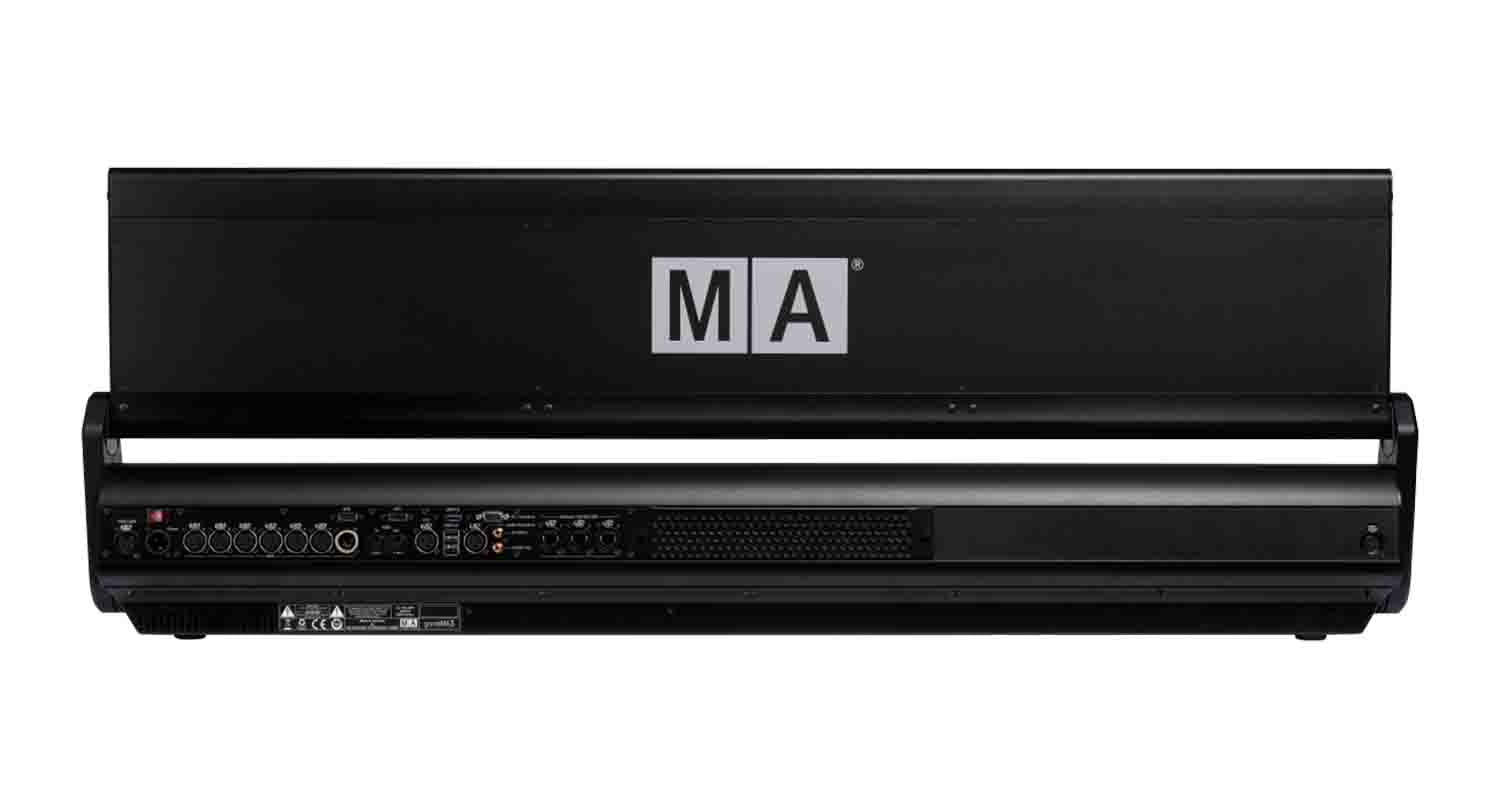

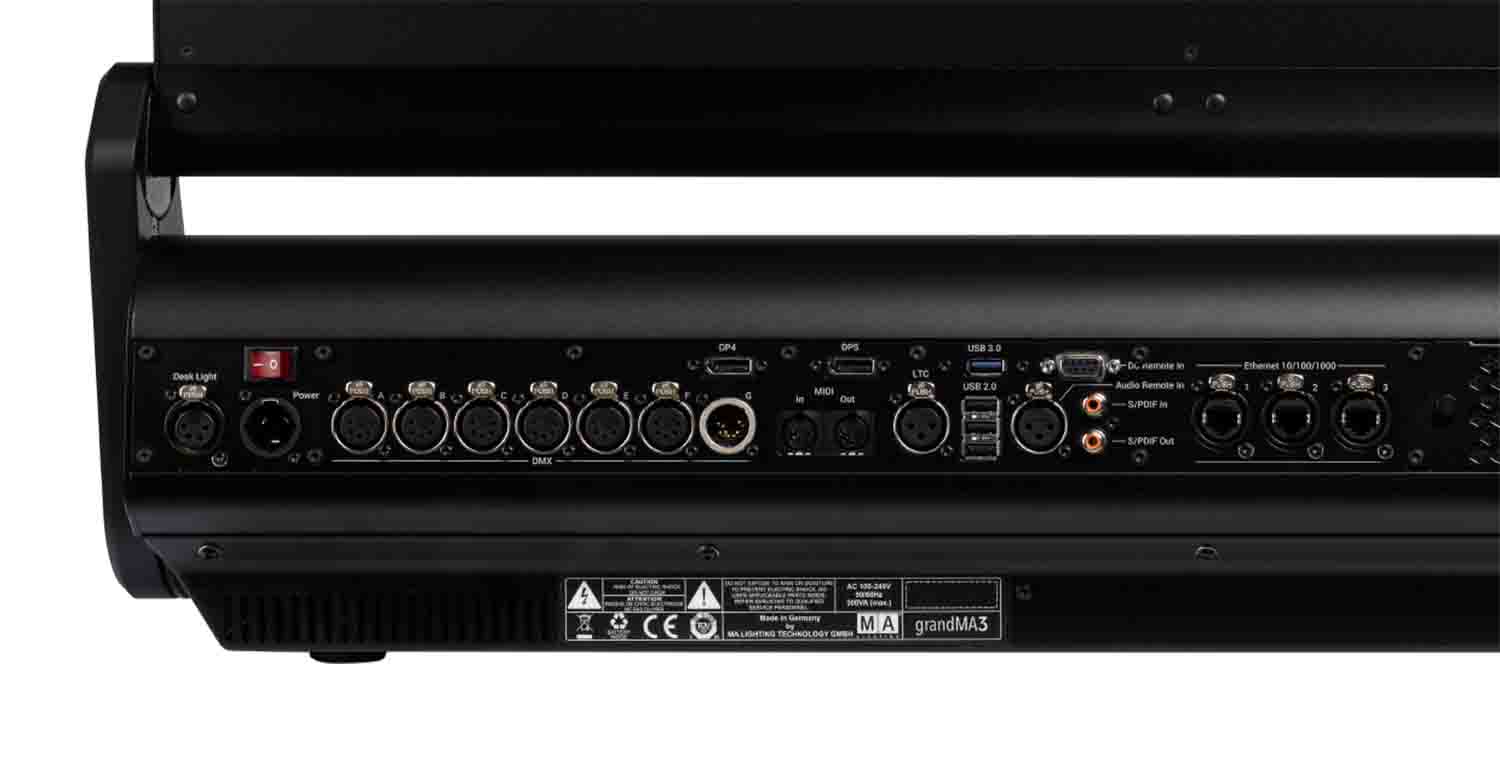

Connectors:

1 x powerCON TRUE1

3 x etherCON/RJ45

6 x DMX512-A Out (5pin XLR female)

1 x DMX512-A In (5pin XLR male)

1 x MIDI In (5pin DIN female)

1 x MIDI Out (5pin DIN female)

1 x Linear Timecode (3pin XLR female)

1 x Audio In (3pin XLR female)

1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control

2 x DisplayPort 1.2 for external screens

2 x S/PDIF In and Out

3 x USB 2.0 (type A)

3 x USB 3.0 (type A)

2 x LED desk lights (4pin XLR female)
