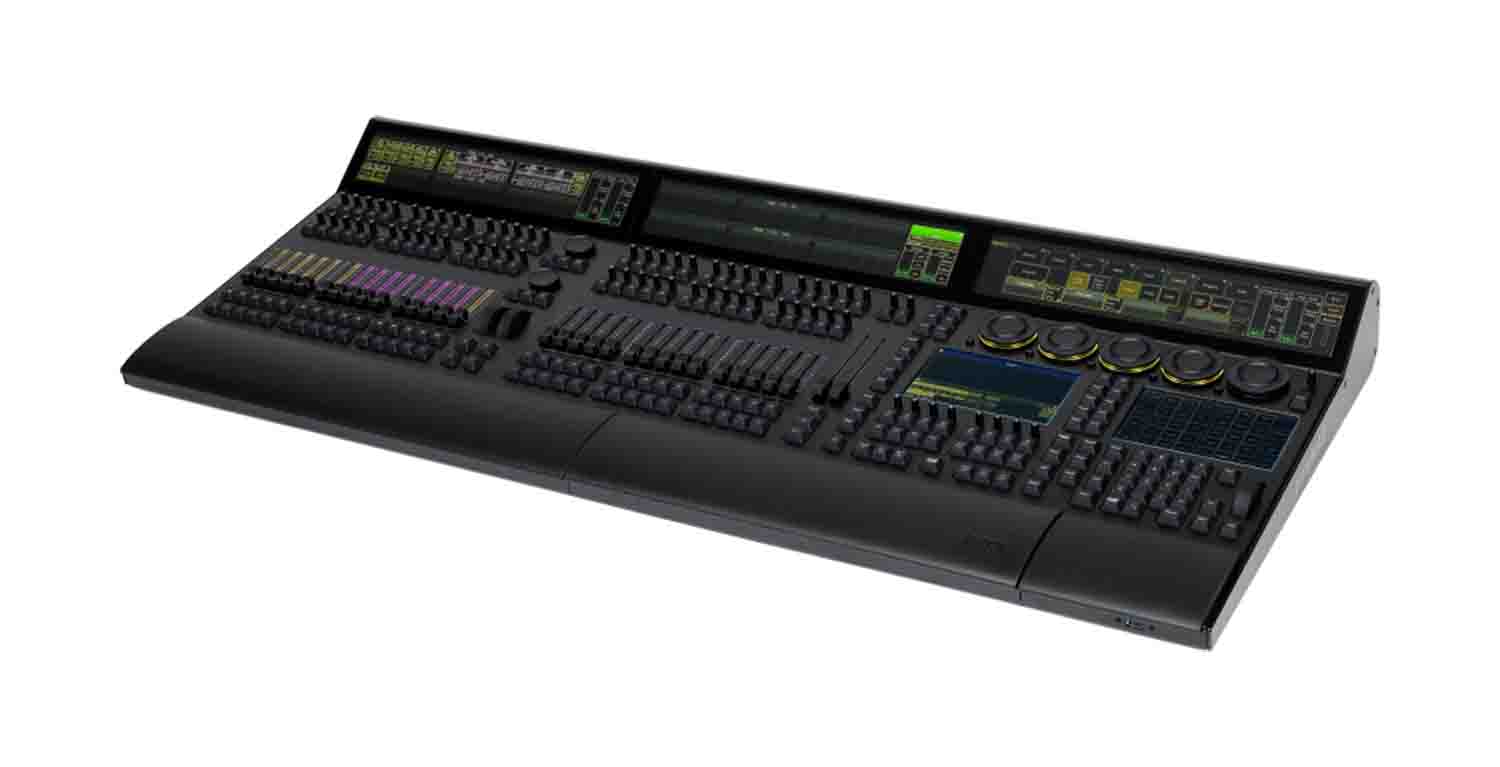

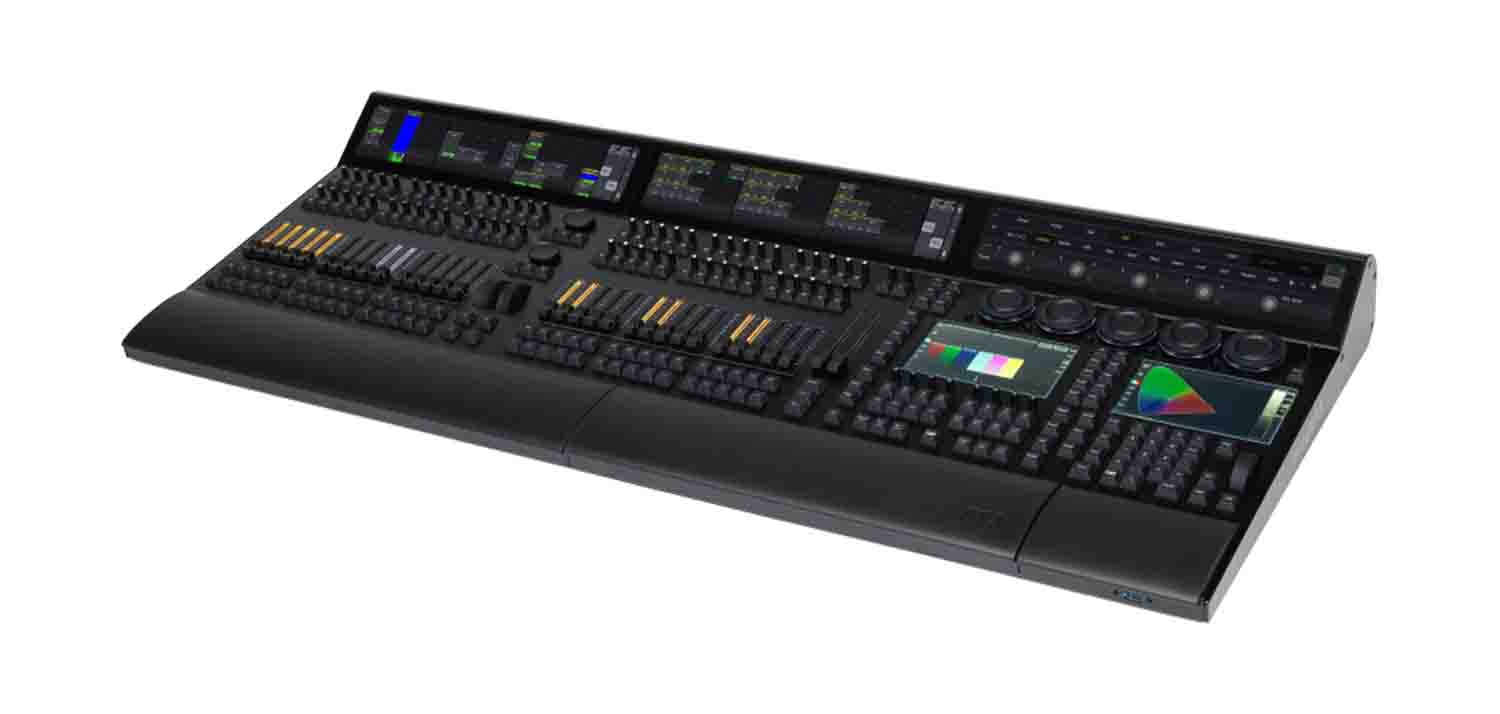

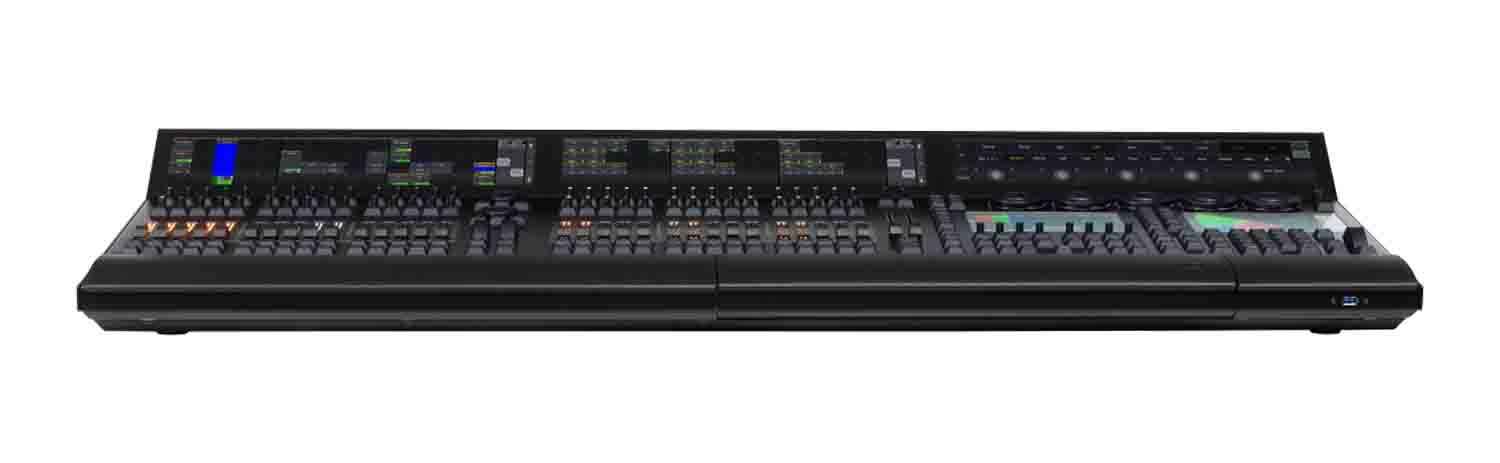

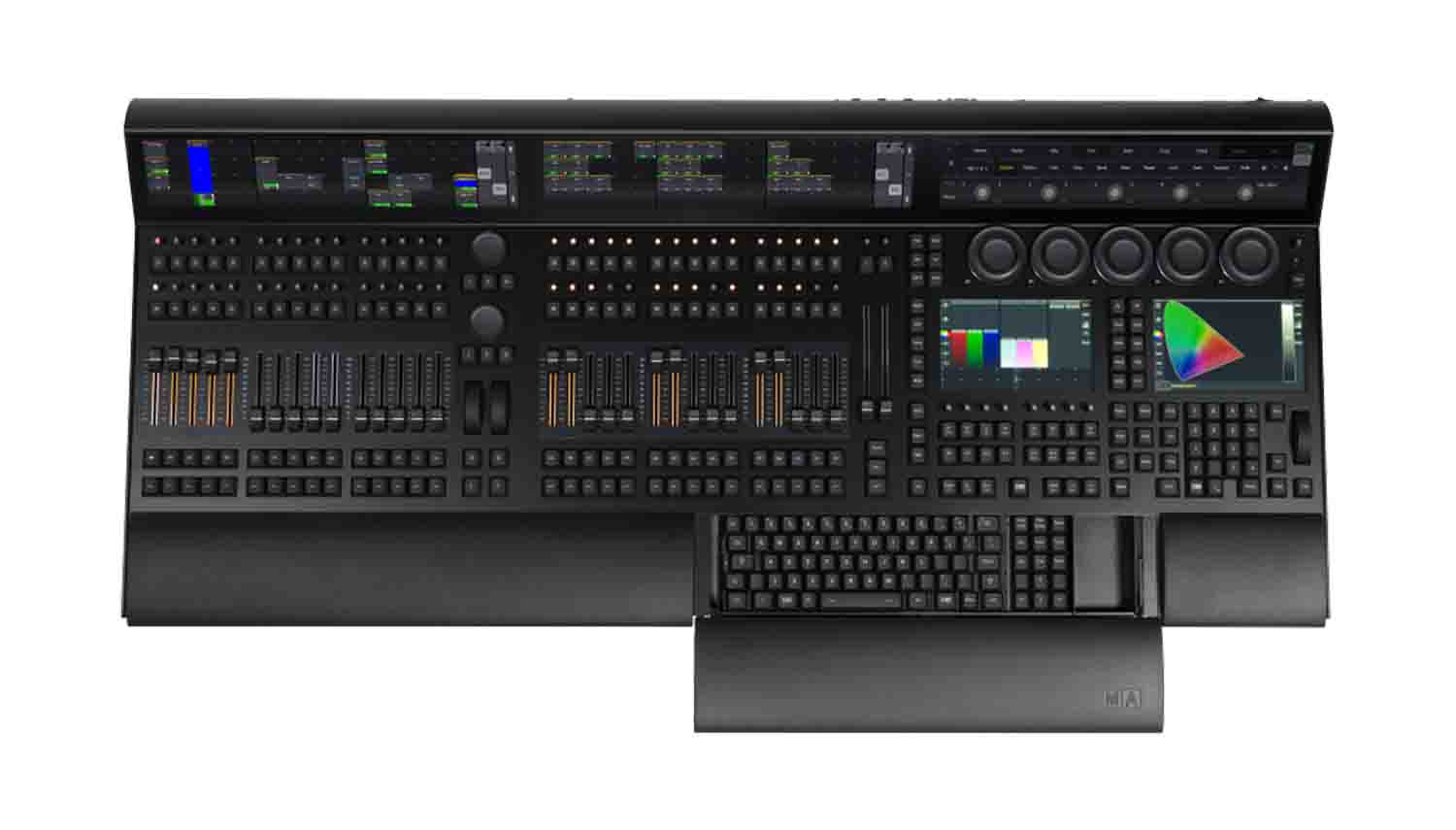

MA Lighting MA4010501 Grandma3 Full-Size Control Room Version Console

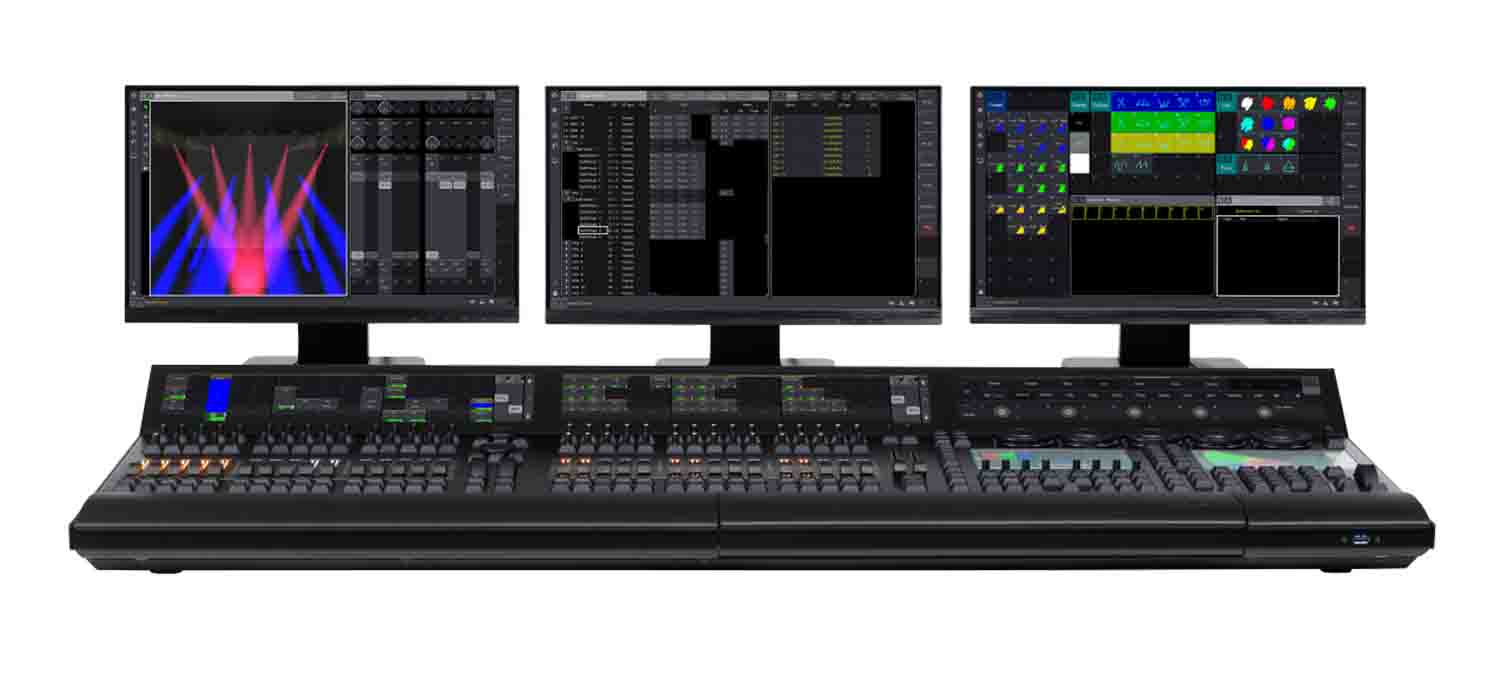

The MA Lighting MA4010501 Grandma3 Full-Size Control Room Version Console is the flagship of the range but supplied without the monitor wing. Designed for use in control rooms where sightlines can be challenging, the grandMA3 full-size CRV features 3 additional external monitor ports to facilitate the convenient location of external 3rd party touchscreens without compromising the grandMA3 full-size console functionality. The assignable custom area and a dedicated master area provide fingertip access to powerful functionality. Add the 120 physical playbacks and 16 assignable x-keys and the grandMA3 full-size console offers the most flexible playback platform MA Lighting have ever produced. The grandMA3 full-size CRV console includes 20 480 control parameters as standard, ensuring that it is the perfect base platform for the world most prestigious entertainment lighting applications. The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units.

The three letterbox screens are context sensitive and dedicated to providing feedback and options for the grandMA3 console playback and encoder hardware. The grandMA3 full-size CRV is compatible with grandMA2 and grandMA3 software. The hardware is ergonomically optimized and can be considered a silent version by default. The grandMA3 lighting control consoles offer a fresh user interface with an optimized command area for intuitive and fast access. The grandMA3 consoles features dual encoders, which provide users with intuitive control of additional features and functions. Feature-mapping of the dual encoders will be customizable, facilitating ease of use and faster programming.

Long-life motorized playback faders are used across the entire grandMA3 console range. The faders incorporate a color-changing light pipe. All playbacks have direct access to button pushes as well as intensity and timing changes thanks to the new rotary RGB backlit encoders. The grandMA3 operating system is completely new and has been designed to feel more welcoming to fresh converts without alienating existing grandMA programmers.

Product Specification:

Parameters: 20 480 (HTP/LTP)

Parameters Mode2: 8 192 (HTP/LTP)

Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz

Power: max. 300 VA

Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F

Dimensions: 48 x 22 x 7 in

Weight: 73 lbs
