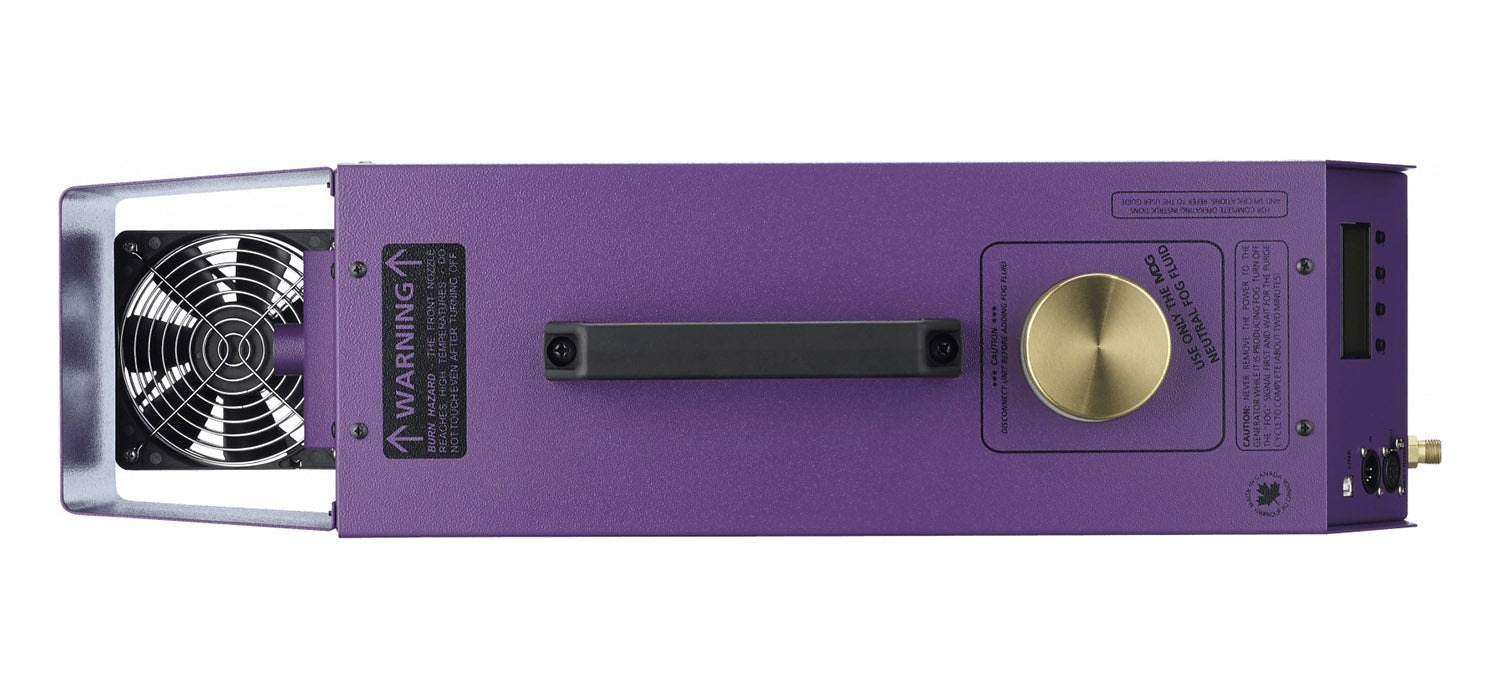

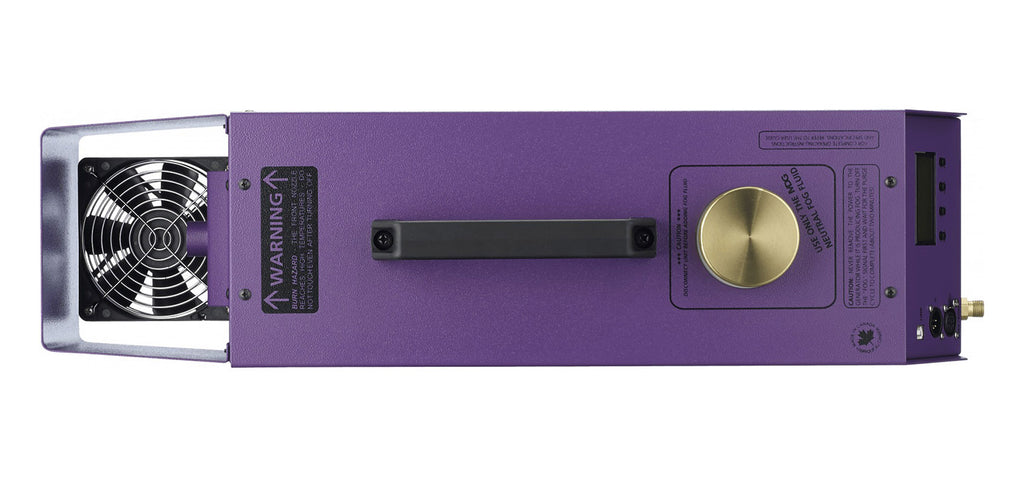

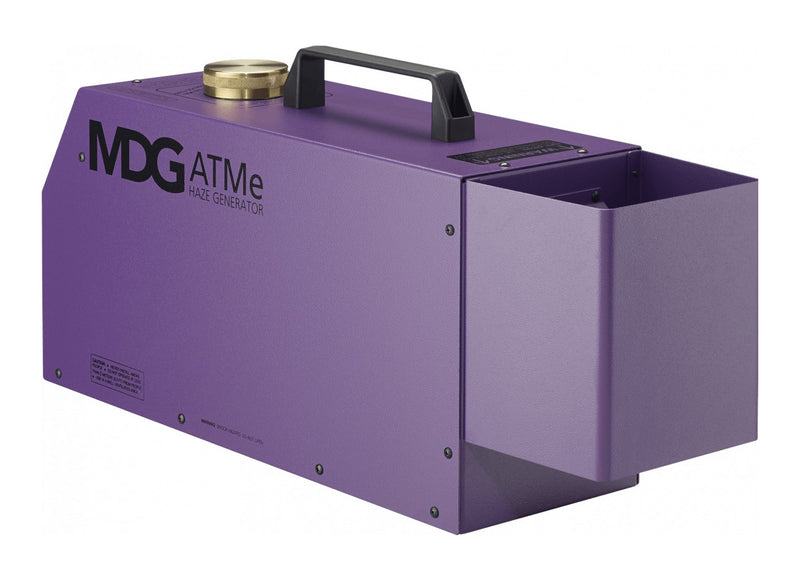

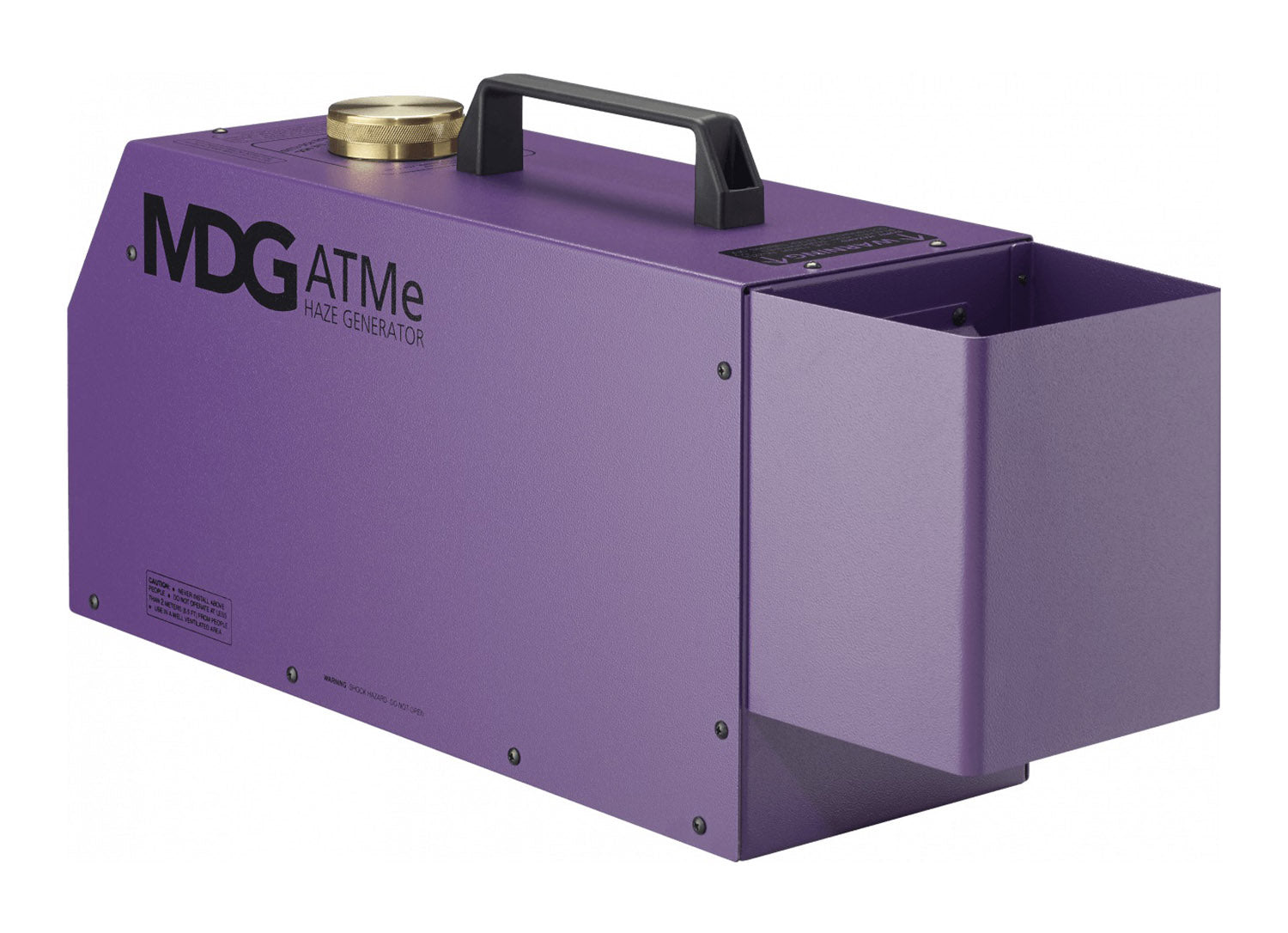

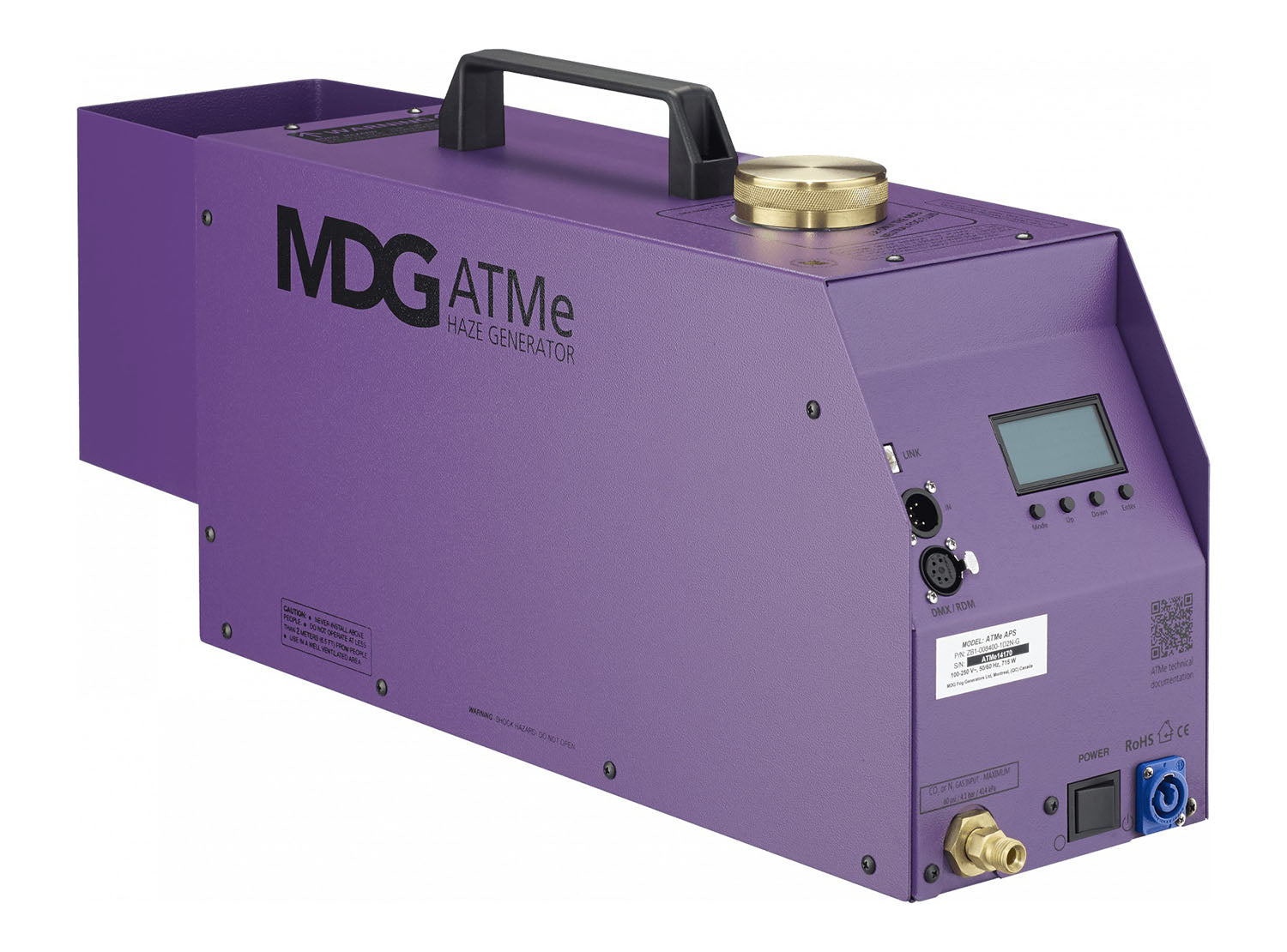

MDG ATMe Haze Generator

The MDG ATMe single high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry's standard for more than two decades.

Longest Hanging Time

Our MDG Neutral fluid is specially created for the longest hanging time.

Variable Haze Output

0-100% haze output control from your DMX / RDM device. 100% duty cycle.

Aps (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

Numerous Control Options

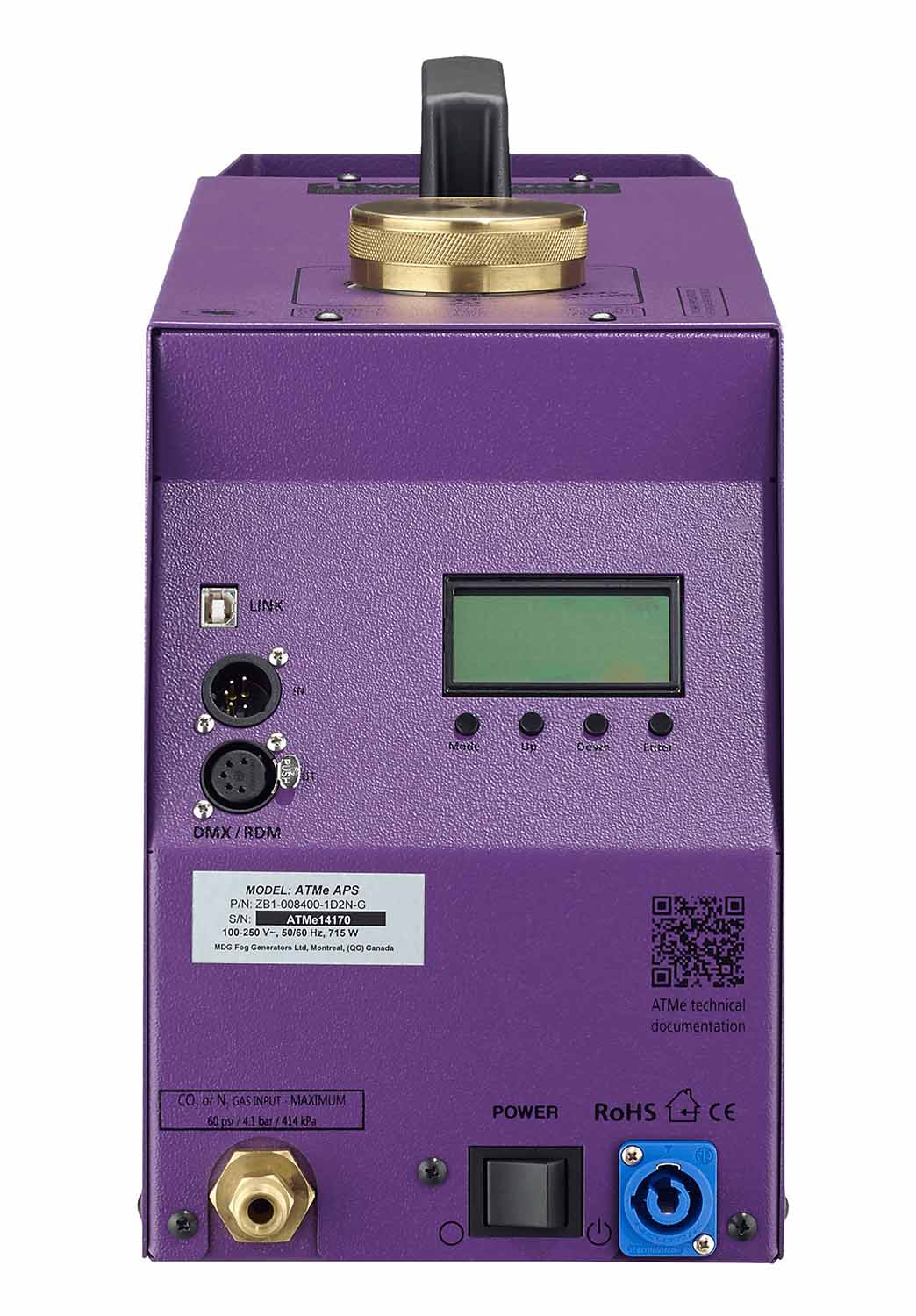

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Extremely Quiet Operation

Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.

Lowest Fluid Consumption on The Market

At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.

Product Specification:

Fluid consumption:

55 ml (1.86 oz) per hour at 1.38 bar (20 psi)

110 ml (3.72 oz) per hour at 2.76 bar (40 psi)

CO2 consumption:

0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)

0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)

Reservoir capacity: 2.5 L (0.66 US gallon)

APS (Automatic Purging System): Standard

Haze Color: Pure white

Particle size: 0.5 - 0.7 micron

Total running time:

46 hours at 1.38 bar (20 psi) with a full tank

23 hours at 2.76 bar (40 psi) with a full tank

Warm-up time: 8 minutes (maximum)

Fluid type: MDG Neutral

Operating voltage: 100 - 250 VAC, 50/60 Hz single phase

Power consumption: 715 W

Noise emission: 45.4 dB (A) at 1 m (3.3 ft)

Length: 68.5 cm (27”)

Width: 18 cm (7”)

Height: 30 cm (12”)

Weight: 16.8 kg (37 lb)

Shipping weight: 30.5 kg (67 lb) with flight case
