Description

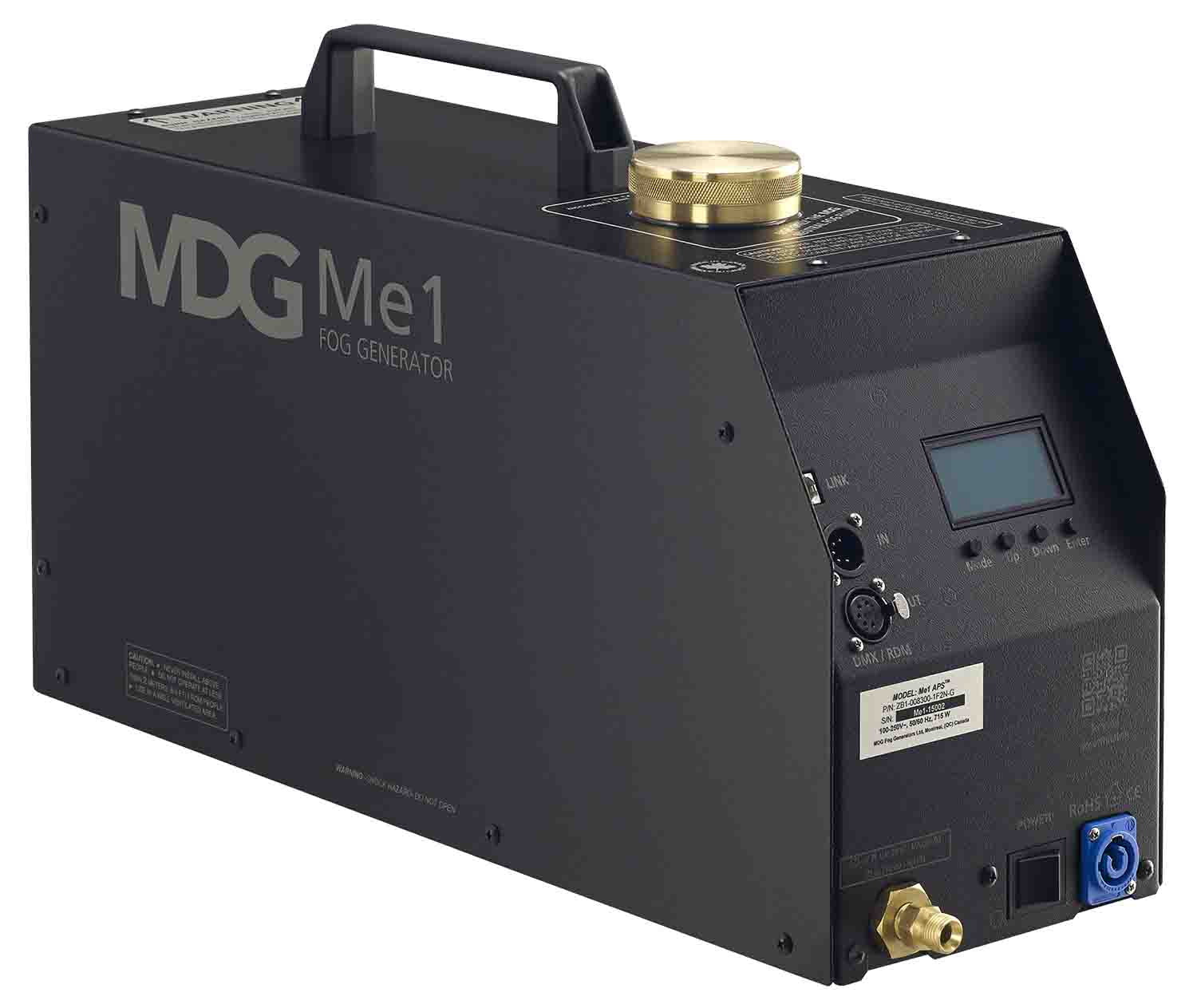

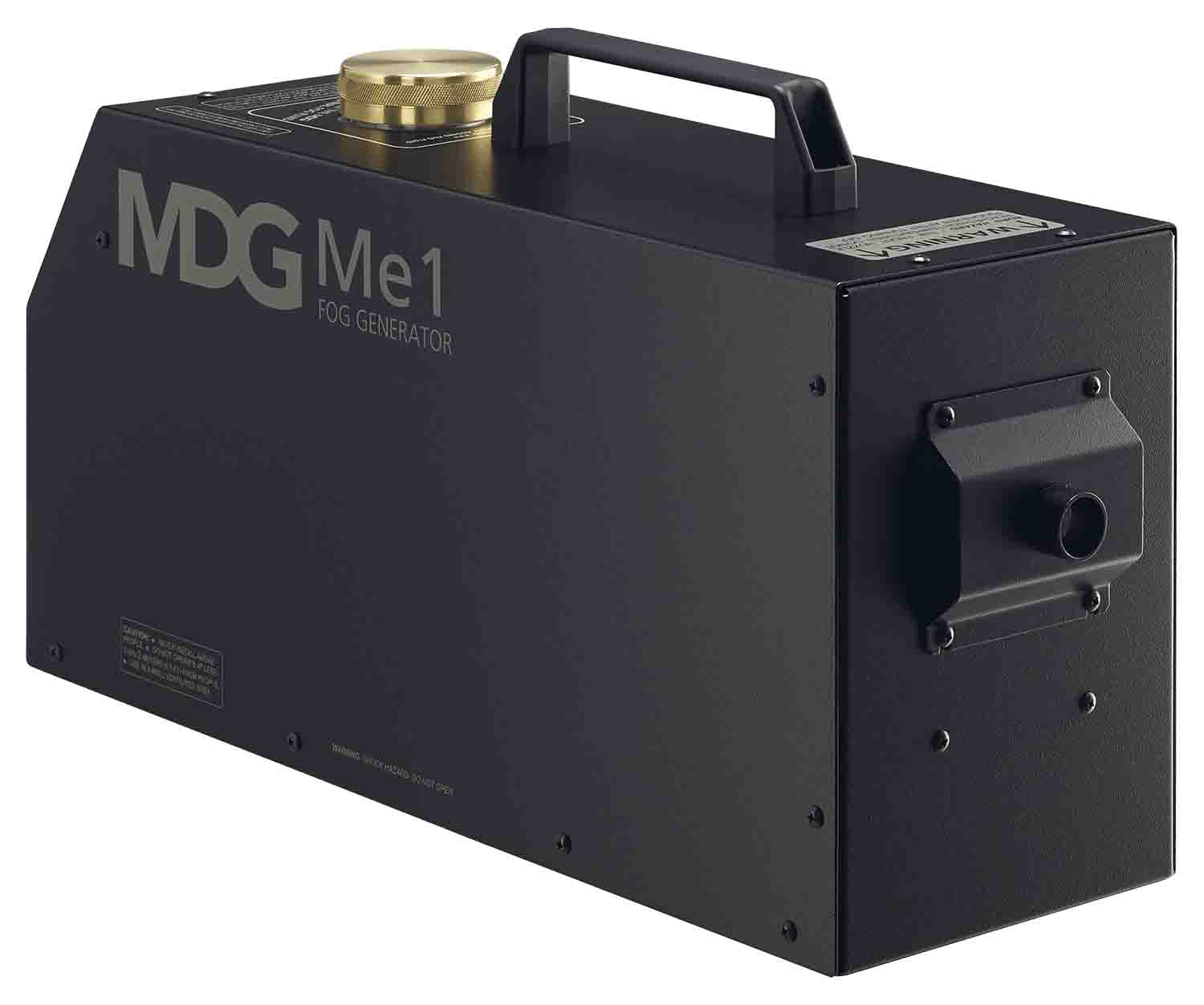

The MDG Me1 Single Output Fog Generator is the first and smallest in our powerful Me family of fog generators, Variable Fog Output 0-100% fog output control from your DMX/RDM device, or direct local control.
Second Personality
MAX 3000APS configuration setting.
Fluid Consumption
At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.
Numerous Control Options

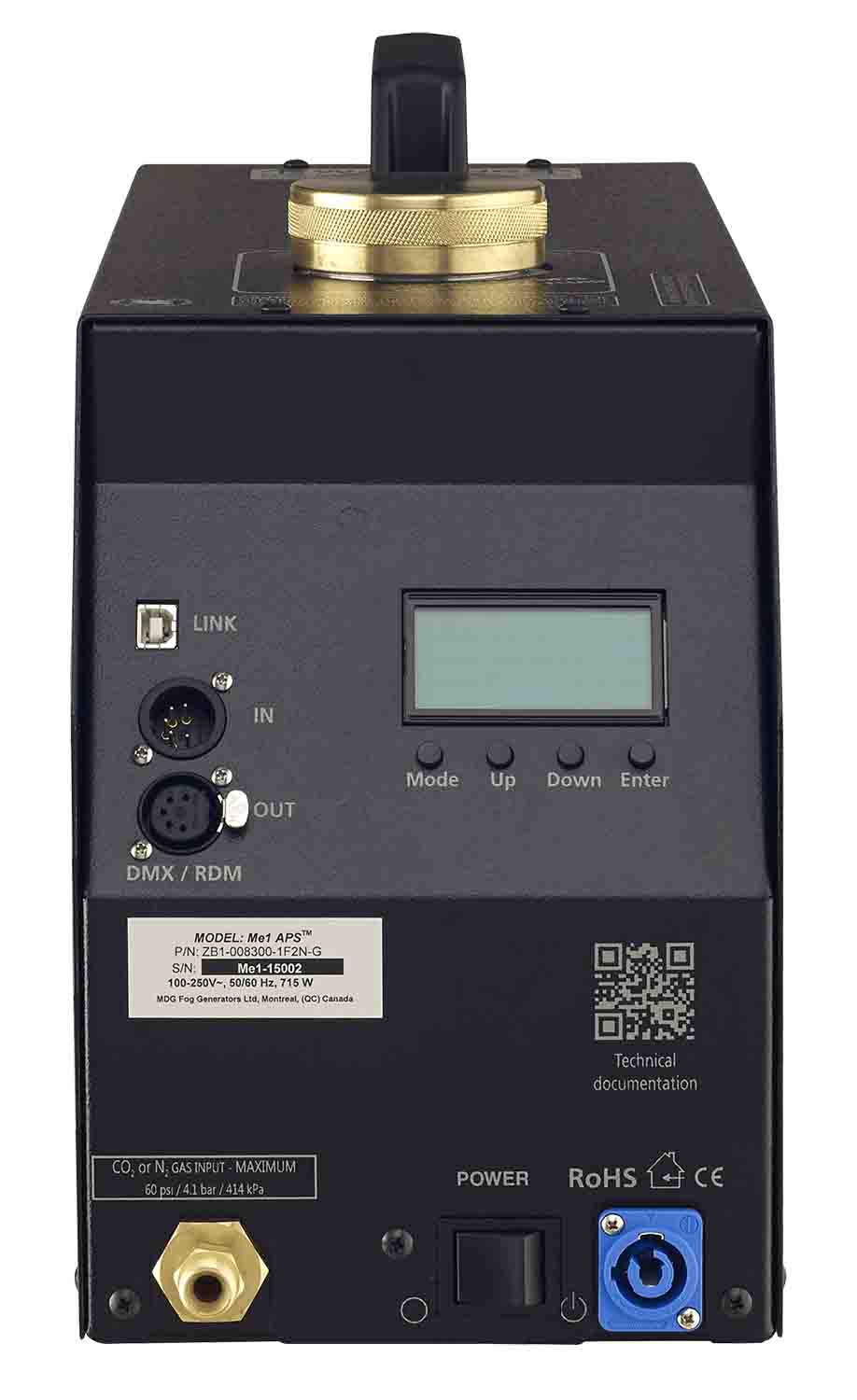

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
100% Duty Cycle
At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.
Aps (Automatic Purging System)
This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.
Product Specifications:
Maximum Fog Output: 100 m3 (3,531 ft3) per minute
Fluid Consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
Gas Type: CO2 or N2
Gas Consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi
Reservoir Capacity: 2.5 L (0.66 US gallon)
Fog Colour: Pure white
Particle Size: 0.5 - 0.7 microns
Warm-Up Time: 8 minutes (maximum)
Fluid Type: MDG Neutral
Length: 61 cm (24”)
Width: 18 cm (7”)
Height: 30 cm (12”)
Weight: 15.62 kg (35 lb)
Shipping Weight: 29.12 kg (64 lb) with flight case
