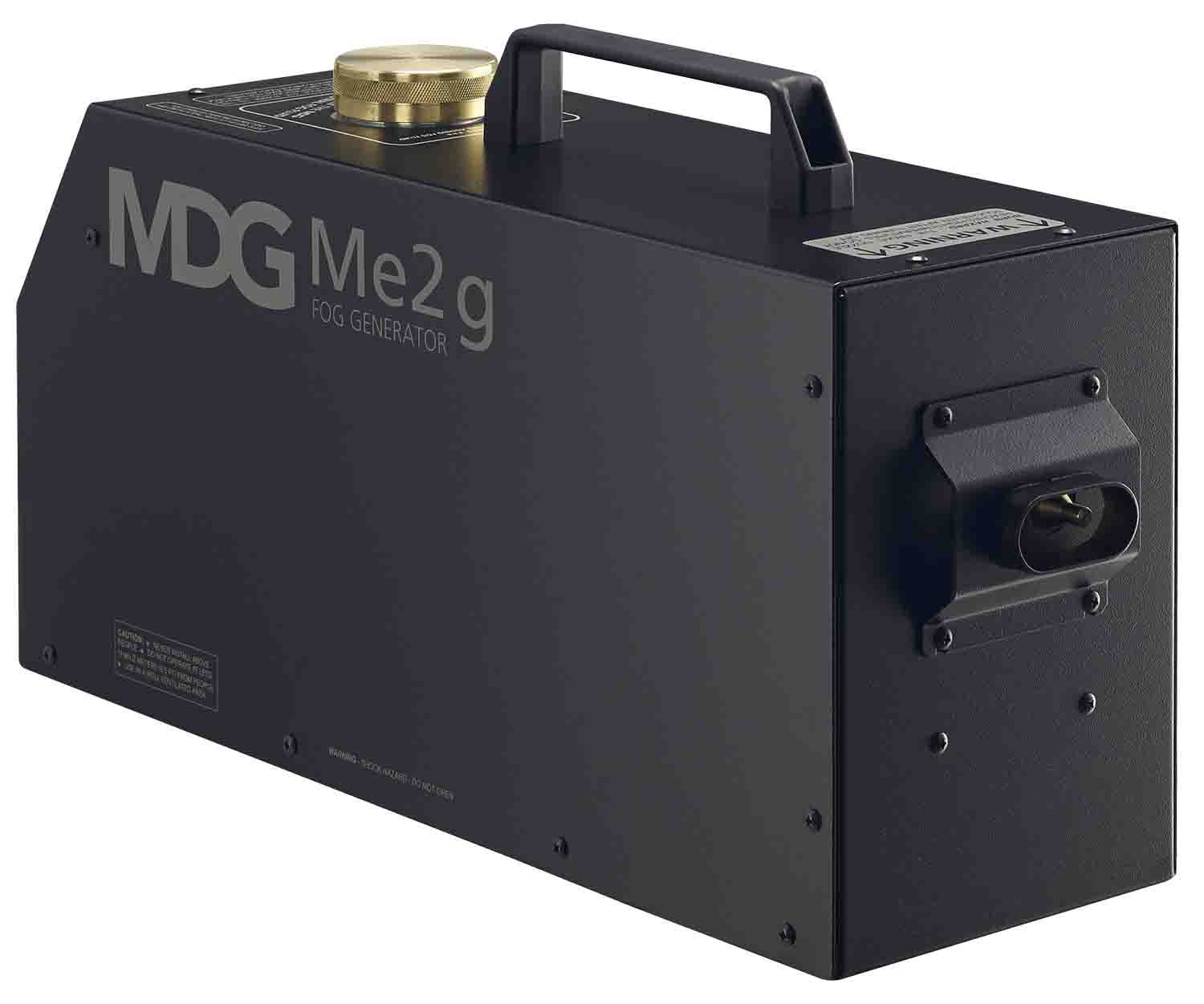

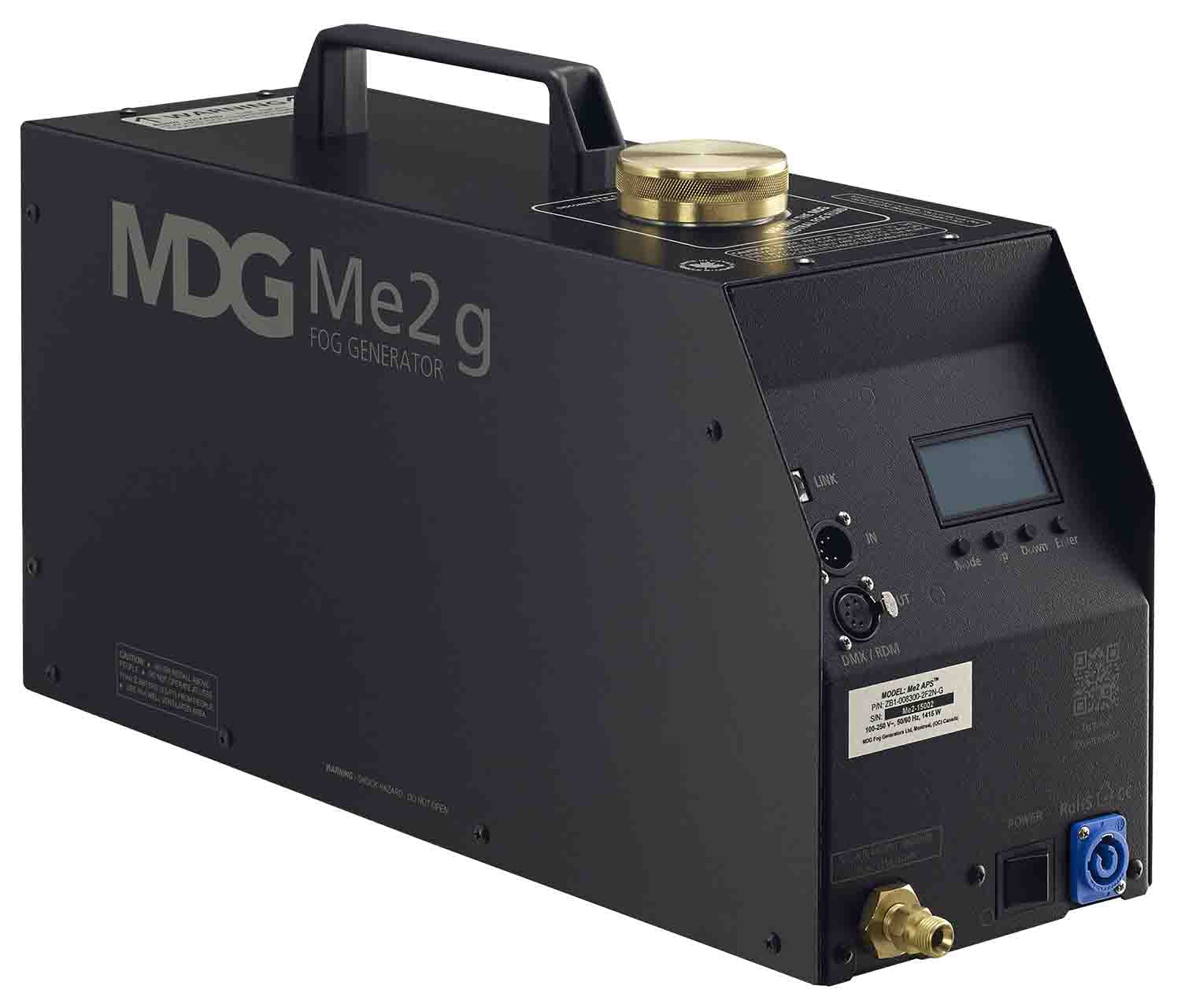

MDG Me2 Dual High Output Fog Generator

The MDG Me2 Dual High Output Fog Generator is the more powerful twin of the Me1, housed in the same size chassis but with twice the power (and two nozzles)

Variable Fog Output

0-100% fog output control from your DMX/RDM device, or direct local control.

Fluid Consumption

At maximum output (2.76 bar / 40 psi) Me2 uses only 2 L (0.53 US gallon) of fluid per hour.

100% Duty Cycle

At all output levels Me2 produces a high-quality, consistent fog as long as there is fluid and gas.

Numerous Control Options

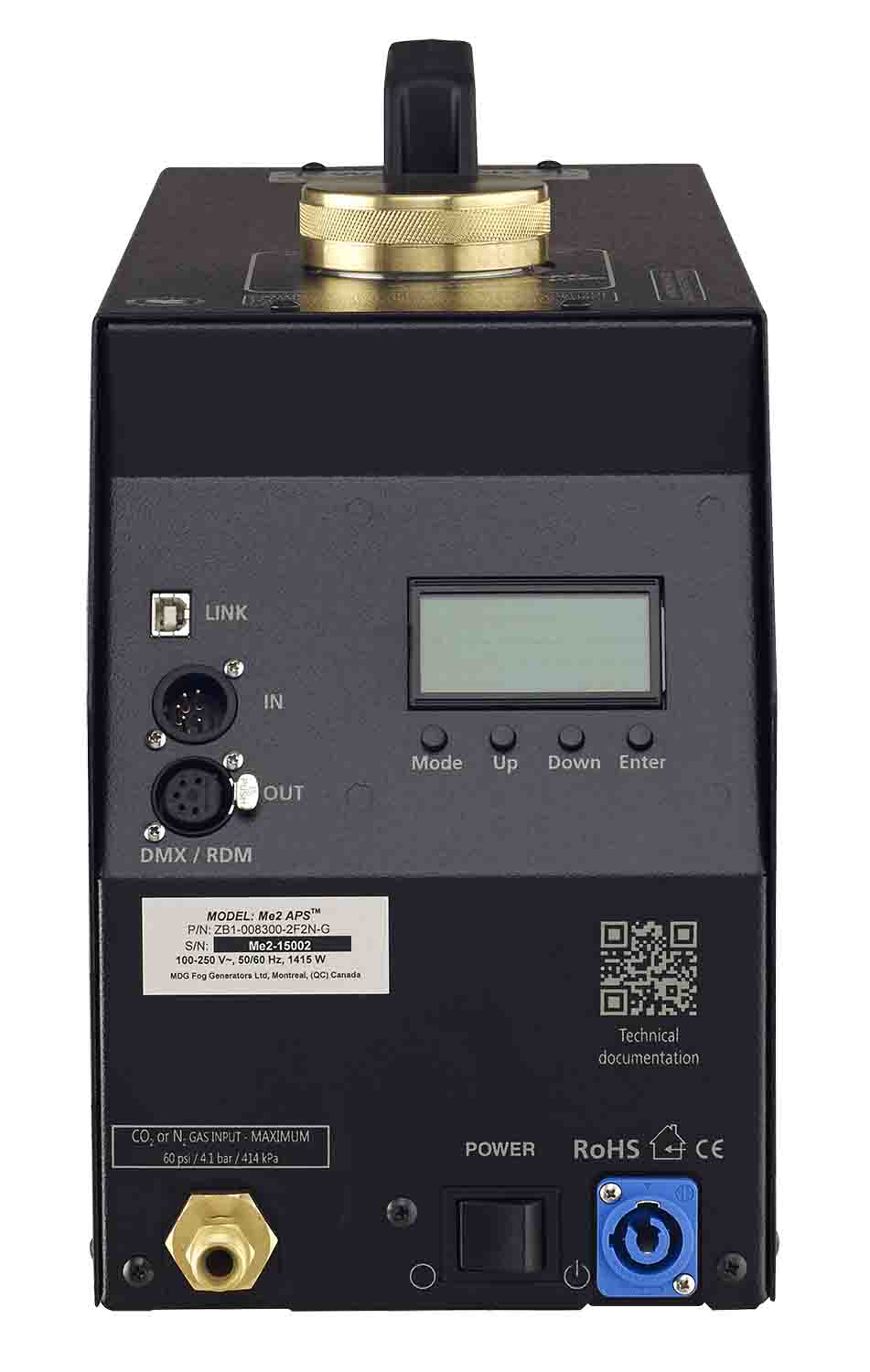

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Aps (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

Dual Fog Output

With its two nozzles, the maximum fog output is 200 m³ (7,063 ft³) per minute.

Product Specifications:

Maximum Fog Output: 200 m³ (7,063 ft³) per minute

Fluid Consumption: 2 L (0.53 US gallon) per hour at 2.76 bar/40 psi

Gas Type: CO₂ or N₂

Gas Consumption: 2.68 kg (5.90 lb) per hour at 2.76 bar / 40 psi

Reservoir Capacity: 2.5 L (0.66 US gallon)

Fog Colour: Pure white

Particle Size: 0.5 - 0.7 micron

Warm-Up Time: 8 minutes (maximum)

Fluid Type: MDG Neutral

Length: 61 cm (24”)

Width: 18 cm (7”)

Height: 30 cm (12”)

Weight: 16.62 kg (35 lb)

Shipping Weight: 30.12 kg (64 lb) with flight case
