Description

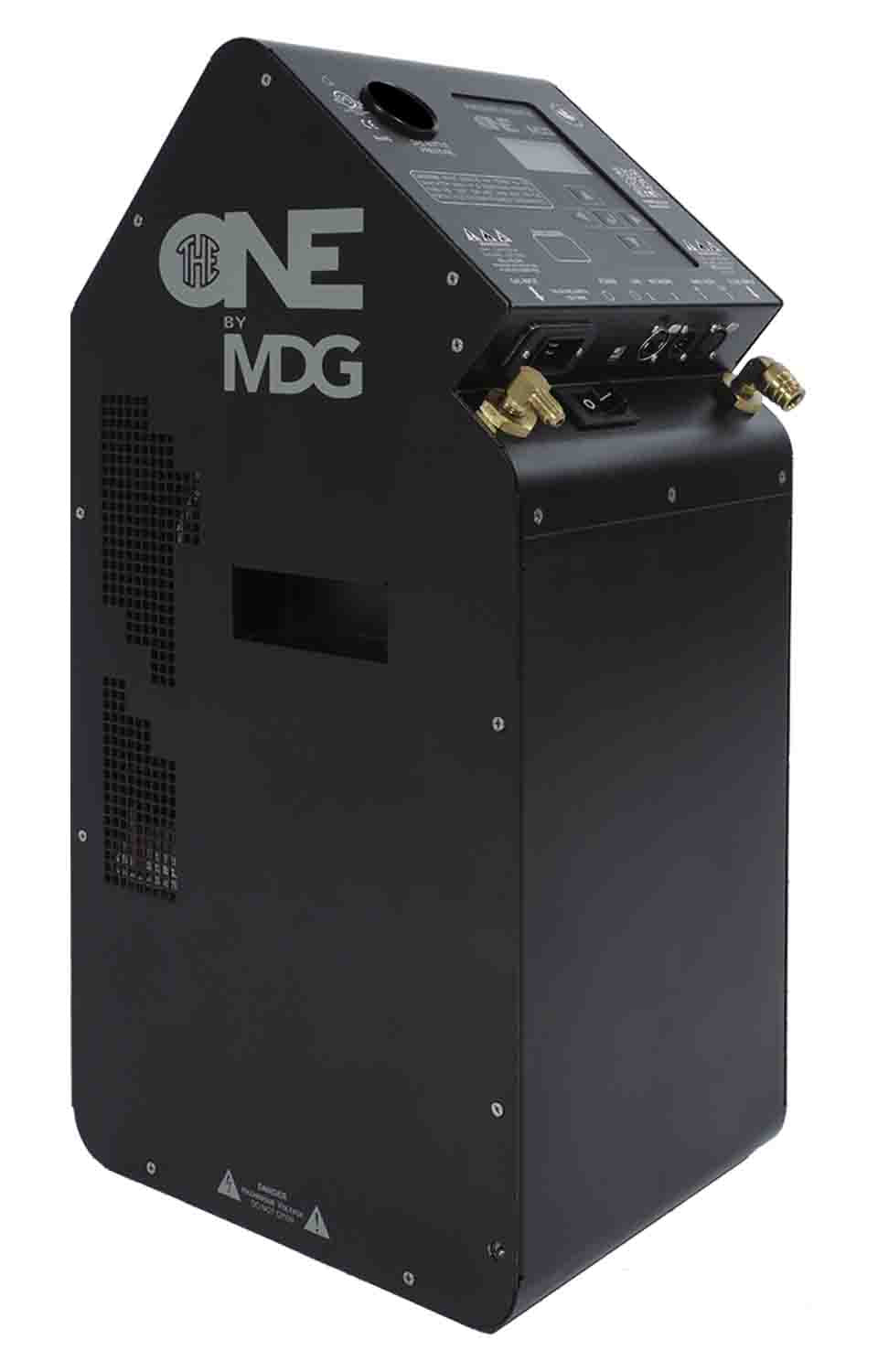

The MDG theONE Dual Fog or Haze Single High Output Generator creates fog or haze effects from a single source. Its construction and features make theONE, perfect for rental and international touring.
Dual MODEHAZE And Fog
Seamless switching between haze and fog modes. 100% duty cycle.
Aps (Automatic Purging System)
This system purges the heating module after the first heating cycle and after every emission of haze/fog preventing residual build up and clogging.
Networking Capabilities
the one is the first atmospheric generator with networking capabilities. It can be controlled through its DMX/RDM connector or RJ45 node (Pathport embedded, ACN, ART-Net, ETCNet 2 & 3 and SHOWNet protocols). USB 2.0 Link connector for updates.
Ars (Automatic Refill System)
Specially designed to give maximum, consecutive, non-stop hours of haze/fog without interruption, theONE automatically refills its internal fluid reservoir from our external 20 L (5.3 US gallons) container of MDG Neutral fluid as required.
Integral Touring Fan
External dual-position, adjustable fan with dedicated control channel which travels in its own compartment within the touring cradle. Can be mounted above or below haze/fog output to adjust directional flow.
Total Running Time
theONE, running at full intensity, will generate 308 hours of haze and 20 hours of fog from its 20 L (5.3 US gallons) fluid container. Gas bottle will need to be changed at 50 hours for haze and 15 hours for fog. This can be done during operation without interruption of fog or haze emission.
Operating Voltage
theONE is unique in being the only atmospheric generator to offer automatic detection of universal voltage rating from 100-250 VAC, 50/60 Hz, single phase.
Touring Cradle

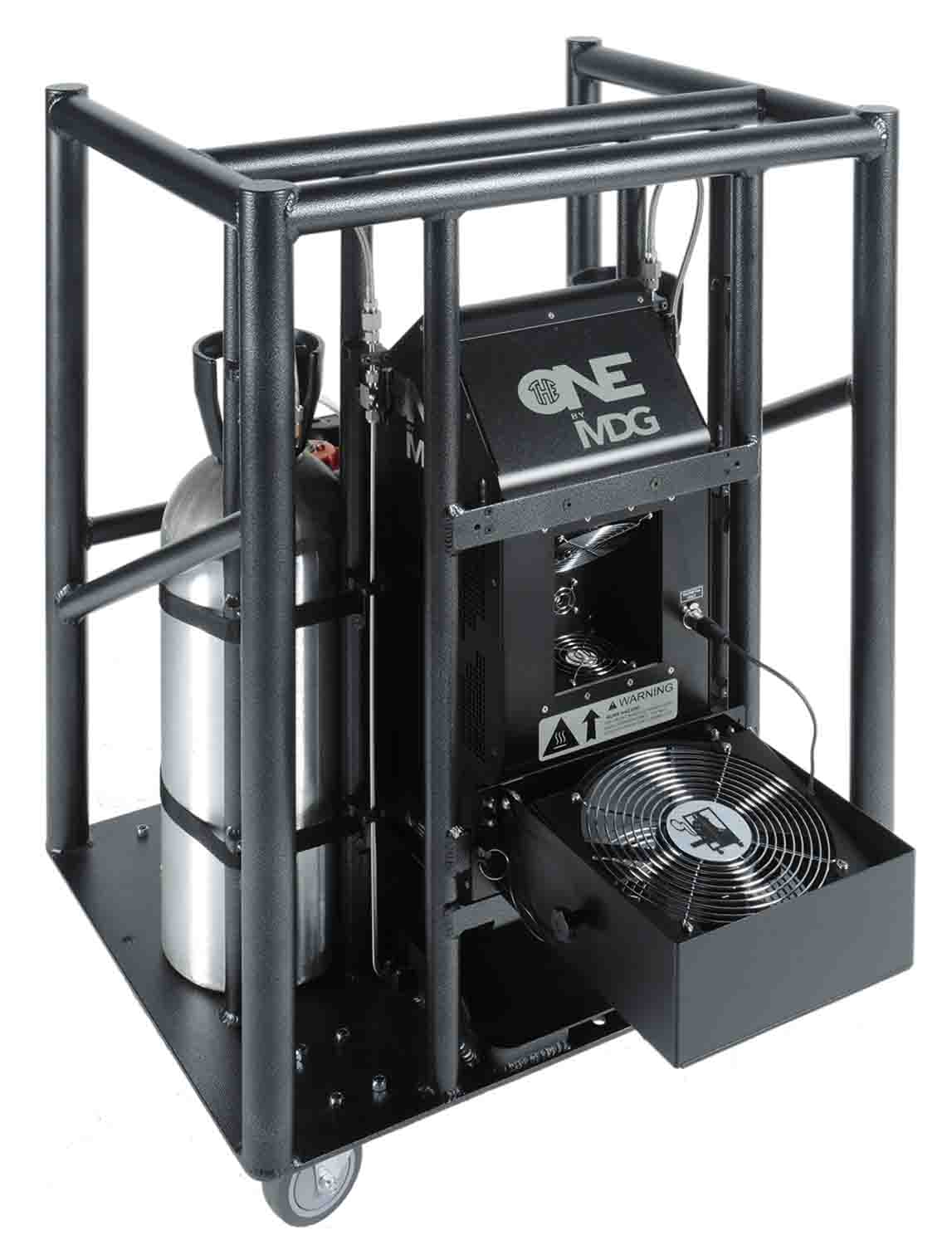

theONE cradle contains the generator, its fan and a convenient tool drawer, and accommodates our 20 L (5.3 US gallons) fluid container and, uniquely, all known sizes of 9 kg (20 lb) CO2 or N2 gas bottle, within a single robust aluminium frame.
Product Specifications:
Fluid Consumption: 65 ml (2.20 oz) at 2.07 bar (30 psi) per hour / max output
Haze Volume Control: Yes - variable
Gas Consumption (CO2 or N2): 0.35 kg (0.77 lb) per hour / max output
APS (Automatic Purging System): Yes - standard
Haze Colour: Pure white
Particle Size: 0.5 - 0.7 micron
Total Running Time: 308 hours (50 hours – gas) 20 L (5.3 US gallons) container, full intensity
Fluid Type: MDG Neutral
Operating Voltage: 100 - 250 VAC, 50/60 Hz
Power Consumption: 1100 - 1480 watts
Approval: CE certified, CSA, UL approved
Warm-Up Time: < 8 minutes
Weight: 23 kg (50 lb)
Shipping Weight: 25 kg (55 lb)
DMX: Yes, input-output
RJ45: Yes – ACN

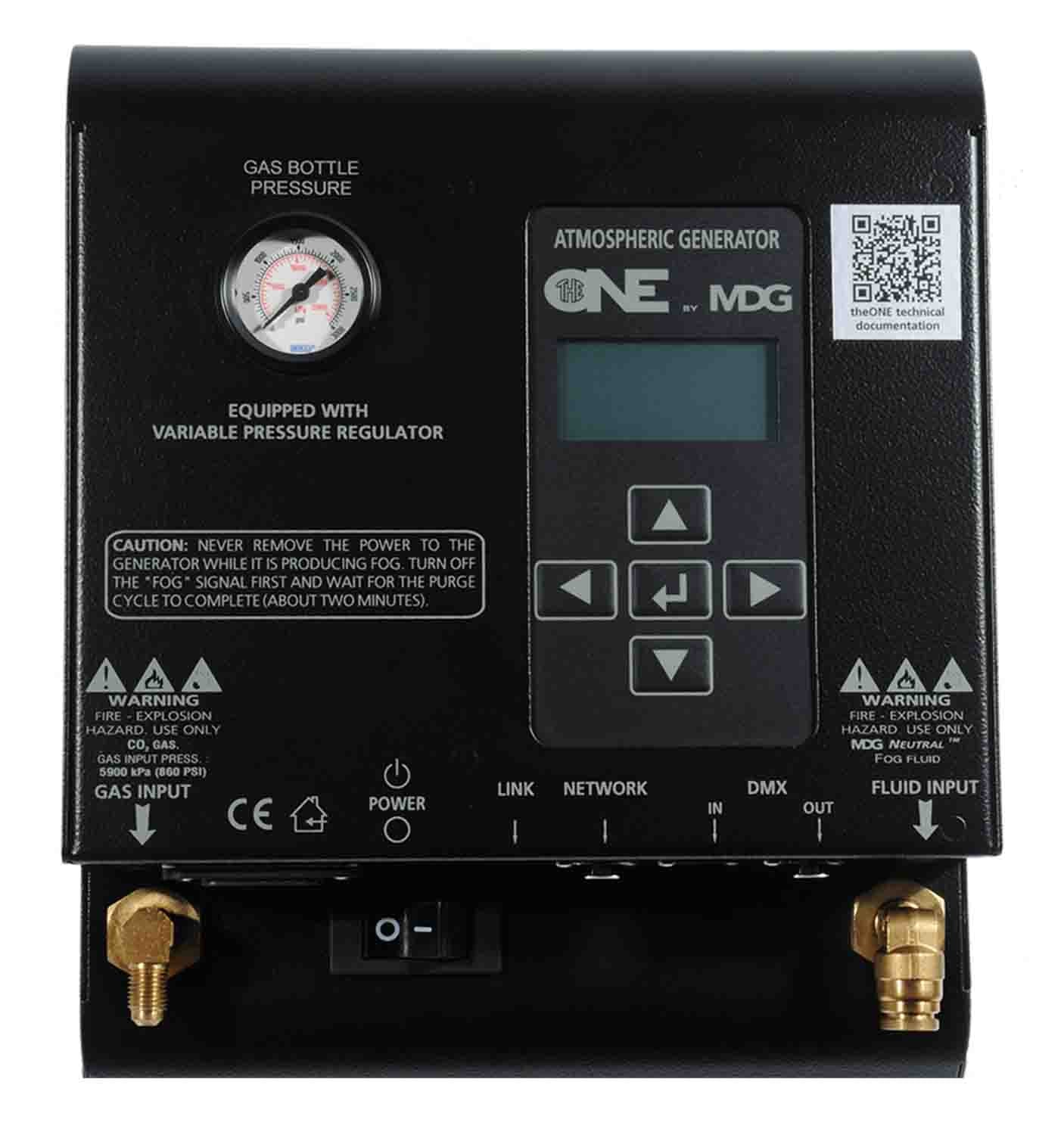

Display: LCD, backlit, 5-button command
Height: 61 cm (24”)
Width: 25 cm (10”)
Depth: 30 cm (12”)
