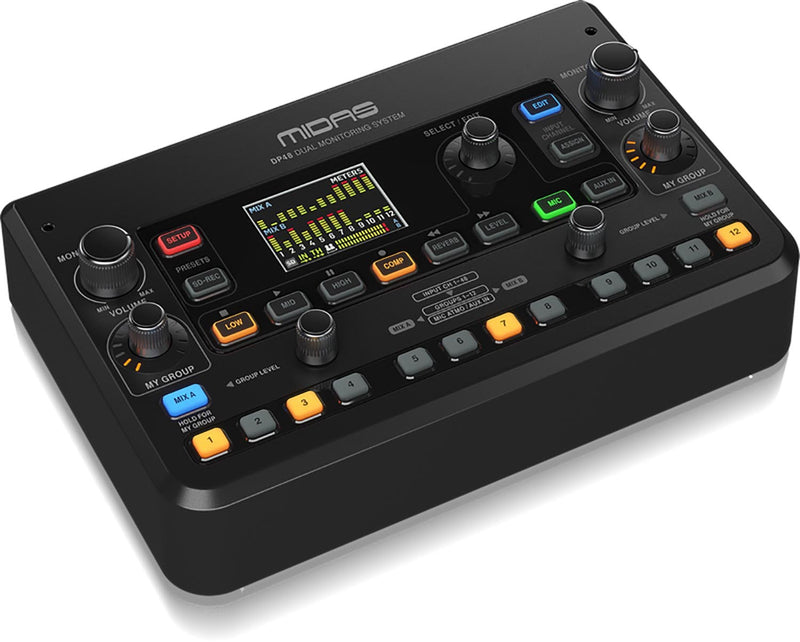

Midas DP48, Dual 48 Channel Personal Monitor Mixer with SD Card Recorder

The Midas DP48, a compact personal monitor mixer with an integrated stereo SD card recorder. Compatible with 44.1/48 kHz AES50-equipped devices such as Midas and Behringer digital consoles and I/O boxes, the DP48 accepts up to 48 input channels via a single etherCON input and lets you create two independent mixes.

12 stereo groups enable the rapid creation and balancing of personal mixes from fully configurable stem groups. The dual mix feature allows independent control of two complete monitor mixes. Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances.

The built-in stereo ambiance microphone provides on-stage sound feed to remove a sense of isolation with in-ear monitors. Studio-quality reverb adds spatial ambiance to personal in-ear mixes, independent from the main console. Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet (PoE). Separate DC power supply allows daisy-chaining of DP48 personal monitor mixers and uses without any PoE hub.

Compatible with any 44.1/48 kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes.

Product Specifications:

Power Supply AES50 input: PoE (IEEE802.3af)

Power Consumption: max. 14 W (with DC adaptor)

Mains Connection: External power supply 24 VDC / 600 mA (included)

Dimensions (H x W x D): 69 x 242 x 164 mm (2.72 x 9.53 x 6.46")

Weight: 1.3 kg (2.9 lbs)
