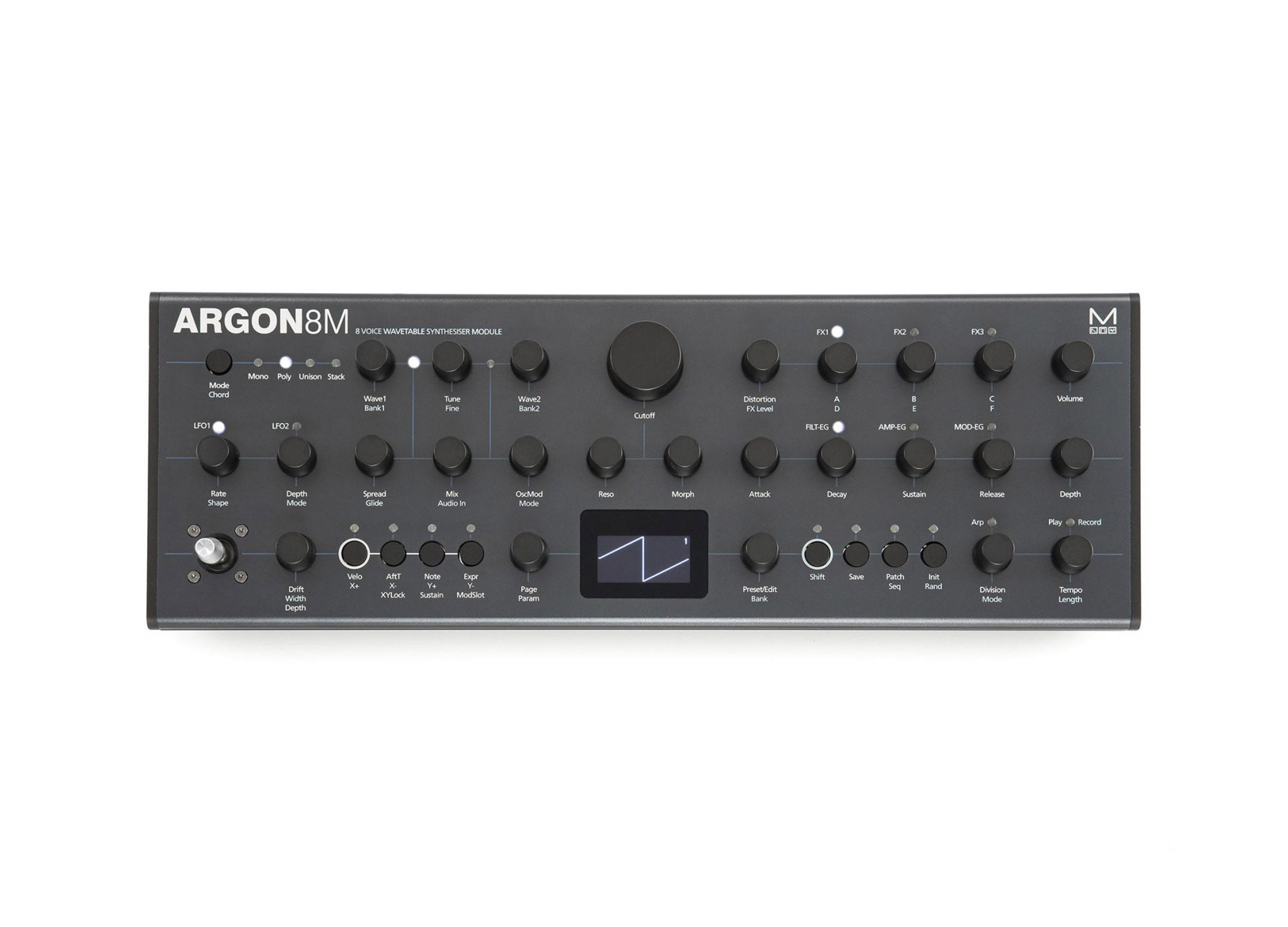

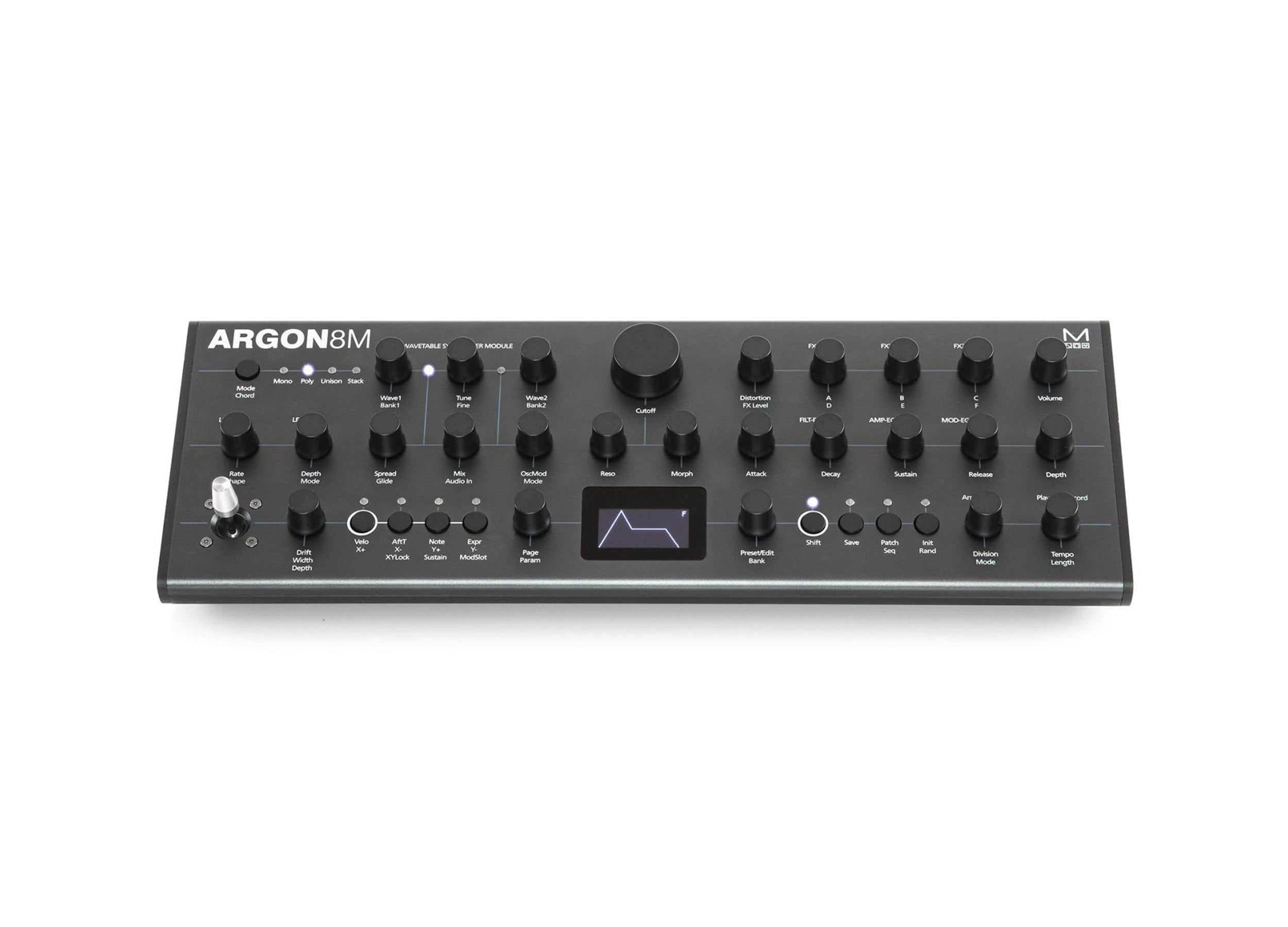

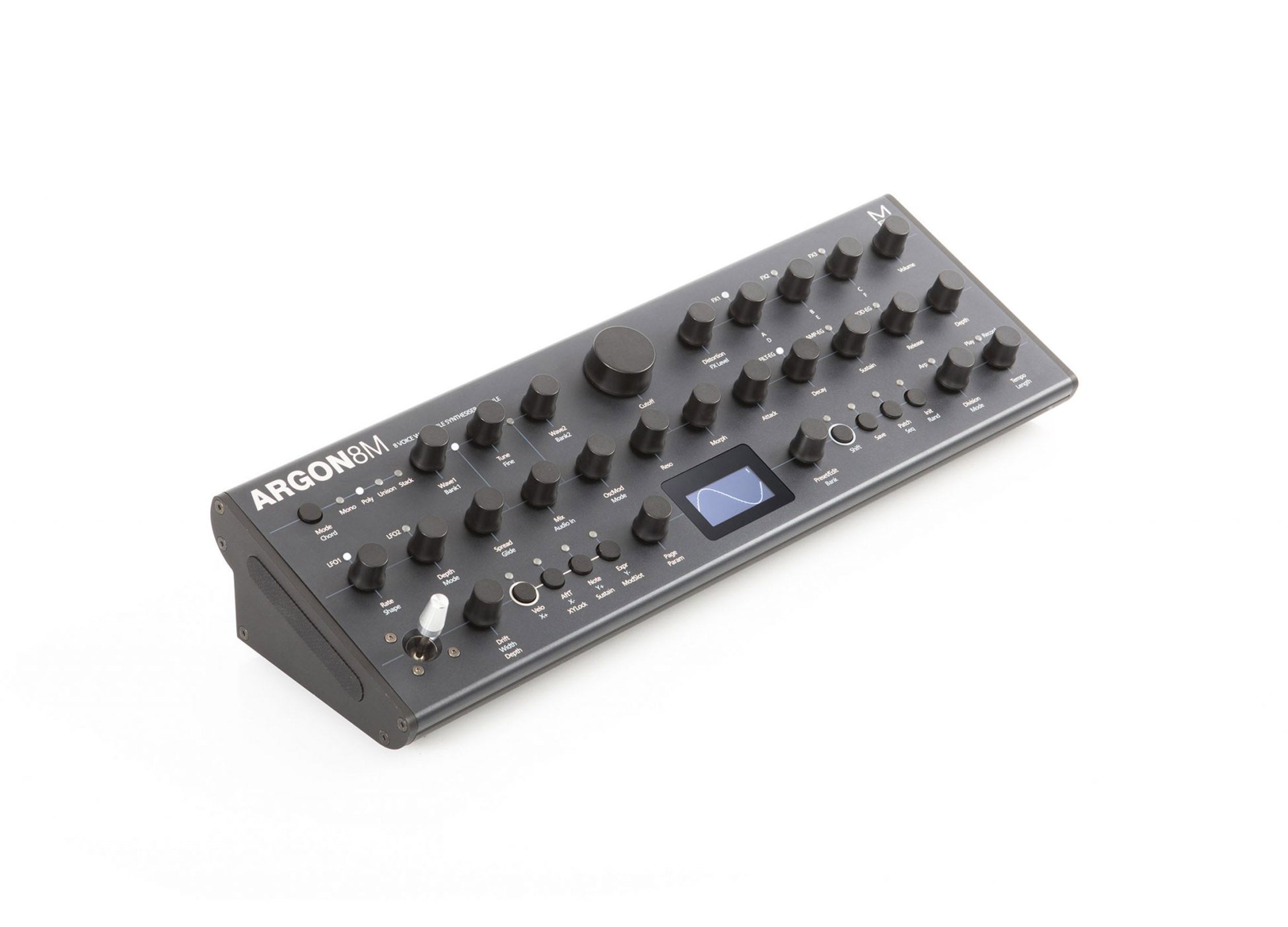

Modal ARGON8M Polyphonic Wavetable Synthesizer Module

The Modal Electronics ARGON8M Polyphonic Wavetable Synthesizer Module is sophisticated wavetable synth engine generates thousands of different sonic combinations with its seamless waveform morphing feature. Explore ambient evolving textures, classic pads and modern chords, brutal basses, dark drones and psychedelic noise textures - ARGON8M is a true sound designer’s playground. Process and cross modulate the waves using either the 32 static wavetable modifiers and unlock additional wavetable variations. The Vintage and Oscillator Free Run parameters allow to alter the organic fabric of the wavetable textures by emulating the behaviour of vintage synths’ behaviours, and let digital wavetable patches sound more analogue than ever. With ARGON8M, virtually every sound imagination comes to life.

Synth Extravaganza

Eight morphable filter types deliver contemporary and classic options to shape your sounds in every direction. With multiple 2-Pole and 4-Pole filters available, drastic or subtle changes in the sonic wavetable content is at your fingertips. Two flexible audio-rate (1x polyphonic) LFOs can be routed to a huge number of destinations using the modulation matrix and sync to internal or external tempo. Three dedicated envelopes for the filter, amp and modulation provide excessive control over dynamics and expression. A sophisticated 12-slot modulation matrix supports easy assignments of complex modulation routes to keep the sound evolving. 4 common modulation routings are pre-set here to free up space for more interesting ideas.

On The Move

Bring performance to a new level with the integrated 512-note Realtime / Step Sequencer with 4 powerful Animation Lanes, that instils massive and complex transitions to the sound in a way that LFOs and Envelopes simply won’t provide. The polyphonic 64-note step sequencer mode enables easy step input for note and animation values to create exciting melodic patterns.

Multiple sequencer trigger modes coupled with the powerful onboard arpeggiator (programmable up to 32 steps) and performance features such as Chord hold, Inversions, Transpose, Sustain Latch and the Joystick turn the ARGON8M wavetable synth a performers and players dream.

Desktop or 19" Rack

ARGON8M’s professional approach to serious artists finds perfect expression in the rugged steel and aluminium chassis. The desktop design fits on every producer’s table. Included rackmounts help to mount ARGON8M into a live or studio rack. For direct access of the parameters, ARGON8M features 13 switched encoders, 13 encoders, 9 buttons, and an X/Y joystick for pitch and modulation.

Polish your Sounds with Effects

Reshape your sounds completely with the onboard stereo effects engine. ARGON8M’s 3-slot FX engine enables in-depth programming and can combine up to 27 FX algorithms to add character and depth to your sound, including Distortion (waveshaping overdrive), Drive, multiple Chorus and Phaser variants, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and multiple dense and spacious Reverbs.

Connects Anywhere

With a comprehensive set of connections, ARGON8M feels home in every environment. Control the synth using USB, monitor with headphones or using the dedicated line outputs, sync with external gear using the full-size MIDI in and out or the 3.5 mm Sync in or outputs and take control of your sound using the built-in Sustain and Expression inputs. Expanding the sound of ARGON8M is possible by polychaining any two ARGON8 units for 16 voices and 64 oscillators.

Access all Areas

There is plenty of room to store patches, effects and sequence creations. Out of the box, 300 of the total 500 patches are filled with factory patch banks, carefully programmed by some of the most accomplished sound designers in the world. One hundred customised effects configurations and sequences can be stored as well to be applied to any sound while performing.

Product Specifications:

Polyphony: 8-voice

MPE: Yes

Joystick: 4-axis, assignable

Voice Modes: Mono, Poly, Unison 2/4/8, Stack 2/4

Glide: Legato and staccato modes

Chord Control: Invert function

Outputs: 2 x 1/4" TS line

Headphones: 1 x 1/4" TRS

Audio Input: 1 x 1/8" TRS stereo

MIDI I/O: DIN In/Out, USB MIDI

Sync I/O: 1/8" TS clock In/Out

Pedals: Sustain (1/4" TS), Expression (1/4" TRS)

Display: 1.54" OLED

Enclosure: Steel/aluminum desktop, rackmountable

Power: 9V DC, 1.5A center-positive

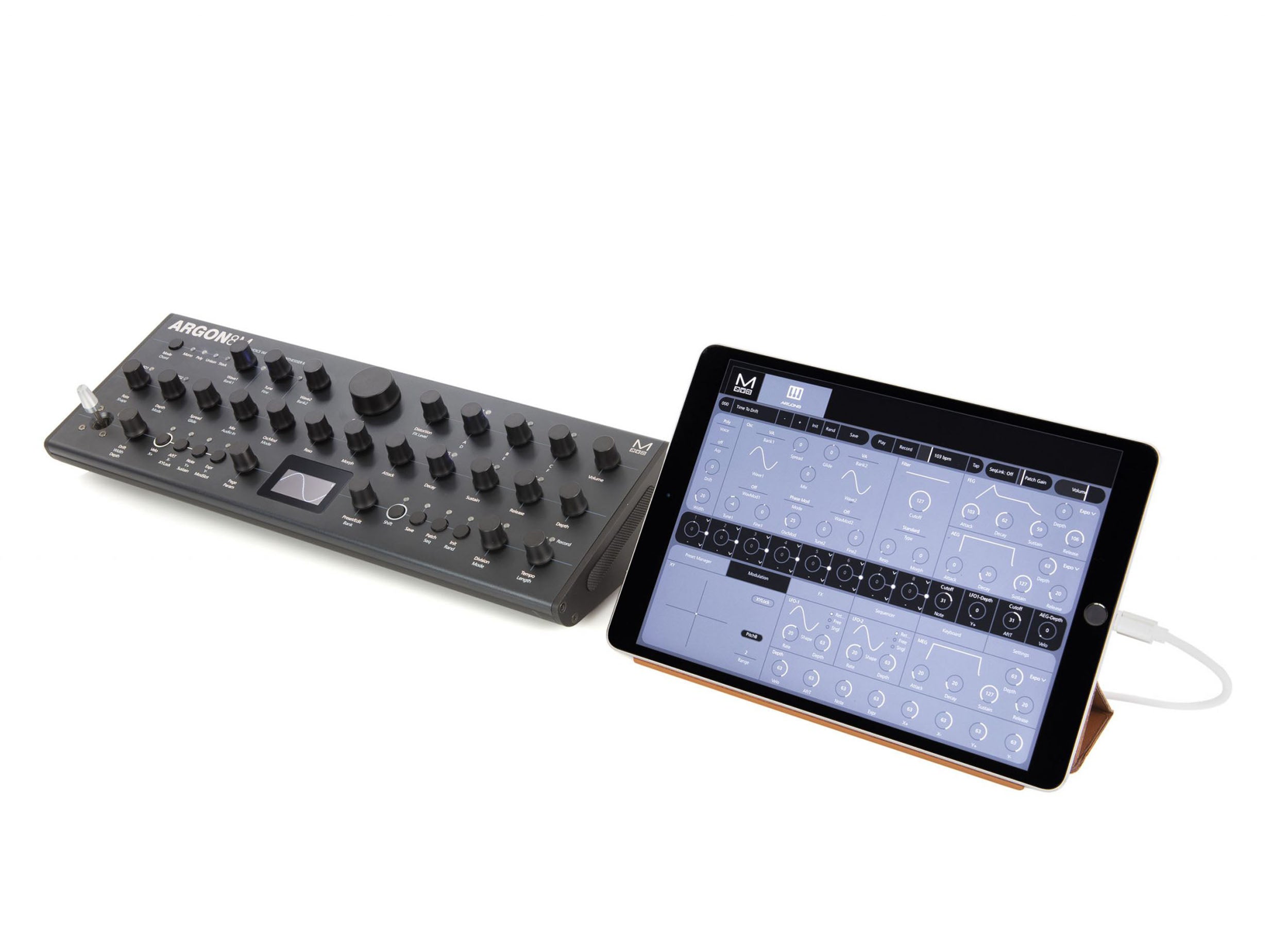

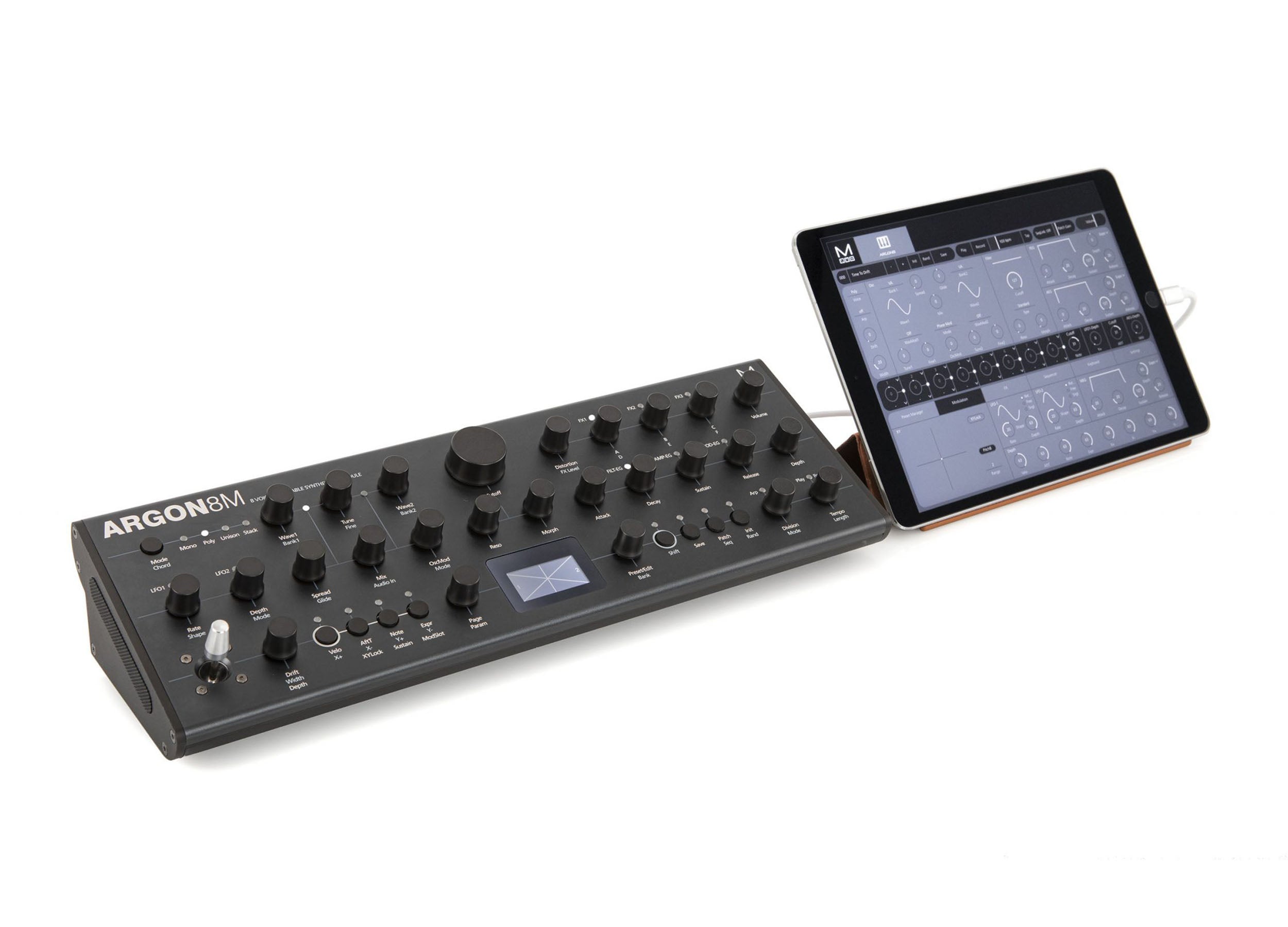

Software: MODALapp (macOS, Windows, iOS, Android, VST3/AU)

scillators: 32 high-resolution wavetable oscillators (4 per voice)

Wavetables: 180 total, 36 banks of 5 morphable sets

Oscillator Modifiers: 8 types including FM, Ring Mod, Hard Sync

Wavetable Modifiers: 32 static types

Vintage Mode: Voice Drift and Free Run

Filters: 8 types (Standard, Classic, Ladder, Hybrid, Phaser, Sallen-Key)

Envelopes: 3 (Amp, Filter, Mod)

LFOs: 2 audio-rate (1 poly, 1 global)

Mod Matrix: 12 slots, 11 sources, 52 destinations

Sequencer: 512-note real-time with 4 animation lanes

Step Sequencer: 64 steps, 8 notes per step

Arpeggiator: 32-step programmable

Effects: 3-slot stereo FX engine, 26 algorithms

Memory: 500 patches, 100 sequencer, 100 FX, 8 quick recall

Controls: 13 encoders, 13 switched encoders, 9 buttons

Product weight: 4.6 lbs.

Shipping Weight: 4.9 lbs.

Shipping Dimensions: 17 x 8 x 5″
