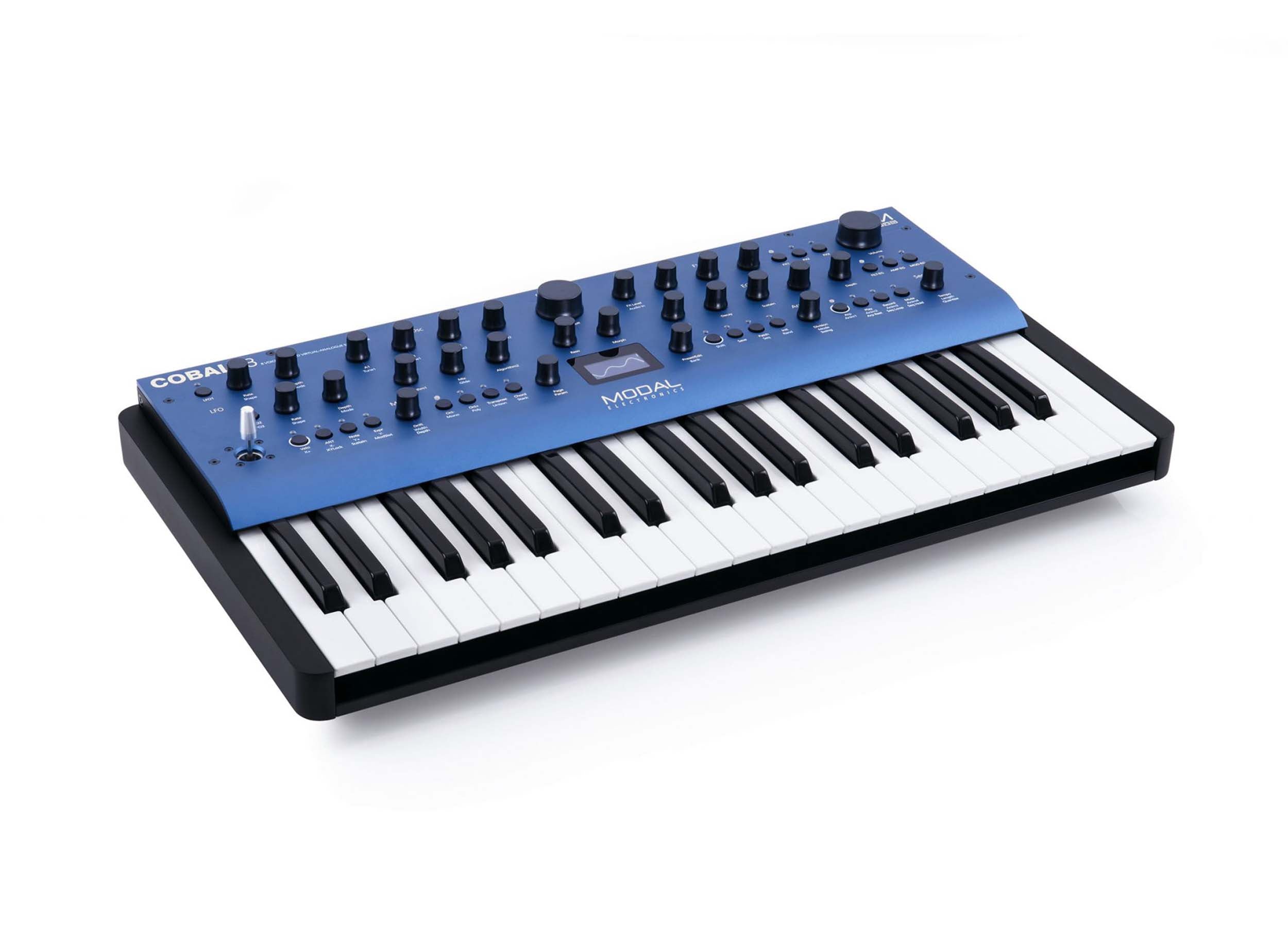

Modal COBALT8 37-Key Virtual Analog Synthesizer with 8-Voice Polyphony

The Modal COBALT8 37-Key Synthesizer delivers rich virtual-analog sound with 8-voice polyphony and advanced sound-shaping power. Two independent oscillator groups with up to 4 oscillators each generate not only powerful virtual-analogue goodness, but like no other synthesiser before, 40 unique complex algorithms like Sync, Ring Modulation, Waveform Morphing, and many more are available to increase the creative options for new-generation synth sounds. Each Algorithm has a simple-to-use pair of controls selected to suit the particular algorithm or character, providing musicians the power of traditionally complex oscillator modulations or processes spontaneously.

Filter Extravaganza

COBALT8’s filter section contains a wide selection of over 30 different filter types to tastefully tailor the sonic content of the algorithms mix. Our advanced morphable 2-Pole-State Variable Filters and 4-Pole Ladder Filters provide incredible flexibility for unconventional as well as classic synth sounds. Various Lowpass, Bandpass and Highpass Ladder Filters with drive, combinations of traditional filter types with Notch characteristics, and much more unlock even more classic tones and expand COBALT8’s experimental capabilities with the more complex filter outputs to create sounds that no one could imagine before.

Shape your Sound

Three flexible audio-rate (2 x polyphonic) LFOs can be routed to a massive amount of destinations using the modulation matrix and sync to internal or external tempo. Three dedicated envelopes for the filter, amp and modulation allow excessive control over dynamics and expression. Switchable envelope types provide greater options to tailor the envelopes for specific sound purposes. COBALT8’s sophisticated 12-slot modulation matrix supports easy assignments of complex modulation routes to keep the sound evolving. Four common modulation routings are pre-set here to free up space for more exciting ideas.

Next-generation Sequencer and Arp

The integrated 512-note Realtime / Step Sequencer with four powerful Animation Lanes invites to compose massive and complex melodic patterns. The polyphonic 64-note step sequencer mode enables easy step input for note and animation values. Multiple sequencer trigger modes coupled with the powerful onboard arpeggiator (programmable up to 32 steps) and performance features such as Chord Hold, Inversions, Transpose, Sustain Latch.

It’s about Playing

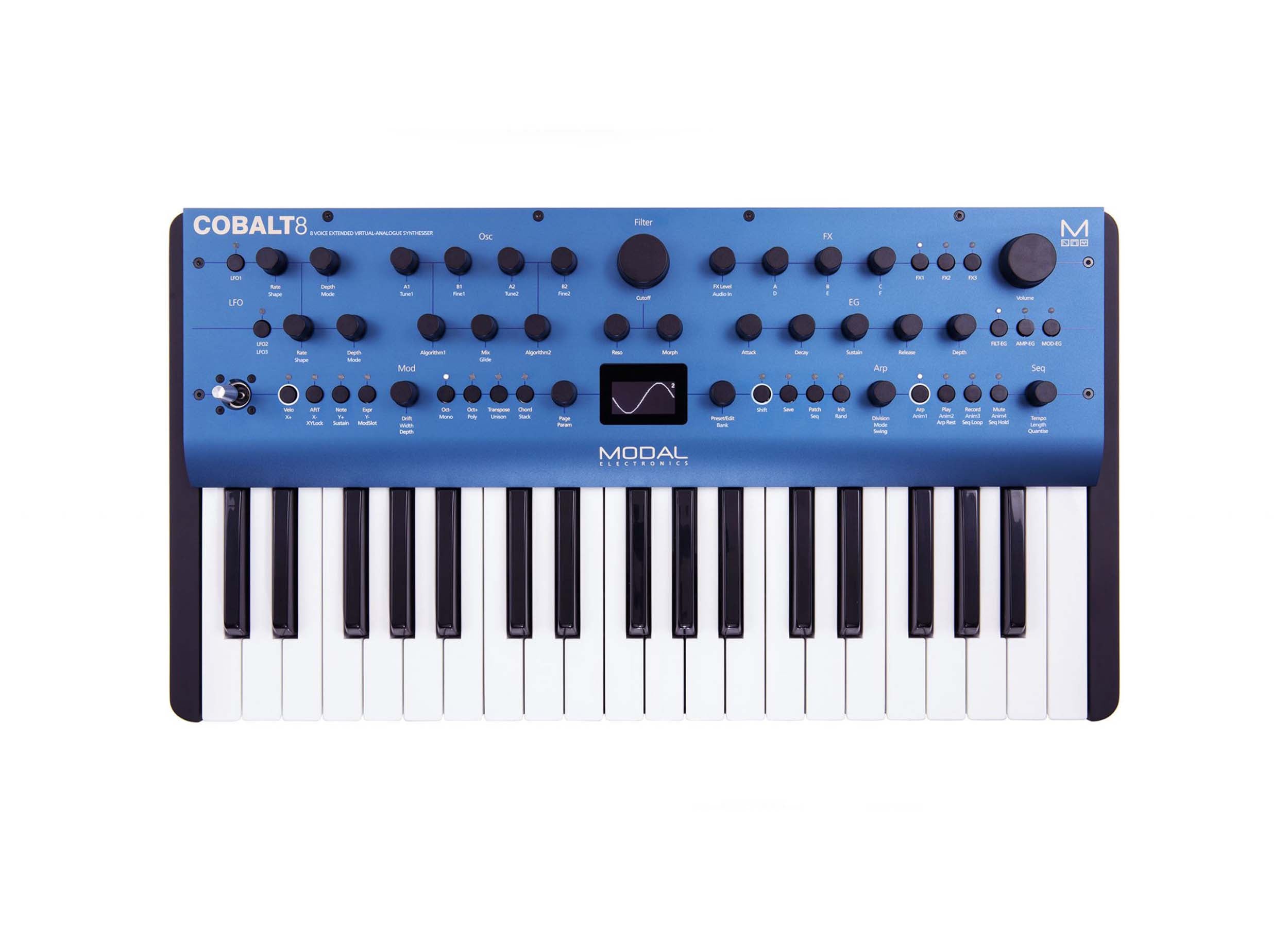

Professional keyboard players will love COBALT8’s rugged steel and aluminium chassis and the premium FATAR 37-note full-size key bed. The keys support channel aftertouch and deliver smooth action to express powerful playing performances. For direct access of the parameters, COBALT8 features 29 endless knobs, 24 buttons and an X/Y joystick for pitch or modulation, and MPE support offers new ways of creative expression for sophisticated performers.

Studio-grade FX included

Polish your sounds with the onboard stereo effects engine. COBALT8 comes with a 3-slot FX engine with in-depth FX programming. To round up your synth tone, 26 studio-grade FX algorithms add character and depth, including rich Reverbs, warm Chorus effects, swirling Phasers and Flangers, Tremolo, LoFi, Rotary, wide Delays, Equaliser, Compressor and more.

Looking to connect

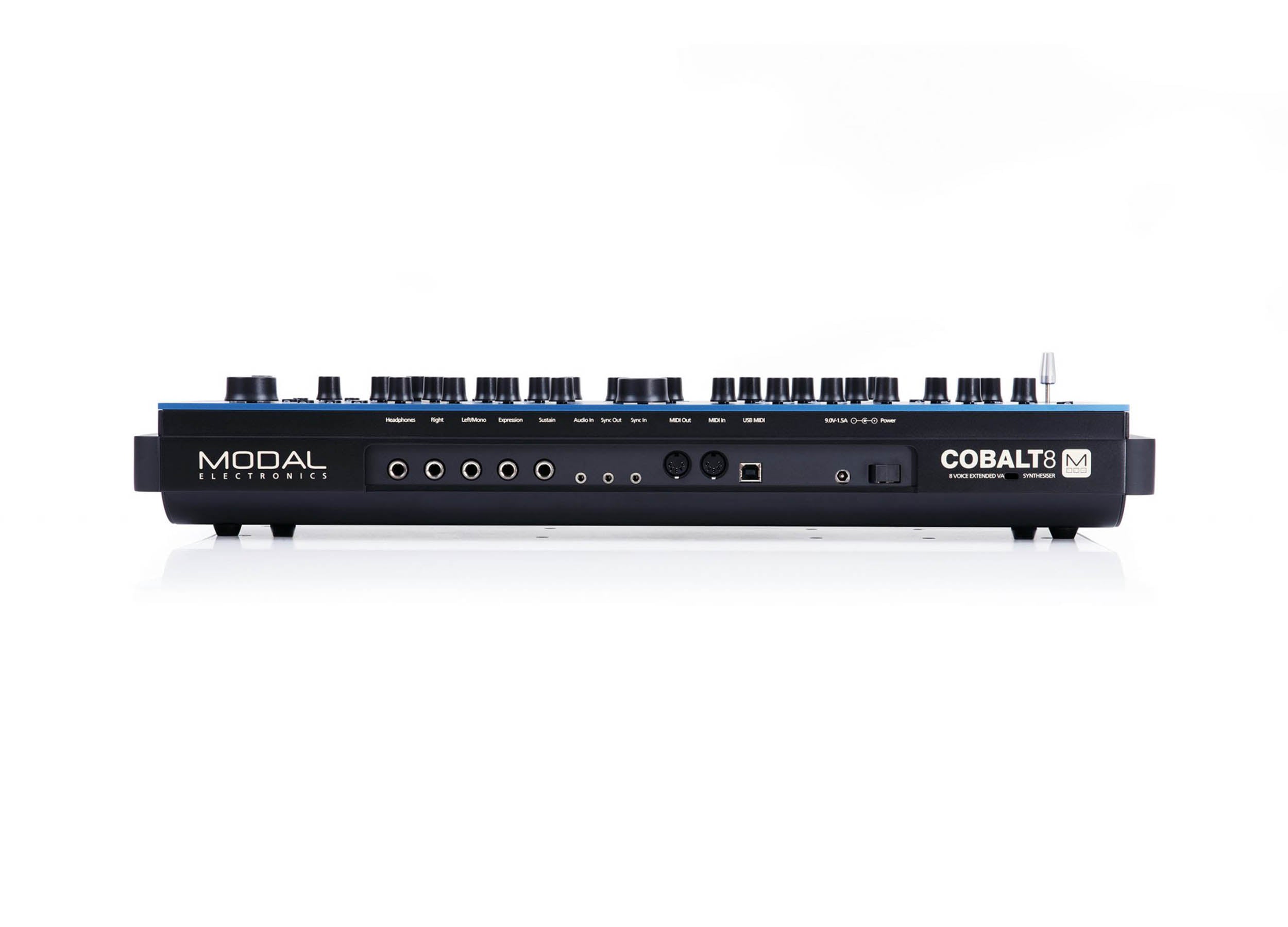

Set to be played in any synth environment, COBALT8 comes with all physical connections required. Control the synth using USB, monitor with headphones or using the dedicated line outputs, sync with external gear using the full-size MIDI in and out or the 3.5 mm Sync in or outputs and take control of your sound using the built-in Sustain and Expression inputs. By poly-chaining any two COBALT8 devices, the amount of voices is easily doubled to 16 voices and 128 oscillators.

Product Specifications:

Sound Engine: Virtual-analogue Oscillators, 8 per voice

Number of Keys: 37

Type of Keys: Fatar Full-sized Keys

Aftertouch: Yes

Other Controllers: X/Y Joystick

Polyphony: 8-voice

Presets: 300 x Factory Programs, 100 x FX Presets

Oscillators: 2 x Oscillator Groups

LFO: 3 x LFO, Tempo Sync, 7 x Shapes

Filter: 4-pole Morphable Ladder Filter with Resonance

Envelope Generator: 3 x ADSRD: Amp, Mod, Filter

Audio Inputs: 1 x 1/8" TRS (stereo)

Audio Outputs: 2 x 1/4" TS (L/mono,R)

Headphones: 1 x 1/4"

USB: 1 x Type B

MIDI I/O: In/Out/USB, MIDI Polyphonic Expression

Pedal Inputs: 1 x 1/4" TS (sustain), 1 x 1/4" TRS (expression)

Other I/O: 2 x 1/8" (sync in/out)

Number of Presets: 500 x Patch Memories, 8 x Quick Recall Slots

Waveforms: Sine, Triangle, Pulse, Sawtooth, PWM, Built-in Cross Modulation

Effects Types: 3 x Stereo FX Engines ; Chorus, Phaser, Flanger, Tremolo, Lo-Fi, Rotary, Stereo Delay, Ping Pong Delay, X-over Delay, Reverb

Arpeggiator: Programmable 32-step Arpeggiator, Up to 2048 steps before repeat

Sequencer: Real-time 512-note Sequencer, Polyphonic 64-step Sequencer, 8-notes per step, 4 x

Mod Matrix: 8 Assignable Slots, 4 Fixed Slots, 12 Sources, 55 Destinations

Features: MPE support, Glide/Portamento, Multiple Keyboard Modes (mono, poly, unison, stack and more)

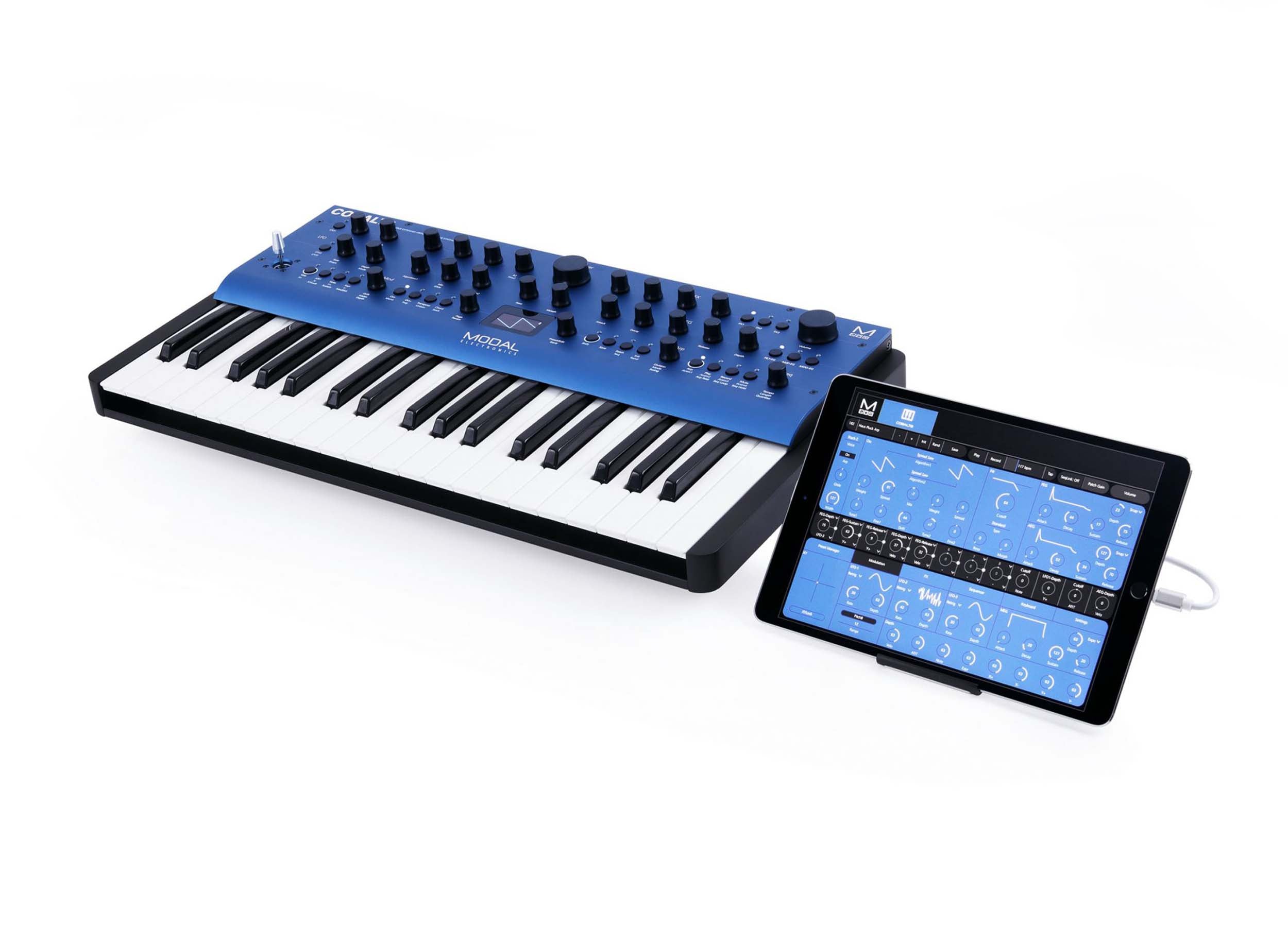

Software: MODAL app

Power Source: 9V DC 1.5A power supply (included)

Shipping Weight: 14.85 lbs.

Shipping Dimensions: 25 x 14 x 6"
