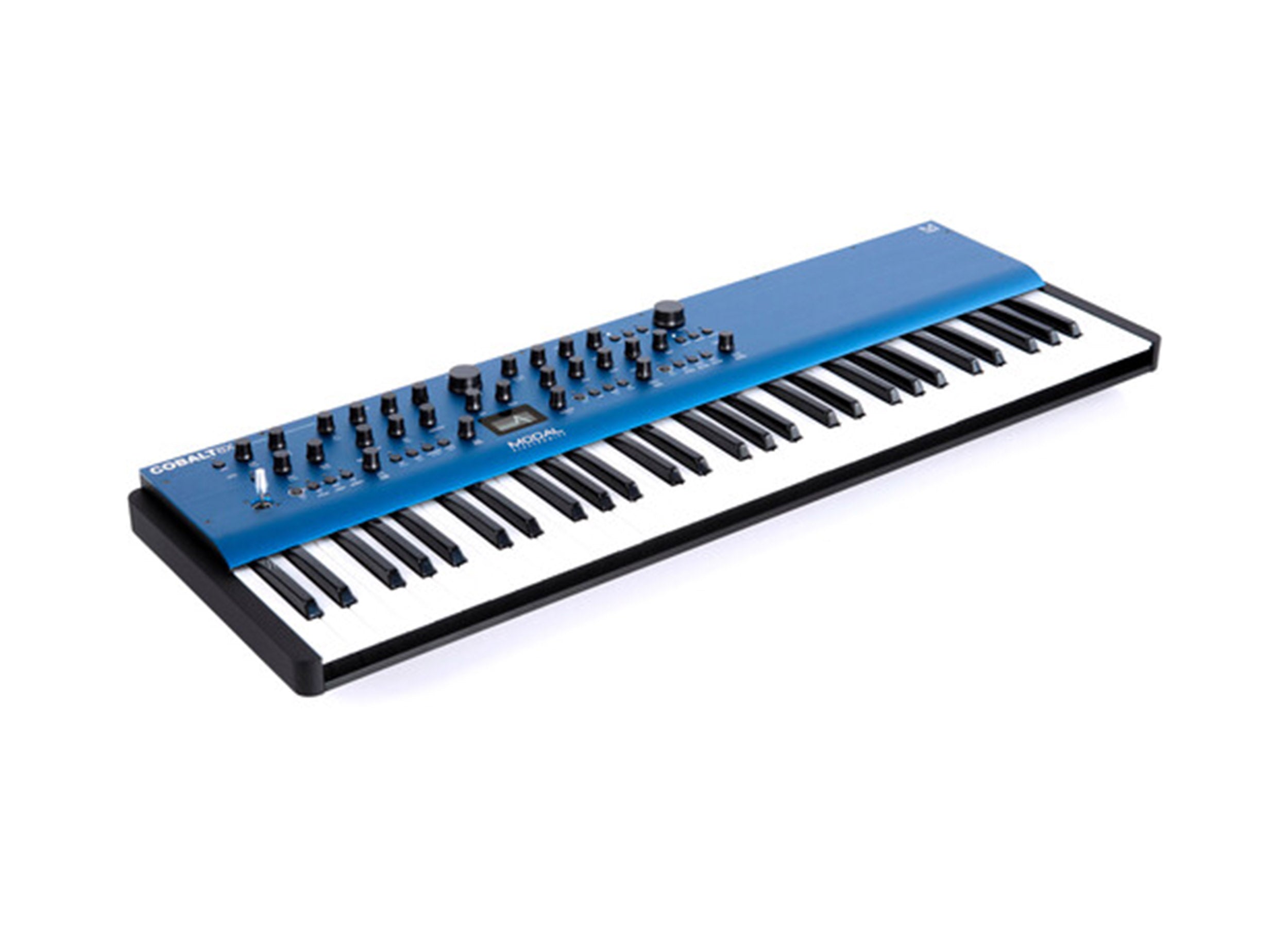

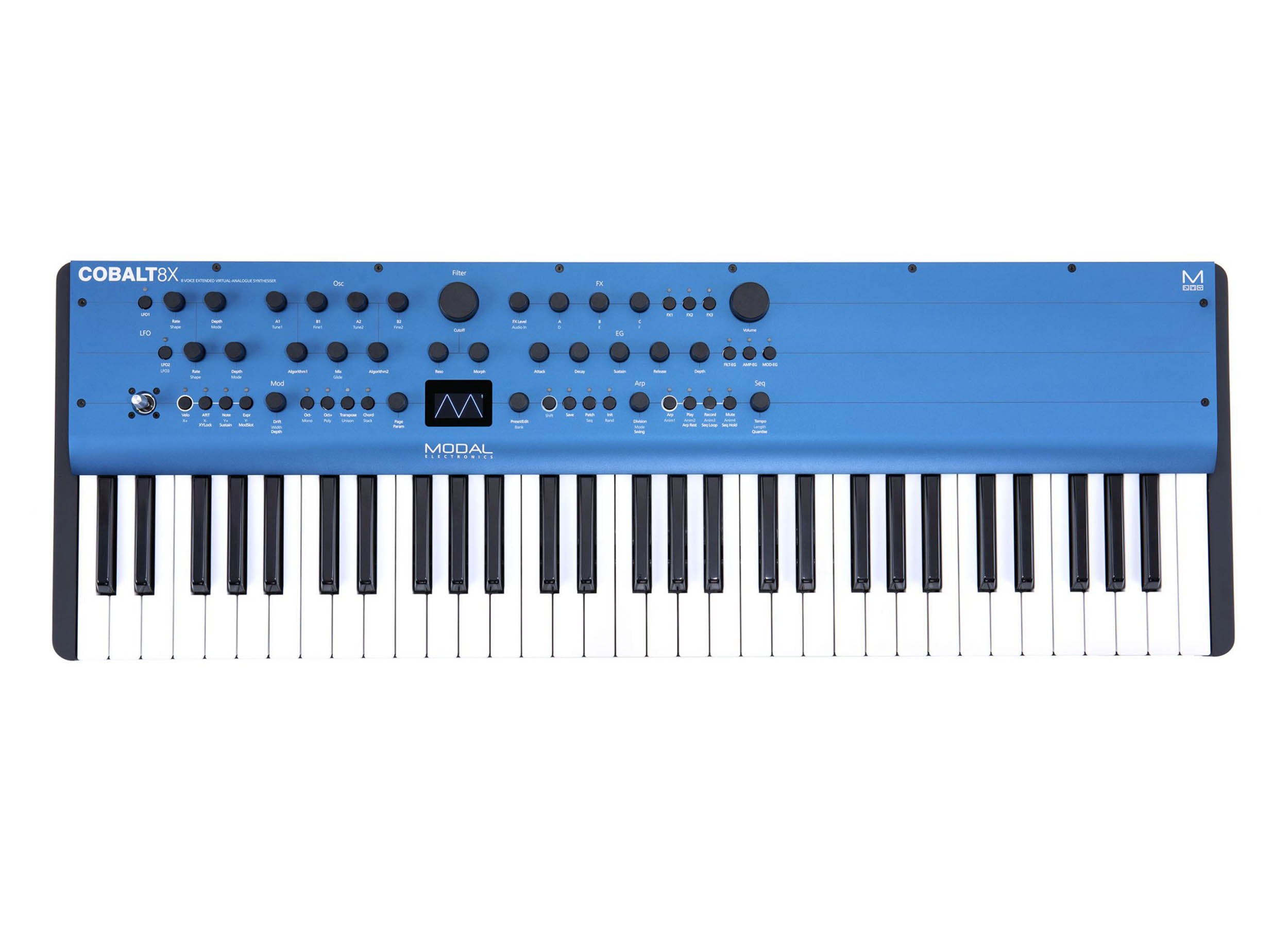

Modal COBALT8X 8-voice Extended Virtual Analog Synthesizer - 61 Key

The Modal COBALT8X 8-voice Extended Virtual Analog Synthesizer - 61 Key is delivers powerful virtual-analogue sound generation with two independent oscillator groups, each offering up to four oscillators. Unlike any other synthesiser before, it provides 40 complex algorithms including Sync, Ring Modulation, Waveform Morphing, and more, giving musicians endless creative possibilities for modern sound design. Each algorithm includes a simple pair of intuitive controls tailored to its unique character, allowing spontaneous access to deep and complex modulation processes with ease.

Filter Extravaganza

COBALT8X’s filter section contains a wide selection of over 30 different filter types to tastefully tailor the sonic content of the algorithms mix. Our advanced morphable 2-Pole-State Variable Filters and 4-Pole Ladder Filters provide incredible flexibility for unconventional as well as classic synth sounds. Various Lowpass, Bandpass and Highpass Ladder Filters with drive, combinations of traditional filter types with Notch characteristics, and much more unlock even more classic tones and expand COBALT8X’s experimental capabilities with the more complex filter outputs to create sounds that no one could imagine before.

Shape your Sound

Three flexible audio-rate (2 x polyphonic) LFOs can be routed to a massive amount of destinations using the modulation matrix and sync to internal or external tempo. Three dedicated envelopes for the filter, amp and modulation allow excessive control over dynamics and expression. Switchable envelope types provide greater options to tailor the envelopes for specific sound purposes. COBALT8X’s sophisticated 12-slot modulation matrix supports easy assignments of complex modulation routes to keep the sound evolving. Four common modulation routings are pre-set here to free up space for more exciting ideas.

Next-generation Sequencer and Arp

The integrated 512-note Realtime / Step Sequencer with four powerful Animation Lanes invites to compose massive and complex melodic patterns. The polyphonic 64-note step sequencer mode enables easy step input for note and animation values. Multiple sequencer trigger modes coupled with the powerful onboard arpeggiator (programmable up to 32 steps) and performance features such as Chord Hold, Inversions, Transpose, Sustain Latch.

It’s about Playing

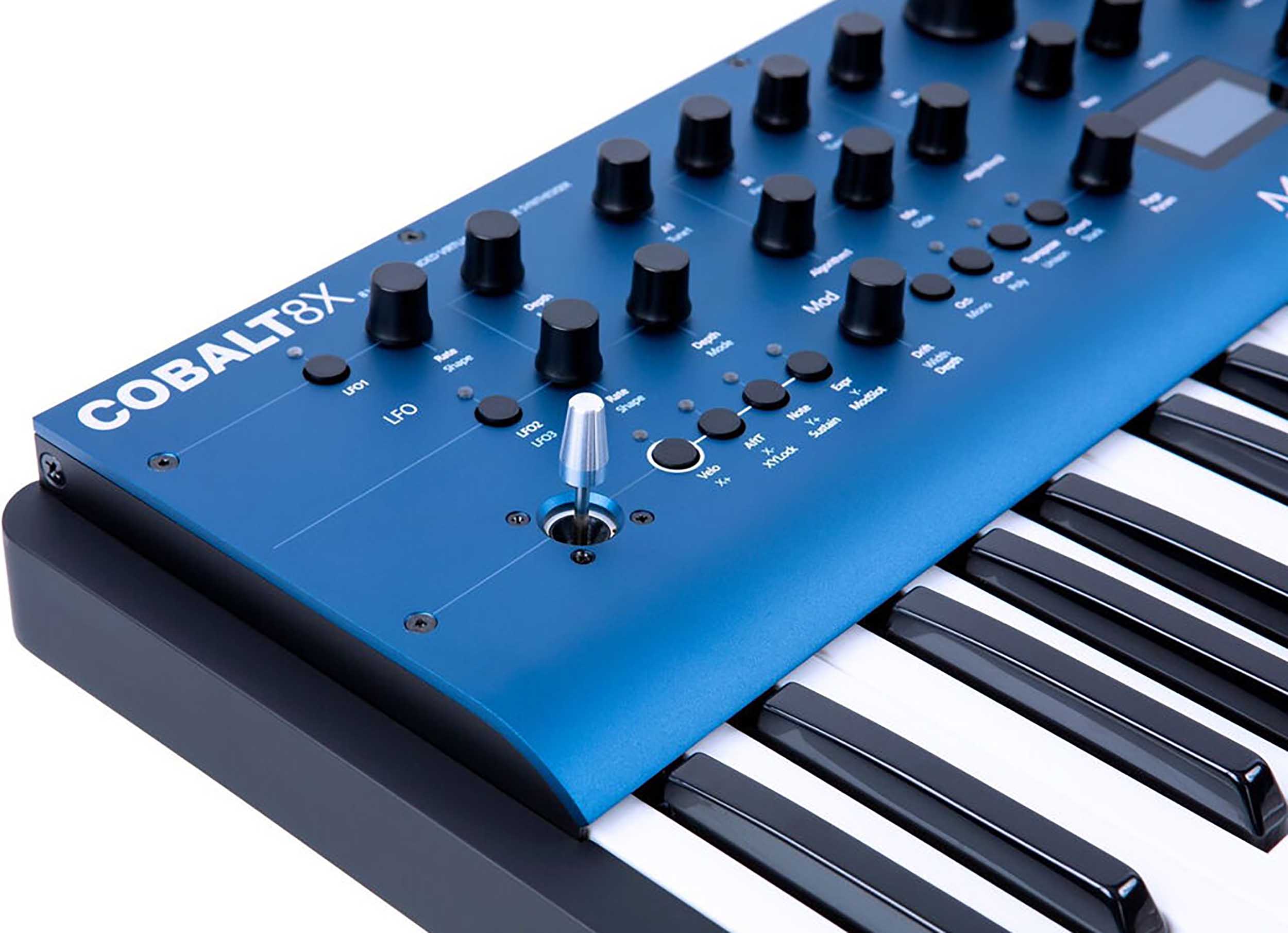

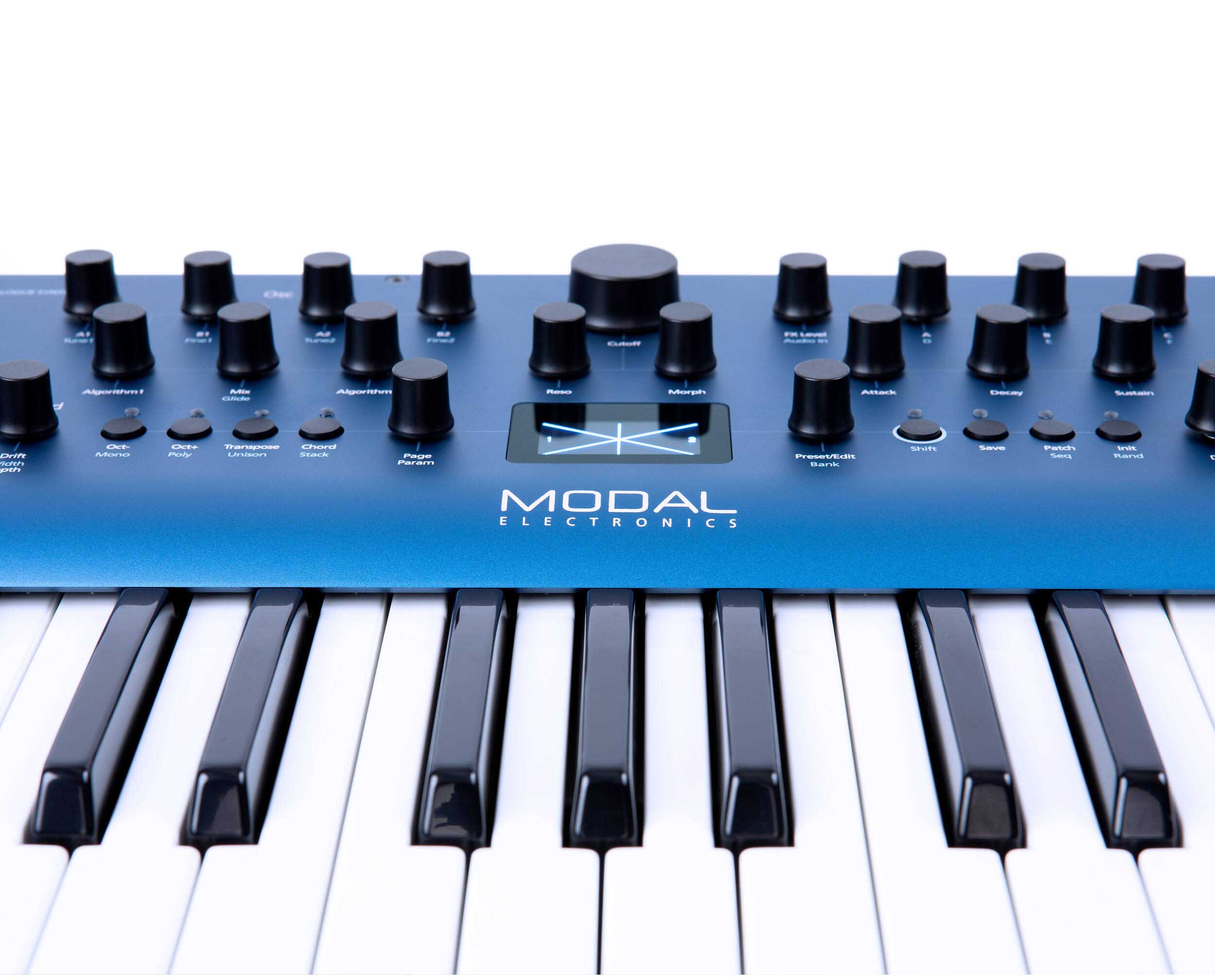

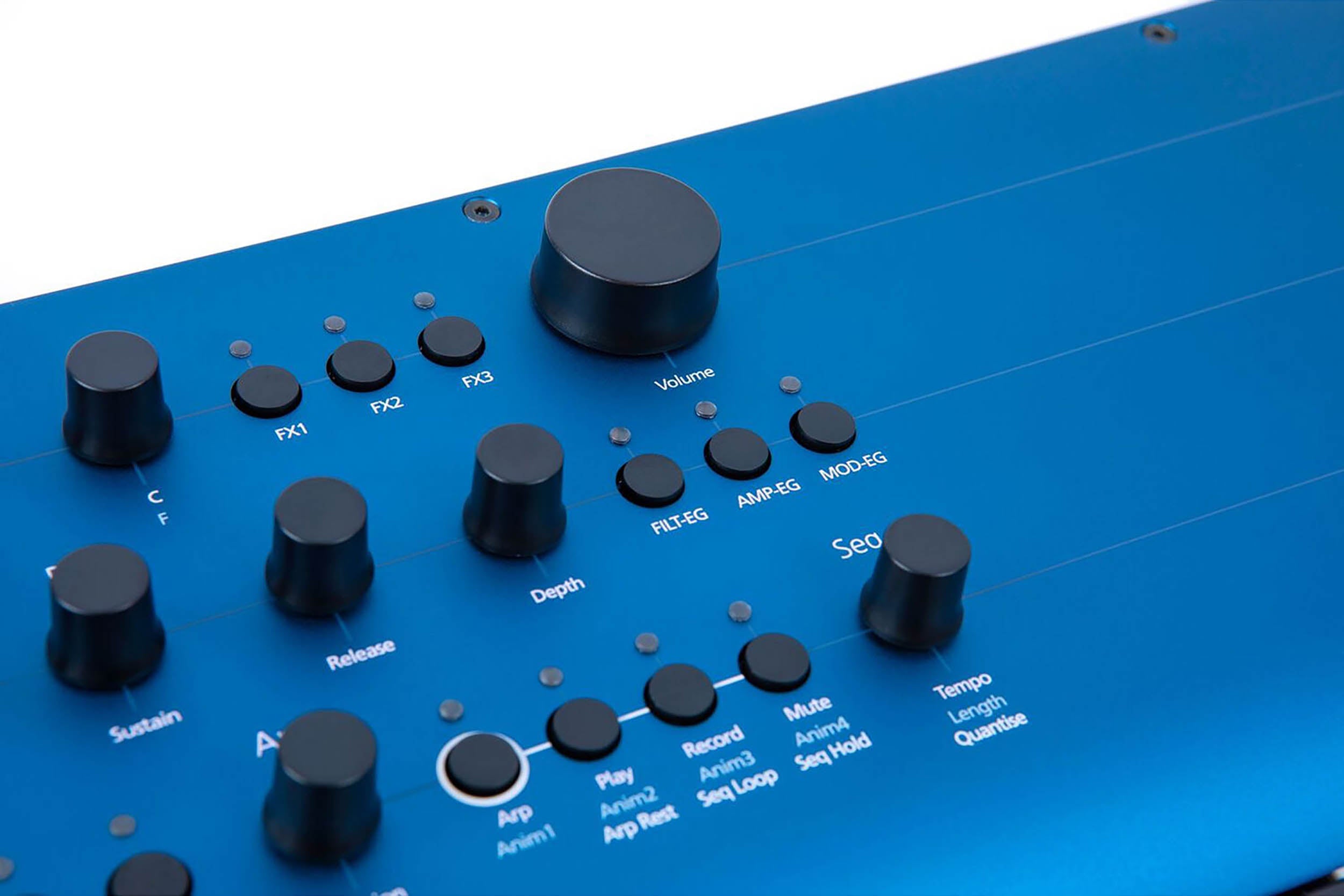

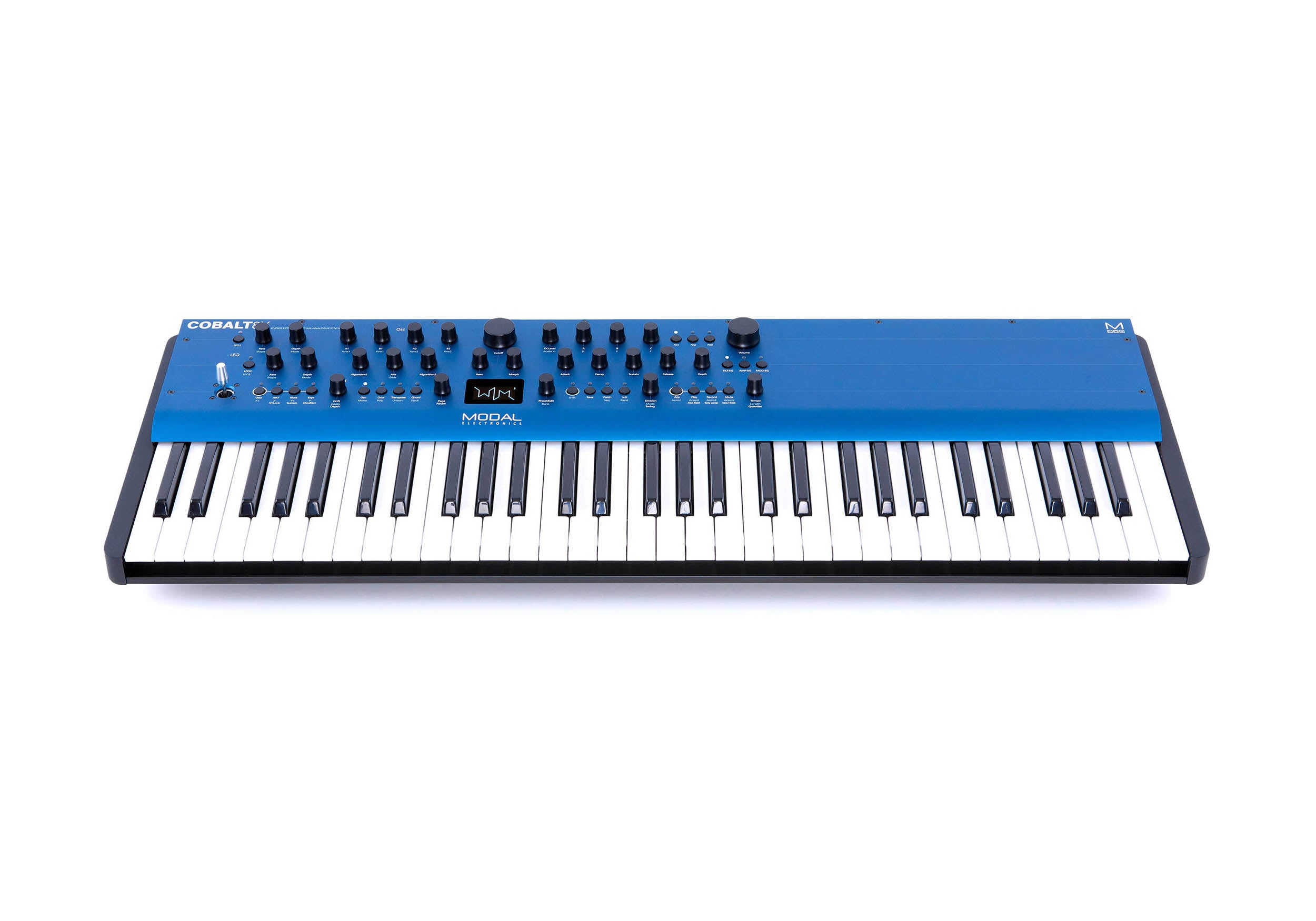

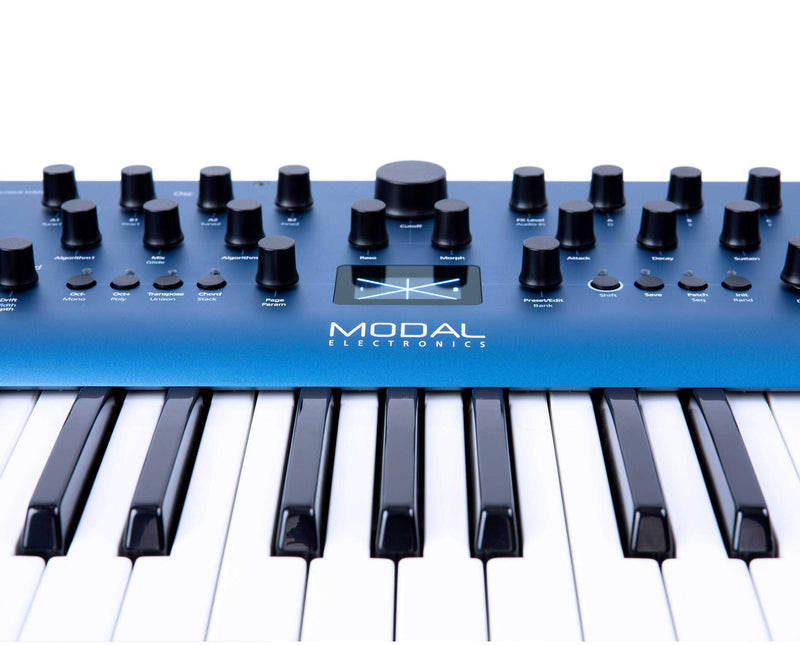

Professional keyboard players will love COBALT8X’s rugged steel and aluminium chassis and the premium FATAR 61-note full-size key bed. The keys support channel aftertouch and deliver smooth action to express powerful playing performances. For direct access of the parameters, COBALT8X features 29 endless knobs, 24 buttons and an X/Y joystick for pitch or modulation, and MPE support offers new ways of creative expression for sophisticated performers.

Studio-grade FX included

Reshape your sounds completely with the onboard stereo effects engine. COBALT8X comes with a 3-slot FX engine with in-depth FX programming. To polish the sound, a total of 26 FX algorithms add character and depth, including rich Reverbs, warm Chorus effects, swirling Phasers and Flangers, Tremolo, LoFi, Rotary, wide Delays, Equaliser, Compressor and more.

Looking to connect

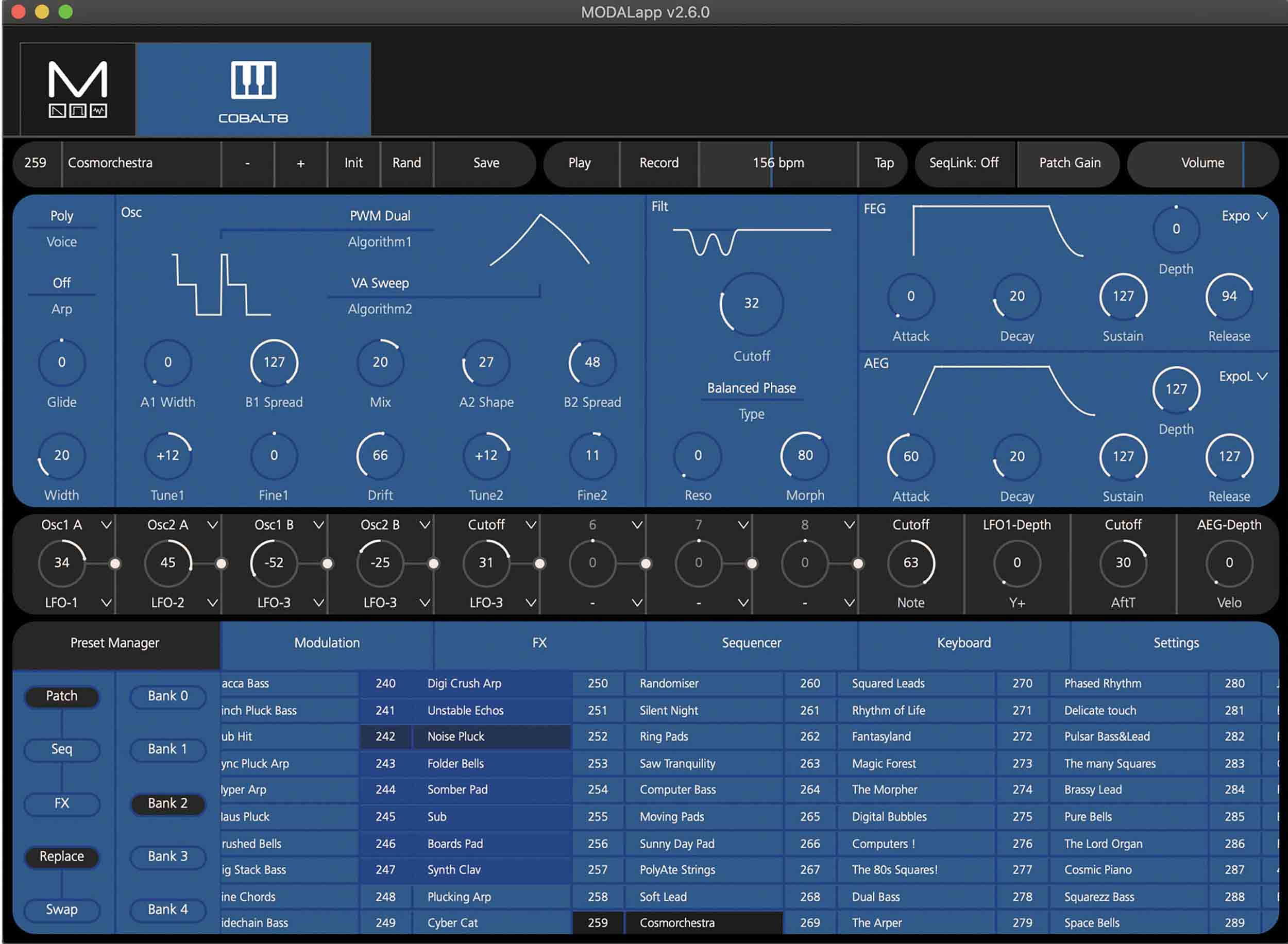

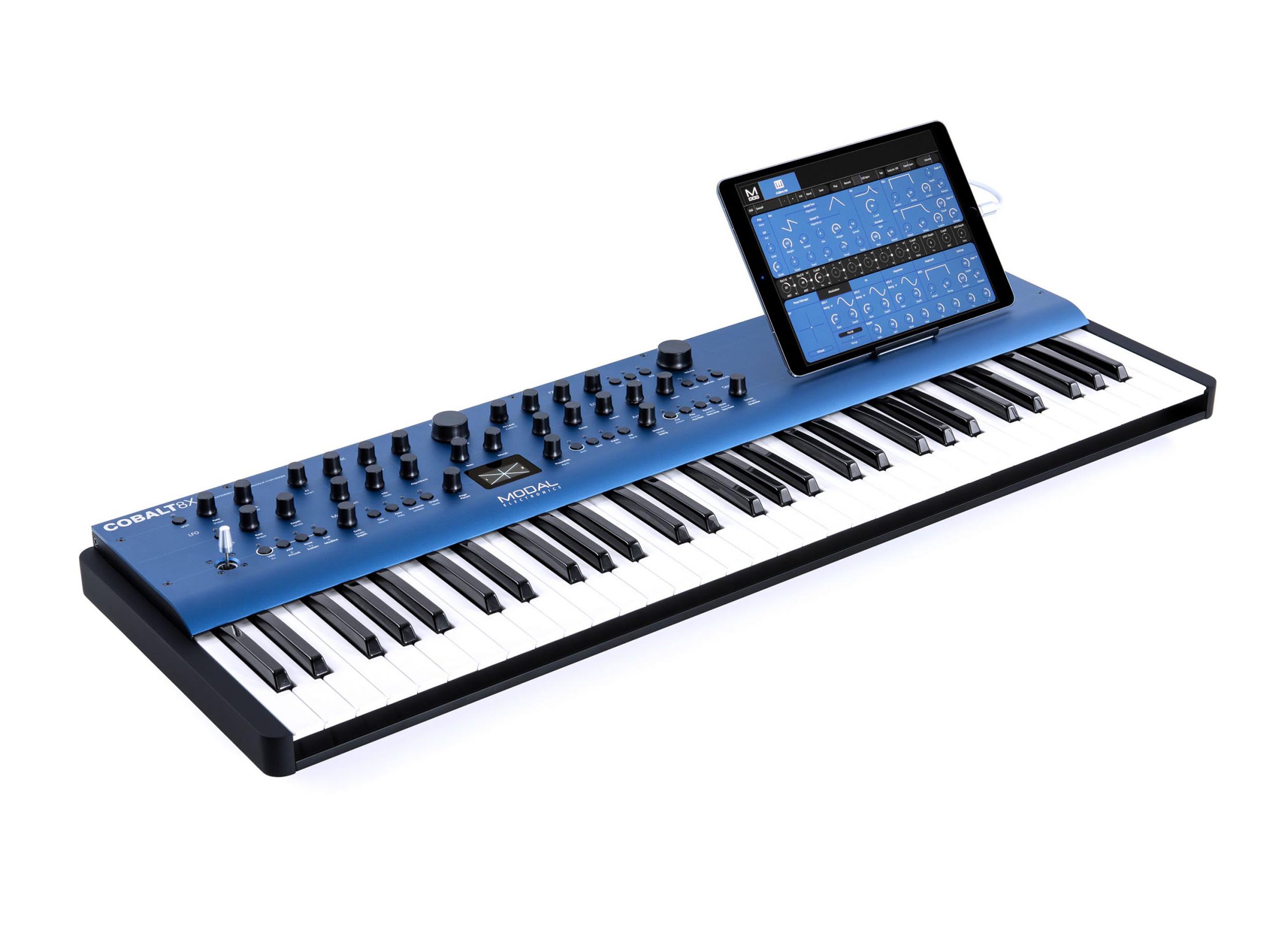

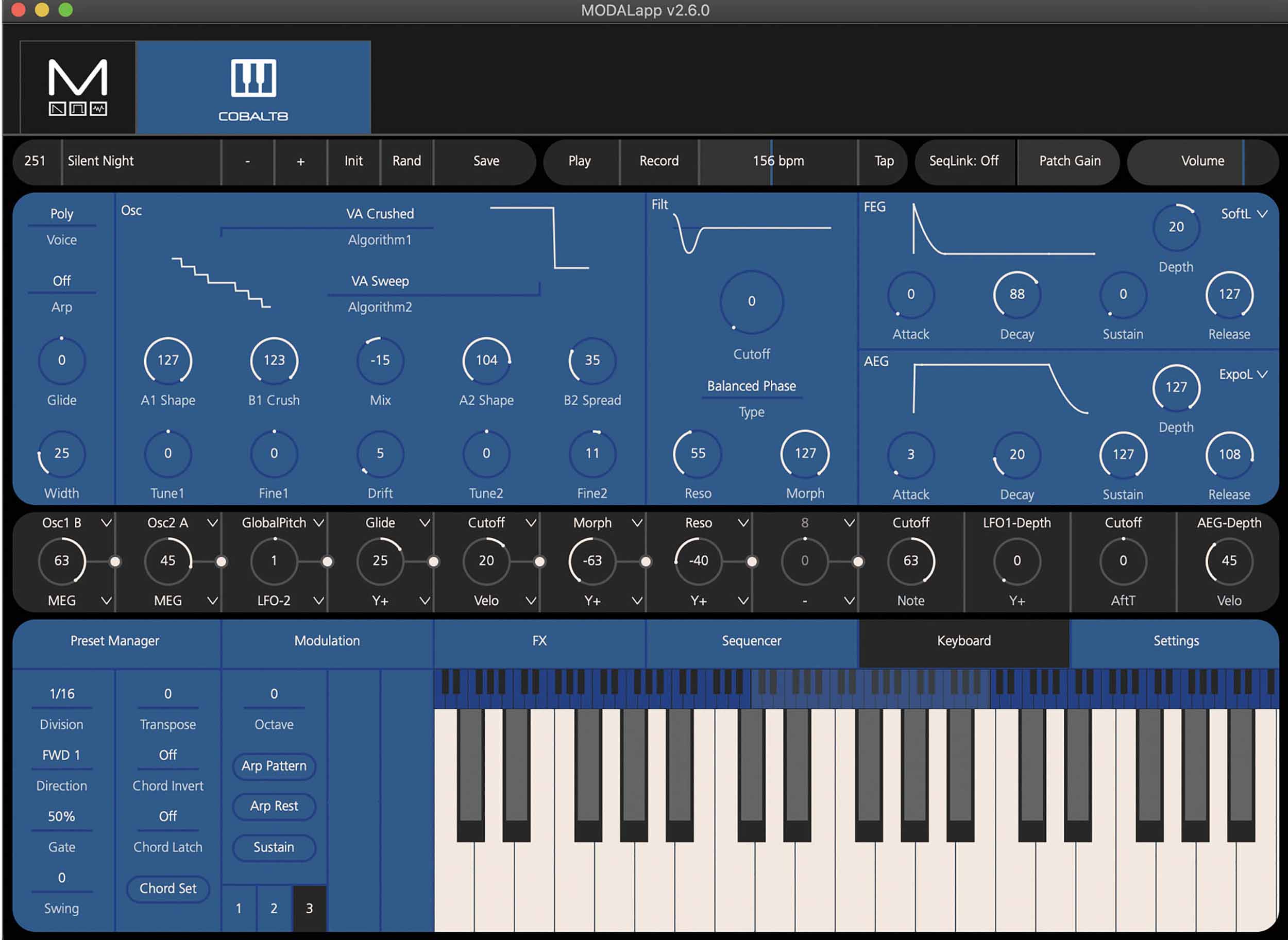

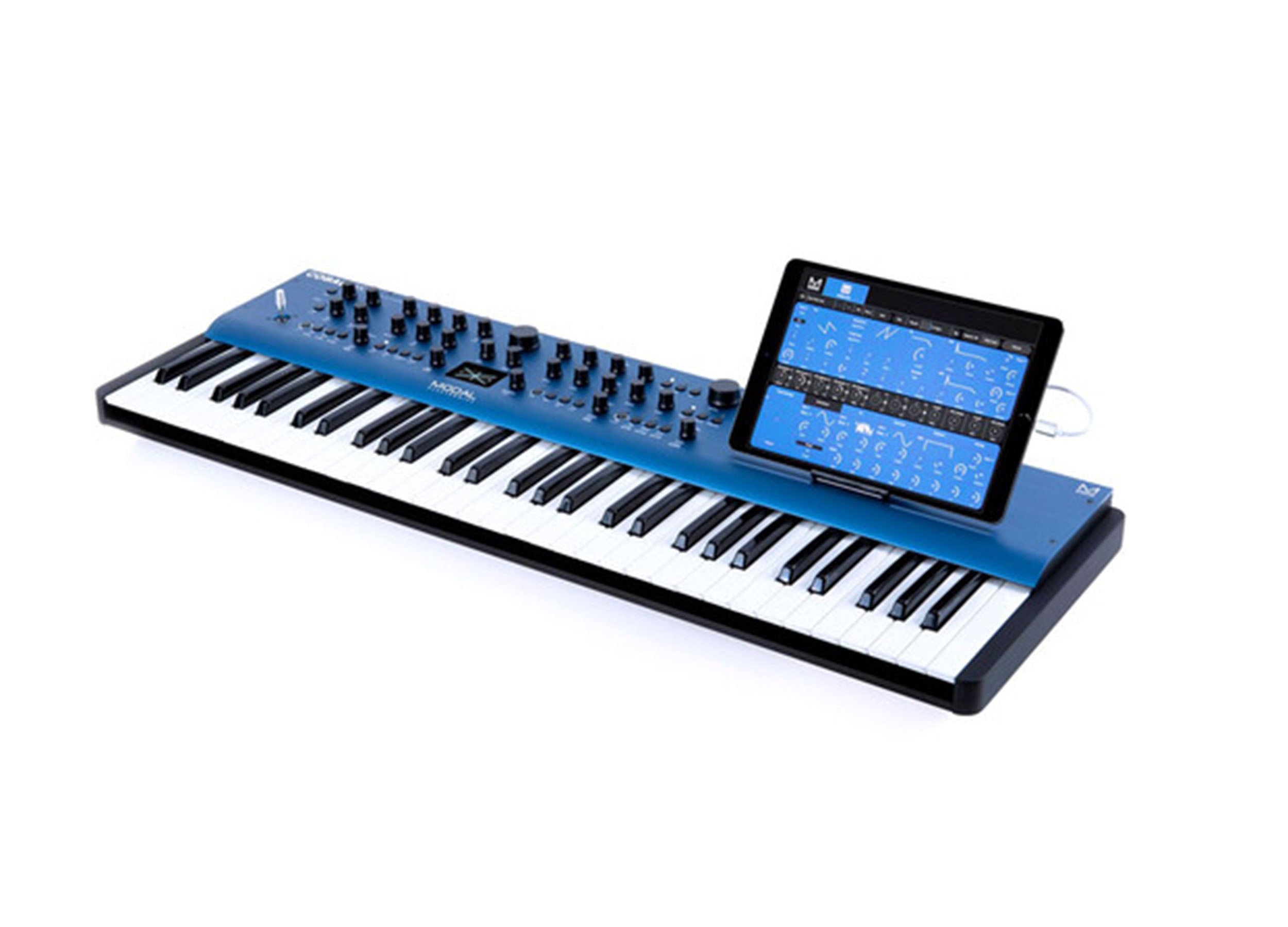

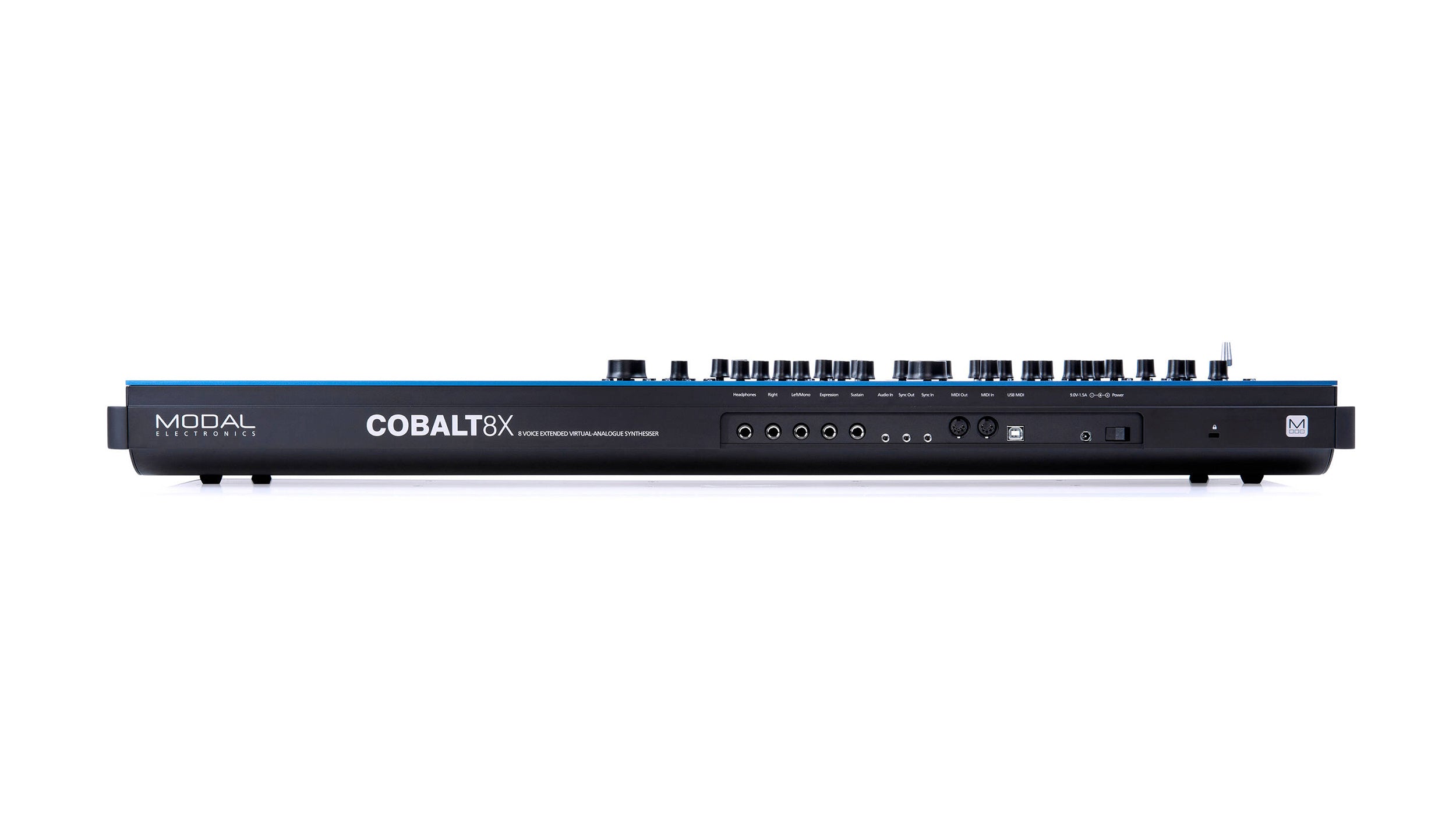

Set to be played in any synth environment, COBALT8X comes with all physical connections required. Control the synth using USB, monitor with headphones or using the dedicated line outputs, sync with external gear using the full-size MIDI in and out or the 3.5 mm Sync in or outputs and take control of your sound using the built-in Sustain and Expression inputs. By poly-chaining any two COBALT8 devices, the amount of voices is easily doubled to 16 voices and 128 oscillators.

Product Specifications:

Number of Keys: 61

Aftertouch: Yes

Polyphony: 8 Voices

Number of Presets: 300 factory, 500 user

Oscillators: 8 x VCO per voice

Waveforms: Sine, Triangle, Saw, Pulse

LFO: 3 x LFO (polyphonic/global mode)

Filter: 4-pole Ladder Filter

Envelope Generator: 3 x EG (amp, filter, mod)

Arpeggiator: Yes

Sequencer: Real-time 512-note

Audio Inputs: 1 x 1/8" TRS (stereo)

Audio Outputs: 2 x 1/4" TS (Left/Mono, Right)

Headphones: 1 x 1/4" TRS

USB: 1 x Type B

MIDI I/O: In/Out/USB, MIDI Polyphonic Expression

Pedal Inputs: 1 x 1/4" (expression), 1 x 1/4" (sustain)

Other I/O: 2 x 1/8" TS (clock sync)

Power Source: 9V DC power supply (included)

Mod Matrix: 8 Assignable Slots, 4 Fixed Slots, 12 Sources, 55 Destinations

OS Requirements - Mac: OS X 10.10 or later, iOS 12 later

OS Requirements - PC: Windows 8 or later, Android 6.0 or later

Effects Types: 100 FX presets (chorus, phaser, flanger, tremolo, lo-fi, rotary, delay, reverb)

Shipping Weight: 24 lbs.

Shipping Dimensions: 38 x 15 x 6"
