Description

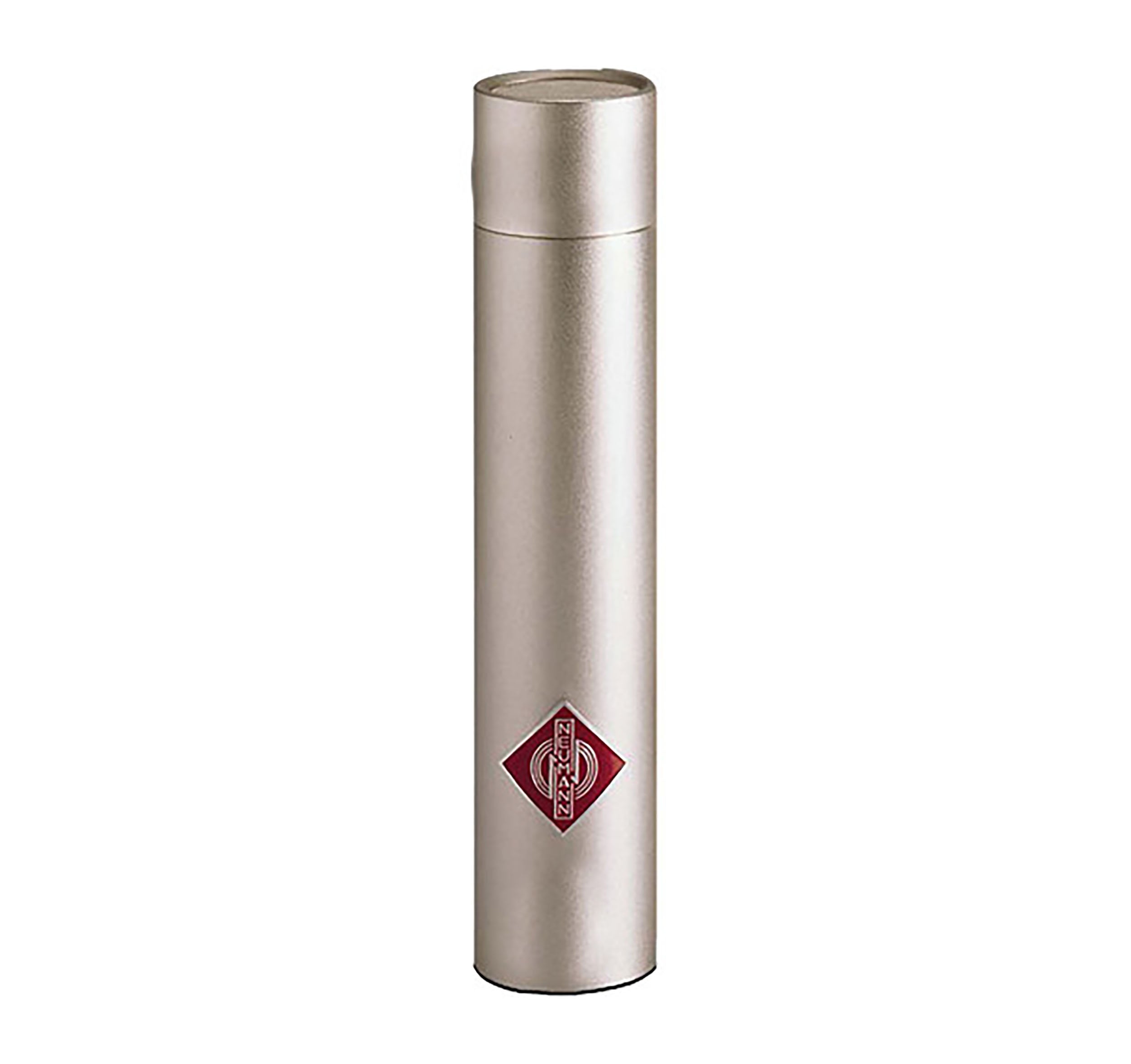

The Neumann KM 183-NI Condenser Microphone - Nickel is an omnidirectional, pressure condenser microphone intended for live sound reinforcement and broadcast as well as recording applications. The KM 180 series microphones feature an output stage based on the KM 100. Transformer less circuitry and balanced output result in high output gain with a very low noise floor and no coloration to the output signal.
The KM 183 is powered via +48V phantom power. Its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 183's omnidirectional polar pattern provides a generous pick up area and is suitable for X, Y (with cardioid mic and baffle plate) stereo miking, ambiance miking or spot miking instruments such as piano, wind instruments organ and choir. The KM 183 handles sound pressure levels up to 140 dB allowing close miking of instruments high in transient (peak) level response.
Omnidirectional Polar Pattern
The omnidirectional polar pattern offers a generous pick up area, suitable for room ambiance capture as well as spot miking on piano, organ, wind instruments and choir.
KM 100 Based Output Stage
The KM 183 features the same output stage electronics as the KM 100. Transformer less circuitry and quiet balanced output design ensure a clean, high gain output signal without any coloration.
Compact Rugged Construction
The slim design and rugged construction allow easy microphone placement while remaining road worthy.
+48 Volt Phantom Power
The KM 183 is powered by +48V phantom power, and its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 183 handles sound pressure levels up to 140 dB, allowing close miking of instruments high in transient (peak) level response.
Product Specifications
Operating Principle: Pressure Gradient
Capsule: Condenser
Polar Pattern: Omnidirectional
Frequency Range: 20 Hz to 20 kHz
Maximum SPL: 135 dB SPL
Impedance: 50 Ohms
Load Impedance: 1000 Ohms
Sensitivity: 12 mV/Pa at 1 kHz into 1 Kilohms
THD: 0.5%
Operating Voltage: 48 V ± 4 V
Operating Current Consumption: 3.2 mA
Package Weight: 2 lbs
Box Dimensions (LxWxH): 10 x 3 x 2"
