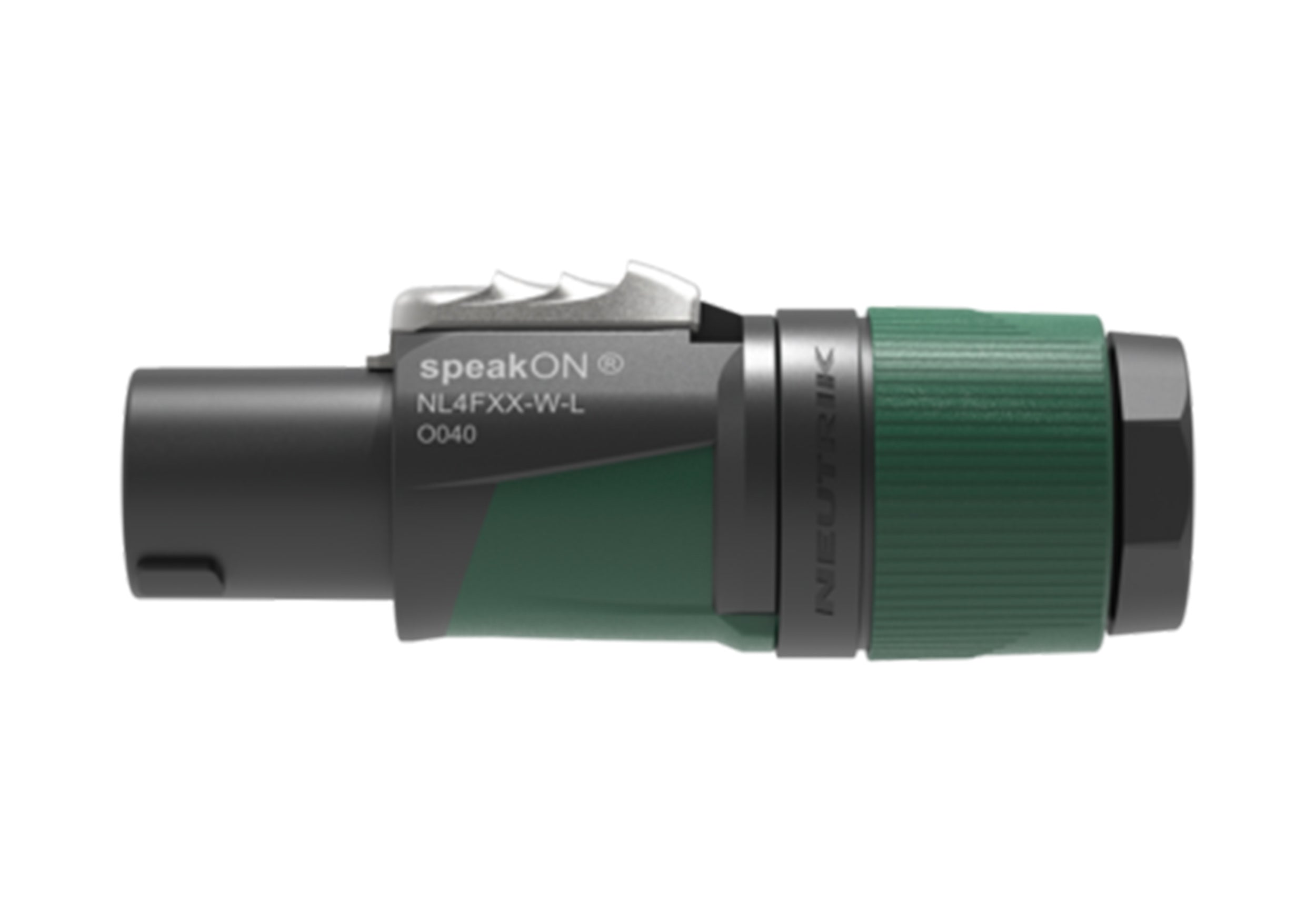

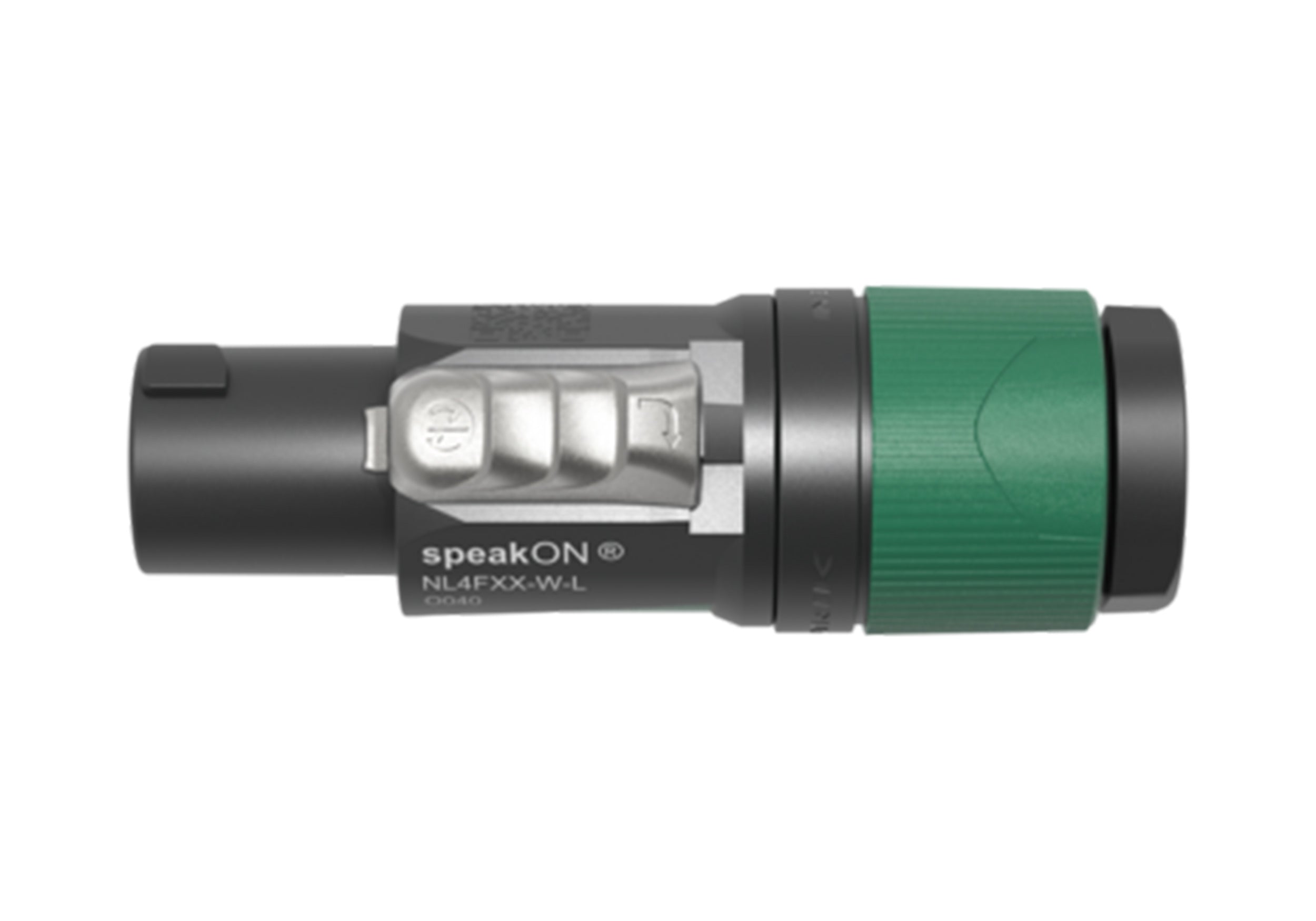

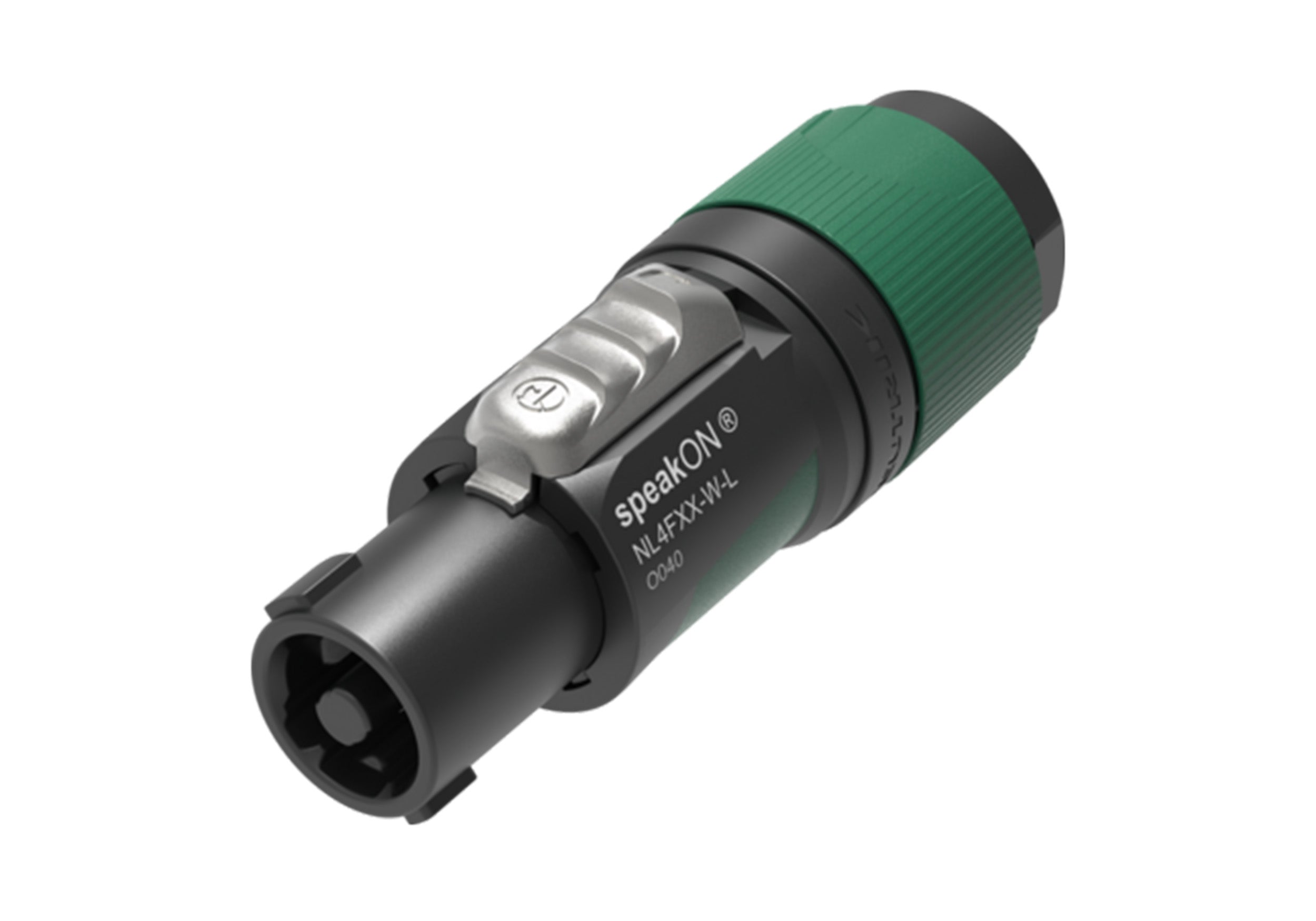

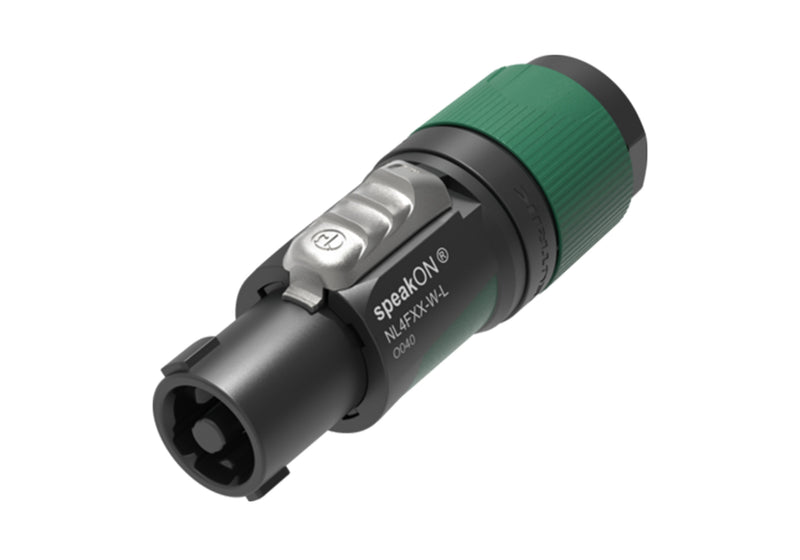

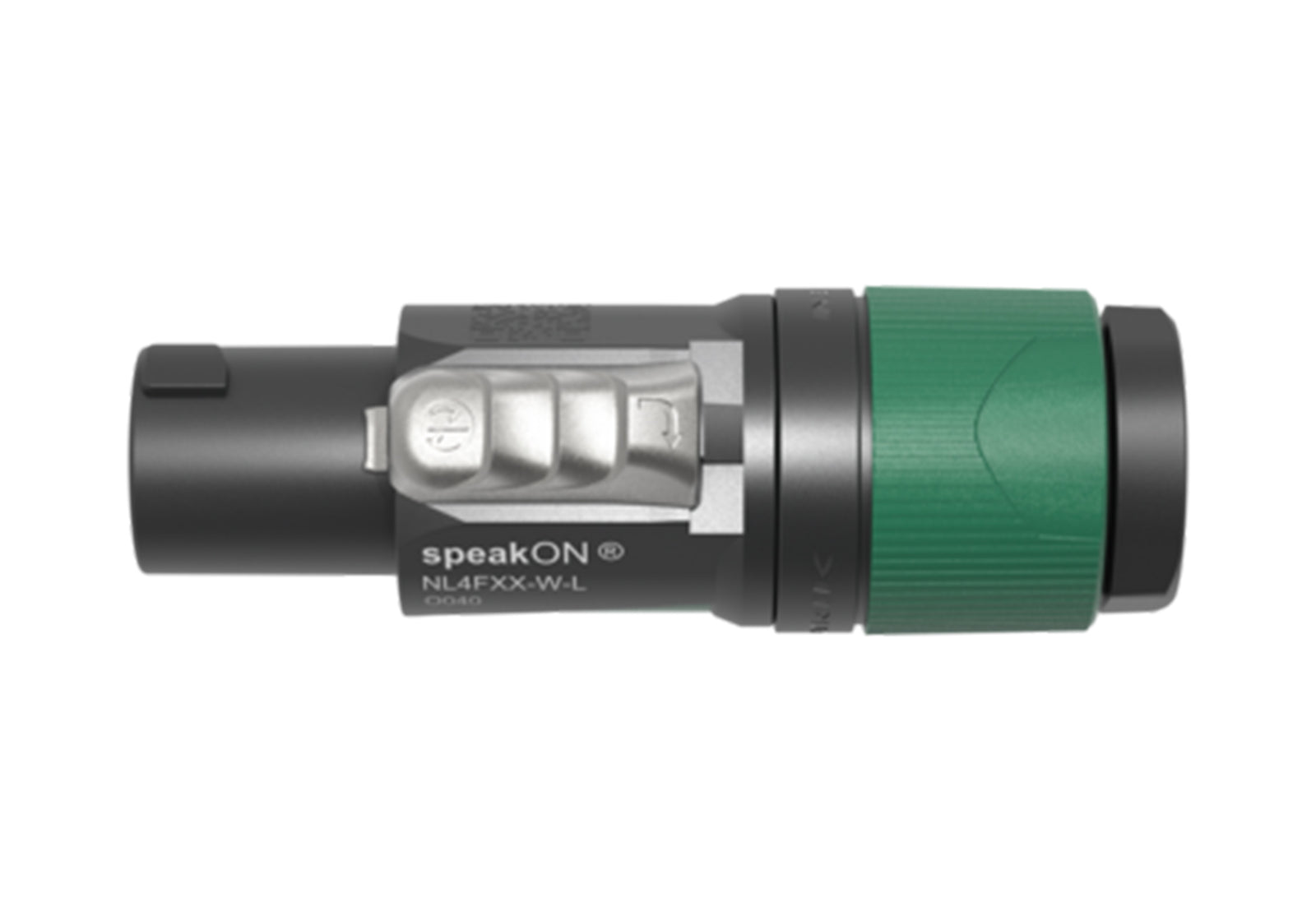

Neutrik NL4FXX-W-L SpeakON Cable Connector w/ Slip-Proof 2-Component

The Neutrik NL4FXX-W-L SpeakON Cable Connector with Slip-Proof 2-Component Housing, Locking Bushing, and Strain Relief for Cables are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

This connector features a unique Neutrik locking bushing and strain relief for cable diameters from 10 mm to 16 mm, delivering superior NEUTRIK quality that is extremely robust and reliable, with an easy-to-assemble design where the strain relief locks mechanically with the insert and aligns with the housing, an easy and reliable twist-lock system, an ergonomic, slip-proof two-component molded housing, and improved kink protection provided by the two-component bushing.

Product Specifications:

Electrical:

Connector series: speakON 4-pole

Number of contacts: 4

Contact resistance: ≤ 2 mΩ

Dielectric strength: 2.8 kVac

Insulation resistance: > 10 GΩ (initially)

Rated Current & Voltage:

Europe (IEC 61984): 37 A, 250 V AC

USA (UL1977): 35 A, 250 V AC

Canada (CSA C22.2 No.182.3): 24 A, 250 V AC

Mechanical Specifications:

Cable outer diameter: 10 – 16 mm

Wire size: 1.5 – 4 mm²

Wire gauge: 17 – 11 AWG

Locking system: Twist-lock

Termination: Screw-type terminals

Mating life: Typically 5,000 cycles

Material Construction:

Contacts: Copper alloy

Contact plating: Silver (Ag)

Insert: Polyamide (PA6.6)

Shell: Polyamide (PA6) / TPE

Locking element: Zinc diecast

Strain relief: Polyketone

Bushing: Polypropylene / TPE

Environmental PerformanceL:

Operating temperature: –33 °C to +80 °C

Protection class: IP20

Flammability rating: UL94 V-0

Product Weight: 0.5 lbs

Shipping Dimensions: 3.9 x 2 x 2 inches

Shipping Weight: 1 lbs
